1.
April 27, 2018
PRESENTED
BY
Designing & Building Secure Web APIs
Vivek Thuravupala
Software Engineer @ Postman

2.

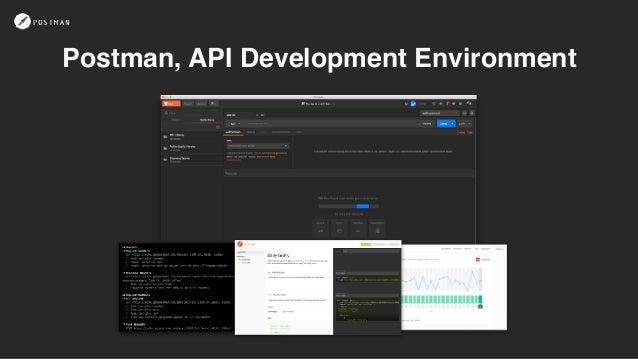

Postman, API Development Environment

3.
Relevance

4.
APIs have been
exploding.
THOUSANDS
OF APIs!

5.

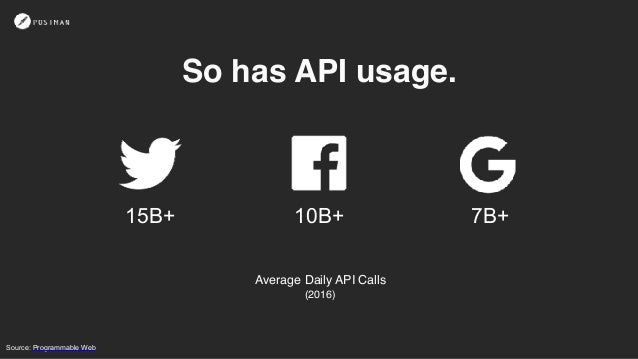

So has API usage.
15B+ 10B+ 7B+
Average Daily API Calls
(2016)
Source: Programmable Web

6.

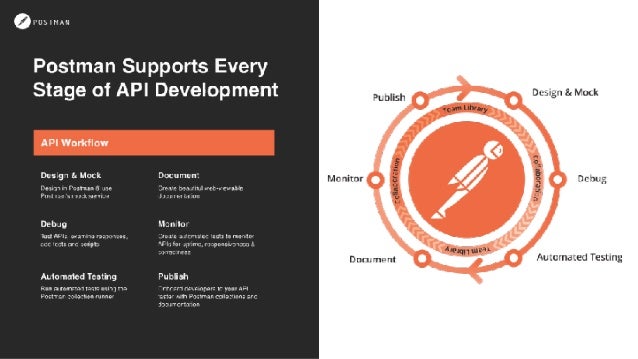

The API Lifecycle

7.

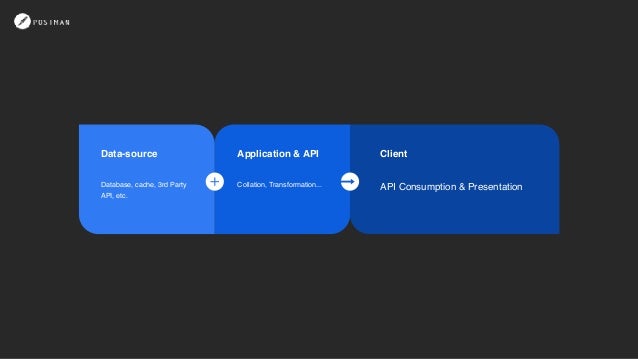

Application & API
Collation, Transformation...
Data-source
Database, cache, 3rd Party
API, etc.
Client
API Consumption & Presentation

8.
Let’s build a GitHub proxy API!
Application & API
Collation, Transformation...
Data-source
Database, cache, 3rd Party
API, etc.
Client
API Consumption & Presentation

9.
Design

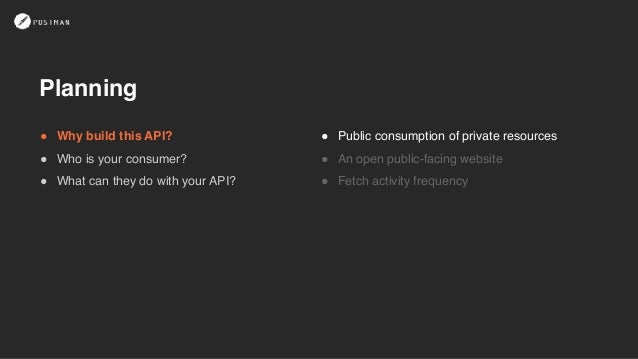

10.
! Why build this API?
! Who is your consumer?
! What can they do with your API?
! Public consumption of private resources
! An open public-facing website
! Fetch activity frequency
Planning

11.

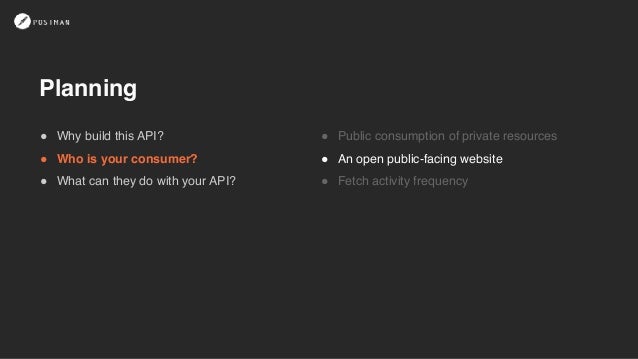

! Why build this API?
! Who is your consumer?
! What can they do with your API?
! Public consumption of private resources
! An open public-facing website
! Fetch activity frequency
Planning

12.
! Public consumption of private resources
! An open public-facing website
! Fetch activity frequency
! Why build this API?
! Who is your consumer?
! What can they do with your API?
Planning

13.

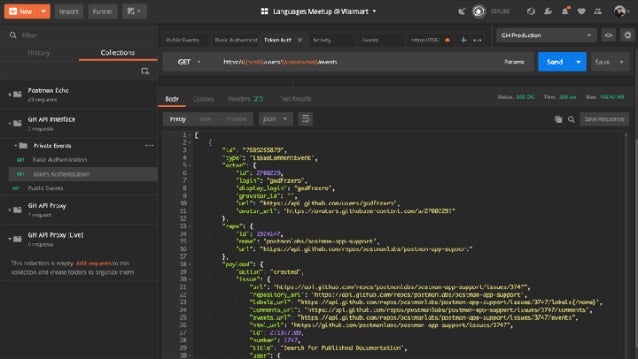

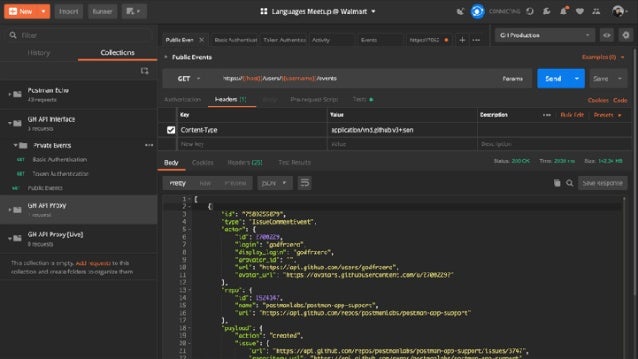

Let’s take a quick peek
at the GitHub API

14.
TODO: Add API screenshots here

15.
TODO: Add API screenshots here

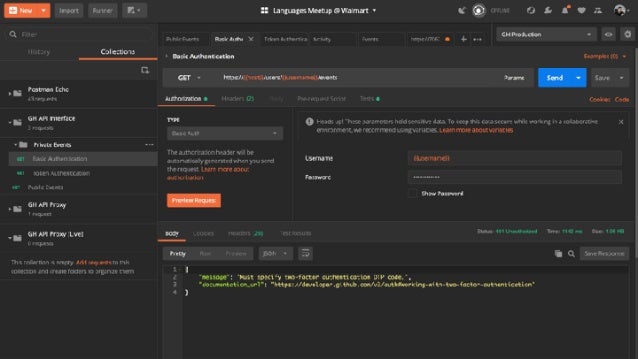

16.
TODO: Add API screenshots here

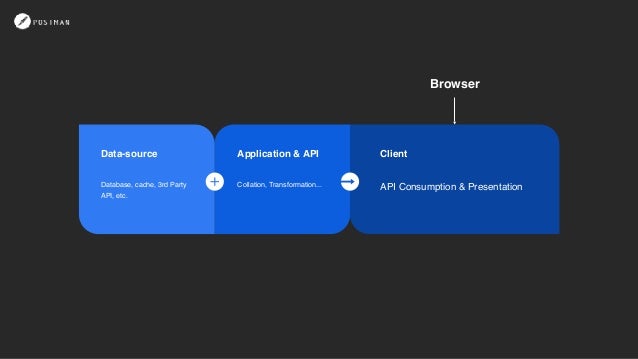

17.
Application & API
Collation, Transformation...
Data-source
Database, cache, 3rd Party
API, etc.
Client
API Consumption & Presentation
Browser

18.
Security Blanket
! CORS
! HTTPS
! Strict-Transport-Security
! Set-Cookie: SameSite, Secure,
HttpOnly
! X-Frame-Options
! Hide Application/Framework Headers
Leverage the ecosystem

19.
Security Blanket
Reference: MDN
Cross-origin Resource Sharing
Chrome 4+, Edge 12+, FF 3.5+, IE 10+, Safari 4+
https://www.origin2.com
Get all emails
https://www.origin1.com
XHR/Fetch call

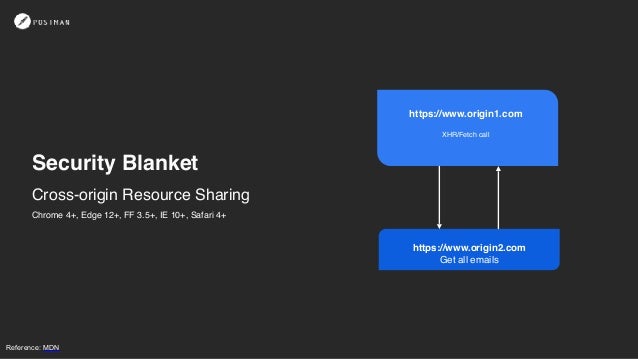

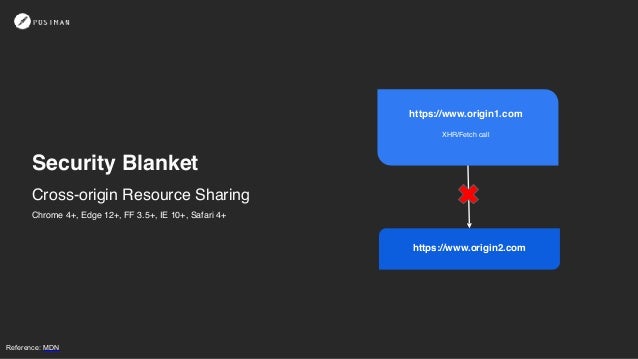

20.
Security Blanket
Reference: MDN
Cross-origin Resource Sharing
https://www.origin2.com
https://www.origin1.com
XHR/Fetch call
Chrome 4+, Edge 12+, FF 3.5+, IE 10+, Safari 4+

21.

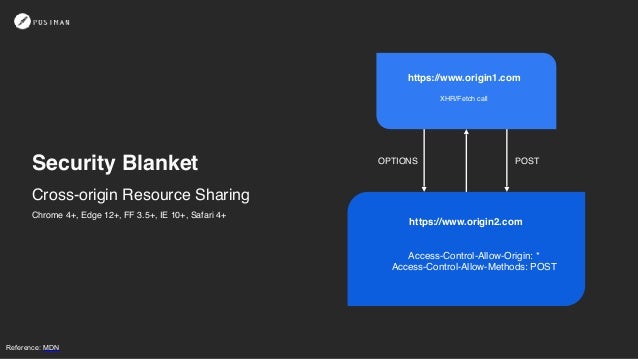

Security Blanket
Reference: MDN
Cross-origin Resource Sharing
https://www.origin2.com
Access-Control-Allow-Origin: *
Access-Control-Allow-Methods: POST
https://www.origin1.com
XHR/Fetch call
OPTIONS POST
Chrome 4+, Edge 12+, FF 3.5+, IE 10+, Safari 4+

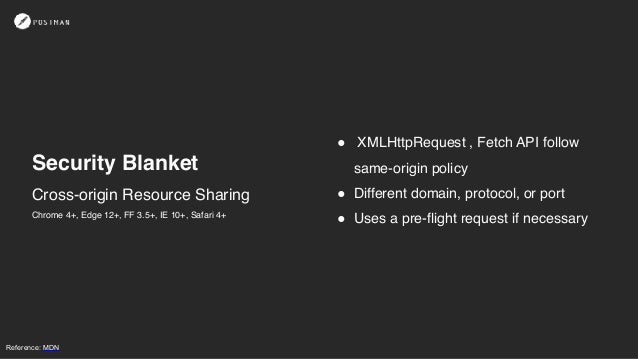

22.
Cross-origin Resource Sharing
Security Blanket
! XMLHttpRequest , Fetch API follow
same-origin policy
! Different domain, protocol, or port
! Uses a pre-flight request if necessaryChrome 4+, Edge 12+, FF 3.5+, IE 10+, Safari 4+
Reference: MDN

23.
Security Blanket
! HTTP over TLS
! Enforced on the client
! Does not hide origin/destination IP
Chrome 4+, Edge 12+, FF 4+, IE 11, Safari 7+
Reference: MDN
HTTPS + HSTS

24.

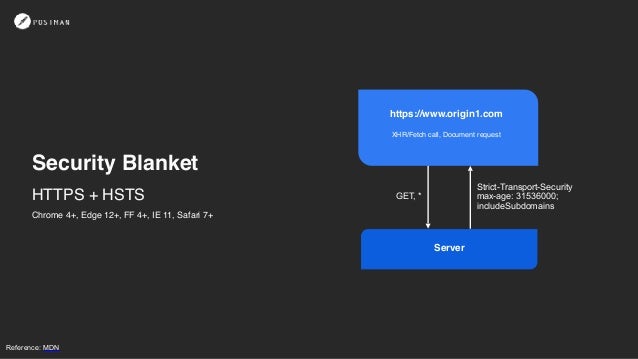

Security Blanket
Reference: MDN
HTTPS + HSTS
Server
https://www.origin1.com
XHR/Fetch call, Document request
GET, *
Strict-Transport-Security
max-age: 31536000;
includeSubdomains
Chrome 4+, Edge 12+, FF 4+, IE 11, Safari 7+

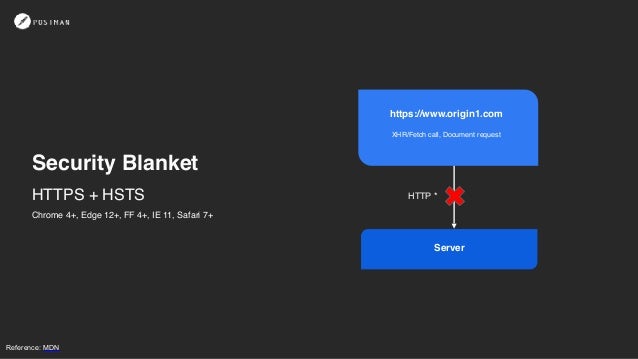

25.
Security Blanket
Reference: MDN
HTTPS + HSTS
Server
https://www.origin1.com
XHR/Fetch call, Document request
HTTP *
Chrome 4+, Edge 12+, FF 4+, IE 11, Safari 7+

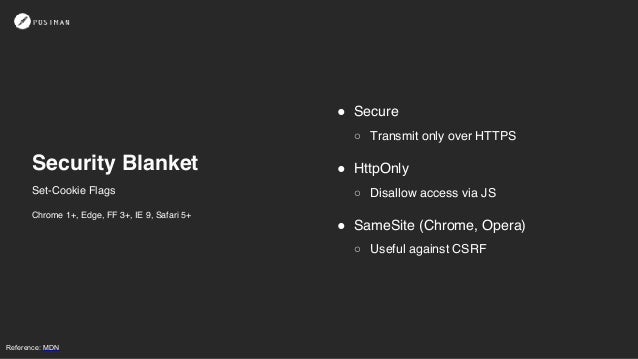

26.
Security Blanket
! Secure
○ Transmit only over HTTPS
! HttpOnly
○ Disallow access via JS
! SameSite (Chrome, Opera)
○ Useful against CSRF
Reference: MDN
Set-Cookie Flags
Chrome 1+, Edge, FF 3+, IE 9, Safari 5+

27.

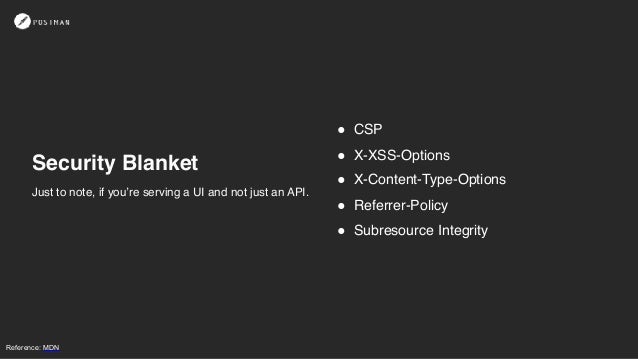

Security Blanket
! CSP
! X-XSS-Options
! X-Content-Type-Options
! Referrer-Policy
! Subresource Integrity
Just to note, if you’re serving a UI and not just an API.
Reference: MDN

28.

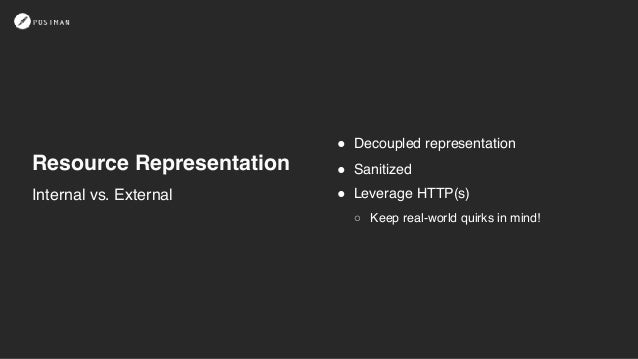

Resource Representation
! Decoupled representation
! Sanitized
! Leverage HTTP(s)
○ Keep real-world quirks in mind!
Internal vs. External

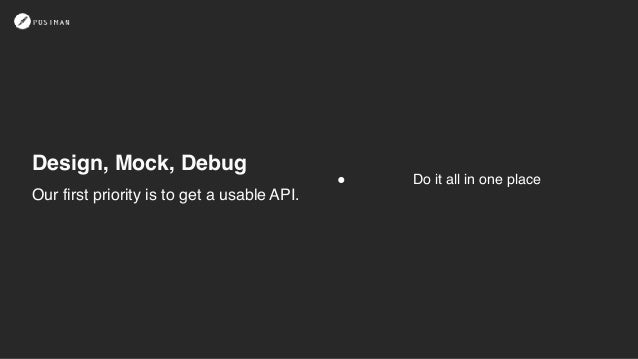

29.

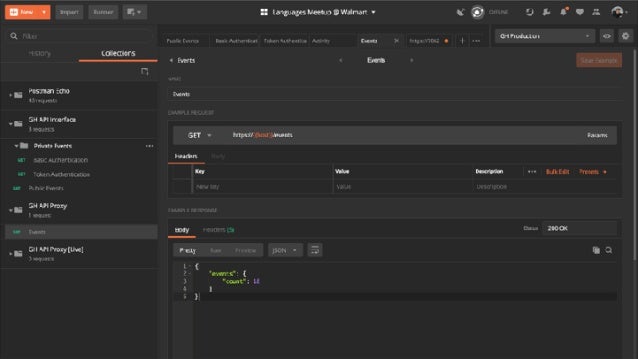

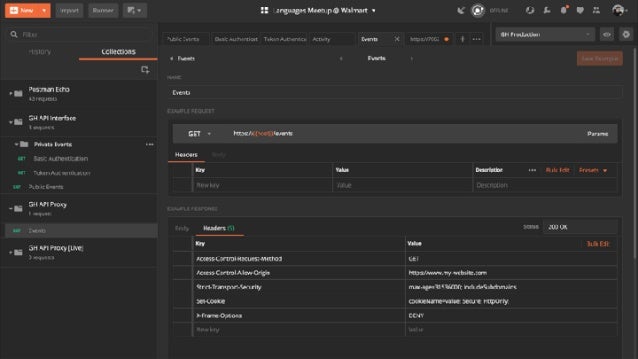

Design, Mock, Debug
! Do it all in one place
Our first priority is to get a usable API.

30.
TODO: Add mock/test screenshots/video herehttps://www.townscript.com/e/walmart-meetup/booking

31.

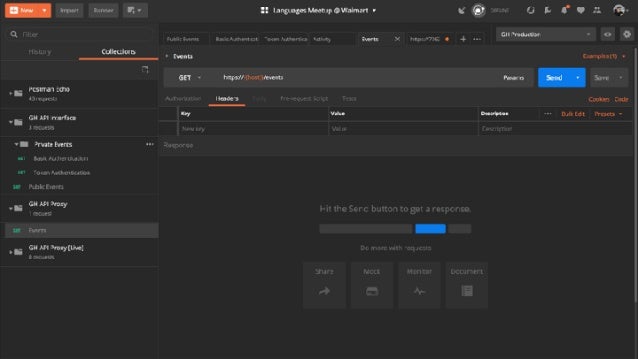

TODO: Add mock/test screenshots/video here

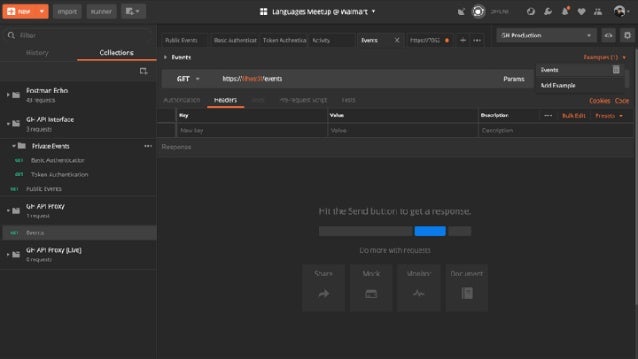

32.
TODO: Add mock/test screenshots/video herehttps://www.townscript.com/e/walmart-meetup/booking

33.
TODO: Add mock/test screenshots/video here

34.
Versioning
A quick word.

35.
Versioning
! Twitter, 3 versions, 5 years
! Google Maps, 3 versions, 8+ years
! GitHub, 3 versions, 6+ years
Try to avoid (breaking) versioning

36.
Versioning ! Facebook Graph API
! Versions: ¯_(ツ)_/¯Try to avoid (breaking) versioning

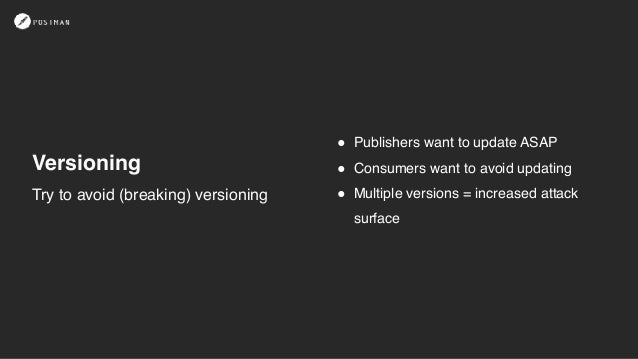

37.
Versioning
! Publishers want to update ASAP
! Consumers want to avoid updating
! Multiple versions = increased attack
surface
Try to avoid (breaking) versioning

38.
Build

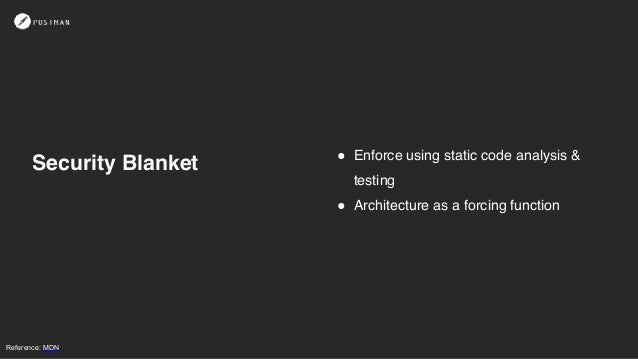

39.
Security Blanket
! Enforce using static code analysis &
testing
! Architecture as a forcing function
Reference: MDN

40.

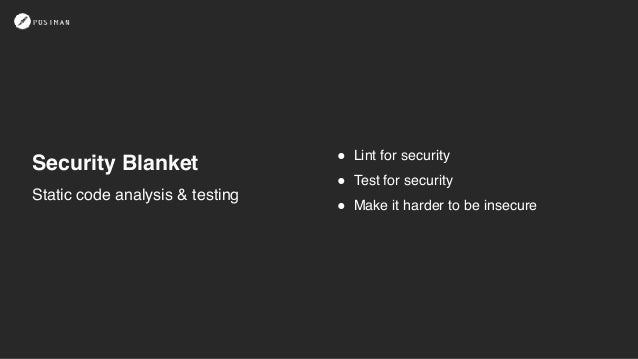

Security Blanket
! Lint for security
! Test for security
! Make it harder to be insecure
Static code analysis & testing

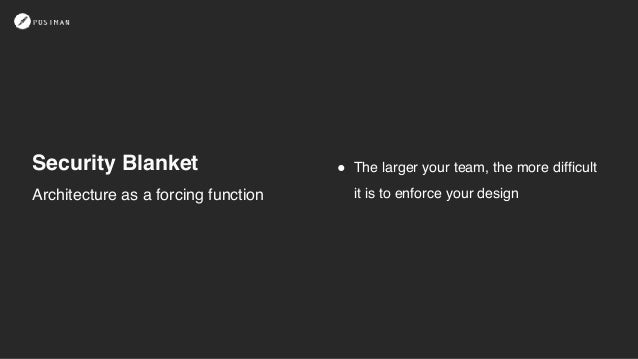

41.
Security Blanket
Architecture as a forcing function
! The larger your team, the more difficult
it is to enforce your design

42.
“A forcing function is an aspect of a
design that prevents the user from
taking an action without consciously
considering information relevant to
that action.”
Security Blanket
Reference: Interaction Design Foundation
Architecture as a forcing function

43.
Security Blanket
! Make it much harder to be insecure
Architecture as a forcing function

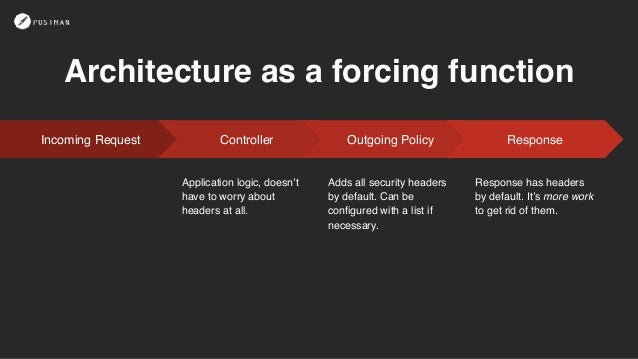

44.
Incoming Request Controller
Application logic, doesn’t
have to worry about
headers at all.
Outgoing Policy
Adds all security headers
by default. Can be
configured with a list if
necessary.
Response
Response has headers
by default. It’s more work
to get rid of them.
Architecture as a forcing function

45.

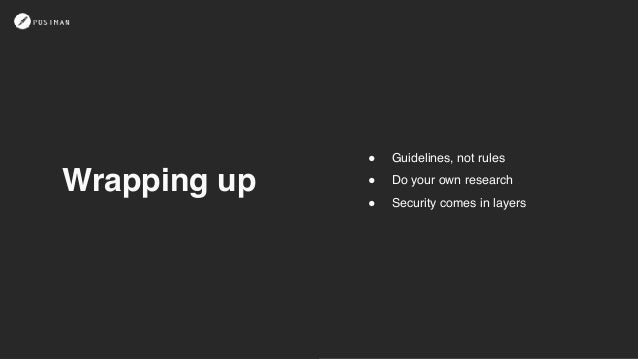

! Guidelines, not rules
! Do your own research
! Security comes in layers
Wrapping up

46.
Thank You!
@godfrzero @postmanclient
