CPWF Conference: Revitalizing the
Ganges Coastal Zone
21-23 October 2014

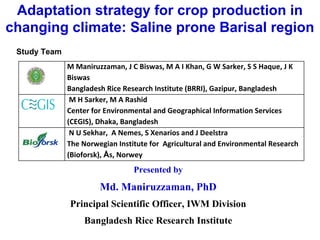

Adaptation strategy for crop production in
changing climate: Saline prone Barisal region
Study Team
M Maniruzzaman, J C...

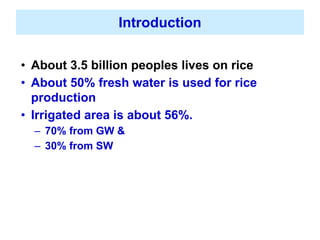

Introduction
• About 3.5 billion peoples lives on rice
• About 50% fresh water is used for rice
production
• Irrigated...

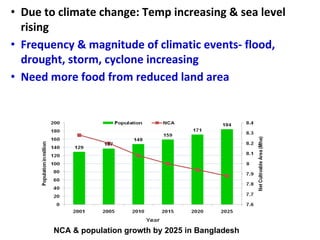

• Due to climate change: Temp increasing & sea level
rising
• Frequency & magnitude of climatic events- flood,
drought,...

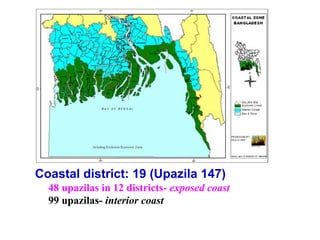

Coastal district: 19 (Upazila 147)
48 upazilas in 12 districts- exposed coast
99 upazilas- interior coast
Projected salinity intrusion due to sea level rise
Legend
0 cm SLR (Area : 9239 sq
km)
32 cm SLR (Area :10612 sq
km) ...

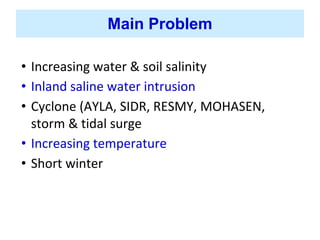

Main Problem
• Increasing water & soil salinity
• Inland saline water intrusion
• Cyclone (AYLA, SIDR, RESMY, MOHASEN, ...

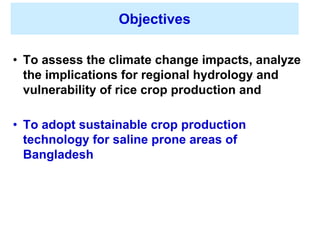

Objectives
• To assess the climate change impacts, analyze
the implications for regional hydrology and
vulnerability of...
Methodology
Study sites: Saline prone Barisal region

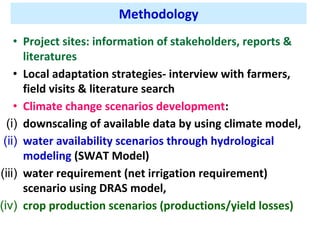

Methodology
• Project sites: information of stakeholders, reports &
literatures
• Local adaptation strategies- intervie...

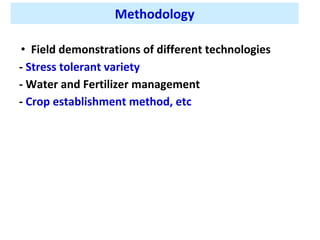

Methodology
• Field demonstrations of different technologies
- Stress tolerant variety
- Water and Fertilizer managemen...

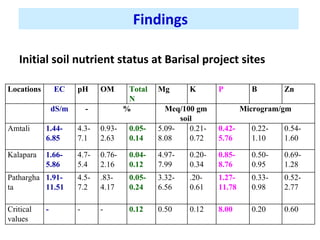

Findings
Initial soil nutrient status at Barisal project sites
Locations EC pH OM Total
N
Mg K P B Zn
dS/m - % Meq/10...

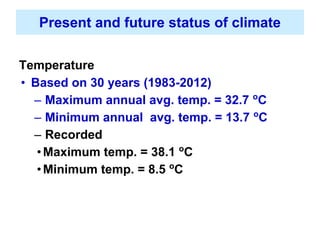

Present and future status of climate
Temperature
• Based on 30 years (1983-2012)
– Maximum annual avg. temp. = 32.7 oC ...

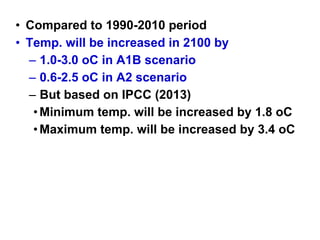

• Compared to 1990-2010 period
• Temp. will be increased in 2100 by
– 1.0-3.0 oC in A1B scenario
– 0.6-2.5 oC in A2 sce...

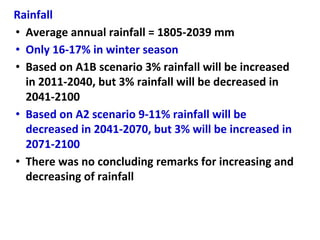

Rainfall
• Average annual rainfall = 1805-2039 mm
• Only 16-17% in winter season
• Based on A1B scenario 3% rainfall wi...

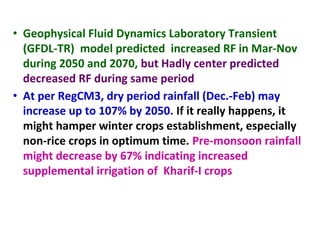

• Geophysical Fluid Dynamics Laboratory Transient
(GFDL-TR) model predicted increased RF in Mar-Nov
during 2050 and 2070...

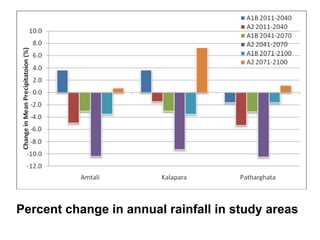

Percent change in annual rainfall in study areas
Thirty years (1983-2012) daily average temp & rainfall, its
variation by 2050 Barisal region

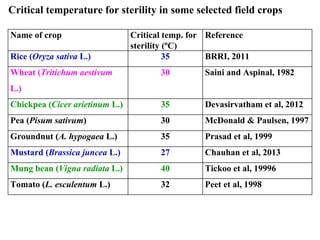

Critical temperature for sterility in some selected field crops
Name of crop Critical temp. for
sterility (oC)
Referenc...

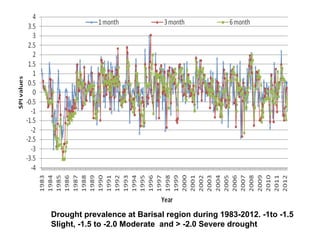

Drought prevalence at Barisal region during 1983-2012. -1to -1.5
Slight, -1.5 to -2.0 Moderate and > -2.0 Severe drought
Water Availability by SWAT Model
• Water availability will be reduced for all season: But it
will be reduced by 12-30% i...

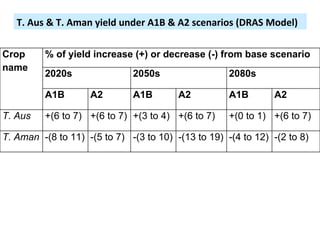

T. Aus & T. Aman yield under A1B & A2 scenarios (DRAS Model)
Crop
name
% of yield increase (+) or decrease (-) from bas...
Demand and surface water availability (mm) at
Amtali upazila, Barguna
Scena
rios
Year T. Aus T. Aman Boro Surplus/Defi...

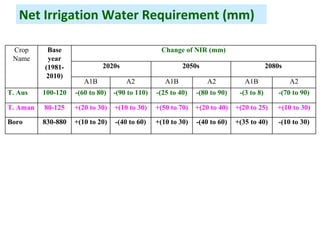

Net Irrigation Water Requirement (mm)
Crop
Name
Base
year
(1981-
2010)
Change of NIR (mm)
2020s 2050s 2080s
A1B A...
The way for climatic adaptation
• Low water demanding crop cultivation
• Salt and heat tolerant variety cultivation
bas...
Farmers adaptation
Major cropping patterns & percent area coverage in study area
Locations Cropping patterns Coverage
(...

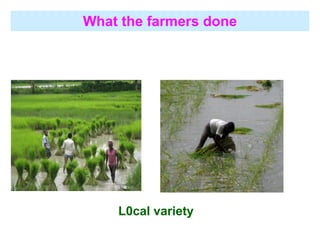

What the farmers done
L0cal variety

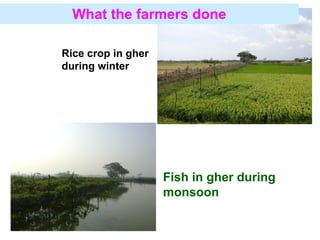

What the farmers done
Fish in gher during
monsoon
Rice crop in gher
during winter

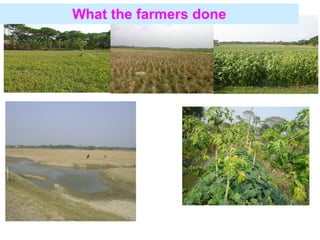

What the farmers done
What the farmers done
Field activities
• Salt and heat tolerant variety cultivation
• Increasing water storage in canal/khal and
motivated th...

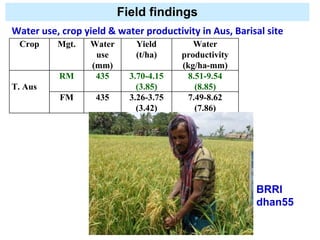

Field findings
Water use, crop yield & water productivity in Aus, Barisal site
Crop Mgt. Water
use
(mm)
Yield
(t/ha)...

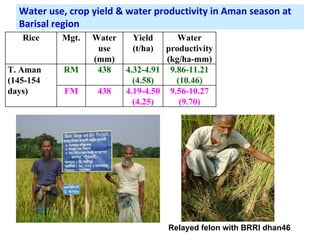

Water use, crop yield & water productivity in Aman season at
Barisal region
Rice Mgt. Water
use
(mm)
Yield
(t/ha)
W...

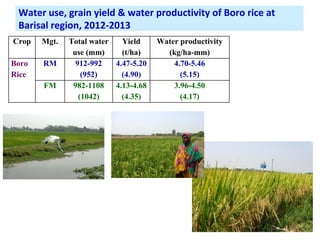

Water use, grain yield & water productivity of Boro rice at
Barisal region, 2012-2013
Crop Mgt. Total water
use (mm)
Y...

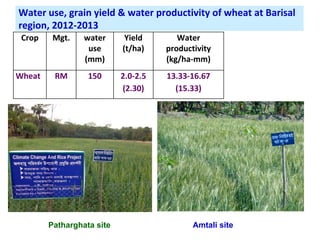

Water use, grain yield & water productivity of wheat at Barisal
region, 2012-2013
Crop Mgt. water
use
(mm)
Yield
(t/...

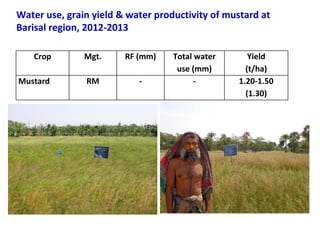

Water use, grain yield & water productivity of mustard at
Barisal region, 2012-2013
Crop Mgt. RF (mm) Total water
use (...

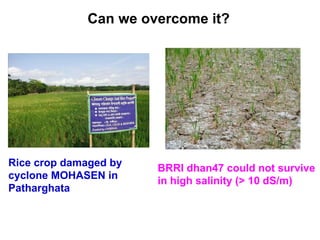

Can we overcome it?
Rice crop damaged by
cyclone MOHASEN in
Patharghata
BRRI dhan47 could not survive
in high salinit...

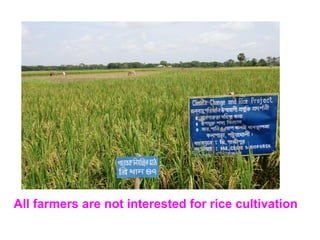

All farmers are not interested for rice cultivation
Crop damaged by salinity
BRRI dhan47
Salinity effect may be reduced by water
management, but it increase irrigation cos...
Capacity building: Farmer’s training/Field days

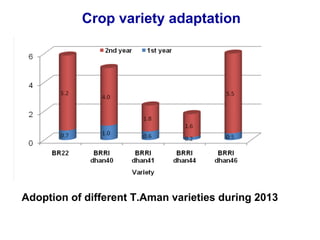

Crop variety adaptation
Adoption of different T.Aman varieties during 2013

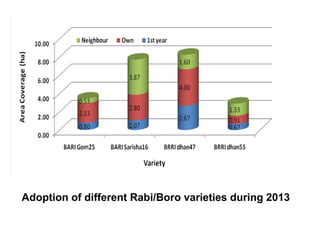

Adoption of different Rabi/Boro varieties during 2013

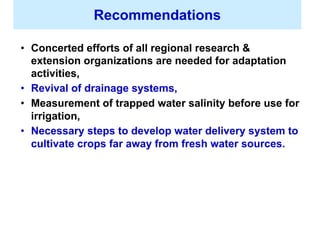

Recommendations
• Concerted efforts of all regional research &
extension organizations are needed for adaptation
activi...
Acknowledgements
• Authors acknowledge the Ministry of Foreign Affairs,
Norway/the Royal Norwegian Embassy, Dhaka for
f...
THANK YOU VERY MUCH
