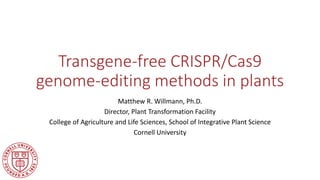

Transgene-free CRISPR/Cas9
genome-editing methods in plants
Matthew R. Willmann, Ph.D.
Director, Plant Transformation Faci...
What do we do at the CALS Plant Transformation
Facility?

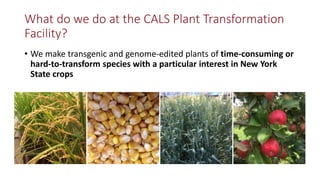

• We make transgenic and genome-edited plants of time-consuming o...

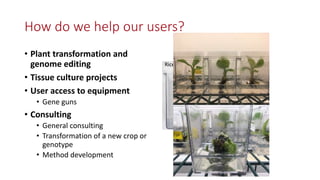

How do we help our users?
• Plant transformation and
genome editing
• Tissue culture projects
• User access to equipment
•...

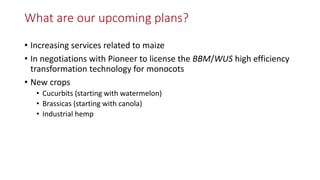

What are our upcoming plans?
• Increasing services related to maize
• In negotiations with Pioneer to license the BBM/WUS ...

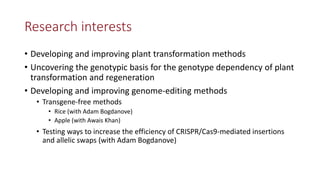

Research interests
• Developing and improving plant transformation methods
• Uncovering the genotypic basis for the genoty...

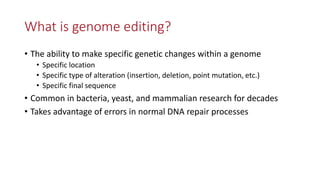

What is genome editing?
• The ability to make specific genetic changes within a genome
• Specific location
• Specific type...

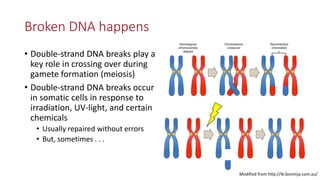

Broken DNA happens
• Double-strand DNA breaks play a
key role in crossing over during
gamete formation (meiosis)
• Double-...

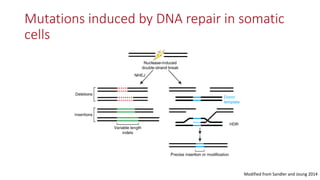

Mutations induced by DNA repair in somatic
cells
Modified from Sandler and Joung 2014

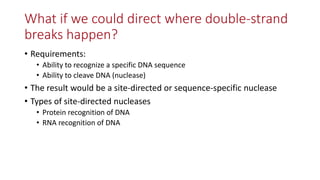

What if we could direct where double-strand
breaks happen?
• Requirements:
• Ability to recognize a specific DNA sequence
...

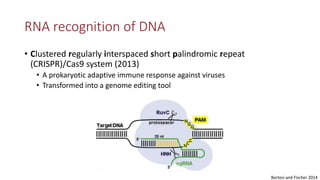

RNA recognition of DNA
• Clustered regularly interspaced short palindromic repeat
(CRISPR)/Cas9 system (2013)
• A prokaryo...
Bortesi and Fischer 2014

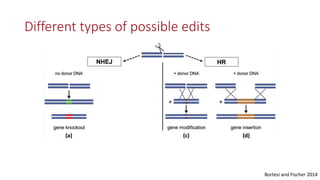

Different types of possible edits
How is genome editing performed?

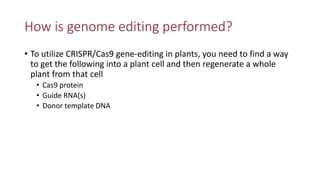

• To utilize CRISPR/Cas9 gene-editing in plants, you need to find a way
to get the follow...

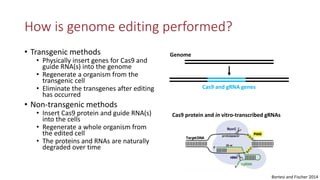

How is genome editing performed?
• Transgenic methods
• Physically insert genes for Cas9 and
guide RNA(s) into the genome
...
Using transgenic plants to perform
CRISPR/Cas9 gene-editing in plants
• Transgenic plants

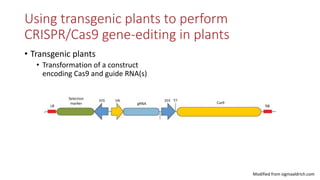

• Transformation of a construct
...
Using transgenic plants to perform
CRISPR/Cas9 gene-editing in plants
• Transgenic plants
• Transformation of a construct
...

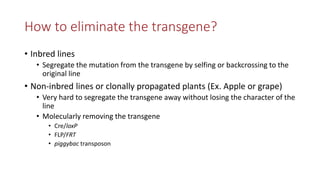

How to eliminate the transgene?
• Inbred lines
• Segregate the mutation from the transgene by selfing or backcrossing to t...

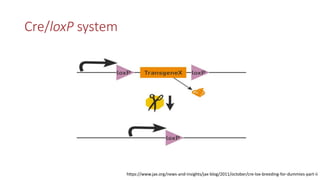

Cre/loxP system
https://www.jax.org/news-and-insights/jax-blog/2011/october/cre-lox-breeding-for-dummies-part-ii

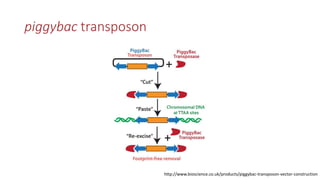

piggybac transposon
http://www.bioscience.co.uk/products/piggybac-transposon-vector-construction
Using non-transgenic methods to perform
CRISPR/Cas9 gene-editing
• Non-transgenic methods
• Particle bombardment
• Protopl...

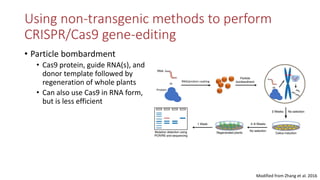

Using non-transgenic methods to perform
CRISPR/Cas9 gene-editing
• Particle bombardment
• Cas9 protein, guide RNA(s), and
...
Using non-transgenic methods to perform
CRISPR/Cas9 gene-editing

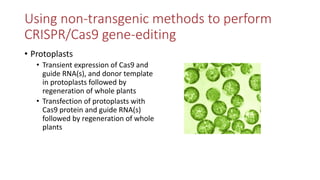

• Protoplasts
• Transient expression of Cas9 and
guide RN...
Using non-transgenic methods to perform
CRISPR/Cas9 gene-editing

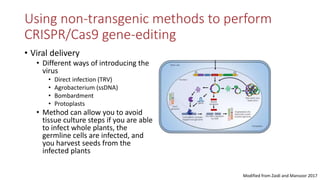

• Viral delivery
• Different ways of introducing the
viru...

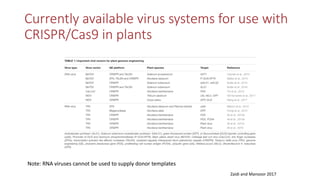

Currently available virus systems for use with
CRISPR/Cas9 in plants
Zaidi and Mansoor 2017
Note: RNA viruses cannot be us...

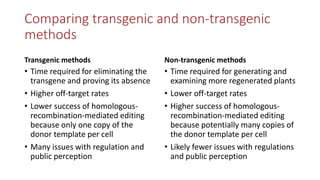

Comparing transgenic and non-transgenic
methods
Transgenic methods
• Time required for eliminating the
transgene and provi...
Using particle bombardment for transgene-
free genome editing of rice

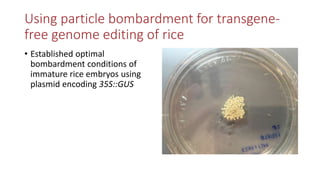

• Established optimal
bombardment conditions of
imma...

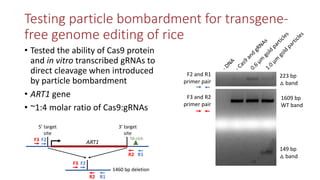

Testing particle bombardment for transgene-
free genome editing of rice
• Established optimal
bombardment conditions in ri...
Testing particle bombardment for transgene-
free genome editing of rice
• Tested the ability of Cas9 protein
and in vitro ...

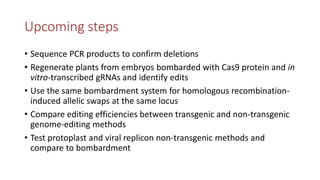

Upcoming steps
• Sequence PCR products to confirm deletions
• Regenerate plants from embryos bombarded with Cas9 protein a...

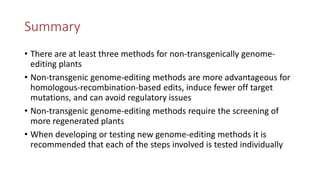

Summary
• There are at least three methods for non-transgenically genome-
editing plants
• Non-transgenic genome-editing m...

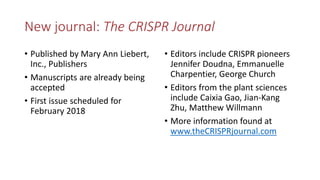

New journal: The CRISPR Journal
• Published by Mary Ann Liebert,
Inc., Publishers
• Manuscripts are already being
accepted...

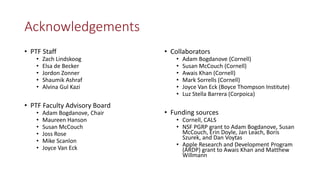

Acknowledgements
• PTF Staff
• Zach Lindskoog
• Elsa de Becker
• Jordon Zonner
• Shaumik Ashraf
• Alvina Gul Kazi
• PTF Fa...

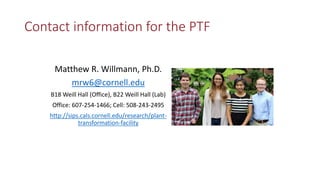

Contact information for the PTF
Matthew R. Willmann, Ph.D.
mrw6@cornell.edu
B18 Weill Hall (Office), B22 Weill Hall (Lab)
...
Using non-transgenic methods to perform
CRISPR/Cas9 gene-editing

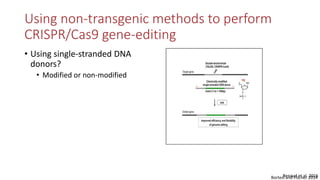

• Using single-stranded DNA
donors?
• Modified or non-mod...

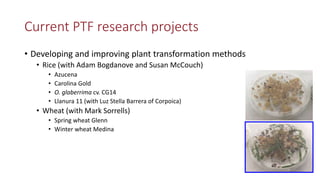

Current PTF research projects
• Developing and improving plant transformation methods
• Rice (with Adam Bogdanove and Susa...
Current PTF research projects

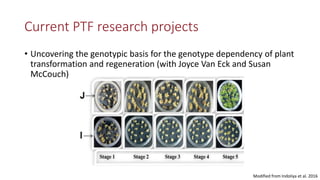

• Uncovering the genotypic basis for the genotype dependency of plant
transformation and reg...
Current PTF research projects

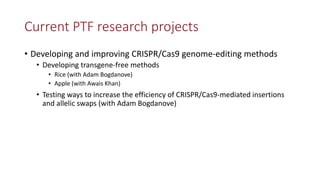

• Developing and improving CRISPR/Cas9 genome-editing methods
• Developing transgene-free me...
