BIG IoT Marketplace & API

1,487 views

Published on

BIG IoT - Bridging the Interoperability Gap of the Internet of Things - H2020 Project http://big-iot.eu/
Technical Presentation of BIG IoT Marketplace & API
for BIG IoT “IoT: New business paradigm for SMEs?” – Barcelona IOT Solutions World Congress Side Event – OCT 26th 2016

Published in: Technology

BIG IoT Marketplace & API

  1. 1. Bridging the Interoperability Gap of the Internet of Things Bridging the Interoperability Gap of the Internet of Things BIG IoT Marketplace & API Juan Hernández Serrano (UPC)
  2. 2. 22 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? The IoT actors City – Public Parking Department Parking Lot Provider A Parking Lot Provider B Smart Parking Service … Parking Information Platforms Services Applications

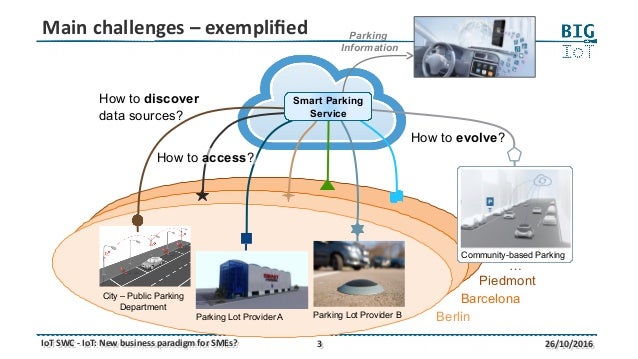

  3. 3. 33 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Main challenges – exemplified City – Public Parking Department Parking Lot Provider A How to discover data sources? Parking Lot Provider B Berlin Barcelona Piedmont How to access? … Parking Information How to evolve? Smart Parking Service Community-based Parking
  4. 4. 44 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Main challenges – exemplified

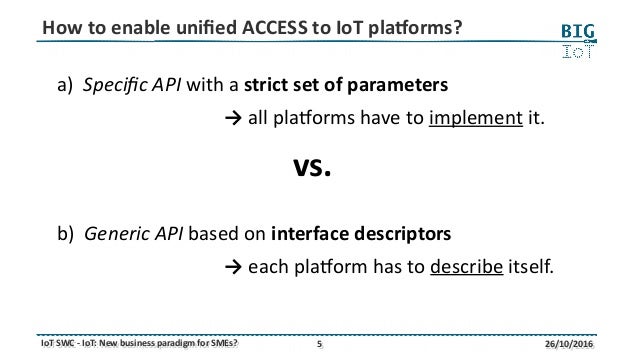

  5. 5. 55 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? How to enable unified ACCESS to IoT platforms? a) Specific API with a strict set of parameters → all platforms have to implement it. vs. b) Generic API based on interface descriptors → each platform has to describe itself.

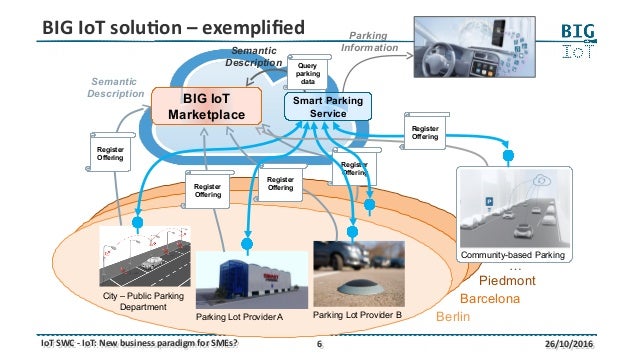

  6. 6. 66 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? BIG IoT solution – exemplified City – Public Parking Department Parking Lot Provider A Community-based Parking Parking Lot Provider B Berlin Barcelona Piedmont Parking Information Smart Parking Service BIG IoT Marketplace Semantic Description Register Offering Register Offering … Register OfferingRegister Offering Register Offering Semantic Description Query parking data

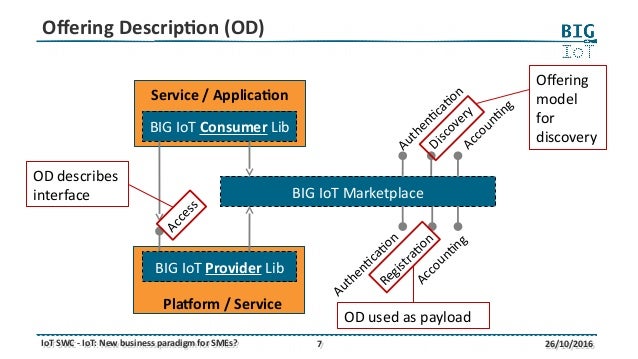

  7. 7. 77 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Offering Description (OD) Service / Application Platform / Service BIG IoT Marketplace BIG IoT Provider Lib BIG IoT Consumer Lib Authentcaton Discovery Accountng Accountng Registraton Authentcaton Access OD describes interface OD used as payload Offering model for discovery

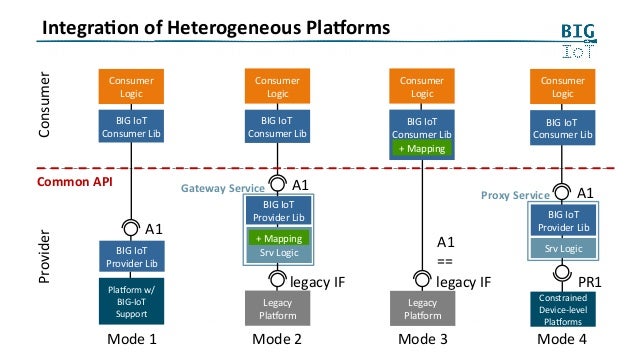

  8. 8. 88 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Integration of Heterogeneous Platforms Consumer A1 Consumer Logic BIG IoT Consumer Lib legacy IF Legacy Platform Mode 2 Consumer Logic legacy IF Legacy Platform Mode 3Mode 1 Provider BIG IoT Consumer Lib A1 BIG IoT Provider Lib BIG IoT Consumer Lib A1 == PR1 A1 BIG IoT Consumer Lib Mode 4 Constrained Device-level Platforms BIG IoT Provider Lib Srv Logic Proxy Service BIG IoT Provider Lib Gateway Service Srv Logic + Mapping Common API Consumer Logic Platform w/ BIG-IoT Support + Mapping Consumer Logic

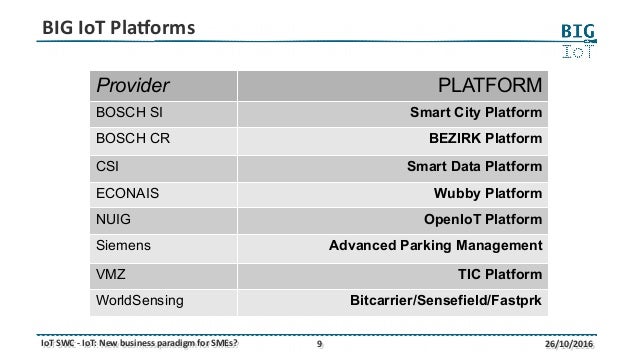

  9. 9. 99 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Provider PLATFORM BOSCH SI Smart City Platform BOSCH CR BEZIRK Platform CSI Smart Data Platform ECONAIS Wubby Platform NUIG OpenIoT Platform Siemens Advanced Parking Management VMZ TIC Platform WorldSensing Bitcarrier/Sensefield/Fastprk BIG IoT Platforms
  10. 10. 1010 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? What is traded on the Marketplace? Services & Applications for Download IoT data ACCESS to IoT information & functions

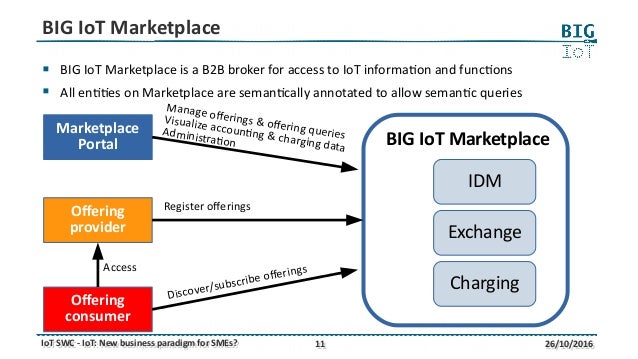

  11. 11. 1111 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? BIG IoT Marketplace  BIG IoT Marketplace is a B2B broker for access to IoT informaton and functons  All enttes on Marketplace are semantcally annotated to allow semantc queries Marketplace Portal Offering provider Offering consumer BIG IoT Marketplace IDM Exchange Charging Manage offerings & offering queries Visualize accountng & charging data Administraton Register offerings Discover/subscribe offeringsAccess
  12. 12. 1212 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Offering Description – Example { context: "http://w3c.github.io/wot/w3c-wot-td-context.jsonld" providerId: "Barcelona_City-provider" name: "Available Parking Spaces" rdfUri: "bigiot:Parking" inputData: [ {name: "longitude", rdfUri: "schema:longitude"} {name: "latitude", rdfUri: "schema:latitude"} {name: "radius", rdfUri: "schema:geoRadius"} ] outputData: [ {name: "available", rdfUri: "datex:parkingSpaceStatus"} ] endpoints: { uri: "http://bcnprovider/access/parkinginfo", type: "HTTP_GET"} licenseType: "OPEN_DATA_LICENSE" price: { money: {amount: 0.002000, currency: "EUR"}, accountingModel: "PER_ACCESS"} } ... URI of the offering Semantc annotatons Based on Web of Things‘ Thing Description

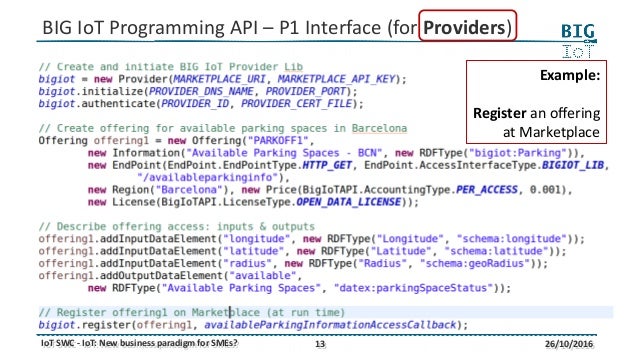

  13. 13. 1313 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? BIG IoT Programming API – P1 Interface (for Providers) Example: Register an offering at Marketplace

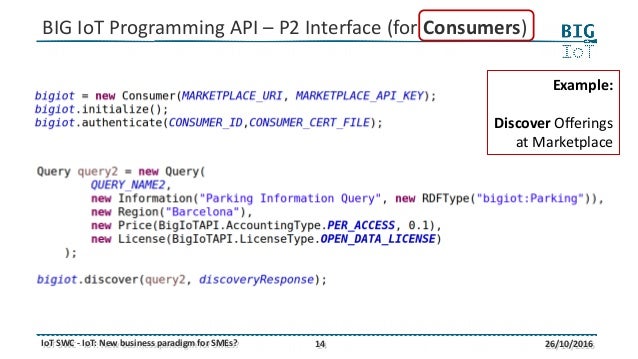

  14. 14. 1414 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? BIG IoT Programming API – P2 Interface (for Consumers) Example: Discover Offerings at Marketplace
  15. 15. 1515 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Demo Demonstration of the core components and features of the BIG IoT architecture

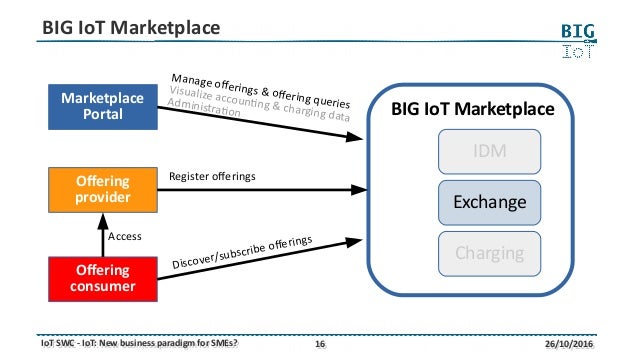

  16. 16. 1616 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? BIG IoT Marketplace Marketplace Portal Offering provider Offering consumer BIG IoT Marketplace IDM Exchange Charging Manage offerings & offering queries Visualize accountng & charging data Administraton Register offerings Discover/subscribe offeringsAccess
  17. 17. 1717 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Proof-of-concept Demonstrator  Scenario: “Smart City Dashboard” Demo Application visualizes Parking & Air Quality Informaton on a map

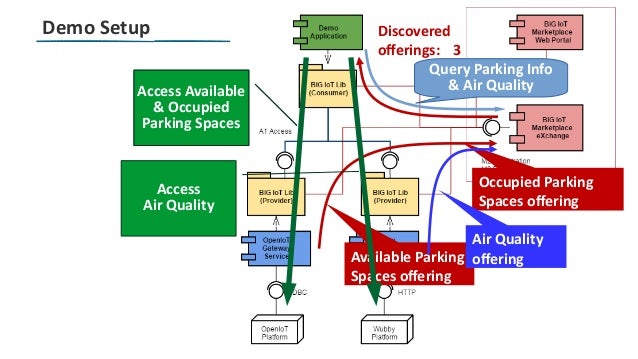

  18. 18. 1818 26/10/201626/10/2016IoT SWC - IoT: New business paradigm for SMEs?IoT SWC - IoT: New business paradigm for SMEs? Demo Setup Available Parking Spaces offering Occupied Parking Spaces offering Air Quality offering Discovered offerings: 3 Query Parking Info & Air Quality Access Available Parking Spaces Access Available & Occupied Parking Spaces Access Air Quality

×
