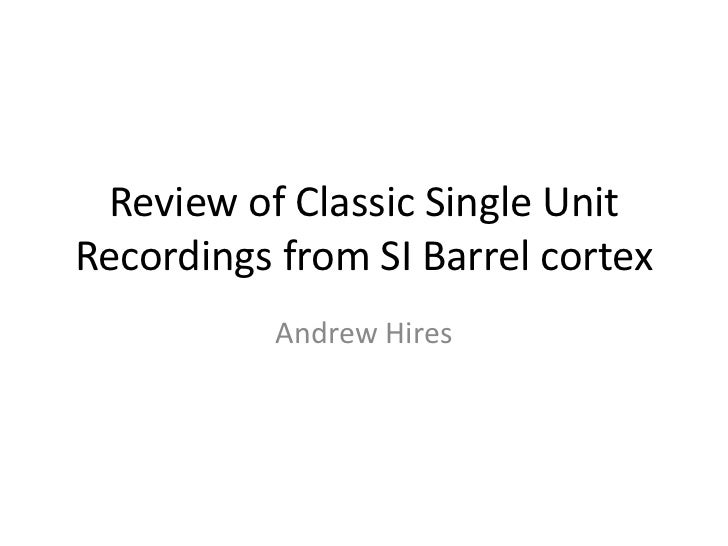

Review of Classic Single Unit Recordings from SI Barrel cortex<br />Andrew Hires<br />

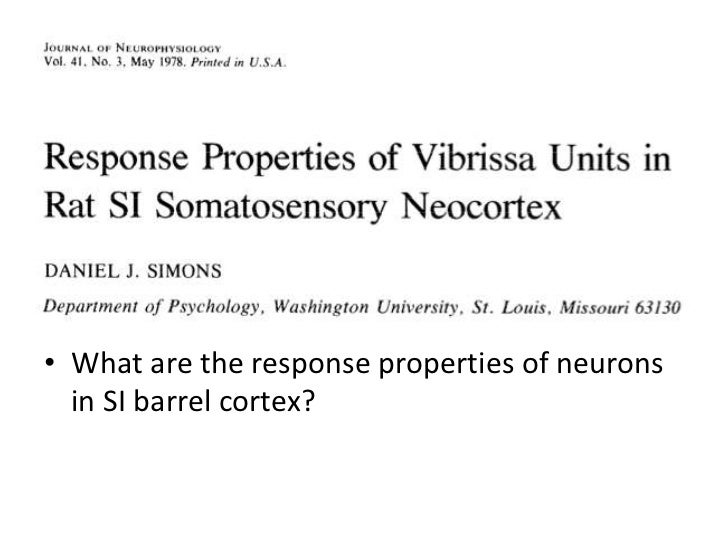

What are the response properties of neurons in SI barrel cortex?<br />
Experimental Setup<br />21 Adult Rats (308 cells)<br />General Anesthesia for surgery<br />Pentobarbital + atropine, recov...
Unit WaveformsRegular  			Fast Spiking<br />Layer 4 <br />15-50 /s spont firing<br />Timecourse 2x faster than RS<br />Sma...
Evoked Spike EntrainmentRegular  			Fast Spiking<br />Layer 4<br />
Evoked Spike EntrainmentRegular  			Fast Spiking<br />Typically first pulse only, max 1AP/cycle<br />Some frequency tuning...
Deflection Response Examples<br />A-E = Different RSUs<br />Direction Selective Transient<br />Direction Selective Maintai...
Stimulus Intensity - Response<br />Single Unit example of common pattern<br />
Directional Tuning<br />FSUs<br />12 Units<br />Generally 2mm displacement<br />Spontaneous Rate<br />Away from Rest<br />...
Layer specific distribution of single/multiwhisker units<br />Location via lesion, dyes, currents<br />Single Whisker Unit...

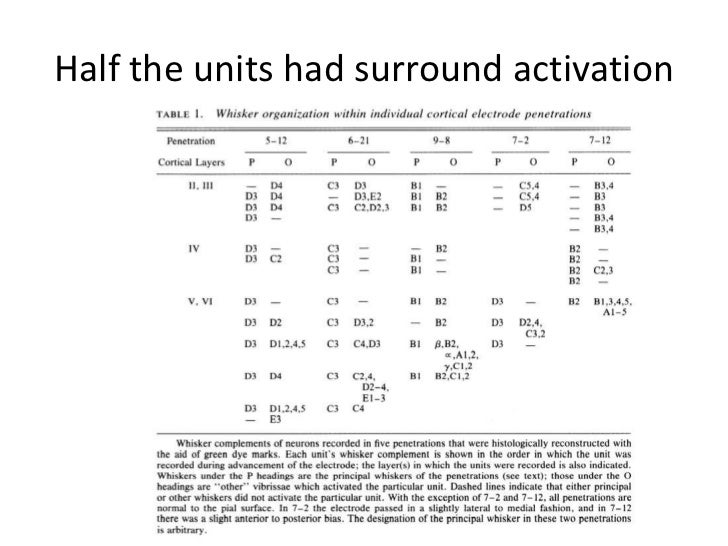

Half the units had surround activation<br />
Spatial distribution of responsive whiskers between rows<br />If 2, then same row<br />If 3+ then multirow<br />
How does SI spatially integrate information from vibrissa in a layer specific manner?<br />
Experimental Setup<br />16 Adult Rats (124 cells)<br />General Anesthesia for surgery<br />Pentobarbital + atropine, recov...
Response suppression in a multiwhisker responsive unit<br />10 stims<br />1ms bins<br />Sweep <br />angle<br />
Suppression Integration Window in SI<br />
Suppression Integration Window in Trigeminal Ganglion<br />

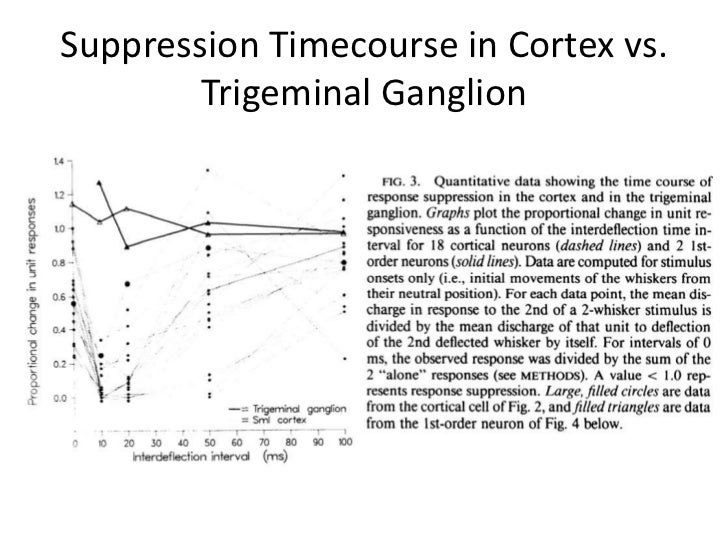

Suppression Timecourse in Cortex vs. Trigeminal Ganglion<br />

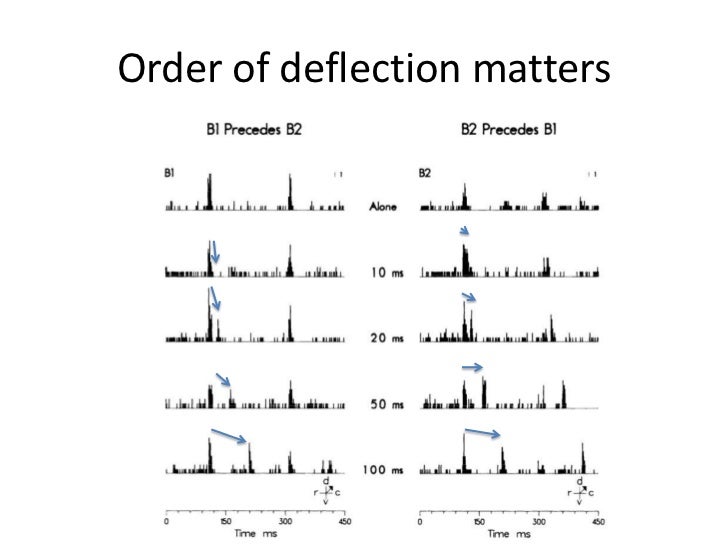

Order of deflection matters<br />

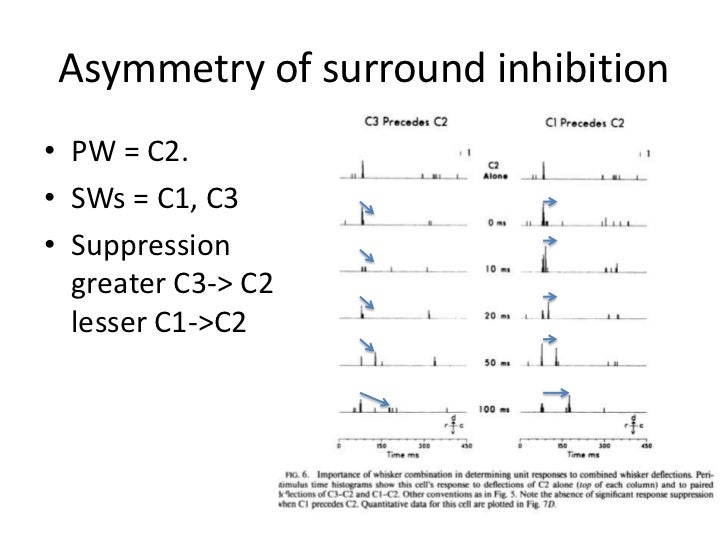

Asymmetry of surround inhibition<br />PW = C2. <br />SWs = C1, C3<br />Suppression greater C3-> C2  lesser C1->C2<br />

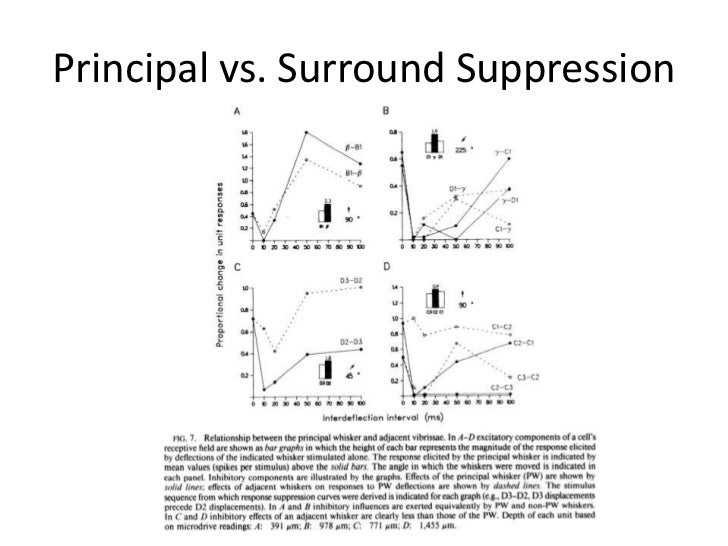

Principal vs. Surround Suppression<br />
Symmetric vs. Asymmetric Inhibitory Surround<br />Symmetric<br />Asymmetric<br />
Directional selectivity of suppression<br />PW excitation<br />SW inhibition<br />

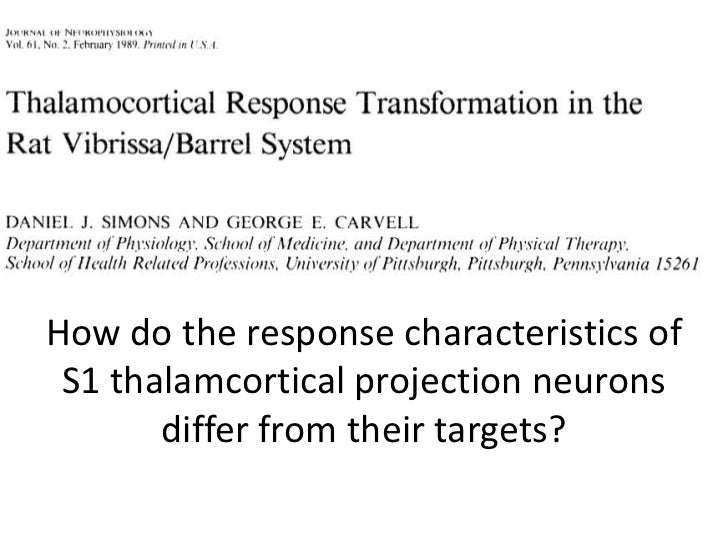

How do the response characteristics of S1 thalamcortical projection neurons differ from their targets? <br />

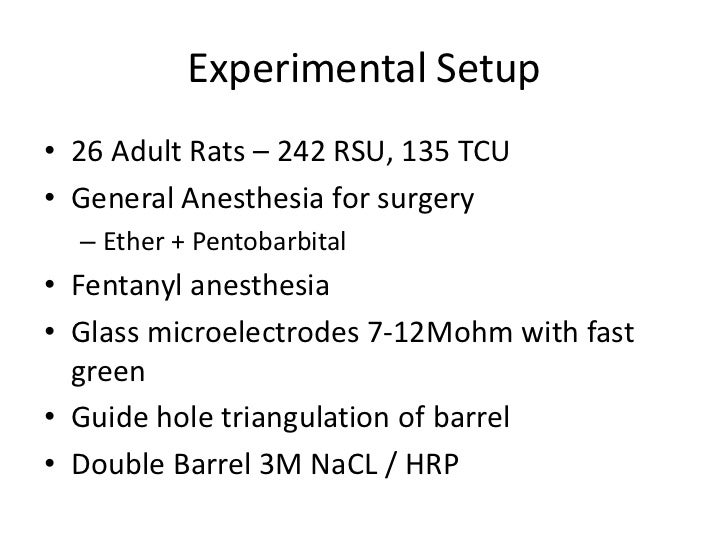

Experimental Setup<br />26 Adult Rats – 242 RSU, 135 TCU<br />General Anesthesia for surgery<br />Ether + Pentobarbital <b...

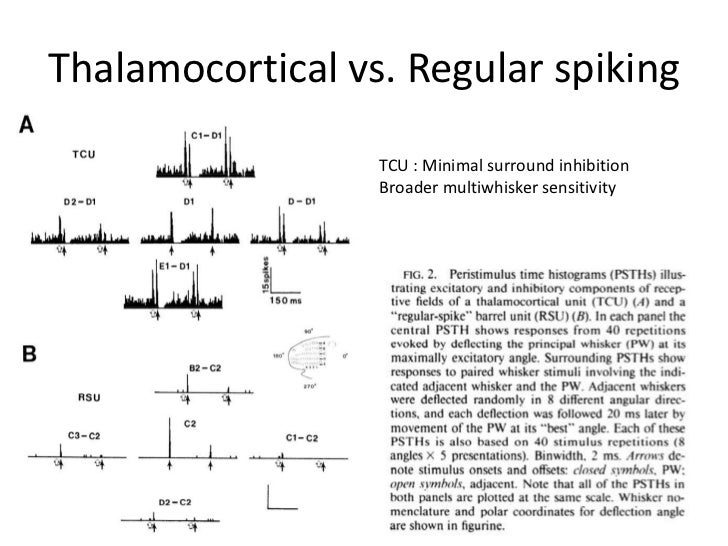

Thalamocortical vs. Regular spiking<br />TCU : Minimal surround inhibition<br />Broader multiwhisker sensitivity<br />
Spontaneous firing rate<br />TCU: Much higher spike rates<br />
Response dynamics<br />TCU : Similar spikes per deflection onset<br />More spikes per offset<br />Higher rates in the 33% ...
Strong Directional selectivity in TCUs<br />Directionally consistent<br />Reponds to ON one way,<br />OFF opposite way<br />

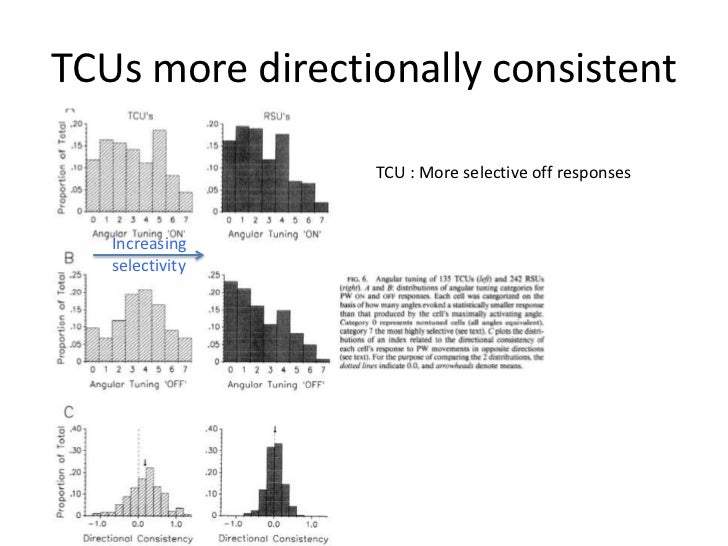

TCUs more directionally consistent<br />TCU : More selective off responses<br />Increasing <br />selectivity<br />
TCUs show less surround inhibition<br />

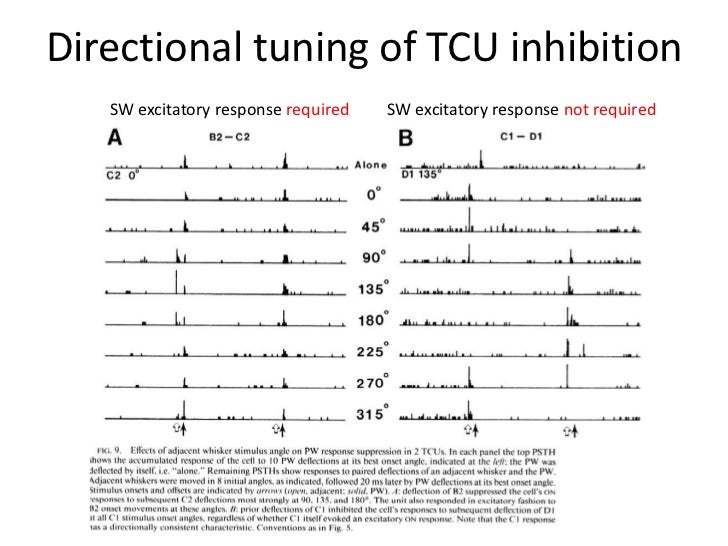

Directional tuning of TCU inhibition<br />SW excitatory response required<br />SW excitatory response not required<br />
TCU surround inhibition more directionally tuned than RSUs<br />
Inhibitory receptive field comparison<br />RSU – Single Whisker<br />RSU – Multi Whisker<br />TCU – Single Whisker<br />TC...

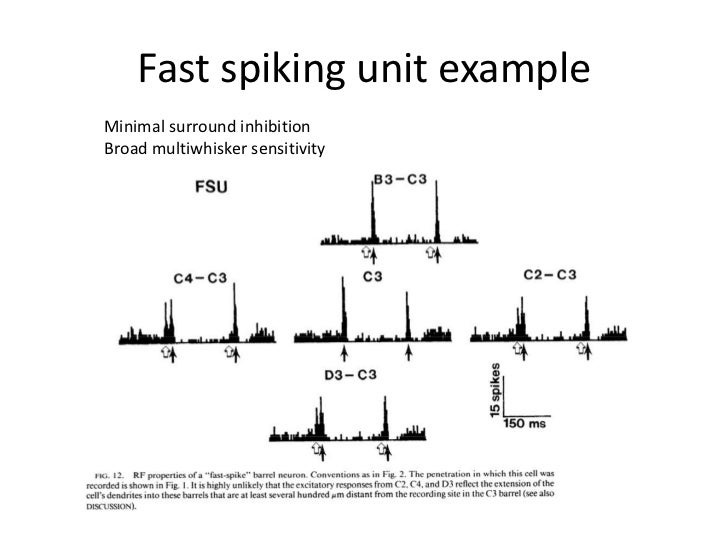

Fast spiking unit example<br />Minimal surround inhibition<br />Broad multiwhisker sensitivity<br />

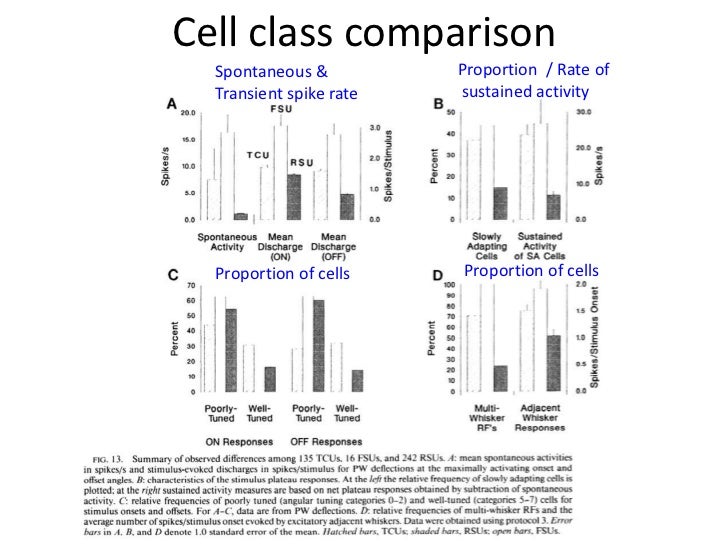

Cell class comparison<br />Proportion  / Rate of<br /> sustained activity<br />Spontaneous & <br />Transient spike rate<br...

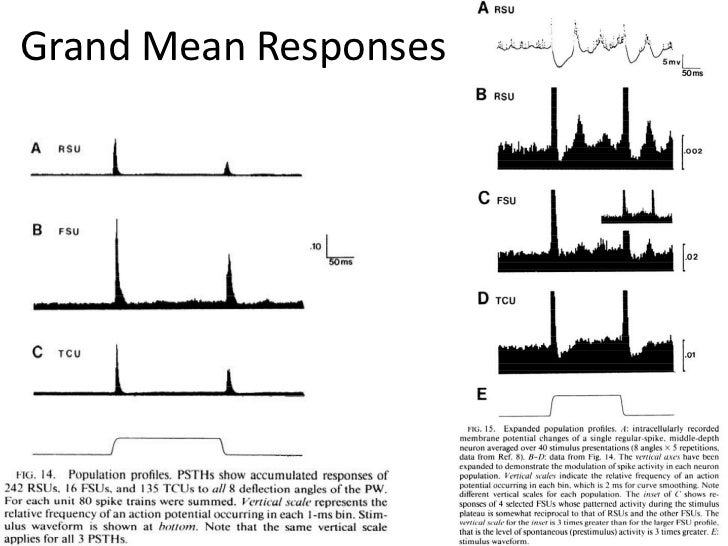

Grand Mean Responses<br />

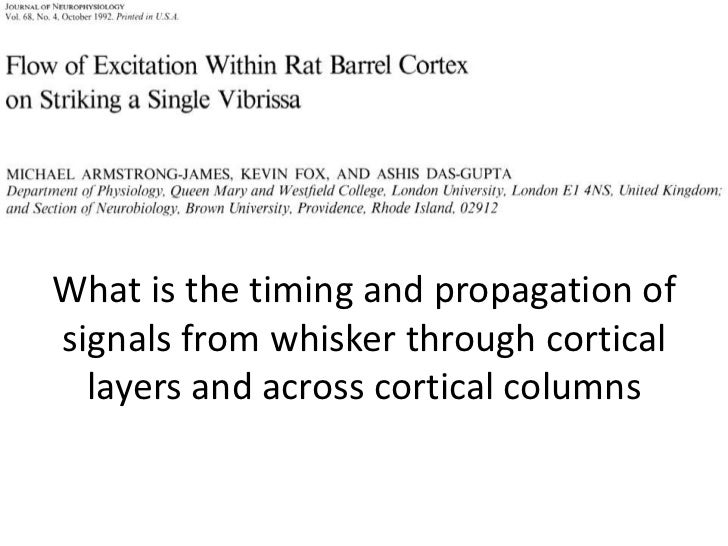

What is the timing and propagation of signals from whisker through cortical layers and across cortical columns <br />
Experimental Protocol<br />Adult Rats<br />Urethane anesthesia<br />Localization by dye staining and CO<br />Carbon fiber ...

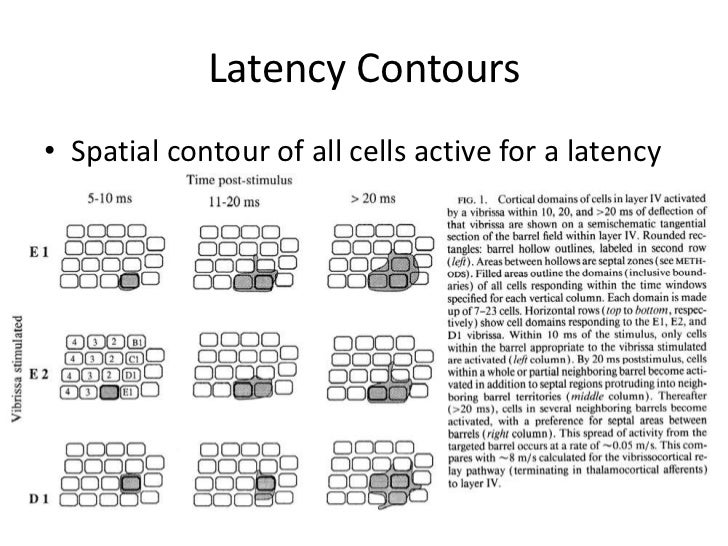

Latency Contours<br />Spatial contour of all cells active for a latency<br />
Lateral spread of excitation<br />
Modal latency with column depth<br />

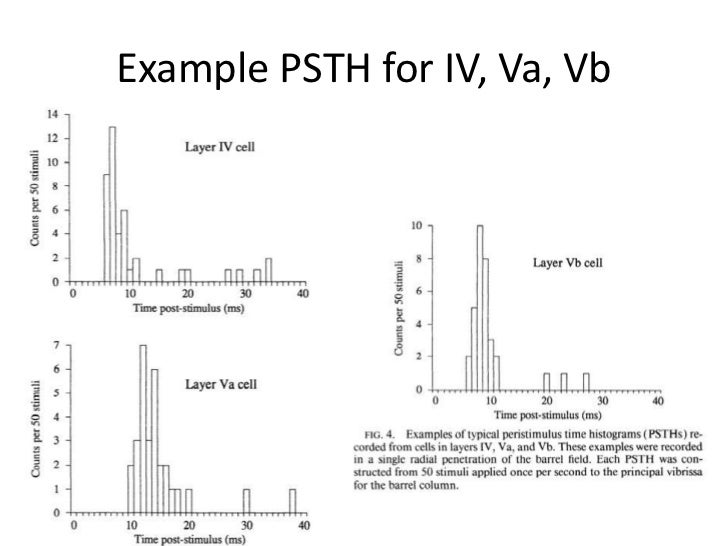

Example PSTH for IV, Va, Vb<br />

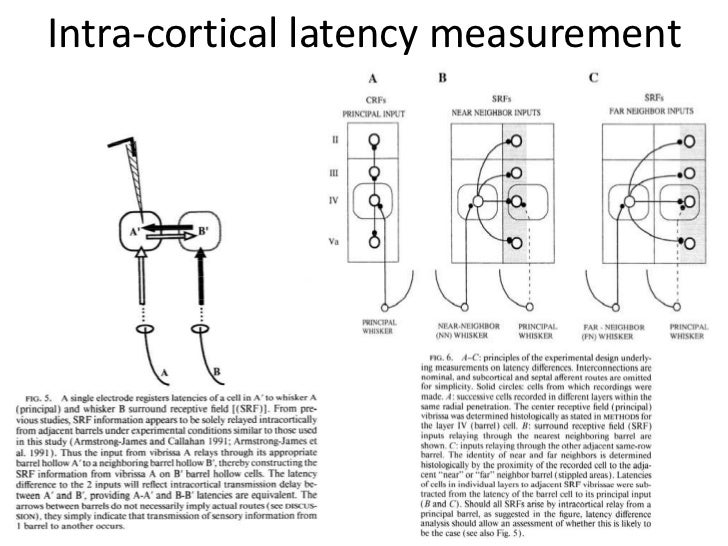

Intra-cortical latency measurement<br />

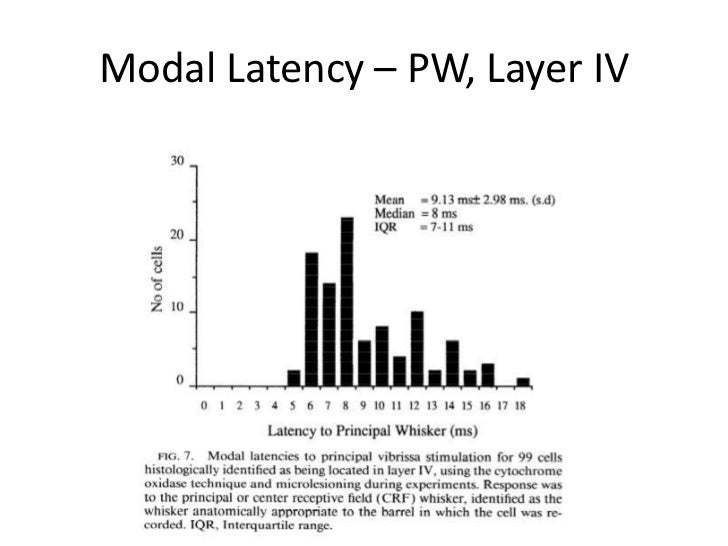

Modal Latency – PW, Layer IV<br />
Paired latency differential – Same Column<br />

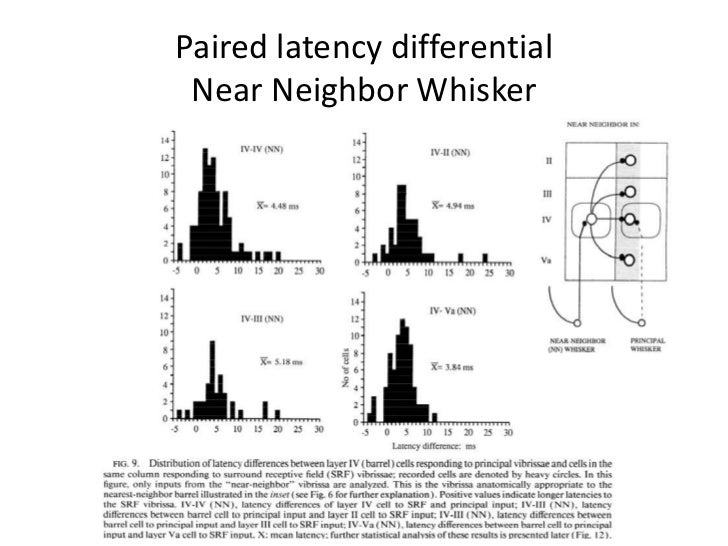

Paired latency differential Near Neighbor Whisker<br />
Paired latency differential Far Neighbor Whisker<br />

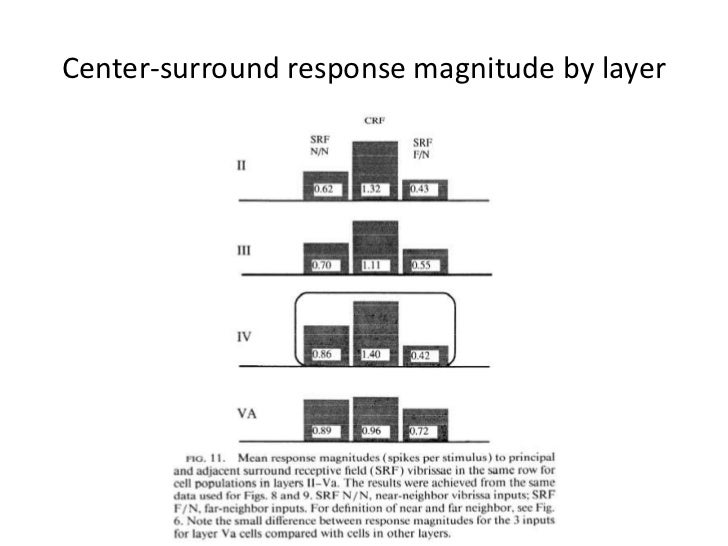

Center-surround response magnitude by layer<br />
Schematic propagation of excitation<br />
Upcoming SlideShare
Loading in …5
×

110429 journal club

21,033 views

Published on

Review of Classic Single Unit Barrel Cortex Literature.

Published in: Health & Medicine
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
21,033
On SlideShare
0
From Embeds
0
Number of Embeds
19,238
Actions
Shares
0
Downloads
5
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide
  • Does this distinguish slower rising surround excitation from direct innervation from thalamus from intracortical spread?
  • 110429 journal club

    1. 1. Review of Classic Single Unit Recordings from SI Barrel cortex<br />Andrew Hires<br />
    2. 2. What are the response properties of neurons in SI barrel cortex?<br />
    3. 3. Experimental Setup<br />21 Adult Rats (308 cells)<br />General Anesthesia for surgery<br />Pentobarbital + atropine, recover 4-5hr<br />IM d-tubocurarine to paralyze muscles<br />Glass microelectrodes 7-12Mohm with fast green, 3M KCl<br />Oscillatory and ramp hold stimuli from a polygraph motor<br />1-2mm displacement, 15-100mm/s^2.<br />Generally, histograms are 15 repetitions<br />

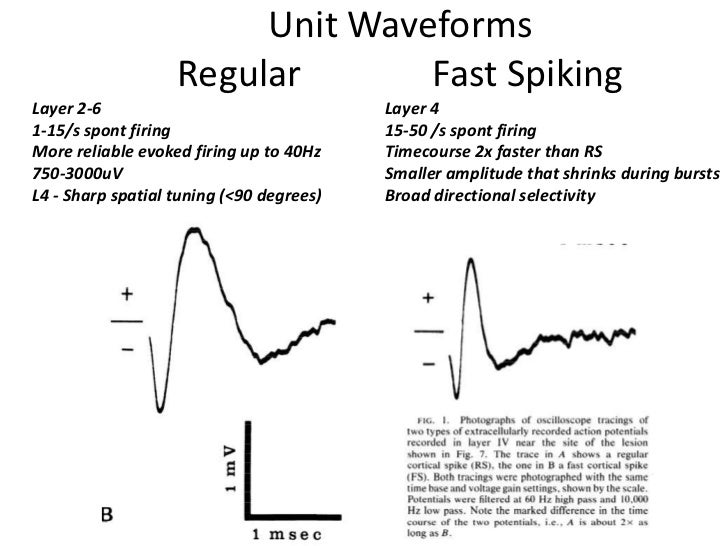

    4. 4. Unit WaveformsRegular Fast Spiking<br />Layer 4 <br />15-50 /s spont firing<br />Timecourse 2x faster than RS<br />Smaller amplitude that shrinks during bursts<br />Broad directional selectivity<br />Layer 2-6 <br />1-15/s spont firing<br />More reliable evoked firing up to 40Hz<br />750-3000uV<br />L4 - Sharp spatial tuning (<90 degrees)<br />
    5. 5. Evoked Spike EntrainmentRegular Fast Spiking<br />Layer 4<br />

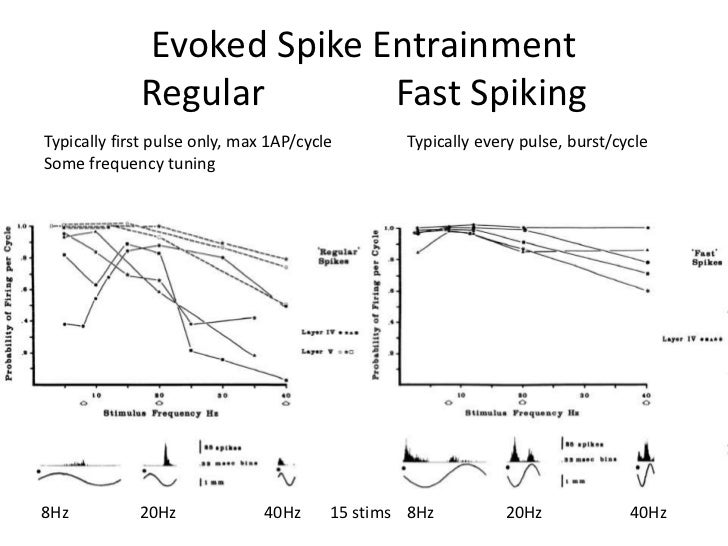

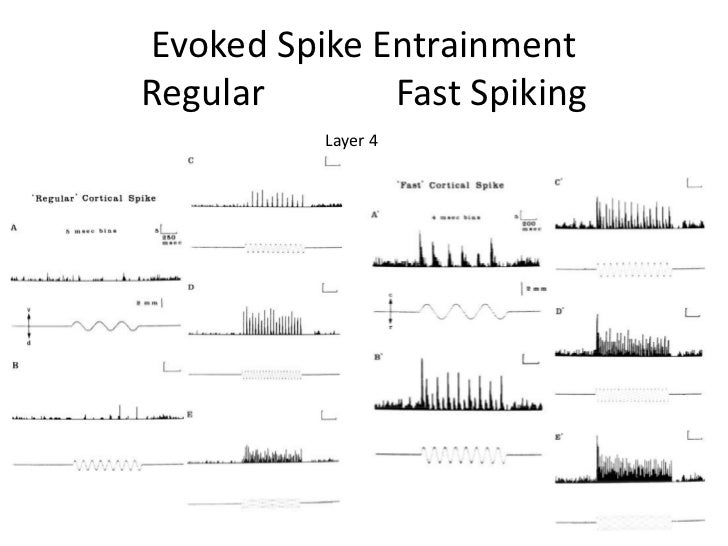

    6. 6. Evoked Spike EntrainmentRegular Fast Spiking<br />Typically first pulse only, max 1AP/cycle<br />Some frequency tuning<br />Typically every pulse, burst/cycle<br />15 stims<br />8Hz 20Hz 40Hz<br />8Hz 20Hz 40Hz<br />

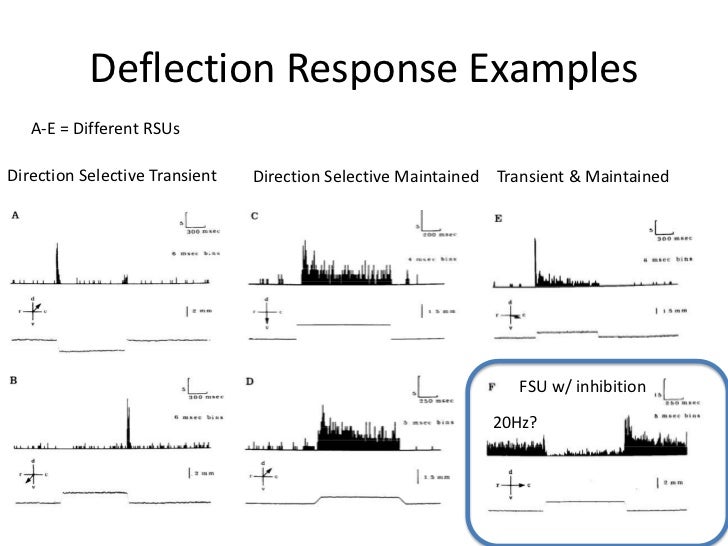

    7. 7. Deflection Response Examples<br />A-E = Different RSUs<br />Direction Selective Transient<br />Direction Selective Maintained<br />Transient & Maintained<br />FSU w/ inhibition<br />20Hz?<br />
    8. 8. Stimulus Intensity - Response<br />Single Unit example of common pattern<br />

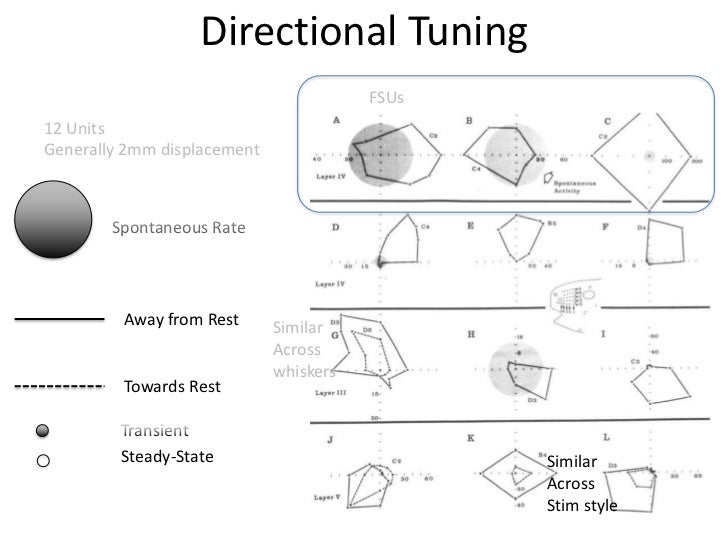

    9. 9. Directional Tuning<br />FSUs<br />12 Units<br />Generally 2mm displacement<br />Spontaneous Rate<br />Away from Rest<br />Similar<br />Across <br />whiskers<br />Towards Rest<br />Transient<br />Steady-State<br />Similar<br />Across <br />Stim style<br />
    10. 10. Layer specific distribution of single/multiwhisker units<br />Location via lesion, dyes, currents<br />Single Whisker Units<br />II/III = 61%<br />IV = 85%<br />V/VI = 36%<br />Whiskers<br />2<br />>3<br />Rows<br />Same<br />Diff<br />
    11. 11. Half the units had surround activation<br />

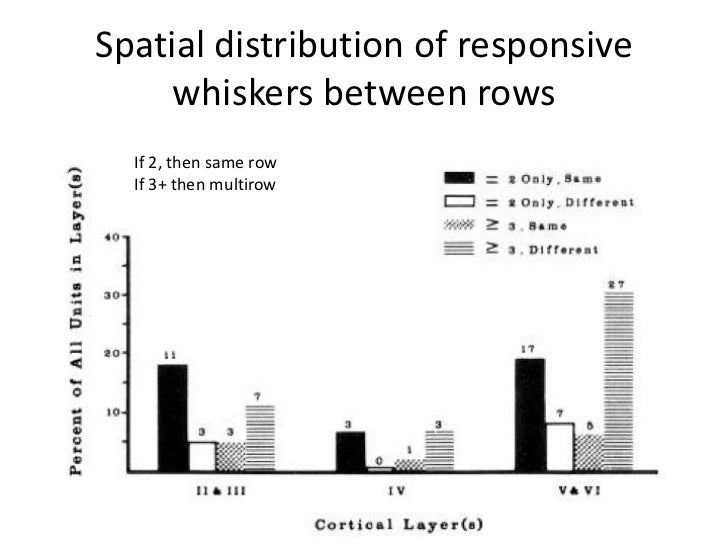

    12. 12. Spatial distribution of responsive whiskers between rows<br />If 2, then same row<br />If 3+ then multirow<br />

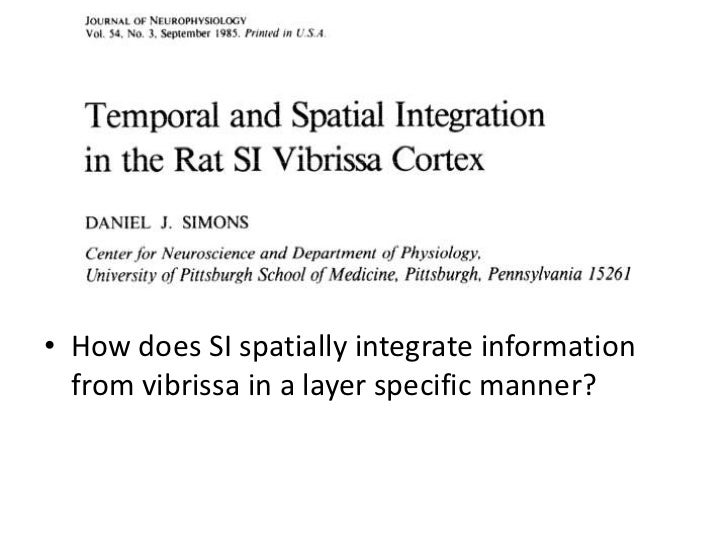

    13. 13. How does SI spatially integrate information from vibrissa in a layer specific manner?<br />

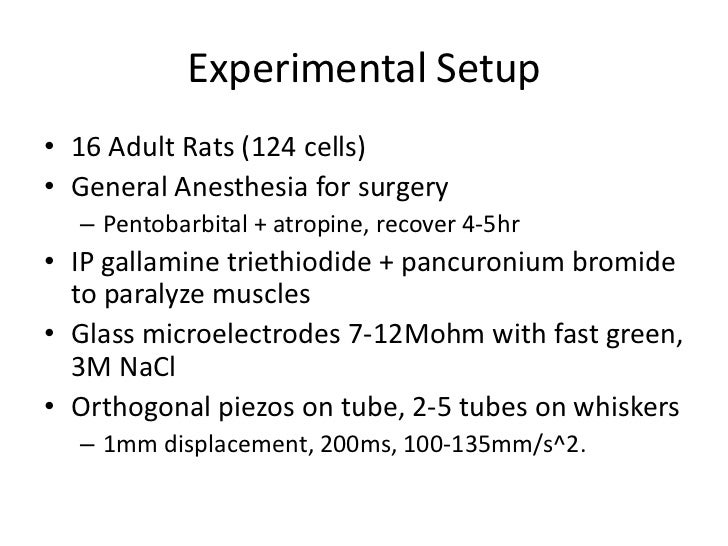

    14. 14. Experimental Setup<br />16 Adult Rats (124 cells)<br />General Anesthesia for surgery<br />Pentobarbital + atropine, recover 4-5hr<br />IP gallaminetriethiodide + pancuronium bromide to paralyze muscles<br />Glass microelectrodes 7-12Mohm with fast green, 3M NaCl<br />Orthogonal piezos on tube, 2-5 tubes on whiskers<br />1mm displacement, 200ms, 100-135mm/s^2.<br />
    15. 15. Response suppression in a multiwhisker responsive unit<br />10 stims<br />1ms bins<br />Sweep <br />angle<br />

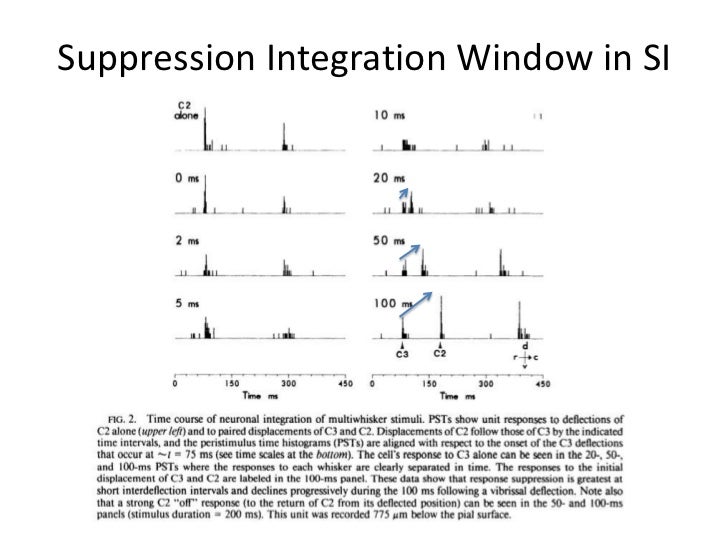

    16. 16. Suppression Integration Window in SI<br />

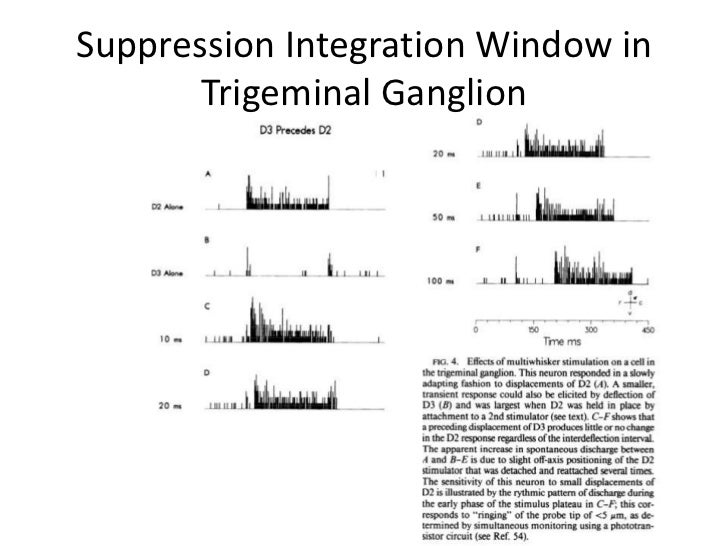

    17. 17. Suppression Integration Window in Trigeminal Ganglion<br />
    18. 18. Suppression Timecourse in Cortex vs. Trigeminal Ganglion<br />
    19. 19. Order of deflection matters<br />
    20. 20. Asymmetry of surround inhibition<br />PW = C2. <br />SWs = C1, C3<br />Suppression greater C3-> C2 lesser C1->C2<br />
    21. 21. Principal vs. Surround Suppression<br />
    22. 22. Symmetric vs. Asymmetric Inhibitory Surround<br />Symmetric<br />Asymmetric<br />

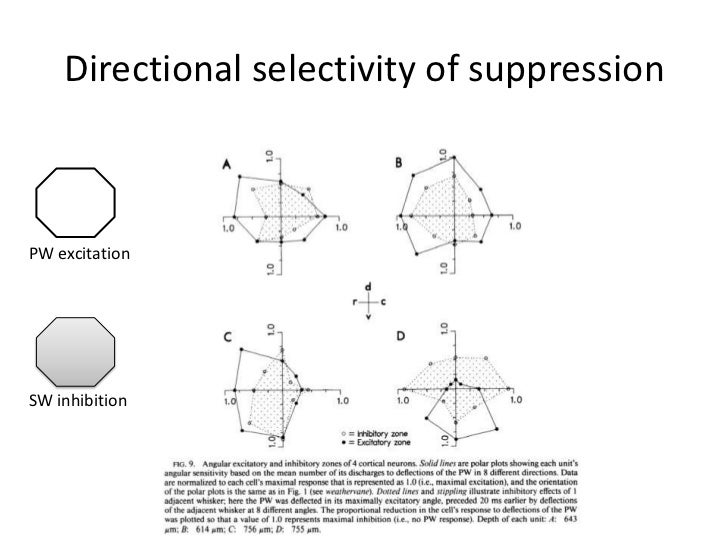

    23. 23. Directional selectivity of suppression<br />PW excitation<br />SW inhibition<br />
    24. 24. How do the response characteristics of S1 thalamcortical projection neurons differ from their targets? <br />
    25. 25. Experimental Setup<br />26 Adult Rats – 242 RSU, 135 TCU<br />General Anesthesia for surgery<br />Ether + Pentobarbital <br />Fentanyl anesthesia<br />Glass microelectrodes 7-12Mohm with fast green<br />Guide hole triangulation of barrel<br />Double Barrel 3M NaCL / HRP<br />
    26. 26. Thalamocortical vs. Regular spiking<br />TCU : Minimal surround inhibition<br />Broader multiwhisker sensitivity<br />

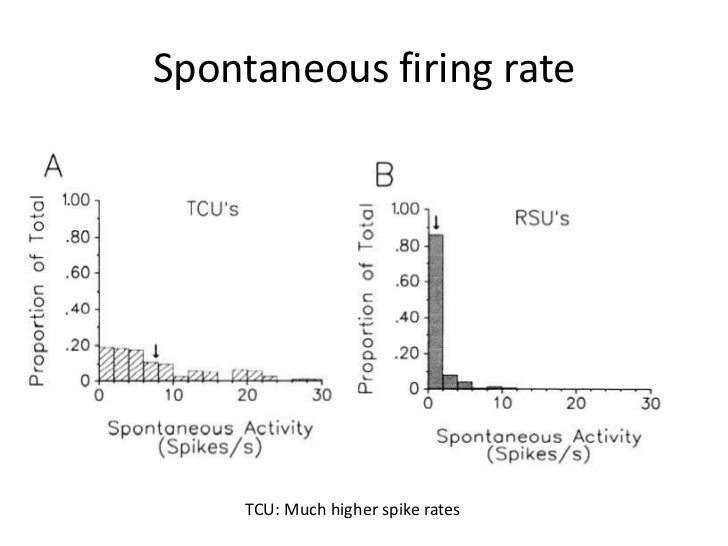

    27. 27. Spontaneous firing rate<br />TCU: Much higher spike rates<br />

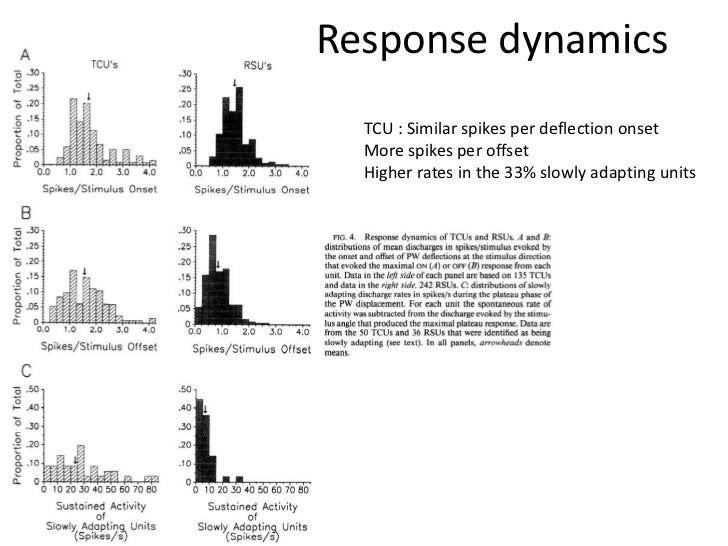

    28. 28. Response dynamics<br />TCU : Similar spikes per deflection onset<br />More spikes per offset<br />Higher rates in the 33% slowly adapting units <br />

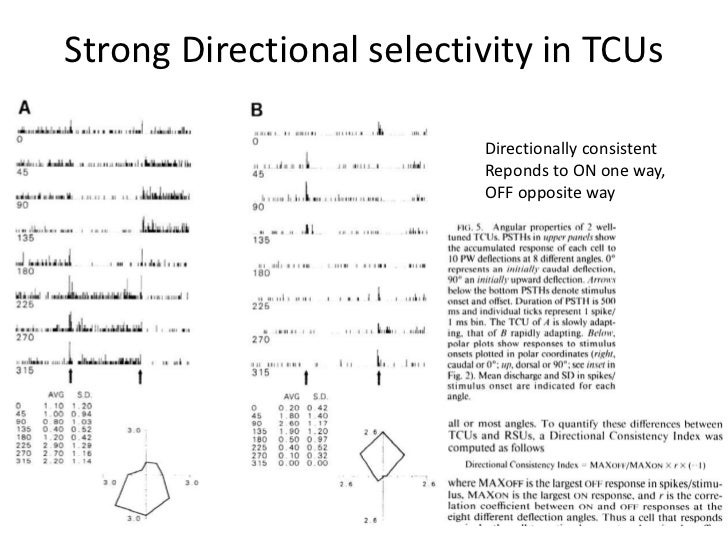

    29. 29. Strong Directional selectivity in TCUs<br />Directionally consistent<br />Reponds to ON one way,<br />OFF opposite way<br />
    30. 30. TCUs more directionally consistent<br />TCU : More selective off responses<br />Increasing <br />selectivity<br />

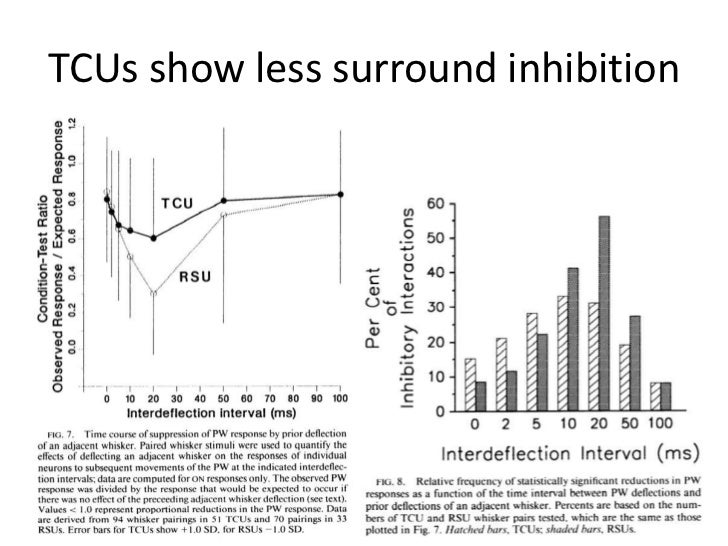

    31. 31. TCUs show less surround inhibition<br />
    32. 32. Directional tuning of TCU inhibition<br />SW excitatory response required<br />SW excitatory response not required<br />

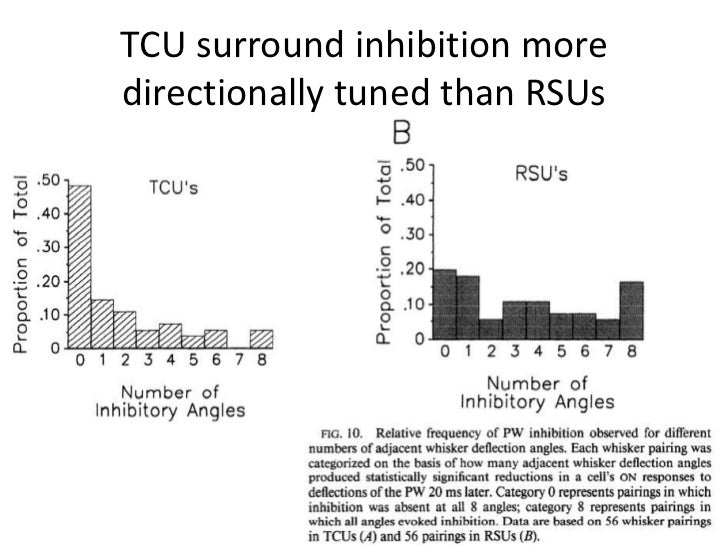

    33. 33. TCU surround inhibition more directionally tuned than RSUs<br />

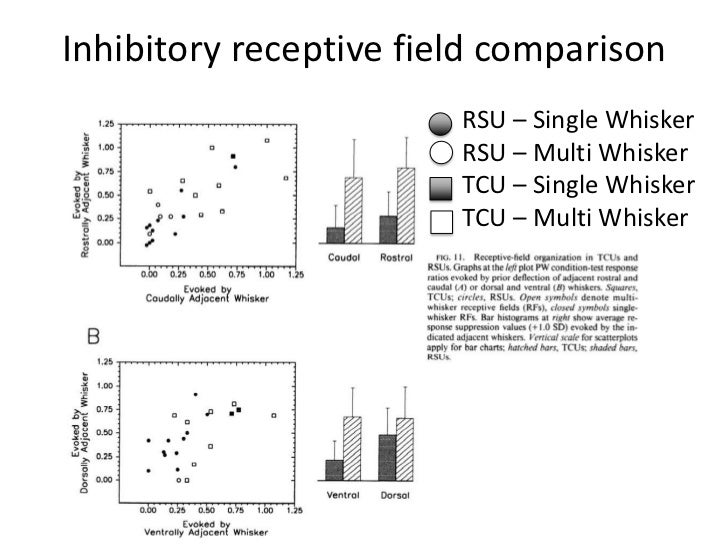

    34. 34. Inhibitory receptive field comparison<br />RSU – Single Whisker<br />RSU – Multi Whisker<br />TCU – Single Whisker<br />TCU – Multi Whisker<br />
    35. 35. Fast spiking unit example<br />Minimal surround inhibition<br />Broad multiwhisker sensitivity<br />
    36. 36. Cell class comparison<br />Proportion / Rate of<br /> sustained activity<br />Spontaneous & <br />Transient spike rate<br />Proportion of cells<br />Proportion of cells<br />
    37. 37. Grand Mean Responses<br />
    38. 38. What is the timing and propagation of signals from whisker through cortical layers and across cortical columns <br />

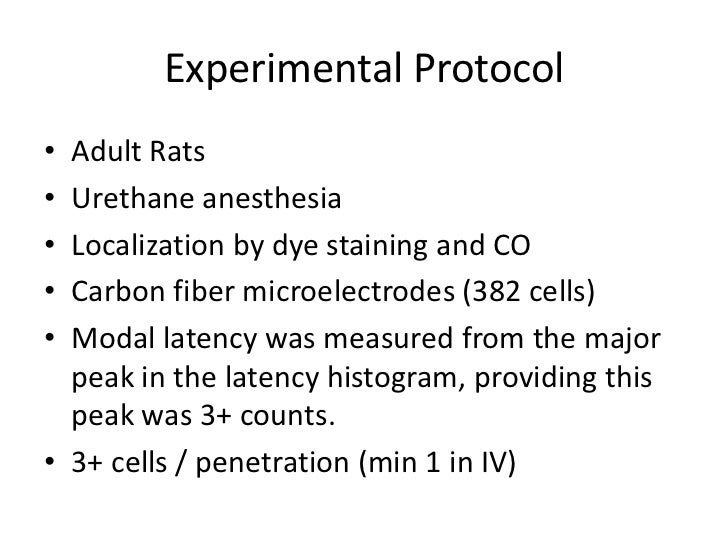

    39. 39. Experimental Protocol<br />Adult Rats<br />Urethane anesthesia<br />Localization by dye staining and CO<br />Carbon fiber microelectrodes (382 cells)<br />Modal latency was measured from the major peak in the latency histogram, providing this peak was 3+ counts. <br />3+ cells / penetration (min 1 in IV)<br />
    40. 40. Latency Contours<br />Spatial contour of all cells active for a latency<br />
    41. 41. Lateral spread of excitation<br />

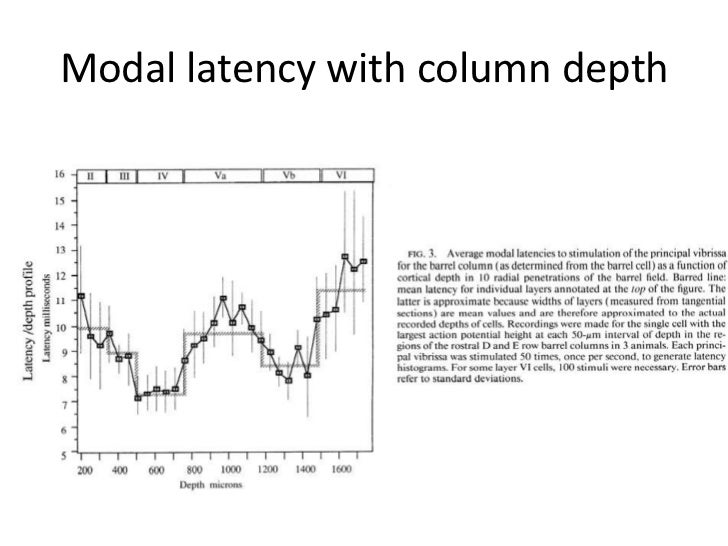

    42. 42. Modal latency with column depth<br />
    43. 43. Example PSTH for IV, Va, Vb<br />
    44. 44. Intra-cortical latency measurement<br />
    45. 45. Modal Latency – PW, Layer IV<br />

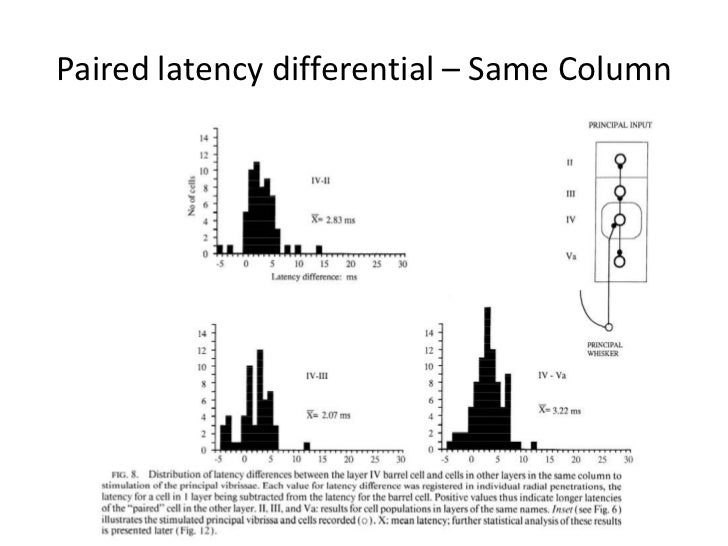

    46. 46. Paired latency differential – Same Column<br />
    47. 47. Paired latency differential Near Neighbor Whisker<br />

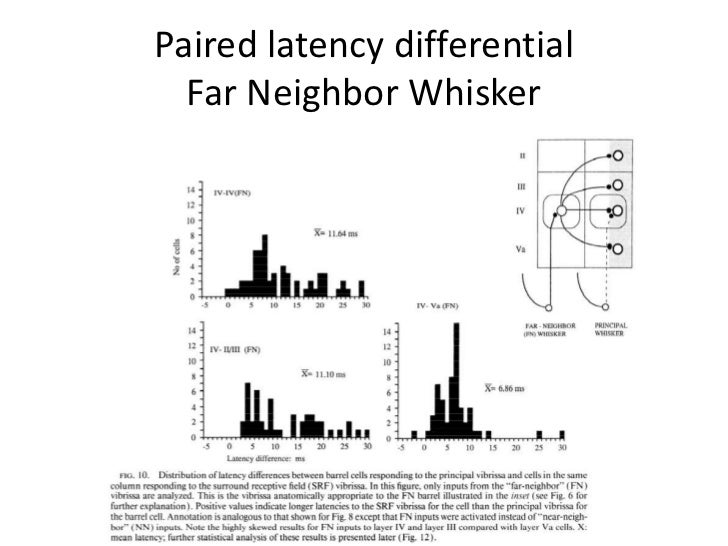

    48. 48. Paired latency differential Far Neighbor Whisker<br />
    49. 49. Center-surround response magnitude by layer<br />

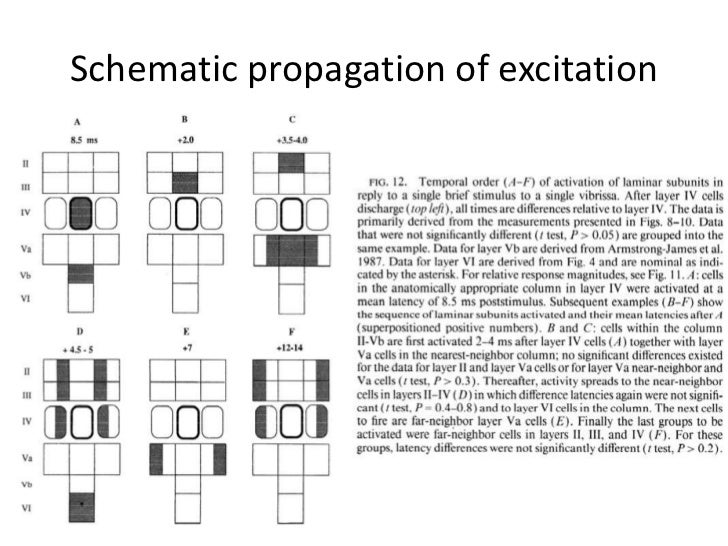

    50. 50. Schematic propagation of excitation<br />

    ×
