1.
Clean Architectures
with
PyConES 2021
October 3rd, 2021

2.

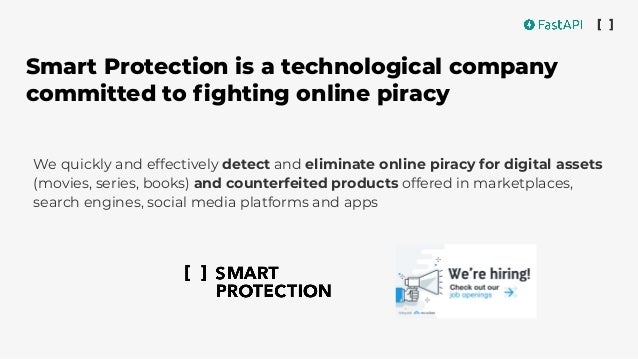

We quickly and effectively detect and eliminate online piracy for digital assets
(movies, series, books) and counterfeited products offered in marketplaces,
search engines, social media platforms and apps
Smart Protection is a technological company
committed to fighting online piracy

3.
User Portal

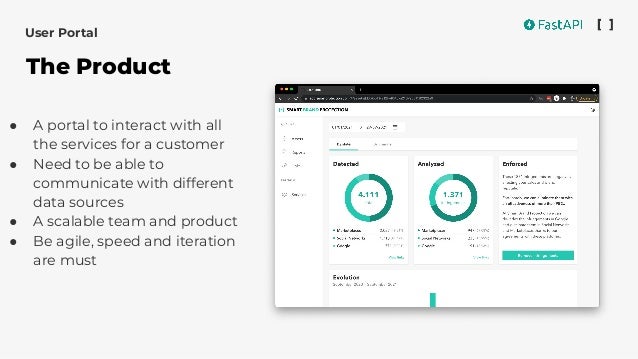

4.
● A portal to interact with all
the services for a customer
● Need to be able to
communicate with different
data sources
● A scalable team and product
● Be agile, speed and iteration
are must
User Portal
The Product

5.
User Portal
Presented today by
Alvaro del Castillo
alvaro.delcastillo@smartprotection.com

6.
Clean
Architectures

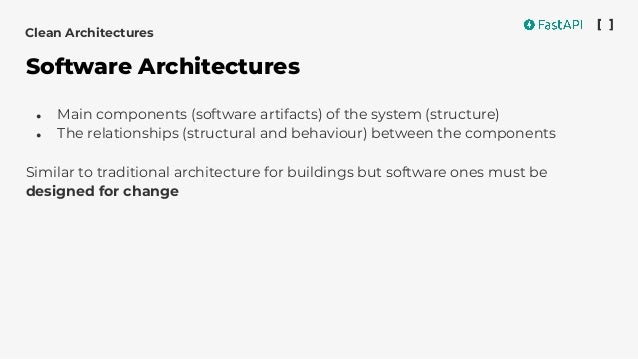

7.
● Main components (software artifacts) of the system (structure)
● The relationships (structural and behaviour) between the components
Similar to traditional architecture for buildings but software ones must be
designed for change
Clean Architectures
Software Architectures

8.

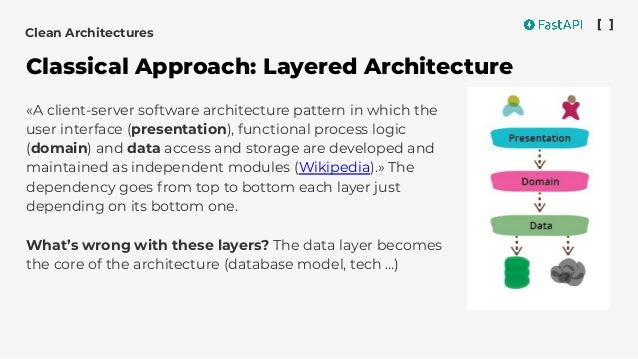

«A client-server software architecture pattern in which the
user interface (presentation), functional process logic
(domain) and data access and storage are developed and
maintained as independent modules (Wikipedia).» The
dependency goes from top to bottom each layer just
depending on its bottom one.
What’s wrong with these layers? The data layer becomes
the core of the architecture (database model, tech …)
Clean Architectures
Classical Approach: Layered Architecture

9.
Clean Architectures

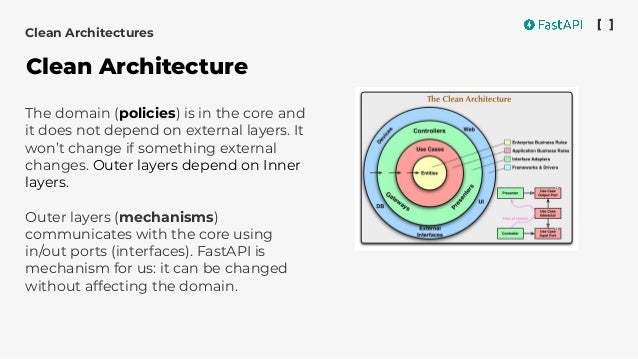

Clean Architecture
The domain (policies) is in the core and
it does not depend on external layers. It
won’t change if something external
changes. Outer layers depend on Inner
layers.
Outer layers (mechanisms)
communicates with the core using
in/out ports (interfaces). FastAPI is
mechanism for us: it can be changed
without affecting the domain.

10.

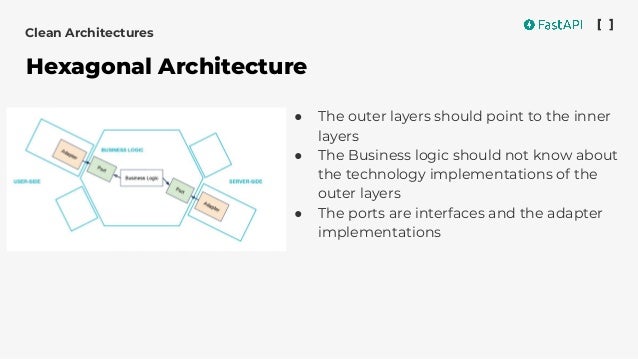

● The outer layers should point to the inner
layers
● The Business logic should not know about
the technology implementations of the
outer layers
● The ports are interfaces and the adapter
implementations
Clean Architectures
Hexagonal Architecture

11.

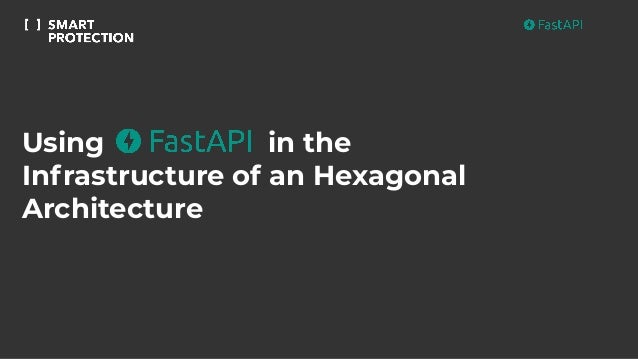

Using in the
Infrastructure of an Hexagonal
Architecture

12.
● ASGI (WSGI with async) based on Starlette
● Data validation (path, query params, body) with Pydantic
● Work with any web server with ASGI support like uvicorn
You define the endpoints of your remote APIs and link to the logic that
implements them. These are the routes. In the routes you have data models to
receive and deliver the data.
FastAPI
Web framework for building remote APIs

13.

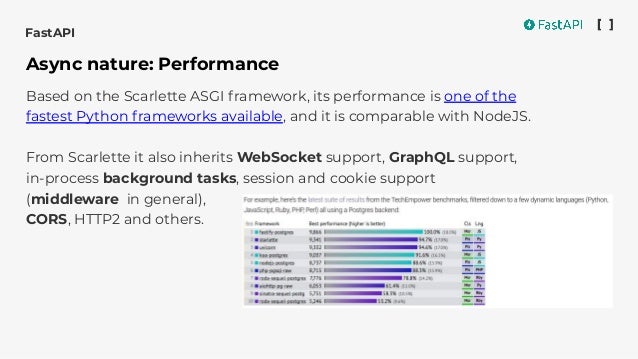

Based on the Scarlette ASGI framework, its performance is one of the
fastest Python frameworks available, and it is comparable with NodeJS.
From Scarlette it also inherits WebSocket support, GraphQL support,
in-process background tasks, session and cookie support
(middleware in general),
CORS, HTTP2 and others.
FastAPI
Async nature: Performance

14.

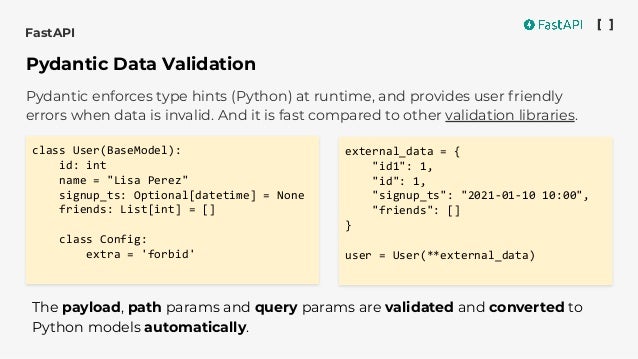

Pydantic enforces type hints (Python) at runtime, and provides user friendly
errors when data is invalid. And it is fast compared to other validation libraries.
class User(BaseModel):
id: int
name = "Lisa Perez"
signup_ts: Optional[datetime] = None
friends: List[int] = []
class Config:
extra = 'forbid'
external_data = {
"id1": 1,
"id": 1,
"signup_ts": "2021-01-10 10:00",
"friends": []
}
user = User(**external_data)
The payload, path params and query params are validated and converted to
Python models automatically.
FastAPI
Pydantic Data Validation

15.

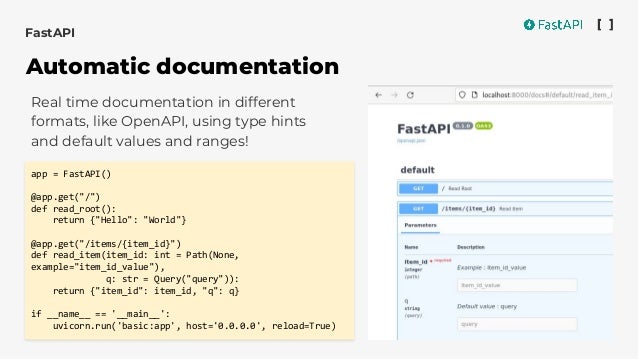

Real time documentation in different
formats, like OpenAPI, using type hints
and default values and ranges!
app = FastAPI()
@app.get("/")
def read_root():
return {"Hello": "World"}
@app.get("/items/{item_id}")
def read_item(item_id: int = Path(None,
example="item_id_value"),
q: str = Query("query")):
return {"item_id": item_id, "q": q}
if __name__ == '__main__':
uvicorn.run('basic:app', host='0.0.0.0', reload=True)
FastAPI
Automatic documentation

16.
"Dependency Injection" means, in programming, that there is a way for your
code (in this case, your path operation functions) to declare things that it
requires to work and use: "dependencies".
The dependencies, which can be nested, are resolved before calling the path
operation function. For example, for authorization before calling the endpoint:
router.add_api_route(path='/save/',
name='save',
methods=['POST'],
endpoint=certificates_api.save,
dependencies=[Depends(get_certificates_jwt_authorizer)],
status_code=status.HTTP_200_OK)
FastAPI
Dependency Injection

17.
And ASGI introduces new features like Background Tasks!
Methods executed once the request is sent to the client.
async def save(
self,
request: Request,
background_tasks: BackgroundTask) -> None:
...
background_tasks.add_task(send_notification_use_case.execute,
notification_command)
FastAPI
Background Tasks

18.

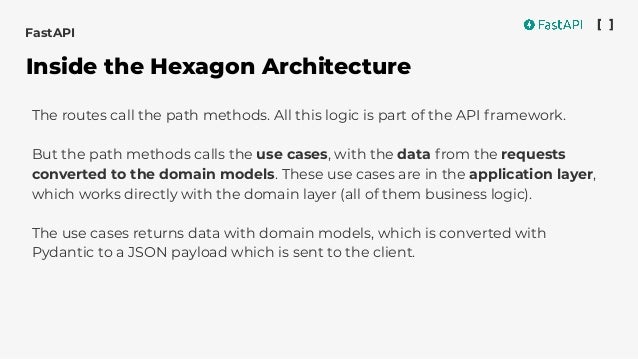

The routes call the path methods. All this logic is part of the API framework.
But the path methods calls the use cases, with the data from the requests
converted to the domain models. These use cases are in the application layer,
which works directly with the domain layer (all of them business logic).
The use cases returns data with domain models, which is converted with
Pydantic to a JSON payload which is sent to the client.
FastAPI
Inside the Hexagon Architecture

19.
Showcase: User Portal

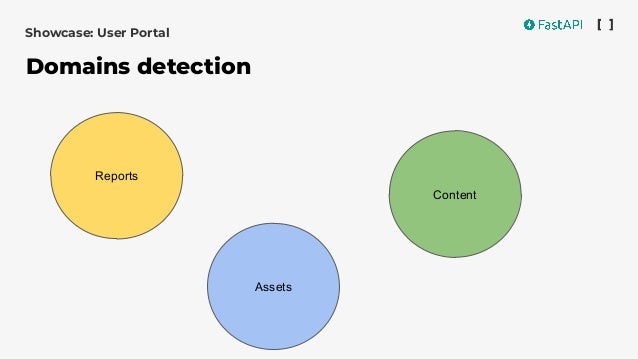

20.
Reports
Assets
Content
Showcase: User Portal
Domains detection

21.

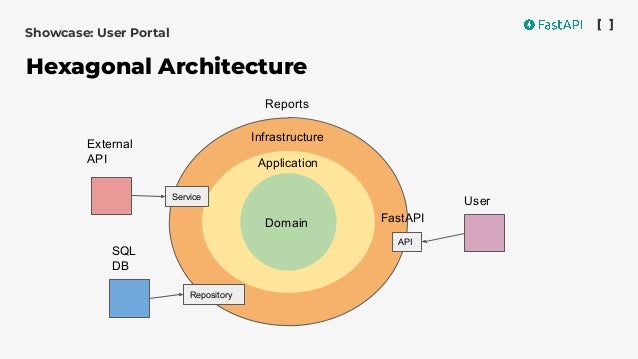

Reports
Infrastructure
Application
Domain FastAPI
External
API
SQL
DB
User
Service
Repository
API
Showcase: User Portal
Hexagonal Architecture

22.
● Team and product scalability
● Ready for change
● Technology independent
Clean Architectures
Benefits

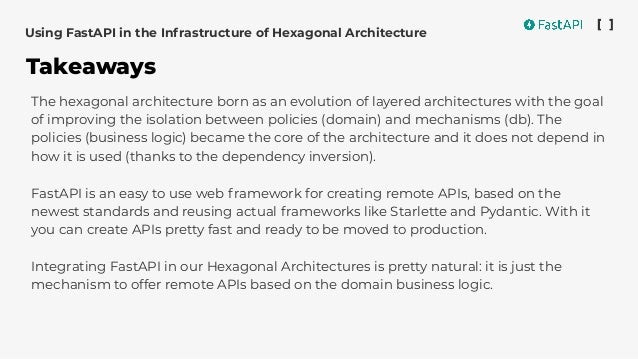

23.
The hexagonal architecture born as an evolution of layered architectures with the goal
of improving the isolation between policies (domain) and mechanisms (db). The
policies (business logic) became the core of the architecture and it does not depend in
how it is used (thanks to the dependency inversion).
FastAPI is an easy to use web framework for creating remote APIs, based on the
newest standards and reusing actual frameworks like Starlette and Pydantic. With it
you can create APIs pretty fast and ready to be moved to production.
Integrating FastAPI in our Hexagonal Architectures is pretty natural: it is just the
mechanism to offer remote APIs based on the domain business logic.
Using FastAPI in the Infrastructure of Hexagonal Architecture
Takeaways

24.
Questions?
Thanks for attending!
