Prepared byPrepared by
WAF in scale v2.0
Alexey Sintsov
Principal Security Engineer
26.02.2016
OWASP Delhi
22
Intro
© 2016 HERE | Security Monitoring System | SPC Engineering team
SPC
Engineering
Team Product team 1 Product team ...
33
What we want:
• We want to monitor WEB attacks, like IDS for WEB
• We won’t review all script-kiddie/bot scans, we want...
44

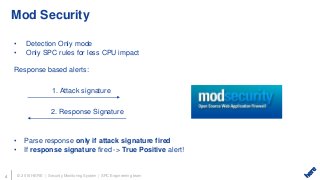

Mod Security
• Detection Only mode
• Only SPC rules for less CPU impact
Response based alerts:
1. Attack signature
2. R...
55
Mod Security - simple example of rule:
SecRule REQUEST_BODY|REQUEST_URI|REQUEST_HEADERS "/+etc/+passwd“
"t:none,ctl:Res...
66
Our Splunk app
• Correlation, analyses (we can code that!)
• Search tool (incident analyses/analytics)
• Alerting
Mail ...
77
Design
Splunk forwarder
Apache
- ModSecurity audit logs
- SPC Rules
Attacks
Splunk serverHERE servers
SPC Splunk app
Se...
88
Part of dashboard
© 2016 HERE | Title | Author | Company confidential
99
Attacker session analyses (correlation with
Apache logs)
© 2016 HERE | Title | Author | Company confidential
1010
Automated alerts
© 2016 HERE | Title | Author | Company confidential
1111

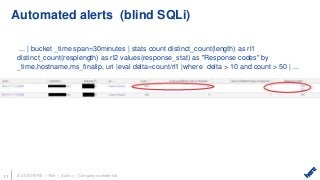

Automated alerts (blind SQLi)
© 2016 HERE | Title | Author | Company confidential
... | bucket _time span=30minutes |...
1212
THOR Integration example
THOR repo
HERE Rules
Apache
…
HERE server
Puppet agent
yum install …
HERE Rules
Apache
Mod S...
1313
How it looks like for a product team
© 2014 HERE | Security Monitoring System | SPC Engineering team
• Ask for a new ...
1414
Support
• Build server for ModSecurity rules (into RPM)
• Automated unit tests for each rule
• Works as expected
• No...
1515
If something goes wrong in OpenSource
© 2016 HERE | Security Monitoring System | SPC Engineering team
1616
Summary
• Maximum automation:
• Build new rules
• Test new rules
• Versioning
• Auto Deploy
• Auto alerting for REAL ...
1717
THE FIN
© 2014 HERE | Security Monitoring System | SPC Engineering team
WEB: https://www.here.com
https://company.her...
1818 © 2014 HERE | Security Monitoring System | SPC Engineering team
Upcoming SlideShare
Loading in …5
×

mod_security + puppet + Splunk

1,373 views

Published on

Additional examples and slides. New version special for OWASP Delhi - https://www.owasp.org/index.php/Delhi_NCR

Published in: Internet
  • Be the first to comment

  • Be the first to like this

mod_security + puppet + Splunk

  1. 1. Prepared byPrepared by WAF in scale v2.0 Alexey Sintsov Principal Security Engineer 26.02.2016 OWASP Delhi

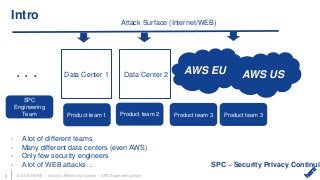

  2. 2. 22 Intro © 2016 HERE | Security Monitoring System | SPC Engineering team SPC Engineering Team Product team 1 Product team 2 Product team 3 AWS US Product team 3 Data Center 1 Data Center 2 Attack Surface (Internet/WEB) AWS EU. . . - A lot of different teams - Many different data centers (even AWS) - Only few security engineers - A lot of WEB attacks… SPC – Security Privacy Continuit
  3. 3. 33 What we want: • We want to monitor WEB attacks, like IDS for WEB • We won’t review all script-kiddie/bot scans, we want auto confirmation and correlation • We want to be able to do fast ‘virtual’ fixes in critical situations • We want SOC to be contacted when attack is confirmed (auto mode)  We want WAF, but in monitor mode (until blocking is needed) Additional needs: • We want to deploy and configure on all (if possible) FE - all products and DataCenters • We want to control and update rules for those installations in “one way” • We want to make it “transparent” to avoid dependency on them • We do not want big performance impact on our services Targets © 2016 HERE | Security Monitoring System | SPC Engineering team
  4. 4. 44 Mod Security • Detection Only mode • Only SPC rules for less CPU impact Response based alerts: 1. Attack signature 2. Response Signature • Parse response only if attack signature fired • If response signature fired -> True Positive alert! © 2016 HERE | Security Monitoring System | SPC Engineering team

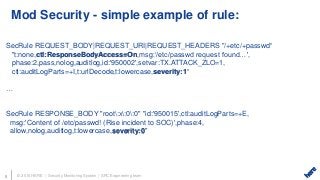

  5. 5. 55 Mod Security - simple example of rule: SecRule REQUEST_BODY|REQUEST_URI|REQUEST_HEADERS "/+etc/+passwd“ "t:none,ctl:ResponseBodyAccess=On,msg:‘/etc/passwd request found…', phase:2,pass,nolog,auditlog,id:'950002',setvar:TX.ATTACK_ZLO=1, ctl:auditLogParts=+I,t:urlDecode,t:lowercase,severity:1“ … SecRule RESPONSE_BODY "root:x:0:0" "id:'950015',ctl:auditLogParts=+E, msg:'Content of /etc/passwd! (Rise incident to SOC)',phase:4, allow,nolog,auditlog,t:lowercase,severity:0" © 2016 HERE | Security Monitoring System | SPC Engineering team
  6. 6. 66 Our Splunk app • Correlation, analyses (we can code that!) • Search tool (incident analyses/analytics) • Alerting Mail to 24/7 SOC Call to oncall Security Engineer (Wake up!) © 2016 HERE | Security Monitoring System | SPC Engineering team
  7. 7. 77 Design Splunk forwarder Apache - ModSecurity audit logs - SPC Rules Attacks Splunk serverHERE servers SPC Splunk app Search tool SPC Engineer index-security © 2016 HERE | Security Monitoring System | SPC Engineering team
  8. 8. 88 Part of dashboard © 2016 HERE | Title | Author | Company confidential
  9. 9. 99 Attacker session analyses (correlation with Apache logs) © 2016 HERE | Title | Author | Company confidential
  10. 10. 1010 Automated alerts © 2016 HERE | Title | Author | Company confidential
  11. 11. 1111 Automated alerts (blind SQLi) © 2016 HERE | Title | Author | Company confidential ... | bucket _time span=30minutes | stats count distinct_count(length) as rl1 distinct_count(resplength) as rl2 values(response_stat) as "Response codes" by _time,hostname,ms_finalip, uri |eval delta=count/rl1 |where delta > 10 and count > 50 | ...
  12. 12. 1212 THOR Integration example THOR repo HERE Rules Apache … HERE server Puppet agent yum install … HERE Rules Apache Mod Security Splunk forwarder Configure all… [1] http://www.netways.de/uploads/media/Pascal_Hahn_End_to_End_continuous_integration_of_deplayment-code_in_a_multi-tenant_puppet_setup.pdf THOR: • Puppet as a service • Extensible & integration • Standard & building blocks 1 © 2016 HERE | Security Monitoring System | SPC Engineering team
  13. 13. 1313 How it looks like for a product team © 2014 HERE | Security Monitoring System | SPC Engineering team • Ask for a new server with: Apache, MySQL, PHP (not real case, just example) • Customer provides Puppet recipes of desired env. (Import MySQL schema, .htaccess rules, PHP script deployment and etc)  these two steps, THOR API and framework  RPM • After deployment – our hardened server with configured Splunk, Apache and ModSecurity and customer’s application, configs. • Customer’s tests (QA), including performance/stress • If our ModSec provides not acceptable delay, than it will be found there • Ready to go! (with some minimal Security by default!) - Customer does not have to think about WAF, configuration of logs and monitoring - If (s|)he adds new server, it will be automatically configured and will be under our monitoring (in Splunk)
  14. 14. 1414 Support • Build server for ModSecurity rules (into RPM) • Automated unit tests for each rule • Works as expected • Not blocking normal requests • No performance impact • Version control via THOR API* => If new rule needs to be distributed, new RPM with new version will be tested and built (auto. mode). Then it can be updated via THOR API to new version for specific service or for whole env. * We have more delivery platforms supported, but for this preso we are talking about THOR only © 2016 HERE | Security Monitoring System | SPC Engineering team

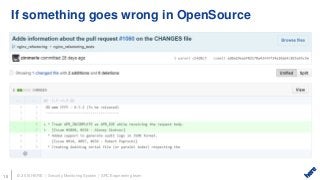

  15. 15. 1515 If something goes wrong in OpenSource © 2016 HERE | Security Monitoring System | SPC Engineering team

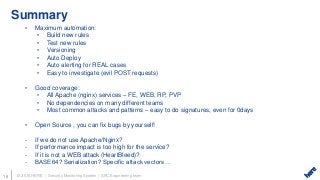

  16. 16. 1616 Summary • Maximum automation: • Build new rules • Test new rules • Versioning • Auto Deploy • Auto alerting for REAL cases • Easy to investigate (evil POST requests) • Good coverage: • All Apache (nginx) services – FE, WEB, RP, PVP • No dependencies on many different teams • Most common attacks and patterns – easy to do signatures, even for 0days • Open Source , you can fix bugs by yourself! - If we do not use Apache/Nginx? - If performance impact is too high for the service? - If it is not a WEB attack (HeartBleed)? - BASE64? Serialization? Specific attack vectors… © 2016 HERE | Security Monitoring System | SPC Engineering team
  17. 17. 1717 THE FIN © 2014 HERE | Security Monitoring System | SPC Engineering team WEB: https://www.here.com https://company.here.com/here/ twitter.com/asintsov alexey.sintsov@here.com
  18. 18. 1818 © 2014 HERE | Security Monitoring System | SPC Engineering team

×
