Photo place dev plan 20111214 en v20

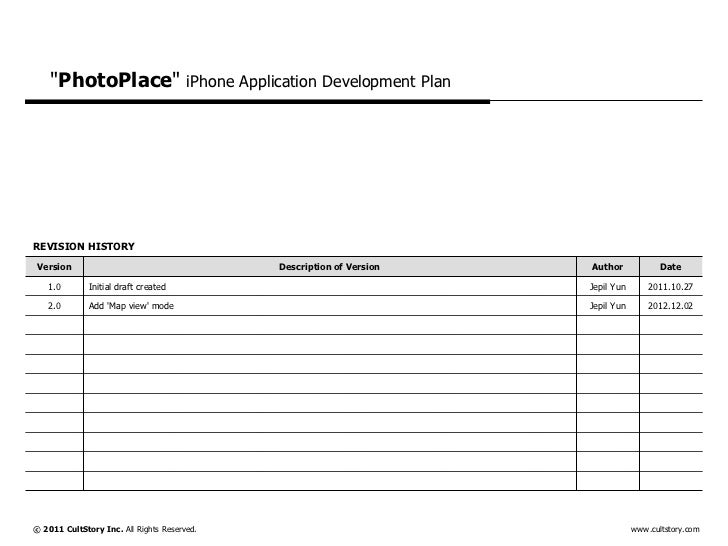

  1. 1. "PhotoPlace" iPhone Application Development PlanREVISION HISTORY Version Description of Version Author Date 1.0 Initial draft created Jepil Yun 2011.10.27 2.0 Add Map view mode Jepil Yun 2012.12.02ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  2. 2. 1) INTRODUCTION PhotoPlace iPhone Application development plan 002CONCEPTTo provide a new way to view photos using and sorting GPS information of each photo.To have more users and earn revenue with the paid version and other advertisement involved in the app. Language Name on iTunes Icon Korean 사진 지역별 자동분류 - 포토플레이스 Pro/Free 포토플레이스 Austrailian English PhotoPlace Pro/Free - Organize photos with places PhotoPlace Brazilian Portuguese PhotoPlace Pro/Free - Organizar fotos com lugares PhotoPlace Canadian English PhotoPlace Pro/Free - Organize photos with places PhotoPlace Canadian French PhotoPlace Pro/Free - Organisez vos photos avec des lieux PhotoPlace Dutch PhotoPlace Pro/Free - Organiseer uw fotos met plaatsen PhotoPlace English PhotoPlace Pro/Free - Organize photos with places PhotoPlace French PhotoPlace Pro/Free - Organisez vos photos avec des lieux PhotoPlace German PhotoPlace Pro/Free - Organisieren Sie Ihre Fotos mit Orten PhotoPlace Italian PhotoPlace Pro/Free - Organizzare le foto con i luoghi PhotoPlace Japanese PhotoPlace Pro/Free - 写真地域別分類 PhotoPlace Mexican Spanish PhotoPlace Pro/Free - Organiza tus fotos con lugares PhotoPlace Portuguese PhotoPlace Pro/Free - Organizar fotos com lugares PhotoPlace Russian (Eng) PhotoPlace Pro/Free - Organize photos with places PhotoPlace Simplified Chinese (Eng) PhotoPlace Pro/Free - Organize photos with places PhotoPlace Spanish PhotoPlace Pro/Free - Organiza tus fotos con lugares PhotoPlace Swedish PhotoPlace Pro/Free - Ordna foton med platser PhotoPlace UK English PhotoPlace Pro/Free - Organize photos with places PhotoPlaceⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  3. 3. 2) PROCESS PhotoPlace iPhone Application development plan 003 Key process of PhotoPlace Application Install Application Run NO GPS access agreed ? YES NO GPS agree alert denied ? YES Alert  all photos (Free) NO Analyze photos Guide screen  all videos (Just Pro ver.) agree ?  needs database YES Using  Default : Country Upgrade Passcode Lock photo sync ? (Albums menu) YESⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  4. 4. 2) PROCESS PhotoPlace iPhone Application development plan 004 Database issueHOW TO GET ADDRESS FROM GPS COORDINATES ? Solution Benefits Risks Issues • High speed in sorting photos • Low accuracy of addresses • Requires a new set of (create the database that • No need to worry about extracted database can extract information of A locations that photos are Google API limitations • High capacity of the app • Requires higher capacity to • New set of database that can • Constant updates for better insure the accuracy of taken, using GPS) be used for other purposes accuracy of addresses addresses • Accurate addresses are • Takes long time to analyze • Check for the speed issue extracted and sorts photos at the first • Check for the Google API (send GPS information of B photos to Google API) • Supports many languages time. limitations issue • Difficulties due to Google API limitations • Accurate addresses are • Takes long time to analyze • Check for the speed issue extracted and sorts photos at the first • Takes extra long time for (send GPS information of • Supports many languages time. users from places with limited C photos to the server that • Need for creation of a new access to internet this company created) server • Requires us to create a new server (receive GPS information • Accurate addresses are • Requires users to sorts the D each time users looks at extracted photos at the fist place photos) • Supports many languagesCONCLUSION A C (Initial Development) (System Upgrade)ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  5. 5. 3) MENU STRUCTURE PhotoPlace iPhone Application development plan 005 Menu Hierarchy 1 photo selected Country Photo List Photo Detail Map  default menu  photo thumbnails  landscape mode  landscape mode  country list with date section  show location on  photos without GPS bar the Google maps  sync photo datas Region Modify  state list, (주/도)  modify the selected  sync photo datas photos address City  city list  sync photo datas photo(s) selected Map  photo thumbnails ※ Difference between Free & Pro versions on the Google map Benefits Free Pro Settings Passcode Lock (Pro) Videos X O Developer Info Passcode lock X O Other apps Travelog Advertisement O Xⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  6. 6. 4) USER SCENARIO PhotoPlace iPhone Application development plan 006 CASE A. Initial launch 01 Intro image 02 Agreement alert for Dont using location services Allow 03 04 Delete cache datas Loading & analyzing photos Guide screen 08 05 06 07 09 14 Update Country Region City Map Settings (Sync photos) (default) Select cell 15 10 Select cell Select cell Passcode set (In pro version) Photo list 16 Select photo 11 Developer Info Photo Select thumbnail ▶ Select layer (detail view / landscape mode) 17 Other apps 12 13 18 Map Edit address Travelog (landscape mode)ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  7. 7. 4) USER SCENARIO PhotoPlace iPhone Application development plan 007 CASE B. Launch (general use) Passcode (In pro version) Intro image Check the agreement no for using location services yes Loading & analyzing photos Guide screen the menu last accessed Update Country Region City Map Settings (Sync photos) Passcode set (In pro version) Photo list Developer Info Photo (detail view / landscape mode) Other apps Map Edit address Travelog (landscape mode)ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  8. 8. 5) USER INTERFACE PhotoPlace iPhone Application development plan 008 01. Intro image Status bar | The loading image that appears each time the app runs. (transfers to the actual app within 2 seconds) Image PhotoPlace CultStory Inc.ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  9. 9. 5) USER INTERFACE PhotoPlace iPhone Application development plan 009 02. Agreement alert for using location services Status bar | Agreement alert for using location services. This ensures users to agree with using their location servic es when they install the app. (in order to sort the photos according to the places taken.) "PhotoPlace" Would Image Like To Use Your Current Location Dont Allow OK PhotoPlace CultStory Inc.ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  10. 10. 5) USER INTERFACE PhotoPlace iPhone Application development plan 010 03. Loading & analyzing photos Status bar | After the users’ agreement on the location services, the app analyzes photos and creates thumbnail images. | The status bar is for showing the progress Loading photos …… Please wait for a while. 123 / 2,632 CultStory Inc.ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  11. 11. 5) USER INTERFACE PhotoPlace iPhone Application development plan 011 04. Guide screen Status bar | If the users do not agree with the location services, the app suggests turning on the location services. | ※ another set of massages saying the app does not collect the users location information for other purposes This application needs to use location services. Please turn ON location service and run app again. You can change the location service setting info at [Settings > Location Services] CultStory Inc.ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  12. 12. 5) USER INTERFACE PhotoPlace iPhone Application development plan 012 05. Country Status bar | when the app is loaded for the first time, “Country” menu is displayed (default) Country Region City Map Setting (After the first time, the latest-accessed menu will be shown.) | The country menu sorts photos according to the Republic of Korea (3,126) countries they were taken and list them with names of countries. | The order of the photo list starts from the latest saved New Zealand (172) to the oldest | Photos without GPS information will be displayed in “Photos without GPS folder” United States (912) Photos without GPS (1,128) Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  13. 13. 5) USER INTERFACE PhotoPlace iPhone Application development plan 013 06. Region Status bar | Regions of each country will be displayed as lists (provinces, states) Country Region City Map Setting | Provides each name of country with “the section bar” | The list of the regions are shown from the latest saved Republic of Korea to the oldest saved Gyeonggi-do (20) Seoul (22) Busan (19) United States New York (88) Hawaii (56) Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  14. 14. 5) USER INTERFACE PhotoPlace iPhone Application development plan 014 07. City Status bar | Indicates measurements and units for each city | Provides each name of country with “the Section Bar” Country Region City Map Setting | The list of the cities are shown from the latest saved to the oldest saved Republic of Korea Paju (23) Incheon (39) Seoul (99) United States Manhattan (115) Woodbury (83) Hampstead (21) Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  15. 15. 5) USER INTERFACE PhotoPlace iPhone Application development plan 015 08. Update Status bar | In Country menu, Region menu and City menu, users can refresh their photo lists by pulling down Country Region City Map Setting the screen. Pull down to sync photos List A (# of photos) Pull down to sync photos List B (# of photos) List C (# of photos) Release to sync photos List D (# of photos) ...... PhotoPlace All photos will be synced. It will take some seconds. Cancel OK Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  16. 16. 5) USER INTERFACE PhotoPlace iPhone Application development plan 016 09. Map Status bar | Reflects thumbnails on the places that photos are taken on the map Country Region City Map Setting (adjusts focuses to see all the places on the map) | Adjusts the number of the thumbnails according to the graphic quality of the map. (many photos can be indicated as one photo if the quality of the map is low) | If the thumbnails are touched, the number of photos on each of them are indicated 13 photos Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  17. 17. 5) USER INTERFACE PhotoPlace iPhone Application development plan 017 10. Photo list Status bar | The screen displayed when one of the Country, Region or City menus are selected. back United States M | The title is the name of places (country, region or city) | The list of the places are shown from the latest saved January 23, 2011 Tuesday to the oldest saved | Videos can only be sorted in the paid version. 05:30 12:05 January 25, 2011 Friday 1:02:42 January 26, 2011 Saturday 2:01:09 Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  18. 18. 5) USER INTERFACE PhotoPlace iPhone Application development plan 018 10. Photo list > Map Status bar | The thumbnails are displayed on the map when “Map” is selected in the photo list view menu. back United States L 2 photos Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  19. 19. 5) USER INTERFACE PhotoPlace iPhone Application development plan 019 11. Photo / Video > 1 photo selected Status bar | The screen displayed when one picture is selected. | Users can navigate the photos using the right and left United States 1 of 143 M scroll. Photo Tuesday, July 14, 2011 12:33:57 AM GMT +09:00 Modify Nassau, New York, United States Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  20. 20. 5) USER INTERFACE PhotoPlace iPhone Application development plan 020 11. Photo / Video > 1 photo selected (Landscape mode) Status bar | Advertisements are removed on the horizontal mode United States 1 of 143 M | Users may not change the address on the horizontal mode PhotoTuesday, July 14, 2011 12:33:57 AM GMT +09:00Nassau, New York, United States ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  21. 21. 5) USER INTERFACE PhotoPlace iPhone Application development plan 021 11. Photo / Video > 1 photo selected | When a picture is touched, the navigation bar and advertisement disappear Photo Photoⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  22. 22. 5) USER INTERFACE PhotoPlace iPhone Application development plan 022 11. Photo / Video > 1 video selected Status bar | When contents are video (only for the paid version) United States 1 of 143 M Tuesday, July 14, 2011 12:33:57 AM GMT +09:00 Modify Nassau, New York, United Statesⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  23. 23. 5) USER INTERFACE PhotoPlace iPhone Application development plan 023 11. Photo / Video > 1 video selected > Play Status bar | The video play sccreen (the navigation comes from the bottom) Done 0:50 0:12 | The vertical navigation bar disappear after certain amount of time the video is played | When the video is over, the player automatically moves to the bottom | Full screen will be displayed when the extended view is selected.ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  24. 24. 5) USER INTERFACE PhotoPlace iPhone Application development plan 024 12. Map Status bar | The places that photos/videos are taken are reflected with pins when “Map” is selected on Photo/Video back Map → detail screen. | When the map is selected, the places are reflected on the iPhone default map. Status bar back Map →ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  25. 25. 5) USER INTERFACE PhotoPlace iPhone Application development plan 025 13. Edit address Status bar | When “Change locations” button is selected, the addresses near the place are indicated. United States 1 of 143 M | When addresses on the lists are selected, the photos are saved with the edited address information. Select the address Manhattan, NY 10105 ✔ Long Island City, NY 11106 Flushing, NY 11369 Jamaica, NY 11427 Photo Tuesday, July 14, 2011 12:33:57 AM GMT +09:00 Cancel Nassau, New York, United States Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  26. 26. 5) USER INTERFACE PhotoPlace iPhone Application development plan 026 14. Settings (Free version) Status bar | Provdes a link to the paid version. Country Region City Map Setting How about PhotoPlace application? Do you like it? In Pro version, you can load even videos(in Photos app) and can use without Ad. Download PhotoPlace pro Developer Info : CultStory Inc. Other Apps of CultStory Upcoming Travelog Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  27. 27. 5) USER INTERFACE PhotoPlace iPhone Application development plan 027 14. Settings (Pro version) Status bar | Users may set a password lock. Country Region City Map Setting Thank you for upgrade! You are the best supporter of CultStory Inc. Passcode lock If you want to change your passcode, inactivate the Passcode lock. Then reactivate the Passcode lock with new passcode! Developer Info : CultStory Inc. Other Apps of CultStory Upcoming Travelogⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  28. 28. 5) USER INTERFACE PhotoPlace iPhone Application development plan 028 15. Passcode set Status bar Status bar Country Region City Map Setting Cancel Thank you for upgrade! You are the best supporter of CultStory Inc. Enter Passcode Passcode lock If you want to change your passcode, inactivate the Passcode lock. Then reactivate the Passcode lock with new passcode! Developer Info : CultStory Inc. Other Apps of CultStory Upcoming Travelogⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  29. 29. 5) USER INTERFACE PhotoPlace iPhone Application development plan 029 15. Passcode set | Confirmation after the password is changed. | When passwords do not match. Status bar Status bar Cancel Cancel Enter Passcode Enter Passcode Reconfirm passcode Passcodes did not match. Try againⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  30. 30. 5) USER INTERFACE PhotoPlace iPhone Application development plan 030 16. Developer info Status bar | Mobile website http://m.cultstory.com/about back Applications About Company Intro What we do We are a Mobile Application Developer. Our ultimate goal is to be the world best mobile service provider. We are always think and think and think to improve the user experience of applications and to create innovative mobile services. CultStory always strives to provide satisfaction to all our users. We are create the new culture that can link people with information through our applications. That is our vision, and we will prove it. Thanks. Contact Info Mail app@cultstory.com Twitter @cultstory Facebook facebook.com/cultstory Blog cultstory.com/blog Tel +82 70 8650 2086 Fax +82 2 6280 7428ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  31. 31. 5) USER INTERFACE PhotoPlace iPhone Application development plan 031 17. Other apps | Mobile website http://m.cultstory.com/ Status bar Status bar back back Applications About ◀ Back to List About Application Name icon Category Date (Month, Year) Application Name icon icon Category Date (Month, Year) Application Name icon Category Date (Month, Year) Application Name Application Name icon Category Date (Month, Year) Date (Month, Year) Description Application Name iTunes description ...... icon Category Date (Month, Year)ⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  32. 32. 5) USER INTERFACE PhotoPlace iPhone Application development plan 032 18. Travelog Status bar | Mobile website http://m.travelog.me/ back icon Application Name Twitter Facebook Tumblr Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com
  33. 33. 6) EXCEPTION HANDLING PhotoPlace iPhone Application development plan 033 If users delete any photos and not yet synced Status bar | The lists of folders and thumbnails are indicated. The photos that are deleted from the detailed Photo United States 1 of 143 screen are displayed on “Guide screen” Image Oops~ You have deleted this photo ! Advertisementⓒ 2011 CultStory Inc. All Rights Reserved. www.cultstory.com

×
