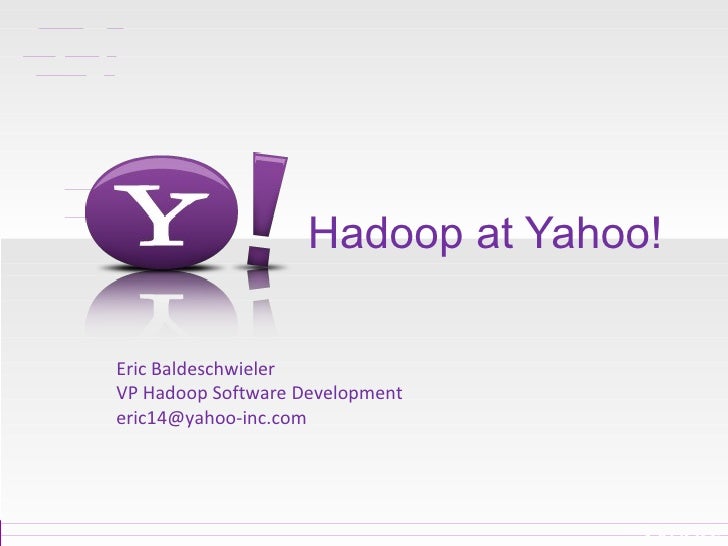

Hadoop at Yahoo! Eric Baldeschwieler VP Hadoop Software Development [email_address]

What we want you to know about Yahoo! and Hadoop Yahoo! is: The largest contributor to Hadoop The largest tester of Hadoop The largest user of Hadoop 4000 node clusters! A great place to do Hadoop development, do internet scale science and change the world! Also: We release “The Yahoo! Distribution of Hadoop” We contribute all of our Hadoop work to the Apache Foundation as open source We continue to aggressively invest in Hadoop We do not sell Hadoop service or support! We use Hadoop services to run Yahoo!

Yahoo! is:

The largest contributor to Hadoop

The largest tester of Hadoop

The largest user of Hadoop

4000 node clusters!

A great place to do Hadoop development, do internet scale science and change the world!

Also:

We release “The Yahoo! Distribution of Hadoop”

We contribute all of our Hadoop work to the Apache Foundation as open source

We continue to aggressively invest in Hadoop

We do not sell Hadoop service or support!

We use Hadoop services to run Yahoo!

The majority of all patches to Hadoop have come from Yahoo!s 72% of core patches Core = HDFS, Map-reduce, Common Metric is an underestimate Some Yahoo!s use apache.org accounts Patch sizes vary Yahoo! is the largest employer of Hadoop Contributors, by far! We contribute ALL of our Hadoop development work back to Apache! We are hiring! (interns & full-time) Sunnyvale, Bangalore, Beijing See http://hadoop.yahoo.com The Largest Hadoop Contributor All Patches Core Patches

The majority of all patches to Hadoop have come from Yahoo!s

72% of core patches

Core = HDFS, Map-reduce, Common

Metric is an underestimate

Some Yahoo!s use apache.org accounts

Patch sizes vary

Yahoo! is the largest employer of Hadoop Contributors, by far!

We contribute ALL of our Hadoop development work back to Apache!

We are hiring! (interns & full-time)

Sunnyvale, Bangalore, Beijing

See http://hadoop.yahoo.com

The Largest Hadoop Tester Every release of The Yahoo! Distribution of Hadoop goes through multiple levels of testing before we declare it stable 4 Tiers of Hadoop clusters Development, Testing and QA (~10% of our hardware) Continuous integration / testing of new code Proof of Concepts and Ad-Hoc work (~10% of our hardware) Runs the latest version of Hadoop – currently 0.20 (RC6) Science and Research (~60% of our hardware) Runs more stable versions – currently 0.20 (RC5) Production (~20% of our hardware) The most stable version of Hadoop – currently 0.18.3 We continue to grow our Quality Engineering team We are hiring!!

Every release of The Yahoo! Distribution of Hadoop goes through multiple levels of testing before we declare it stable

4 Tiers of Hadoop clusters

Development, Testing and QA (~10% of our hardware)

Continuous integration / testing of new code

Proof of Concepts and Ad-Hoc work (~10% of our hardware)

Runs the latest version of Hadoop – currently 0.20 (RC6)

Science and Research (~60% of our hardware)

Runs more stable versions – currently 0.20 (RC5)

Production (~20% of our hardware)

The most stable version of Hadoop – currently 0.18.3

We continue to grow our Quality Engineering team

We are hiring!!

The Largest Hadoop User 2006 now Hardware Internal Hadoop Users building new datacenter PB Disk, >82PB Today Nodes, >25,000 Today

Collaborations around the globe The Apache Foundation – http://hadoop.apache.org Hundreds of contributors and thousands users of Hadoop! see http://wiki.apache.org/hadoop/PoweredBy The Yahoo! Distribution of Hadoop – Opening up our testing Hundreds of git followers M45 - Yahoo!’s shared research supercomputing cluster Carnegie Mellon University The University of California at Berkeley Cornell University The University of Massachusetts at Amherst Partners in India Computational Research Laboratories (CRL), India's Tata Group Universities – IIT-B, IISc, IIIT-H, PSG Open Cirrus™ - cloud computing research & education The University of Illinois at Urbana-Champaign Infocomm Development Authority (IDA) in Singapore The Karlsruhe Institute of Technology (KIT) in Germany HP, Intel The Russian Academy of Sciences, Electronics & Telecomm. Malaysian Institute of Microelectronic Systems

The Apache Foundation – http://hadoop.apache.org

Hundreds of contributors and thousands users of Hadoop!

see http://wiki.apache.org/hadoop/PoweredBy

The Yahoo! Distribution of Hadoop – Opening up our testing

Hundreds of git followers

M45 - Yahoo!’s shared research supercomputing cluster

Carnegie Mellon University

The University of California at Berkeley

Cornell University

The University of Massachusetts at Amherst

Partners in India

Computational Research Laboratories (CRL), India's Tata Group

Universities – IIT-B, IISc, IIIT-H, PSG

Open Cirrus™ - cloud computing research & education

The University of Illinois at Urbana-Champaign

Infocomm Development Authority (IDA) in Singapore

The Karlsruhe Institute of Technology (KIT) in Germany

HP, Intel

The Russian Academy of Sciences, Electronics & Telecomm.

Malaysian Institute of Microelectronic Systems

Usage of Hadoop

Why Hadoop @ Yahoo! ? Massive scale 500M+ unique users per month Billions of “transactions” per day Many petabytes of data Analysis and data processing key to our business Need to process all of that data in a timely manner Lots of ad hoc investigation to look for patterns, run reports… Need to do this cost effectively Use low cost commodity hardware Share resources among multiple projects Try new things quickly at huge scale Handle the failure of some of that hardware every day The Hadoop infrastructure provides these capabilities

Massive scale

500M+ unique users per month

Billions of “transactions” per day

Many petabytes of data

Analysis and data processing key to our business

Need to process all of that data in a timely manner

Lots of ad hoc investigation to look for patterns, run reports…

Need to do this cost effectively

Use low cost commodity hardware

Share resources among multiple projects

Try new things quickly at huge scale

Handle the failure of some of that hardware every day

The Hadoop infrastructure provides these capabilities

Yahoo! front page - Case Study

Yahoo! front page - Case Study Ads Optimization Search Index

Yahoo! front page - Case Study Ads Optimization Content Optimization Search Index Machine Learned Spam filters RSS Feeds Content Optimization

Large Applications 2008 2009 Webmap ~70 hours runtime ~300 TB shuffling ~200 TB output ~73 hours runtime ~490 TB shuffling ~280 TB output +55% Hardware Sort benchmarks (Jim Gray contest) 1 Terabyte sorted 209 seconds 900 nodes 1 Terabyte sorted 62 seconds, 1500 nodes 1 Petabyte sorted 16.25 hours, 3700 nodes Largest cluster 2000 nodes 6PB raw disk 16TB of RAM 16K Cores 4000 nodes 16PB raw disk 64TB of RAM 32K Cores (40% faster too!)

1 Terabyte sorted

209 seconds

900 nodes

1 Terabyte sorted

62 seconds, 1500 nodes 1 Petabyte sorted

16.25 hours, 3700 nodes

2000 nodes

6PB raw disk

16TB of RAM

16K Cores

4000 nodes

16PB raw disk

64TB of RAM

32K Cores

(40% faster too!)

Cost savings is not the point! Often “cloud” technologies are presented as primarily cost savers The real return is speed of R&D / business innovation Hadoop let’s us build new product and improve existing products faster! Makes Developers & Scientists more productive Research questions answered in days, not months Projects move from research to production easily (it stays on Hadoop) Easy to learn! “Even our rocket scientists use it!” The major factors You don’t need to find new hardware to experiment You can work with all your data! Production and research based on same framework No need for R&D to do I.T., the clusters just work Tremendous Impact on Productivity

Cost savings is not the point!

Often “cloud” technologies are presented as primarily cost savers

The real return is speed of R&D / business innovation

Hadoop let’s us build new product and improve existing products faster!

Makes Developers & Scientists more productive

Research questions answered in days, not months

Projects move from research to production easily (it stays on Hadoop)

Easy to learn! “Even our rocket scientists use it!”

The major factors

You don’t need to find new hardware to experiment

You can work with all your data!

Production and research based on same framework

No need for R&D to do I.T., the clusters just work

Example: Search Assist TM Database for Search Assist™ is built using Hadoop. 3 years of log-data 20-steps of map-reduce Before Hadoop After Hadoop Time 26 days 20 minutes Language C++ Python Development Time 2-3 weeks 2-3 days

Database for Search Assist™ is built using Hadoop.

3 years of log-data

20-steps of map-reduce

Challenges & Learnings Surprises we’ve encountered along the way

Users!! Can’t live with them, can’t shoot them! There is always a new way to crash the system! DOS attacks, resource exhaustion, abuse NFS mounts…, MANY small files, HUGE # tiny task, … DOSing other internal or external service from grid… Use all RAM on a node…, extreme read patterns… Really novel use of features… Weird use of memory mapping crashed linux… We just want your cluster! Using maps to launch MPI jobs! Lots of other examples of just taking over machines and squatting on them Tragedy of the commons When have you seen a shared drive that is not full? Need social / economic feedback I didn’t know how much RAM I need, so I always ask for the MAX allowed… Lots of gaming of any scheduling / sharing policy to maximize local utility!

There is always a new way to crash the system!

DOS attacks, resource exhaustion, abuse

NFS mounts…, MANY small files, HUGE # tiny task, …

DOSing other internal or external service from grid…

Use all RAM on a node…, extreme read patterns…

Really novel use of features…

Weird use of memory mapping crashed linux…

We just want your cluster!

Using maps to launch MPI jobs!

Lots of other examples of just taking over machines and squatting on them

Tragedy of the commons

When have you seen a shared drive that is not full? Need social / economic feedback

I didn’t know how much RAM I need, so I always ask for the MAX allowed…

Lots of gaming of any scheduling / sharing policy to maximize local utility!

Users!! (more) R&D workload varies hugely in composition! Paper deadlines, end of quarter, project… work spikes Makes it very hard to understand system behavior. Did we fix something? Upgrades are hard on a shared service If you break any of 1000 apps, you need permission to upgrade… Semantics users count on are often subtle Hod->20 reduce caching Reuse of objects in Map-Reduce (broke 2 of 2000 scripts) We do love them of course, they pay out wages… Have a realistic model users! Understand their problems. They don’t have the answers you would like! (How much RAM/time…) Make shared costs visible! Make easy things easy! Bad designs lead to bad results

R&D workload varies hugely in composition!

Paper deadlines, end of quarter, project… work spikes

Makes it very hard to understand system behavior. Did we fix something?

Upgrades are hard on a shared service

If you break any of 1000 apps, you need permission to upgrade…

Semantics users count on are often subtle

Hod->20 reduce caching

Reuse of objects in Map-Reduce (broke 2 of 2000 scripts)

We do love them of course, they pay out wages…

Have a realistic model users! Understand their problems.

They don’t have the answers you would like! (How much RAM/time…)

Make shared costs visible!

Make easy things easy! Bad designs lead to bad results

KISS – Keep it simple, stupid! The simplifying assumptions in Hadoop are key to success No Posix Java – Great tools to debug, static checking, … Single masters, in RAM data structures Required to install and run on a single box with stock OS… Do you want HA or an available system? Single master policy has been a huge win (to date) Cleaver code takes a cleaver person to debug! Genius in system design is code that anyone can understand! Use the existing features!!! Resist new one! Researchers & customers like adding things to systems, this makes them brittle!

The simplifying assumptions in Hadoop are key to success

No Posix

Java – Great tools to debug, static checking, …

Single masters, in RAM data structures

Required to install and run on a single box with stock OS…

Do you want HA or an available system?

Single master policy has been a huge win (to date)

Cleaver code takes a cleaver person to debug!

Genius in system design is code that anyone can understand!

Use the existing features!!! Resist new one!

Researchers & customers like adding things to systems, this makes them brittle!

Distributed performance analysis is Hard!

Isolation vs. Throughput You want to mix lots of low priority work with your high priority work, to saturate the cluster When “production” needs more CPU, just delay low priority work Share production data with research… Unfortunately research jobs crash clusters… This is unacceptable!! Need to invest in isolation Capacity scheduler Quotas, run as correct unix user (kill -9 problem, …) Smarter monitoring to detect odd user patterns

You want to mix lots of low priority work with your high priority work, to saturate the cluster

When “production” needs more CPU, just delay low priority work

Share production data with research…

Unfortunately research jobs crash clusters…

This is unacceptable!!

Need to invest in isolation

Capacity scheduler

Quotas, run as correct unix user (kill -9 problem, …)

Smarter monitoring to detect odd user patterns

Lots of details in building a stable servers Fragmentation DOS, Brownout (very slow clients exhaust threads) RPC has many subtle issues when shedding load Critical sections, race conditions, data structure contention Versioning issues in a distributed systems

Fragmentation

DOS, Brownout (very slow clients exhaust threads)

RPC has many subtle issues when shedding load

Critical sections, race conditions, data structure contention

Versioning issues in a distributed systems

Datacenter network Simple “flat” topology 200 mb all to all bandwidth (5:1 over subscription) Copper 1Gb, ~8% total cost “ Flat” topology vastly reduces admin cost!! No moves, reconfigs Huge aggregate bandwidth Round robin static routes (layer 3), simple, but an availability issue (failures not evenly redistributed) Test show 30% increase in sort speed for 2:1 over subscription The plan for next data center (all fiber, 10 Gb to the rack) We want simple, robust, higher speed, lower cost networks! Don’t care about fancy features!!! WAN routers Routers (x8) … Rack switch … ~160 Gb … 8 Gb / rack … … … 40 nodes per rack 400+ racks / data center

Simple “flat” topology

200 mb all to all bandwidth

(5:1 over subscription)

Copper 1Gb, ~8% total cost

“ Flat” topology vastly reduces admin cost!!

No moves, reconfigs

Huge aggregate bandwidth

Round robin static routes (layer 3), simple, but an availability issue (failures not evenly redistributed)

Test show 30% increase in sort speed for 2:1 over subscription

The plan for next data center (all fiber, 10 Gb to the rack)

We want simple, robust, higher speed, lower cost networks! Don’t care about fancy features!!!

Testing -> Stability and Agility Two competing needs: Rapid development Adding new features Innovate Increase stability Hadoop is mission critical Pressure to move slowly! How do you move the curve? Invest in automated testing! Continuous integration Performance testing Stress testing Coverage, mock objects…

Two competing needs:

Rapid development

Adding new features

Innovate

Increase stability

Hadoop is mission critical

Pressure to move slowly!

How do you move the curve?

Invest in automated testing!

Continuous integration

Performance testing

Stress testing

Coverage, mock objects…

Collaboration is hard! Open source promises lots of free help on your project! But it doesn’t really work that way… When Yahoo! invests in an area, others shift their focus, making collaboration challenging! We focus on our key concerns and let others innovate in other places Most people make lousy contributors! There is a big investment in training someone to be an effective contributor No dilettantes! To become a committer, you are expected to stay in the community and support your work and the work of others! Do you want to graduate or code Hadoop? We don’t want features to prove ideas!!! KISS! So what does make sense? Educate us! Build a prototype and write a paper with great data! Build an application on Hadoop or a tool that improves it Still want to contribute to Hadoop? Start small, fix bugs Prove you can make the product better and can stick to it

Open source promises lots of free help on your project!

But it doesn’t really work that way…

When Yahoo! invests in an area, others shift their focus, making collaboration challenging!

We focus on our key concerns and let others innovate in other places

Most people make lousy contributors!

There is a big investment in training someone to be an effective contributor

No dilettantes! To become a committer, you are expected to stay in the community and support your work and the work of others!

Do you want to graduate or code Hadoop?

We don’t want features to prove ideas!!! KISS!

So what does make sense?

Educate us! Build a prototype and write a paper with great data!

Build an application on Hadoop or a tool that improves it

Still want to contribute to Hadoop? Start small, fix bugs

Prove you can make the product better and can stick to it

Software Engineering 101 KISS! (keep it simple!) Design with real user behavior in mind! Design in measurement and testing! Ship early and often Don’t optimize until you have proof you have solved a problem! You learn more by shipping then by over designing Refactor aggressively Code rots, design mistakes are made Shipping early makes this worse! Open source makes this worse! (patch review) You need to rewrite, redesign, improve regularly

KISS! (keep it simple!)

Design with real user behavior in mind!

Design in measurement and testing!

Ship early and often

Don’t optimize until you have proof you have solved a problem!

You learn more by shipping then by over designing

Refactor aggressively

Code rots, design mistakes are made

Shipping early makes this worse!

Open source makes this worse! (patch review)

You need to rewrite, redesign, improve regularly

Futures & Opportunities

Current Yahoo! Development Hadoop Backwards compatibility New APIs in 21, Avro Append, Sync, Flush Improved Scheduling Capacity Scheduler, Hierarchical Queues in 21 Security - Kerberos authentication GridMix3 / Mumak Simulator / Better trace & log analysis PIG SQL and Table storage model (rows and columns, schema) Column oriented storage layer - Zebra Multi-query, lots of other optimizations Oozie New workflow and scheduling system Quality Engineering – Many more tests Stress tests, Fault injection, Functional test coverage, performance regression…

Hadoop

Backwards compatibility

New APIs in 21, Avro

Append, Sync, Flush

Improved Scheduling

Capacity Scheduler, Hierarchical Queues in 21

Security - Kerberos authentication

GridMix3 / Mumak Simulator / Better trace & log analysis

PIG

SQL and Table storage model (rows and columns, schema)

Column oriented storage layer - Zebra

Multi-query, lots of other optimizations

Oozie

New workflow and scheduling system

Quality Engineering – Many more tests

Stress tests, Fault injection, Functional test coverage, performance regression…

Some Areas to Explore: Systems Anomaly detection, algorithms to operate in the face of such! Scheduling improvements (Mumak simulator, gridmix3) We will be releasing Logs from our clusters Isolation! Integration with Linux containers? VMs? Others? Lower cost ways of defending Hadoop resources from jobs? More pluggable APIs Scheduler, Block placement, logging Various implementation choices for Map-Reduce Push vs Pull, full sorted output?, reduce locality cases? Map-Reduce-Reduce - Can MR be made more efficient for multiple MR jobs? Load balancing tricks in HDFS (eliminate hot spots, slow nodes) Block placement strategies More failure domains (power? User Zones?) Replication on every rack Various RAID / parity approach Collocation of data (this is hard)

Anomaly detection, algorithms to operate in the face of such!

Scheduling improvements (Mumak simulator, gridmix3)

We will be releasing Logs from our clusters

Isolation!

Integration with Linux containers? VMs? Others?

Lower cost ways of defending Hadoop resources from jobs?

More pluggable APIs

Scheduler, Block placement, logging

Various implementation choices for Map-Reduce

Push vs Pull, full sorted output?, reduce locality cases?

Map-Reduce-Reduce - Can MR be made more efficient for multiple MR jobs?

Load balancing tricks in HDFS (eliminate hot spots, slow nodes)

Block placement strategies

More failure domains (power? User Zones?)

Replication on every rack

Various RAID / parity approach

Collocation of data (this is hard)

Some Areas to Explore: Applications Implementing standard algorithms (in Pig?) Joins, aggregations, vector operations? ML primitives… Programming model for Iterative computations Machine learning does a lot of this, how can we enhance the framework to support ML? (beyond MPI) Debugging & performance tools, UI etc One of the easiest ways to have impact! Log collection and management Hadoop should be better at monitoring itself and user jobs

Implementing standard algorithms (in Pig?)

Joins, aggregations, vector operations? ML primitives…

Programming model for Iterative computations

Machine learning does a lot of this, how can we enhance the framework to support ML? (beyond MPI)

Debugging & performance tools, UI etc

One of the easiest ways to have impact!

Log collection and management

Hadoop should be better at monitoring itself and user jobs

Some Areas to Explore: Pig Memory Usage Java provides poor models for managing RAM. This is key to Pig, Hive, HBase, the HDFS NN… Automated Hadoop Tuning Can Pig or Oozie or MR itself figure out how to configure Hadoop to best run a particular script / job? RDBM tricks Cost based optimization – how does current RDBMS technology carry over to MR world? Indices, materialized views, etc. – How do these traditional RDBMS tools fit into the MR world? Build an optimizing compiler for Pig Latin, perhaps incorporating some database query optimization techniques Use data layout information for query optimization in Pig

Memory Usage

Java provides poor models for managing RAM. This is key to Pig, Hive, HBase, the HDFS NN…

Automated Hadoop Tuning

Can Pig or Oozie or MR itself figure out how to configure Hadoop to best run a particular script / job?

RDBM tricks

Cost based optimization – how does current RDBMS technology carry over to MR world?

Indices, materialized views, etc. – How do these traditional RDBMS tools fit into the MR world?

Build an optimizing compiler for Pig Latin, perhaps incorporating some database query optimization techniques

Use data layout information for query optimization in Pig

Questions? Eric Baldeschwieler VP Hadoop Software Development [email_address] For more information: http://hadoop.apache.org/ http://hadoop.yahoo.com/ (including job openings)
