Profiling Application Performance <br />and Resource Utilization <br />in Virtualized Environments<br />UmeshBellur<br />P...
Feb 16th, 2011<br />2<br />Virtualization based Provisioning<br /><ul><li>Abstract physical resources as virtual objects
Virtual machines execute on virtual systems
Virtual machine monitor multiplexes physical resources across virtual resources</li></ul>Benefits<br />Direct: Rapid provi...
Feb 16th, 2011<br />3<br />Virtualisation-based Provisioning Issues<br />Flexible Resource Provisioning<br /> SLA-based mi...
Feb 16th, 2011<br />4<br />Provisioning & Capacity Planning in Virtual Environments<br />Some questions of interest<br /><...
Throughput, response time, network, CPU, memory ...
With finite resources which SLAs can be satisfied?
How will the application behave with varying resources?
What is the impact of VM movement on application performance and resource usage levels?</li></li></ul><li>Dom0<br />DomU<b...
All I/O through privileged VM
Impact of VM migration
Workload generation and </li></ul>  app. performance separate <br />  from resource monitoring<br />5<br />01/12/10<br />
Feb 16th, 2011<br />6<br />State of the art for virtual environments<br /><ul><li>Resource monitoring tools
xenmon, xentop, sysstat, Hyperic etc.
Load generation benchmarks
SPEC, TPCW ...
Isolated from profiling framework
Load generation and control
Resource configuration control
User-level performance metrics</li></ul>Require an integrated tool (for VM worlds)<br /><ul><li>Load generation + Resource...
Multi-tier, multi-VM based (web-based) application
Implications on
Capacity planning
Migration and Consolidation Strategies
virtPerf*
Application profiling tool for virtualized environments
Built on top of AutoPerf** – a similar tool for physical environments
Upcoming SlideShare
Loading in...5
×

Apache Hadoop India Summit 2011 talk "Profiling Application Performance" by Umesh Bellur

1,707

Published on

0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
1,707
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
43
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Transcript of "Apache Hadoop India Summit 2011 talk "Profiling Application Performance" by Umesh Bellur"

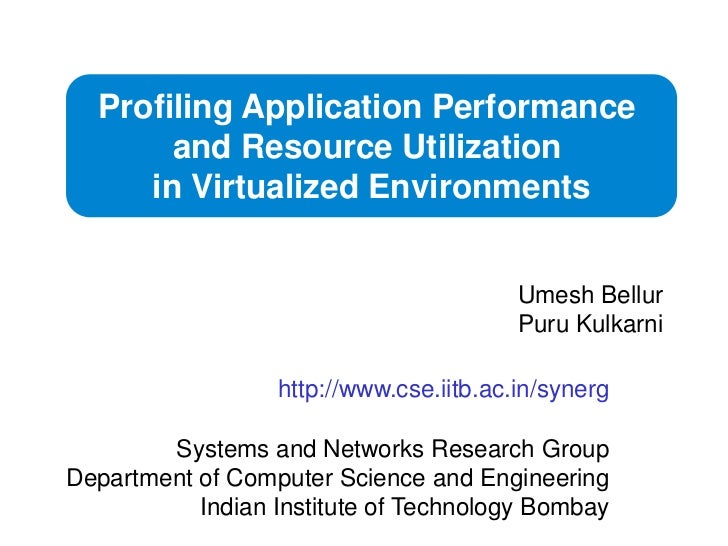

  1. 1. Profiling Application Performance <br />and Resource Utilization <br />in Virtualized Environments<br />UmeshBellur<br />PuruKulkarni<br />http://www.cse.iitb.ac.in/synerg<br />Systems and Networks Research Group<br />Department of Computer Science and Engineering<br />Indian Institute of Technology Bombay<br />
