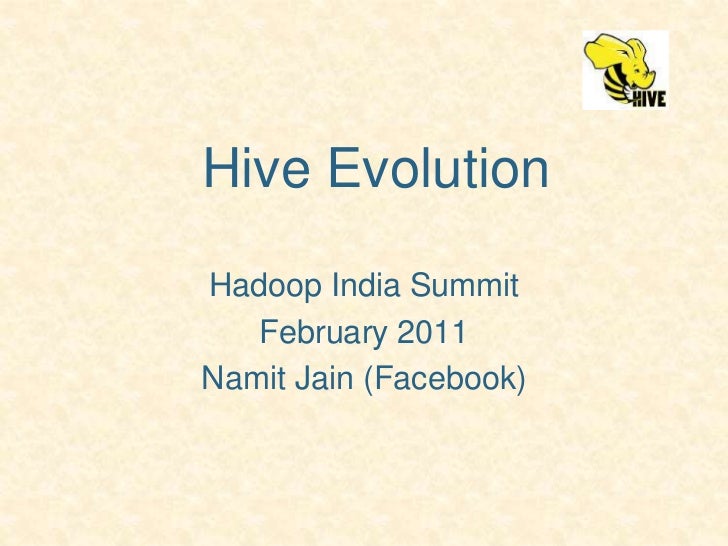

Hive Evolution<br />Hadoop India Summit<br />February 2011<br />Namit Jain (Facebook)<br />
Agenda<br />Hive Overview<br />Version 0.6 (released!)<br />Version 0.7 (under development)<br />Hive is now a TLP!<br />R...
What is Hive?<br />A Hadoop-based system for querying and managing structured data<br />Uses Map/Reduce for execution<br /...
Hive Origins<br />Data explosion at Facebook<br />Traditional DBMS technology could not keep up with the growth<br />Hadoo...
SQL vs MapReduce<br />hive> select key, count(1) from kv1 where key > 100 group by key;<br />                    vs.<br />...
Hive Evolution<br />Originally:<br />a way for Hadoop users to express queries in a high-level language without having to ...
Intended Usage<br />Web-scale Big Data<br />100’s of terabytes<br />Large Hadoop cluster<br />100’s of nodes (heterogeneou...
So Don’t Use Hive If…<br />Your data is measured in GB<br />You don’t want to impose a schema<br />You need responses in s...
Scaling Up<br />Facebook warehouse, Jan 2011:<br />2750 nodes<br />30 petabytes disk space<br />Data access per day:<br />...
Facebook Deployment<br />Web Servers<br />Scribe MidTier<br />Scribe-Hadoop Clusters<br />      Hive <br />Replication<br ...
System Architecture<br />
Data Model<br />
Column Data Types<br />Primitive Types<br />integer types, float, string, boolean<br />Nest-able Collections<br />array<an...
Hive Query Language<br />DDL<br />{create/alter/drop} {table/view/partition}<br />create table as select<br />DML<br />Ins...
Query Translation Example<br />SELECT url, count(*) FROM page_views GROUP BY url<br />Map tasks compute partial counts for...
FROM (SELECT a.status, b.school, b.gender <br />      FROM status_updates a JOIN profiles b <br />           ON (a.userid ...
It Gets Quite Complicated!<br />
Behavior Extensibility<br />TRANSFORM scripts (any language)<br />Serialization+IPC overhead<br />User defined functions (...
Map/Reduce Scripts Examples<br />add file page_url_to_id.py;<br />add file my_python_session_cutter.py;<br />FROM<br />   ...
UDF vs UDAF vs UDTF<br />User Defined Function<br />One-to-one row mapping<br />Concat(‘foo’, ‘bar’)<br />User Defined Agg...
UDF Example<br />add jar build/ql/test/test-udfs.jar;<br />CREATE TEMPORARY FUNCTION testlength AS 'org.apache.hadoop.hive...
Storage Extensibility<br />Input/OutputFormat:  file formats<br />SequenceFile, RCFile, TextFile, …<br />SerDe:  row forma...
Release 0.6<br />October 2010<br />Views<br />Multiple Databases<br />Dynamic Partitioning<br />Automatic Merge<br />New J...
Dynamic Partitions<br />Automatically create partitions based on distinct values in columns<br />INSERT OVERWRITE TABLE pa...
Automatic merge<br />Jobs can produce many files<br />Why is this bad?<br />Namenode pressure<br />Downstream jobs have to...
Join Strategies<br />Old Join Strategies<br />Map-reduce and Map Join<br />Bucketed map-join<br />Allows “small” table to ...
Storage Handler Syntax<br />HBase Example<br />CREATE TABLE users(<br />  userid int, name string, email string, notes str...
Release 0.7<br />Deployed in Facebook<br />Stats Functions<br />Indexes<br />Local Mode<br />Automatic Map Join<br />Multi...
Statistical Functions<br />Stats 101<br />Stddev, var, covar<br />Percentile_approx<br />Data Mining<br />Ngrams, sentence...
Histogram query results<br /><ul><li>“It’s complicated” peaks at 18-19, but lasts into late 40s!
“In a relationship” peaks at 20
“Engaged” peaks at 25
Married peaks in early 30s
 More married than single at 28
 Only teenagers use widowed?</li></li></ul><li>Pluggable Indexing<br />Reference implementation<br />Index is stored in a ...
Local Mode Execution<br />Avoids map/reduce cluster job latency<br />Good for jobs which process small amounts of data<br ...
Automatic Map Join<br />Map-Join if small table fits in memory<br />If it can’t, fall back to reduce join<br />Optimize ha...
Multiple DISTINCT Aggs<br />Example<br />SELECT<br />   view_date, <br />   COUNT(DISTINCT userid),<br />   COUNT(DISTINCT...
Archiving<br />Use HAR (Hadoop archive format) to combine many files into a few<br />Relieves namenode memory<br />ALTER T...
Concurrency Control<br />Pluggable distributed lock manager<br />Default is Zookeeper-based<br />Simple read/write locking...
Statistics Collection<br />Implicit metastore update during load<br />Or explicit via ANALYZE TABLE<br />Table/partition-l...
Hive is now a TLP<br />PMC<br />Namit Jain (chair)<br />John Sichi<br />Zheng Shao<br />Edward Capriolo<br />Raghotham Mur...
Developer Diversity<br />Recent Contributors<br />Facebook, Yahoo, Cloudera<br />Netflix, Amazon, Media6Degrees, Intuit, P...
