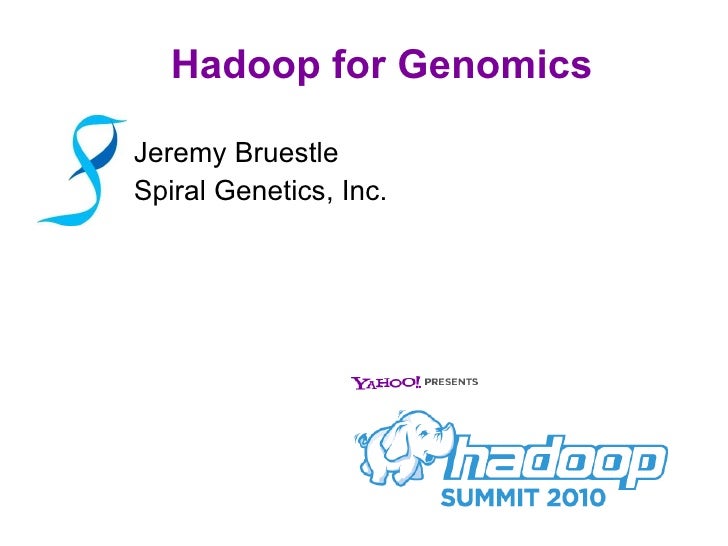

Hadoop for Genomics <ul><li>Jeremy Bruestle </li></ul>Spiral Genetics, Inc.
<ul><li>About Genomics </li></ul><ul><li>About Hadoop and Spiral </li></ul><ul><li>Specific technical detail </li></ul>Ses...
<ul><li>Study of genomes (total genetic material) of humans and other organisms </li></ul><ul><li>Requires reading an indi...
<ul><li>What is it? </li></ul><ul><ul><li>Reading the entire DNA sequence of individual humans </li></ul></ul><ul><ul><li>...
<ul><li>All DNA is composed of 4 bases (A, C, T, and G) in long, linear sequences, with a complementary strand </li></ul><...
<ul><li>Human DNA is split up into 23 chromosomes </li></ul><ul><li>There are two copies of each </li></ul><ul><li>Chromos...
<ul><li>How BIG is human DNA? </li></ul><ul><ul><li>Total DNA - 6 billion bp (~1.5 GB) </li></ul></ul><ul><ul><li>Just one...
<ul><li>How do we sequence a genome?  </li></ul><ul><ul><li>Break DNA into many small fragments (~100 bases) </li></ul></u...
Dropping costs - a problem! <ul><li>The physical costs of sequencing are dropping </li></ul><ul><ul><li>2007 - $1M </li></...
<ul><li>Bioinformatics is a relatively new field </li></ul><ul><li>Big datasets are a new challenge - focus has not yet sh...
<ul><li>The Spiral Platform </li></ul><ul><ul><li>A common, coherent, web based interface </li></ul></ul><ul><ul><li>Stron...
<ul><li>Support for parallelization </li></ul><ul><li>Support for large datasets </li></ul><ul><li>Good Composability  </l...
<ul><li>The Pipeline </li></ul><ul><ul><li>Assembly - Putting the parts together </li></ul></ul><ul><ul><ul><li>Alignment ...
<ul><li>Primarily limited to alignment to reference </li></ul><ul><li>Crossbow </li></ul><ul><ul><li>Connects existing sof...
<ul><li>Uses an existing reference sequence </li></ul><ul><li>Performs a ‘near’ match lookup </li></ul><ul><ul><li>Changes...
<ul><li>Based on the assumption that every read exactly matches the reference for PART of the read (eg 15 bp) </li></ul><u...
<ul><li>Input = Aligned read data </li></ul><ul><li>Map - Group aligned reads by location (reads overlapping two regions m...
Questions? <ul><li>www.spiralgenetics.com </li></ul><ul><li>[email_address] </li></ul>
