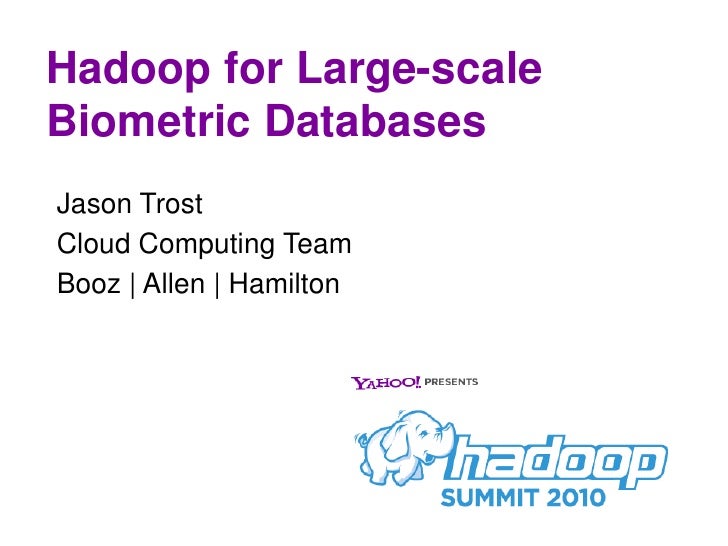

Hadoop for Large-scale Biometric Databases<br />Jason Trost<br />Cloud Computing Team<br />Booz | Allen | Hamilton<br />
This session shows the application of Hadoop and a large-scale, low-latency distributed fuzzy matching database to Biometr...
Key Takeaways from this Session<br />Searching large-scale Biometric Databases is a hard problem<br />Hadoop is a potentia...
4<br />Introduction to Biometrics<br />Iris<br />Face<br />Fingerprint<br />Biometrics:<br />The science of establishing t...
Assist with criminal investigations (e.g. crime scene fingerprints)<br />Identify individuals entering and leaving the cou...
It has many useful applications where establishing identity is important
Banks and Financial Services companies are using biometrics to prevent banking and identity fraud
National governments are creating biometric databases for law enforcement & security reasons:</li></li></ul><li>Enrollment...
Enrollment: Adding New Identities and Biometrics Data to the Database<br />Collect biographic information from an individu...
Verification: One-to-one Matching<br />Lookup the biometric template for a particular individual<br />Verify that the stor...
Identification: One-to-Many Searching<br />Capture some number of raw Biometric features, convert them into Biometric temp...
What is Fuzzy matching?<br />Fuzzy matching is an operation performed on two objects that determines how similar the objec...
Why Fuzzy Matching?<br />Biometric data is inherently noisy and dirty<br />Conditions are not exactly the same when the or...
Existing Large-scale Biometric Databases<br />US Visitor & Immigrant Status Indicator Technology (US-VISIT)*<br />Internat...
This session shows the application of Hadoop and a large-scale, low-latency distributed fuzzy matching database to Biometr...
Combined U.S. government biometric databases are expected to grow to hold billions of identities<br />The DHS’s US-VISIT p...
Biometric Databases are a Big Data Problem<br />Large scale operations<br />Searching and storing 100 Million to 1 Billion...
Biometric Databases Must Perform Fuzzy Matching<br /><ul><li>Fuzzy matching techniques must be used because the data is no...
Most applications require low latency fuzzy match searches in order to be useful
The objects being searched for cannot be ordered effectively to speed up searches
Clustering techniques can be used to reduce the search space, but this only goes so far
Fuzzy match searches are expensive and typically a large number of objects need to be searched to find a match</li></ul>16...
This session shows the application of Hadoop and a large-scale, low-latency distributed fuzzy matching database to Biometr...
Hadoop and Biometric Databases<br />HDFS as file storage for petabytes worth of images<br />Redundancy<br />Distribution<b...
MapReduce can be used for improving feature selection by analyzing the entire database to select features that are most ef...
Easy to test and deploy new algorithms against all data at scale
N-to-N matching search (special type of Identification search) to cleanse database, find people trying to circumvent the s...
Map Reduce can be used for batched searching where latency doesn’t matter
What about low latency searching…?</li></li></ul><li>Fuzzy Table: A Solution to Large-scale, Low Latency, Fuzzy Matching<b...
Fuzzy Table Architecture<br />20<br />
Fuzzy Table: Bulk Data Processing Component<br />The centroids from K-means clustering are used to create a “Bin classifie...
This makes searching faster because a only small subset of the data must be processed
This concept is based on work done in academia*</li></ul>*Efficient Search and Retrieval in Biometric Databases by Amit Mh...
Bulk Clustering and Real-time Classification<br />22<br />This makes searching for keys faster because only a small subset...
Fuzzy Table: Data Storage and Bins<br />Bins are represented as directories in HDFS containing one or more chunk files (st...
Fuzzy Table: Low Latency Fuzzy Matching Component<br />The low latency component consists of three main parts<br />Client ...
Fuzzy Table Query<br />25<br />
Fuzzy Table Query<br />26<br />
