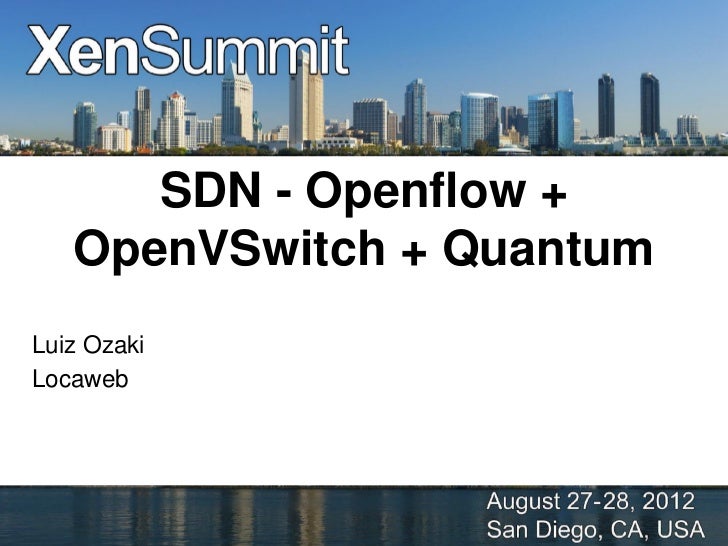

  1. 1. SDN - Openflow + OpenVSwitch + QuantumLuiz OzakiLocaweb
  2. 2. Agenda• Locaweb• Motivation• SDN• OpenVSwitch• Openflow• Quantum• Future• Summary
  3. 3. Locaweb • September, 2008 - Locaweb Cloud Computing solution released • 4.409 Cloud customers* o +15% @ SDN Infrastructure - Released April • Total +10000 Clouds • 3 datacenters (SPO - JK, SPO - ITA, MIA) • Leader in Hosting in Brazil and Latin America** • IaaS, PaaS, SaaS*http://www.locaweb.com.br/sobre-locaweb/empresa.html**IDC LA IT Services 2011
  4. 4. Architecture Evolution
  5. 5. Motivation• VLANs  Cloud <> Physical  Cloud <> Cloud  Cloud <> Storage• Multi-tenancy• 10 Gbps• East/west traffic• VLANs limitation• NAT ?
  6. 6. Motivation• VLANs  Cloud <> Physical  Cloud <> Cloud  Cloud <> Storage• Multi-tenancy• 10 Gbps• East/west traffic• VLANs limitation New network• NAT ?
  7. 7. Motivation• Vendor solutions available o VXLAN o NVGRE o Q-n-Q o Proprietary Solutions o More
  8. 8. Motivation• Vendor solutions available o VXLAN o NVGRE o Q-n-Q o Proprietary Solutions o More• Opensource solutions available o EBTables/Iptables o OpenVSwitch o Openflow
  9. 9. SDN
  10. 10. SDN
  11. 11. OpenFlow2008 - The OpenFlow Switching specification was created in 2008 to evangelize and support OpenFlow. Although hosted at Stanford University, our goal is for OpenFlow to be owned by the community – for the betterment of research and innovation in networking.
  12. 12. Openflow• Match • Action o in_port o strip_vlan o dl_vlan o mod_vlan_vid o dl_src o mod_* o dl_dst o output o dl_type o nw_dst o nw_src o nw_proto o tp_src o tp_dst
  13. 13. Openflowpriority=40000,ip,in_port=60,dl_src=fa:5d:aa:ac:93:fd,nw_src=186.202.139.5actions=mod_vlan_vid:325,bundle(eth_src,0,hrw,ofport,slaves:1,2)
  14. 14. Openflowpriority=25000,dl_src=44:1e:a1:17:0d:2c,dl_dst=fa:5d:aa:ac:93:fd actions=strip_vlan,output:60
  15. 15. Openflowpriority=40000,ip,in_port=60,dl_src=fa:5d:aa:ac:93:fd,nw_src=186.202.139.5 actions=mod_vlan_vid:325,bundle(eth _src,0,hrw,ofport,slaves:1,2)
  16. 16. Quantum
  17. 17. Future• Better network simulations• Openflow based Routers• NAT• Firewall• DHCP• Arp proxy• Security• Anti-SPAM• Load Balance
  18. 18. Summary• SDN o +15% cloud SDN o 3900 flow/seg (average) o 6000 flow/seg (peak) o Low impact implementation o Physical switches compatibility (Openflow 1.0) o Better self-demand driven o Unified Management (API)
  19. 19. Links• https://github.com/locaweb/quantum• http://openvswitch.org• http://openflowhub.org• http://www.openflow.org• https://www.opennetworking.org• http://opennetsummit.org• https://github.com/trema/trema
  20. 20. SDN - Openflow +OpenVSwitch + Quantum Questions ? Luiz Ozaki luiz.ozaki at gmail.com luiz.ozaki at locaweb.com.br
  21. 21. SDN - Openflow +OpenVSwitch + Quantum Thank you ! Luiz Ozaki luiz.ozaki at gmail.com luiz.ozaki at locaweb.com.br
