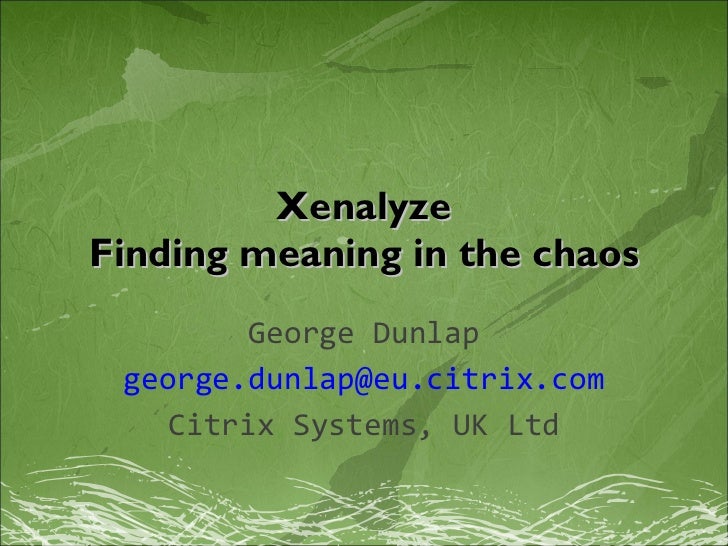

Xenalyze Finding meaning in the chaos George Dunlap [email_address] Citrix Systems, UK Ltd
Introduction <ul><li>Modern operating systems are complex </li></ul><ul><li>Xentrace for gathering in-depth information </...
Talk goals <ul><li>Those for whom xenalyze is useful will use it </li></ul><ul><li>Basic understanding of what xenalyze do...
Outline <ul><li>Overview of Xen tracing </li></ul><ul><li>When xentrace is useful </li></ul><ul><li>Core functionality of ...
Xen tracing <ul><li>Trace records </li></ul><ul><ul><li>Single 4-byte event number </li></ul></ul><ul><ul><li>Optional TSC...
Xen tracing: What it’s good for <ul><li>Key attributes </li></ul><ul><ul><li>Lots of detailed data </li></ul></ul><ul><ul>...
Key trace events <ul><li>Runstate change </li></ul><ul><ul><li>Figure out who’s running where </li></ul></ul><ul><ul><li>A...
Xenalyze: Core functionality <ul><li>Problem: xentrace file not in order </li></ul><ul><ul><li>Attempt to process records ...
Example output, dump mode Xen Summit AMD 2010
Example output, Summary mode Xen Summit AMD 2010
Example output, Interval Xen Summit AMD 2010
Example output, Scatterplot Xen Summit AMD 2010
Advanced features <ul><li>“ Enumeration” of MMIO, IO, addresses, and so on </li></ul><ul><li>Symbol file translation </li>...
Platform for new analysis <ul><li>Xenalyze may not be able to answer the questions you have </li></ul><ul><li>But it’s a g...
Case study: WinXP and TPR Xen Summit AMD 2010
Case study: WinXP and TPR, cont Xen Summit AMD 2010
Case study: Shadow Performance Xen Summit AMD 2010
Case study: Shadow perf, con’t Xen Summit AMD 2010 Out-of-sync Sync OS action Fix-up fault (TLB miss) Access Emulate Real ...
Case study: Shadow perf, con’t Xen Summit AMD 2010 Out-of-sync Sync OS action Emulate Unmap PTE Fix-up fault (TLB miss) Ac...
Outline <ul><li>Overview of Xen tracing </li></ul><ul><li>When xentrace is useful </li></ul><ul><li>Core functionality of ...
Talk goals <ul><li>Those for whom xenalyze is useful will use it </li></ul><ul><li>Basic understanding of what xenalyze do...
Questions <ul><li>Download now: </li></ul><ul><li>http://xenbits.xensource.com/ext/xenalyze </li></ul>
