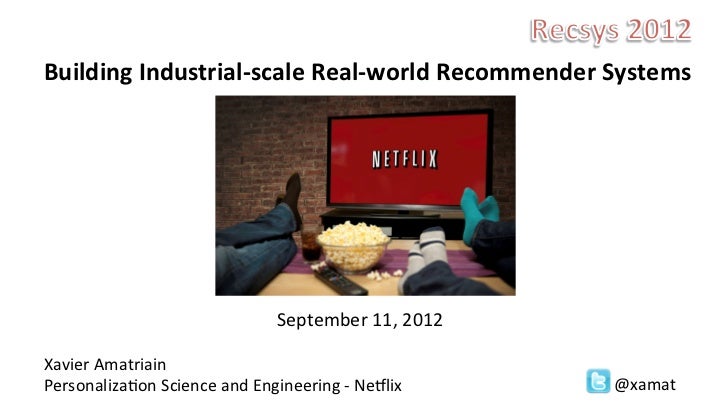

Building	  Industrial-­‐scale	  Real-­‐world	  Recommender	  Systems	  	  	  	  	  	  	  	  	  	  	  	  	  	  	  	  	  	  ...
Outline1.  Anatomy of Netflix Personalization2.  Data & Models3.  Consumer (Data) Science4.  Architectures
Anatomy ofNetflixPersonalization  Everything is a Recommendation
Everything is personalized                    Ranking                              Note:                              Reco...
Top 10  Personalization awarenessAll       Dad     Dad&Mom Daughter    All    All?   Daughter   Son   Mom   Mom           ...
Support for Recommendations                         Social Support   6
Watch again & Continue Watching                                  7
Genres8
Genre rows§  Personalized genre rows focus on user interest   §  Also provide context and “evidence”   §  Important for...
Genres - personalization                           10
Genres - personalization                           11
Genres- explanations                       12
Genres- explanations                       13
Genres – user involvement                            14
Genres – user involvement                            15
Similars §  Displayed in     many different     contexts    §  In response to        user actions/        context (searc...
Anatomy of a Personalization - Recap§  Everything is a recommendation: not only rating    prediction, but also ranking, r...
Data  &Models
§  PlaysBig Data   §  Behavior           §  Geo-Information           §  Time           §  Ratings           §  Sear...
Big Data   §  25M+ subscribers@Netflix   §  Ratings: 4M/day           §  Searches: 3M/day           §  Plays: 30M/day ...
Models§    Logistic/linear regression§    Elastic nets§    Matrix Factorization§    Markov Chains§    Clustering§   ...
Rating Prediction                    22
2007 Progress Prize§  KorBell team (AT&T) improved by 8.43%§  Spent ~2,000 hours§  Combined 107 prediction algorithms w...
2007 Progress Prize§  Top 2 algorithms   §  SVD - Prize RMSE: 0.8914   §  RBM - Prize RMSE: 0.8990§  Linear blend Priz...
SVDX[n x m] = U[n x r] S [ r x r] (V[m x r])T§    X: m x n matrix (e.g., m users, n videos)§    U: m x r matrix (m users...
Simon Funk’s SVD§  One of the most    interesting findings    during the Netflix    Prize came out of a    blog post§  I...
SVD for Rating Prediction§  Associate each user with a user-factors vector pu ∈ ℜ f§  Associate each item with an item-f...
SVD++§  Koren et. al proposed an asymmetric variation that includes    implicit feedback:                             $  ...
RBM
First generation neural networks (~60s)                                      Like   Hate§  Perceptrons (~1960)           ...
Second generation neural networks (~80s)                       Compare output toBack-propagate         correct answer to  ...
Belief Networks (~90s)§  Directed acyclic graph                  stochas8c	      composed of stochastic                  ...
Restricted Boltzmann Machine§  Restrict the connectivity to make learning easier.    §  Only one layer of hidden units. ...
RBM for the Netflix Prize                            34
What about the final prize ensembles?§  Our offline studies showed they were too    computationally intensive to scale§ ...
Ranking   Key algorithm, sorts titles in most                                     contexts
Ranking§  Ranking = Scoring + Sorting + Filtering       §  Factors    bags of movies for presentation to a user        §...
Ranking§  Popularity is the obvious baseline§  Ratings prediction is a clear secondary data    input that allows for per...
Example: Two features, linear model                                                       1	  Predicted Rating            ...
Results          40
Learning to rank§  Machine learning problem: goal is to construct ranking    model from training data§  Training data ca...
Learning to Rank Approaches1.  Pointwise   §    Ranking function minimizes loss function defined on individual         re...
Learning to rank - metrics§  Quality of ranking measured using metrics as  §  Normalized Discounted Cumulative Gain     ...
Learning to rank - metrics§  Quality of ranking measured using metrics as   §  Fraction of Concordant Pairs (FCP)     §...
Learning to Rank Approaches3.     Listwise      a.      Directly optimizing IR measures (difficult since they are not diff...
Similars           §  Different similarities computed               from different sources: metadata,               ratin...
Data & Models - Recap§  All sorts of feedback from the user can help generate better    recommendations§  Need to design...
Consumer(Data) Science
Consumer Science§  Main goal is to effectively innovate for customers§  Innovation goals  §  “If you want to increase y...
Consumer (Data) Science1.  Start with a hypothesis:   §  Algorithm/feature/design X will increase member engagement      ...
Offline/Online testing process     days                    Weeks to months Offline                Online A/B              ...
Offline testing process                  Initial                Hypothesis                              DecideReformulate ...
Offline testing§  Optimize algorithms offline§  Measure model performance, using metrics such as:   §  Mean Reciprocal ...
Online A/B testing process                                                         Choose                                 ...
Executing A/B tests§  Many different metrics, but ultimately trust user    engagement (e.g. hours of play and customer re...
What to measure§  OEC: Overall Evaluation Criteria§  In an AB test framework, the measure of success is key§  Short-ter...
What to measure§  Short-term metrics can sometimes be informative, and    may allow for faster decision-taking   §  At N...
Consumer Data Science - Recap§  Consumer Data Science aims to innovate for the    customer by running experiments and let...
Architectures                59
Technology             hQp://techblog.ne?lix.com	     60
61
Event & DataDistribution               62
Event & Data Distribution•  UI devices should broadcast many   different kinds of user events    •    Clicks    •    Prese...
Offline Jobs               64
Offline Jobs•  Two kinds of offline jobs     •  Model training     •  Batch offline computation of        recommendations/...
Computation              66
Computation•  Two ways of computing personalized   results    •  Batch/offline    •  Online•  Each approach has pros/cons ...
Signals & Models                   68
Signals & Models•  Both offline and online algorithms are   based on three different inputs:    •  Models: previously trai...
Results          70
Results•  Recommendations can be serviced   from:    •  Previously computed lists    •  Online algorithms    •  A combinat...
Alerts and Monitoring§  A non-trivial concern in large-scale recommender    systems§  Monitoring: continuously observe q...
What to monitor                                             Did something go§  Staleness                                 ...
What to monitor§  Algorithmic quality   §  Monitor different metrics by comparing what users do and what       your algo...
What to monitor§  Algorithmic quality   §  Monitor different metrics by comparing what users do and what       your algo...
What to monitor§  Algorithmic source for users   §  Monitor how users interact with different algorithms                ...
When to alert§  Alerting thresholds are hard to tune   §  Avoid unnecessary alerts (the “learn-to-ignore problem”)   § ...
Conclusions              78
The Personalization Problem§  The Netflix Prize simplified the recommendation problem    to predicting ratings§  But…  §...
More to Recsys than Algorithms§  Not only is there more to algorithms than rating    prediction§  There is more to Recsy...
More data +         Better models +     More accurate metrics +Better approaches & architectures  Lots of room for improve...
We’re hiring!Xavier Amatriain (@xamat) xamatriain@netflix.com
