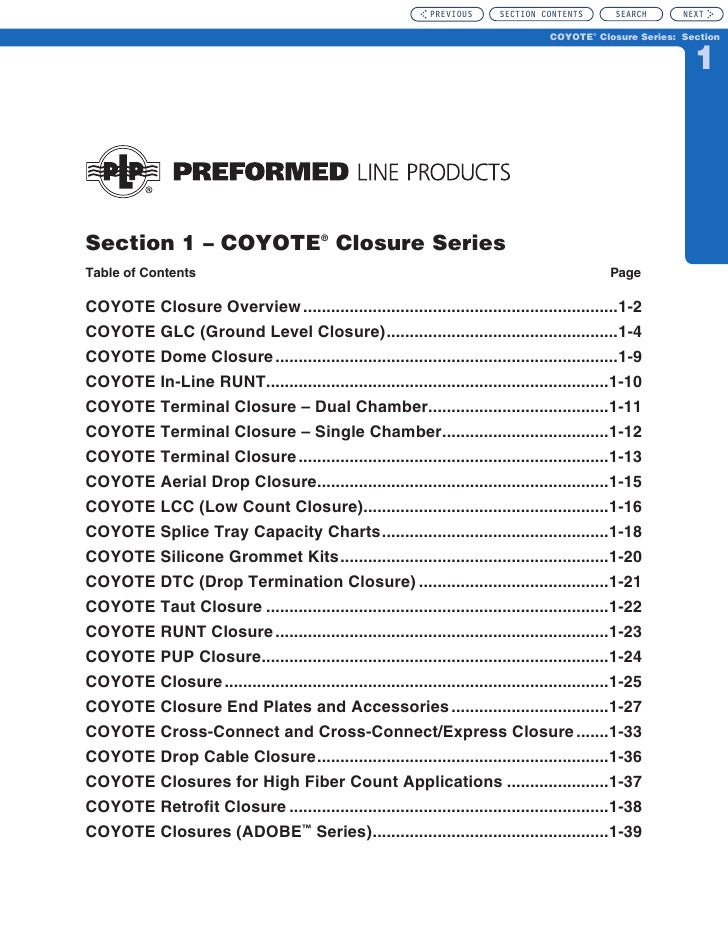

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1Section 1 – COYOTE® Closure SeriesTable of Contents PageCOYOTE Closure Overview ....................................................................1-2COYOTE GLC (Ground Level Closure) ..................................................1-4COYOTE Dome Closure ..........................................................................1-9COYOTE In-Line RUNT..........................................................................1-10COYOTE Terminal Closure – Dual Chamber.......................................1-11COYOTE Terminal Closure – Single Chamber....................................1-12COYOTE Terminal Closure ...................................................................1-13COYOTE Aerial Drop Closure...............................................................1-15COYOTE LCC (Low Count Closure).....................................................1-16COYOTE Splice Tray Capacity Charts .................................................1-18COYOTE Silicone Grommet Kits ..........................................................1-20COYOTE DTC (Drop Termination Closure) .........................................1-21COYOTE Taut Closure ..........................................................................1-22COYOTE RUNT Closure ........................................................................1-23COYOTE PUP Closure...........................................................................1-24COYOTE Closure ...................................................................................1-25COYOTE Closure End Plates and Accessories ..................................1-27COYOTE Cross-Connect and Cross-Connect/Express Closure .......1-33COYOTE Drop Cable Closure ...............................................................1-36COYOTE Closures for High Fiber Count Applications ......................1-37COYOTE Retrofit Closure .....................................................................1-38COYOTE Closures (ADOBE™ Series) ...................................................1-39

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Closure Overview ® Choose a member of the COYOTE Closure Family that Best Suits your Application...... It all began with the development of a new breed of fiber optic unique solutions to the varied requirements of an ever-evolving closure. Craft friendly. Easily installed. Competitively priced. fiber optic network. From aerial to underground to every step And designed to go wherever fiber optic cable takes you. Over of the last mile, the COYOTE family of fiber optic closures is the years the philosophy has remained constant, and the fam- there to provide performance you can count on. ily has grown with each successive member offering its own COYOTE GLC (Ground Level Closure) COYOTE Terminal Closure (Dual Chamber) (Page 1-11) Pedestal System (Page 1-4) T h e C OYO T E The COYOTE GLC Pedestal Terminal Closure is System is the first truly her- available in two metically sealed pedestal configurations – system. With its patented Dual and Single segmented end plate design, Chamber: it allows you to make adjustments on site or move to an The unique dual enclosed work environment. chamber design The design also permits a RUS LISTED provides two dis- high volume of uncut slack tinct chambers that cable storage if needed. can be configured differently to support up to 24 externally mounted hardened connections, internally mounted cross- RUS LISTED connect bulkhead connections or a combination of both. A window designed within the closure interior allows fibers to COYOTE Dome Closure (Page 1-9) be passed between chambers. High drop capacity out each T h e C OYOT E D o m e of the eight cable ports and the ability to use standard or Closure was specifically hardened adapter covers, provides infinite options to support designed for applications your network design. where a domed-st yle configuration is preferred. COYOTE Terminal Closure (Single Chamber) (Page 1-12) It features an innovative The COYOTE Terminal end plate design with Closure (Single Chamber) segmented sections that is the ideal choice for net- allow for individual access work designs requiring RUS LISTED of each cable without hardened adapter termina- disruption to surrounding tion. Externally mounted cables. A full line of multi-hole grommets ensures the ultimate OptiTap* hardened adapt- level of flexibility to meet the demands of ever evolving ers allow for future instal- communications networks. RUS LISTED lation of up to 12 hardened drops without closure reentry. Compact size allows the closure COYOTE In-Line RUNT (Page 1-10) to be installed into pedestals and small hand holes. Additional The COYOTE In-Line RUNT drop capacity through the 4 entry ports of the closure base, Closure has the versatility and provide added flexibility for the closure to act as a distribution features that make it a perfect point for closures deeper in your network. choice for distribution, node and fiber to the premises networks. COYOTE Aerial Drop Closure (Page 1-15) The compact size allows the The COYOTE Aerial closure to be installed into ped- Drop Closure is a estals and small hand holes, value priced solution. keeping your installation costs Features include its down. High drop capacity and compact size and RUS LISTED the capability to be converted to ease of installation – a terminal closure will allow room no special tools need- for expansion long after the ed. It is capable of initial installation. higher splice capacities and is designed for PLP’s easy-to-use grommet system. Included is the universal mounting bracket, which permits pole mounting with straps, strand mounting with strand clamps or suspension from “J” hooks secured to a pole.1-2 *OptiTap™ is a trademark of Corning Cable Systems.

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Closure Overview ® Closure Overview COYOTE®COYOTE LCC (Low Count Closure) (Page 1-16) COYOTE Closure (Page 1-25) The COYOTE LCC is Setting the bar against which all designed specifically other fiber closures are measured for low fiber count in- was no small task for our design stallations and repairs team. But years of research & within your Fiber-to- development eventually paid off in the-Home, Node or the form of a rugged and reliable Curb deployments. design that has become legend. The closures compact After over ten years of field use and RUS LISTED size, use of the versa- several hundred thousand units tile grommet system sold, the original COYOTE Closureand internal LITE-GRIP® Splice Platform, make this rugged still remains one of the most highlyclosure the economical choice for your network. Designed with RUS LISTED regarded and widely used fiberease of use in mind and maximum versatility. Kits have also optic closures in the industry.been created to support copper applications. COYOTE Cross-Connect and Cross-Connect/COYOTE DTC (Drop Termination Closure) (Page 1-21) Express Closure (Page 1-33) This new closure design is The COYOTE Cross-Connect constructed to support butt or C l o s u re wa s d e s i g n e d fo r inline low count splice applica- applications requiring connector- tions in a direct buried or below ization or cross connecting in the grade environment and pole/ outside plant network. Addition- wall mounted applications ally, the COYOTE Cross-Connect/ near the end of you network. Express Closure was configured The closures’ compact size to allow for convenient and safe and rugged exterior allow for storage of uncut buffer tubes ininstallation in tight spaces without compromising functionality. the feeder cable, while providing individual connectivity to the fibersCOYOTE Taut Closure (Page 1-22) of the drop cables. The COYOTE Taut Closure simplifies branch cable taps or repairs of taut fiber optic COYOTE Retrofit Closure (Page 1-38) cables. Features the innova- The COYOTE Retrofit Closure is tive End Plate from the Dome the right choice for replacement or Closure and full line of multi expansion of existing fiber optic hole grommets. closures.COYOTE RUNT Closure (Page 1-23) T h e c o m p a c t C OYOT E COYOTE® MPC (Multi-Purpose Closure) (Page 16-3) RUNT Closure is ideal for low The COYOTE MPC focuses fiber count, (up to 48 splices), on the MDU environment, end-of-the-line, node and fiber- providing a flexible platform to-the-curb installations. It will to address the multitude of easily fit into most pedestals applications that exist in and hand holes, and the rug- residential and commercial ged design allows it to be used FTTx installations. Con- in all environments. structed of durable, UV RUS LISTED stabilized, flame-retardant RUS LISTED polymer, the closure permits interior or exterior applica-COYOTE PUP Closure (Page 1-24) tions. Accepting an easy-to-use grommet system and standard The COYOTE PUP Closure commercially available fittings, eight cable entrance ports are offers the perfect choice for low available around the closure exterior. The MPC’s interior fiber count distribution applica- can be configured to address slack storage, splicing, cross tions involving butt and inline connect, hardened adapter application or a combination of installations.The compact size all. In addition, to minimize installation labor, the closure is and rugged design allow the available in pre-terminated configurations. closure to be applied in below grade, aerial and buried installations. Supported by a full line of COYOTE accessories, this RUS LISTED closure can grow along with 1-3 your network.

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE GLC (Ground Level Closure) ® The innovation and reliability ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ PLP Feature Focus you have come to expect from ©2009 Preformed Line Products ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ PLP since 1947 Film available at www.preformed.com PLP Introduces the COYOTE® GLC (Ground Level Closure), the first truly hermetically sealed pedestal system and the only pedestal system with PLP’s patented segmented end plate design. GLC is the first design that doesn’t force you to work where it’s installed and this unique design permits a high volume of uncut slack cable storage if needed. Key Features: • Compact: 9.5" x 17" Dome Enclosure secures to a 19.5" L x 19.5" W x 13" H Base • Cost Effective: Blended design eliminates the need to purchase separate components • Sealable, Re-Enterable, & Re-Usable: Utilizes the same silicone grommet sealing system and segmented end plate design that is found throughout the COYOTE Dome Closure Family • Transportable: Slack storage of uncut cable allows dome enclosure to be carried to a splice truck or other suitable working environment • Adjustable: Stackable spacer system adapts to the base for changing grade levels • Independent Grounding System: Accessible isolated grounding system that allows ground testing to occur without entering the splice enclosure • Durable: Manufactured out of a flame and impact resistant polymer • Securable: Collar latch mechanism allows attachment of different security devices • Modular: Split design allows parts to be added or replaced without disrupting other assembled components • Customizable: Create the closure that fits your application needs RUS LISTED • Patent Pending1-4

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE GLC (Ground Level Closure) ® (Ground Level Closure) COYOTE® GLCConfiguration SelectionCOYOTE® GLC (Ground Level Closure)Base with Flat Cover (C1) C1• Ideal for slack storage of fiber optic cable with diameters up to .60" (15.24 mm) during initial construction• Base can store 100 ft of slack cable• Exterior Base Dimensions: 19.5" L x 19.5" W x 13" H (49 cm x 49 cm x 33 cm)• Protective cable routing channel on base exterior• Slots provided in base for securing cable• Split base to allow for installation/replacement without disrupting previously installed GLC components• Base retention stakes available to secure base in ground (see Accessories Selection)• Base height can be increased with the use of spacers (see Accessories Selection) Cat. No.: COYGLC-C1-000• Durable flat cover with integrated handlesCOYOTE GLC Dome Assembly with Platform (C2)• Used for splicing cable stored in a previously installed GLC C2 base with flat cover• Dome Assembly includes: (1) GLC dome, (1) collar, (1) fiber organizer (see Fiber Organzier Selection), & (1) platform• Dome Assembly provides a hermetical seal to keep out water, insects, and rodents• Dome Size: 9.5" W x 17" L (24 cm x 43 cm)• Collar system provides quick re-entry. No special tools required.• Integrated handles in collar allow for ease of handling when installing/removing dome assembly with platform from base• Collar latch allows for other security devices to be used• Platform allows dome assembly to be attached/detached from GLC base• Split platform to allow for installation/replacement without disrupting previously installed GLC components Cat. No.: COYGLC-F1-000 Cat. No.: COYGLC-F3-000 Cat. No.: COYGLC-F2-000 Cat. No.: COYGLC-F4-000Full COYOTE GLC Assembly (C3)• Used for splicing and storing cable during initial construction C3• Allows for fiber splicing at a fixed or remote location such as a splice trailer• Dome Assembly provides a hermetical seal to keep out water, insects, rodents, and other harmful elements• Various fiber organizers available to suit your splicing needs (see Fiber Organizer Selection)• Full GLC Assembly includes: (1) GLC Dome, (1) Collar, (1) fiber organizer (see Fiber Organzier Selection), (1) platform, and (1) base• All GLC components are modular and can easily be replaced• GLC base allows for storage of 50 ft (1524 cm) cable legs• Base retention stakes available to secure base in ground (see Accessory Selection)• Base height can be increased with the use of spacers (see Spacer Selection) Cat. No.: COYGLC-F1B-000 Cat. No.: COYGLC-F3B-000 Cat. No.: COYGLC-F2B-000 Cat. No.: COYGLC-F4B-000 1-5

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE GLC (Ground Level Closure) ® Fiber Organization Selection Buffer Tube and Unitube/Ribbon Organizer (F1) F1 • Ideal for traditional single fusion or mass fusion/ ribbon splicing • Patented segmented end plate allows for cables to be added without disrupting previously • Accommodates up to 96ct buffer tube cable installed cables or 144ct unitube/ribbon cable measuring .60" • Provided with 4 port end plate (15.2 mm) or smaller • 7 port end plate available upon request • Organizer includes: (1) 4-port end plate with • Adaptable to larger handholes; if greater below universal organizer, (1) gasket, (4) grommets*, ground storage or if larger cable diameters are (4) strength member brackets, (1) LITE-GRIP® required for your application Short Splice Tray for Single Fusion, and miscellaneous hardware *Standard Kit Grommets include (2)8003663 • See Splice Tray Section Chart on pg. 1-8 (1)8003664 (1)8003665 – Custom grommet • Features the latest, easy to use grommet combinations available upon request sealing system Buffer Tube Organizer for Increased Tray and Storage Capacity (F2) F2 • Ideal for traditional single fusion splicing where more expressed buffer tube storage and/or • Patented segmented end plate allows for cables to be added without disrupting previously splice tray capacity is needed installed cables • Accommodates up to 96ct buffer tube cable • Provided with 4 port end plate measuring .60" (15.2 mm) or smaller • 7 port end plate available upon request • Organizer includes: (1) 4-port end plate with • Adaptable to larger handholes; if greater below buffer tube organizer, (1) gasket, (4) grommets*, ground storage or if larger cable diameters are (4) strength member brackets, (1) LITE-GRIP required for your application Short Splice Tray for Single Fusion, and miscellaneous hardware *Standard Kit Grommets include (2)8003663 • See Splice Tray Section Chart on pg. 1-8 (1)8003664 (1)8003665 – Custom grommet • Features the latest, easy to use grommet combinations available upon request sealing system Cross-Connect Organizer for Buffer Tube and Unitube/Ribbon (F3) F3 • Ideal for traditional single fusion or mass fusion/ ribbon splicing where cross-connect capabilities • Features the latest, easy to use grommet sealing system are needed • Patented segmented end plate allows for • Accommodates up to 96ct buffer tube cable cables to be added without disrupting previously or 144ct unitube/ribbon cable measuring .60" installed cables (15.2 mm) or smaller • Provided with 4 port end plate • Organizer includes: (1) 4-port end plate with • 7 port end plate available upon request cross-connect organizer, (1) gasket, (4) • Adaptable to larger handholes; if greater below grommets*, (4) strength member brackets, (1) ground storage or if larger cable diameters are LITE-GRIP Short Splice Tray for Single Fusion, required for your application and miscellaneous hardware • Accommodates up to 4 SC, ST, LC, or FC *Standard Kit Grommets include (2)8003663 adapter plate modules (1)8003664 (1)8003665 – Custom grommet • Can support pre-connectorized splitters combinations available upon request • See Splice Tray Section Chart on pg. 1-8 OptiTap™ Organizer for Buffer Tube and Unitube/Ribbon (F4) F4 • Ideal for traditional single fusion or mass fusion/ ribbon splicing where OptiTap connections • Features the latest, easy to use grommet sealing system might be needed • Patented segmented end plate allows for cables • Accommodates up to 96ct buffer tube cable to be added without disrupting previously or 144ct unitube/ribbon cable measuring .60" installed cables (15.2 mm) or smaller • Provided with 4 port end plate • Organizer includes: (1) 4-port end plate with • Adaptable to larger handholes; if greater below OptiTap organizer and shroud, (1) gasket, (4) ground storage or if larger cable diameters are grommets*, (4) strength member brackets, (1) required for your application LITE-GRIP Short Splice Tray for Single Fusion, and miscellaneous hardware *Standard Kit Grommets include (2)8003663 • Accommodates up to 8 OptiTap adapters (1)8003664 (1)8003665 – Custom grommet • Can support pre-connectorized splitters combinations available upon request1-6 • See Splice Tray Section Chart on pg. 1-8

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE GLC (Ground Level Closure) ® (Ground Level Closure) COYOTE® GLCSpacer SelectionStandard Spacer (S1)• Ideal for adjusting the GLC base height to ground level during S1 the back filling process of the installation of the base• Split design allows for installation/replacement without disrupting previously installed GLC components• Can be stacked to achieve desired base height• Each spacer increases the base height by 3" (7.6 cm)• Standard Spacer Kit includes: (2) standard spacer halves, (4) spacer studs, and (2) self tapping boltsGrounding Spacer (S2)• Ideal for isolated ground testing without having to re-enter the splice enclosure S2• Provides up to 7 isolated ground connections• Removable access plate on spacer exterior conceals grounding plate• Screw-on terminal head for #6 ground wire allows for quick connection to grounding plate• 2.5 ft (76.2 cm) flexible ground leads make connecting ground studs of splice enclosure to the grounding plate in spacer easy• Easily removable busbar permits quick ground isolation• Split design allows for installation/replacement without disrupting previously installed GLC components• Can be stacked on top of multiple standard spacers (S1) to achieve desired base height• Grounding spacer increases the base height by 3" (7.6 cm)• Grounding Spacer Kit includes: (1) standard spacer half, (1) grounding spacer half, (1) removable access plate, (1) grounding plate, (1) removable buss bar, (4) ground leads, (1) screw-on terminal head (4) spacer studs, and (2) self tapping boltsDual Grounding Spacer (S3)• Includes all the features and benefits as a standard grounding spacer (S2) S3• Provides up to 14 isolated ground connections• Removable access plates on spacer exterior conceal grounging plates• Screw on terminal head for #6 ground wire allows for quick connection to grounding plate• Dual Grounding Spacer Kit includes: (2) grounding spacer halves, (2) removable access plates, (2) grounding plates, (2) removable buss bars, (8) ground leads, (2) screw-on terminal heads (4) spacer studs, and (2) self tapping bolts 1-7

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE GLC (Ground Level Closure) ® Grommet Selection Accessory Selection Catalog Cable Range Catalog Description Grommets Description Accessory Number Inches (mm) Number .40 - .60 1-hole 8003691 80809005 Dome (10.7 - 15.2) grommet .42 - .60 2-hole 80809006 Dome Collar 8003663 (10.7 - 15.2) grommet .50 - .60 (12.7 - 15.2) 80809775 Dome Gasket 4-hole 8003990 .125 - .25 (3.2 - 6.4) grommet and Flat Drop Dome Collar 80809793 .30 - .43 4-hole Lock Assembly 8003664 (7.6 - 10.9) grommet 80809781 Cover Kit .125 - .25 6-hole 8003665 (3.2 - 6.4) grommet and Flat Drop 42" Base Retention Stake 80809788 .42 - .60 (10.7 - 15.2) with Anchor Plate 7-hole 8003676 .125 - .25 (3.2 - 6.4) grommet and Flat Drop Base Retention Stake 80809791 .125 - .25 Driver Cap 8-hole 8003677 (3.3 - 6.4) grommet LITE-GRIP Splice Blocks ® and Flat Drop LGSBS8-5 for Single Fusion (Yellow) - 5 splice blocks Flat Drop 4-hole 8003989 Cable Only grommet LITE-GRIP Splice Blocks for LGSBR3-5 Mass Fusion/Ribbon (Purple) - 5 splice blocks Flat Drop 12-hole 8003796 Cable Only grommet COYOTE ® 800013213 Cross-Connect Tray Express Fiber Storage Ring 80808613 Splice Tray Selection for LITE-GRIP Splice Tray GLC Fiber Parking Lot for Organizer 80808817 Cross-Connect Organizer – Reference Holds 6 Connectors Splice Code Catalog Count/ Splice CORNING OptiTap TM Number Type Description Tray F1 F2 F3 F4 80808152 Adapter 16 Single LITE-GRIP® LGSTS16 2 6 2 2 Fusion Short Tray 80807972 OptiTap Installation Tool 40 Single LITE-GRIP 80808945 2 6 2 2 Fusion Short Tray 80809766 Shield Connector 144 Mass LITE-GRIP LGSTR144 Fusion/ 2 6 2 2 Contact PLP Short Tray COYOTE PLC Splitter Ribbon for details 12 Single 80806033 Standard 3 8 3 3 Contact PLP Fusion Adapter Modules for details 12 Single 80807701 Low Profile 4 13 4 4 Fusion Contact PLP Pigtail Cable Assemblies for details Contact PLP Optical Drop Cable for details Assembly1-8

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Dome Closure ® Dome Closure COYOTE®Evolution of the Breed Continues… ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■The COYOTE Dome PLP Feature Focus RUS ©2009 Preformed Line ProductsClosure Family has ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■increased in size! Thenew 9.5" x 28" High LISTED Film available at www.preformed.comCapacity Dome Closureis available in three COYOTE Dome Closure Kitsdifferent configurations Catalogand can also be used Number Descriptionwith 9.5" Ar madillo 8006944 6.5" x 17" COYOTE Dome for Buffer Tube (Loose Tube)Stainless shells, further 8006945 6.5" x 17" COYOTE Dome for Ribbonexpanding the possibilities to address your network needs. 800012587 6.5" x 17" COYOTE Dome for Ribbon – Expanded StorageThe innovative, segmented end plate design in the new 9.5"diameter offers 7 cable entrance ports capable of accepting 8006988 6.5" x 17" COYOTE Dome Express (Loose Tube)cables with a maximum diameter of 1.25" (32 mm).The unique 6.5" x 17" COYOTE Dome Cross-Connect (Empty) 800012185 (Loose Tube)design allows each cable entrance to be accessed withoutdisruption to the surrounding cables. The new end plate 800012940 6.5" x 17" COYOTE Dome Flame Retardant (Ribbon)accepts the full line of multi-hole grommets designed to 800012941 6.5" x 17" COYOTE Dome Flame Retardant (Loose Tube)ensure the ultimate flexibility and high capacity to meet the 800012942 6.5" x 22" COYOTE Dome Flame Retardant (Loose Tube)demands of ever evolving communication networks. 800012943 6.5" x 22" COYOTE Dome Flame Retardant 8006877 6.5" x 22" COYOTE Dome for Buffer Tube (Loose Tube)The COYOTE Dome Closure was built from the ground up 800012606 6.5" x 22" COYOTE Dome for Copperusing the same craft-friendly fiber management technology 8006878 6.5" x 22" COYOTE Dome for Ribbonthat placed the COYOTE family among the most respected 800012441 6.5" x 22" COYOTE Dome for Ribbon – Expanded Storageand reliable in the industry. Re-entry is quick and requires no 8006946 6.5" x 22" COYOTE Dome Express (Loose Tube)special tools or re-entry kits. Both the 6.5" and 9.5" designs 6.5" x 22" COYOTE Dome Cross-Connect (Empty)are also convertible to closure shells for in-line applications or 800012184 (Loose Tube)to provide additional drop capacity. For connectivity solutions, 8006879 6.5" x 28" COYOTE Inline Dome for Buffer Tube (Loose Tube)the COYOTE Dome closures are also available in cross- 8006880 6.5" x 28" COYOTE Inline Dome for Ribbonconnect configurations. By combining these features with awide offering of splice trays and accessories, PLP has the 80061055 9.5" x 28" COYOTE Dome for Buffer Tube (Loose Tube)ability to address virtually any network design. 80061056 9.5" x 28" COYOTE Dome for Ribbon 80061057 9.5" x 28" COYOTE Dome for High Capacity (Max Tray Count)The COYOTE Dome Closure is tested in accordance with thedemanding requirements of the Telcordia GR-771-CORE Mounting Hardware And Accessory Kitsspecification for all aerial, buried and underground environ- Catalogments. Manufactured in accordance with ISO9001:2008 Number Descriptionprocedures to assure quality and backed by the experience 8003681 End Plate Kit – 6.5" Domeand field support that PLP has been noted for since 1947 . 8003839 End Plate Kit – 9.5" Dome 80807383 Hardware Bag for End PlateKey Features: 80808651 Extended Strength Member Bracket Kit• Available Sizes: 6.5" x 17" (17cm x 43cm), 80808878 Large Strength Member Adapter Kit 6.5" x 22" (17cm x 56cm), 9.5" x 28" (24cm x 71cm) 80807848 End Plate Gasket – 6.5" Dome• Patented segmented End Plate design provides indepen- 80808426 End Plate Gasket – 9.5" Dome dent access to every cable 80808456 End Plate Assembly Fixture – 6.5" or 9.5" Dome• 6.5" End Plate: 4 entry ports accepting max cable 8003702 Pole / Wall Mount Bracket – 6.5" Dome diameter of 1-1/4" (32mm) Aerial Hanger Bracket – Dome Mount 8003831• 9.5" End Plate: 7 entry ports accepting max cable (Strand Mount) – 6.5" Dome diameter of 1-1/4" (32mm) 8003707 Swing Arm for Hand Holes – 6.5" Dome• Fiber Organizers and End Plates come fully assembled 8003835 Universal Mounting Bracket Kit for Hand Holes – 6.5" Dome – minimizing the parts to handle 8003942 Pole / Wall Mount Bracket – 9.5" Dome• Simple to use multi hole and single hole grommets 8003941 Aerial Hanger Bracket – End Plate Mount – 9.5" Dome provide the ability to support high drop capacities 8003940 Aerial Hanger Bracket – Dome Mount – 9.5" Dome• No special tools or torque wrenches required for installation Maximum splice capacities are calculated by multiply-• Collar system allows for quick re-entry ing the maximum tray quantity per closure by the• Tested in accordance to Telcordia GR-771 CORE maximum splice capacity per splice tray. Achieving the maximum splice capacity for each closure may• Accepts a wide variety of PLP splice trays require adjustments to the volume of fiber stored• Patented End Plate Design within the fiber organizers. Contact a PLP representative to discuss the details of achieving the maximum• RUS listed capacities for your installation. 1-9

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE In-Line RUNT Closure ® Evolution of the Breed Continues… COYOTE IN-LINE RUNT Closure Kits Catalog Number Description 8006951 Hermetically Sealed 8006952 Free Breathing 80061004 Express, Hermetically Sealed 80061049 Flame Retardant Hermetically Sealed COYOTE IN-LINE RUNT Accessories Catalog Number Description Splice Tray Kits 12 Count Low Profile Tray w/plastic splice block – 80807701 single fusion splices 12 Count Standard Tray w/Elastomeric splice block 80806033 – single fusion & mechanical fusion 16/40* Count Tray w/LITE-GRIP® splice blocks for LGSTS16 single fusion splice 144/180* Count Tray w/LITE-GRIP splice blocks for LGSTR144 ribbon splices 24 Count Low Profile Tray w/plastic splice blocks for 8003468 single fusion splices Versatile NOTE: Requires 8003757 Tray Conversion Kit 72 Count Ribbon Tray w/Elastomeric Splice Block for The COYOTE® In-Line RUNT Closure has the versatility and 80807114 Mass Fusion features that make it a perfect choice for distribution and Cover Kit fiber to the premise networks. The compact size allows the 8003719 COYOTE In-Line RUNT Cover Kit closure to be installed into pedestals and small hand holes, keeping your installation costs down. High drop capacity and Miscellaneous Accessory Kits the capability to be converted to a terminal closure will allow 8003733 End Plate Kit room for expansion long after the initial installation. 80807794 Hardware Bag 8003713 Express Brackets Rugged and Reliable 8003757 24 Count, Low Profile Splice Tray Conversion Kit The COYOTE In-Line RUNT Closure is tested in accordance 80807571 Spiral Tube Kit; 6 Length with the demanding requirements of Telcordia GR-771- Transport Tube Kit .135" ID; includes (6) 34" long 80805293 transport tubes CORE for all aerial, buried and underground environments. Manufactured in accordance with ISO 9001:2008 proce- Transport Tube Kit .25" ID; kit includes (3) 6 80808639 transport tubes dures and backed by the experience and field support that 80807989 Transport Tube 100 reel 0.170" ID PLP has been noted for since 1947. 80807991 Transport Tube 100 reel 0.25" ID 8003862 Fiber Organizer Kit for Ribbon Applications Key Features: Mounting Hardware Kits • Compact Size: 17.5" L x 10" W x 3.5" H 8003703 Pole/Wall Mount Bracket (44 cm x 25 cm x 9 cm) 8003797 Aerial Hanger Bracket • High drop capacity – See grommet chart 8003706 Swing Arm for Hand Holes • 4 entry ports, each accept 1-1/4" maximum cable diameter Pedestal Mounting Bracket for Emerson PRO12 8003714 • Hermetically sealed, free breathing, express and flame Pedestal PLP Fiber Optic Products retardant configurations available Universal Mounting Bracket Kit for Handhole 8003835 • Quick and easy assembly – no special tools required Applications • Simple-to-use grommet sealing system • Hinged cover reduces number of parts required upon Capacities re-entry Splice Tray Splices Trays per Splice Depth Description per tray Closure capacity • Internal organizer manages buffer tube or ribbon cable Low Profile Single Fusion 12 4 48 • Integrated air valve to test assembly seal Single Fusion or • Convertible to a COYOTE Terminal Closure with available Standard 12 2 24 Mechanical cover kits – request COYOTE Terminal brochure Ribbon Mass Fusion 72 2 144 • Full line of mounting hardware available *50% more storage for midsheath (express) applications, but 50% less splice capacity • Tested in accordance to Telcordia GR-771-CORE1-10 • RUS Listed

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Terminal Closure (Dual Chamber) ® Terminal Closure COYOTE®Evolution of the Breed Continues… The COYOTE Terminal Closure (Dual Chamber) is the choice for network designs requiring ultimate flexibility. The unique dual chamber design provides two distinct chambers that can be configured differently to support externally mounted OptiTap™ style hardened adaptors, internally mounted cross-connect bulkhead connections or a combination of both. A window designed within the closure interior allows fibers to be passed between chambers. High drop capacity from each of the eight cable ports and the ability to use standard or hardened adapter covers, provides infinite options to support your network design.Terminal Closure (Dual Chamber) with hardened adaptors Key Features: • Compact Size: 17.5" L x 10" W x 12" H (44 cm x 25 cm x 30 cm) • Accepts up to 24 hardened adapters • Eight Entry ports each accept 1-1/4" maximum cable diameter • High drop capacity – 8 through each port • Available in hermetically sealed, free breathing and express configurations • Quick and easy assembly – no special tools required • Simple to use grommet sealing system Terminal Closure (Dual Chamber) with hardened • Provided standard with SC/APC pigtails adaptors installed in both covers • Capability to field install or remove hardened adapter assemblies • Internal organizer manages buffer tube or ribbon cable • Integrated air valve provides field flash test point • Full line of hardware available for strand, pole and hand-hole installations • Tested in accordance to Telcordia GR-771 CORE • RUS Listed Splice Compartment – Terminal Closure (Dual Chamber) with Internal Bulkhead Drop Cable Chamber – Terminal Closure (Dual Chamber) with Internal Bulkhead 1-11*OptiTap™ is a trademark of Corning Cable Systems

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Terminal Closure (Single Chamber) ® Evolution of the Breed Continues… The COYOTE Terminal Closure (Single Chamber) is the ideal choice for network designs requiring hardened adapter termination. Externally mounted OptiTap* style hardened adapters allow for future installation of up to 12 hardened drops without closure reentry. Compact size allows the closure to be installed into pedestals and small hand holes. Additional drop capacity through the four entry ports of the closure base, provide added flexibility for the closure to act as a distribution point for closures deeper in your network. Key Features: • Compact Size: 17.5" L x 10" W x 6" H (44 cm x 25 cm x 15 cm) Outside View – Terminal Closure (Single Chamber) • Accepts up to 12 hardened adapters • Four Entry ports each accept 1¼" maximum cable diameter • High drop capacity – 8 through each port • Available in hermetically sealed, free breathing and express configurations • Quick and easy assembly – no special tools required • Simple to use grommet sealing system • Provided standard with SC/APC pigtails • Port identification numbers to simplify assembly • Capability to field install or remove hardened adapter assemblies • Internal organizer manages buffer tube or ribbon cable • Integrated air valve provides field flash test point End Plate with Distribution Cable and 6-port Drop Cable Grommet • Full line of hardware available for strand, pedestal, pole and hand-hole installations • Tested in accordance to Telcordia GR-771 CORE • RUS Listed Inside View – Terminal Closure (Single Chamber) Drop wire with mating connectors for terminal are available in various lengths. Contact your local PLP representative or customer service for more details.1-12 *OptiTap™ is a trademark of Corning Cable Systems

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Terminal Closure ® Terminal Closure COYOTE®Evolution of the Breed Continues…Installation of Hardened COYOTE Terminal Connectors Closure – Hand Hole Application COYOTE Terminal Closure – Pedestal Application Coyote Terminal Closure Kits Catalog Chamber Adapter Plug Cover Type Number Description Type Qty Qty Terminal Standard 800012002 COYOTE Terminal Closure – 2 Port Single 2 4 1 0 8006993 COYOTE Terminal Closure – 3 Port Single 3 3 1 0 8006953 COYOTE Terminal Closure – 4 Port Single 4 2 1 0 8006954 COYOTE Terminal Closure – 6 Port Single 6 0 1 0 8006955 COYOTE Terminal Closure – 8 Port Single 8 1 1 0 800012003 COYOTE Terminal Closure – 9 Port Single 9 0 1 0 80061067 COYOTE Terminal Closure – 12 Port Single 12 0 1 0 80061029 COYOTE Terminal Dual Chamber – 6 Port Dual 6 0 1 1 8006991 COYOTE Terminal Dual Chamber – 8 Port Dual 8 1 1 1 800012140 COYOTE Terminal Dual Chamber – 9 Port Dual 9 0 1 1 80061030 COYOTE Terminal Dual Chamber – 10 Port Dual 10 2 2 0 800011830 COYOTE Terminal Dual Chamber – 12 Port Dual 12 0 2 0 800012605 COYOTE Terminal Dual Chamber – 24 Port Dual 24 0 2 0 800011839 COYOTE Terminal Dual Chamber – EMPTY Dual 0 0 0 2 8006956 COYOTE Terminal Closure w/6 SCAPC Internal Bulkhead Dual 0 0 0 2Terminal includes SC/AP Adapters and (1) Splice Tray 1-13

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Terminal Closure ® COYOTE In-line RUNT & Terminal Closure Accessories Terminal Catalog In-Line Single Dual Number Description RUNT Chamber Chamber Splice Tray Kits 80807701 12 Count Low Profile Tray w/plastic splice block – single fusion splices X X X 80807531 12 Count Low Profile Tray (Blank) – no splice block X X X 80806033 12 Count Standard Tray w/elastomeric splice block – fusion & mechanical splices X X X 80806182 12 Count Standard Tray (Blank) – no splice X X X 80807114 72 Count Ribbon Tray w/elastomeric splice block for mass fusion X X X 80808160 Ribbon Tray (Blank) – no splice block X X X LGSTS16 16/40* Count LITE-GRIP® Tray (Short) for single fusion X X X LGSTR144 144/180* Count LITE-GRIP Tray (Short) for Ribbon X X X *Requires additional LITE-GRIP Splice Block kit for enhanced capacity Cover Kits 8003719 COYOTE In-Line RUNT Cover Kit* X X X 8003742 COYOTE Terminal Closure Cover Kit 2-Port with Hardened Adapters X X X 8003739 COYOTE Terminal Closure Cover Kit 3-Port with Hardened Adapters X X X 8003720 COYOTE Terminal Closure Cover Kit 4-Port with Hardened Adapters X X X 8003721 COYOTE Terminal Closure Cover Kit 6-Port with Hardened Adapters X X X 8003722 COYOTE Terminal Closure Cover Kit 8-Port with Hardened Adapters X X X 8003735 COYOTE Terminal Closure Cover Kit 9-Port with Hardened Adapters X X X 8003810 COYOTE Terminal Closure Cover Kit 12-Port with Hardened Adapters X X X Adapter Accessory Kits 8003715* Hardened Adapter Kit – Field Installable – Includes 80807972 X X 8003724* Port Plug Kit-Field Installable – Includes 80807972 X X 80807972 Hardened Adapter Installation Tool X X 80808157 Fiber Optic Pigtail Kit (2-Pigtails) X X 80807939 Fiber Optic Pigtail Kit (3-Pigtails) X X 80807806 Fiber Optic Pigtail Kit (4-Pigtails) X X 80807807 Fiber Optic Pigtail Kit (6-Pigtails) X X 80807808 Fiber Optic Pigtail Kit (8-Pigtails) X X 80808158 Fiber Optic Pigtail Kit (9-Pigtails) X X 80808700 Fiber Optic Pigtail Kit (12-pigtails) X X Miscellaneous Accessory Kits 8003733 End Plate Kit X X X 80807794 Hardware bag X X X 80807972 Adapter Installation Tool X X Transport Tube Kit .135" ID: includes six 34" long transPort with Hardened 80805293 X X X Adapters tubes, used to bring fiber from transition compartment to splice tray Transport Tube Kit .25" ID: includes six 34" long transPort with Hardened Adapters 80806439 X X X tubes, used to bring fiber from transition compartment to splice tray 80807989 Transport Tube 100 coil 0.135" ID X X X 80807991 Transport Tube 100 coil 0.25" ID X X X Mounting Hardware Kits 8003713 Express Bracket Kit X X X Pole/Wall mount bracket kit for In-Line RUNT and Terminal 8003703 X X X (Standard and Dual Chamber) 8003704 Aerial Hanging Bracket Kit for COYOTE In-Line RUNT and Terminal Closure X X 8003705 Aerial Hanging Bracket Kit for COYOTE Terminal Dual Chamber X 8003706 Swing Arm Bracket for COYOTE In-Line RUNT and Terminal Closures X X X Pedestal Mounting Bracket for COYOTE In-Line RUNT and Terminal Closure 8003714 X X (Emerson PRO12 Pedestal) *Hardened Adapter Kit or Plug kit can only be used with terminal closure covers1-14

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Aerial Drop Closure ® Aerial Drop Closure COYOTE®A Simple Solution, a Breed Apart The COYOTE® Aerial Drop Closure Kit ComponentsKey Features: COYOTE Aerial Fiber Drop Closure Kits• Compact Size – 9” W x 16.5” L x 2.5” D Catalog• Feature rich and value priced solution Number Description• Easy to install – no special tools required COYOTE Aerial Fiber Drop Closure Kit COYDAC03 Includes: Cover, Base and components• Easy-to-use grommet sealing system shown above• Includes splicing platform COYOTE Splice Platform Kits• Accepts 2 splice platforms for a splice capacity Splice Plate Kit – 12 Count Splice Block – of 24 fibers 8003792 Single Fusion• Capable of higher splice capacities with alternative Splice Plate Kit – 12 Count Splice Block – 8003751 splice holders. Consult a PLP representative for details. Unprotected Single Fusion• Includes universal mounting bracket with features to Splice Plate Kit – 24 Count LITE-GRIP Splice 8003793 permit pole mounting with straps, strand mounting with Block – Single Fusion strand clamps or suspension from “J” hooks secured Splice Plate Kit – 72 Count LITE-GRIP Splice 8003794 to a pole Block – Ribbon COYOTE Aerial Fiber Drop Accessory KitsPLP Reliability 80808256 12 Entry Grommet Kit with Bobbin End Plate Kit – includes (2) End Plates,The COYOTE Fiber Optic Aerial Drop Closure is manufac- 8003753 Bolts and Tethertured in accordance with ISO 9001-2008 procedures to Strength Member Bracket Kit for Singleassure quality and is backed by the experience and field 8003777 Cable Entrysupport that Preformed Line Products has been noted for 80808257 Fiber Organizer Clip Kitin fiber optic closures for over 20 years. 8003775 Hanger Bracket Kit 1-15

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE LCC (Low Count Closure) ® Maximum Flexibility in a Small Package RUS ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ PLP Feature Focus ©2009 Preformed Line Products LISTED ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ Film available at www.preformed.com Grommets 8003796 12 Hole 8003691 1 Hole 8003692 1 Hole 8003693 1 Hole 8003694 1 Hole 8003663 2 Hole 8003990 4 Hole 8003664 4 Hole 8003665 6 Hole 8003677 8 Hole 8003989 4 Hole 8003676 7 Hole Splice Type* L Bracket Bobbin COYOTE LCC and COYOTE LCC Flame Retardant Kits for Fiber Catalog Number COYLCC-F001 S 2 1 1 COYLCC-F002 S 1 2 1 1 Every splice location, regardless of the FTTX Architecture, COYLCC-F003 R 2 2 must be protected from the elements to provide the maximum COYLCC-F004 S 2 2 reliability your customers expect. The new COYOTE LCC COYLCC-F005 S 2 2 (Low Count Closure) is the latest edition to the COYOTE COYLCC-F006 S 2 2 Fiber Optics product line for your Fiber to the Home, Node, COYLCC-F007 S 2 1 1 or Curb deployment. COYLCC-F008 S 2 1 1 The Closure’s compact size, use of the versatile grommet COYLCC-F009 S 2 2 system and internal LITE-GRIP® Splice Platform are COYLCC-F010 1 1 designed to make this rugged closure the economical choice COYOTE LCC Kits for Copper for new installations and critical repair situations. Kits have COYLCC-C001 C 2 also been created to support copper applications. The COYLCC-C002 C 2 COYOTE LCC for Copper will support up to 25 pair in a butt COYLCC-C003 C 2 application and 50 pair in an In-Line configuration. COYLCC-C004 C 1 1 The COYOTE LCC represents the maximum versatility, COYLCC-C005 C 2 reliability and technical support you’ve come to expect NOTES: from PLP. All COYOTE LCC Kits for Fiber include: (2) grommets, (1) splice platform, (3) splice blocks, (2) cable restraint brackets, lubricant and measure tape Key Features: All COYOTE LCC Kits for Copper include: (2) grommets, (2) MINI-MORAY Shield Connectors, (1) bonding bridge, lubricant and measure tape • Compact Size – 17" L x 7" W x 2.5" D For the COYOTE LCC Flame Retardant catalog numbers, insert “FR” into (43cm x 18cm x 7cm) the catalog number code, Ex.: COYLCCFR-F001. The grommets provided will be the same as • Max Splice Capacity – Single Fusion – 24 splices shown in the chart. • Max Splice Capacity – Ribbon/Mass Fusion – 72 *Splice Type: S = Single Fusion R = Ribbon C = Copper • Capable of Inline or Butt applications • Designed for aerial, below grade or direct buried applications COYOTE LCC Accessories • Same craft friendly grommet system as the COYOTE Catalog Dome Closures Number Description 80808633 Strength Member Bobbin Kit • Flat shape allows for mounting in small areas 8003843 Strength Member L Bracket Kit • Utilizes LITE-GRIP Splice Block System, which permits Splice Platform Kit for Single Fusion – 8003793 single fusion, mass fusion, mechanical, PLC splitters includes 3 splice blocks or a combination of all within one closure 8003794 Splice Platform Kit for Ribbon – includes 2 splice blocks • Quick, easy installation is ideal for drop repair applications LITE-GRIP Splice Block for Single Fusion – accepts LGSBS8-5 • Fire Retardant versions available 8 splice protectors per block – 5 pcs per kit LITE-GRIP Splice Block for Ribbon – accepts 3 • Tested in accordance to TR-NWT-000251 by an LGSBR3-5 mass fusion protectors per block – 5 pcs per kit1-16 independent outside lab • RUS listed

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE LCC (Low Count Closure) ® (Low Count Closure) COYOTE® LCC COYOTE LCC Installation Options Part Number Application Type and Description 8003832 Aerial Aerial Mounting Bracket (Strand Mount) 8003830 Pole/Wall Mount Pole/Wall Mount Bracket Kit 8003835 Below Grade Large Vault/Hand Hole Universal Mounting Bracket Kit for Hand Hole Applications COYOTE LCC: COYLCC-XXXX Below Grade COYOTE GLC Base Small Hand Hole COYGLC-C1-000 Butt Applications Only For small drop and flat drop applications only Direct Buried No Mounting Brackets Needed COYOTE LCC Custom for Coax Contact PLP for Details COYOTE LCC Custom Cross-Connect Contact PLP for Details COYOTE LCC Custom with Terminal Block Contact PLP for Details 1-17

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Long Trays and Closures ® Short Splice Trays & Closures COYOTE COYOTE COYOTE Terminal Terminal 6.5"x17" COYOTE Expanded COYOTE (Single (Dual COYOTE RUNT RUNT In-Line RUNT Chamber) Chamber)2 Dome COYOTE PUP 3 Trays 6 Trays 4 Trays 4 Trays 8 Trays 6 Trays 6 Trays Low Profile Tray1 36 Max 72 Max 48 Max 48 Max 96 Max 72 Max 72 Max (12 splice count) Splice count Splice count Splice count Splice count Splice count Splice count Splice count Cat. # 80807701 (w/splice blocks) or 8001130 (blank) 2 Trays 4 Trays 2 Trays 2 Trays 4 Trays 4 Trays 4 Trays 24 Max 48 Max 24 Max 24 Max 48 Max 48 Max 48 Max Standard Tray Splice count Splice count Splice count Splice count Splice count Splice count Splice count (12 splice count) Cat. # 80806033 (w/splice block) or 80806182 (blank) 1 Tray 2 Trays 2 Trays 2 Trays 4 Trays 3 Trays 2 Trays 72 Max 144 Max 144 Max 144 Max 288 Max 216 Max 144 Max Ribbon Tray Splice count Splice count Splice count Splice count Splice count Splice count Splice count (72 splice count) Cat. # 80807114 (w/splice block) or 80808160 (blank) 1 Tray 2 Trays 2 Trays 2 Trays 4 Trays 3 Trays 2 Trays 40 Max 80 Max 80 Max 80 Max 160 Max 120 Max 80 Max LITE-GRIP ® Splice count Splice count Splice count Splice count Splice count Splice count Splice count Short Tray3 (40 splice count) Cat. # LGSTS16 (Single Fusion) 1 Tray 2 Trays 2 Trays 2 Trays 4 Trays 3 Trays 2 Trays LITE-GRIP 144 Max 216 Max 288 Max 288 Max 576 Max 432 Max 288 Max Short Tray Splice count Splice count4 Splice count Splice count Splice count Splice count Splice count (144 splice count) Cat. # LGSTR144 (Mass Fusion/Ribbon) 1 24 count Low Profile Tray (Cat. # 8003468) is available for COYOTE In-Line, COYOTE Terminal (Single Chamber), & COYOTE Terminal (Dual Cham- ber) closures. Tray Conversion Kit (Cat. # 8003757) is required to use this tray in these closures. 2 The maximum splice count for the COYOTE Terminal (Dual Chamber) requires trays to be installed in both chambers of the closure. 3 Each tray (Cat. # LGSTS16) is provided with splice blocks to support 16 single fusion splices. Splice Block Kit (Cat. # LGSBS8-5) is required for each 1-18 tray to achieve maximum splice count. 4 Capacity is limited by the maximum cable size through the entry ports.

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Long Trays and Closures ® COYOTE Long Trays and Closures ® Long Splice Trays & Closures 6.5"x22" 6.5"x22" 8"x28" 9.5"x28" COYOTE 6.5"x22" 8.5"x22" COYOTE COYOTE COYOTE 9.5"x28" Dome COYOTE COYOTE Splice Case Splice Case Splice Case COYOTE Dome 6 Trays 6 Trays 11 Trays 6 Trays 9 Trays 13 Trays 18 Trays Low Profile Tray 216 Max 216 Max 396 Max 216 Max 324 Max 468 Max 648 Max (36 splice count) Splice count Splice count Splice count Splice count Splice count Splice count Splice count Cat. # 8001127 (w/ plastic splice blocks) or 8001130 (blank) 4 Trays 4 Trays 8 Trays 5 Trays 7 Trays 10 Trays 15 Trays Standard Tray 144 Max 144 Max 288 Max 180 Max 252 Max 360 Max 540 Max (36 splice count) Splice count Splice count Splice count Splice count Splice count Splice count Splice count Cat. # 80805514 (w/ elastomer splice block), 80805110 (w/ rigid slots), or 80805509 (blank) 3 Trays 2 Trays 4 Trays 2 Trays 5 Trays 6 Trays 6 Trays Ribbon Tray 432 Max 288 Max 576 Max 288 Max 720 Max 864 Max 864 Max (144 splice count) Splice count Splice count Splice count Splice count Splice count Splice count Splice count Cat. # 80805515 (w/ elastomer splice blocks), 80805146 (w/ rigid slots), or 80805510 (blank) 3 Trays 5 Trays 2 Trays 5 Trays 6 Trays 9 Trays Not 240 Max 400 Max 160 Max 400 Max 480 Max 720 Max LITE-GRIP® Applicable Splice count Splice count Splice count Splice count Splice count Splice count Long Tray1 (80 splice count) Cat. # LGSTS40 (Single Fusion) 3 Trays 5 Trays 2 Trays 5 Trays 6 Trays 6 Trays Not LITE-GRIP 648 Max 1,080 Max 432 Max 1,080 Max 1,296 Max 1,296 Max Applicable Long Tray Splice count Splice count Splice count Splice count Splice count Splice count (216 splice count) Cat. # LGSTR216 (Mass Fusion/ Ribbon)1 Each tray (Cat. # LGSTS40) is provided with splice blocks to support 40 single fusion splices. Splice Block Kit (Cat. # LGSBS8-5) is required for each tray to achieve maximum splice count.2 Each tray (Cat.# LGSTS40) is provided with splice blocks to support 40 single fusion splices. Splice block kit (Cat. # LGSBS8-5) is required for each tray to achieve maximum splice count. 1-19

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Silicone Grommet Kits ® ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ PLP Feature Focus ©2009 Preformed Line Products ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ Film available at www.preformed.com COYOTE® Silicone Grommet Kits for use in COYOTE GLC, LCC, Aerial Drop, In-Line RUNT, Terminal, Dome and Taut Closures Catalog Cable Range Description Grommets Number Inches (mm) .42 - .60 (10.7 - 15.2) 8003701* 2-hole grommet .60 - .85 (15.2 - 21.6) 8003691 .40 - .60 (10.7 - 15.2) 1-hole grommet 8003692 .60 - .85 (15.2 - 21.6) 1-hole grommet 8003693 .85 - 1.0 (21.6 - 25.4) 1-hole grommet 8003694 1.0 - 1.25 (25.4 - 31.6) 1-hole grommet 8003663 .42 - .60 (10.7 - 15.2) 2-hole grommet .50 - .60 (12.7 - 15.2) 8003990 .125 - .25 (3.2 - 6.4) 4-hole grommet and Flat Drop 8003664 .30 - .43 (7.6 - 10.9) 4-hole grommet 8003989 Flat Drop Only 4-hole grommet .125 - .25 (3.2 - 6.4) 8003665 6-hole grommet and Flat Drop .42 - .60 (10.7 - 15.2) 8003676 .125 - .25 (3.2 - 6.4) 7-hole grommet and Flat Drop .125 - .25 (3.3 - 6.4) 8003677 8-hole grommet and Flat Drop 8003796 Flat Drop Only 12-hole grommet Note: Grommet Kit contains (1) Grommet, (1) Cable Measure Tape, (2) Silicone Lubricant Packs, (1) Set of Plugs (where applicable)1-20 *8003701 is not recommended for 9.5" Dome and GLC Closures

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE DTC (Drop Termination Closure) ® (Drop Termination Closure) COYOTE® DTCEase of Use Just Got Easier!Versatile, compact and quick to install are the words mostcommonly used to describe the new COYOTE DTC (DropTermination Closure). This new closure design is con-structed to support butt or inline low count splice applica-tions in a direct buried or below grade environment andpole/wall mounted applications near the end of your net-work. The closures’ compact size and rugged exteriorallow for installation in tight spaces without compromisingfunctionality. Four corner entrance ports provide the in-staller the flexibility to quickly configure the closure asneeded. The cover of the two piece design contains afactory installed gasket and is able to be quickly snappedonto the base during assembly. No fasteners to tighten ortorque. With the capacity to support up to 16 single fusionsplices or multiple ribbon splices, it will quickly becomethe closure you will want to have on hand. The COYOTEDTC, another example of the quality, versatility and in-novation you’ve come to expect from PLP.Key Features:• Compact Size: 7.25" x 7.75" x 1.75" (18.4 x 19.7 x 4.4 cm)• Quick to assemble. No tools required for assembly• Flexible sealing technology supports a wide range of flat or round cable profiles• Can be used in combination with the COYOTE GLC (Cat No: COYGLC-C1-000) Base. Provides a cost effective solution for below grade customer drop applications.• Designed for direct buried, below grade, pole/wall mount or aerial applications• Re-enterable and re-usable*• Capable of Inline or Butt applications• Max Splice Capacity – 16 single fusion• Max Splice Capacity – (3) 12 fiber ribbons• Flat shape allows for mounting in small areas• Utilizes the LITE-GRIP Splice Block System which permits single fusion, mass fusion, mechanical, PLC splitters or a combination of all within one closure.*The COYOTE DTC is designed to be a secure closure. If re-entry and re-use is required you must use the COYOTE DTC Cover Removal Tool (PN: 80809842). An alternative method for removal is to cut features on the base to remove the cover. This approach does not permit re-use of the base. COYOTE DTC Closure Kits Catalog Number Description COYOTE DTC Kit Includes: Closure Assembly with (4) port COYDTC-001 sealing grommets (2) single fusion and (1) Ribbon LITE-GRIP Splice Blocks, (4) cable retention clips and (2) fiber organizer clips Accessory Kits 80809842 Cover removal tool 1-21

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Taut Closure ® Refinement of the Breed… A single closure that simplifies branch cable taps or repairs of taut fiber optic cables. The 6.5" x 38" (165 x 965 mm) COYOTE Taut Closure organizes and protects up to 12 branch splices in either or both directions, or up to 12 pairs of fiber splices for repairing damaged cable. The end plates are the same innovative design used in the COYOTE Dome Closure and employ the easy-to-use grommet system which can also be used in the COYOTE Taut Closure. The unique mainframe assembly protects the fibers being “expressed” through the closure and organizes the splices on those fibers being spliced to the branch cables. Slack fibers from the branch cables or slack fibers between repair splices are stored in the center region of the mainframe. Catalog The entire splice is protected by our rugged plastic Number Description COYOTE shells. 6.5" x 38" (165 x 965 mm) COYOTE Taut 8006947 Closure Kit1-22

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE RUNT Closure ® RUNT Closure COYOTE®Refinement of the Breed… COYOTE RUNT & Expanded COYOTE RUNT Closure Catalog Number Description COYOTE RUNT Closure Kits COYOTE RUNT Closure Kit, Includes LOCK-TAPE™ 8006671 Sealant, Bond Brackets and transport tubing Expanded COYOTE RUNT Closure Kit, Includes 8006794 LOCK-TAPE Sealant, Bond Brackets and transport tubing RUS Listed COYOTE RUNT Closure Kit, 8006692 Includes LOCK-TAPE Sealant, Bond Brackets COYOTE RUNT Closures and transport tubing 800011397 COYOTE RUNT Closure for Copper ApplicationThe COYOTE RUNT Closure was specifically designed forfiber distribution networks. The small compact size of the 8006916 Expanded COYOTE RUNT Cross ConnectCOYOTE RUNT Closures make them an ideal fit for Splice Tray Kitssmaller hand holes and pedestals in the last fiber mile. 12 Count Low Profile Tray w/plastic splice block 80807701 – single fusion splicesKey Features: 12 Count Standard Tray w/elastomeric splice 80806033• Compact Size: 14.75" L x 8.5" W x 3" H block – fusion & mechanical splices (37.5cm x 21.6cm x 7.6cm) 72 Count Ribbon Tray w/elastomeric splice block 80807114• Expanded Size: 14.75" L x 8.5" W x 4.75" H for mass fusion (37.5cm x 21.6cm x 10.8cm) LITE-GRIP® Short Tray for Single Fusion –• Three cable entrance ports (2) 3/4" (19mm) port LGSTS16* Includes (2) LITE-GRIP Splice Blocks for Single and (1) 1" (25mm) port Fusion – Splice Capacity 16 Splices• Size allows for mounting in small pedestals and hand holes LITE-GRIP Short Tray for Ribbon – Includes LGSTR144• Provided with LOCK-TAPE™ Sealing System (4) LITE-GRIP Splice Blocks• Accepts a wide variety of grommets for multi drop Accessory Kits applications – See grommet chart in COYOTE Closure Future Cable Port Kit. Includes Future Cable Port End Plate and Accessories section 8003407 for 1" port, plug and clamps for installation of• Universal internal organizer allows for loose tube or future cable port during initial assembly ribbon fiber applications Future Cable Port Installation Kit. Includes• Permanent neoprene gasket system requires no 8003291 LOCK-TAPE sealant, bead sealant and L-bracket re-entry kits for preparation of future cable up to 1" in diameter• Future cable ports provide capability for future cable Future Cable Port/Installation kit. Complete kit 8003408 installation without end plate removal includes catalog nos. 8003407 and 8003291• Standard cover can be replaced with expanded to 80806037 3/4" Plug kit (contains 2 plugs) increase splice capacity 80806038 1" Plug kit (contains 2 plugs)• Express friendly internal organizer features 80806112 Transport tube kit, contains 4 tubes• Integrated air valve to verify integrity of final assembly Shell expansion kit includes Expanded top shell• Full line of mounting hardware 8003574 and longer studs to increase tray capacity• UL Approved and RUS Listed Installation Materials• Tested in accordance to Telcordia GR-771 CORE 80805238 C-Cement, 1 oz. Tube Splice Tray/Closure Capacities 80805925 LOCK-TAPE Sealant, 1" W x 15 L roll Standard RUNT Expanded Runt Bonding Acessories Splices Trays Trays Fiber Optic Shield Connector (1 per kit) Catalog per Per Closure Per Closure 80803989 3M#4460-F/FO Number Description Tray Closure Capacity Closure Capacity 80807701 Single 8003281 External Bonding Clip 12 3 36 6 72 Low Profile Fusion Mounting Hardware Kits Single 8003467 Aerial Hanger Bracket 80806033 Fusion & 12 2 24 4 48 Standard Mechanical 8003470 Manhole Support Bracket 80807114 Mass Fusion 8003523 Wall Mount Bracket 72 1 72 2 144 Ribbon (Ribbon) 8003571 Universal Wall/Pole Mount Bracket LITE-GRIP® *Tray will hold a max of 5 splice blocks for a total splice capacity of LGSTS16* Single 16/40* 1 16/40* 2 33/80* 40 splices Fusion LGSTR144 LITE-GRIP 144/180* 1 144/180* 2 288/360* 1-23*Requires additional LITE-GRIP splice block kit to reach maximum capacity

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE PUP Closure ® Refinement of the Breed… COYOTE PUP Closure Kits Catalog Number Description COYOTE PUP Closure Kit for Buffer Tube – includes 8006622 (1) 3 section 6 Port End Plate, (1) blank end plate and organizer COYOTE PUP Closure Kit for Unitube – includes (1) 3 8006621 section 6 Port End Plate, (1) blank end plate, transport tube kit and organizer RUS Listed COYOTE PUP Closure Kit for Buffer Tube 8006661 – includes (1) 3 section 6 Port End Plate, (1) blank end plate, organizer and (2) RUS listed shield connectors. COYOTE PUP Closure Kit for Copper Applications with 800011398 6-Port End Plates The COYOTE PUP Closure offers the perfect choice for low COYOTE PUP Closure Kit for Copper Applications with fiber count distribution applications involving butt and inline 800011399 4-Port End Plates installations. The compact size and rugged design allow COYOTE PUP Closure for Buffer Tube Applications the closure to be applied in below grade, aerial and buried 800010515 with 4-Port End Plate installations. Supported by a full line of COYOTE acces- Splice Tray Kits sories, this closure can grow along with your network. 12 Count Low Profile Tray w/plastic splice block – 80807701 single fusion splices Key Features: 12 Count Standard Tray w/elastomeric splice block – • Compact Size: 17" L x 8.6" W x 7.2" H 80806033 fusion & mechanical splices (43.2 cm x 21.9 cm x 18.4 cm) 72 Count Ribbon Tray w/elastomeric splice block for • Two end plate options – 4 Port and 6 Port 80807114 mass fusion – 6 Port provides (4) 7/8" (22mm) ports Mounting Hardware Kits and (2) 3/4" (19mm) ports 8003325 Aerial hanger bracket – 4 Port provides (2) 1-1/4" (32mm) ports and (2) 1" (25mm) ports 8003279 Manhole support bracket • Can be configured for butt or in-line applications 8003372 Pole/wall mount bracket (vertical) • Organizers designed for loose buffer tube and Accessories Kits ribbon applications End Plate See Grommet Chart in COYOTE Closure End Plate • Size allows for mounting in small hand holes Grommets and Accessories Section • Provided with LOCK-TAPE™ Sealing System 80805795 Shell Kit 6" x 17" • Accepts a wide variety of grommets for multi 80805771 Buffer Tube Storage Compartment drop applications 80805775 Unitube Storage (Transition) Compartment • Permanent neoprene gasket system requires 6 Port End Plate Kit, Includes (1) end plate assembly, no re-entry kits 80805105 (1) full set of plugs, and LOCK-TAPE™ Sealing material • Future cable ports provide capability for future cable 4 Port End Plate Kit, Includes (1) end plate assembly, installation, without end plate removal 80805739 (1) full set of plugs, and LOCK-TAPE sealing material • Integrated air valve to confirm integrity of final assembly 80805260 Blank end plate kit • Full line of mounting hardware • UL Approved, RUS Listed Future Cable Port Kit, Includes Future Cable Port for 8003371 7/8" port, plug and clamps for installation of future • Tested in accordance to Telcordia GR-771 CORE cable port during initial assembly Future Cable Installation Kit, includes LOCK-TAPE 8003291 Sealant, bead sealant and L-bracket for preparation of future cable up to .86" in diameter Future Cable Port/Cable Installation Kit. Complete kit 8003289 includes Cat. Nos. 8003289 and 8003291 80806037 3⁄4" Plug Kit (contains 2 plugs) 80806180 7⁄8" Plug Kit (contains 2 plugs) 80806038 1" Plug Kit (contains 2 plugs) Splice Tray/Closure Capacities 80806181 1-1⁄4" Plug Kit (contains 2 plugs) Splice Splices Trays 80805293 Transport Tube Kit (contains 6 tubes) Tray per per Closure Transition Tube Kit, used to transition fibers from top 8003280 Depth Description Tray Closure Capacity section of end plate to the transition compartment Low Profile Single Fusion 12 6 72 8003418 Heat Shield for PUP Closure Single Fusion & Installation Materials Standard 12 4 48 Single Mechanical 80805238 C-Cement, 1 oz. tube1-24 Ribbon Mass Fusion 72 2 144 80805925 LOCK-TAPE Sealant 1" W x 15" L Roll

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Closure ® COYOTE® ClosureOrigin of the Species… ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ PLP Feature Focus ©2009 Preformed Line Products ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ Film available at www.preformed.com PATENTED Size L (cm) W (cm) H (cm) 6.0" x 22" 22" (56) 8-1/2" (22) 7" (18)Setting the bar against which all other fiber closures aremeasured was no small task for our design team. But years 8.5" x 22" 22" (56) 10-3/4" (27) 9-1/4" (24)of research & development eventually paid off in the formof a rugged and reliable design that has become legend.After over ten years of field use and several hundred thou-sand units sold, the original COYOTE Closure still remainsone of the most highly regarded and widely used fiberoptic closures in the industry.Key Features:• Available in two sizes – 6.0" x 22" (15cm x 56cm) COYOTE Splice Trays – 8.5" x 22" (22cm x 56cm)• Two end plate options – 4 Port and 6 Port Splice Tray Installation Materials Kits – 6 Port provides (4) 7/8" (22mm) ports Catalog and (2) 3/4" (19mm) ports Number Description – 4 Port provides (2) 1-1/4" (32mm) ports 8003509 60 mm heat shrink splice protector (12 per kit) and (2) 1" (25mm) ports 80808187 40 mm heat shrink protector (12 per kit)• Large splice capacity 8003717 60 mm heat shrink protector (50 per kit) – Up to 396 with single fusion Splice protector (single fusion), NON heat shrink, – UP to 576 with mass fusion 8003092 250/250 micron (20 per kit)• Can be configured for butt or in-line applications Splice protector (mass fusion), NON heat shrink 8003425• Organizers designed for loose buffer tube and (12 per kit) ribbon applications 8003490 Felt strips 1-1/8" x 9" (6 per kit)• Compact size allows for mounting in smaller locations 8003381 12-Count soft elastomer splice block kit (3 per kit)• Provided with LOCK-TAPE Sealant System Transport tube kit, includes (6) transport tubes 80805293 0.135" I.D.• Accepts a wide variety of grommets for multi Transport tube kit, includes (6) transport tubes drop applications 80806439 0.170" I.D. will contain (6) 12 fiber ribbons• Field proven permanent neoprene gasket system Transport tube kit (bulk) – 100 ft coil of transport 80807989• No re-entry kits required tube 0.170" I.D. – will contain (6) 12 fiber ribbons• Future cable ports provide capability for future cable Transport tube kit (bulk) – 100 ft coil of transport 80807991 installation, without end plate removal tube 0.250" I.D. – will contain (12) 12 fiber ribbons• Integrated air valve to confirm integrity of final Transport tube kit, color coded, includes 8003285 (6) transport tubes 0.135" I.D. assembly• Full line of mounting hardware• UL Approved and RUS Listed• Tested in accordance to Telcordia GR-771 CORE 1-25

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Closure ® Splice Tray/Closure Capacities 6.5" x 22" 8.5" x 22" Splice Tray Splices Trays Closure Trays Closure Depth Description per Tray per Closure Capacity per Closure Capacity Low Profile Single Fusion 36 6 216 11 396 Single Fusion & Standard 36 4 144 8 288 Single Mechanical Ribbon Mass Fusion 144 2 288 4 576 COYOTE Closure Kits Catalog Number 6 Port 4 Port End Plate End Plate Organizer Type Description 6" x 22" COYOTE Closure, includes (1) 3 section end plate, 8006560 8006633 Buffer Tube (1) blank end plate, organizer and LOCK-TAPE sealant Unitube Transition 6" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank end plate, 8006540 8006631 Compartment organizer, transport tube kit, transition tube kit and LOCK-TAPE sealant Express 6" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank end plate, express 8006587 8006635 Buffer Tube organizer and LOCK-TAPE sealant RUS LISTED - 6" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank 8006659 Buffer Tube end plate, organizer, LOCK-TAPE sealant and (2) RUS listed shield connectors 8.5" x 22" COYOTE Closure, includes (1) 3 section end plate, 8006561 8006634 Buffer Tube (1) blank end plate, organizer and LOCK-TAPE sealant Unitube Transition 8.5" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank end plate, 8006541 8006632 Compartment organizer, transport tube kit, transition tube kit and LOCK-TAPE sealant Express 8.5" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank end plate, 8006588 8006636 Buffer Tube express organizer and LOCK-TAPE sealant RUS LISTED - 8.5" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank 8006660 Buffer Tube end plate, organizer, LOCK-TAPE sealant and (2) RUS listed shield connectors UL Approved, RUS Listed, Patented COYOTE Closure Splice Tray Kits Catalog 6.5" x 17" 6" x 22" Number Description or Smaller or Larger 80807701 12 Count Low Profile Tray w/plastic splice block – single fusion splices X 80807769 12 Count Low Profile Tray (Blank) No Splice Block X 80806033 12 Count Standard Tray w/elastomeric splice block – Fusion & mechanical splices X 80806182 12 Count Standard Tray (Blank) – No Splice Block X 80807114 72 Count Ribbon Tray w/Elastomeric Splice Block for Mass Fusion X 80808160 Ribbon Tray (Blank) No splice Block X LGSTS16 16/40* Count LITE-GRIP® Tray (Short) for Single Fusion X LGSTR144 144/180* Count LITE-GRIP Tray (Short) for Ribbon X 8001127 36 Count Low Profile Tray w/plastic splice block – single fusion splices X 80807531 Blank Low Profile Splice Tray X 8001130 Blank Low Profile Splice Tray X 80805514 36 Count Standard Tray w/elastomeric splice blocks – Fusion & mechanical splices X 80805110 36 Count Standard Tray w/fixed rigid slots X 80805509 36 Count Standard Tray (Blank) – No Splice Block LGSTS40 40/80* Count LITE-GRIP® Tray (Short) for Single Fusion X LGSTR216 216/288* Count LITE-GRIP Tray (Short) for Ribbon X 80805146 144 Count Ribbon Tray w/fixed rigid slots X 80805515 144 Count Ribbon Tray w/2 elastomeric splice blocks X 80805510 144 Count Ribbon Tray (Blank) – No splice blocks X LGSBR3-5 LITE-GRIP Splice Block Kit – Ribbon Fiber (5 ea per kit) X X LGSBS8-5 LITE-GRIP Splice Block Kit – Single Fusion (5 ea per kit) X X *Requires additional LITE-GRIP block kit to achieve maximum capacity.1-26

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Closure End Plates and Accessories ® Plates and Accessories COYOTE® Closure EndOrigin of the Species… COYOTE Closure Shell Kits Unitube Transition Compartment Catalog Number Description (mm)80805258 6.0" (152) x 22.0" (559) COYOTE Shell Kit80805259 8.5" (216) x 22.0" (559) COYOTE Shell Kit Transition and Buffer Tube Storage Compartments Catalog Number Description (mm) 6.0"(152) x 22.0" (559) Transition80805112 Compartment Kit 8.5" (216)x 22.0" (559) Transition80805113 Compartment Kit Loose Buffer Tube Storage Compartment 6.0" (152) x 22.0" (559) Loose Buffer80805262 Tube Storage Compartment Kit 6.0" (152) x 22.0" (559) COYOTE Express80805419 Organizer (for loose buffer tube applications) 8.5" (216) x 22.0" (559) Loose Buffer80805263 Tube Storage Compartment Kit 8.5" (216) x 22.0" (559) COYOTE Express80805420 Organizer (for loose buffer tube applications) Transition Tube Kit for fiber transition from top 8003280 section of end plate to transition compartment Installation Materials Catalog Number Description (mm)80805238 C-Cement, 1 oz. tube Adjustable Aerial80802377 C-Cement, 4 oz. can Hanger Bracket80803448 Moisture Blocking Sealant, 3 oz. tube80805925 LOCK-TAPE™ Sealant 1" (25) W x 15 (4 m) L Splice Protector, non-heat shrink 250/250 micron, 8003092 pack of 20 Mass Fusion Splice Protector, non-heat shrink, 8003425 pack of 12 Vertical Mount Bracket 8003509 60 mm Heat Shrink Splice Protector, pack of 12 8003490 Felt strips (blue) 1-1/8" (29) x 9" (229), 6 strips Mounting Brackets/Supports Catalog Number Description (mm) 8003325 Adjustable Aerial Hanger Bracket Kit 8003279 Manhole Support Bracket Kit Vertical Mount Bracket Kit (for 6.0" (152) or 8003372 8.5"(216) COYOTE Closure or 6.0" (152) COYOTE PUP Closure) 1-27

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Closure End Plates and Accessories ® Origin of the Species… Strength Member Bracket Exterior Bond Braid Extended Strength Member Bracket Miscellaneous Accessories Bonding and Grounding Kits Catalog Catalog Number Description (mm) Number Description (mm) 80805260 Blank End Plate Kit 8003281 External bond clip kit 80805107 Strength Member Bracket Kit – two per kit 8003360 External bond braid kit Extended Strength Member Bracket Kit – External isolation terminal kit, includes (2) 80805431 two per Kit 8003463 isolation terminals with 7" long #6 cable stub Heat Shield for 6.0" (152) x 22.0" and splice sleeve 8003386 (559) COYOTE Closure External isolation terminal kit, includes (2) Heat Shield for 8.5" (216) x 22.0" 8003464 isolation terminals with 7" long #6 cable stub 8003387 and quick disconnect (559) COYOTE Closure Flame-Retardant Blanket for 6.0" 8003465 Quick disconnect kit (2 per kit) 8003385 (152) x 22.0" (559) COYOTE Closure External isolation connector for COYOTE 80806750 Flame-Retardant Blanket for 8.5" Closures 8003388 (216) x 22.0" (559) COYOTE Closure Fiber optic shield connector, RUS Listed 3M 80803989 Transition Tube Kit Used to transition fibers #4460-D/FO (1 per kit) 8003280 from the top section of the End Plate to the Fiber optic shield connector for up to .5" (13mm) 80806743 Transition Compartment. cable O.D. 8000475 COYOTE Closure End Plate Removal Tool Fiber optic shield connector for .5" to .8" 80806744 Transport Tube Kit .135" ID: includes six 34" (13 - 20mm) cable O.D. long transPort with Hardened Adapter tubes, Fiber optic shield connector for .8" to 1.6" 80805293 80806745 used to bring fiber from transition compartment (20 - 41mm) cable O.D. to splice tray Adapter bracket kit for AT&T bond 80805286 Transport Tube Kit .25" ID: includes six 34" connector (4 per kit) long transPort with Hardened Adapter tubes, 8003322 Isolated ground kit for 0.27" to .31" (7 - 8mm) 80806439 used to bring fiber from transition compartment to splice tray Strength member bracket isolation kit, includes 8003424 (6) nylon washers and bushings Bonding Braid, .5" W x 7" L with (2) eyelets 80806179 spaced 6" apart1-28

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Closure End Plates and Accessories ® Plates and Accessories COYOTE® Closure End Single Port Grommets Coyote RUNT Accepted Standard and COYOTE 6 Port COYOTE 4 Port Cable Expanded End Plate End Plate Catalog Diameter Port Sizes Port Sizes Port Sizes Number Hole Factory Range(End Color) Pattern Entries Slit inches (mm) 3/4" 1" 3/4" 7/8" 1" 1-1/4" 8003394 .31 - .38 1 NO X X (Green) (7.8 - 9.6) 8003395 .31 - .38 1 NO X (Green) (7.8 - 9.6) 8003473 .43 - .48 1 NO X X(Light Blue) (11 - 12.2) 8003494 .48 - .53 1 NO X X (Yellow) (12.2 - 13.5) 8003495 .53 - .58 1 NO X X (Gray) (13.4 - 14.7) 8003496 .43 - .48 1 NO X(Light Blue) (11 - 12.2) 8003497 .48 - .53 1 NO X (Yellow) (12.2 - 13.5) 8003498 .53 - .58 1 NO X (Gray) (13.4 - 14.7) 8003500 .38 - .43 1 NO X X (Orange) (9.6 - 11) 8003501 .38 - .43 1 NO X (Orange) (9.6 - 11) 8003596 .43 - .48 1 NO X X(Light Blue) (11 - 12.2) 8003597 .43 - .48 1 NO X(Light Blue) (11 - 12.2) 8003598 .48 - .53 1 NO X X (Yellow) (12.2 - 13.5) 8003599 .48 - .53 1 NO X (Yellow) (12.2 - 13.5) 8003600 .53 - .58 1 NO X X (Gray) (13.4 - 14.7) 8003601 .53 - .58 1 NO X (Gray) (13.4 - 14.7) 8003497 .48 - .53 1 NO X (Yellow) (12.2 - 13.5) 8003671 .43 - .48 1 YES X X(Light Blue) (11 - 12.2) 8003674 .53 - .58 1 YES X X (Gray) (13.4 - 14.7) 8003689 .48 - .53 1 YES X X (Yellow) (12.2 - 13.5) 8003675 .53 - .58 1 YES X (Gray) (13.4 - 14.7) 1-29

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Closure End Plates and Accessories ® Multi-Port Grommets COYOTE RUNT Accepted Standard and COYOTE 6 Port COYOTE 4 Port Cable Expanded End Plate End Plate Catalog Diameter Port Sizes Port Sizes Port Sizes Number Hole Factory Range (End Color) Pattern Entries Slit inches (mm) 3/4" 1" 3/4" 7/8" 1" 1-1/4" 8003392 .27 - .31 2 NO X X (Red) (6.8 - 7.8) 8003393 .31 - .38 2 NO X (Green) (7.8 - 9.6) 8003399 .38 - .43 2 NO X X (Orange) (9.6 - 11) 8003608 Corning SST 2 NO X X (Light Blue) (Flat Drop) 8003730 Corning SST 2 YES X X (Light Blue) (Flat Drop) 8003536 .18 - .24 3 NO X X (Black) (4.5 - 6.1) 800010621 .18 - .24 3 NO X (Black) (4.5 - 6.1) 8003389 .27 - .31 3 NO X (Red) (6.8 - 7.8) 8003390 .20 - .27 3 NO X (Blue) (5.1 - 6.8) 8003391 .20 - .27 3 NO X X (Blue) (5.1 - 6.8) 8003400 .31 - .38 3 NO X X (Blue) (7.8 - 9.6) 8003402 .27 - .31 3 NO X X (Red) (6.8 - 7.8) 8003403 .38 - .43 3 NO X (Orange) (9.6 - 11) 8003609 Corning SST 3 NO X (Light Blue) (Flat Drop) 8003401 .20 - .27 4 NO X X (Blue) (5.1 - 6.8) 8003404 .31 - .38 4 NO X (Green) (7.8 - 9.6) 8003405 .20 - .27 4 NO X (Blue) (5.1 - 6.8) 8003406 .27 - .31 4 NO X (Red) (6.8 - 7.8) 8003575 .12 - .16 4 NO X (Brown) (3 - 4.1) 8003607 .27 - .31 4 NO X X (Red) (6.8 - 7.8) 8003610 Corning SST 4 NO X X (Light Blue) (Flat Drop) 8003576 .12 - .16 6 NO X X (Brown) (3 - 4.1) 8003611 Corning SST 6 NO X (Light Blue) (Flat Drop) 8003582 .12 - .16 10 NO X (Brown) (3 - 4.1)1-30

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Closure End Plates and Accessories ® Plates and Accessories COYOTE® Closure EndUser options for COYOTE Closure Three-Section End Plate Ports Three-Section Six Port End Plate (Cat. No. 80805105)Two 3/4" (19 mm) Ports Four 7/8"(22 mm) PortsAvailable options: Available options:• Cables up to 0.75" (19 mm) • Cables up to 0.88" (22 mm) in diameter in diameter 7/8" 7/8" 3/4 "• See Grommet table • Future Cable Port, 0.56" • 3/4" (19 mm) Plug (Cat. No. (14 mm) max. cable diameter 80806037, two per kit) • See Grommet table 7/8" 3/4 7/8 " "Note: Three-Section Six Port End • 7⁄8" Plug Kit (80806180)Plate Kits include three 7/8" (22mm) Plugs, two (2) 3/4" (19 mm)Plugs and two Strength MemberBrackets. Three-Section Four Port End Plate (Cat. No. 80805739)Two 1" (25 mm) Ports Two 1-1/4" (32 mm) PortsAvailable options: Available options:• Cables up to 1.00" (21 mm) in • Cables up to 1.25" (32 mm) in diameter diameter• Future Cable Port, 0.81" (21 mm) 1" • Future Cable Port, 1" (25 mm) max. max. cable diameter cable diameter• See Grommet table 1" • See Grommet table• 1" Plug Kit (80806038) 11/4" • 1-1/4" Plug Kit (80806181) 11/4"1" (25 mm) PortsAvailable options: COYOTE RUNT End Plate• Cables up to 1.0" (25 mm) in diameter• Future Cable Port, 0.81" (21 mm) max. cable diameter• See Grommet table• 1" Plug Kit (80806038) 3/4" 1 " 3/4" Two 3/4" (19 mm) Ports Available options: • Cables up to 0.75" (19 mm) in diameter • See Grommet table • 3/4" Plug (80806181) Two/Kit 1-31

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Closure End Plates and Accessories ® Future Cable Port Kit When installed during the initial assembly, Future Cable Ports allow for the addition of branch cables in the future with no disruption to the existing cables and the fibers within them. Future Cable Port Kits Catalog End Plate Usage Number Description 7/8" 1.0" 1-1/4" Runt 6 Port 4 Port Future cable port kit for 7/8"" Port, includes (1) cable 8003371 X X port, (1) plug and (1) clamp Future cable port kit for 1" Port, includes (1) cable port, 8003407 X X X (1) plug and (1) clamp Future cable port kit for 1-1/4" Port includes (1) cable 8003409 X X port, (1) plug and (1) clamp Future cable installation kit, includes LOCK-TAPE 8003291 X X X X X X sealant, bead sealant and l-bracket Future cable port for 7/8" port plus installation kit 8003289 X X (8003291) Future cable port for 1" port plus installation kit 8003408 X X (8003291) Future cable port for 1-1/4" port plus installation kit 8003410 X X (8003291) COYOTE Closure End Plate Grommets End Plate Installation Material Kits Catalog Number Description 6 Port end plate kit, includes 80805105 (1) end plate assembly, (1) full set of plugs and LOCK-TAPE sealant End Plate Grommets 4 Port end plate kit, includes expand the capacity of 80805739 (1) end plate assembly, the COYOTE Closure (1) full set of plugs and LOCK-TAPE sealant T h re e - S e c t i o n E n d 80806037 Plug Kit for 3/4" ports (2 per kit) Plates for applications 80806180 Plug Kit for 7/8" ports (2 per kit) with smaller diameter 80806038 Plug Kit for 1.0" ports (2 per kit) cables or insulated 80806181 Plug Kit for 1-1/4" ports (2 per kit) ground wires. The grommets are manufactured from a weather-resistant urethane material that is designed to ensure a tight and permanent seal. A Silicone Sealant is provided to lubricate the grommet and cables for easy installation. The entry holes in the multi-entry grommets are covered with a thin layer of urethane material to provide a choice of which entries are to be used for future cable entries. See Grommet charts on pages 1-29 and 1-30.1-32

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE ® Cross-Connect and Cross-Connect/Express Closures Cross-Connect/Express Closures COYOTE Cross-Connect &Refinement of the Breed… ®The COYOTE Cross-Connect Closureprovides long-term peace of mind.The COYOTE Cross-Connect and Cross-Connect/Express-Closures allow you to splice up to 96 single fiber splices PATENTEDand cross connect up to 48 pigtails on both the office anddistribution side. Consult PLP support for details on ribbonfiber splices. By redirecting fiber for outside plant, theCOYOTE Cross-Connect Closure saves time and money:because you splice only once.The COYOTE Cross-Connect and Cross-Connect/Express-Closures are made from the same durable UV stabilizedmaterial as the COYOTE Closure.The internal bulkhead is designed to accept a variety ofconnector styles. Place your order as soon as you havechosen the connector for your application and determinedyour pigtail requirements. This customization process savestime and money by limiting the order to only the parts required.Each end plate allows for multiple entries. Isolated groundstuds simplify troubleshooting, and provide additionalsupport for strength member tie-off.The family of COYOTE Cross Connect/Express Closures The COYOTE Cross-Connect Closure is waterproof andis configured to conveniently and safely store uncut buffer uses the revolutionary LOCK-TAPE™ Sealant System,tubes of the feeder cable, while providing individual providing field-proven durability. The neoprene gasket alsoconnectivity to the fibers of the drop cables. aids in keeping the closure’s contents accessible again and again without a costly re-entry kit. The COYOTE Closure is tested in accordance with Bellcore GR-771-CORE.COYOTE Cross-Connect Closure components Bulkhead 8.5" (216 mm) COYOTE® Closure Shell Blank End Plate Transition Compartment Kit with Pigtail Guides Three-Section End Plate 8.5" (216 mm) COYOTE® COYOTE® Closure Shell Splice Trays (4) 1-33

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE ® Cross-Connect and Cross-Connect/Express Closures Refinement of the Breed… Ordering Information Included in all COYOTE Cross-Connect Closure Kits is one Three-Section End Plate, one Blank End Plate, Transition Compartment Kit with Pigtail Guides, Bulkhead, and four COYOTE Splice Trays (single fiber). ST, SC and FC Half- Loaded and Fully-Loaded Kits contain additional items which are described in the table below. COYOTE Cross-Connect Closure Catalog Number Description COYOTE Cross Connect-Closure (Standard Unit) includes one three-section End Plate, one blank End Plate, transition 8006572 compartment kit with pigtail guides, bulkhead, and four COYOTE Splice Trays (single fiber) COYOTE Cross-Connect Closure – ST half loaded (24 count) includes standard unit, plus four (Bulkhead) coupler 8006576 panels with six singlemode ST couplers, four field pigtail kits with ST connector (6) and transport tube, and four service pigtail kits with ST connector (6) and transport tube COYOTE Cross-Connect Closure – ST fully loaded (48 count) includes standard unit, plus eight (Bulkhead) coupler 8006577 panels with six singlemode ST couplers, eight field pigtail kits with ST connector (6) and transport tube, and eight service pigtail kits with ST connector (6) and transport tube COYOTE Cross-Connect Closure – SC half loaded (24 count) includes standard unit, plus four (Bulkhead) coupler 8006591 panels with six singlemode SC couplers, four field pigtail kits with SC connector (6) and transport tube, and four service pigtail kits with SC connector (6) and transport tube COYOTE Cross-Connect Closure – SC fully loaded (48 count) includes standard unit, plus eight (Bulkhead) coupler 8006592 panels with six singlemode SC couplers, eight field pigtail kits with SC connector (6) and transport tube, and eight service pigtail kits with SC connector (6) and transport tube COYOTE Cross-Connect Closure – FC half loaded (24 count) includes standard unit, plus four (Bulkhead) coupler 8006593 panels with six singlemode FC couplers, four field pigtail kits with FC connector (6) and transport tube, and four service pigtail kits with FC connector (6) and transport tube COYOTE Cross-Connect Closure – FC fully loaded (48 count) includes standard unit, plus eight (Bulkhead) coupler 8006594 panels with six singlemode FC couplers, eight field pigtail kits with FC connector (6) and transport tube, and eight service pigtail kits with FC connector (6) and transport tube COYOTE Cross-Connect Closure – AP/SC fully loaded (48 count) includes standard unit, plus eight (Bulkhead) coupler 8006670 panels with six singlemode AP/SC couplers, eight field pigtail kits with AP/SC connector (6) and transport tube, and eight service pigtail kits with AP/SC connector (6) and transport tube1-34

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE ® Cross-Connect and Cross-Connect/Express Closures Cross-Connect/Express Closures COYOTE Cross-Connect &Refinement of the Breed… ®Cross connect and store expressed fibersin the same closureThe family of COYOTE Cross-Connect Express Closuresare configured to conveniently and safely store uncut buffertubes of the feeder cable, while providing individualconnectivity to the fibers of the drop cables. COYOTE Cross-Connect/Express Closure Catalog Number Description Expanded COYOTE RUNT Cross-Connect/Express 8006916 Closure, Includes one 12 count splice tray COYOTE PUP Cross-Connect/Express Closure, with 8006920 PATENTED 6-port end plate, includes two 12 count splice trays COYOTE PUP Cross-Connect/Express Closure, with Adaptor Plates 8006921 4-port end plate, includes two 12 count splice trays Catalog 6" x 22" COYOTE Cross-Connect/Express Closure, Number Connector Adaptor 8006911 with 6-port end plate, includes two 36 count splice trays 6SMSC SC 6 6" x 22" Cross-Connect/Express Closure, with 6SCAPC SC/APC 6 8006912 12SMDSC SC 6 Duplex 4-port end plate, includes two 36 count splice trays 8.5" x 22" COYOTE Cross-Connect/Express 8SMSC SC 8 8006612 Closure with 6-port end plate, includes two 36 6SMST ST 6 count splice trays 8SMST ST 8 8.5" x 22" COYOTE Cross-Connect/ Express 6SMFC FC 6 8006915 Closure, with 4-port end plate, includes two 36 count splice trays 8SMFC FC 8 6.5" x 22" COYOTE Dome Cross-Connect/Express 6FCAPC FC/APC 6800012184 Closure, (Empty) 6SMLC LC 6 6.5" x 17" COYOTE Dome Cross-Connect/Express 12SMLC LC 12800012185 Closure, (Empty) 600 Blank – Catalog Capacities Adapter Number Description Max. No. of No. of (Bulkhead) Coupler Panel with six holes for ST 80805605 Feeder Adapter Splice Splices Feed-Thru Adapters Closure Cable Plates Trays per Tray (Bulkhead) Coupler Panel with six holes for SC 80805606 Expanded Feed-Thru Adapters 48-fiber 1 1 12 RUNT (Bulkhead) Coupler Panel with six holes for FC 80805607 PUP 144-fiber 2 2 12 Feed-Thru Adapters 6" x 22" 144-fiber 3 2 36 8.5" x 22" 288-fiber 3 4 36 Pigtail Kits and Accessories 17" Dome 48-fiber 1 1 12 Catalog 22" Dome 144-fiber 2 2 12 Number Description Pigtail Kit with ST Singlemode Connector (6) and 8003292 Transport Tube, FIELD Pigtail Kit with SC Singlemode Connector (6) and 8003314 Transport Tube, FIELD Pigtail Kit with FC Singlemode Connector (6) and 8003316 Transport Tube, FIELD Pigtail Kit with ST Singlemode Connector (6) and 8003293 Transport Tube, SERVICE Pigtail Kit with SC Singlemode Connector (6) and 8003315 Transport Tube, SERVICE Pigtail Kit with FC Singlemode Connector (6) and 8003317 Transport Tube, SERVICE Pigtail Transition Tube Kit, includes one Transport 8003368 Tube with Transition and Reducing Tubes 1-35

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Drop Cable Closure ® Refinement of the Breed… The perfect solution to the splicing or repair of low fiber count drop cables The COYOTE Drop Cable Closure is a re-enterable (not re-usable), encapsulant filled closure for splicing buried fiber optic drop cables (up to 6-fiber). The COYOTE Drop Cable Closure will accept either dielec- tric or shielded fiber optic drop cables with an outside diameter of up to 0.5" (13 mm). Each Closure body is factory filled with field proven (over 14 years) POLY-BEE™ Sealant to provide a protective Catalog barrier around the sealed splice tray assembly. Number Description COYOTE Drop Cable Closure, includes sealed The sealed splice tray assembly has an integral bond clamp 8006876 splice tray assembly and six (6) heat shrink which provides both conductivity between the cable shields splice protectors. and cable restraint. COYOTE Drop Cable Closure unfilled includes 8006914 splice tray assembly & six (6) heat shrink splice protectors. The splice block on the splice tray assembly holds up to six heat-shrink fusion splice protectors. Six 40 mm long protectors are provided. Assembly is simple: • Prepare & secure cables to splice tray • Splice fibers • Seal splice tray • Place splice tray in encapsulated closure • Secure closure with closing clamp Unfilled version for aerial fiber optic drop cables (up to 6-fiber) are available. Cable entries and closure seams are still sealed to prevent the ingress of wind-driven rain and dust. Length (mm) Height (mm) Width (mm) 12" (305) 3" (76) 3.5" (89)1-36

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1 COYOTE Closures for High FiberCOYOTE Closures for High Fiber Count Applications ® Count Applications ®Refinement of the Breed…Larger sizes for High Fiber CountMetropolitan Networks.COYOTE Closures are now available in 9.5" x 28" (241 mmx 711 mm) and 9.5" x 38" (241 mm x 965 mm) for high fibercount applications.These larger COYOTE Closures use the same drillable endplates and fiber management systems as the COYOTESplice Case (see section 2), but incorporate a new light-weight, durable non-metallic shell. COYOTE Hi-Count Closure Catalog Number 800010810 COYOTE Closure Kits Catalog Number Description (mm) Closure Kits 9.5" x 28" (241 x 711) COYOTE Hi-Count Closure for buffer tube applications, up to 432 single fiber splices, holds up to 800010810 eighteen 24-count splice trays 8003469 24-count Splice Tray for COYOTE Hi-Count Closure (heat shrink protector only) 9.5" x 28" (241 x 711) COYOTE Closure, unitube version, holds up to six 144-fiber ribbon splice trays (mass fusion), 800010897 864-fiber capacity or ten 36 fiber single fiber splice trays, 360-fiber capacity, for use with central core ribbon fiber cables 9.5" x 28" (241 x 711) COYOTE Closure, buffer tube version, holds up to six 144-fiber ribbon splice trays (mass fusion), 800010884 864-fiber capacity or ten 36 fiber single fiber splice trays, 360-fiber capacity, for use with flexible buffered ribbon fiber cables 9.5" x 38" (241 x 965) COYOTE Closure, unitube version, holds up to nine 144-fiber ribbon splice trays (mass fusion), 8006765 1296-fiber capacity or sixteen 36-fiber single fiber splice trays, 576-fiber capacity, for use with central core ribbon fiber cables Splice Tray Kits 80805146 144 Count Ribbon Tray w/fixed rigid slots 80805515 144 Count Ribbon Tray w/2 elastomeric splice blocks 80805514 36 Count Standard Tray w/elastomeric splice blocks – fusion & mechanical splices 8001127 36 Count Low Profile Tray w/plastic splice block – single fusion splices Installation Accessories 8006792 9.5" x 28" (241 x 711) COYOTE Closure Shell Kit 8006793 9.5" x 38" (241 x 965) COYOTE Closure Shell Kit 1-37

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE Retrofit Closure ® Refinement of the Breed… The ideal Closure for replacement or expansion The COYOTE Retrofit Closure contains a versatile Fiber Management System which makes simple work out of retrofitting existing fiber optic closures for either closure replacement or closure capacity expansion. Specifically, the COYOTE Retrofit Closure will accommodate the existing fiber management systems (slack buffer tubes or fiber and splice trays) from closures manufactured by Lucent Technologies (UCB Series), 3M (2178 Series) and other suppliers. In addition to accommodating the existing splice trays and fiber storage, the COYOTE Retrofit Closure will hold up to Closure Kits four single fiber splice trays, six low-profile trays or up to two Catalog ribbon fiber trays. The total added capacity of the COYOTE Number Description Splice Trays is 216 single fiber, or 288 mass fusion. Closure Kit 8.5" x 22.0" (216 x 559 mm) COYOTE Retrofit As part of the family of COYOTE Closures, the COYOTE Closure. Includes two (2) Three-Section Six Port Retrofit Closure uses the permanent neoprene gasket in 8006638 End Plates, hybrid Fiber Management System, the shell halves and the proven LOCK-TAPE™ Sealing Ten (10) End Plate Plugs and four (4) L-Brackets System for the End Plate and cable seals. These features Splice Tray Kits mean that the COYOTE Retro-fit Closure will meet the same 36 Count Standard Tray w/elastomeric splice 80805514 performance standards as the COYOTE Closure in aerial, blocks – Fusion & mechanical splices underground and buried applications.The COYOTE Closure 80805146 144 Count Ribbon Tray w/fixed rigid slots has been tested in accordance with the requirements of 36 Count Low Profile Tray w/plastic splice block Telcordia GR-771-CORE. 8001127 – single fusion splices In addition, the COYOTE Retrofit Closure uses the same accessories as available for the COYOTE Closure, including Future Cable Ports, End Plate Grommets, Aerial or Manhole Brackets and Splice Trays. See COYOTE Accessories section for catalog numbers for accessories.1-38

PREVIOUS SECTION CONTENTS SEARCH NEXT COYOTE® Closure Series: Section 1COYOTE Closures (ADOBE Series) ® ™ COYOTE® Closures (ADOBE™ Series)Refinement of the Breed…Low profile ADOBE™ Series Trays allow moresplices to be stored in groups of 12 or 24For applications which require a limited number of splicesper splice tray, the COYOTE® Closure configured for 12-countor 24-count ADOBE Splice Trays provides the answer. Thelow profile ADOBE Splice Trays combined with the versatilebuffer tube management system of the COYOTE Closureorganize and protect the buffer tubes and fibers whilemaintaining maximum overall storage capacity.See the COYOTE Closure End Plates, End Plate Grommets,Future Cable Port Kits, Mounting Brackets and othercommon COYOTE Closure accessories.See page 1-25 for COYOTE Closure dimensions. COYOTE Closure (ADOBE Series) Kit Catalog Numbers 6-Port 4-Port End Plate End Plate Description (mm) 6.0" x 22" (152 x 559) COYOTE Closure Kit configured for ADOBE-12 or ADOBE-24 splice trays. 8006684 8006688 Includes: 1 Three-Section End Plate, 1 Blank End Plate, and Buffer Tube Storage Compartment 8.5" x 22" (216 x 559) COYOTE Closure Kit configured for ADOBE-12 or ADOBE-24 splice trays. 8006685 8006686 Includes: 1 Three-Section End Plate, 1 Blank End Plate, and Buffer Tube Storage Compartment 6.0" x 22" (152 x 559) COYOTE Express Closure Kit configured for ADOBE-12 or ADOBE-24 splice trays. 8006806 8006820 Includes: 1 Three-Section End Plate, 1 Blank End Plate, and Express Buffer Tube Storage Compartment 8.5" x 22" (216 x 559) COYOTE Express Closure Kit configured for ADOBE-12 or ADOBE-24 splice trays. 8006807 8006819 Includes: 1 Three-Section End Plate, 1 Blank End Plate, and Express Buffer Tube Storage Compartment ADOBE Series Splice Trays Catalog Number Description 8001122 ADOBE-12 Splice Tray (12 Count) with Heat Shrink Splice Block. Includes: Tray, Cover, Tie Wraps and Felt Strips 8001096 ADOBE-12 Splice Tray (12 Count) with Molded-in Splice Block. Includes: Tray, Cover, Tie Wraps and Felt Strips 8001120 ADOBE-12 Splice Tray Blank. Includes: Tray, Cover, Tie Wraps and Felt Strips 8001121 ADOBE-24 Splice Tray (24 Count) with 2 Heat Shrink Splice Blocks. Includes: Tray, Cover, Tie Wraps and Felt Strips 8001119 ADOBE-24 Splice Tray Blank. Includes: Tray, Cover, Tie Wraps and Felt StripsADOBE-12 Splice Trays are 13" L x 315⁄16" W x 11⁄32" H (330 x 100 x 9 mm)ADOBE-24 Splice Trays are 13" L x 4¾" W x 11⁄32" H (330 x 121 x 9 mm) Capacities Splice Tray Usable Splice Splice Capacity Max. Number of Max. Closure Closure (mm) Catalog No Protectors Per Tray Trays Per Closure Splice Capacity 8001122 Heat Shrink Only 12 12 144 6.0" x 22" (152 x 559 ) 8001096 Protected Fusion 12 12 144 8001121 Heat Shrink Only 24 6 144 8001122 Heat Shrink Only 12 18 216 8.5" x 22" (216 x 559 ) 8001096 Protected Fusion 12 18 216 8001121 Heat Shrink Only 24 12 288Note: Maximum number of trays per closure and closure capacity for COYOTE Express Closure Kits (8006806, 8006807, 8006819 and 8006820) arereduced by 50%. 1-39
