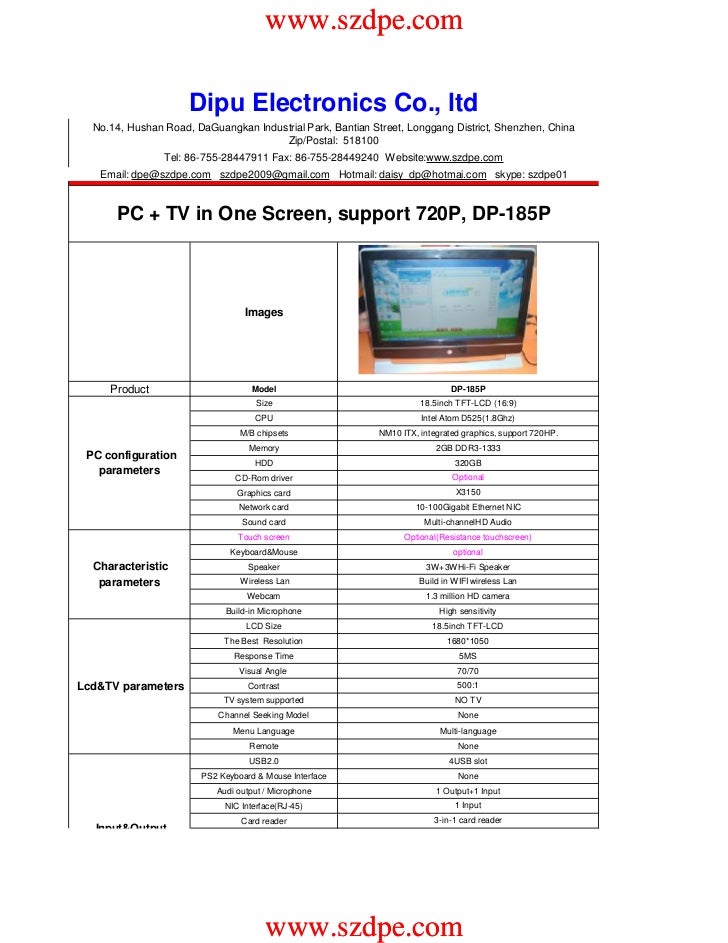

  • 1. www.szdpe.com Dipu Electronics Co., ltd No.14, Hushan Road, DaGuangkan Industrial Park, Bantian Street, Longgang District, Shenzhen, China Zip/Postal: 518100 Tel: 86-755-28447911 Fax: 86-755-28449240 Website:www.szdpe.com Email: dpe@szdpe.com szdpe2009@gmail.com Hotmail: daisy_dp@hotmai.com skype: szdpe01 PC + TV in One Screen, support 720P, DP-185P Images Product Model DP-185P Size 18.5inch TFT-LCD (16:9) CPU Intel Atom D525(1.8Ghz) M/B chipsets NM10 ITX, integrated graphics, support 720HP. Memory 2GB DDR3-1333 PC configuration HDD 320GB parameters CD-Rom driver Optional Graphics card X3150 Network card 10-100Gigabit Ethernet NIC Sound card Multi-channelHD Audio Touch screen Optional(Resistance touchscreen) Keyboard&Mouse optional Characteristic Speaker 3W+3WHi-Fi Speaker parameters Wireless Lan Build in WIFI wireless Lan Webcam 1.3 million HD camera Build-in Microphone High sensitivity LCD Size 18.5inch TFT-LCD The Best Resolution 1680*1050 Response Time 5MS Visual Angle 70/70Lcd&TV parameters Contrast 500:1 TV system supported NO TV Channel Seeking Model None Menu Language Multi-language Remote None USB2.0 4USB slot PS2 Keyboard & Mouse Interface None Audi output / Microphone 1 Output+1 Input NIC Interface(RJ-45) 1 Input Card reader 3-in-1 card reader Input&Output www.szdpe.com
  • 2. www.szdpe.com Input&Output TV Terminal None Funcation Interface YPBPR None VGA 1 Input AV Terminal (Composite video) None S-Video None HDMI 1 Input Operatomg temperature 0℃-40℃ Operatomg humidity 20%-80%RH Environment Save temperature -20℃-60℃ Save humidity 10%-75%RH AC Power Input 100-240VPower Input Net Size 470(L)*312(W)*48(T)mm Other Parameters Package Size 525(L)*440(W)*175(T)mm Net weight 6.2Kg Gross weight 7.5Kg Sample Quantity: 10-100PCS Quotation(USD) Touch screen optionRemark:1. Price Term: EX work.2. Lead time:10- 20days (Subject to our final confirmation before order).3. Payment term: Full of paymend in advance for sample; 40% deposit, and balance paid before loading for bulkorder.4. Warranty: 1 Year.5. OEM service is available.6.MOQ: 10 pcs7. Valid: 30 days www.szdpe.com
