Developing jQuery Plugins with Ease

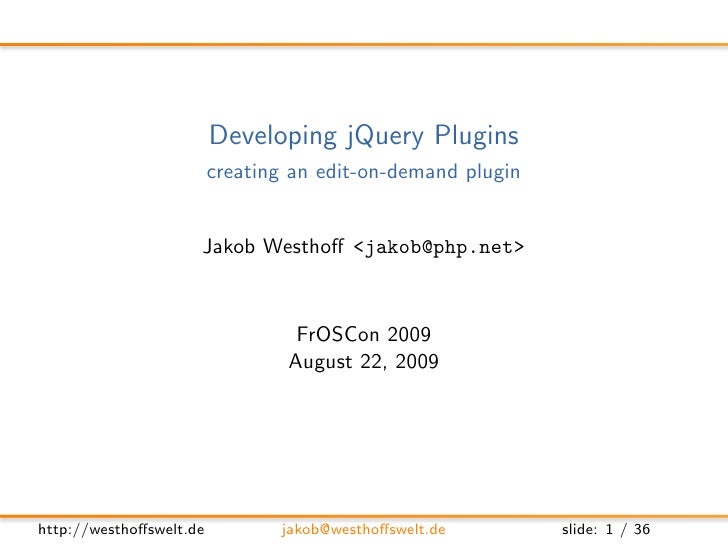

Developing jQuery Plugins creating an edit-on-demand plugin Jakob Westhoff <jakob@php.net> FrOSCon 2009 August 22, 2009 http://westhoffswelt.de jakob@westhoffswelt.de slide: 1 / 36

About Me Jakob Westhoff Computer science student at the TU Dortmund Web-developer for more than 6 years Author of Activebar2 (used by http://ie6update.com) Active in different Open Source projects http://westhoffswelt.de jakob@westhoffswelt.de slide: 2 / 36

jQuery about itself From the jQuery Website: jQuery is a fast and concise JavaScript Library that simplifies HTML document traversing, event handling, animating, and Ajax interactions for rapid web development. jQuery is designed to change the way that you write JavaScript. http://westhoffswelt.de jakob@westhoffswelt.de slide: 3 / 36

Introduction to jQuery Compact only 56kb minified 19kb minified and gzipped Cross-browser compatible Internet Explorer 6.0+ Firefox 2+ Safari 3.0+ Opera 9.0+ Chrome Easily extendable http://westhoffswelt.de jakob@westhoffswelt.de slide: 4 / 36

jQuery Example $ ( ”p#e x a m p l e ” ) . a d d C l a s s ( ” h i g h l i g h t ” ) . f a d e I n ( ” s l o w ” ) ; Find all paragraphs with the id example Add the css class highlight to them Fade in the paragraph slowly http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 5 / 36

Working with jQuery $ ( ”p#e x a m p l e ” ) . a d d C l a s s ( ” h i g h l i g h t ” ) . f a d e I n ( ” s l o w ” ) ; Accessed using $ or jQuery Document centric $(css selector).operation Fluent interface paradigm operation().operation().operation() http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 6 / 36

Beginning Plugin Development Before you start Check http://plugins.jquery.com/ Read Plugins/Authoring documentation http://docs.jquery.com/Plugins/Authoring http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 7 / 36

Introducing the Example On-Demand-Editing Plugin Used by Flickr and others http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 8 / 36

Plugin Requirements Applyable to every block level element Capture on mouseover / mouseout events for color change on hovering Transform content to edit box and save/cancel buttons onclick Execute user-definable callback function once new data is provided http://westhoffswelt.de jakob@westhoffswelt.de slide: 9 / 36

Let’s begin Choose a name for our plugin: editable Create jquery.editable.css Hover effect Textbox look and feel Button positioning / look and feel http://westhoffswelt.de jakob@westhoffswelt.de slide: 10 / 36

Stylesheet for our Plugin Choose a name for our plugin: editable Create jquery.editable.css Hover effect Textbox look and feel Button positioning / look and feel http://westhoffswelt.de jakob@westhoffswelt.de slide: 10 / 36

Stylesheet for our Plugin 1 . editable hover , 2 . editable active 3 { 4 b a c k g r o u n d −c o l o r : #e f e e e e ; 5 } 6 7 . e d i t a b l e c o n t a i n e r span 8 { 9 f o n t −s i z e : 12 px ; 10 c o l o r : #000000; 11 m a r g i n : 0 8 px 0 8 px ; 12 } 13 14 . e d i t a b l e c o n t a i n e r input , 15 . editable container textarea 16 { 17 display : block ; 18 } http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 11 / 36

The problem with the $ shortcut $ should not be used in plugins jQuery allows redefining of this alias for compatability reasons May break your plugin Always use jQuery Or use nifty workaround: 1 ( function ($) { 2 ... 3 // Your p l u g i n c o d e g o e s h e r e 4 ... 5 }) ( jQuery ) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 12 / 36

Registering the Plugin Method Choose a name for our plugin method: editable Register the new method in the jQuery.fn namespace: 1 jQuery . fn . e d i t a b l e = f u n c t i o n ( savefn , option ) { 2 ... 3 // P l u g i n method 4 ... 5 } http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 13 / 36

Handling Optional Options Most plugins need configuration options Use a default if a certain option is not provided Options are supplied as associative array / object Utilize the jQuery.extend function: 1 var o p t i o n = jQuery . extend ({ 2 ” multiline ” : false , 3 ” prefix ”: ”editable ” 4 } , option ) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 14 / 36

this Context inside the Plugin Method The this context inside a plugin method ... points to the called jQuery object may represent a set of DOM elements Use each to handle sets correctly: 1 return $ ( t h i s ) . each ( f u n c t i o n ( ) { 2 ... 3 // ” t h i s ” maps t o t h e c u r r e n t l y h a n d l e d e l e m e n t 4 ... 5 }) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 15 / 36

Using each to Handle Sets The this context inside a plugin method ... points to the called jQuery object may represent a set of DOM elements Use each to handle sets correctly: 1 return $ ( t h i s ) . each ( f u n c t i o n ( ) { 2 ... 3 // ” t h i s ” maps t o t h e c u r r e n t l y h a n d l e d e l e m e n t 4 ... 5 }) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 15 / 36

What we have got so far 1 ( function ($) { 2 jQuery . fn . e d i t a b l e = f u n c t i o n ( savefn , option ) { 3 4 // O p t i o n h a n d l i n g 5 var o p t i o n = jQuery . extend ({ 6 ” option ” : ” default value ” , 7 ... 8 } , option ) ; 9 10 // H a n d l e s e t s c o r r e c t l y . 11 // E n s u r e t h e f l u e n t i n t e r f a c e p a r a d i g m . 12 return $ ( t h i s ) . each ( f u n c t i o n ( ) { 13 ... 14 // ” r e a l ” p l u g i n c o d e g o e s i n h e r e 15 ... 16 }) ; 17 18 } 19 }) ( jQuery ) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 16 / 36

Modifying the Container Element Add a css class to the container element: $( this ) . addClass ( option [ ’ p r e f i x ’ ] + ’ container ’ ) ; Register events for onhover effect: 1 $ ( t h i s ) . bind ( ” mouseenter mouseleave ” , 2 function (e) { 3 $( this ) . toggleClass ( 4 option [ ’ p r e f i x ’ ] + ’ hover ’ 5 ); 6 } 7 ); http://westhoffswelt.de jakob@westhoffswelt.de slide: 17 / 36

Enter Edit Mode on Click On click enter edit mode Registered using one as once only event Calling plugin private function enterEditMode 1 $ ( t h i s ) . one ( ’ c l i c k ’ , 2 function () { 3 enterEditMode ( $ ( t h i s ) ) ; 4 } 5 ); http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 18 / 36

Private Plugin Functions Function in the plugin scope Access to all variables globally declared (option) Access to all plugin method parameters (savefn) 1 jQuery . fn . e d i t a b l e = f u n c t i o n ( savefn , option ) { 2 var option = . . . 3 4 return $ ( t h i s ) . each ( f u n c t i o n ( ) { 5 ... 6 }) ; 7 8 f u n c t i o n enterEditMode ( c o n t a i n e r ) { 9 // A c c e s s t o : c o n t a i n e r , s a v e f n , o p t i o n 10 } 11 } http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 19 / 36

Needed Private Functions enterEditMode( container ) Called whenever data input should be possible leaveEditMode( container, updatedText ) Called whenever the edit process is complete and the normal state should be restored http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 20 / 36

enterEditMode - Cleanup a little bit Store the original content v a r o r i g i n a l T e x t C o n t e n t = c o n t a i n e r . h t ml ( ) ; Disable onhover effects c o n t a i n e r . unbind ( ’ mouseenter mouseleave ’ ) ; container . removeClass ( option [ ’ p r e f i x ’ ] + ’ hover ’ ) ; Warning: This removes all mouseenter and mouseleave event handlers of this node Set correct css classes container . addClass ( option [ ’ p r e f i x ’ ] + ’ a c t iv e ’ ) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 21 / 36

enterEditMode - Create input field and buttons Create the needed input field v a r e d i t = $ ( ’<i n p u t t y p e =” t e x t ”></ i n p u t > ’ ) ; Create the needed buttons v a r s a v e = $ ( ’<b u t t o n c l a s s =” s a v e ”>Save </b u t t o n > ’ ) ; var cancel = $ ( ’<b u t t o n c l a s s =” c a n c e l ”>C a n c e l </b u t t o n > ’ ) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 22 / 36

enterEditMode - Register button onClick Register onClick for Cancel 1 cancel . bind ( ’ c l i c k ’ , function ( e ) { 2 e . stopPropagation () ; 3 leaveEditMode ( container , originalTextContent ) ; 4 }) ; Register onClick for Save 1 save . bind ( ’ c l i c k ’ , function ( e ) { 2 e . stopPropagation () ; 3 leaveEditMode ( 4 container , 5 savefn ( edit . val () ) 6 ); 7 }) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 23 / 36

enterEditMode - Replace current content Replace the current content with input field and buttons 1 c o n t a i n e r . empty ( ) 2 . append ( e d i t ) 3 . append ( s a v e ) 4 . append ( c a n c e l ) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 24 / 36

leaveEditMode - Reactivate onHover Remove state from css classes container . removeClass ( option [ ’ p r e f i x ’ ] + ’ a c t i v e ’ ) ; Bind events for onHover effect c o n t a i n e r . bind ( ” mouseenter mouseleave ” , f u n c t i o n ( e ) { container . t o g g l e C l a s s ( option [ ’ p r e f i x ’ ] + ’ hover ’ ) ; }) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 25 / 36

leaveEditMode - Reactivate onClick Re-register the onClick handler 1 $ ( t h i s ) . one ( ’ c l i c k ’ , 2 function () { 3 enterEditMode ( $ ( t h i s ) ) ; 4 } 5 ); http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 26 / 36

leaveEditMode - Update text content Update the container with the given text content c o n t a i n e r . html ( updatedText ) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 27 / 36

Calling the plugin Simply call the editable method on the selected node. $ ( ” h1 ” ) . e d i t a b l e ( f u n c t i o n ( c o n t e n t ) { // Do some AJAX magic h e r e . . . return content ; }) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 28 / 36

editable Live Demo Let’s take a look Live Demo! http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 29 / 36

6 Golden Rules of Plugin Development 1 Name your file jquery.[insert name of plugin].js eg. jquery.myplugin.js 2 Attach new methods to the jQuery.fn object 3 Attach new functions to the jQuery object itself 4 Methods have always to return the object they are working on 5 Use each to ensure your method is applied to all elements in a set 6 Always use jQuery instead of the $ shortcut in your plugins or use the nifty trick shown http://westhoffswelt.de jakob@westhoffswelt.de slide: 30 / 36

Thanks for listening Questions, comments or annotations? Slides: http://westhoffswelt.de/portfolio.htm Contact: Jakob Westhoff <jakob@php.net> http://westhoffswelt.de jakob@westhoffswelt.de slide: 31 / 36

Unit testing with QUnit Unit testing? YES you want to! QUnit jQuerys unit testing framework http://docs.jquery.com/QUnit No stable release, yet However core features are extremly stable http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 32 / 36

Simple QUnit example Include js and css < s c r i p t s r c=” j q u e r y − l a t e s t . j s ”></ s c r i p t> < s c r i p t type=” t e x t / j a v a s c r i p t ” s r c=” q u n i t / t e s t r u n n e r . j s ”></ s c r i p t> < l i n k r e l=” s t y l e s h e e t ” h r e f=” q u n i t / t e s t s u i t e . c s s ” type=” t e x t / c s s ” media=” s c r e e n ” /> Create a simple html page to be filled with information <h1>QUnit e x a m p l e</h1> <h2 i d=” b a n n e r ”></h2> <h2 i d=” u s e r A g e n t ”></h2> <o l i d=” t e s t s ”></ o l> <d i v i d=” main ”></ d i v> http://westhoffswelt.de jakob@westhoffswelt.de slide: 33 / 36

Simple QUnit example Define a module (optional) module ( ”My s i m p l e e x a m p l e module ” ) ; Add a test t e s t ( ”My f i r s t t e s t ” , f u n c t i o n ( ) { ok ( t r u e , ” E v e r y t h i n g i s f i n e . ” ) ; }) ; http://westhoffswelt.de jakob@westhoffswelt.de slide: 34 / 36

Possible QUnit assertions ok(state, [message]) A boolean assertion, equivalent to JUnit’s assertTrue equals(actual, expected, [message]) A comparison assertion, equivalent to JUnit’s assertEquals same(actual, expected, [message]) A deep recursive comparison http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 35 / 36

Assyncronous assertions Use start() and stop() for asyncronous testing t e s t ( ”My a s y n c t e s t ” , f u n c t i o n ( ) { stop () ; setTimeout ( f u n t i o n () { ok ( t r u e , ” E v e r y t h i n g i s f i n e ” ) ; start () ; } , 1000) ; }) ; http://westhoﬀswelt.de jakob@westhoﬀswelt.de slide: 36 / 36
