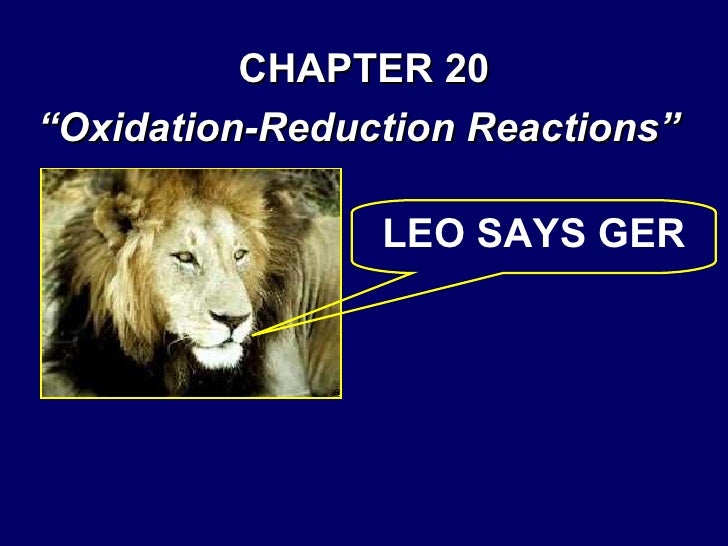

CHAPTER 20 “ Oxidation-Reduction Reactions” LEO SAYS GER
Section 20.1 The Meaning of Oxidation and Reduction (called “redox”) <ul><li>OBJECTIVES </li></ul><ul><ul><li>Define  oxid...
Section 20.1 The Meaning of Oxidation and Reduction (Redox) <ul><li>OBJECTIVES </li></ul><ul><ul><li>State  the characteri...
Section 20.1 The Meaning of Oxidation and Reduction (Redox) <ul><li>OBJECTIVES </li></ul><ul><ul><li>Describe  what happen...
Oxidation and Reduction (Redox) <ul><li>Early chemists saw “ oxidation ” reactions only as the  combination of a material ...
Oxidation and Reduction (Redox) <ul><li>But, not all oxidation processes that use oxygen involve burning: </li></ul><ul><u...
Oxidation and Reduction (Redox) <ul><li>A process called “ reduction ” is the opposite of oxidation, and originally meant ...
Oxidation and Reduction (Redox) <ul><li>Today, many of these reactions may not even involve oxygen </li></ul><ul><li>Redox...
Oxidation and Reduction (Redox) Each sodium atom loses one electron: Each chlorine atom gains one electron:
LEO says GER : L ose  E lectrons =  O xidation Sodium is oxidized G ain  E lectrons =  R eduction Chlorine is reduced
LEO says GER : - Losing electrons is oxidation, and the substance that loses the electrons is called the  reducing agent ....
Oxidation and Reduction (Redox) <ul><li>Conceptual Problem 20.1, page 634 </li></ul><ul><li>It is easy to see the loss and...
Not All Reactions are Redox Reactions - Reactions in which there has been  no change in oxidation number  are  NOT  redox ...
Corrosion <ul><li>Damage done to metal is costly to prevent and repair </li></ul><ul><li>Iron , a common construction meta...
Corrosion <ul><li>Luckily, not all metals corrode easily </li></ul><ul><ul><li>Gold and platinum  are called  noble metals...
Corrosion <ul><li>Serious problems can result if bridges, storage tanks, or hulls of ships corrode </li></ul><ul><ul><li>C...
Section 20.2 Oxidation Numbers <ul><li>OBJECTIVES </li></ul><ul><ul><li>Determine  the oxidation number of an atom of any ...
Section 20.2 Oxidation Numbers <ul><li>OBJECTIVES </li></ul><ul><ul><li>Define  oxidation and reduction in terms of a chan...
Assigning Oxidation Numbers <ul><li>An “ oxidation number ” is a positive or negative number assigned to an atom to indica...
Rules for Assigning Oxidation Numbers <ul><li>The oxidation number of any uncombined element is  zero . </li></ul><ul><li>...
Rules for Assigning Oxidation Numbers <ul><li>The oxidation number of  oxygen in compounds is  -2 , except in peroxides, s...
Rules for Assigning Oxidation Numbers   <ul><li>The  sum  of the oxidation numbers of the atoms in the compound  must equa...
Rules for Assigning Oxidation Numbers <ul><li>The  sum  of the oxidation numbers in the formula of a polyatomic ion is  eq...
Reducing Agents and Oxidizing Agents <ul><li>Conceptual Problem 20.2, page 641   </li></ul><ul><li>An increase in oxidatio...
Trends in Oxidation and Reduction <ul><li>Active metals : </li></ul><ul><ul><ul><ul><ul><li>Lose electrons easily </li></u...
Section 20.3 Balancing Redox Equations <ul><li>OBJECTIVES </li></ul><ul><ul><li>Describe  how oxidation numbers are used t...
Section 20.3 Balancing Redox Equations <ul><li>OBJECTIVES </li></ul><ul><ul><li>Balance  a redox equation using the oxidat...
Section 20.3 Balancing Redox Equations <ul><li>OBJECTIVES </li></ul><ul><ul><li>Balance  a redox equation by breaking the ...
Identifying Redox Equations <ul><li>In general, all chemical reactions can be assigned to one of two classes: </li></ul><u...
Identifying Redox Equations <ul><li>In an electrical storm, nitrogen and oxygen react to form nitrogen monoxide: </li></ul...
Balancing Redox Equations <ul><li>It is essential to write a  correctly balanced equation  that represents what happens in...
Using Oxidation-Number Changes <ul><li>Sort of like chemical bookkeeping, you compare the increases and decreases in oxida...
Using half-reactions <ul><li>A half-reaction is an equation showing just the oxidation or just the reduction that takes pl...
Choosing  a Balancing Method <ul><li>The oxidation number change method works well if the oxidized and reduced species  ap...
Using half-reactions <ul><li>continued </li></ul><ul><ul><li>Step 4 : add enough electrons to one side of each half-reacti...
Electrochemical (Voltaic) Cells <ul><li>An apparatus that allows a redox reaction to occur by transferring electrons throu...
<ul><li>When the two half cells of a redox reaction are connected by an external conductor and a salt bridge that allows t...
Basic Concepts of Electrochemical Cells
Cathode <ul><li>Cathode -  The electrode where reduction occurs </li></ul><ul><li>In an electrochemical (voltaic) cell, th...
Anode <ul><li>Anode –  the electrode where oxidation occurs </li></ul><ul><li>In an electrochemical (voltaic) cell, the an...
Electrolytic Cells <ul><li>Sometimes, in combining half reaction, the potential (E o ) for the overall reaction is negativ...
Basic Concepts of Electrolytic Cells
Electrodes <ul><li>Cathode –  negative electrode (reduction takes place here) </li></ul><ul><li>In electrolytic cells  POS...
Electrodes <ul><li>Anode –  Positive anode (oxidation takes place here) </li></ul><ul><li>In electrolytic cells  NEGATIVE ...
End of Chapter 20
