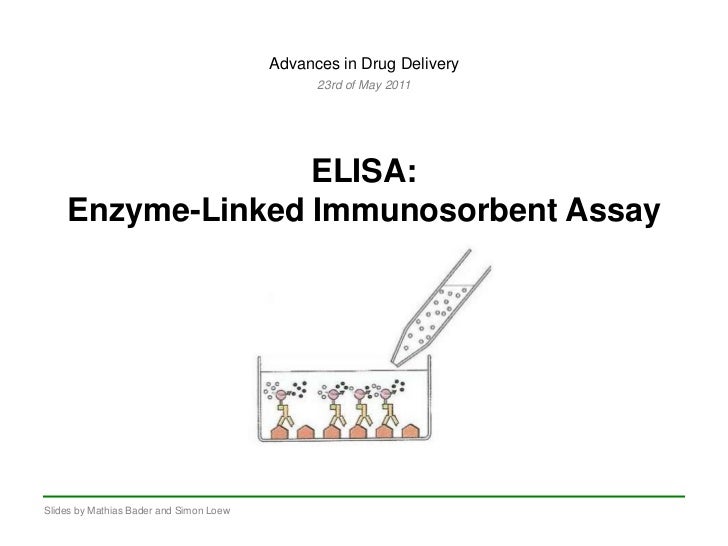

Advances in Drug Delivery<br />23rd of May 2011<br />ELISA: Enzyme-Linked Immunosorbent Assay<br />Slides by Mathias Bader...
ELISA: Enzyme-Linked Immunosorbent Assay<br />2<br />ELISA detects substances with antigenic properties (mainly proteins)<...
Basic principle of ELISA<br />3<br />Enzyme is used to detect the binding of Antibody - Antigen<br />Enzyme converts color...
Direct and Indirect ELISA<br />4<br />Indirect ELISA<br />Direct ELISA<br />Slides by Mathias Bader and Simon Loew<br />
5<br />Direct ELISA<br />Slides by Mathias Bader and Simon Loew<br />
6<br />Antibody is adsorbed onto microtiter plate<br />Add serum to test for antigen<br />Specific antigen binds if contai...
7<br />Remove test fluid and unbound antigen<br />Binding of antigen is strong enough to withstand rinsing<br />Slides by ...
8<br />Remove test fluid and unbound antigen<br />Binding of antigen is strong enough to withstand rinsing<br />Slides by ...
9<br />Slides by Mathias Bader and Simon Loew<br />
10<br />Add enzyme labeled antibody<br />Labeled antibody binds to antigens<br />E<br />E<br />E<br />E<br />E<br />E<br /...
11<br />Wash sample to remove unbound antibodies<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Slides by Ma...
12<br />Wash sample to remove unbound antibodies<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Slides by Ma...
13<br />Wash sample to remove unbound antibodies<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
14<br />Add substrate<br />Measure color change<br />Positive<br />Negativ<br />E<br />E<br />E<br />Slides by Mathias Bad...
Direct and Indirect ELISA<br />15<br />Indirect ELISA<br />Direct ELISA<br />Slides by Mathias Bader and Simon Loew<br />
16<br />Antigen is adsorbed onto microtiter plate<br />Indirect ELISA<br />Add serum to test for antibody<br />Slides by M...
17<br />Antigen is adsorbed onto microtiter plate<br />Add serum to test for antibody<br />Slides by Mathias Bader and Sim...
18<br />Antigen is adsorbed onto microtiter plate<br />Add serum to test for antibody<br />Wash sample<br />Slides by Math...
19<br />Antigen is adsorbed onto microtiter plate<br />Add serum to test for antibody<br />Wash sample<br />Slides by Math...
20<br />Slides by Mathias Bader and Simon Loew<br />
21<br />Add secondary antibody<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Primary antibody binds to seco...
22<br />Add secondary antibody<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Wash unbound antibodies<br />S...
23<br />Add secondary antibody<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Wash unbound antibodies<br />S...
24<br />Add secondary antibody<br />E<br />E<br />E<br />Wash unbound antibodies<br />Slides by Mathias Bader and Simon Lo...
25<br />Add substrate<br />Measure color change<br />Positive<br />Negativ<br />E<br />E<br />E<br />Slides by Mathias Bad...
Direct vs. Indirect ELISA<br />26<br />Advantages of Indirect ELISA:<br />Immunoreactivity of primary antibody is not affe...
Immobilized Antigen vs. Sandwich<br />27<br />Immobilized<br />Antigen:<br />Mainly used for antibodydetection<br />E<br /...
Competitive ELISA<br />28<br />Step 2:<br />Add antibodys<br />Step 1:<br />Add sample<br />Step 3: Washing<br />Step 4: <...
Applications<br />29<br />Medical diagnostic to detect presence of antibodies in patient <br />HIV Test<br />West Nile Vir...
Thankyou<br />30<br />Slides by Mathias Bader and Simon Loew<br />
Upcoming SlideShare
Loading in …5
×

ELISA Test: Enzyme-linked Immunosorbent Assay

21,967 views
21,421 views

Published on

This presentation is animation rich. Since the website here doesn't show these animations, please download the file and view it with PowerPoint 2010.

Published in: Health & Medicine
8 Comments
37 Likes
Statistics
Notes
No Downloads
Views
Total views
21,967
On SlideShare
0
From Embeds
0
Number of Embeds
13
Actions
Shares
0
Downloads
1,647
Comments
8
Likes
37
Embeds 0
No embeds

No notes for slide

ELISA Test: Enzyme-linked Immunosorbent Assay

  1. 1. Advances in Drug Delivery<br />23rd of May 2011<br />ELISA: Enzyme-Linked Immunosorbent Assay<br />Slides by Mathias Bader and Simon Loew<br />
  2. 2. ELISA: Enzyme-Linked Immunosorbent Assay<br />2<br />ELISA detects substances with antigenic properties (mainly proteins)<br />Based on enzymatic color-reaction<br />Slides by Mathias Bader and Simon Loew<br />
  3. 3. Basic principle of ELISA<br />3<br />Enzyme is used to detect the binding of Antibody - Antigen<br />Enzyme converts colorless substrate into colored product, indicating the presence of Antibody - Antigen complex<br />ELISA can be used to detect either presence of Antigens or Antibodies<br />Slides by Mathias Bader and Simon Loew<br />
  4. 4. Direct and Indirect ELISA<br />4<br />Indirect ELISA<br />Direct ELISA<br />Slides by Mathias Bader and Simon Loew<br />
  5. 5. 5<br />Direct ELISA<br />Slides by Mathias Bader and Simon Loew<br />
  6. 6. 6<br />Antibody is adsorbed onto microtiter plate<br />Add serum to test for antigen<br />Specific antigen binds if contained<br />Slides by Mathias Bader and Simon Loew<br />
  7. 7. 7<br />Remove test fluid and unbound antigen<br />Binding of antigen is strong enough to withstand rinsing<br />Slides by Mathias Bader and Simon Loew<br />
  8. 8. 8<br />Remove test fluid and unbound antigen<br />Binding of antigen is strong enough to withstand rinsing<br />Slides by Mathias Bader and Simon Loew<br />
  9. 9. 9<br />Slides by Mathias Bader and Simon Loew<br />
  10. 10. 10<br />Add enzyme labeled antibody<br />Labeled antibody binds to antigens<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  11. 11. 11<br />Wash sample to remove unbound antibodies<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  12. 12. 12<br />Wash sample to remove unbound antibodies<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  13. 13. 13<br />Wash sample to remove unbound antibodies<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  14. 14. 14<br />Add substrate<br />Measure color change<br />Positive<br />Negativ<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  15. 15. Direct and Indirect ELISA<br />15<br />Indirect ELISA<br />Direct ELISA<br />Slides by Mathias Bader and Simon Loew<br />
  16. 16. 16<br />Antigen is adsorbed onto microtiter plate<br />Indirect ELISA<br />Add serum to test for antibody<br />Slides by Mathias Bader and Simon Loew<br />
  17. 17. 17<br />Antigen is adsorbed onto microtiter plate<br />Add serum to test for antibody<br />Slides by Mathias Bader and Simon Loew<br />
  18. 18. 18<br />Antigen is adsorbed onto microtiter plate<br />Add serum to test for antibody<br />Wash sample<br />Slides by Mathias Bader and Simon Loew<br />
  19. 19. 19<br />Antigen is adsorbed onto microtiter plate<br />Add serum to test for antibody<br />Wash sample<br />Slides by Mathias Bader and Simon Loew<br />
  20. 20. 20<br />Slides by Mathias Bader and Simon Loew<br />
  21. 21. 21<br />Add secondary antibody<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Primary antibody binds to secondary anitbody<br />Slides by Mathias Bader and Simon Loew<br />
  22. 22. 22<br />Add secondary antibody<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Wash unbound antibodies<br />Slides by Mathias Bader and Simon Loew<br />
  23. 23. 23<br />Add secondary antibody<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Wash unbound antibodies<br />Slides by Mathias Bader and Simon Loew<br />
  24. 24. 24<br />Add secondary antibody<br />E<br />E<br />E<br />Wash unbound antibodies<br />Slides by Mathias Bader and Simon Loew<br />
  25. 25. 25<br />Add substrate<br />Measure color change<br />Positive<br />Negativ<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  26. 26. Direct vs. Indirect ELISA<br />26<br />Advantages of Indirect ELISA:<br />Immunoreactivity of primary antibody is not affected by labeling<br />E<br />E<br />E<br />Wide variety of secondary antibodies available on the market<br />Signal amplification (several epitopes)<br />Advantages of Direct ELISA:<br />Quick methodology – only one AB<br />E<br />E<br />E<br />Cross-reactivity of second AB eliminated<br />Slides by Mathias Bader and Simon Loew<br />
  27. 27. Immobilized Antigen vs. Sandwich<br />27<br />Immobilized<br />Antigen:<br />Mainly used for antibodydetection<br />E<br />E<br />E<br />Mainly used for antigen detection<br />Sandwich<br />ELISA:<br />E<br />E<br />E<br />Slides by Mathias Bader and Simon Loew<br />
  28. 28. Competitive ELISA<br />28<br />Step 2:<br />Add antibodys<br />Step 1:<br />Add sample<br />Step 3: Washing<br />Step 4: <br />Add substrate<br />E<br />E<br />E<br />E<br />E<br />E<br />E<br />Quick methodology – just one washing step<br />Slides by Mathias Bader and Simon Loew<br />
  29. 29. Applications<br />29<br />Medical diagnostic to detect presence of antibodies in patient <br />HIV Test<br />West Nile Virus<br />Detection of potential allergens in food<br />Test kits for eggs and peanuts<br />Drug tests<br />But: high material costs<br />Slides by Mathias Bader and Simon Loew<br />
  30. 30. Thankyou<br />30<br />Slides by Mathias Bader and Simon Loew<br />

×
