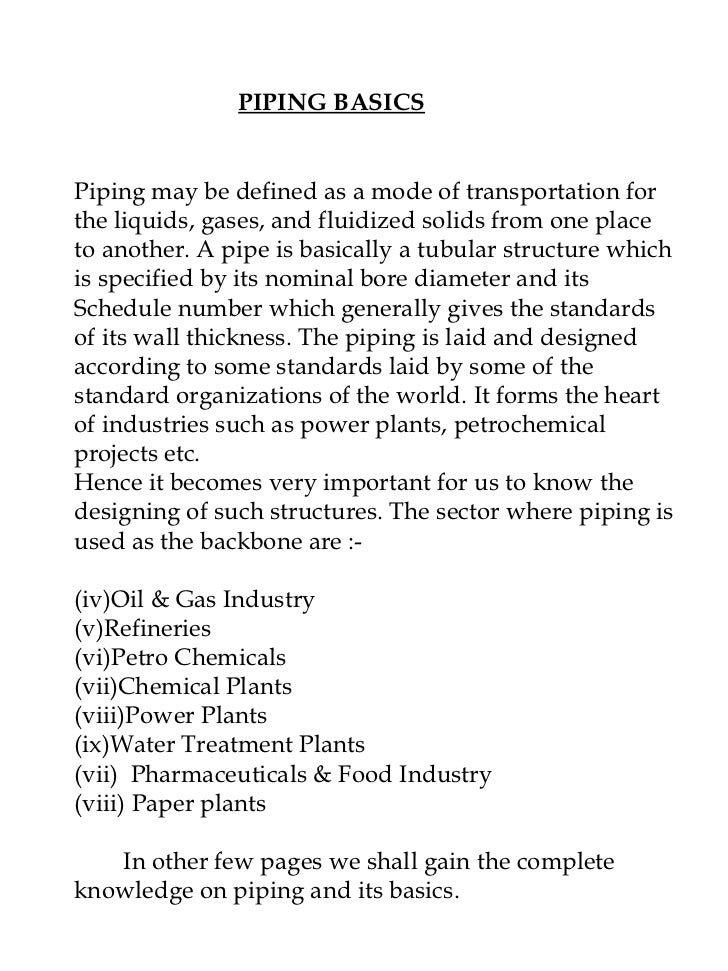

PIPING BASICS <ul><li>Piping may be defined as a mode of transportation for the liquids, gases, and fluidized solids from ...
OFFSHORE FUNDAMENTALS INTRODUCTION Offshore industry is basically concerned with the exploration, drilling and production ...
<ul><li>Oil and gas form as the result of a precise sequence of environmental condit ions: </li></ul><ul><li>· The presenc...
OFFSHORE PROCESS EXPLORATION DISCOVERING THE UNDERGROUND STRUCTURE Large-scale geological structures that might hold oil o...
The depths of the reflecting layers are calculated from the time taken for the sound to reach the hydrophones via the refl...
SEISMIC SURVEYS INTERPRETATION
Interpretation Seismic sect ions provide 2-dimensional views of underground structure. By using special shooting technique...
DRILLING
In exploration drilling, the cuttings are taken for examination by a geologist known as a mud logger who is constantly on ...
The Brent D plat form (F87) , which weighs more than 200 000 tonnes, was designed to store over a million barrels of oil. ...
Land Rig Platform Jack-up Semi-Submersible Drill Ship T.L.P. PRODUCTION
GETTING OIL AND GAS ASHORE Most offshore oil and all offshore gas are brought to shore by pipelines which operate in all w...
<ul><li>An oil platform or oil rig is a large structure used to house workers and machinery needed to drill and/or extract...
<ul><li>STRUCTURES THAT EXTEND TO THE SEA BED </li></ul><ul><li>FIXED STEEL PLATFORMS </li></ul><ul><ul><li>A Fixed Platfo...
FIXED STEEL PLATFORMS
<ul><ul><li>The jacket also serves as a template for the initial driving of the piles. (The piles are driven through the i...
CONCRETE GRAVITY BASE STRUCTURE COMPLIANT   TOWER
COMPLIANT TOWER A  compliant tower  (CT) is a fixed rig structure normally used for the offshore production of oil or gas....
STRUCTURES THAT FLOAT NEAR THE WATER SURFACE TENSION LEG PLATFORMS A  Tension-leg platform  or  Extended Tension Leg Platf...
TLP has excess buoyancy which keeps tethers in tension. Topside facilities , no. of risers etc. have to fixed at pre-desig...
TENSION LEG PLATFORM SPAR
FPSO {Floating Production Storage and Offloading} A Floating Production, Storage and Offloading vessel (FPSO; also called ...
Working principles Oil produced from offshore production platforms can be transported to the mainland  either by pipeline ...
FPSO
Specific types A  Floating Storage and Offloading unit (FSO)  is a floating storage device, which is simplified FPSO witho...
<ul><li>MODU’s { Mobile Offshore Drilling Units } </li></ul><ul><li>The basic work of the mobile units is to drill the wel...
SEMI SUBMERSIBLE DRILLING RIG <ul><li>A semi-submersible drilling rig is one in which: </li></ul><ul><li>Sea water is pump...
SEMI SUBMERSIBLE DRILL RIGS DRILL SHIPS
SELF ELEVATED JACK UP RIGS
ELEVATING JACK UP RIGS INTRODUCTION A Jack Up is an offshore structure composed of a hull, legs and a lifting system that ...
The reasons for pushing these limits include the desire to explore deeper waters, deeper reservoirs in harsher environment...
The large weight also affects the natural period of the Jack Up Unit in the elevated mode. The draft of the hull, or the d...
Generally, the larger the legs and footings, the more load wind, wave, and current will exert on them. Legs of different d...
“ Mission Equipment” refers to the equipment and systems aboard a Jack Up Unit, which are necessary for the Jack Up to com...
Main preparations for each Transit Mode address support of the legs, support of the hull, watertight integrity of the unit...
The main preparations for a Unit to undertake an Extended Field Tow are the same as those for a Field Tow with the additio...
DIGRAMETIC VIEW OF THE OPERATION OF  JACK UP RIG
ARRIVING ON LOCATION Upon completion of the Transit Mode, the Jack Up Unit is said to be in the Arriving On Location Mode....
FINAL GOING ON LOCATION Whether a Unit stops at a Soft Pin location, or proceeds directly to the final jacking up location...
PRELOAD OPERATIONS All Jack Up Units must load the soil that supports them to the full load expected to be exerted on the ...
The Preload Operation is not completed until no settling of the legs into the soil occurs during the holding period while ...
ELEVATED STORM SURVIVAL CONDITION When the Unit is performing operations, the weather is to be monitored. If non-cyclonic ...
ELEVATING SYSTEM All Jack Ups have mechanisms for lifting and lowering the hull. The most basic type of elevating system i...
ELEVATING SYSTEM GUIDES
UPPER AND LOWER GUIDES All Jack Ups have mechanisms to guide the legs through the hull. For Units with Pinions, the guides...
DRILLING RIG COMPONENTS 1. Crown Block and Water Table 2. Catline Boom and Hoist Line 3. Drilling Line 4. Monkeyboard 5. T...
Crown Block and Water Table An assembly of sheaves or pulleys mounted on beams at the top of the derrick. The drilling lin...
Monkeyboard The derrickman's working platform. Double board, tribble board, fourable board; a monkey board located at a he...
Mast A portable derrick capable of being erected as a unit, as Distinguished from a standard derrick, which cannot be rais...
Blowout Preventer A large valve, usually installed above the ram preventers, that forms a seal in the annular space betwee...
Engine Generator Sets A diesel, Liquefied Petroleum Gas (LPG), natural gas, or gasoline engine, along with a mechanical tr...
Mud Pits A series of open tanks, usually made of steel plates, through which the drilling mud is cycled to allow sand and ...
Reserve Pits A mud pit in which a supply of drilling fluid has been stored. Also, a waste pit, usually an excavated, earth...
Choke Manifold The arrangement of piping and special valves, called chokes, through which drilling mud is circulated when ...
BASIC SYSTEMS IN JACK UP RIGS <ul><li>Drilling Systems </li></ul><ul><li>Drilling system is the heart of the jack up rig. ...
MUD SYSTEM CATERPILLAR  GENERATOR
<ul><li>Power Generation Systems  </li></ul><ul><li>Power is must to run a jack up rig. Jack up rigs are installed in deep...
Diesel Electric Generator BOP
<ul><li>BOP & Well Completions </li></ul><ul><li>BOP stands for blow out preventer. It is the most important part of the j...
However, the effect of previous spud can holes can be mitigated if the new rig is positioned so that the centers of its sp...
SOME SENSIVITIES OF JACK UP RIGS LEG PUNCH THROUGHS When a Jack Up is being preloaded, it is important to be prepared to a...

The accidental loading resulting from a punch through can lead to several types of leg damage including buckling of the br...
Scour is another problem that occurs in certain locations such as areas with sandy bottoms and high bottom current. In thi...
