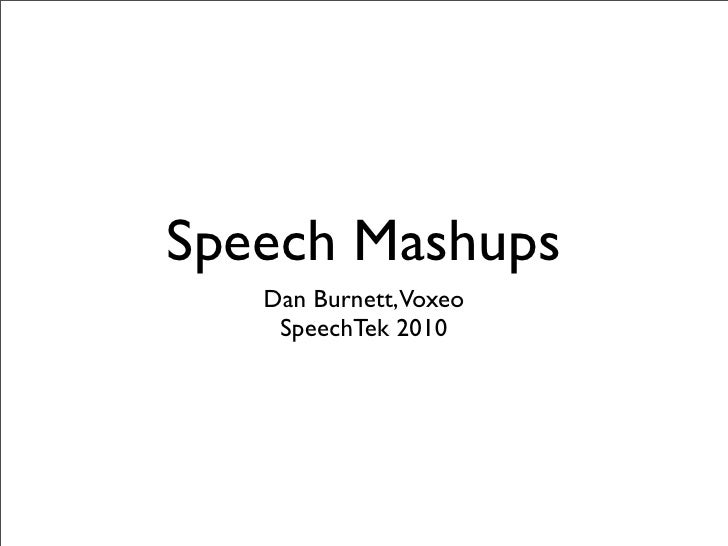

Speech Mashups
   Dan Burnett,Voxeo
    SpeechTek 2010
What are mashups?

<XML>   HTTP
 JSON
Why VoiceXML?
Why not VoiceXML?
Tropo scripting


              answer/reject/redirect/hangup
call/transfer/conference              ask/say/record/log
   ...
Weather app

• Collect postal code from caller
• Fetch weather from Yahoo using YQL
• Speak weather to the caller
Weather app


require 'open-uri'
require 'json'

answer




hangup
Weather app


require 'open-uri'
require 'json'

answer
say 'Welcome to the Ruby Yahoo weather reader'


say 'Thats all. G...
Weather app
require 'open-uri'
require 'json'

answer
say 'Welcome to the Ruby Yahoo weather reader'




ask 'Enter the ZI...
Weather app
require 'open-uri'
require 'json'

answer
say 'Welcome to the Ruby Yahoo weather reader'

options = { :choices...
Weather app
require 'open-uri'
require 'json'

answer
say 'Welcome to the Ruby Yahoo weather reader'

options = { :choices...
Weather app
require 'open-uri'
require 'json'

answer
say 'Welcome to the Ruby Yahoo weather reader'

options = { :choices...
Weather app
require 'open-uri'
require 'json'

answer
say 'Welcome to the Ruby Yahoo weather reader'

options = { :choices...
Demo

• Upload script
• Link to a telephony application name
• Add phone numbers/IM/Jabber/SMS
Tropo Web API


                            tropo
                 answer/reject/redirect/hangup
call/session/transfer/con...
Weather app
{"tropo": [
  {"say": [{"value": "Welcome to the Yahoo weather reader"}]},
  {"ask":
     {"say": [{"value": "...
Other mashups
•   Yahoo Local over phone, SMS, and IM
    https://www.tropo.com/docs/scripting/t_php-localsearch.htm

•   ...
Summary
Upcoming SlideShare
Loading in...5
×

Speech Mashups - Dan Burnett - Voxeo - SpeechTEK NY 2010

1,630
-1

Published on

At SpeechTEK New York in August 2010, Voxeo's Director of Speech Technologies, Dan Burnett, was part of a panel on "speech mashups". Dan explained what mashups are and demonstrated speech mashups written in Ruby that work on the Tropo service at http://www.tropo.com/

More information about Voxeo's activities at SpeechTEK NY can be found at:

http://blogs.voxeo.com/events/speechtek-ny-2010/

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
1,630
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
12
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Speech Mashups - Dan Burnett - Voxeo - SpeechTEK NY 2010

  1. 1. Speech Mashups Dan Burnett,Voxeo SpeechTek 2010
  2. 2. What are mashups? <XML> HTTP JSON
  3. 3. Why VoiceXML?
  4. 4. Why not VoiceXML?
  5. 5. Tropo scripting answer/reject/redirect/hangup call/transfer/conference ask/say/record/log startCallRecording/stopCallRecording
  6. 6. Weather app • Collect postal code from caller • Fetch weather from Yahoo using YQL • Speak weather to the caller
  7. 7. Weather app require 'open-uri' require 'json' answer hangup
  8. 8. Weather app require 'open-uri' require 'json' answer say 'Welcome to the Ruby Yahoo weather reader' say 'Thats all. Goodbye.' hangup
  9. 9. Weather app require 'open-uri' require 'json' answer say 'Welcome to the Ruby Yahoo weather reader' ask 'Enter the ZIP code for a weather check' say 'Thats all. Goodbye.' hangup
  10. 10. Weather app require 'open-uri' require 'json' answer say 'Welcome to the Ruby Yahoo weather reader' options = { :choices => "[5 DIGITS]", :onChoice => lambda { |choice| #Set the URI and our YQL select statement, then encode as a URI #Fetch the JSON from the YQL API and convert the resulting #JSON data to a Ruby hash #Get the relevant weather channel details and throw them into a hash #Speak back the results } } ask 'Enter the ZIP code for a weather check', options say 'Thats all. Goodbye.' hangup
  11. 11. Weather app require 'open-uri' require 'json' answer say 'Welcome to the Ruby Yahoo weather reader' options = { :choices => "[5 DIGITS]", :onChoice => lambda { |choice| #Set the URI and our YQL select statement, then encode as a URI yahoo_url = 'http://query.yahooapis.com/v1/public/yql?format=json&q=' query = "SELECT * FROM weather.forecast WHERE location = " + choice.value url = URI.encode(yahoo_url + query) #Fetch the JSON from the YQL API and convert the resulting #JSON data to a Ruby hash weather_data = JSON.parse(open(url).read) #Get the relevant weather channel details and throw them into a hash weather_results = weather_data["query"]["results"]["channel"] #Speak back the results } } ask 'Enter the ZIP code for a weather check', options say 'Thats all. Goodbye.' hangup
  12. 12. Weather app require 'open-uri' require 'json' answer say 'Welcome to the Ruby Yahoo weather reader' options = { :choices => "[5 DIGITS]", :onChoice => lambda { |choice| #Set the URI and our YQL select statement, then encode as a URI #Fetch the JSON from the YQL API and convert the resulting #JSON data to a Ruby hash #Get the relevant weather channel details and throw them into a hash #Speak back the results say weather_results["description"] say "The wind chill is #{weather_results["wind"]["chill"]} degrees, " + "the wind speed is #{weather_results["wind"]["speed"]}" say "The forecast is #{weather_results["item"]["forecast"][0]["text"]}, " + "with a high of #{weather_results["item"]["forecast"][0]["high"]} degrees, " + "and a low of #{weather_results["item"]["forecast"][0]["low"]} degrees." } } ask 'Enter the ZIP code for a weather check', options say 'Thats all. Goodbye.' hangup
  13. 13. Weather app require 'open-uri' require 'json' answer say 'Welcome to the Ruby Yahoo weather reader' options = { :choices => "[5 DIGITS]", :repeat => 3, :timeout => 7, :onBadChoice => lambda { say 'Invalid entry, please try again.' }, :onTimeout => lambda { say 'Timeout, please try again.' }, :onChoice => lambda { |choice| #Set the URI and our YQL select statement, then encode as a URI #Fetch the JSON from the YQL API and convert the resulting #JSON data to a Ruby hash #Get the relevant weather channel details and throw them into a hash #Speak back the results } } ask 'Enter the ZIP code for a weather check', options say 'Thats all. Goodbye.' hangup
  14. 14. Demo • Upload script • Link to a telephony application name • Add phone numbers/IM/Jabber/SMS
  15. 15. Tropo Web API tropo answer/reject/redirect/hangup call/session/transfer/conference ask/say/record/on/result/log startCallRecording/stopCallRecording JSON (JavaScript Object Notation)
  16. 16. Weather app {"tropo": [ {"say": [{"value": "Welcome to the Yahoo weather reader"}]}, {"ask": {"say": [{"value": "Enter the ZIP code for a weather check"}, {"value": "Invalid entry, please try again.", "event": "nomatch"}, {"value": "Timeout, please try again.", "event": "timeout"}]}, "repeat": 3, "timeout": 7, "choices": {"value": "[5 DIGITS]"}, }] } ----------------- Receive recognition result ------------------------ {"tropo": [ {"say": [{"value": "The wind chill is ..."}, {"value": "The forecast is ..."}, {"value": "Thats all. Goodbye."}]}} ]}
  17. 17. Other mashups • Yahoo Local over phone, SMS, and IM https://www.tropo.com/docs/scripting/t_php-localsearch.htm • SFO BART train arrival estimate https://www.tropo.com/docs/scripting/t_ruby-barteta.htm • Find location of someone based on telephone number https://www.tropo.com/docs/scripting/t_groovy-location-mashup.htm • Look up political campaign contributions text: [2-letter state id] [name] to +1.240.242.7944 .. ie "ut craig m smith" (also on jabber at tdata@tropo.im) • Look up bills in the NY Senate via IM or Twitter http://www.voiceingov.org/blog/?p=1005 • Volunteer firefighter arrival time at fire station
  18. 18. Summary
