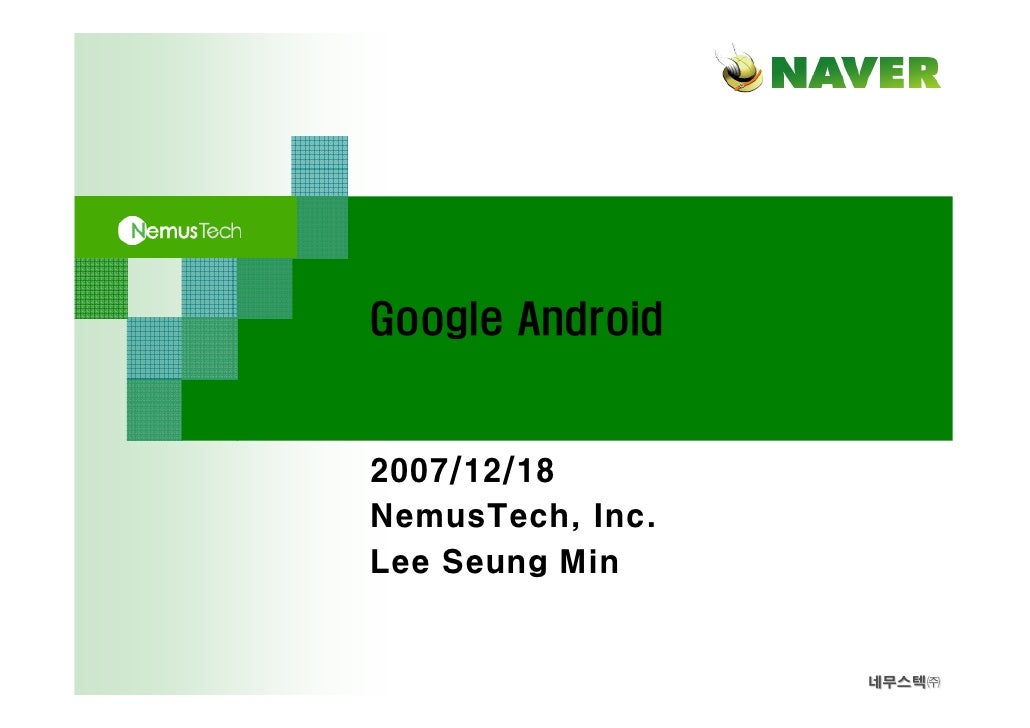

Google Android 2007/12/18 NemusTech, Inc. Lee Seung Min 네무스텍㈜

Agenda Introduction Overview Background What is Android? Features Architecture Technical Detail Android SDK Android Under the Hood Developing Application Porting Android to Real Target Future of Android

A conceptual model for mobile software Software Stack Kernel the core of the SW (HW drivers, memory, filesystem, and process management) Middleware The set of peripheral software libraries (messaging and communication engines, WAP renders, codecs, etc) Application Execution Environment An application manager and set APIs UI framework A set of graphic components and an interaction framework Application Suite The set of core handset application ( IDLE screen, dialer, menu screen, contacts, calendar, etc)

Mobile Platforms Feature Phone Vendor Platform : Mocha, PDK, WAVE, WISE, KX, etc...... Carrier Platform : SKTelecom TPAK, NTT i-Mode (WAP), Java, WIPI, BREW, etc…… 3rd Party Solution : TAT Cascade, Qualcomm uiOne Smart Phone MicroSoft Windows Mobile Nokia : Symbian, Series 60 Apple, iPhone – OSX 10.5 Leopard Linux

Customers & Licensees Not all customers or licensees are shown Source:vendor data

Smartphone OS Market Share by Region Smartphone OS market share by region, 2006 Source : Canalys

Current Linux Mobile Platforms LiMo Foundation https://www.limofoundation.org/sf/sfmain/do/home TrollTech - Qtopia GreenPhone OpenMoko : GNU/Linux based software development platform http://www.openmoko.org , http://www.openmoko.com Linux Kernel, GUI using X. Org Server, GTK+,Matchbox window manager First Supported phone, Neo1973 (also support Qtopia) ALP (Access Linux Platform) http://alp.access-company.com/ Nokia N810 – Maemo http://maemo.org/ Exploring the technical details of N810 http://arstechnica.com/journals/linux.ars/2007/10/22/looking-at-the-technical- details-of-nokias-n810-internet-tablet-operating-system MontaVista - Mobilinux Google - OHA, Android OS http://www.openhandsetalliance.com/ Android : A complete set of SW for mobile devices Operation System, Middleware, and Key mobile applications

Access Linux Platform Acquire PalmSource Provide a complete SW stack, encompassing kernel, middleware, Palm- Linux- based application execution environment IBM-Licensed JVM and Access’ Sun-licensed JVM MAX – from PalmSource’s Rome technology, optimised version of GTK+ Question – what is the end-game for DoCoMo? (already uses the MOAP layer)

MontaVista Mobilinux Having been widely used by Motorola, NEC and Panasonic Based on a 2.6 kernel with around 500 patches Power Management Reduced footprint Faster system boot Hard real-time cap. Does not include Radio stacks Integrate with third party SW, Openwave’s Browser, Trolltech Qtopia Core, GTK+, Red Bend

OpenMoko Provide Real Device Neo 1973 2.8” VGA TFT color display Touchscreen 266MHz Samsung SOC 2.5G GSM – tri band Bluetooth/Mic ro SD/HQ Free Open Source Software audio codec Linux Kernel, GNU C, X, GTK+ It runs a full X server, X applications

Linux for mobile handsets Benefits Linux is designed to avoid single-vendor domination The Linux kernel has been ported to more than a dozen chipsets Linux is cheap and open to innovation Technically competent and cost-effective for converged devices Several governments (most notably China) support Linux Challenges The Linux kernel is optimised for desktop and embedded Distribution lack the feature set requested by network operators (except Vodafone?) No consensus on Linux’s APIs Mitigating legal challenges

What is Android? is…… Android is a software stack for mobile devices that includes an operating system, middleware and key applications. .... developing applications ... using the Java programming language. History 2001 search service for wireless device 2005 Acquire Android (Andy Rubin : Danger CEO, Development Sidekick) Acquire Skia (2D Graphics for mobile device) Acquire RegWireless (Browser and Email for mobile device) Move Engineers from PalmSource (Dianne Hackborn, etc…) 2007.11 Android SDK Release, OHA 2008. 1H Android Developer Challenge 2008. 2H Android Phone

Features Application Framework Dalvik Virtual Machine Integrated Browser Optimized Graphics SQLite Media Support GSM Telephony Bluetooth, EDGE, 3G, and WiFi Camera, GPS, compass, and accelerometer Rich Development Environment

Android Architecture

Linux Kernel Linux version 2.6 for core system services Security, Memory Management, Process Management, network stack, driver model Kernel : Abstraction Layer between the HW and the rest of the SW stack Android uses only “Kernel” portion in Linux

Android Runtime Core Libraries Provides the functionality of the Java Programming Language Android Application runs in its own process, with its own instance of the Dalvik virtual machine Dalvik VM : Java based license free VM Register based VM, optimization for low memory requirements Executes files in the Dalvik Executable (.dex) format DX tool converts classes to .dex format Why Dalvik, Why Java? Separate HW layer/ SW layer Kernel is responsible for Security Allow Multiple VM instance To insure compatibility Support different HWs (LCD, Keypad, …etc) Avoid License Issues

Libraries System C Library BSD-derived implementation of the standard C system library (libc) Media Libraries PacketVideo’s OpenCORE : MPEG4, H.264, MP3, AAC, AMR, JPG, and PNG Surface Manager Manages access to the display subsystem LibWebCore WebKit : Web browser engine (Safari!) SGL 2D Graphic Engine 3D libraries OpenGL ES (cross-platform API for full-function 2D and 3D graphics on em bedded systems) FreeType Bitmap and vector font (TTF,Type1,CIFF,PCF,BDF,....) SQLite Powerful, Lightweight R-DB (embedded/in-process SQL DB engine)

Application Framework Developer have full access to the same framework APIs used by the core applications A set of services and systems Views Content Providers Resource Manager Notification Manager Activity Manager

Applications A set of core applications Email, SMS, Calendar, Maps, Browser, Contacts, etc… All Applications : Written using JAVA Application Life Cycle : Only 4 processes – no task bar Applications run in their own processes Processes are started and stopped as needed to run an application’s components It is important that App. Developers understand how different app. Components (Activity, Service, IntentReceiver) impact the lifetime of the app. process Android have “Importance Hierarchy” Foreground, Visible, Service,Background,Empty Process

Architecture in detail The Design goal of Android – Openness Be as flexible as possible How it handles access to data (Mashups on the internet and everything else) Rapid development (XML, Java) IPC/Data Sharing Method AIDL (Android Interface Definition Language) COM/CORBA like IDL ← Binder SQLite Content Provider FileSystem Dev Language? App : Java Framework : Java Libraries : C/C++ OS & Driver : C Creating Native C Applications Possible, but not supported

Demo Android Emulator

Application Building Blocks AndroidManifest.xml XML file – Declare the components and what their capabilities and requirements There are four building blocks Activity UI component typically corresponding to one screen Intent Receiver Responds to notifications or status changes. Can wake up your process Service Faceless task that run int the background Content Provider Enable applications to share data

Replacing & Reusing Components Client Component makes a request for a specific action (Ex. “Pick Photo” in Email) System picks best component for that action (Ex. Photo Gallery) Components can be replaced any time (Ex. Photo Gallery Picasa)

APIs Location Manager Application can register for notifications of current location Can register for application specific Intents to be fired based on proximity XMPP Service Allows any app to send device-to-device data messages to other android users Data Messages are Intents with name/value pairs Works with any gmail account Can also build servers to deliver server-to-device messages Notification Manager Applications can add notifications to status bar Notification can have an associated action (Intent) Views Screen – responsible for drawing and event handling Ex: Map, List, Web, …etc

Views Sample

Android SDK Tools Emulator : QEMU 0.8.2 + libSDL 1.2.12 Provide emulator console, telephony emulation, skins DDMS (Dalvik Debug Monitor Service) Thread/Heap/Process/Log Monitor File Explorer ADB Shell Logcat, Android Log, Traceview Samples/Docs System and Software Requirements Supported Operating Systems Windows XP/Vista Mac OS X 10.4.8 or later (x86 only) Linux(tested on Linux Ubuntu Dapper Drake) Supported Development Environments Eclipse IDE Eclipse 3.2,3.3 (Europa) Eclipse JDT Plugin JDK 5 or JDK 6 ADT (Android Development Tools plugin), optional Other IDEs JDK 5 or JDK 6 Apache Ant GCJ(Gnu compiler for Java) not compatible

Android – Under the hood Executables Limited POSIX command – ls, ps, cat, echo #echo $PATH Filesystem #mount, 64MB Root file system Rootfs : initial-ramfs, ramdisk.img System file system Yaffs2 : First nand chip for system image, 64MB Data file system Yaffs2 : Second and chip for new user application, 64MB Processes #ps Zygote – the launcher for the Java runtime Startup User-land starts with the init program /etc/init.rc

Developing Android Application Design Philosophy Fast Write efficient android code Responsive Build responsive application Seamless Integrate with system Building Custom Android Components Combine layouts and controls Fully customized components

Special APIs Optional APIs Why “optional”? You don’t need to use this A given handset may not support them Location-Based Services Media APIs 3D Graphics with OpenGL Low-level Hardware Access Google APIs and Services in Android MapView P2P Services Using XMPP

Building Android Application Hello Android Adding TextView Using XML based coding Res.layout.main.xml Simple Map View Using MapActivity Using XML Simple Web View Using WebKit class

Porting Android to Real Target Board Spec. Acumen Evaluation Board CPU: PXA270 (ARMv5 based) RAM: 128MB NAND: 32MB Porting Procedure Make file system image Ramfs (rootfs), yaffs2 system, data image Linux 2.6.23.8 porting (make android patch) EABI(Embedded Application Binary Interface) Support OpenBinder (google added) Device Driver Setting FrameBuffer Keyboard TouchScreen Network Tune scripts and settings Porting Tools strace, busybox, log, network, /init

Future of Android Business model Organize the world’s information and make it universally accessible and relevant No direct-advertising component in the platform Will NOT make A gPhone Google 700Mhz bid? A broad developer community ASL (Apache Software License) Linux Kernel is licensed under (GPLv2) Developer Challenge $10 million in awards Challenge I : Emulator Version ( Jan 2. 2008~) Challenge II : Handset Version (The second half of 2008) Opened Project (~12/12) Social Network (with 2d&3d animation) FPS : Wi-Fi Army Location Search : with google map Drive By Ad. : Location base Ad. Car Navigation Mobile Shopping Ebook with full text index : google phone search? Location Base! Almost Location Base Service except ebook, Social Network (over 80%) Small group is discussing game/PDA apps

Mash Up Mash-up Android New service with existing H/W Support information Not supported directly yet GPS Location Compass Direction Sensor Source Accelerometer Google : www.google.com Camera(Still/Video) ride finder Network Support maps : street view GPRS search by location 700MHz W-MAN video & youtube mash-up editor Wi-Fi gtalk Intent GoogleMobile : Access Service via URL www.google.com/m XMPP gmail calendar Google Instant Message notebook docs reader picasaweb 3rd Party?

Mash Up Example
