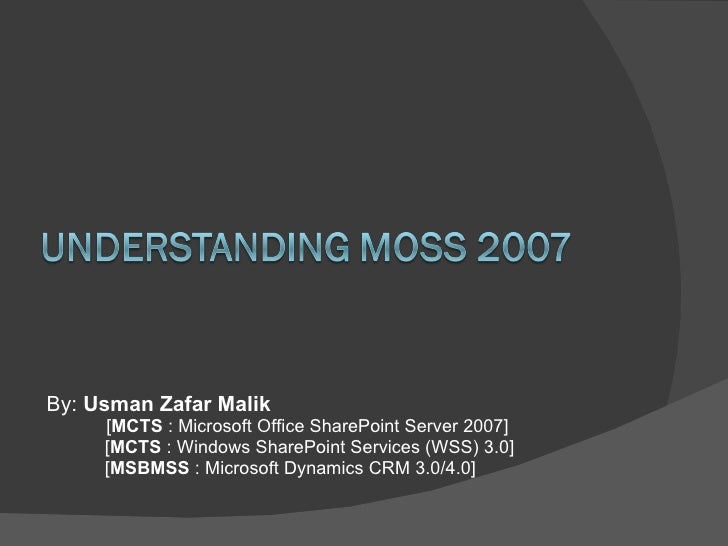

Easy Learning Presentation Moss 2007 Usman

By: Usman Zafar Malik
[ MCTS : Microsoft Office SharePoint Server 2007]
[ MCTS : Windows SharePoint Services (WSS) 3.0]
[ MSBMSS : Microsoft Dynamics CRM 3.0/4.0]

Overview of Microsoft Office SharePoint Server 2007
Core Components of MOSS 2007
Logical Architecture of MOSS 2007
Physical Architecture of MOSS 2007
Administrative Architecture of MOSS 2007

Six pillars of MOSS
Collaboration
Portal
Search
Web & Enterprise Content Management
Forms Driven Business Process
Business Intelligence

Help keep teams connected and productive by providing easy access to the people, documents, and information users need to make more well-informed decisions within their jobs.
Features:
Includes documents, tasks, and calendars
Blogs and wikis
E-mail integration
Outlook integration
RSS Feeds
Document workspace
Meeting workspaces
Team site

These are especially useful for designing, deploying, and managing enterprise intranet portals, corporate Internet presence Web sites, and divisional portal sites.
Features:
Enterprise Portal template
My Site personal site
RSS
Privacy and security { Use authorizations to control visibility of information in a My Site public view.}
Audience Targeting
Site Manager
Integration with SharePoint Designer, Office 2007.

Consistent and familiar search experience, increased relevance of search results, new functions to search for people and expertise, ability to index and search data in line-of-business applications (Business Data Catalogue), and improved manageability and extensibility.
Features:
User Interface {Easy to manage Search configuration from Web Interface}
People and business data search
Content Sources
Indexing Management
Content Scopes
Extensibility and Programmability

It provides core document management functionality
Major and minor versioning.
Check-in/check-out document locking.
Rich descriptive metadata
Workflow
Content type–based policies, auditing
Role-based-access controls at the document library, folder, and individual document levels.
Features:
Integration with Microsoft Information Rights Management (IRM)
Helps ensure that access rights applied to Microsoft Office documents in a central library travel with the documents, even when they are downloaded from the library.
Retention and auditing policies.
Page Layouts
Site variations
Business document processing
Web content management and publishing
Records management
Policy management
Multilingual publishing

Microsoft Office InfoPath Forms Services available in Office SharePoint Server 2007 and Microsoft Office Forms Server 2007 make it possible to design Web-capable forms in Microsoft Office InfoPath 2007 and distribute them on corporate intranets, extranets, or the Internet.
Features:
“ Design Once” development model
Centralized Forms management and control
Compatibility Checker
Pluggable Single Sign-On (SSO)

Provide business intelligence (BI) capabilities to everyone, so they can share, control, and reuse business information in order to make better business decisions.
Features:
Integrated, flexible spreadsheet publishing
Share, manage and control spread sheets
Web based business intelligence using Excel Services
Data Connection Libraries
Business Data Catalogue
Integrated business intelligence dashboards
Report Center
Key Performance Indicators (KPI) Filter Webparts

Some features of Platform Services
Storage
Storage services offers Metadata and context to the raw data which is stored in the database.
Metadata
Versioning
Backup
Recycle Bin
Security
Pluggable Authentication
Rights and Roles
Folder/Item Level Security
Management
Central Administration
Site Modal
Templates
Navigation

Single Server
Small Server Farm
Medium Server Farm
Large Server Farm

Server Farm Level Administrator
Shared Service Level Administrator
Site Level Administrators
Division in roles at user level

Installation of MOSS 2007
Configure Site Management
Configure Users & Groups
Configure Personalization
Configure Alerts
Configure Single Sign-On (SSO)

Hardware Requirements
Front-end web server and Application server computers
RAM  At least 2 GB RAM
Clock Processor Speed  2 GHz

Software Requirements
Microsoft Windows Server 2003 (Standard, Enterprise, Datacenter, or Web Edition) with Service Pack 1 (SP1)
Microsoft .Net Framework 2.0
Microsoft .Net Framework 3.0
Microsoft Internet Information Services (IIS) in IIS 6.0 worker process isolation mode.
Each of the computers must be using the NTFS file system.

Back-end Database Server Requirements
Microsoft SQL Server 2005 or Microsoft SQL Server 2000 with Service Pack 3 (SP3) or later.

Site Manager unifies site management tasks for portals and web sites, including management of areas, pages, listings, SharePoint site lists.

Manage the Site from Central Administration.
Configure the Shared Service Provider (SSP) of Site.
Configure the Site Search from SSP Site through central administration.
Enable the Anonymous access option for site

Manage the Site through Site Manager.
Can view/open all the lists and libraries of site from site manager. Perform different actions respectively like upload items in the list, check-out/ check-in publish item from site manager.
Manage the Site through Site Settings.

Manage the Site through Site Settings
All the settings are related to specific site.

Actual Permission Roles
Full control  Has full control.
Design  Can view, add, update, delete, approve and customize.
Contribute  Can view, add, update and delete.
Read  Can view only.
Limited access  Can view specific lists, document libraries, list items, folders or documents when given permissions.

Approve  Can edit and approve pages, list items, and documents.
Manage hierarchy  Can create sites and edit pages, list items, and documents.
Restricted read  Can view pages and documents, but cannot view historical versions or review user rights information.

Add/edit, delete the user/group w.r.t. user roles and rights.

"My Site" and "User Profile" are two corner stone's of Personalization in MOSS 2007

The whole theme is to let users have their own space/site such that they can, publish and maintain information, which can be share with other users.
Main idea behind personalization is to, let users have a personal page or some similar space, on the portal, where they can share information that they want to, and other colleagues and even outsiders can access it.

Share Point Server 2007 provides personalization in the form of My Site, and user details are store in what is called User Profiles.

My Site : Site for Every User Share.
This is dedicated to every individual user in moss. Where they can share their information with their colleagues in the form of blogs etc.
My Site concept is used in intranet portals rather than internet portals, because on internet portals we allow the anonymous access to user, so there is need over here to access users to create their my site.

User Profile .
The user profile acts like a store, it contains Name, Email, Mobile Number etc.
The information can be retrieved from Active Directory , in fact LDAP is supported , or , you can chose from any arbitrary source as long as , it can be accessible via Business Data Catalog (DBC).

You can create alerts for other users! Just navigate to a list or document library, and from the “ Actions” menu choose the “ Alert Me” item.
You can specify multiple user names, or email addresses in alerts.

Following Step need to perform…
Create the SSO service account.
This is the account that the service will run under.
Create the SSO groups.
These groups are used to control who has the ability to administer SSO (export the master key) and who has the ability to manage it (add/remove application definitions.)

Configure the SSO Service.
Set SSO to start and get it to use the service account.
Configure SQL Server.
Authorize the SSO service account to SQL server.
Manage SSO.
Setup SSO in MOSS including the groups and the database.

Manage the encryption key.
Create the encryption key that will be used for protecting the username and password information on the system.
Manage settings for enterprise application definitions.
Define what initial applications SSO will be setup to manage passwords for.

Make sure that user should be logged in with the account on which we are configuring SSO service account.
The respective user should be added in the form administrator group of SharePoint.

Configure Search Center
Configure Search Settings
Managed vs Crawled Properties

Crawled Properties
It is discovered by search index service component when crawling the content.
Managed Properties
It is mapped by administrator from crawled to managed property to make a part of user search experience.
Managed properties needs a full crawl for corrects search results to appear.

From Microsoft Help
From Other Good Sites Links
Self Study
