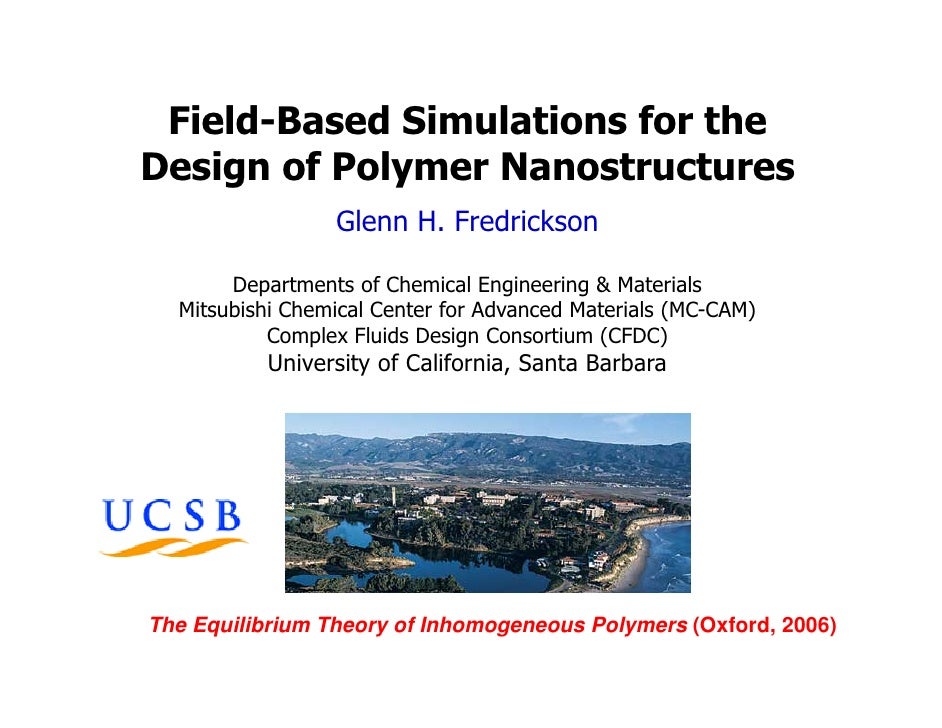

Field-Based Simulations for the
Design of Polymer Nanostructures
                 Glenn H. Fredrickson

       Departments...
The Mitsubishi Chemical Center for
     Advanced Materials (MC-CAM)
MC-CAM was created in 2001 to
enable a research partne...
Polypropylene Block Copolymers
   A Mitsubishi Chemical—UCSB—Cornell
   collaboration




  sPP-EPR-sPP         iPP-EPR-iP...
Complex Fluids Design Consortium
The Complex Fluids Design Consortium (CFDC) is an academic-
industrial-national lab partn...
Postdocs:
                      Acknowledgements
   Dr.   Venkat Ganesan
                                   Funding:
   Dr...
The Problem—Design of Polymer
Formulations
Polymer formulations are
often inhomogeneous and
multi-component
   Multiphase ...
Nanoscale Morphology Control: Block
              Copolymers
• Microphase separation of block copolymers
                 ...
Enabling Chemistries to Create
Nanostructured Polymers
 The past decade has seen unprecedented advances
 in controlled (li...
Nanostructured Polymers via New Chemistry:
sPP-b-EPR Block Copolymers




                                                ...
Nanoparticles in Block Copolymers
                                              B.J. Kim et. al., Adv. Matl. 17, 2018 (200...
Scales and Approaches to Fluids Simulation
 Scale               DOF                      Method
Sub-atomic         Fields ...
From Particles to Fields
 Any classical “particle-based” model of an equilibrium fluid
 can be exactly converted to a stat...
Why Field-Based Simulations of Polymer
 Fluids?
Relevant spatial and time scales
cannot be accessed by atomistic
“particle...
Coarse-Grained “Particle-Based” Model:
Polymer Solution
Two-parameter “Edwards” model of homopolymers in an
implicit good ...
Edwards Field Theory (~1960)


 Energy functional




 Single-chain partition function




 Fokker-Planck equation for cha...
Generalizations
 Using similar methods, one can construct statistical
 field theories for a broad variety of polymer
 form...
Structure of the Field Theories
 The field theories have “saddle point”
 configurations w*(r) corresponding to stable and
...
Mean-Field Approximation: SCFT

•   SCFT is derived by a saddle point approximation to the
    field theory:




•   The a...
High-Resolution SCFT
By the above methods we can
compute saddle points using
~107 or more plane waves
  Unit cell calculat...
Unit Cell Calculation, Ia3d                  0.00
Symmetry specified initial guess               -0.05
              (E. C...
Mean-Field A-B Diblock Copolymer Melt Phase
Diagram    Matsen-Bates (1995), Cochran (2006)




                           ...
dark
ABA triblock + A homopolymer
Arkema (S. Sides)                              +
                                       ...
SW Sides and GHF,
Polymer 44, 5859 (2003)
                          +   light




106 plane waves
3000 field iterations


...
Simulation results (S. Sides)
Polydispersity: Acrylic BCs                                  <φA > ~ 0.65    <φΒ > =
       ...
Photolithography vs. Block Copolymer Lithography

                                              Basic steps


            ...
Defects in Laterally Confined Block
 Copolymer Thin Films
Large 2D arrays of spheres or cylinders
will exhibit defect popu...
SCFT studies of hexagonal confinement: “A wetting”




L = 14.75 Rg0        L = 16.25 Rg0        L = 18.00 Rg0

   Here we...
Tetragonal Ordering by Square Confinement
     AB block copolymers pack cylinders or monolayers of
     spheres in hexagon...
Multi-layer Films of Spherical AB Diblocks

              Gila Stein and Ed Kramer          Polymer – air
                ...
Stein-Kramer experiments reveal 3 structures:




       HCP spheres       Fm3m spheres – 100 plane
                      ...
1.16
BCC

                 1.12
       a1 / a2                                          bcc
                 1.08       hc...
A Simple Theory
• Assume that the surface excess free energy
  contributions are negligible beyond a single layer film,
  ...
Theory vs. Experiment
• The theory + SCFT explains the observation of a 1st
  order transition!
• The transition is predic...
Beyond Mean-Field Theory
In many situations, mean-field theory is inaccurate
   Polymer solutions
   Melts near a critical...
The “Sign Problem”
 When sampling a complex field theory, the
 statistical weight exp( – H[w]) is not positive-
 definite
...
Complex Langevin Sampling
               (Parisi, Klauder 1983)
A method to circumvent the sign problem in polymer
simulat...
Complex Langevin Dynamics
 A Langevin dynamics in the complex plane for generating
 Markov chains with stationary distribu...
Order-disorder transition of diblock copolymers
(E. Lennon)


f=0.396
χN = 14 ! 11
C=nRgd/V =60.0
L=17.8 Rg
483 lattice
IC...
Polyelectrolyte Complexation: Complex
Coacervates
   Aqueous mixtures of                  -
   polyanions and             ...
A Symmetric Model of Coacervation

 In the simplest case,
 assume symmetric
 polyacids & polybases          +
 mixed in eq...
Corresponding Field-Theory Model




w: fluctuating chemical pot.        lB =e2 /ε kBT: Bjerrum length
φ: fluctuating elec...
Complex Coacervation
CL Simulations of the Field Theory Model
 • 2D, 32x32 Rg02
 • C=2.0 B=1.0 E=64000
Future work
We believe that our CL simulation method can be used to
explore the phase behavior of a broad range of PE
comp...
Complexation of oppositely charged
            diblocks
           2D, 16x16 Rg02
           C=11.0 B=0.1
           E=64000
A Hybrid Particle-Field Simulation Approach
 S. W. Sides et. al. Phys. Rev. Lett. 96, 250601 (2006)
 Combine a field-based...
Block Copolymer Morphology Change Induced
by Nanoparticles (BJ Kim, et. al. PRL 96, 250601 (2006))
                       ...
Summary
  “Field-based” computer simulations are powerful tools for
  exploring equilibrium self-assembly in complex polym...
