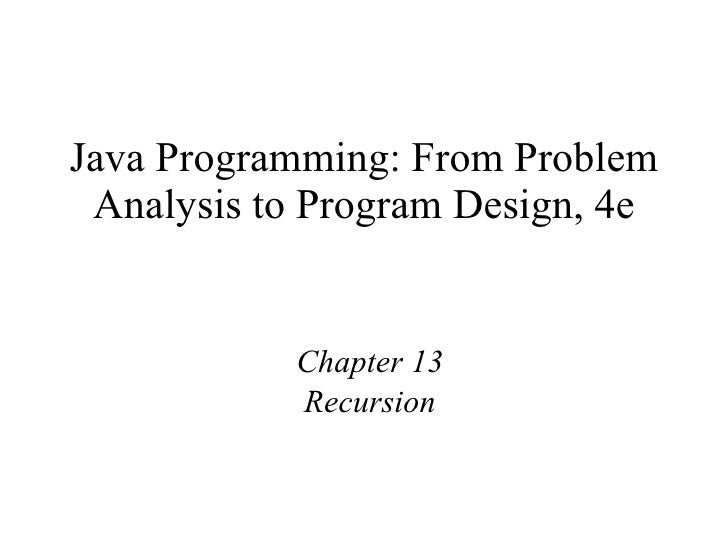

  • 1. Java Programming: From Problem Analysis to Program Design, 4e Chapter 13 Recursion
  • 2. Chapter Objectives
    • Learn about recursive definitions
    • Explore the base case and the general case of a recursive definition
    • Learn about recursive algorithms
    Java Programming: From Problem Analysis to Program Design, 4e
  • 3. Chapter Objectives (continued)
    • Learn about recursive methods
    • Become aware of direct and indirect recursion
    • Explore how to use recursive methods to implement recursive algorithms
    Java Programming: From Problem Analysis to Program Design, 4e
  • 4. Recursive Definitions
    • Recursion
      • Process of solving a problem by reducing it to smaller versions of itself
    • Recursive definition
      • Definition in which a problem is expressed in terms of a smaller version of itself
      • Has one or more base cases
    Java Programming: From Problem Analysis to Program Design, 4e
  • 5. Recursive Definitions (continued) Java Programming: From Problem Analysis to Program Design, 4e
  • 6. Recursive Definitions (continued)
    • Recursive algorithm
      • Algorithm that finds the solution to a given problem by reducing the problem to smaller versions of itself
      • Has one or more base cases
      • Implemented using recursive methods
    • Recursive method
      • Method that calls itself
    • Base case
      • Case in recursive definition in which the solution is obtained directly
      • Stops the recursion
    Java Programming: From Problem Analysis to Program Design, 4e
  • 7. Recursive Definitions (continued)
    • General solution
      • Breaks problem into smaller versions of itself
    • General case
      • Case in recursive definition in which a smaller version of itself is called
      • Must eventually be reduced to a base case
    Java Programming: From Problem Analysis to Program Design, 4e
  • 8. Tracing a Recursive Method
    • Recursive method
      • Logically, you can think of a recursive method having unlimited copies of itself
      • Every recursive call has its own:
        • Code
        • Set of parameters
        • Set of local variables
    Java Programming: From Problem Analysis to Program Design, 4e
  • 9. Tracing a Recursive Method (continued)
    • After completing a recursive call
      • Control goes back to the calling environment
      • Recursive call must execute completely before control goes back to previous call
      • Execution in previous call begins from point immediately following recursive call
    Java Programming: From Problem Analysis to Program Design, 4e
  • 10. Recursive Definitions
    • Directly recursive: a method that calls itself
    • Indirectly recursive: a method that calls another method and eventually results in the original method call
    • Tail recursive method: recursive method in which the last statement executed is the recursive call
    • Infinite recursion: the case where every recursive call results in another recursive call
    Java Programming: From Problem Analysis to Program Design, 4e
  • 11. Designing Recursive Methods
    • Understand problem requirements
    • Determine limiting conditions
    • Identify base cases
    Java Programming: From Problem Analysis to Program Design, 4e
  • 12. Designing Recursive Methods (continued)
    • Provide direct solution to each base case
    • Identify general case(s)
    • Provide solutions to general cases in terms of smaller versions of general cases
    Java Programming: From Problem Analysis to Program Design, 4e
  • 13. Recursive Factorial Method Java Programming: From Problem Analysis to Program Design, 4e public static int fact( int num) { if (num = = 0) return 1; else return num * fact(num – 1); }
  • 14. Recursive Factorial Method (continued) Java Programming: From Problem Analysis to Program Design, 4e
  • 15. Largest Value in Array Java Programming: From Problem Analysis to Program Design, 4e
  • 16. Largest Value in Array (continued) Java Programming: From Problem Analysis to Program Design, 4e
    • if the size of the list is 1
      • the largest element in the list is the only element in the list
    • else
      • to find the largest element in list[a]...list[b]
      • a. find the largest element in list[a + 1]...list[b]
    • and call it max
      • b. compare list[a] and max
        • if ( list[a] >= max )
      • the largest element in list[a]...list[b] is
        • list[a]
        • else
      • the largest element in list[a]...list[b] is max
  • 17. Largest Value in Array (continued) Java Programming: From Problem Analysis to Program Design, 4e public static int largest( int [] list, int lowerIndex, int upperIndex) { int max; if (lowerIndex == upperIndex) return list[lowerIndex]; else { max = largest(list, lowerIndex + 1, upperIndex); if (list[lowerIndex] >= max) return list[lowerIndex]; else return max; } }
  • 18. Execution of largest (list, 0, 3) Java Programming: From Problem Analysis to Program Design, 4e
  • 19. Execution of largest (list, 0, 3) Java Programming: From Problem Analysis to Program Design, 4e
  • 20. Recursive Fibonacci Java Programming: From Problem Analysis to Program Design, 4e
  • 21. Recursive Fibonacci (continued) Java Programming: From Problem Analysis to Program Design, 4e public static int rFibNum( int a, int b, int n) { if (n == 1) return a; else if (n == 2) return b; else return rFibNum(a, b, n -1) + rFibNum(a, b, n - 2); }
  • 22. Recursive Fibonacci (continued) Java Programming: From Problem Analysis to Program Design, 4e
  • 23. Towers of Hanoi Problem with Three Disks Java Programming: From Problem Analysis to Program Design, 4e
  • 24. Towers of Hanoi: Three Disk Solution Java Programming: From Problem Analysis to Program Design, 4e
  • 25. Towers of Hanoi: Three Disk Solution (continued) Java Programming: From Problem Analysis to Program Design, 4e
  • 26. Towers of Hanoi: Recursive Algorithm Java Programming: From Problem Analysis to Program Design, 4e public static void moveDisks( int count, int needle1, int needle3, int needle2) { if (count > 0) { moveDisks(count - 1, needle1, needle2, needle3); System.out.println( " Move disk " + count + " from needle " + needle1 + " to needle " + needle3 + " . " ); moveDisks(count - 1, needle2, needle3, needle1); } }
  • 27. Recursion or Iteration?
    • Two ways to solve particular problem
      • Iteration
      • Recursion
    • Iterative control structures: use looping to repeat a set of statements
    • Tradeoffs between two options
      • Sometimes recursive solution is easier
      • Recursive solution is often slower
    Java Programming: From Problem Analysis to Program Design, 4e
  • 28. Programming Example: Decimal to Binary Java Programming: From Problem Analysis to Program Design, 4e
  • 29. Java Programming: From Problem Analysis to Program Design, 4e
  • 30. Sierpinski Gaskets of Various Orders Java Programming: From Problem Analysis to Program Design, 4e
  • 31. Programming Example: Sierpinski Gasket
    • Input: nonnegative integer indicating level of Sierpinski gasket
    • Output: triangle shape displaying a Sierpinski gasket of the given order
    • Solution includes:
      • Recursive method drawSierpinski
      • Method to find midpoint of two points
    Java Programming: From Problem Analysis to Program Design, 4e
  • 32. Programming Example: Sierpinski Gasket (continued) Java Programming: From Problem Analysis to Program Design, 4e private void drawSierpinski(Graphics g, int lev, Point p1, Point p2, Point p3) { Point midP1P2; Point midP2P3; Point midP3P1; if (lev > 0) { g.drawLine(p1.x, p1.y, p2.x, p2.y); g.drawLine(p2.x, p2.y, p3.x, p3.y); g.drawLine(p3.x, p3.y, p1.x, p1.y); midP1P2 = midPoint(p1, p2); midP2P3 = midPoint(p2, p3); midP3P1 = midPoint(p3, p1); drawSierpinski(g, lev - 1, p1, midP1P2, midP3P1); drawSierpinski(g, lev - 1, p2, midP2P3, midP1P2); drawSierpinski(g, lev - 1, p3, midP3P1, midP2P3); } }
  • 33. Programming Example: Sierpinski Gasket (continued) Java Programming: From Problem Analysis to Program Design, 4e
  • 34. Chapter Summary
    • Recursive definitions
    • Recursive algorithms
    • Recursive methods
    • Base cases
    • General cases
    Java Programming: From Problem Analysis to Program Design, 4e
  • 35. Chapter Summary (continued)
    • Tracing recursive methods
    • Designing recursive methods
    • Varieties of recursive methods
    • Recursion vs. iteration
    • Various recursive functions explored
    Java Programming: From Problem Analysis to Program Design, 4e
