Defining Domain-Specific Facets for Topic Maps
        With TMQL Path Expressions


                      Sven Windisch
    ...
Agenda



Introduction to Facets in Topic Maps


Defining Domain-Specific Facets With TMQL


A Short Example


Conclusions a...
Overview



Introduction to Facets in Topic Maps


Defining Domain-Specific Facets With TMQL


A Short Example


Conclusions...
Definition of facets


Facets are . . .
. . . clearly defined, mutually exclusive, and collectively exhaustive aspects,
prop...
Mathematical Definition


Any facet can be described as a triple, consisting of
     the parent identifier id(t) (i. e. whos...
Famous facet examples


   Yelp lists lots of different burgers in San Francisco.
   The facets help you with choosing the...
Facettable Elements of a Topic


Names
    Names are very useful, but need careful spellchecking.
    Special Name types (...
Facettable Elements of a Topic



Roles
    A Topic plays a specific Role, or not. Roles can therefore be used as
    flag-l...
Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab)   September 30, 2010   10/23
Don’t they come automagically?

   Automatic generation of generic facets is possible (Ueberall et al. 2008).
   But: Info...
Overview



Introduction to Facets in Topic Maps


Defining Domain-Specific Facets With TMQL


A Short Example


Conclusions...
Why TMQL?


     TMQL makes navigating through a Topic Map very easy
     But: Full TMQL is much too powerful for our requ...
How to Define a Facet


Any facet definition resembles a simple path expression with the following
limitations
     The star...
Overview



Introduction to Facets in Topic Maps


Defining Domain-Specific Facets With TMQL


A Short Example


Conclusions...
Example Topic Map

Mission: Create an office-location-facet for every person.




                         Sven Windisch, D...
Navigating the Topic Map

http://psi.example.com/person
 >> traverse http://psi.example.com/mailing-address
 >> traverse h...
Navigating the Topic Map

http://psi.example.com/person
 >> traverse http://psi.example.com/mailing-address
 >> traverse h...
Navigating the Topic Map

http://psi.example.com/person
 >> traverse http://psi.example.com/mailing-address
 >> traverse h...
Navigating the Topic Map

http://psi.example.com/person
 >> traverse http://psi.example.com/mailing-address
 >> traverse h...
From TMQL to Facets in Three Simple Steps


http://psi.example.com/person
 >> traverse http://psi.example.com/mailing-addr...
Overview



Introduction to Facets in Topic Maps


Defining Domain-Specific Facets With TMQL


A Short Example


Conclusions...
Conclusions
    Domain-specific facets are useful wherever facets must link deeper.
    TMQL does a wonderful job for defini...
Defining Domain-Specific Facets for Topic Maps With TMQL Path Expressions
Upcoming SlideShare
Loading in...5
×

Defining Domain-Specific Facets for Topic Maps With TMQL Path Expressions

688

Published on

The automatic generation of facets works fairly bad for fine-modeled ontologies, in which not all information concerning a single Topic is available through occurrences and direct associations. In this paper, we share our conception of using TMQL path expressions for the definition of domain-specific facets by means of using standard-based Topic Maps technologies. The generated facets must be evaluated, even though they are defined manually by a domain expert. We therefore propose metrics for automatic evaluation of the defined facets, as well as a mechanism for using automatically stored user feedback.

Published in: Education
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
688
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
6
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Defining Domain-Specific Facets for Topic Maps With TMQL Path Expressions

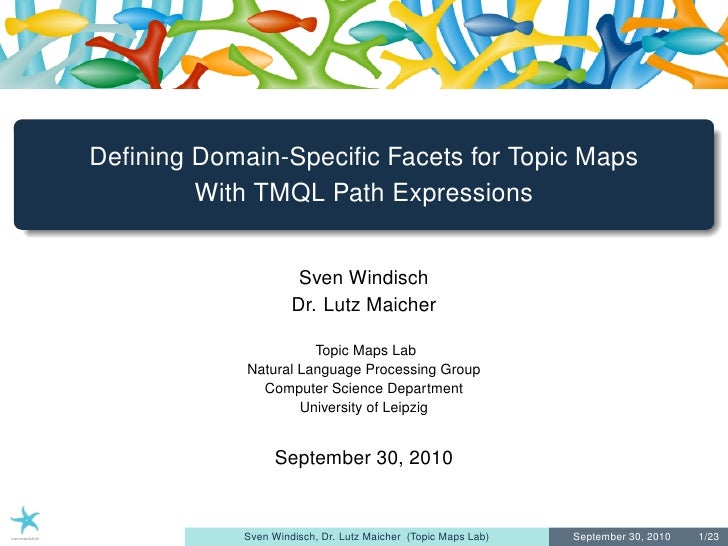

  1. 1. Defining Domain-Specific Facets for Topic Maps With TMQL Path Expressions Sven Windisch Dr. Lutz Maicher Topic Maps Lab Natural Language Processing Group Computer Science Department University of Leipzig September 30, 2010 Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 1/23
  2. 2. Agenda Introduction to Facets in Topic Maps Defining Domain-Specific Facets With TMQL A Short Example Conclusions and Outlook Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 2/23
  3. 3. Overview Introduction to Facets in Topic Maps Defining Domain-Specific Facets With TMQL A Short Example Conclusions and Outlook Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 3/23
  4. 4. Definition of facets Facets are . . . . . . clearly defined, mutually exclusive, and collectively exhaustive aspects, properties or characteristics of a specific subject. Example Some person has a name, a date of birth and a birthplace. These three characteristics are mutually exclusive and collectively exhaustive. They are facets of this person. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 4/23
  5. 5. Mathematical Definition Any facet can be described as a triple, consisting of the parent identifier id(t) (i. e. whose Topics facet is this) the name of the facet n (e. g. Department, Format, Binding) the value of the facet v (e. g. Paperback, Hardcover ) f = (id(t), n, v) Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 5/23
  6. 6. Famous facet examples Yelp lists lots of different burgers in San Francisco. The facets help you with choosing the one place that fits your need best. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 6/23
  7. 7. Facettable Elements of a Topic Names Names are very useful, but need careful spellchecking. Special Name types (e.g. Forename, Surname) provide a more concise classification. Occurrences Occurences with short values are fine for faceting. Again, careful spellchecking is necessary. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 8/23
  8. 8. Facettable Elements of a Topic Roles A Topic plays a specific Role, or not. Roles can therefore be used as flag-like facets. Topic Types Types of Topics are useful for distinguishing different kinds of search results. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 9/23
  9. 9. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 10/23
  10. 10. Don’t they come automagically? Automatic generation of generic facets is possible (Ueberall et al. 2008). But: Information needs of users are highly domain specific, while generic facets are not. Domain specific facets must cover more than the the Topics characteristics. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 11/23
  11. 11. Overview Introduction to Facets in Topic Maps Defining Domain-Specific Facets With TMQL A Short Example Conclusions and Outlook Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 12/23
  12. 12. Why TMQL? TMQL makes navigating through a Topic Map very easy But: Full TMQL is much too powerful for our requirements. The path expressions can do the whole job. Definition A path expression represents a sequence of navigation steps through the abstract bidirectional graph of a Topic Map. Starting from given values (atoms or items in a Topic Map), navigation steps along defined axes within the context map compute new values. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 13/23
  13. 13. How to Define a Facet Any facet definition resembles a simple path expression with the following limitations The starting element must be a Topic that serves as Topic type for other Topics. The possible result values are restricted to strings, because the names and values of facets must be human readable. The given Topic type identifier is replaced with the respective identifier of one of the instances. The TMQL expression is then executed and the result is stored as the facets value. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 14/23
  14. 14. Overview Introduction to Facets in Topic Maps Defining Domain-Specific Facets With TMQL A Short Example Conclusions and Outlook Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 15/23
  15. 15. Example Topic Map Mission: Create an office-location-facet for every person. Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 16/23
  16. 16. Navigating the Topic Map http://psi.example.com/person >> traverse http://psi.example.com/mailing-address >> traverse http://psi.example.com/container-containee-address >> characteristics tm:name Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 17/23
  17. 17. Navigating the Topic Map http://psi.example.com/person >> traverse http://psi.example.com/mailing-address >> traverse http://psi.example.com/container-containee-address >> characteristics tm:name Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 18/23
  18. 18. Navigating the Topic Map http://psi.example.com/person >> traverse http://psi.example.com/mailing-address >> traverse http://psi.example.com/container-containee-address >> characteristics tm:name Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 19/23
  19. 19. Navigating the Topic Map http://psi.example.com/person >> traverse http://psi.example.com/mailing-address >> traverse http://psi.example.com/container-containee-address >> characteristics tm:name Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 20/23
  20. 20. From TMQL to Facets in Three Simple Steps http://psi.example.com/person >> traverse http://psi.example.com/mailing-address >> traverse http://psi.example.com/container-containee-address >> characteristics tm:name http://psi.example.com/person is replaced by http://psi.example.com/Sven_Windisch The given query is executed, the result is Leipzig A new facet is created: (http://psi.example.com/Sven_Windisch, Office Location, Leipzig) Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 21/23
  21. 21. Overview Introduction to Facets in Topic Maps Defining Domain-Specific Facets With TMQL A Short Example Conclusions and Outlook Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 22/23
  22. 22. Conclusions Domain-specific facets are useful wherever facets must link deeper. TMQL does a wonderful job for defining domain-specific facets. Defining domain-specific facets is easy. The used Topic Map must be well modeled and spellchecked. Outlook Release: Maiana prototype in October, complete search engine at the end of 2010 Sven Windisch, Dr. Lutz Maicher (Topic Maps Lab) September 30, 2010 23/23
