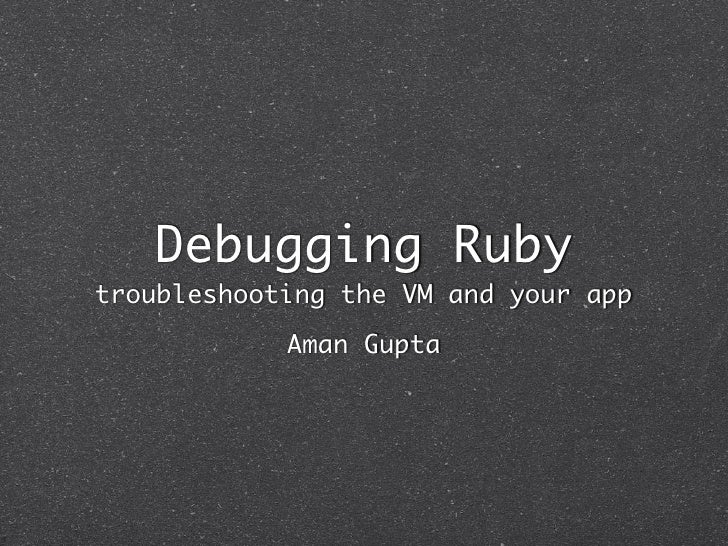

Debugging Ruby
troubleshooting the VM and your app
            Aman Gupta
About Aman Gupta
San Francisco, CA

Ruby Performance Consulting
(Twitter, Github, Heroku, ZenDesk)

Ruby Hero 2009

EventM...
The Ruby VM
MRI- Ruby 1.8.{6,7}

REE- Ruby 1.8.7 + patches

Tools for C code

Tested primarily on:

 Linux operating syste...
lsof
list open files


lsof -nPp <pid>
lsof -nPp <pid>
-n
Inhibits the conversion of network numbers to host names for
network files.

-P
Inhibits the conversion...
strace
trace system calls and signals


       strace -cp <pid>

 strace -ttTp <pid> -o <file>
strace -cp <pid>
-c
Count time, calls, and errors for each system call and report a
summary on program exit.

-p pid
Attac...
strace -ttTp <pid> -o <file>
-t
Prefix each line of the trace with the time of day.

-tt
If given twice, the time printed ...
stracing ruby: SIGVTALRM
   15:45:51.658164   --- SIGVTALRM (Virtual   timer expired) @ 0 (0) ---
   15:45:51.658244   rt_...
stracing ruby: sigprocmask
% time     seconds usecs/call      calls    errors syscall
------ ----------- ----------- -----...
tcpdump
dump traffic on a network

  tcpdump -i eth1 -s 1500 -nqA
         tcp dst port 80

  tcpdump -i eth0 -s 1500 -nqA...
tcpdump -i <eth> -s <len> -nqA <expr>
  tcpdump -i <eth> -w <file> <expr>
-i <eth>
Network interface.

-s <len>
Snarf len ...
tcp dst port 80
19:52:20.216294 IP 24.203.197.27.40105 > 174.37.48.236.80: tcp 438
E...*.@.l.%&.....%0....POx..%s.oP.........
google-perftools
       Google’s CPU profiler


       export LD_PRELOAD=libprofiler.so

export DYLD_INSERT_LIBRARIES=libp...
wget http://google-perftools.googlecode.com/files/google-
perftools-1.4.tar.gz                                 download
ta...
pprof ruby                                  pprof ruby
  ruby.prof --text                            ruby.prof --gif
Total...
Profiling MRI
                      10% of production VM
                      time spent in
                      rb_str_...
Profiling EM + threads
           Total: 3763 samples
            2764 73.5% catch_timer
             989 26.3% memcpy
   ...
ltrace
    trace library calls


      ltrace -cp <pid>

ltrace -ttTp <pid> -o <file>
ltrace -c ruby threaded_em.rb
         % time     seconds usecs/call      calls       function
         ------ -----------...
ltrace/libdl
  trace dlopen’d library calls



ltrace -F <conf> -bg -x <symbol>
            -p <pid>



http://github.com/...
ltrace -F <conf> -b -g -x <sym>
-b
Ignore signals.

-g
Ignore libraries linked at compile time.

-F <conf>
Read prototypes...
ltrace -x garbage_collect
     19:08:06.436926   garbage_collect()   =   <void>   <0.221679>
     19:08:15.329311   garbag...
gdb
 the GNU debugger


   gdb <program>
gdb <program> <pid>


  Be sure to build with:
           -ggdb
            -O0
gdb walkthrough
% gdb ./test-it           start gdb
(gdb) b average           set breakpoint on function named average
Bre...
Ruby VM stack traces
(gdb) where
#0 0x0002a55e in rb_call (klass=1386800, recv=5056455, mid=42, argc=1, argv=0xbfffe5c0,
s...
Debugging Ruby Segfaults
 test_segv.rb:4: [BUG] Segmentation fault
 ruby 1.8.7 (2008-08-11 patchlevel 72) [i686-darwin9.7....
1. Attach to running process
 $ ps aux | grep ruby
 joe 23611 0.0 0.1      25424   7540 S Dec01 0:00 ruby test_segv.rb

 $...
def test
  require 'segv'
  4.times do
    Dir.chdir '/tmp' do
       Hash.new{ segv }[0]
    end
  end     (gdb) where
en...
Enough C!

What about Ruby?
perftools.rb
      google-perftools for ruby

            gem install perftools.rb


export RUBYOPT=”-r`gem which perftool...
require 'sinatra'
                        $ ab -c 1 -n 50 http://127.0.0.1:4567/compute
                        $ ab -c 1 ...
CPUPROFILE_REALTIME=1
                         CPUPROFILE=app.prof
CPUPROFILE=app-rt.prof
redis-rb bottleneck
why is rubygems slow?
gdb.rb
  gdb with MRI hooks



      gdb.rb <pid>




http://github.com/tmm1/gdb.rb
def test
  require 'segv'
  4.times do
    Dir.chdir '/tmp' do
       Hash.new{ segv }[0]
    end
  end
end
            (g...
(gdb) ruby threads list
0x15890 main      thread   THREAD_STOPPED    WAIT_JOIN(0x19ef400)    4417   bytes
0x19ef4         ...
rails_warden leak
(gdb) ruby objects classes
    1197 MIME::Type
    2657 NewRelic::MetricSpec
    2719 TZInfo::TimezoneTr...
mongrel sleeper thread
0x16814c00         thread THREAD_STOPPED    WAIT_TIME(0.47) 1522 bytes
      node_fcall   sleep in ...
god memory leaks
(gdb) ruby objects arrays
 elements instances
                             43   God::Process
    94310 3
...
ruby method cache
                                                 (gdb) ruby methodcache
Module#extend wipes the         ...
bleak_house
       ruby memory leak detector

               gem install bleak_house


export RUBYOPT=”-r`gem which bleak_...
191691 total objects
Final heap size 191691 filled, 220961 free
Displaying top 20 most common line/class pairs
89513 __nul...
Coming soon:
bleak_house++
  no patches or need to recompile
  ruby
  “assembly metaprogramming” to
  setup a trampoline o...
Questions?

  @joedamato           @tmm1

timetobleed.com   github.com/tmm1



      Thanks for listening!
Upcoming SlideShare
Loading in...5
×

Debugging Ruby

13,009

Published on

Debugging Ruby: Understanding and Troubleshooting the VM and your Application

Published in: Technology, Education
2 Comments
32 Likes
Statistics
Notes
No Downloads
Views
Total Views
13,009
On Slideshare
0
From Embeds
0
Number of Embeds
3
Actions
Shares
0
Downloads
188
Comments
2
Likes
32
Embeds 0
No embeds

No notes for slide

Debugging Ruby

  1. 1. Debugging Ruby troubleshooting the VM and your app Aman Gupta
  2. 2. About Aman Gupta San Francisco, CA Ruby Performance Consulting (Twitter, Github, Heroku, ZenDesk) Ruby Hero 2009 EventMachine, amqp, REE, sinbook, perftools.rb, gdb.rb github.com/tmm1 @tmm1
  3. 3. The Ruby VM MRI- Ruby 1.8.{6,7} REE- Ruby 1.8.7 + patches Tools for C code Tested primarily on: Linux operating system Intel CPUs (i686 and x86_64)
  4. 4. lsof list open files lsof -nPp <pid>
  5. 5. lsof -nPp <pid> -n Inhibits the conversion of network numbers to host names for network files. -P Inhibits the conversion of port numbers to port names for network files FD TYPE SIZE NODE NAME json cwd DIR 4096 10437557 /var/www/myapp memcached rtd DIR 4096 2 / mysql txt REG 1925210 1089684 /usr/bin/ruby mem REG 48188 7061523 /json-1.1.9/ext/json/ext/generator.so http mem REG 46970 7061524 /json-1.1.9/ext/json/ext/parser.so mem REG 3428025 1131339 /memcached-0.17.4/lib/rlibmemcached.so mem REG 152972 5303443 /mysql-2.8.1/lib/mysql_api.so mem REG 154013 1089708 /usr/lib/libtcmalloc_minimal.so.0.0.0 mem REG 119288 11616294 /lib/ld-2.7.so 0u CHR 303 /dev/null 1w REG 4746405529 1106245 /usr/local/nginx/logs/error.log 2w REG 4746405529 1106245 /usr/local/nginx/logs/error.log 3u IPv4 TCP 10.8.85.66:33326->10.8.85.68:3306 (ESTABLISHED) 10u IPv4 TCP 10.8.85.66:33327->10.8.85.68:3306 (ESTABLISHED) 11u IPv4 TCP 127.0.0.1:58273->127.0.0.1:11211 (ESTABLISHED) 12u REG 20182 12463107 /tmp/RackMultipart.28957.0 33u IPv4 TCP 174.36.83.42:37466->69.63.180.21:80 (ESTABLISHED)
  6. 6. strace trace system calls and signals strace -cp <pid> strace -ttTp <pid> -o <file>
  7. 7. strace -cp <pid> -c Count time, calls, and errors for each system call and report a summary on program exit. -p pid Attach to the process with the process ID pid and begin tracing. % time seconds usecs/call calls errors syscall ------ ----------- ----------- --------- --------- ---------------- 50.39 0.000064 0 1197 592 read 34.65 0.000044 0 609 writev 14.96 0.000019 0 1226 epoll_ctl 0.00 0.000000 0 4 close 0.00 0.000000 0 1 select 0.00 0.000000 0 4 socket 0.00 0.000000 0 4 4 connect 0.00 0.000000 0 1057 epoll_wait ------ ----------- ----------- --------- --------- ---------------- 100.00 0.000127 4134 596 total
  8. 8. strace -ttTp <pid> -o <file> -t Prefix each line of the trace with the time of day. -tt If given twice, the time printed will include the microseconds. -T Show the time spent in system calls. This records the time difference between the beginning and the end of each system call. -o filename Write the trace output to the file filename rather than to stderr. 01:09:11.266949 epoll_wait(9, {{EPOLLIN, {u32=68841296, u64=68841296}}}, 4096, 50) = 1 <0.033109> 01:09:11.300102 accept(10, {sa_family=AF_INET, sin_port=38313, sin_addr="127.0.0.1"}, [1226]) = 22 <0.000014> 01:09:11.300190 fcntl(22, F_GETFL) = 0x2 (flags O_RDWR) <0.000007> 01:09:11.300237 fcntl(22, F_SETFL, O_RDWR|O_NONBLOCK) = 0 <0.000008> 01:09:11.300277 setsockopt(22, SOL_TCP, TCP_NODELAY, [1], 4) = 0 <0.000008> 01:09:11.300489 accept(10, 0x7fff5d9c07d0, [1226]) = -1 EAGAIN <0.000014> 01:09:11.300547 epoll_ctl(9, EPOLL_CTL_ADD, 22, {EPOLLIN, {u32=108750368, u64=108750368}}) = 0 <0.000009> 01:09:11.300593 epoll_wait(9, {{EPOLLIN, {u32=108750368, u64=108750368}}}, 4096, 50) = 1 <0.000007> 01:09:11.300633 read(22, "GET / HTTP/1.1r"..., 16384) = 772 <0.000012> 01:09:11.301727 rt_sigprocmask(SIG_SETMASK, [], NULL, 8) = 0 <0.000007> 01:09:11.302095 poll([{fd=5, events=POLLIN|POLLPRI}], 1, 0) = 0 (Timeout) <0.000008> 01:09:11.302144 write(5, "1000000-0003SELECT * FROM `table`"..., 56) = 56 <0.000023> 01:09:11.302221 read(5, "25101,20x234m"..., 16384) = 284 <1.300897>
  9. 9. stracing ruby: SIGVTALRM 15:45:51.658164 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.658244 rt_sigreturn(0x1a) = 2207807 <0.000009> 15:45:51.678208 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.678271 rt_sigreturn(0x1a) = 0 <0.000009> 15:45:51.698161 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.698216 rt_sigreturn(0x1a) = 140734552062624 <0.000009> 15:45:51.718154 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.718192 rt_sigreturn(0x1a) = 140734552066688 <0.000009> 15:45:51.738185 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.738221 rt_sigreturn(0x1a) = 11333952 <0.000008> 15:45:51.758162 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.758216 rt_sigreturn(0x1a) = 0 <0.000009> 15:45:51.818168 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- 15:45:51.819817 rt_sigreturn(0x1a) = 1 <0.000010> 15:45:51.838196 --- SIGVTALRM (Virtual timer expired) @ 0 (0) --- ruby 1.8 uses signals to schedule its green threads process receives a SIGVTALRM signal every 10ms
  10. 10. stracing ruby: sigprocmask % time seconds usecs/call calls errors syscall ------ ----------- ----------- --------- --------- ---------------- 100.00 0.326334 0 3568567 rt_sigprocmask 0.00 0.000000 0 9 read 0.00 0.000000 0 10 open 0.00 0.000000 0 10 close 0.00 0.000000 0 9 fstat 0.00 0.000000 0 25 mmap ------ ----------- ----------- --------- --------- ---------------- 100.00 0.326334 3568685 0 total debian/redhat compile ruby with --enable-pthread uses a native thread timer for SIGVTALRM causes excessive calls to sigprocmask: 30% slowdown!
  11. 11. tcpdump dump traffic on a network tcpdump -i eth1 -s 1500 -nqA tcp dst port 80 tcpdump -i eth0 -s 1500 -nqA tcp dst port 3306 tcpdump -i eth1 -s 1500 -w <file> tcp dst port 80
  12. 12. tcpdump -i <eth> -s <len> -nqA <expr> tcpdump -i <eth> -w <file> <expr> -i <eth> Network interface. -s <len> Snarf len bytes of data from each packet. -n Don't convert addresses (host addresses, port numbers) to names. -q Quiet output. Print less protocol information. -A Print each packet (minus its link level header) in ASCII. -w <file> Write the raw packets to file rather than printing them out. <expr> libpcap expression, for example: tcp src port 80 tcp dst port 3306
  13. 13. tcp dst port 80 19:52:20.216294 IP 24.203.197.27.40105 > 174.37.48.236.80: tcp 438 E...*.@.l.%&.....%0....POx..%s.oP.......GET /poll_images/cld99erh0/logo.png HTTP/1.1 Accept: */* Referer: http://apps.facebook.com/realpolls/?_fb_q=1 tcp dst port 3306 19:51:06.501632 IP 10.8.85.66.50443 > 10.8.85.68.3306: tcp 98 E..."K@.@.Yy .UB .UD.....z....L............ GZ.y3b..[......W....SELECT * FROM `votes` WHERE (`poll_id` = 72621) LIMIT 1 tcpdump -w <file>
  14. 14. google-perftools Google’s CPU profiler export LD_PRELOAD=libprofiler.so export DYLD_INSERT_LIBRARIES=libprofiler.dylib CPUPROFILE=/tmp/myprof ./myapp pprof ./myapp /tmp/myprof
  15. 15. wget http://google-perftools.googlecode.com/files/google- perftools-1.4.tar.gz download tar zxvf google-perftools-1.4.tar.gz cd google-perftools-1.4 ./configure --prefix=/opt make compile sudo make install # for linux export LD_PRELOAD=/opt/lib/libprofiler.so setup # for osx export DYLD_INSERT_LIBRARIES=/opt/lib/libprofiler.dylib CPUPROFILE=/tmp/ruby.prof ruby -e' profile 5_000_000.times{ "hello world" } ' pprof `which ruby` --text /tmp/ruby.prof report
  16. 16. pprof ruby pprof ruby ruby.prof --text ruby.prof --gif Total: 103 samples 20 19.4% 19.4% 95 92.2% rb_yield_0 11 10.7% 30.1% 103 100.0% rb_eval 8 7.8% 37.9% 12 11.7% gc_sweep 3 2.9% 68.9% 52 50.5% rb_str_new3 3 2.9% 74.8% 3 2.9% obj_free 3 2.9% 77.7% 103 100.0% int_dotimes 3 2.9% 80.6% 12 11.7% gc_mark
  17. 17. Profiling MRI 10% of production VM time spent in rb_str_sub_bang String#sub! called from Time.parse return unless str.sub!(/A(d{1,2})/, '') return unless str.sub!(/A( d|d{1,2})/, '') return unless str.sub!(/A( d|d{1,2})/, '') return unless str.sub!(/A(d{1,3})/, '') return unless str.sub!(/A(d{1,2})/, '') return unless str.sub!(/A(d{1,2})/, '') switch to third_base gem ThirdBase: Fast and Easy Date/DateTime class for Ruby
  18. 18. Profiling EM + threads Total: 3763 samples 2764 73.5% catch_timer 989 26.3% memcpy 3 0.1% st_lookup 2 0.1% rb_thread_schedule 1 0.0% rb_eval 1 0.0% rb_newobj 1 0.0% rb_gc_force_recycle known issue: EM+threads = slow memcpy?? thread context switches copy the stack w/ memcpy EM allocates huge buffer on the stack solution: move buffer to the heap
  19. 19. ltrace trace library calls ltrace -cp <pid> ltrace -ttTp <pid> -o <file>
  20. 20. ltrace -c ruby threaded_em.rb % time seconds usecs/call calls function ------ ----------- ----------- --------- -------------------- 48.65 11.741295 617 19009 memcpy 30.16 7.279634 831 8751 longjmp 9.78 2.359889 135 17357 _setjmp 8.91 2.150565 285 7540 malloc 1.10 0.265946 20 13021 memset 0.81 0.195272 19 10105 __ctype_b_loc 0.35 0.084575 19 4361 strcmp 0.19 0.046163 19 2377 strlen 0.03 0.006272 23 265 realloc ------ ----------- ----------- --------- -------------------- 100.00 24.134999 82999 total ltrace -ttT -e memcpy ruby threaded_em.rb 01:24:48.769408 --- SIGVTALRM (Virtual timer expired) --- 01:24:48.769616 memcpy(0x1216000, "", 1086328) = 0x1216000 <0.000578> 01:24:48.770555 memcpy(0x6e32670, "240&343v", 1086328) = 0x6e32670 <0.000418> 01:24:49.899414 --- SIGVTALRM (Virtual timer expired) --- 01:24:49.899490 memcpy(0x1320000, "", 1082584) = 0x1320000 <0.000628> 01:24:49.900474 memcpy(0x6e32670, "", 1086328) = 0x6e32670 <0.000479>
  21. 21. ltrace/libdl trace dlopen’d library calls ltrace -F <conf> -bg -x <symbol> -p <pid> http://github.com/ice799/ltrace/tree/libdl
  22. 22. ltrace -F <conf> -b -g -x <sym> -b Ignore signals. -g Ignore libraries linked at compile time. -F <conf> Read prototypes from config file. -x <sym> Trace calls to the function sym. -s <num> Show first num bytes of string args. -F ltrace.conf int mysql_real_query(addr,string,ulong); void garbage_collect(void); int memcached_set(addr,string,ulong,string,ulong);
  23. 23. ltrace -x garbage_collect 19:08:06.436926 garbage_collect() = <void> <0.221679> 19:08:15.329311 garbage_collect() = <void> <0.187546> 19:08:17.662149 garbage_collect() = <void> <0.199200> 19:08:20.486655 garbage_collect() = <void> <0.205864> 19:08:25.102302 garbage_collect() = <void> <0.214295> 19:08:35.552337 garbage_collect() = <void> <0.189172> ltrace -x mysql_real_query 19:09:11.493395 mysql_real_query(0x19c7a500, "SELECT * FROM `users`", 21) = 0 <1.206506> 19:09:16.630981 mysql_real_query(0x1c9e0500, "SET NAMES 'UTF8'", 16) = 0 <0.000324> 19:09:16.631446 mysql_real_query(0x1c9e0500, "SET SQL_AUTO_IS_NULL=0", 22) = 0 <0.000322> 19:09:16.654231 mysql_real_query(0x1c9e0500, "COMMIT", 6) = 0 <0.000181> ltrace -x memcached_set memcached_set(0x15d46b80, "Status:5456561633", 21, "004bo:01{", 366) = 0 <0.001116> memcached_set(0x15d46b80, "Status:5453277696", 21, "004bo:01{", 333) = 0 <0.000224> memcached_set(0x15d46b80, "Status:5435377757", 21, "004bo:01{", 298) = 0 <0.001850> memcached_set(0x15d46b80, "Status:5435122010", 21, "004bo:01{", 302) = 0 <0.000530> memcached_set(0x15d46b80, "Status:5407037167", 21, "004bo:01{", 318) = 0 <0.000291> memcached_set(0x15d46b80, "Status:5405690802", 21, "004bo:01{", 299) = 0 <0.000658> memcached_set(0x15d46b80, "Status:5343957534", 21, "004bo:01{", 264) = 0 <0.000243>
  24. 24. gdb the GNU debugger gdb <program> gdb <program> <pid> Be sure to build with: -ggdb -O0
  25. 25. gdb walkthrough % gdb ./test-it start gdb (gdb) b average set breakpoint on function named average Breakpoint 1 at 0x1f8e: file test-it.c, line 3. (gdb) run run program Starting program: /Users/joe/test-it Reading symbols for shared libraries ++. done Breakpoint 1, average (x=5, y=6) at test-it.c:3 hit breakpoint! 3 int sum = x + y; (gdb) bt show backtrace #0 average (x=5, y=6) at test-it.c:3 function stack #1 0x00001fec in main () at test-it.c:12 (gdb) s 4 double avg = sum / 2.0; single step (gdb) s 5 return avg; (gdb) p avg $1 = 5.5 print variables (gdb) p sum $2 = 11
  26. 26. Ruby VM stack traces (gdb) where #0 0x0002a55e in rb_call (klass=1386800, recv=5056455, mid=42, argc=1, argv=0xbfffe5c0, scope=0, self=1403220) at eval.c:6125 #1 0x000226ef in rb_eval (self=1403220, n=0x1461e4) at eval.c:3493 #2 0x00026d01 in rb_yield_0 (val=5056455, self=1403220, klass=0, flags=0, avalue=0) at eval.c:5083 #3 0x000270e8 in rb_yield (val=5056455) at eval.c:5168 #4 0x0005c30c in int_dotimes (num=1000000001) at numeric.c:2946 #5 0x00029be3 in call_cfunc (func=0x5c2a0 <int_dotimes>, recv=1000000001, len=0, argc=0, argv=0x0) at eval.c:5759 #6 0x00028fd4 in rb_call0 (klass=1387580, recv=1000000001, id=5785, oid=5785, argc=0, argv=0x0, body=0x152b24, flags=0) at eval.c:5911 #7 0x0002a7a7 in rb_call (klass=1387580, recv=1000000001, mid=5785, argc=0, argv=0x0, scope=0, self=1403220) at eval.c:6158 #8 0x000226ef in rb_eval (self=1403220, n=0x146284) at eval.c:3493 #9 0x000213e3 in rb_eval (self=1403220, n=0x1461a8) at eval.c:3223 #10 0x0001ceea in eval_node (self=1403220, node=0x1461a8) at eval.c:1437 #11 0x0001d60f in ruby_exec_internal () at eval.c:1642 #12 0x0001d660 in ruby_exec () at eval.c:1662 #13 0x0001d68e in ruby_run () at eval.c:1672 #14 0x000023dc in main (argc=2, argv=0xbffff7c4, envp=0xbffff7d0) at main.c:48 rb_eval recursively executes ruby code in 1.8
  27. 27. Debugging Ruby Segfaults test_segv.rb:4: [BUG] Segmentation fault ruby 1.8.7 (2008-08-11 patchlevel 72) [i686-darwin9.7.0] def test #include "ruby.h" require 'segv' 4.times do VALUE Dir.chdir '/tmp' do segv() Hash.new{ segv }[0] { end VALUE array[1]; end array[1000000] = NULL; end return Qnil; } sleep 10 test() void Init_segv() { rb_define_method(rb_cObject, "segv", segv, 0); }
  28. 28. 1. Attach to running process $ ps aux | grep ruby joe 23611 0.0 0.1 25424 7540 S Dec01 0:00 ruby test_segv.rb $ sudo gdb ruby 23611 Attaching to program: ruby, process 23611 0x00007fa5113c0c93 in nanosleep () from /lib/libc.so.6 (gdb) c Continuing. Program received signal SIGBUS, Bus error. segv () at segv.c:7 7 array[1000000] = NULL; 2. Use a coredump Process.setrlimit Process::RLIMIT_CORE, 300*1024*1024 $ sudo mkdir /cores $ sudo chmod 777 /cores $ sudo sysctl kernel.core_pattern=/cores/%e.core.%s.%p.%t $ sudo gdb ruby /cores/ruby.core.6.23611.1259781224
  29. 29. def test require 'segv' 4.times do Dir.chdir '/tmp' do Hash.new{ segv }[0] end end (gdb) where end #0 segv () at segv.c:7 #1 0x000000000041f2be in call_cfunc () at eval.c:5727 test() ... #13 0x000000000043ba8c in rb_hash_default () at hash.c:521 ... #19 0x000000000043b92a in rb_hash_aref () at hash.c:429 ... #26 0x00000000004bb7bc in chdir_yield () at dir.c:728 #27 0x000000000041d8d7 in rb_ensure () at eval.c:5528 #28 0x00000000004bb93a in dir_s_chdir () at dir.c:816 ... #35 0x000000000041c444 in rb_yield () at eval.c:5142 #36 0x0000000000450690 in int_dotimes () at numeric.c:2834 ... #48 0x0000000000412a90 in ruby_run () at eval.c:1678 #49 0x000000000041014e in main () at main.c:48
  30. 30. Enough C! What about Ruby?
  31. 31. perftools.rb google-perftools for ruby gem install perftools.rb export RUBYOPT=”-r`gem which perftools | tail -1`” CPUPROFILE=/tmp/myprof ruby myapp.rb pprof.rb /tmp/myprof http://github.com/tmm1/perftools.rb
  32. 32. require 'sinatra' $ ab -c 1 -n 50 http://127.0.0.1:4567/compute $ ab -c 1 -n 50 http://127.0.0.1:4567/sleep get '/sleep' do sleep 0.25 Sampling profiler: 'done' end 232 samples total get '/compute' do 83 samples were in /compute proc{ |n| a,b=0,1 118 samples had /compute on n.times{ a,b = b,a+b } the stack but were in b another function }.call(10_000) 'done' /compute accounts for 50% of process, but only 35% of end time was in /compute itself == Sinatra has ended his set (crowd applauds) PROFILE: interrupts/evictions/bytes = 232/0/2152 Total: 232 samples 83 35.8% 35.8% 118 50.9% Sinatra::Application#GET /compute 56 24.1% 59.9% 56 24.1% garbage_collector 35 15.1% 75.0% 113 48.7% Integer#times
  33. 33. CPUPROFILE_REALTIME=1 CPUPROFILE=app.prof CPUPROFILE=app-rt.prof
  34. 34. redis-rb bottleneck
  35. 35. why is rubygems slow?
  36. 36. gdb.rb gdb with MRI hooks gdb.rb <pid> http://github.com/tmm1/gdb.rb
  37. 37. def test require 'segv' 4.times do Dir.chdir '/tmp' do Hash.new{ segv }[0] end end end (gdb) ruby threads test() 0xa3e000 main curr thread THREAD_RUNNABLE WAIT_NONE node_vcall segv in test_segv.rb:5 node_call test in test_segv.rb:5 node_call call in test_segv.rb:5 node_call default in test_segv.rb:5 node_call [] in test_segv.rb:5 node_call test in test_segv.rb:4 node_call chdir in test_segv.rb:4 node_call test in test_segv.rb:3 node_call times in test_segv.rb:3 node_vcall test in test_segv.rb:9
  38. 38. (gdb) ruby threads list 0x15890 main thread THREAD_STOPPED WAIT_JOIN(0x19ef400) 4417 bytes 0x19ef4 thread THREAD_STOPPED WAIT_TIME(57.10) 6267 bytes 0x19e34 thread THREAD_STOPPED WAIT_FD(5) 10405 bytes 0x19dc4 thread THREAD_STOPPED WAIT_NONE 14237 bytes 0x19dc8 thread THREAD_STOPPED WAIT_NONE 14237 bytes 0x19dcc thread THREAD_STOPPED WAIT_NONE 14237 bytes 0x22668 thread THREAD_STOPPED WAIT_NONE 14237 bytes 0x1d630 curr thread THREAD_RUNNABLE WAIT_NONE (gdb) ruby eval 1+2 (gdb) ruby objects 3 HEAPS 8 (gdb) ruby eval Thread.current SLOTS 1686252 #<Thread:0x1d630 run> LIVE 893327 (52.98%) (gdb) ruby eval Thread.list.size FREE 792925 (47.02%) 8 scope 1641 (0.18%) (gdb) ruby objects strings regexp 2255 (0.25%) 140 u'lib' data 3539 (0.40%) 158 u'0' class 3680 (0.41%) 294 u'n' hash 6196 (0.69%) 619 u'' object 8785 (0.98%) array 13850 (1.55%) 30503 unique strings string 105350 (11.79%) 3187435 bytes node 742346 (83.10%)
  39. 39. rails_warden leak (gdb) ruby objects classes 1197 MIME::Type 2657 NewRelic::MetricSpec 2719 TZInfo::TimezoneTransitionInfo 4124 Warden::Manager 4124 MethodOverrideForAll 4124 AccountMiddleware 4124 Rack::Cookies 4125 ActiveRecord::ConnectionAdapters::ConnectionManagement 4125 ActionController::Session::CookieStore 4125 ActionController::Failsafe 4125 ActionController::ParamsParser 4125 Rack::Lock 4125 ActionController::Dispatcher 4125 ActiveRecord::QueryCache 4125 ActiveSupport::MessageVerifier 4125 Rack::Head middleware chain leaking per request
  40. 40. mongrel sleeper thread 0x16814c00 thread THREAD_STOPPED WAIT_TIME(0.47) 1522 bytes node_fcall sleep in lib/mongrel/configurator.rb:285 node_fcall run in lib/mongrel/configurator.rb:285 node_fcall loop in lib/mongrel/configurator.rb:285 node_call run in lib/mongrel/configurator.rb:285 node_call initialize in lib/mongrel/configurator.rb:285 node_call new in lib/mongrel/configurator.rb:285 node_call run in bin/mongrel_rails:128 node_call run in lib/mongrel/command.rb:212 node_call run in bin/mongrel_rails:281 node_fcall (unknown) in bin/mongrel_rails:19 def run @listeners.each {|name,s| s.run } $mongrel_sleeper_thread = Thread.new { loop { sleep 1 } } end
  41. 41. god memory leaks (gdb) ruby objects arrays elements instances 43 God::Process 94310 3 43 God::Watch 94311 3 43 God::Driver 94314 2 43 God::DriverEventQueue 94316 1 43 God::Conditions::MemoryUsage 43 God::Conditions::ProcessRunning 5369 arrays 43 God::Behaviors::CleanPidFile 2863364 member elements 45 Process::Status 86 God::Metric many arrays with 327 God::System::SlashProcPoller 90k+ elements! 327 God::System::Process 406 God::DriverEvent 5 separate god leaks fixed by Eric Lindvall with the help of gdb.rb!
  42. 42. ruby method cache (gdb) ruby methodcache Module#extend wipes the UnboundMethod#arity Hash#[]= entire method cache! Class#private Array#freeze (gdb) b rb_clear_cache Module#Integer Breakpoint 1 at 0x41067b: file eval.c, line 351. Fixnum#< (gdb) c Class#is_a? Continuing. Fixnum#+ Class#protected Breakpoint 1, rb_clear_cache () at eval.c:351 Class#>= 351 if (!ruby_running) return; (gdb) ruby threads 2028 empty slots (99.02%) 0x1623000 main curr thread THREAD_RUNNABLE WAIT_NONE node_call extend_object in sin.rb:23 node_call extend in sin.rb:23 node_call GET /other in lib/sinatra/base.rb:779 node_call GET /other in lib/sinatra/base.rb:779 node_call call in lib/sinatra/base.rb:779 node_fcall route in lib/sinatra/base.rb:474
  43. 43. bleak_house ruby memory leak detector gem install bleak_house export RUBYOPT=”-r`gem which bleak_house | tail -1`” ruby-bleak-house myapp.rb bleak /tmp/bleak.5979.000.dump http://github.com/fauna/bleak_house
  44. 44. 191691 total objects Final heap size 191691 filled, 220961 free Displaying top 20 most common line/class pairs 89513 __null__:__null__:__node__ 41438 __null__:__null__:String 2348 lib/ruby/site_ruby/1.8/rubygems/specification.rb:557:Array 1508 lib/ruby/gems/1.8/specifications/gettext-1.9.gemspec:14:String 1021 lib/ruby/gems/1.8/specifications/heel-0.2.0.gemspec:14:String 951 lib/ruby/site_ruby/1.8/rubygems/version.rb:111:String 935 lib/ruby/site_ruby/1.8/rubygems/specification.rb:557:String 834 lib/ruby/site_ruby/1.8/rubygems/version.rb:146:Array BleakHouse installs a patched version of ruby: ruby-bleak- house unlike gdb.rb, see where objects were created (file:line) create multiple dumps over time with `kill -USR2 <pid>` and compare to find leaks
  45. 45. Coming soon: bleak_house++ no patches or need to recompile ruby “assembly metaprogramming” to setup a trampoline on rb_new_obj http://timetobleed.com/rewrite- your-ruby-vm-at-runtime-to-hot- patch-useful-features/ memory profiler coredump a production ruby process load the core to generate profiles of memory usage and leaks
  46. 46. Questions? @joedamato @tmm1 timetobleed.com github.com/tmm1 Thanks for listening!
