Three Key Concepts for Understanding JSR-352: Batch Programming for the Java Platform

  1. 1. Timothy C. Fanelli - Senior IT Specialist 23 September 2013 Three Key Concepts for Understanding JSR-352: Batch Applications for the Java Platform © 2013 IBM Corporation
  2. 2. Important Disclaimers THE INFORMATION CONTAINED IN THIS PRESENTATION IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY. WHILST EFFORTS WERE MADE TO VERIFY THE COMPLETENESS AND ACCURACY OF THE INFORMATION CONTAINED IN THIS PRESENTATION, IT IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. ALL PERFORMANCE DATA INCLUDED IN THIS PRESENTATION HAVE BEEN GATHERED IN A CONTROLLED ENVIRONMENT. YOUR OWN TEST RESULTS MAY VARY BASED ON HARDWARE, SOFTWARE OR INFRASTRUCTURE DIFFERENCES. ALL DATA INCLUDED IN THIS PRESENTATION ARE MEANT TO BE USED ONLY AS A GUIDE. IN ADDITION, THE INFORMATION CONTAINED IN THIS PRESENTATION IS BASED ON IBM’S CURRENT PRODUCT PLANS AND STRATEGY, WHICH ARE SUBJECT TO CHANGE BY IBM, WITHOUT NOTICE. IBM AND ITS AFFILIATED COMPANIES SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE OF, OR OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION. NOTHING CONTAINED IN THIS PRESENTATION IS INTENDED TO, OR SHALL HAVE THE EFFECT OF: - CREATING ANY WARRANT OR REPRESENTATION FROM IBM, ITS AFFILIATED COMPANIES OR ITS OR THEIR SUPPLIERS AND/OR LICENSORS 2 © 2013 IBM Corporation
  3. 3. About me § Timothy C. Fanelli § Senior IT Specialist, IBM - Mainframe Workload Modernization § Instructor of Software Engineering Clarkson University, Potsdam NY § tim@timfanelli.com § tfanelli@us.ibm.com, tfanelli@clarkson.edu § Visit the IBM booth #5112 and meet other IBM developers at JavaOne 2013 3 © 2013 IBM Corporation
  4. 4. Agenda § Background § Three Key Concepts – Implementation – Orchestration – Execution § An Example JSR 352 Application § Advanced Topics – Splits and Flows – Partitioning – Java EE § Conclusion and Thoughts on What’s Next... 4 © 2013 IBM Corporation
  5. 5. Background © 2013 IBM Corporation

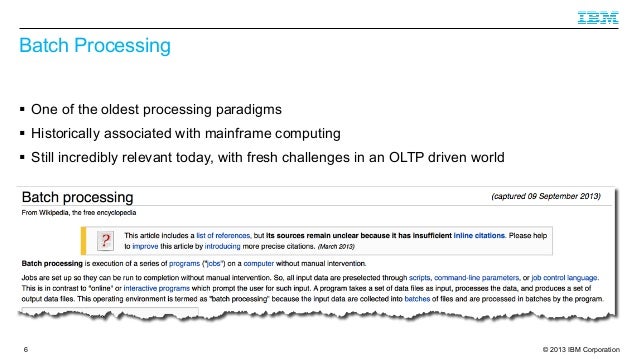

  6. 6. Batch Processing § One of the oldest processing paradigms § Historically associated with mainframe computing § Still incredibly relevant today, with fresh challenges in an OLTP driven world 6 © 2013 IBM Corporation

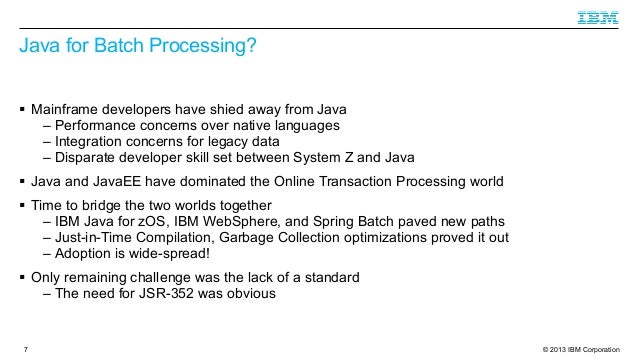

  7. 7. Java for Batch Processing? § Mainframe developers have shied away from Java – Performance concerns over native languages – Integration concerns for legacy data – Disparate developer skill set between System Z and Java § Java and JavaEE have dominated the Online Transaction Processing world § Time to bridge the two worlds together – IBM Java for zOS, IBM WebSphere, and Spring Batch paved new paths – Just-in-Time Compilation, Garbage Collection optimizations proved it out – Adoption is wide-spread! § Only remaining challenge was the lack of a standard – The need for JSR-352 was obvious 7 © 2013 IBM Corporation

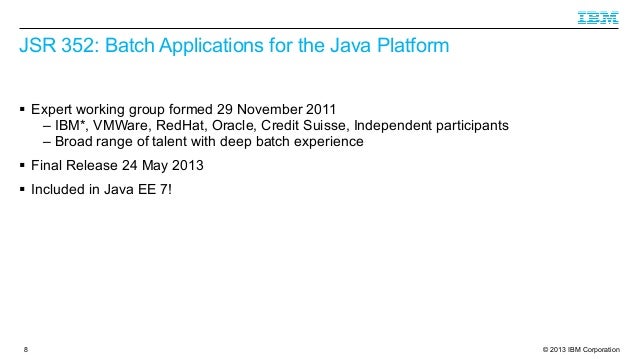

  8. 8. JSR 352: Batch Applications for the Java Platform § Expert working group formed 29 November 2011 – IBM*, VMWare, RedHat, Oracle, Credit Suisse, Independent participants – Broad range of talent with deep batch experience § Final Release 24 May 2013 § Included in Java EE 7! 8 © 2013 IBM Corporation
  9. 9. Three Key Concepts... © 2013 IBM Corporation

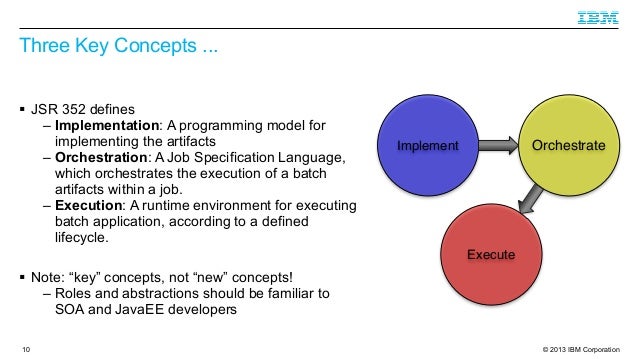

  10. 10. Three Key Concepts ... § JSR 352 defines – Implementation: A programming model for implementing the artifacts – Orchestration: A Job Specification Language, which orchestrates the execution of a batch artifacts within a job. – Execution: A runtime environment for executing batch application, according to a defined lifecycle. Orchestrate Implement Execute § Note: “key” concepts, not “new” concepts! – Roles and abstractions should be familiar to SOA and JavaEE developers 10 © 2013 IBM Corporation
  11. 11. Anatomy of JSR352 § Those concepts define the anatomy of JSR 352: Batch Applications for the Java Platform... Listeners Contexts Listeners Partitioning Batchlet Orchestrate Implement Job Operator Job Reader Step Processor Chunk Writer Execute Job Repository Chunk Chunk Chunk Listeners 11 © 2013 IBM Corporation

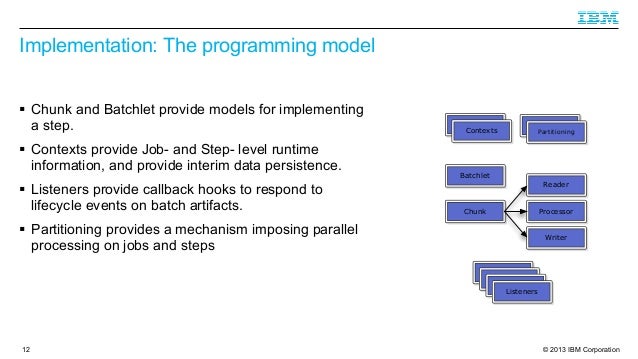

  12. 12. Implementation: The programming model § Chunk and Batchlet provide models for implementing a step. § Contexts provide Job- and Step- level runtime information, and provide interim data persistence. § Listeners provide callback hooks to respond to lifecycle events on batch artifacts. Listeners Contexts Listeners Partitioning Batchlet Reader Processor Chunk § Partitioning provides a mechanism imposing parallel processing on jobs and steps Writer Chunk Chunk Chunk Listeners 12 © 2013 IBM Corporation

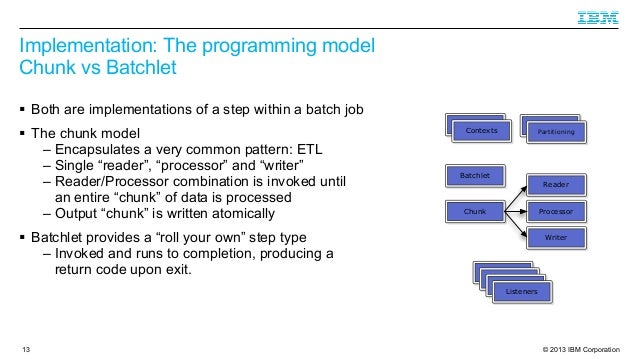

  13. 13. Implementation: The programming model Chunk vs Batchlet § Both are implementations of a step within a batch job § The chunk model – Encapsulates a very common pattern: ETL – Single “reader”, “processor” and “writer” – Reader/Processor combination is invoked until an entire “chunk” of data is processed – Output “chunk” is written atomically § Batchlet provides a “roll your own” step type – Invoked and runs to completion, producing a return code upon exit. 13 Listeners Contexts Listeners Partitioning Batchlet Reader Processor Chunk Writer Chunk Chunk Chunk Listeners © 2013 IBM Corporation

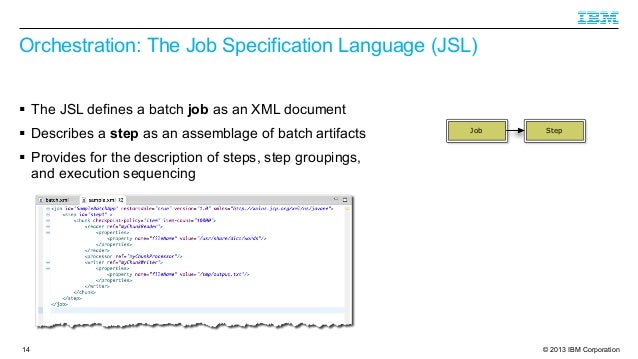

  14. 14. Orchestration: The Job Specification Language (JSL) § The JSL defines a batch job as an XML document § Describes a step as an assemblage of batch artifacts Job Step § Provides for the description of steps, step groupings, and execution sequencing 14 © 2013 IBM Corporation

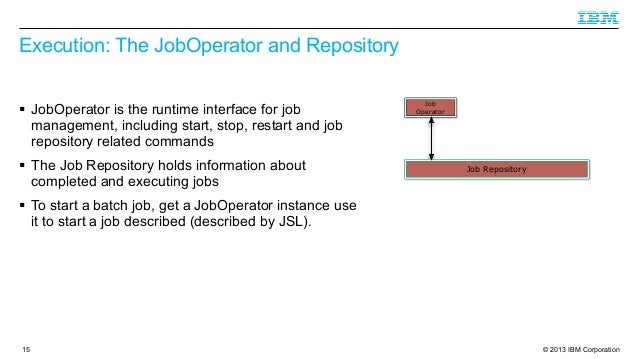

  15. 15. Execution: The JobOperator and Repository § JobOperator is the runtime interface for job management, including start, stop, restart and job repository related commands § The Job Repository holds information about completed and executing jobs Job Operator Job Repository § To start a batch job, get a JobOperator instance use it to start a job described (described by JSL). 15 © 2013 IBM Corporation

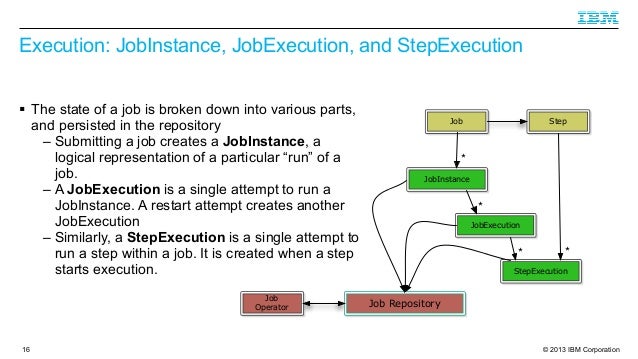

  16. 16. Execution: JobInstance, JobExecution, and StepExecution § The state of a job is broken down into various parts, and persisted in the repository – Submitting a job creates a JobInstance, a logical representation of a particular “run” of a job. – A JobExecution is a single attempt to run a JobInstance. A restart attempt creates another JobExecution – Similarly, a StepExecution is a single attempt to run a step within a job. It is created when a step starts execution. Job Operator 16 Job Step * JobInstance * JobExecution * * StepExecution Job Repository © 2013 IBM Corporation
  17. 17. An Example JSR 352 Application © 2013 IBM Corporation

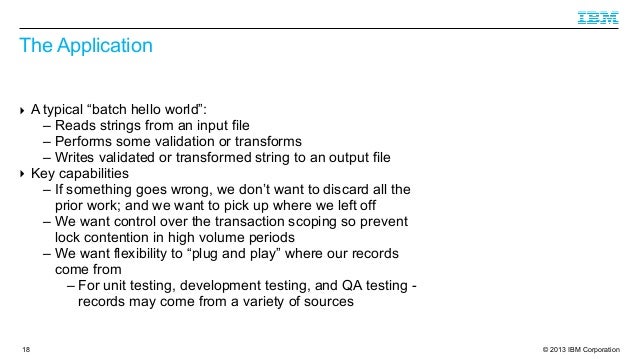

  18. 18. The Application ‣ A typical “batch hello world”: – Reads strings from an input file – Performs some validation or transforms – Writes validated or transformed string to an output file ‣ Key capabilities – If something goes wrong, we don’t want to discard all the prior work; and we want to pick up where we left off – We want control over the transaction scoping so prevent lock contention in high volume periods – We want flexibility to “plug and play” where our records come from – For unit testing, development testing, and QA testing records may come from a variety of sources 18 © 2013 IBM Corporation

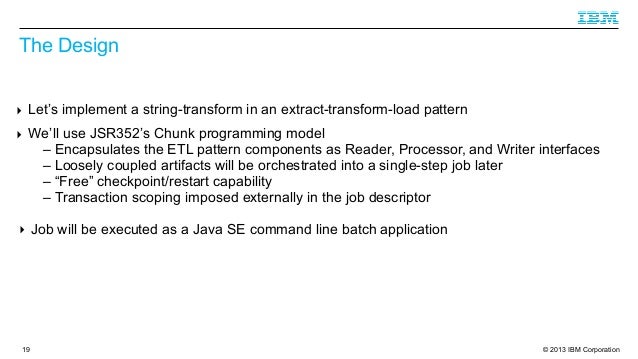

  19. 19. The Design ‣ Let’s implement a string-transform in an extract-transform-load pattern ‣ We’ll use JSR352’s Chunk programming model – Encapsulates the ETL pattern components as Reader, Processor, and Writer interfaces – Loosely coupled artifacts will be orchestrated into a single-step job later – “Free” checkpoint/restart capability – Transaction scoping imposed externally in the job descriptor ‣ Job will be executed as a Java SE command line batch application 19 © 2013 IBM Corporation

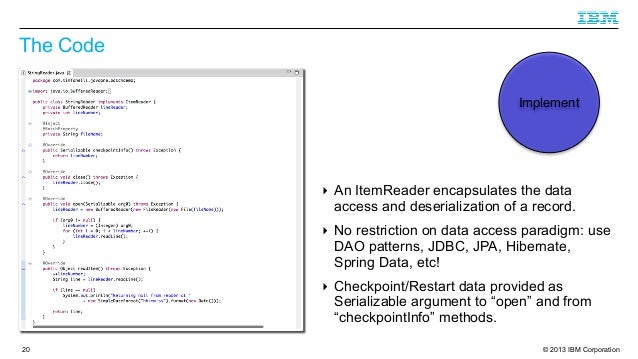

  20. 20. The Code Implement ‣ An ItemReader encapsulates the data access and deserialization of a record. ‣ No restriction on data access paradigm: use DAO patterns, JDBC, JPA, Hibernate, Spring Data, etc! ‣ Checkpoint/Restart data provided as Serializable argument to “open” and from “checkpointInfo” methods. 20 © 2013 IBM Corporation

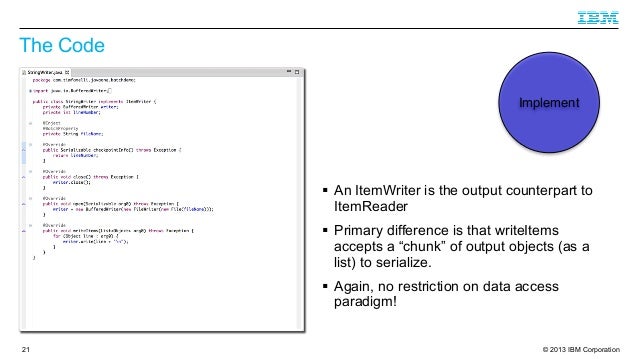

  21. 21. The Code Implement § An ItemWriter is the output counterpart to ItemReader § Primary difference is that writeItems accepts a “chunk” of output objects (as a list) to serialize. § Again, no restriction on data access paradigm! 21 © 2013 IBM Corporation

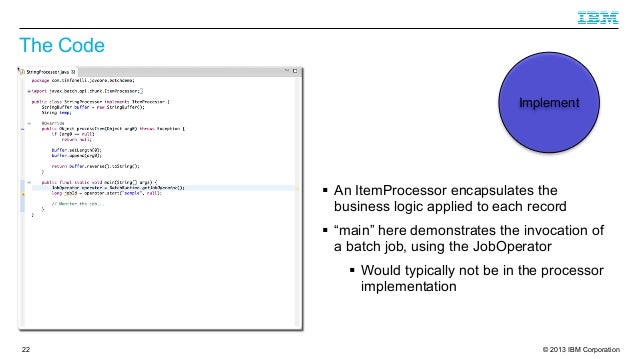

  22. 22. The Code Implement § An ItemProcessor encapsulates the business logic applied to each record § “main” here demonstrates the invocation of a batch job, using the JobOperator § Would typically not be in the processor implementation 22 © 2013 IBM Corporation

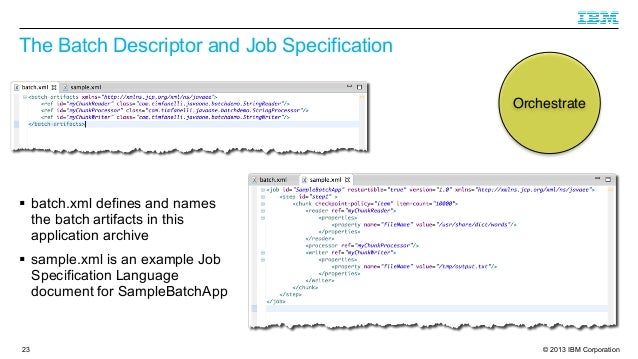

  23. 23. The Batch Descriptor and Job Specification Orchestrate § batch.xml defines and names the batch artifacts in this application archive § sample.xml is an example Job Specification Language document for SampleBatchApp 23 © 2013 IBM Corporation

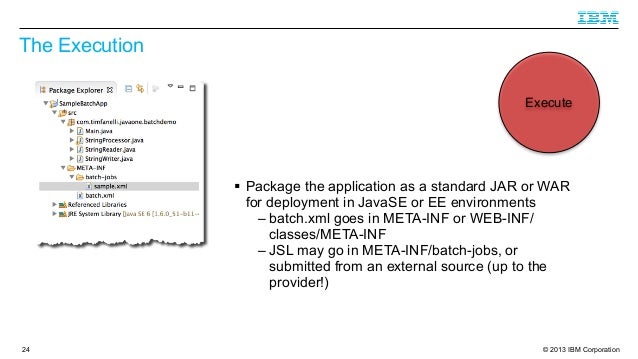

  24. 24. The Execution Execute § Package the application as a standard JAR or WAR for deployment in JavaSE or EE environments – batch.xml goes in META-INF or WEB-INF/ classes/META-INF – JSL may go in META-INF/batch-jobs, or submitted from an external source (up to the provider!) 24 © 2013 IBM Corporation

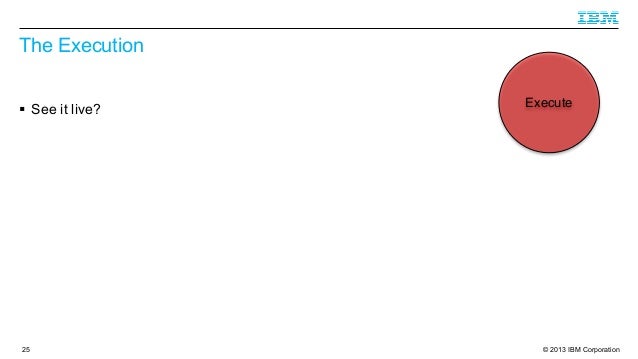

  25. 25. The Execution § See it live? 25 Execute © 2013 IBM Corporation
  26. 26. Advanced Topics © 2013 IBM Corporation

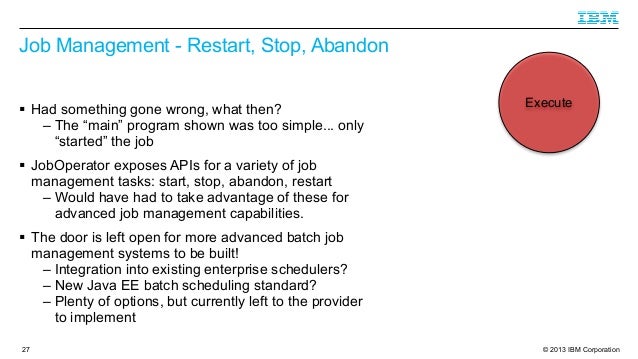

  27. 27. Job Management - Restart, Stop, Abandon § Had something gone wrong, what then? – The “main” program shown was too simple... only “started” the job Execute § JobOperator exposes APIs for a variety of job management tasks: start, stop, abandon, restart – Would have had to take advantage of these for advanced job management capabilities. § The door is left open for more advanced batch job management systems to be built! – Integration into existing enterprise schedulers? – New Java EE batch scheduling standard? – Plenty of options, but currently left to the provider to implement 27 © 2013 IBM Corporation
  28. 28. Java EE Integration § JSR-352: Java Batch is included in Java EE 7 Execute § Provides EE clustering, security, resource management, etc to Java Batch applications § Performance benefits to dispatching into longrunning, reusable container – JIT compilation through the first couple runs – Eliminates overhead of starting / stopping JVM 28 © 2013 IBM Corporation

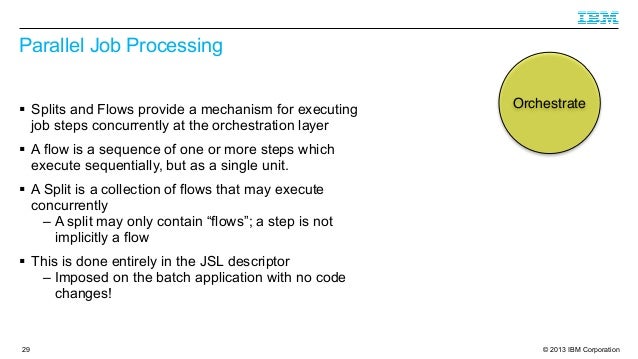

  29. 29. Parallel Job Processing § Splits and Flows provide a mechanism for executing job steps concurrently at the orchestration layer Orchestrate § A flow is a sequence of one or more steps which execute sequentially, but as a single unit. § A Split is a collection of flows that may execute concurrently – A split may only contain “flows”; a step is not implicitly a flow § This is done entirely in the JSL descriptor – Imposed on the batch application with no code changes! 29 © 2013 IBM Corporation

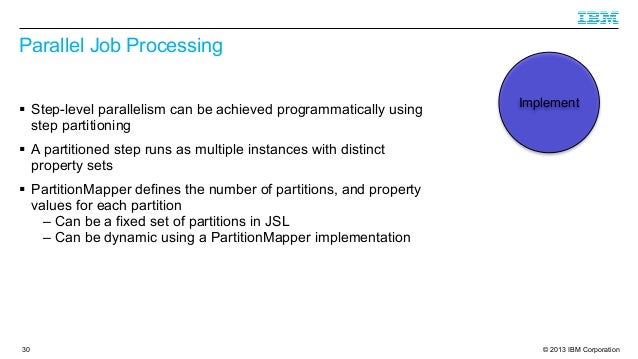

  30. 30. Parallel Job Processing § Step-level parallelism can be achieved programmatically using step partitioning Implement § A partitioned step runs as multiple instances with distinct property sets § PartitionMapper defines the number of partitions, and property values for each partition – Can be a fixed set of partitions in JSL – Can be dynamic using a PartitionMapper implementation 30 © 2013 IBM Corporation

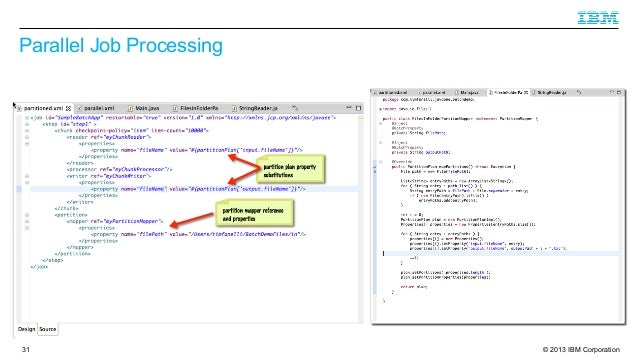

  31. 31. Parallel Job Processing 31 © 2013 IBM Corporation
  32. 32. Wrap up... © 2013 IBM Corporation

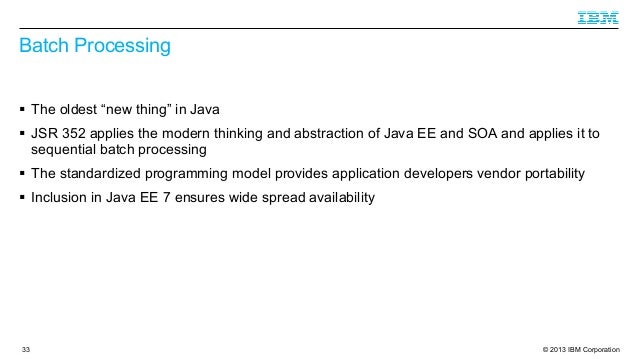

  33. 33. Batch Processing § The oldest “new thing” in Java § JSR 352 applies the modern thinking and abstraction of Java EE and SOA and applies it to sequential batch processing § The standardized programming model provides application developers vendor portability § Inclusion in Java EE 7 ensures wide spread availability 33 © 2013 IBM Corporation
  34. 34. Questions? Find this presentation and more! http://ibm.co/JavaOne2013 © 2013 IBM Corporation

×
