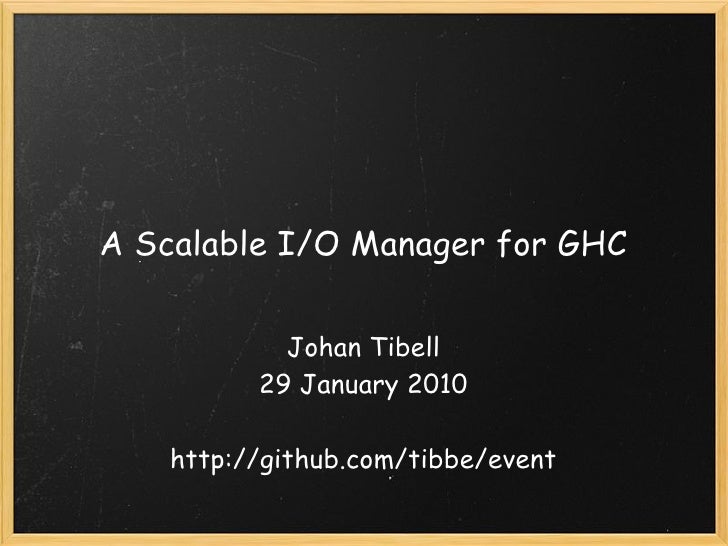

A Scalable I/O Manager for GHC

             Johan Tibell
           29 January 2010

    http://githu...
Server applications

 Performance matters
    Servers cost (a lot of) money
    We want as high throughput as possible

 S...
Why Haskell?

 Simple programming model:
    Light-weight threads (forkIO)
    Blocking system calls

    server = forever...
Why Haskell?

 Performance:
    Lots of concurrency
    Statically compiled; should perform favorably in
    comparison wi...
What we are missing

 Support for a large number of concurrent connections

 Support for a large number of active timeouts...
Implementing light-weight threads

 Schedule many light-weight threads across a set of OS
 threads.

 To avoid blocking th...
Non-blocking I/O refresher

 select: a system call for polling the status of multiple file
 descriptors.
     A call to se...
Reading

 data IOReq = Read Fd (MVar ())
            | Write Fd (MVar ())

 read fd = do waitForReadEvent fd
             ...
Sleeping/timers

 data DelayReq = Delay USecs (MVar ())

 threadDelay time = waitForDelayEvent time

 waitForDelayEvent us...
I/O manager event loop

eventLoop delays watchedFds = do
  now <- getCurrentTime
  (delays', timeout) <- expire now delays...
I/O manager event loop cont.

wakeupFds readyFds fds = go fds []
  where
    go []                fds' = return fds'
    g...
The problem

 select:
     ~O(watched file descriptors)
         Most file descriptors are idle!
     Limited number of fi...
A scalable I/O manager

 Scalable system calls
    epoll, kqueue, and some Windows thing...

 Better data structures
    T...
Timeouts

    New I/O manager uses a priority search queue
      Insertion: O(log n)
      Getting all expired timeouts: O...
Priority search queue performance

 Used Criterion extensively to benchmark and verify
 micro optimizations.

 Biggest per...
threadDelay 1ms
Light-weight threads vs event loop
Reading/writing

 Scalable system calls
    epoll/kqueue: O(active file descriptors)

 Unblocking threads that are ready t...
Send 1M 1-byte messages through pipes
Aside: Good tools are important

 ThreadScope
    Helped us find a pathological case in an interaction
    between atomicM...
Current status

 Close to feature complete

 Needs more
   testing
   benchmarking

 Final step remaining: Integrate into ...
Conclusions

 Haskell is (soon) ready for the server!

 We still need:
   High performance HTTP server
   High performance...
Upcoming SlideShare
Loading in...5
×

A Scalable I/O Manager for GHC

2,638

Published on

Published in: Technology
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
2,638
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
19
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

A Scalable I/O Manager for GHC

  1. 1. A Scalable I/O Manager for GHC Johan Tibell 29 January 2010   http://github.com/tibbe/event
  2. 2. Server applications Performance matters Servers cost (a lot of) money We want as high throughput as possible Scalability: Performance shouldn't degrade (too much) when the number of clients increase Observation: In most (HTTP) servers, the majority of  clients are idle at any given point in time
  3. 3. Why Haskell? Simple programming model: Light-weight threads (forkIO) Blocking system calls server = forever $ do sock <- accept serverSock forkIO $ talk sock >> sClose sock talk sock = do req <- recv sock send sock (f req)
  4. 4. Why Haskell? Performance: Lots of concurrency Statically compiled; should perform favorably in comparison with e.g. Python and Ruby Alternative to C++ or Java when performance matters Correctness: Pure functions Strong static typing
  5. 5. What we are missing Support for a large number of concurrent connections Support for a large number of active timeouts Typically one per connection
  6. 6. Implementing light-weight threads Schedule many light-weight threads across a set of OS threads. To avoid blocking the OS threads, use the select system call to monitor multiple file descriptors using a single OS thread.
  7. 7. Non-blocking I/O refresher select: a system call for polling the status of multiple file descriptors. A call to select returns when one or more file descriptors are ready for reading writing, or a timeout occurs. Only call a potentially blocking system call (e.g. recv) when we know it won't block!
  8. 8. Reading data IOReq = Read Fd (MVar ()) | Write Fd (MVar ()) read fd = do waitForReadEvent fd c_read fd waitForReadEvent fd = do m <- newEmptyMVar atomicModifyIORef watechedFds (xs -> (Read fd m : xs, ())) takeMVar m
  9. 9. Sleeping/timers data DelayReq = Delay USecs (MVar ()) threadDelay time = waitForDelayEvent time waitForDelayEvent usecs = do m <- newEmptyMVar target <- calculateTarget usecs atomicModifyIORef delays (xs -> (Delay target m : xs, ())) takeMVar m
  10. 10. I/O manager event loop eventLoop delays watchedFds = do now <- getCurrentTime (delays', timeout) <- expire now delays readyFds <- select watchedFds timeout watchedFds' <- wakeupFds readyFds watchedFds eventLoop delays' watchedFds' expire _ [] = return ([], Never) expire now ds@(Delay d m : ds') | d <= now = putMVar m () >> expire now ds' | otherwise = return (ds, Timeout (d - now))
  11. 11. I/O manager event loop cont. wakeupFds readyFds fds = go fds [] where go [] fds' = return fds' go (Read fd m : fds) fds' | fd `member` readyFds = putMVar m () >> go fds fds' | otherwise = go fds (Read fd m : fds') go (Write fd m : fds) fds' | fd `member` readyFds = putMVar m () >> go fds fds' | otherwise = go fds (Read fd m : fds')
  12. 12. The problem select: ~O(watched file descriptors) Most file descriptors are idle! Limited number of file descriptors (FD_SETSIZE) Iterating through all watched file descriptors every time around the event loop. Timeouts are kept in a list, sorted by time Insertion: O(n) as we need to keep the list sorted
  13. 13. A scalable I/O manager Scalable system calls epoll, kqueue, and some Windows thing... Better data structures Trees and heaps instead of lists
  14. 14. Timeouts New I/O manager uses a priority search queue Insertion: O(log n) Getting all expired timeouts: O(k*(log n - log k)), where k is the number of expired timeouts The API for timeouts is quite limited (to say the least!) One function: threadDelay   Priority search queues allows us to adjust/cancel pending timeouts
  15. 15. Priority search queue performance Used Criterion extensively to benchmark and verify micro optimizations. Biggest performance gains: Specialized to a single type of key/priority Strict sub-trees Unpacked data types Used QuickCheck to make sure that the optimizations didn't break anything.
  16. 16. threadDelay 1ms
  17. 17. Light-weight threads vs event loop
  18. 18. Reading/writing Scalable system calls epoll/kqueue: O(active file descriptors) Unblocking threads that are ready to perform I/O O(log n) per thread, using an IntMap from file descriptor to MVar Total running time for k active file descriptors is O(k * log n) instead of O(n).
  19. 19. Send 1M 1-byte messages through pipes
  20. 20. Aside: Good tools are important ThreadScope Helped us find a pathological case in an interaction between atomicModifyIORef and GHC's scheduler
  21. 21. Current status Close to feature complete Needs more testing benchmarking Final step remaining: Integrate into GHC
  22. 22. Conclusions Haskell is (soon) ready for the server! We still need: High performance HTTP server High performance HTML combinator library Composable and secure HTML form generation Formlets + cross-site scripting protection Scalable and distributed data store We could just write binding to an existing one (but where's the fun in that!)
