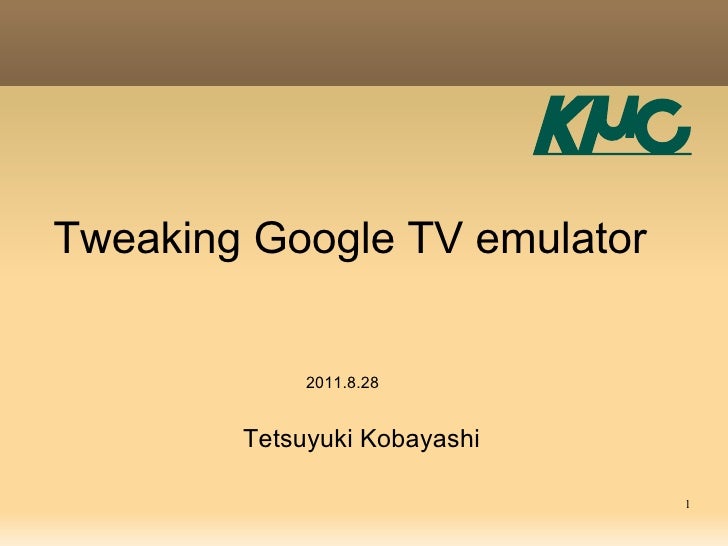

Tweaking Google TV emulator             2011.8.28        Tetsuyuki Kobayashi                              1
Who am I?   20+ years involved in embedded systems       10 years in real time OS, such as iTRON       10 years in embe...
Todays topic   Google TV add-on   What is KVM?   Tweaking Google TV emulator     Why NDK doesnt work?     How to run ...
Google TV add-on   Add-on for Android SDK to    develop Google TV apps.   http://code.google.com/tv/android/docs/gtv_add...
From FAQ, Google TV version 2 is ...    Android 3.1.    NDK is not currently supported    Chrome 11 (OTA upgradeable) ...
Google TV emulator   Target CPU is x86 (ATOM)   KVM required     It means only Linux     Windows and Mac is currently ...
What is KVM?   Kernel Based Virtual Machine   Host OS: x86 Linux, with Intel VT    or AMD-V   Guest CPU must be the sam...
How it works   Usual QEMU     emulates all instructions.     MMU is emulated by software,      too.   QEMU + KVM     ...
Setup KVM   On Ubuntu       $ sudo apt-get install kvm   On Ubuntu 10.04       $ sudo chmod a+rw /dev/kvm    (On Ubun...
Comparison by boot up timeUbuntu 10.04 KVM Off                                                                    52Ubuntu...
Tweaking Google TV emulator   Why NDK doesnt work?   How to run it on Windows 7                                  11
NDK for x86   NDKr6 supports x86   You can build x86 emulator and    Android image from AOSP source    code   NDK for x...
But it doesnt work in Google TV.               Why?   Google TV runtime is different    from Android.   Dynamic linker a...
Zygote maps in Android  …afa00000-afa03000   r-xp   00000000   1f:00   380   /system/lib/liblog.soafa03000-afa04000   rwxp...
Zygote maps in Google TVb7544000-b7699000   r-xp   00000000   00:01   44    /lib/libc-2.12.2.sob7699000-b769b000   r--p   ...
How to run Google TV emulator            on Windows7   Yes, KVM is tightly coupled with    Linux.   But without KVM, doe...
Elements of Google TV emulator   (1) Emulator executable (using    QEMU + KVM)   (2) Image of target Linux kernel   (3)...
Lets try   Android SDK for windows already    have emulator-x86.exe   Copy the reset files from Linux       $SDK/add-on...
Start Google TV emulator on                 Windows   Start the emulator with the copied    avd from command prompt     ...
Resources   Previous Google TV session by @kisima       http://d.hatena.ne.jp/machaut/20110213/1297613974   KVM session...
Demo / Q & A         Thank you for listening!         Any comments to blogs are welcome.@tetsu_koba                       ...
