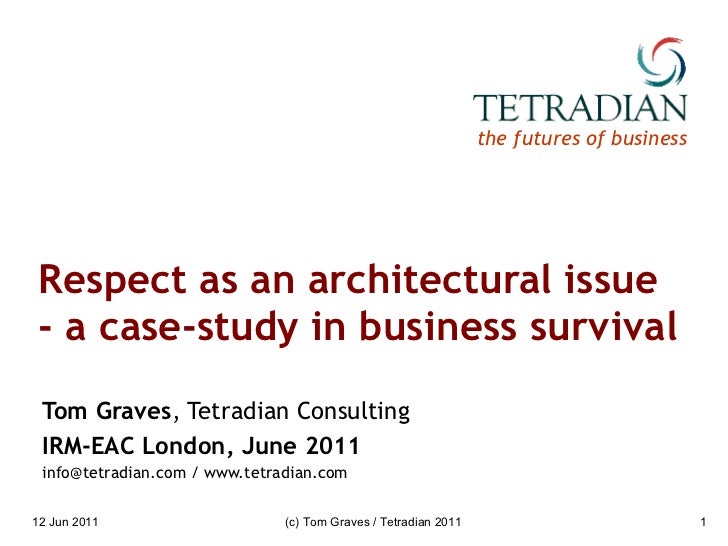

Respect as an architectural issue - a case-study in business survival Tom Graves , Tetradian Consulting IRM-EAC London, Ju...
Scope of enterprise-architecture (this, we’re often told, is the entire scope of enterprise-architecture )
Scope of enterprise-architecture (complete EA includes many other intersecting  ‘ architectures ’  – security, process, br...
Enterprise-architecture beyond IT <ul><li>EA often starts with  IT infrastructure , but... </li></ul><ul><li>IT tech-archi...
A question of maturity 12 Jun 2011 (c) Tom Graves / Tetradian 2010 (adapted from maturity-model in TOGAF 9, chapter 51)
TOGAF scope in maturity-model 12 Jun 2011 (c) Tom Graves / Tetradian 2010 TOGAF 8.1 TOGAF 9 (...everything else is just  ‘...
The business problem “ Loss of respect ” –  fallen from most-respected bank in region to least-respected bank
Symptoms … <ul><li>Deterioration in customer relations </li></ul><ul><li>Deterioration in government relations </li></ul><...
… and requests <ul><li>Request is from Organizational Development unit: </li></ul><ul><li>Identify the problem-areas </li>...
Stage 1: Meeting with executive-team
First meeting … <ul><li>One-day offsite for 32-person executive team,  but : </li></ul><ul><li>Participants wander in at r...
Five Elements in all organisations (adapted from classic Group Dynamics project-lifecycle)
Five Elements workshop <ul><li>Provides a quick,  experiential  means to introduce systems-thinking to practical business-...
Working with Five Elements (Five Element workshop in progress, for a different organisation)
Functional Business Model (typical Functional Business Model, for a different organisation) Describe the structure of the ...
How is this business structured? (Functional Business Model process, with photos, for a different client)
Music as metaphor <ul><li>Powerful  experience  of interdependence in org’n </li></ul><ul><li>Basic exercises – hit the be...
Music as metaphor (music as metaphor for team-coordination – executive-team from another organisation)
Stage 2: Set-piece with frontline staff
Out in the firing-line … (workshop-facilitator in theatre with 400 frontline staff)
Getting issues out into the open … (each group described their issues and challenges at work)
What ’ s going on for the front line? <ul><li>A very broad range of unaddressed issues: </li></ul><ul><li>Loss of morale –...
Stage 3: Back with the executive-team
Back to the future... <ul><li>Another one-day offsite with the executive... </li></ul><ul><li>Report from the frontline – ...
Organisation and enterprise <ul><li>We create an architecture  for  an organisation, but  about  an enterprise: </li></ul>...
Organisation as  ‘ the enterprise ’ <ul><li>From a business perspective, this is the effective scope of TOGAF ’ s  ‘ busin...
Business-model as  ‘ the enterprise ’ <ul><li>Typical business-model or supply-chain view (complete supply-chain should ex...
Market as  ‘ the enterprise ’ <ul><li>Overall market includes actors who do not yet have active transactions with us, or h...
The real scope of  ‘ the enterprise ’ <ul><li>The overall enterprise has many actors who may have only  ‘ intangible ’  tr...
The market-cycle <ul><li>transactions depend on (reaffirmed) reputation and trust </li></ul><ul><li>–  loss of trust creat...
Strategy, tactics, operations (overall cycle and relationships need to be in balance)
The  ‘ quick-money ’  failure-cycle (common source of  ‘unexpected’ failure – focus only on immediate profit, with classic...
Completions and the market-cycle <ul><li>Production-focus, market-focus, enterprise-focus? </li></ul>Focus only on  Produc...
The structure of vision <ul><li>Vision is the overall anchor for everything </li></ul><ul><ul><li>‘ vision ’  in the ISO90...
Putting themselves on the line … <ul><li>Visioning was a huge struggle... </li></ul><ul><li>Could not break free from self...
Business outcomes
What happens next? <ul><li>Practical outcomes for Organisational Development </li></ul><ul><li>Executive  did  create a tr...
Summary <ul><li>The real key to enterprise-architecture is  enterprise culture </li></ul><ul><li>Architecture is  for  an ...
Many thanks!
Further detail: books by Tom Graves <ul><li>Doing Enterprise Architecture : process and practice in the real enterprise </...
