Testo cs series temp calibration drywell Document Transcript

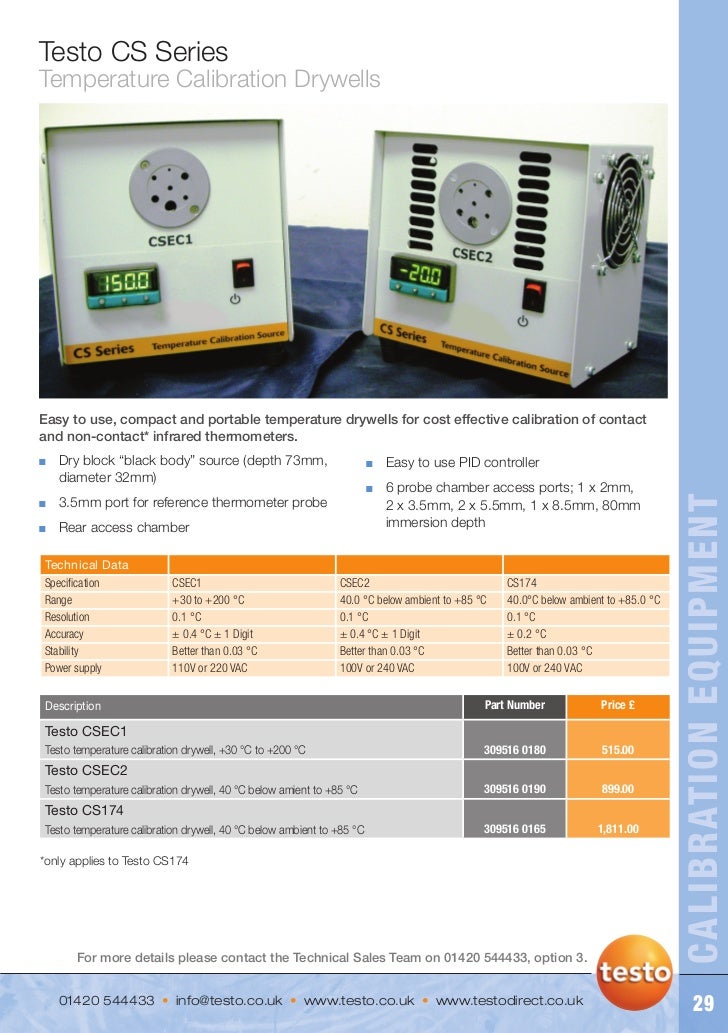

  • 1. Testo CS SeriesTemperature Calibration DrywellsEasy to use, compact and portable temperature drywells for cost effective calibration of contactand non-contact* infrared thermometers.n Dry block “black body” source (depth 73mm, n Easy to use PID controller diameter 32mm) n 6 probe chamber access ports; 1 x 2mm, CALIBRATION EQUIPMENTn 3.5mm port for reference thermometer probe 2 x 3.5mm, 2 x 5.5mm, 1 x 8.5mm, 80mmn Rear access chamber immersion depthTechnical DataSpecification CSEC1 CSEC2 CS174Range +30 to +200 °C 40.0 °C below ambient to +85 °C 40.0°C below ambient to +85.0 °CResolution 0.1 °C 0.1 °C 0.1 °CAccuracy ± 0.4 °C ± 1 Digit ± 0.4 °C ± 1 Digit ± 0.2 °CStability Better than 0.03 °C Better than 0.03 °C Better than 0.03 °CPower supply 110V or 220 VAC 100V or 240 VAC 100V or 240 VACDescription Part Number Price £Testo CSEC1Testo temperature calibration drywell, +30 °C to +200 °C 309516 0180 515.00Testo CSEC2Testo temperature calibration drywell, 40 °C below amient to +85 °C 309516 0190 899.00Testo CS174Testo temperature calibration drywell, 40 °C below ambient to +85 °C 309516 0165 1,811.00*only applies to Testo CS174 For more details please contact the Technical Sales Team on 01420 544433, option 3. 01420 544433 • info@testo.co.uk • www.testo.co.uk • www.testodirect.co.uk 29
