First steps in social network
    Zina
 Petrushyna                         analysis
Ralf Klamma
                          ...
Motivation

                         Old theories               New theory
                         • Actual process      ...
Fundamentals

                         A network is a graph (consists of nodes and edges)
                                ...
Fundamentals

                         A path is a set of connected edges
                         A length of a path is n...
Network Characteristics:
                                  Degree centrality
                         Degree of a vertex:
...
Network Characteristics:
                                     Closeness
                         How far a node is from th...
Network Characteristics:
                                     Shortest-path


    Zina
 Petrushyna

Ralf Klamma




      ...
Network Characteristics:
                                    Betweenness
                         Measure for the influenc...
Networ Measures
                             Closeness and Betweenness
                         Degree
                   ...
Examples


    Zina
 Petrushyna

Ralf Klamma




Lehrstuhl Informatik 5
(Information Systems)
   Prof. Dr. M. Jarke
    Jo...
Upcoming SlideShare
Loading in...5
×

First steps in social network analysis

1,975

Published on

Zinayida Petrushyna, Ralf Klamma

Published in: Education, Business, Technology
0 Comments
3 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,975
On Slideshare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
39
Comments
0
Likes
3
Embeds 0
No embeds

No notes for slide

First steps in social network analysis

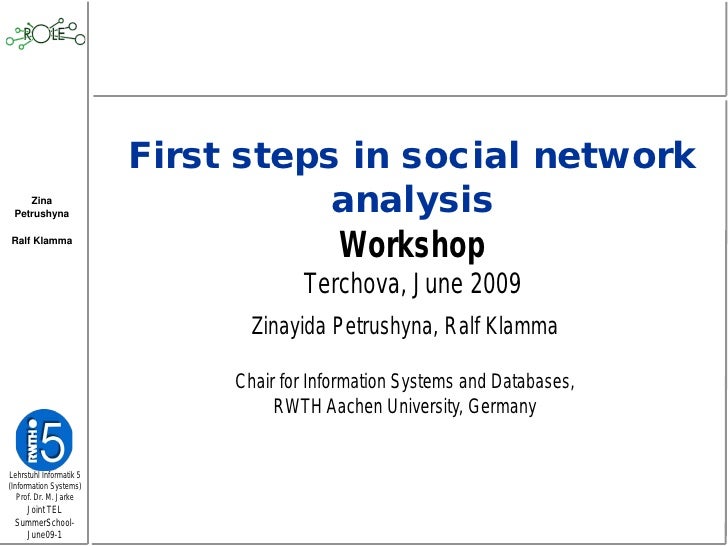

  1. 1. First steps in social network Zina Petrushyna analysis Ralf Klamma Workshop Terchova, June 2009 Zinayida Petrushyna, Ralf Klamma Chair for Information Systems and Databases, RWTH Aachen University, Germany Lehrstuhl Informatik 5 (Information Systems) Prof. Dr. M. Jarke Joint TEL SummerSchool- June09-1
