Haste
Same Language, Multiple latforms
Tagless Final Style
Same Syntax, Multiple nterpretations
Nathan Sorenson
@takeoutwe...
haste-lang.org
A Haskell-to-Javascript Compiler
created by Anton Ekblad

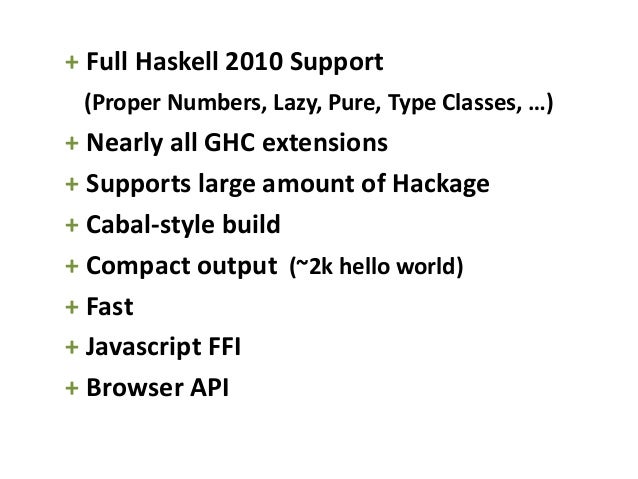

+ Full Haskell 2010 Support
(Proper Numbers, Lazy, Pure, Type Classes, …)
+ Nearly all GHC extensions
+ Supports large amo...
- No Template Haskell
- No GHCi
- No forkIO
- No Weak Pointers

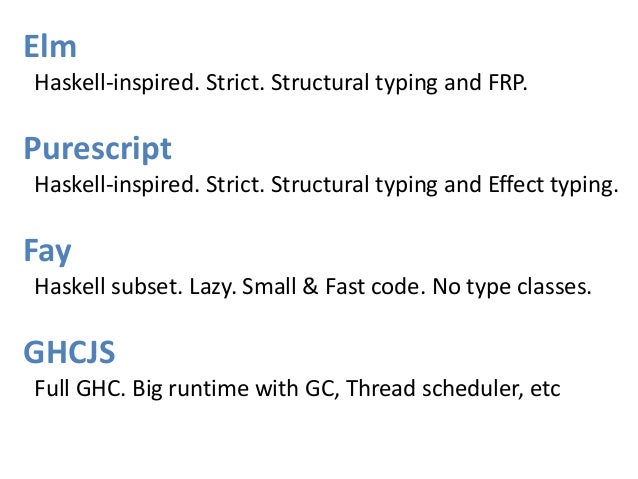

Elm
Haskell-inspired. Strict. Structural typing and FRP.
Purescript
Haskell-inspired. Strict. Structural typing and Effect...

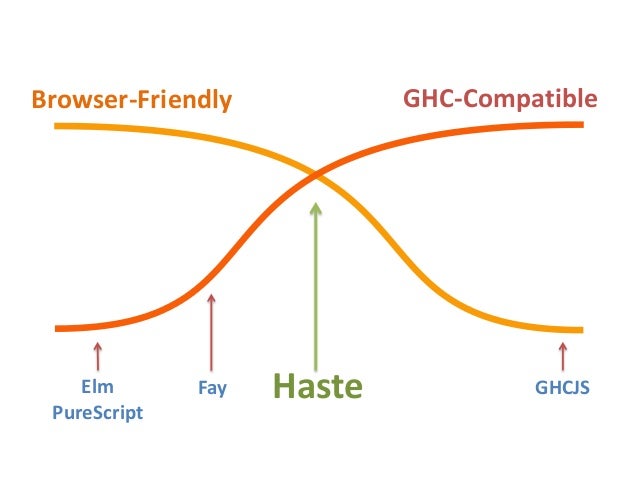

Browser-Friendly GHC-Compatible
Elm
PureScript
Fay GHCJSHaste

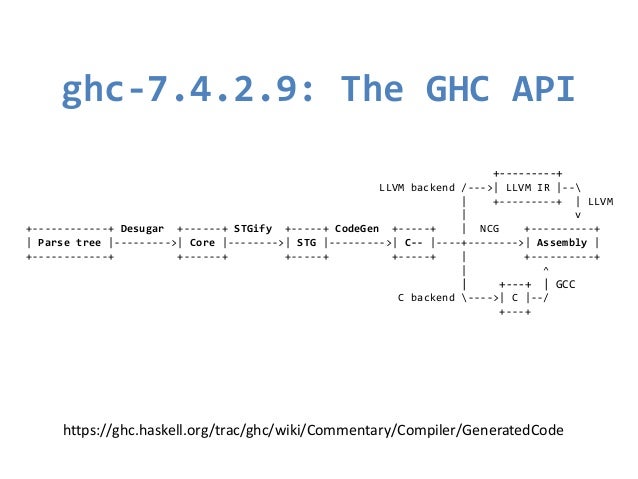

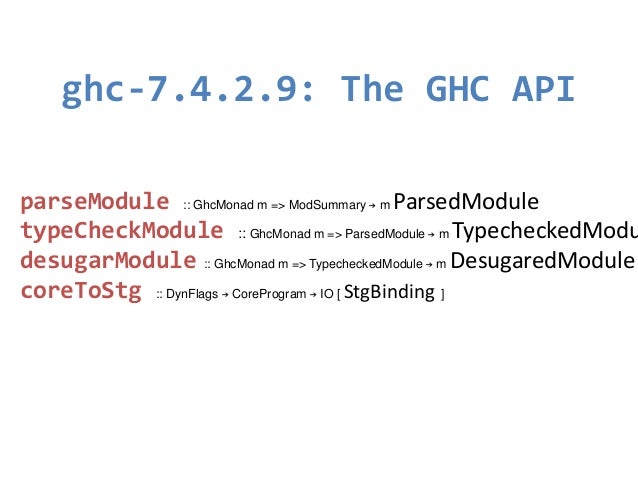

ghc-7.4.2.9: The GHC API
parseModule :: GhcMonad m => ModSummary → m ParsedModule
typeCheckModule :: GhcMonad m => ParsedM...
+---------+
LLVM backend /--->| LLVM IR |--
| +---------+ | LLVM
| v
+------------+ Desugar +------+ STGify +-----+ CodeGe...
module StgSyn where
data GenStgExpr bndr occ Source
= StgApp occ [GenStgArg occ]
| StgLit Literal
| StgConApp DataCon [Gen...
module Data.JSTarget.AST where
-- | Expressions. Completely predictable.
data Exp where
Var :: Var → Exp
Lit :: Lit → Exp
...

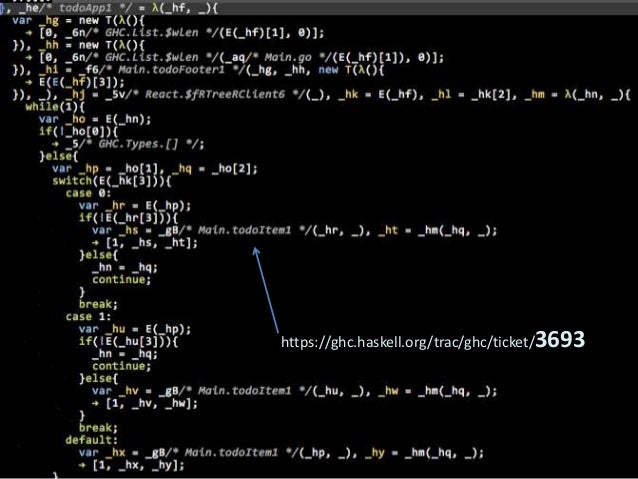

https://ghc.haskell.org/trac/ghc/ticket/3693

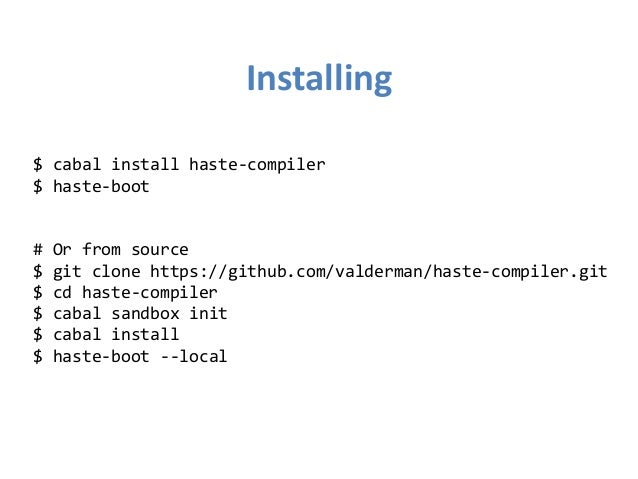

Installing
$ cabal install haste-compiler
$ haste-boot
# Or from source
$ git clone https://github.com/valderman/haste-com...
Building a Haste Project
$ hastec Main.hs # → Main.js
$ hastec --start=asap Main.hs # node Main.js
# Or with via cabal-ins...

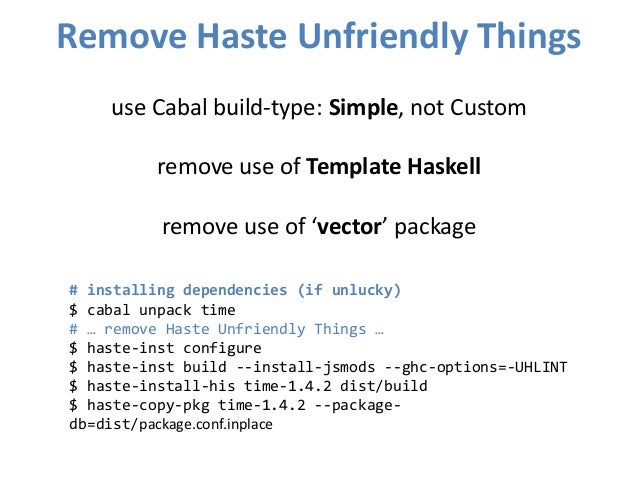

Remove Haste Unfriendly Things
use Cabal build-type: Simple, not Custom
remove use of Template Haskell
remove use of ‘vect...
./libraries/haste-lib
module Haste.DOM
addChild :: MonadIO m => Elem → Elem → m ()
elemById :: MonadIO m => ElemID → m (Ma...
FFI
// javascript.js
function jsGetAttr(elem, prop) {
return elem.getAttribute(prop).toString();
}
-- haskell.hs (compile-...

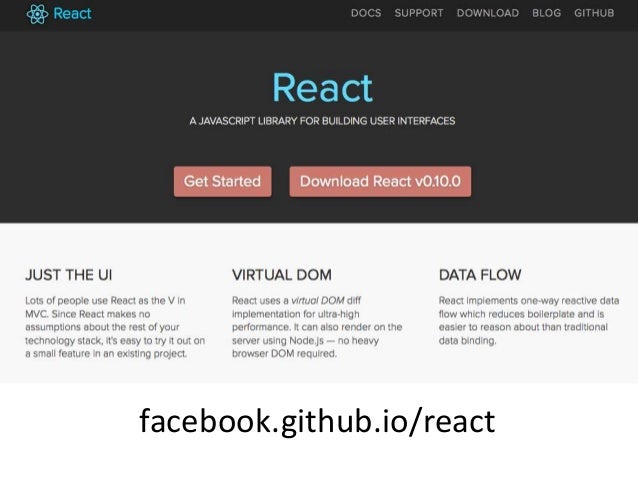

facebook.github.io/react

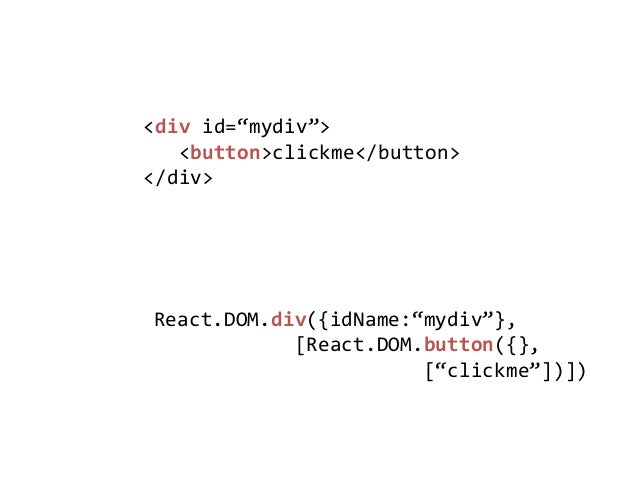

<div id=“mydiv”>
<button>clickme</button>
</div>
React.DOM.div({idName:“mydiv”},
[React.DOM.button({},
[“clickme”])])
React.DOM.div({idName:“mydiv”},
[React.DOM.button({},
[“clickme”])])

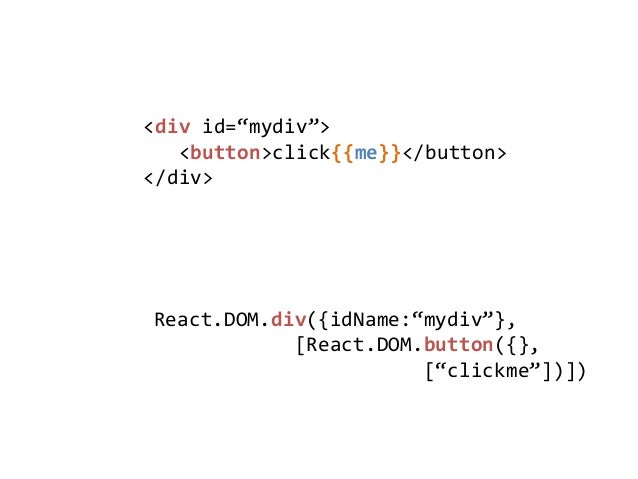

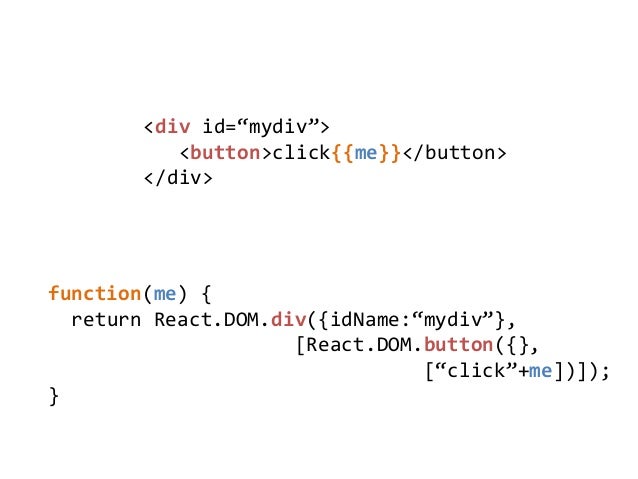

<div id=“mydiv”>
<button>click{{me}}</button>
</div>
function(me) {
return React.DOM.div({idName:“mydiv”},
[React.DOM.button({},
[“click”+me])]);
}
<div id=“mydiv”>
<button>cl...

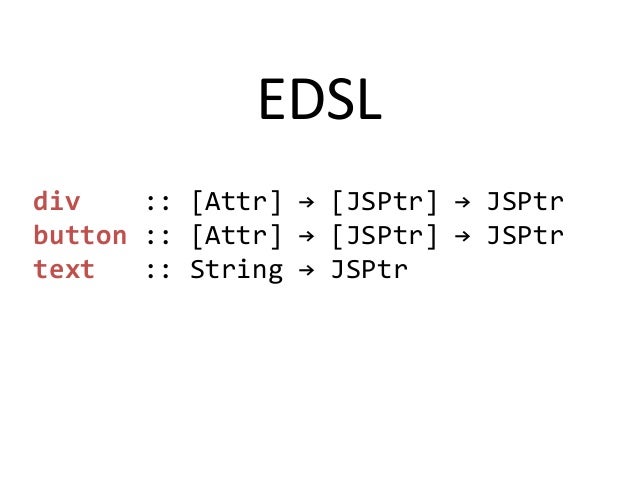

div :: [Attr] → [JSPtr] → JSPtr
button :: [Attr] → [JSPtr] → JSPtr
text :: String → JSPtr
EDSL
div :: [Attr] → [JSPtr] → JSPtr
button :: [Attr] → [JSPtr] → JSPtr
text :: String → JSPtr
EDSS
Embedded Domain Specific Sy...

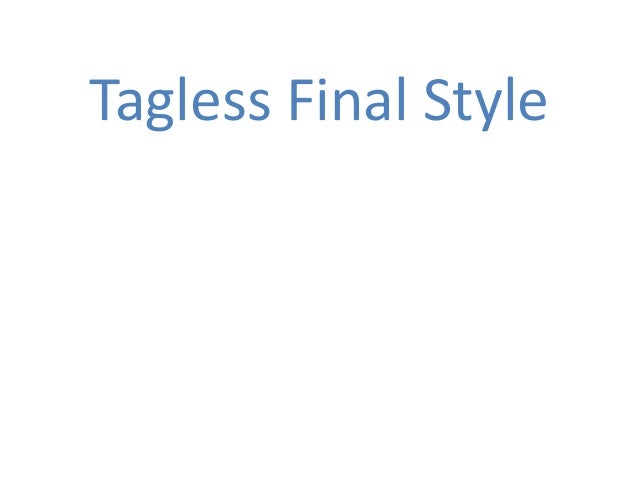

Tagless Final Style
Tagless Final Style
Discovered by Oleg Kiselyov
Tagless Final Style
Discovered by Oleg Kiselyov
But don’t be scared.
Initial Style
data Html = Div [Attr] [Html]
| Button [Attr] [Html]
| Text String
client :: Html → JSPtr
client (Div attrs ...

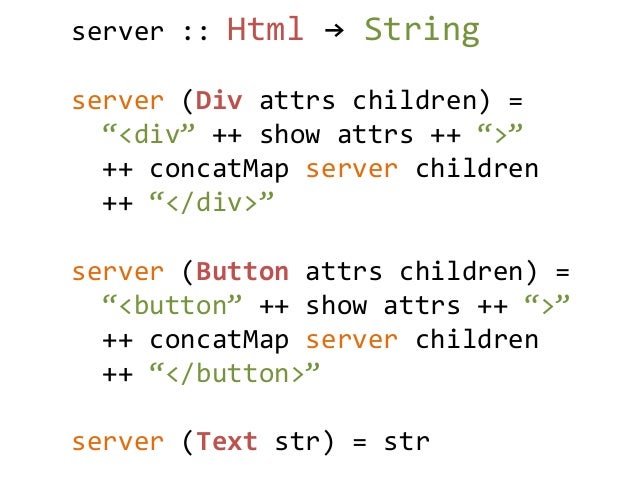

server :: Html → String
server (Div attrs children) =
“<div” ++ show attrs ++ “>”
++ concatMap server children
++ “</div>”...

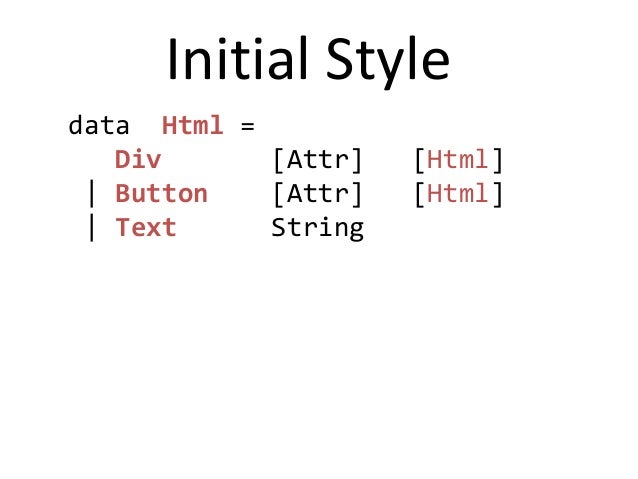

Initial Style
data Html =
Div [Attr] [Html]
| Button [Attr] [Html]
| Text String
class Html i where
div :: [Attr] → [ i ] → i
button :: [Attr] → [ i ] → i
text :: String → i
Final Style

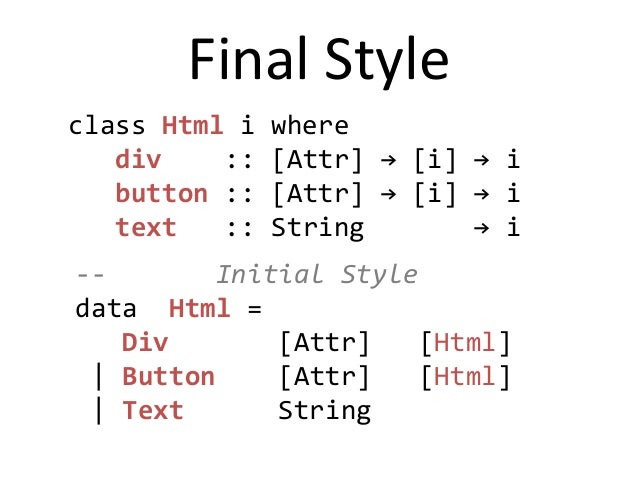

Final Style
class Html i where
div :: [Attr] → [i] → i
button :: [Attr] → [i] → i
text :: String → i
-- Initial Style
data...

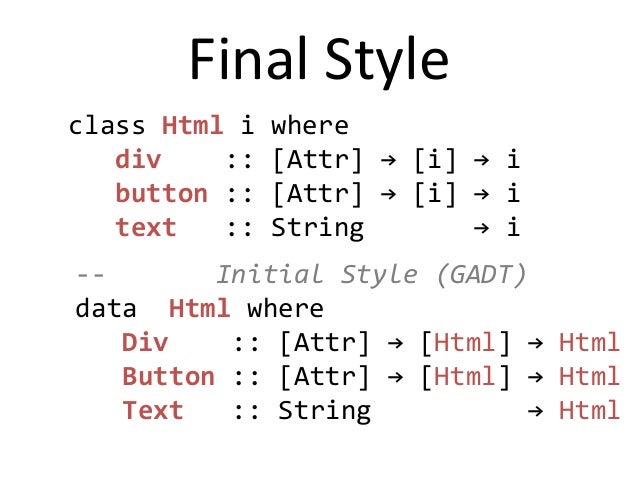

Final Style
class Html i where
div :: [Attr] → [i] → i
button :: [Attr] → [i] → i
text :: String → i
-- Initial Style (GAD...

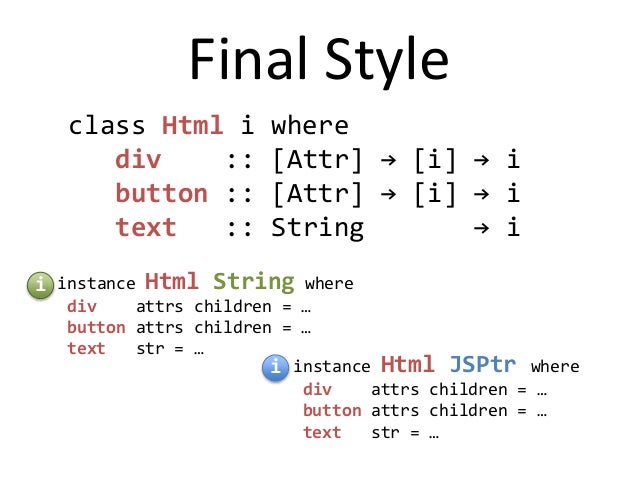

Final Style
class Html i where
div :: [Attr] → [i] → i
button :: [Attr] → [i] → i
text :: String → i
instance Html String ...

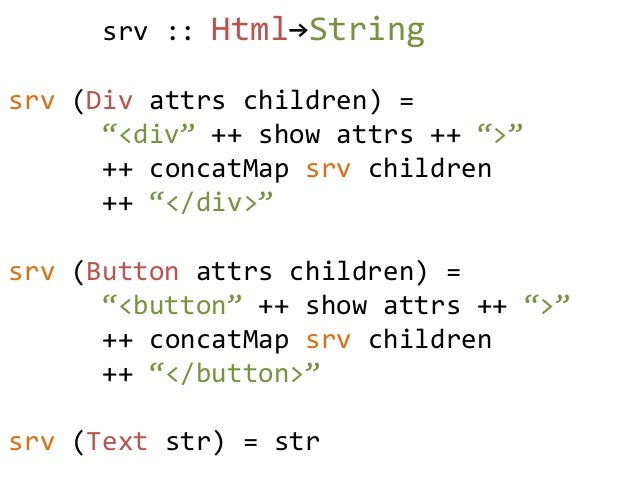

srv :: Html→String
srv (Div attrs children) =
“<div” ++ show attrs ++ “>”
++ concatMap srv children
++ “</div>”
srv (Butto...

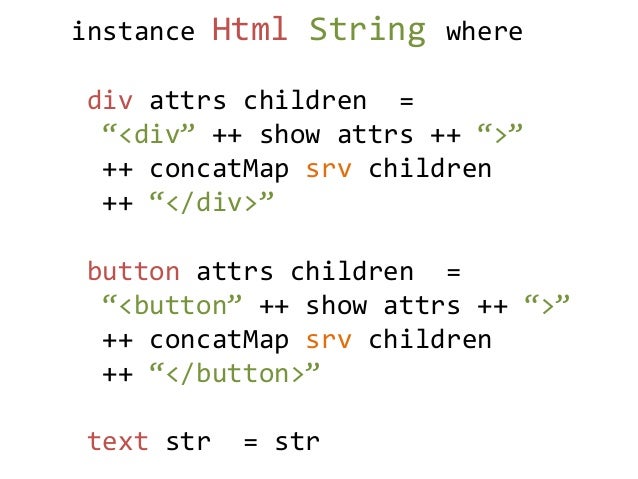

instance Html String where
div attrs children =
“<div” ++ show attrs ++ “>”
++ concatMap srv children
++ “</div>”
button a...
instance Html String where
-- div :: [Attr] → [i] → i
div attrs children =
“<div” ++ show attrs ++ “>”
++ concatMap ??? ch...
instance Html String where
-- div :: [Attr] → [i] → i
div attrs children =
“<div” ++ show attrs ++ “>”
++ concatMap id chi...

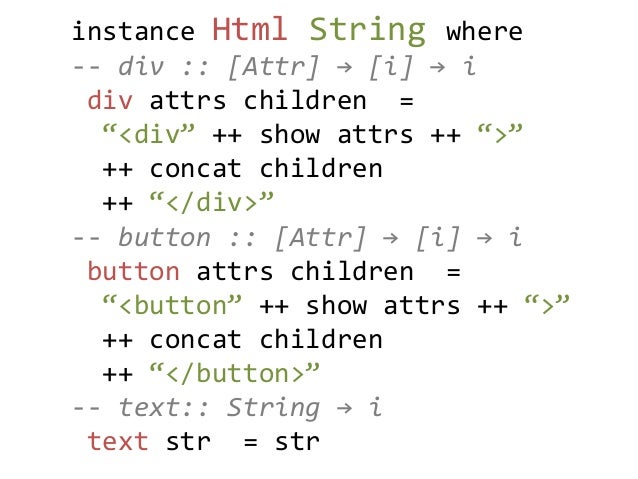

instance Html String where
-- div :: [Attr] → [i] → i
div attrs children =
“<div” ++ show attrs ++ “>”
++ concat children
...

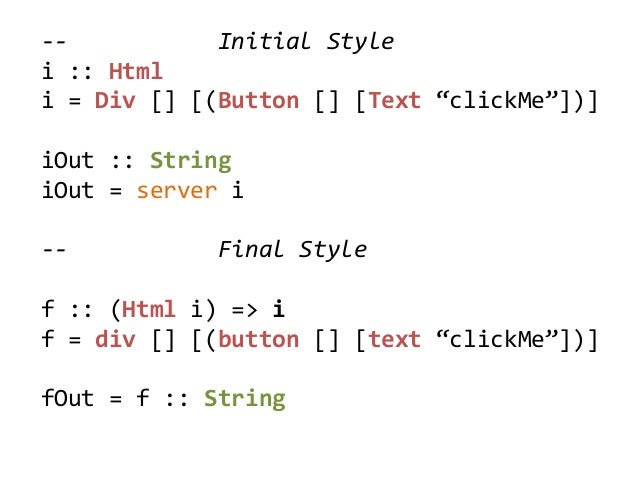

-- Initial Style
i :: Html
i = Div [] [(Button [] [Text “clickMe”])]
iOut :: String
iOut = server i
-- Final Style
f :: (H...

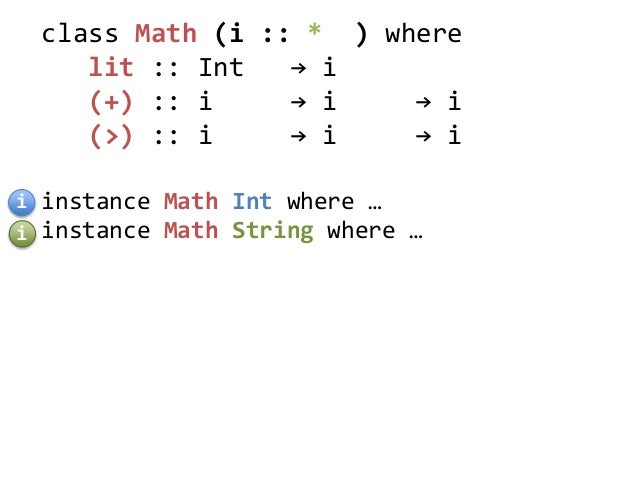

class Math (i :: * ) where
lit :: Int → i
(+) :: i → i → i
(>) :: i → i → i
instance Math Int where …
instance Math String...

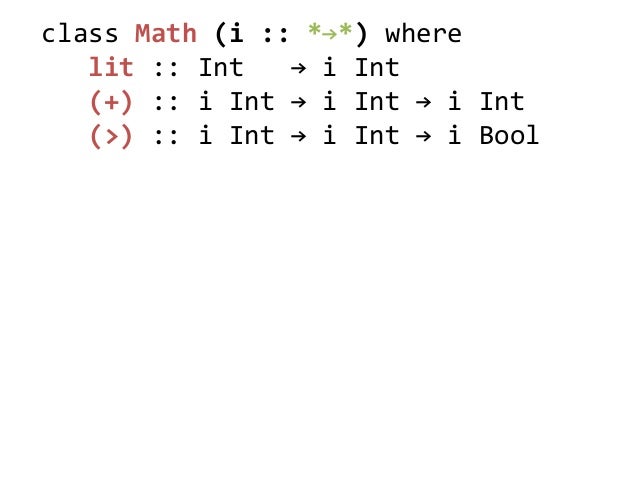

class Math (i :: *→*) where
lit :: Int → i Int
(+) :: i Int → i Int → i Int
(>) :: i Int → i Int → i Bool

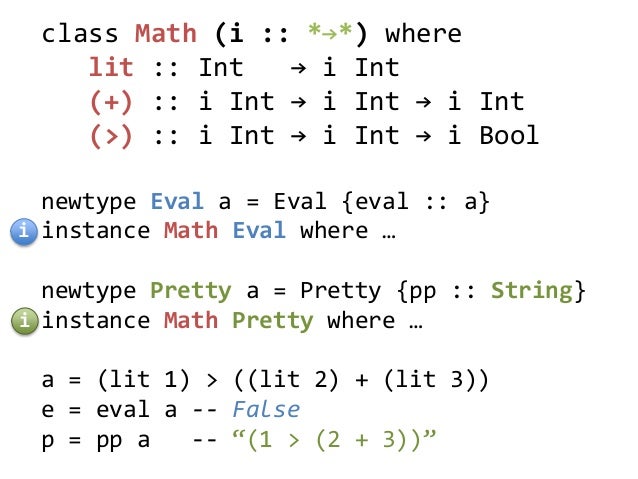

class Math (i :: *→*) where
lit :: Int → i Int
(+) :: i Int → i Int → i Int
(>) :: i Int → i Int → i Bool
newtype Eval a =...

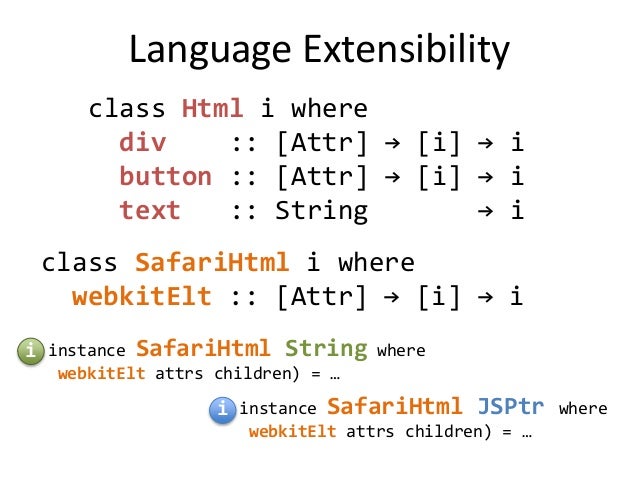

class Html i where
div :: [Attr] → [i] → i
button :: [Attr] → [i] → i
text :: String → i
instance SafariHtml String where
...

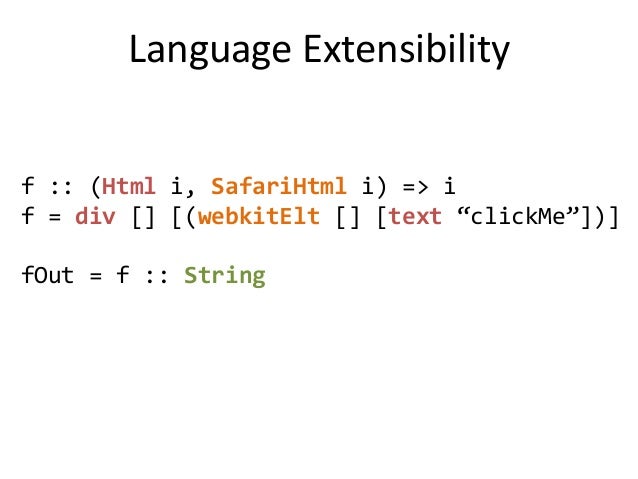

f :: (Html i, SafariHtml i) => i
f = div [] [(webkitElt [] [text “clickMe”])]
fOut = f :: String
Language Extensibility

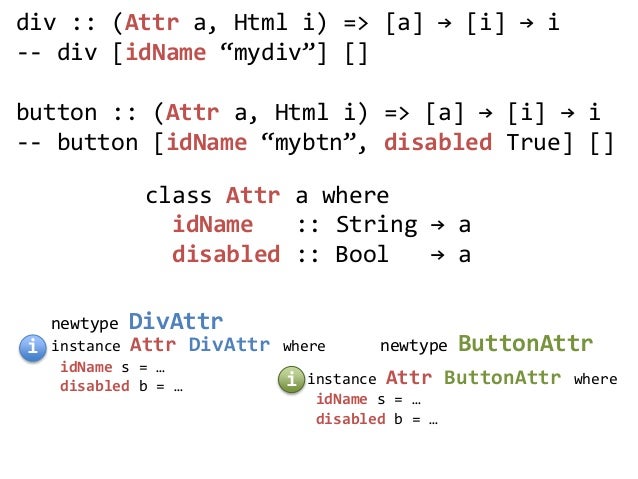

div :: (Attr a, Html i) => [a] → [i] → i
-- div [idName “mydiv”] []
button :: (Attr a, Html i) => [a] → [i] → i
-- button ...
div :: (Html i) => [DivAttr] → [i] → i
-- div [idName “mydiv”] []
button :: (Html i) => [ButtonAttr] → [i] → i
-- button [...

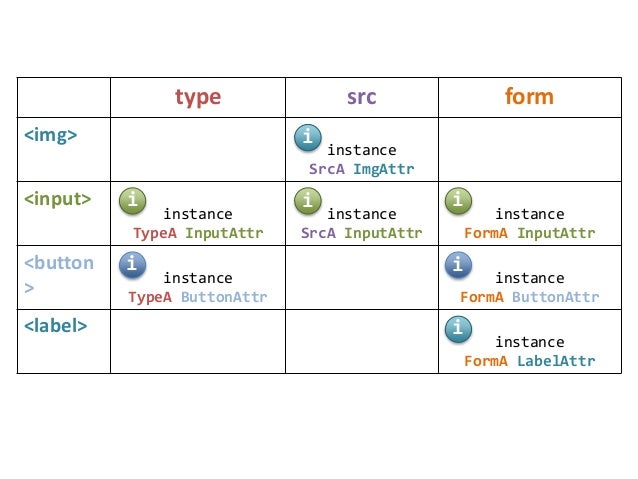

type src form
<img>
instance
SrcA ImgAttr
<input>
instance
TypeA InputAttr
instance
SrcA InputAttr
instance
FormA InputAtt...
Typed Tagless Final Course Notes
okmij.org/ftp/tagless-final/course/lecture.pdf
haste-lang.org
“Haskell in the Browser Wit...
