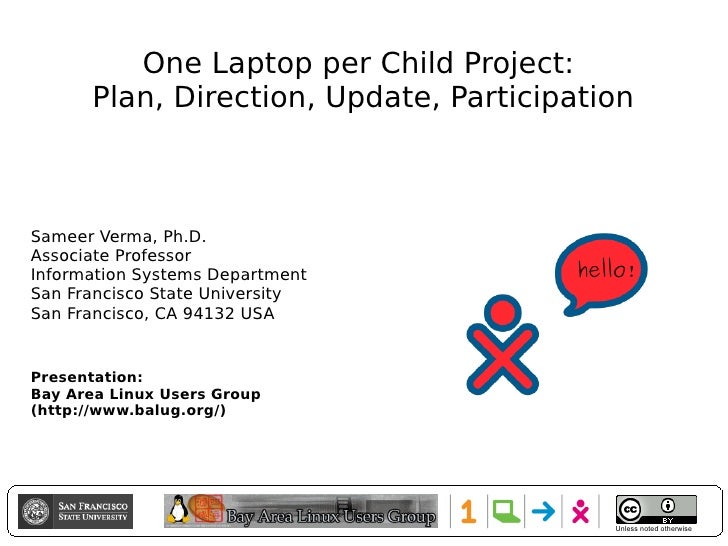

OLPC Project: Plan, Update, Direction, Participation OLPC Project: Plan, Update, Direction, Participation Presentation Transcript

  • Sameer Verma, Ph.D. Associate Professor Information Systems Department San Francisco State University San Francisco, CA 94132 USA Creative commons license http://creativecommons.org/ One Laptop per Child Project: Plan, Direction, Update, Participation Presentation: Bay Area Linux Users Group ( http://www.balug.org/ ) hello! Unless noted otherwise
  • Multiple hats... Disclaimer: I do not work for OLPC. I am only a volunteer!
  • Somebody is finally thinking of the children! To create educational opportunities for the world's poorest children by providing each child with a rugged, low-cost, low-power, connected laptop with content and software designed for collaborative, joyful, self-empowered learning. — OLPC Mission Statement,  It's an education project, not a laptop project. — Nicholas Negroponte
  • in the beginning...
  • ooh! laptop! (July 2007)
  • Give 1 Get 1 – Nov 2007
  • Next thing I know... De facto organizer for olpc-sf http://tinyurl.com/olpcsf
  • Where no one has gone [computing] before...
  • School Galadima, Abuja City, Nigeria See http://wiki.laptop.org/go/Galadima
  • Samkha village located in the suburbs of northern Thailand See http://wiki.laptop.org/go/OLPC_Thailand/Ban_Samkha
  • Khairat school is India's pilot site. See http://wiki.laptop.org/go/OLPC_India
  • Ulaanbaatar, Mongolia http://wiki.laptop.org/go/Ulaanbaatar
  • Ethopia http://www.reactivated.net/weblog/archives/2008/10/olpc-ethiopia-updates/
  • Ghana http://www.flickr.com/photos/olpc/2921143251/
  • Cameroon http://www.flickr.com/photos/olpc/3110907018/in/set-72157611290673682/
  • Afghanistan refugee camp, Pakistan http://wiki.laptop.org/go/OLPC_Pakistan/Atlas_School
  • Colombia http://wiki.laptop.org/go/OLPC_Colombia
  • Peru http://wiki.laptop.org/go/OLPC_Peru
  • Rwanda http://wiki.laptop.org/go/OLPC_Rwanda
  • Iraq http://wiki.laptop.org/go/OLPC_Iraq
  • Haiti http://wiki.laptop.org/go/Haiti
  • Solomon Islands http://wiki.laptop.org/go/OLPC_Solomon_Islands
  • Nepal http://wiki.laptop.org/go/OLPC_Nepal
  • Uruguay: Every primary school child has an XO. http://olpc-ceibal.blogspot.com/
  • postage stamps too!
  • 1.6 million XO laptops and counting See Google Maps Deployments worldwide Also see: http://wiki.laptop.org/go/Property:Number_of_manufactured_laptops
    • Hook: Free/Open Source Software...
    • Line: Cute/rugged laptop...
    • Sinker: Smart kids everywhere!
    My involvement?
  • OLPC San Francisco Bay Area http://wiki.laptop.org/go/OLPC_SanFranciscoBayArea http://lists.laptop.org/listinfo/olpc-sf http://tinyurl.com/olpcsf
  • OLPC-SF Deployments
    • A hub for exchange of ideas, plans, content, etc.
    • Deployments
      • Afghanistan (Carol Ruth Silver, MTSA)
      • India (Humaira Mahi & Sameer Verma, SFSU)
      • Jamaica (Sameer Verma & Univ. of the West Indies)
      • Madagascar (June Kleider, XO-ology)
      • Senegal (Drew & Lick-Wilmerding Schools)
      • South Africa (EduWeavers)
      • San Francisco (Starr King Elementary)
      • Uganda (UC Berkeley)
  • OLPC-SF resident expert
  • A glimpse... Deployments
  • India http://wiki.laptop.org/go/Khairat_school
  • Resident artist!
  • Khairat school is India's first pilot site. See http://wiki.laptop.org/go/OLPC_India
  • Khairat school is India's pilot site. See http://wiki.laptop.org/go/OLPC_India
  • Khairat Photos http://www.zooomr.com/photos/sameerverma/sets/40064/
  • Bhagmalpur project
    • Location:
        • Village: Bhagmalpur
        • District: Jaunpur, Uttar Pradesh
        • Railway Station: Shahganj
        • Bus Stop: Banuwadeeh
    • School:
        • Classes: 1 to 8 class
        • Children: 1087
        • Teachers: 11
        • Internet: none
        • Computers: none
  • What's a laptop?
  • Under a tree...
  • Bhagmalpur photos Bhagmalpur School http://www.zooomr.com/photos/sameerverma/sets/40063/ Bhagmalpur Village http://www.zooomr.com/photos/sameerverma/sets/40075/
  • Jamaica
  • Maroantsetra, Madagascar
  • Kandahar, Afghanistan
  • Keur Sadaro, Senegal http://www.extrasleepy.com/keursadaro.html
  • OLPC Headquarters 1 Cambridge Center, Cambridge, Massachusetts
  • Little green machines...
  • Cost Electricity Networks Content Languages Pedagogy Age Security Theft Appropriateness ... The challenges
  • Cost US $140 at the factory My Lenovo Thinkpad cost me > US $2500
  • Electricity Non-traditional sources...
  • Yo Yo Charger http://www.potenco.com/products
  • Hand Crank Charger http://wiki.laptop.org/go/Peripherals/Hand_Crank
  • Pedal power OLPC Afghanistan http://www.olpc.af/images/HPM/dscf1324.jpg
  • Solar Panel http://wiki.laptop.org/go/Product_News#Solar_Panels 5 Watt/14Volt panel
  • Moo power... http://wiki.laptop.org/go/Cow_Power
  • Networks Offline Moodle Rise of the Sneakernets WWWOFFLE
  • Content Open content standards (SCORM, IMS-CP) Creative Commons Offline Wikipedia 1.6 million books from the Internet Archive
  • Language Diversity
    • India: 28 states and 7 union territories
      • The Constitution of India recognizes 22 languages
    1. Assamese 2. Bengali 3. Bodo 4. Dogri 5. Gujarati 6. Hindi 7. Kannada 8. Kashmiri 9. Konkani 10. Maithili 11. Malayalam 12. Manipuri 13. Marathi 14. Nepali 15. Oriya 16. Punjabi 17. Sanskrit 18. Santhali 19. Sindhi 20. Tamil 21. Telugu 22. Urdu
  • Languages Afrikaans, Amharic, Arabic, Armenian, Aymara, Bahasa Indonesia, Bahasa Melayu, Basque, Bengali, Bengali (India), Bislama, Bulgarian, Catalan, Chinese (China), Chinese (Hong Kong), Chinese (Taiwan), Croatian, Czech, Danish, Dari, Dutch, Dzongkha, English, English (South African), English (US), Estonian, Filipino, Finnish, French, French (Canada), Friulian, Fula, Galician, Georgian, German, Greek, Gujarati, Hausa, Hebrew, Hindi, Hungarian, Icelandic, Igbo, Italian, Japanese, Kannada, Khmer, Kinyarwanda, Korean, Kreyol, Macedonian, Malayalam, Maltese, Marathi, Marovo, Mongolian, Nauruan, Nepali, Norwegian, Norwegian Bokmål, Papiamento, Papua New Guinea Pidgin (Tok Pisin), Pashto, Persian, Polish, Portuguese, Portuguese (Brazil), Punjabi, Quechua, Romanian, Russian, Serbian, Sindhi, Sinhala, Slovak, Slovenian, Solomon Islands Pidgin, Sotho, Spanish, Swahili, Swedish, Tamil, Telugu, Templates, Thai, Turkish, Ukrainian, Urdu, Uyghur, Vietnamese, Walloon, Wolof, Yoruba... Approx. 96+ languages Tutorial: http://opensource.sfsu.edu/node/452 Translate: http://translate.sugarlabs.org/
  • Pedagogy http://www.sugarlabs.org/
  • FOSS: Free and Open Source
    • When the project started FOSS was the only option that was flexible enough for this project
    • No vendor lock-in on formats
    • No royalties on redistribution
    • No discrimination based on fields of endeavor
    • Scalable global model for software and content
  • Activities, Not Applications
    • There are no software applications. The laptop focuses children around "activities."
    • Activities are distinct from applications in their focus —collaboration and expression
      • Abiword becomes Write
      • Firefox becomes Browse
    • GTK+ based
    They don't use Abiword or Firefox. They “Write” a letter or “Browse” the web.
  • Presence
    • Everyone has the potential for being both a learner and a teacher.
    • Employs a network (mesh or AP-based) that interconnects all laptops within range.
      • Telepathy framework
        • Telepathy-gabble for using a Jabber/XMPP server across the Internet
          • http://wiki.laptop.org/go/Telepathy_Gabble
        • Telepathy-salut for p2p/mesh collaboration
          • http://wiki.laptop.org/go/Telepathy-salut
  • Tools of Expression
    • The laptop is a "thing to think with"
    • Principle of "learning through doing"
    • Constructivist learning
      • http://wiki.laptop.org/go/Constructivism
      • Seymour Papert (constructionism)
      • Lego Mindstroms
  • school...to go
  • Educational device or trojan horse? Surprise! Its a REAL computer. It can do REAL computer things!
  • Laptop can also be a:
    • Phone (Asterisk)
    • Healthcare monitor (O 2 , pulse sensors)
    • Micro-finance platform
      • Record yield, income, loans, payments, etc.
    • Anthropological documentation platform
      • Family tree
      • Photos, birth/death records.
  • OLPC XO-1 Speaker Rotate screen Keyboard Mouse pad Microphone Antenna Camera Gamepad Power Battery USB
  • XO 1: /proc/cpuinfo
  • XO 1 /proc/meminfo
  • OLPC XO-1.5 Speaker Rotate screen Keyboard Mouse pad Microphone Antenna Camera Gamepad Power Battery USB Note: XO-1 and XO-1.5 are physically identical
  • XO 1.5
    • CPU: Via C7-M Ultra Low Voltage x86 compatible processor with 128KB L2 cache;
    • CPU clock speed: 400 MHz (1.5 W) to 1GHz (5 W), variable.
    • An Intel-compatible instruction set (including MMX, SSE, SSE2 & SSE3)
    • Companion chips: Via VX855 provides memory interface, a 3D graphics engine, an HD video decoder, USB, SDIO, and other system interface and management functions
  • XO 1.5
    • DRAM memory: 1 GiB dynamic RAM; data rate: DDR2 SDRAM;
    • BIOS: 1 MiB SPI-interface flash ROM;
      • Open Firmware used to load the operating system;
    • Mass storage: 4 GiB NAND flash in an internal microSD card
    • One externally accessible SD card slot as in the original XO.
  • XS: OLPC School Server The Internet in a Box unsung hero too!
  • School environment Manage content Manage access Manage assessment
  • What does the XS look like? Fantasy View
  • What does the XS look like? Reality View http://www.flickr.com/photos/popcorncx/149706221/
  • What does the XS look like?
    • Any x86 box with requisite memory, crunch and storage can be the XS.
      • It could also be a ARM machine in the near future...
    • Ideally, we want a machine that
      • Consumes very little power
      • Has the oomph needed
      • Portable
        • Pocketable, even?
      • Very forgiving for power brownouts, heat, dust, etc.
        • Kinda like the XO.
  • Services that the XS runs
    • Networking
      • DNS
      • DHCP
      • NAT/Masquerading
      • Bridging
    • Identity management
      • Seamless XO login
      • Single One Time Password (SOTP) on server
    • Activation
      • Theft deterrence
  • Services that the XS runs
    • Collaboration
      • XMPP via ejabberd
    • Storage
      • Files and attachments for courses
      • Backup files
      • Other media
    • Backup
      • Journal/Datastore backup
    • XO Software updates
      • Push updates including firmware and OS images
    • Activity server
      • Pushing activity bundles
  • Networking
    • Provides networking infrastructure for the school.
    • Acts as an Internet gateway (if backhaul exists)
      • Includes an HTTP proxy (optional)
      • Content filter (optional)
    • Supports Wi-Fi:
      • Ad-Hoc
      • Mesh (IEEE 802.11s draft)
      • Infrastructure (Access Point)
  • Identity management
    • Single One Time Passwords (SOTP) for maintenance.
      • Remote ISP maintenance, etc.
    • OLPC XO Browse
      • authenticates seamlessly with Moodle
      • Moodle talks to ejabberd for permissions, etc.
    • First XO to access Moodle
      • This XO becomes admin.
      • This XO can assign other teachers, course creators, and other such roles
  • Collaboration
    • XMPP-based collaboration via ejabberd.
      • Ejabberd is a XMPP (jabber) server written in erlang.
    • Uses gabble mode under telepathy in Sugar.
      • Gabble allows for server-based collaboration
    • XOs switch to salut mode in case no XS is found.
      • Salut allows for peer-to-peer collaboration
    • Activities such as Chat, Write, Memorize use XMPP to collaborate.
    http://xmpp.org/ http://collabora.co.uk http://en.wikipedia.org/wiki/Telepathy_software
  • Storage
    • Much of the storage lives in /library partition.
      • Mount /library on external USB disk or other media and expand storage.
      • Run rest of the system off a CF or SD card (solid state)
    • Files can be served as
      • links via Moodle
      • links via Apache (add Apache config)
  • Backup
    • We have 3 processes: Traffic control, Backup-complete, Daily cleanup
      • Traffic control
        • provides basic "traffic control" to manage load.
      • Backup-complete script
        • Creates links for latest snapshot.
      • Daily cleanup
        • enforces a per-user "soft" quota.
  • Updates
    • Pushing updates to OS image and firmware via rsync.
  • Layout (Access Points)
  • Hardware recommendations
    • Schools with less than 40 laptops:
      • use XS-on-XO: http://wiki.laptop.org/go/XS-on-XO
      • Requires a SD card (4GB and class 6)
      • External USB hard drive (needs own power)
      • USB-Ethernet for backhaul.
  • Fit PC and Fit PC2
    • Fit PC works well and is comparable to the XO-1 in performance.
      • More configurable than the XO-1.
      • Replace a SSD in the FitPC to make it cooler and more power efficient.
        • http://www.fit-pc.com/fit-pc1/
    • Fit PC2 has heat problems.
      • Intel Atom runs too hot
        • Surprise surprise.
  • Hardware recommendations
    • Schools with up to 100 laptops:
      • 1GHz CPU, 1GB RAM,
      • at least 2GB disk storage per laptop.
      • Something in the mini ITX form-factor works well.
      • Fanless units are better
  • Hardware recommendations
    • For up to 500 laptops:
      • dual-core 2GHz CPU
      • 2 to 4GB RAM
      • at least 2GB disk storage per laptop.
      • This type of a machine usually works in environments with good power resources.
  • Hardware recommendations
    • More than 500 laptops
      • Server-class dual CPU
      • 4 to 16GB RAM
      • at least 2GB disk storage per laptop.
      • Data center hosting is also an option.
  • School Server
  • Don't have an XO but still want the goods?
  • Sugartime!
    • Get Sugar
      • Sugar on a Stick
      • Sugar on Debian, Fedora, Gentoo
      • Fedora/Sugar in VM
        • VirtualBox
        • Qemu
        • VMWare
    • Live CDs
    • Deliver Sugar via LTSP
  • How can you help?
    • Educators
      • http://wiki.laptop.org/go/Educators
    • Translators
      • http://wiki.laptop.org/go/Localization
      • http://opensource.sfsu.edu/node/452
    • Developers
      • http://wiki.laptop.org/go/Developer
    • Getting involved
      • http://wiki.laptop.org/go/Getting_involved_in_OLPC
    • Sugar
      • http://sugarlabs.org
  • Contributor Program
    • OLPC Contributor Program is designed to get you a XO laptop in exchange for contribution. The info you will need for applying:
        • Project
        • Propose
        • Other contributors
        • Audience or impact
        • Brief description
        • Relevant experience
        • Contact information
        • # of XOs needed, and their use
    Apply at: http://wiki.laptop.org/go/Contributors
  • Mailing lists
    • Educators
      • http://lists.laptop.org/listinfo/educators
    • Software Developers
      • General development
        • http://lists.laptop.org/listinfo/devel
      • Sugar UI
        • http://lists.laptop.org/listinfo/sugar
    All mailing lists are at http://lists.laptop.org/listinfo/
  • Community lists
    • Everyone
      • http://lists.laptop.org/listinfo/grassroots
      • http://lists.laptop.org/listinfo/olpc-open
    • OLPC San Francisco
      • http://lists.laptop.org/listinfo/olpc-sf
  • Made with the free stuff Its your intellectual property. Keep it open. Vote with your fingers. Use open formats! http://www.openoffice.org/
