Off-Grid Regulation: How to Provide Cost-effective and Sustainable Rural Energy Services in Remote Areas of Developing Cou...

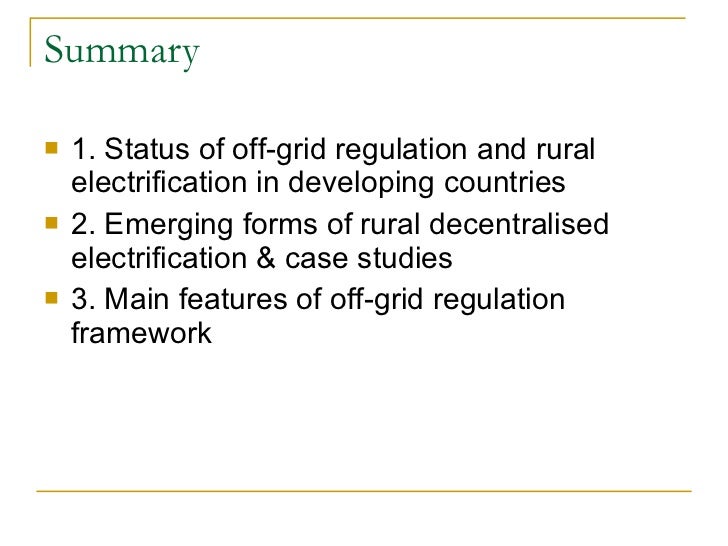

Summary <ul><li>1. Status of off-grid regulation and rural electrification in developing countries </li></ul><ul><li>2. Em...

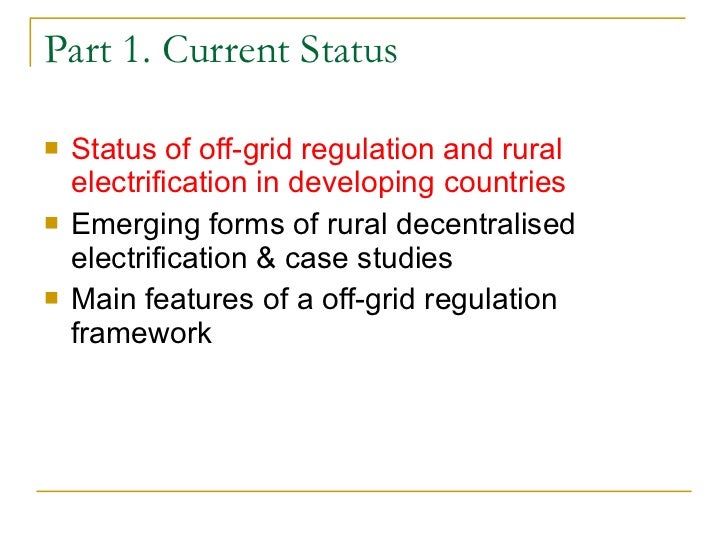

Part 1. Current Status  <ul><li>Status of off-grid regulation and rural electrification in developing countries </li></ul>...

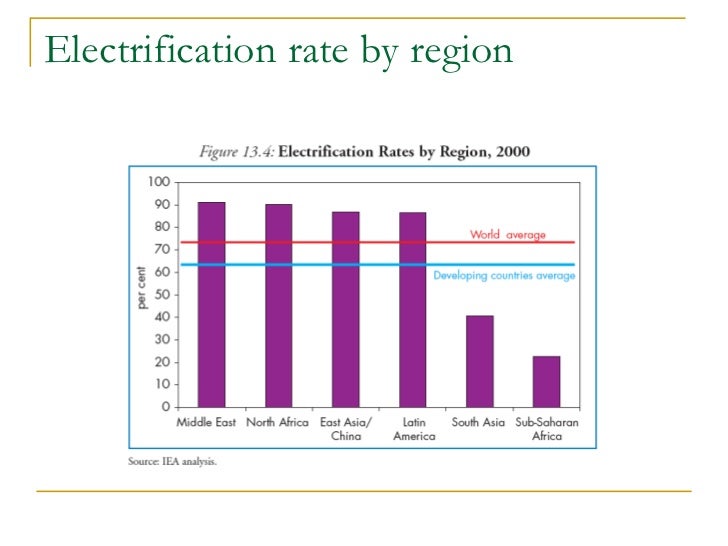

Electrification rate by region

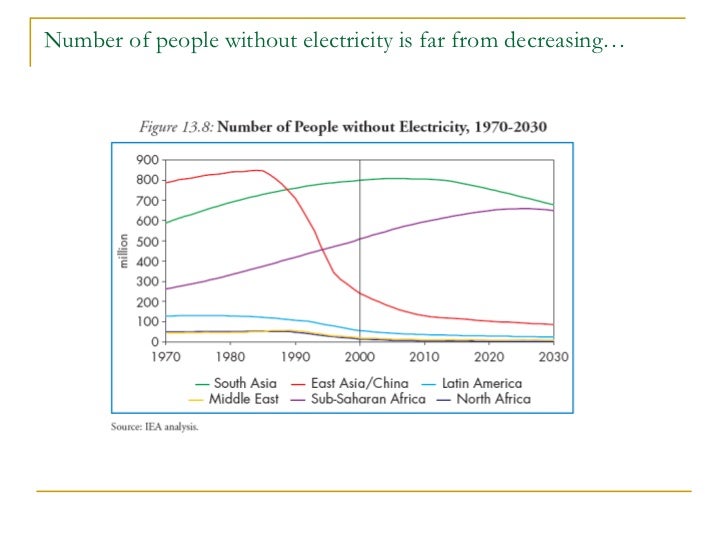

Number of people without electricity is far from decreasing…

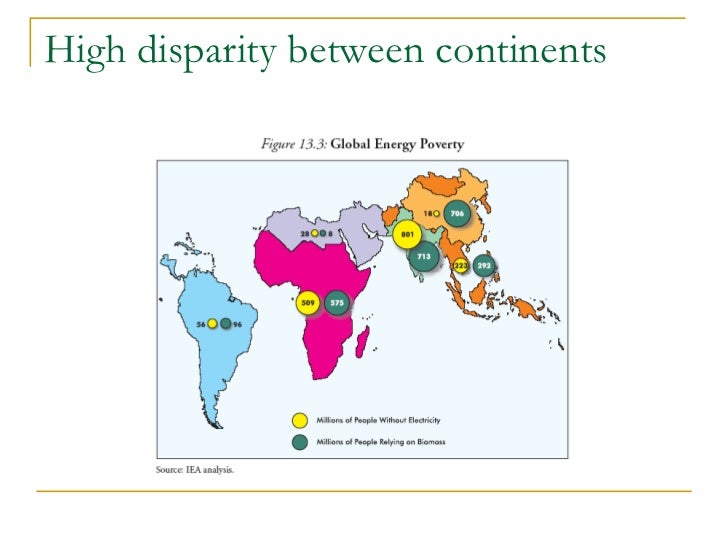

High disparity between continents

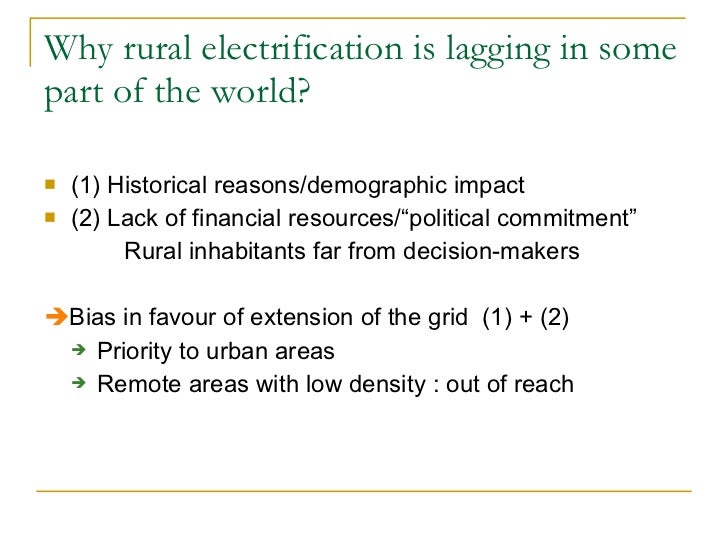

Why rural electrification is lagging in some part of the world?  <ul><li>(1) Historical reasons/demographic impact </li></...

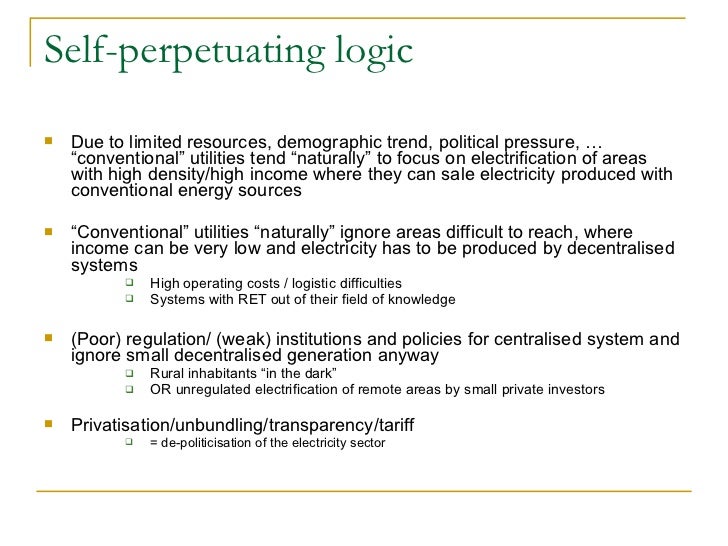

Self-perpetuating logic  <ul><li>Due to limited resources, demographic trend, political pressure, … “conventional” utiliti...

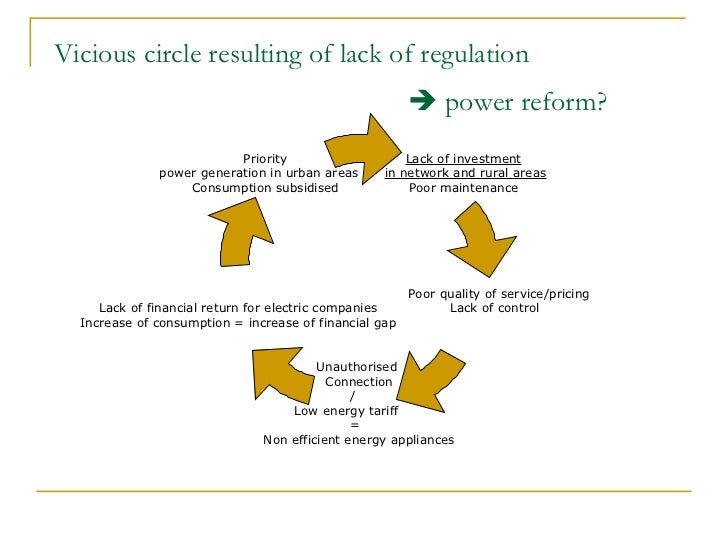

Vicious circle resulting of lack of regulation    power reform?  Lack of investment   in network and rural areas   Poor m...

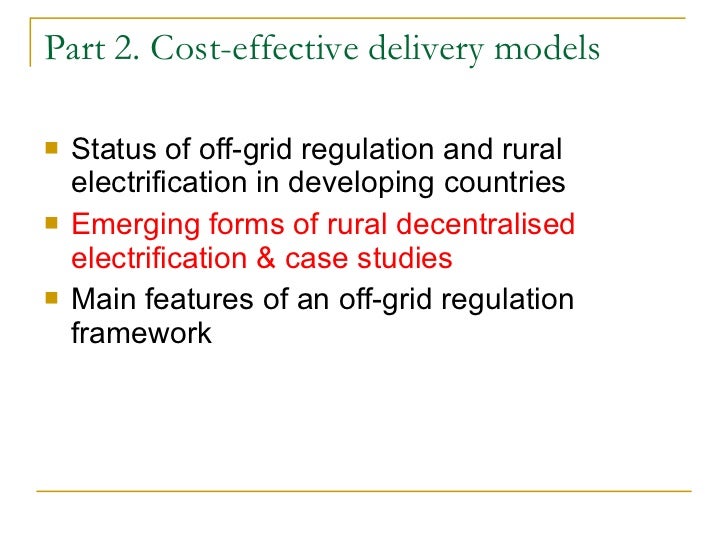

Part 2. Cost-effective delivery models  <ul><li>Status of off-grid regulation and rural electrification in developing coun...

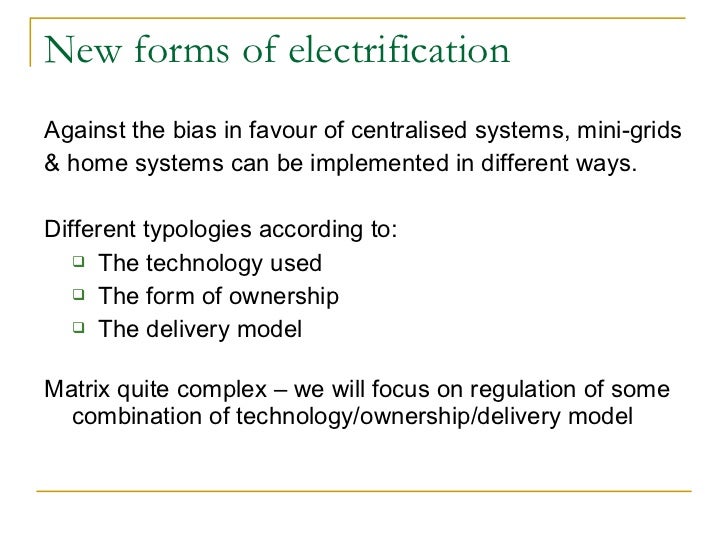

New forms of electrification  <ul><li>Against the bias in favour of centralised systems, mini-grids </li></ul><ul><li>& ho...
Source: World Bank/ESMAP, 2008.

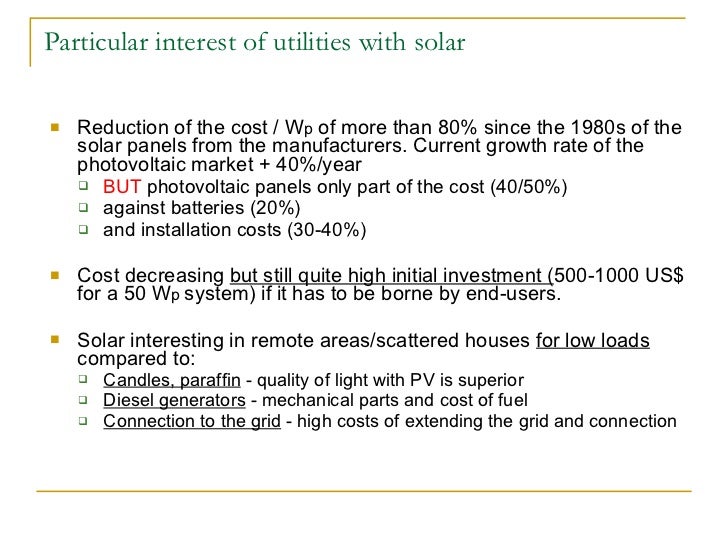

Particular interest of utilities with solar <ul><li>Reduction of the cost / W p  of more than 80% since the 1980s of the s...

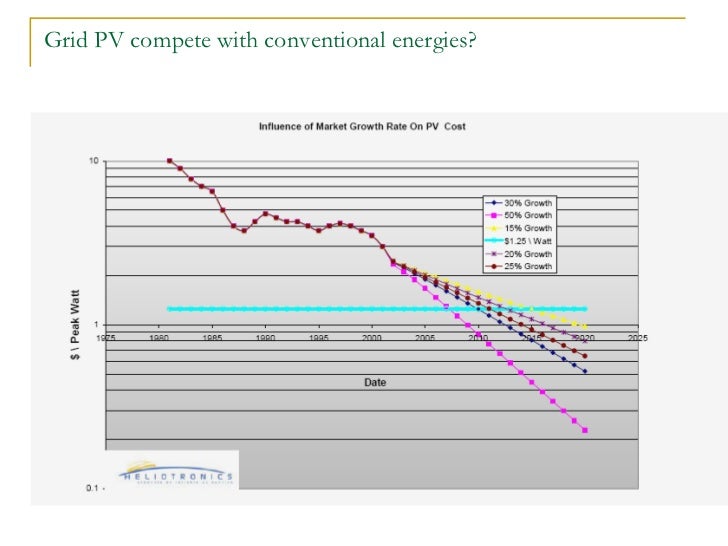

Grid PV compete with conventional energies?
How rural areas could benefit from new technologies? <ul><li>Paradox of solar energy: in rural areas of developing countri...

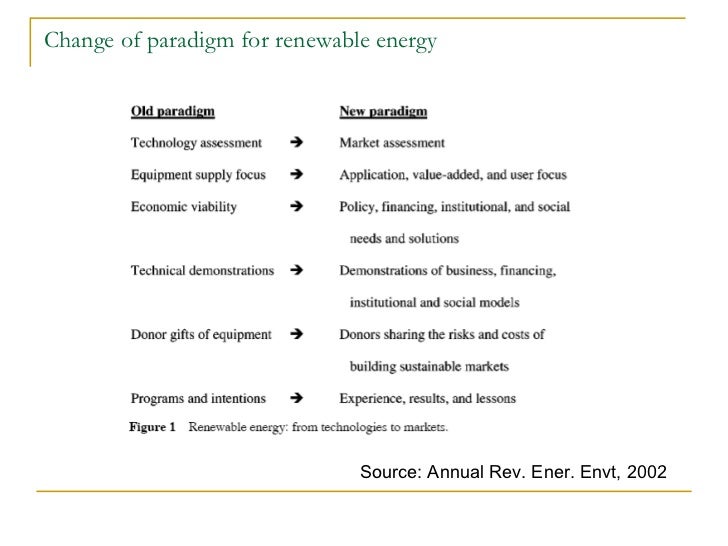

Change of paradigm for renewable energy  Source: Annual Rev. Ener. Envt, 2002

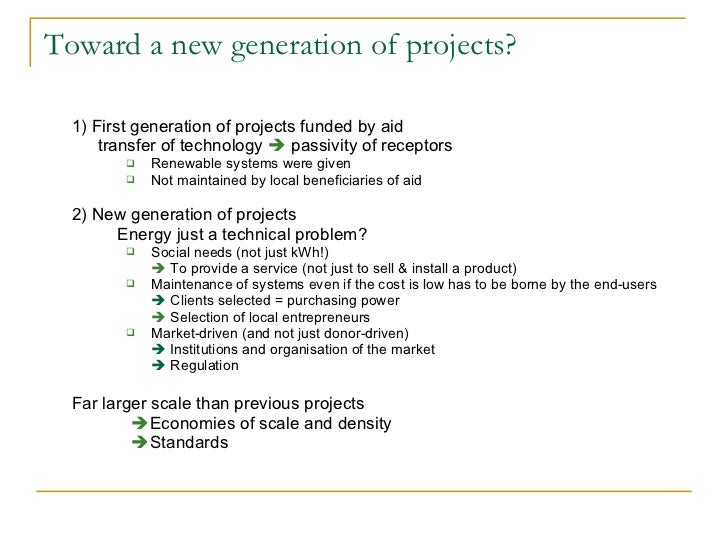

Toward a new generation of projects? <ul><ul><li>1) First generation of projects funded by aid </li></ul></ul><ul><ul><li>...

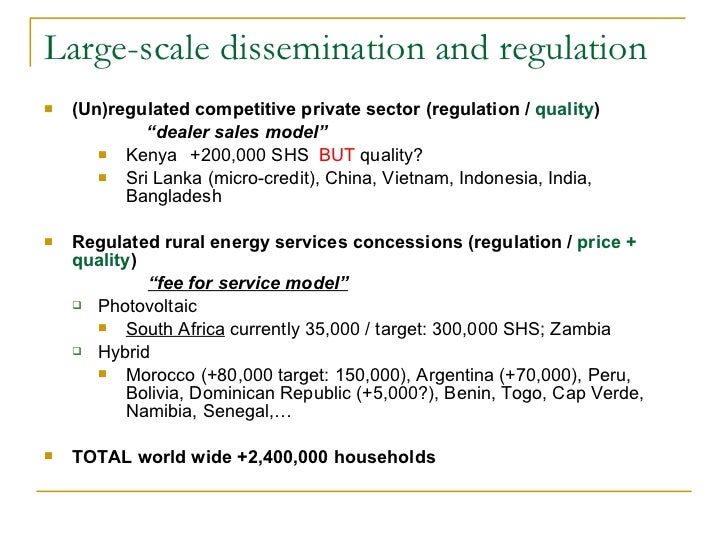

Large-scale dissemination and regulation <ul><li>(Un)regulated competitive private sector (regulation /  quality ) </li></...

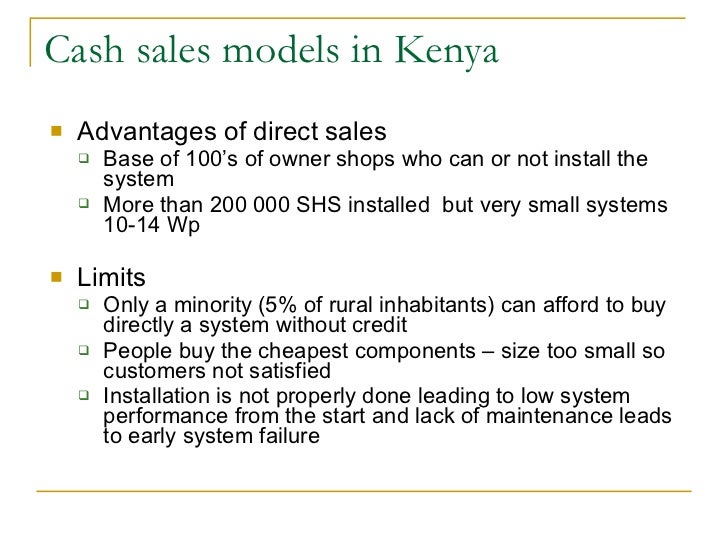

Cash sales models in Kenya  <ul><li>Advantages of direct sales  </li></ul><ul><ul><li>Base of 100’s of owner shops who can...
Credit sales model in Indonesia  <ul><li>E.g. company called Sudimara Energi </li></ul><ul><ul><li>More than 30,000 system...
Fee for service – Utility model (“ESCOs”) <ul><li>Government gives a subsidy to an enterprise to buy PV solar systems & in...

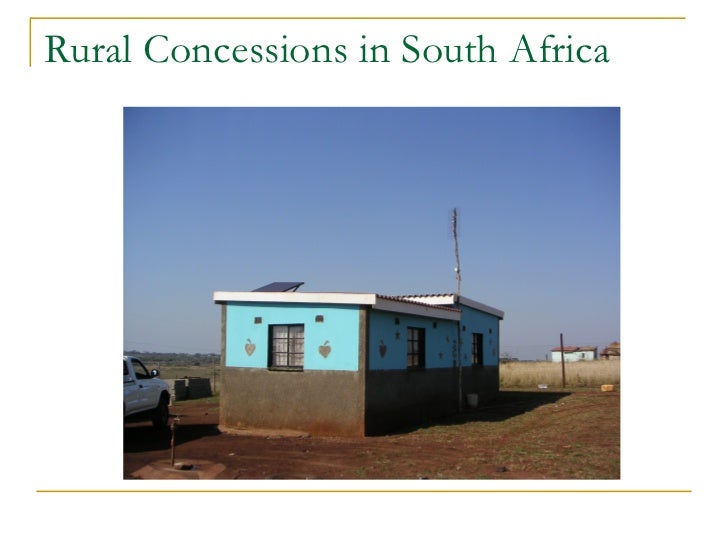

Rural Concessions in South Africa

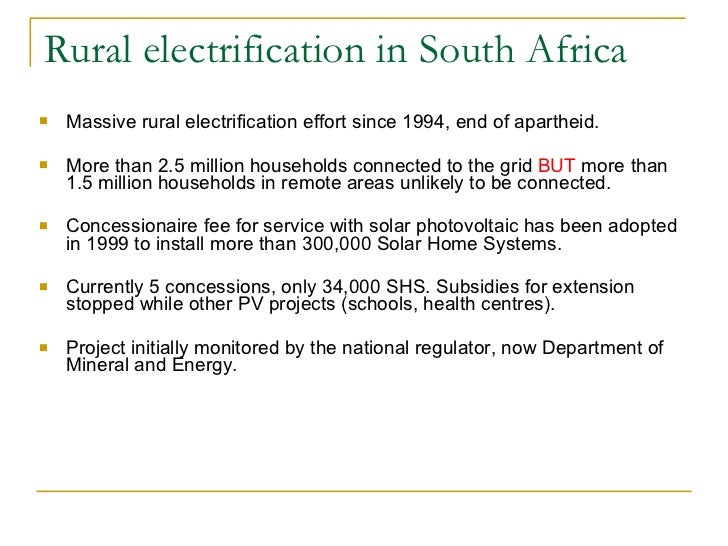

Rural electrification in South Africa <ul><li>Massive rural electrification effort since 1994, end of apartheid. </li></ul...

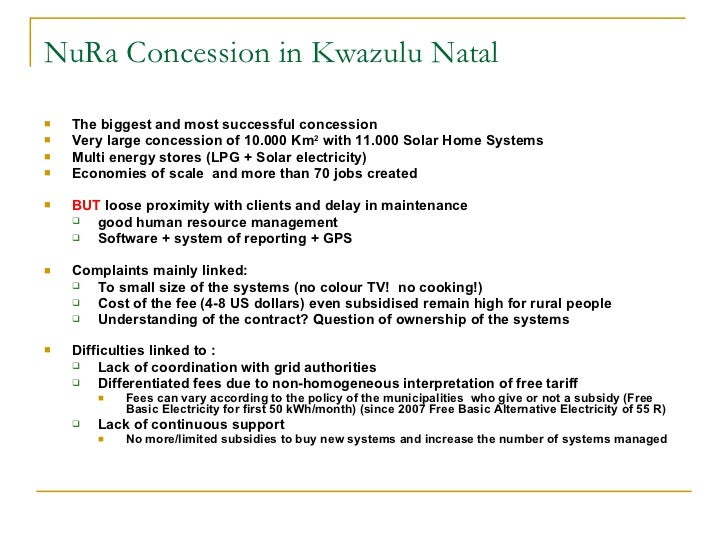

NuRa Concession in Kwazulu Natal   <ul><li>The biggest and most successful concession </li></ul><ul><li>Very large concess...

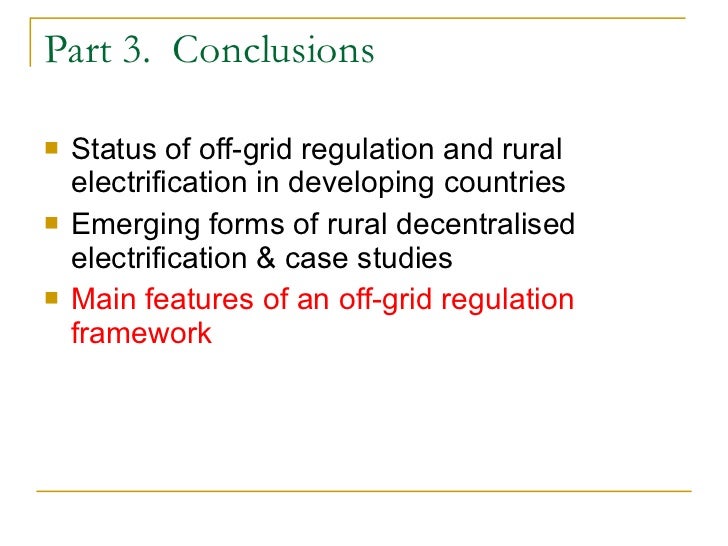

Part 3.  Conclusions <ul><li>Status of off-grid regulation and rural electrification in developing countries </li></ul><ul...
Appropriate regulation for off-grid <ul><li>Light-handed approach </li></ul><ul><ul><ul><ul><li>Avoid over-regulation: reg...

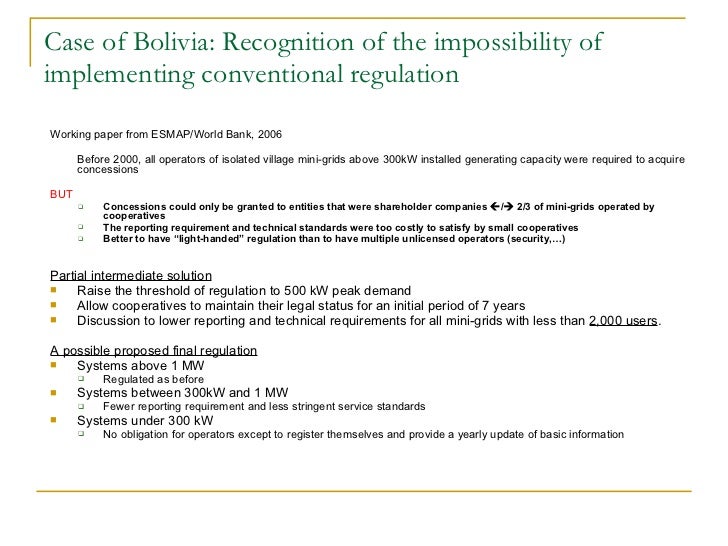

Case of Bolivia: Recognition of the impossibility of implementing conventional regulation  <ul><li>Working paper from ESMA...

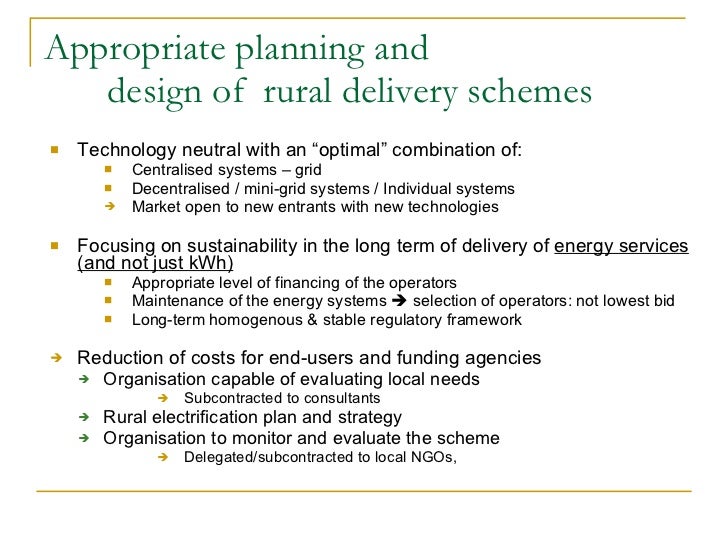

Appropriate planning and  design of  rural delivery schemes <ul><li>Technology neutral with an “optimal” combination of:  ...

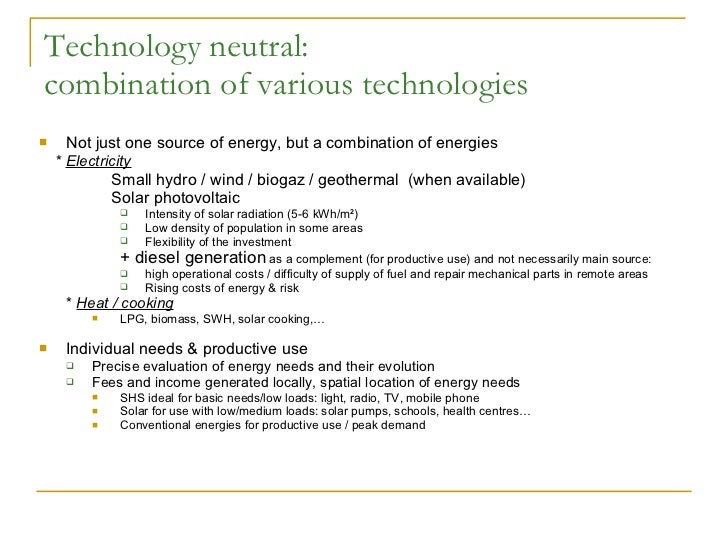

Technology neutral:  combination of various technologies  <ul><li>Not just one source of energy, but a combination of ener...
Combination of mini-grid  & individual systems   Minimum costs  Source: WordPower, 2000
Long term comparison of total costs High operating costs Diesel systems  Solar Home Systems  High investment costs Low ope...

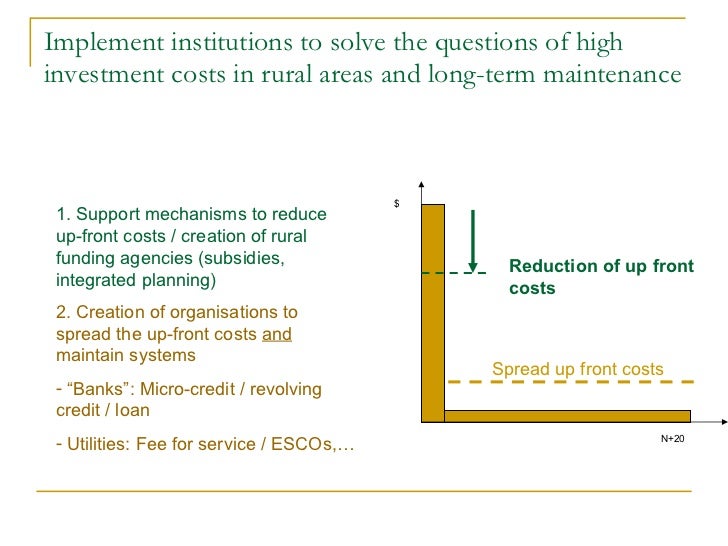

Implement institutions to solve the questions of high investment costs in rural areas and long-term maintenance N+20 $ Red...

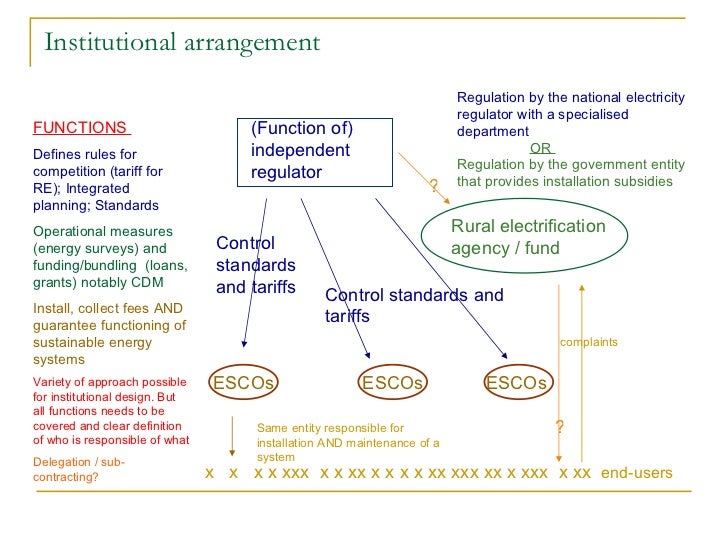

Institutional arrangement Rural electrification agency   / fund   (Function of) independent regulator ESCOs ESCOs  FUNCTIO...
Central role of rural electrification agency <ul><li>Integrated planning </li></ul><ul><ul><ul><li>Energy surveys </li></u...

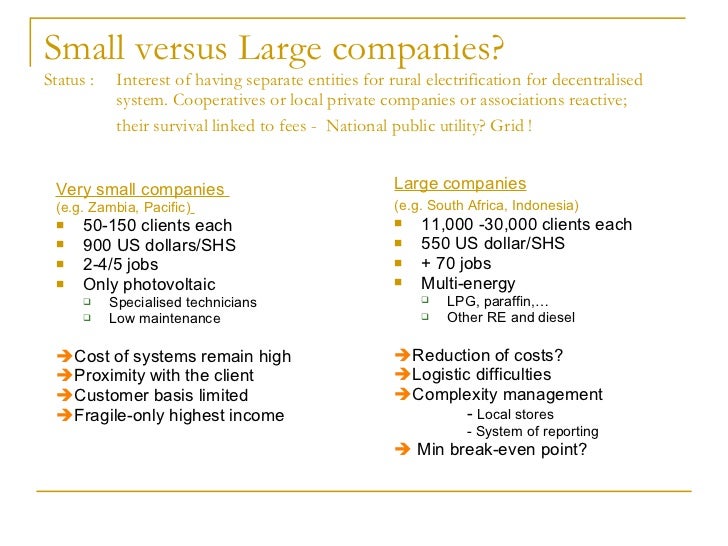

Small versus Large companies? Status :  Interest of having separate entities for rural electrification for decentralised  ...

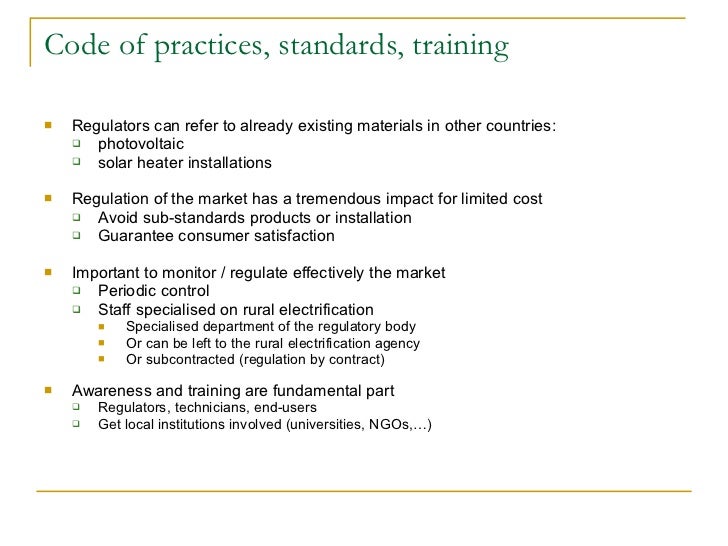

Code of practices, standards, training <ul><li>Regulators can refer to already existing materials in other countries: </li...

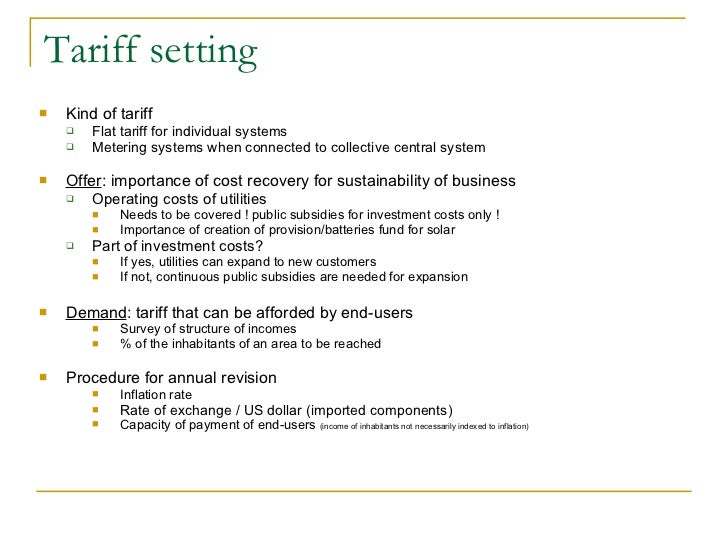

Tariff setting  <ul><li>Kind of tariff </li></ul><ul><ul><li>Flat tariff for individual systems </li></ul></ul><ul><ul><li...

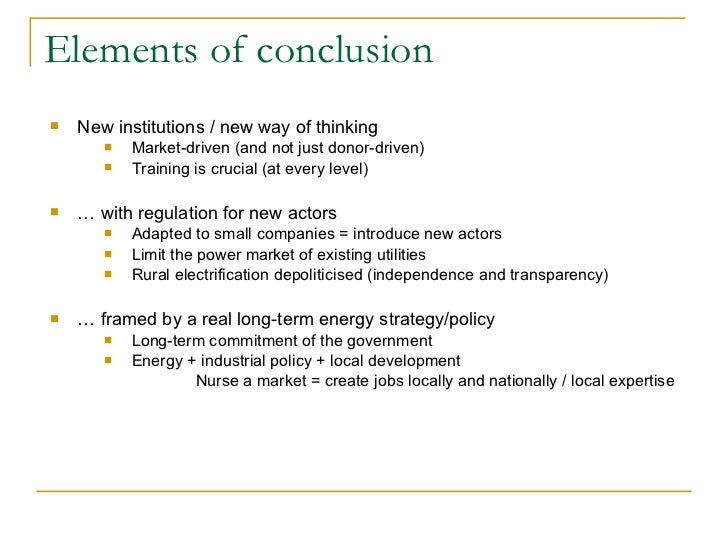

Elements of conclusion  <ul><li>New institutions / new way of thinking  </li></ul><ul><ul><ul><li>Market-driven (and not j...

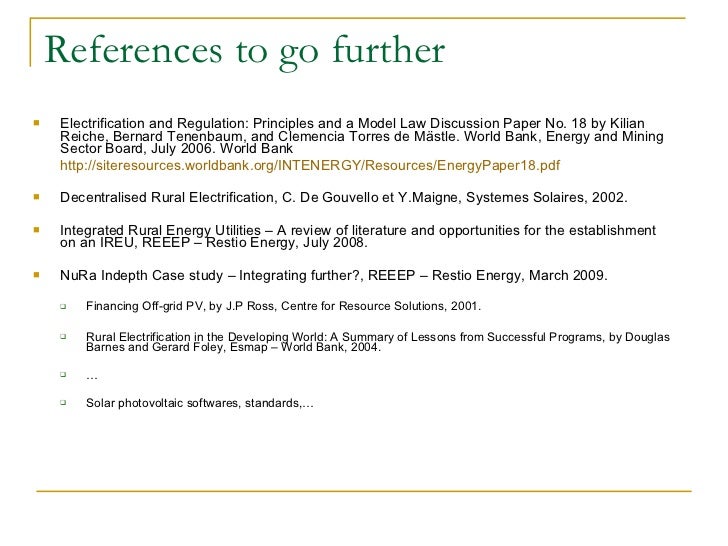

References to go further <ul><li>Electrification and Regulation: Principles and a Model Law Discussion Paper No. 18 by Kil...
  SERN  <ul><li>For more information, our webpage: please click SERN on the REEEP website  http://www.reeep.org/ </li></ul...
