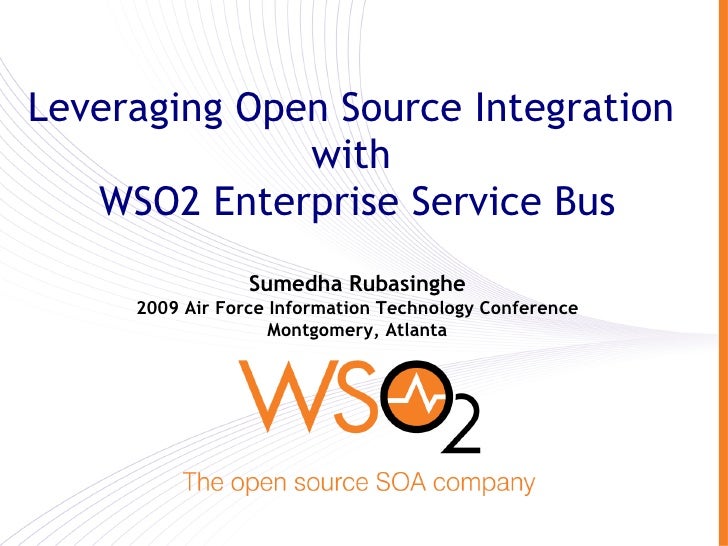

Leveraging Open Source Integration with WSO2 Enterprise Service Bus Sumedha Rubasinghe 2009 Air Force Information Technology Conference Montgomery, Atlanta

Agenda  The Need  Introduction  Features  Important Concepts  Extendibility  Performance  Use cases  Getting started & Help 2

Busbar 8

Introducing Mattson ... Hi.. Mattson here.. I am an architect 10

So.. What is WSO2 ESB? 11

WSO2 Enterprise Service Bus  A fast,Light weight, easy-to-use Enterprise Service Bus product  Open source product with commercial support (if required)  Released with business friendly Apache License 2.0  Based on Apache Synapse  Customizable to match the needs of your Enterprise 12

wait.. What is Apache Synapse? How is it related to WSO2 ESB? 13

Apache Synapse & WSO2 ESB  Leading project developed by Apache community  Some of the key committers with in WSO2  WSO2 ESB is built on top of Apache Synapse  Synapse provides the core mediation capabilities  WSO2 ESB uses Synapse's configuration language 14

Screenshots 15

Screen shots 16

Screen shots 17

In what type of scenarios Can I use WSO2 ESB? 18

Usage scenarios  Link legacy files to messaging based systems  Transform CSV or EDI formats to XML  Act as a high-performance XML Gateway  Content-based routing and creating virtual services  Integrate FIX based trading systems with XML and non-XML backends  Log, trace and audit live systems 19

Tell me some of the main features of WSO2 ESB 20

WSO2 ESB Features  Message Routing  Message Transformation & Mapping  Scheduled Tasks  Orchestration  Protocol Switching  Transaction Support  Eventing 21

Message Routing  Act as a simple Proxy 22

Message Routing  Content based routing 23

Message Transformation & Mapping  XSLT 24

Message Transformation & Mapping  XQuery 25

Message Transformation & Mapping  E4X 26

Message Transformation & Mapping  Support for different file formats – EDI – flat files – CSV – COBOL/Record 27

Tasks  Allow the ESB to initiate work on a timed basis  Cron/simple interval  Write your own tasks 28

Orchestration  Aggregate 29

Orchestration  Disaggregate 30

Orchestration  Callout 31

Orchestration  If/Then/Else 32

Orchestration  BPEL Feature plug-in – Adds BPS capabilities into ESB 33

interesting... 34

Protocol Support 35

Protocol Support  File, (S)FTP, HTTP(S), REST, Hessian, JSON  SOAP  JMS – MQSeries, AMQP/ Apache Qpid,Apache ActiveMQ – Transactional support  Email, XMPP,FIX,TCP 36

Rule based Mediation  Drools 37

Many more features ...  Load balancing  Fail-over handling  Caching / Throttling  Registry based Clustering  WS-Reliable Messaging  FIX  CEP (Complex Event Processing)  and many more.... 38

What if I want more? Can I extend WSO2 ESB? Yes.. you can.. Just write a mediator.. 39

Mediator ..!! what is that? 40

Important concept - Mediator • Basic component of ESB • Mediates messages going through • Core mediators – Send, Drop, Log, Property • Filter mediators – Filter, Switch, Validate, Throttle, In, Out • Transformation mediators – XSLT, Header, Fault, XQuery • Advanced mediators – Clone, Cache, Aggregate, DBLookup, Callout 41

Important concept – Send Mediator • Used to send out the messages • Used in almost all the cases • Wrapped an endpoint – if no endpoint is specified, anonymous 'To' address will be taken as the EPR 42

Important concept – Sequence • Special mediator – List of mediators to be executed in an order • Pipeline pattern • Special sequences – main – fault 43

Important concept – operation modes • Act as a proxy • Main Sequence – If none of the proxy services matches the request pattern 44

I would like to have few more mediator examples.. 45

Extendibility – Java Mediator • Class implementing the Mediator interface – Or AbstractMediator class – Custom mediator is executed through the ClassMediator in ESB – Corresponding setter methods in the custom class will be set before executing the custom mediator if any properties are specified 46

Extendibility - POJOCommand • Extends the mediation capabilities using the well known command pattern – Class implementing the Command interface or a POJO with a void execute() method – execute() method will be invoked using the Command interface or by using reflection – Sets the properties before execution and retrieves the properties after execution 47

Extendibility – Script Mediator • Enables scripting for extending mediation • Supports all the Apache BSF scripting languages – JRuby, Jython, Groovy, Java Script • Embed the script inline or can be referred to a separate script file with the function name to be executed 48

Extendibility – Spring Mediator • Spring configurations to extend the mediation • Spring bean must implement the Mediator interface • Refer to the spring application context using the key • The Spring bean is managed by the spring context at mediation time 49

Extending WSO2 ESB  Registry as a repository – Loading configuration from external registry  New Transports 50

So how does all of these fit together?... What happens with-in WSO2 ESB? 51

Architecture 52

Runtime 53

Deployment 54

Performance  Completely asynchronous architecture internally  Streaming support for messages  100% error free and zero memory leaks under heavy load  Up to 4500tps out-of-the-box for proxying – Intel(R) Xeon(TM) 3.20GHz 2MB Cache – Dual Core - 2 CPU system – 2GB RAM – 1Gb Ethernet  http://wso2.org/library/3740 55

Performance  http://wso2.org/library/3740 56

Non-Blocking IO Synapse Incoming req Request Thread1 processing Outgoing req Socket open Socket open TIME TIME TIME TIME Incoming resp Response Thread2 processing Outgoing resp This model means: 1. Synapse threads never blocked during normal processing 2. Number of sockets open >> number of threads 57

Monitoring  Monitor System statistics  Running logs  Message Tracing  Dynamically configurable Logger  Exposes statistics via JMX  Dashboard – Google Gadgets 58

I would like to see some Use cases where all of these are applied... 59

Use Case 1 • Problem – I want to send a notification email whenever there is a request to a particular service which satisfies a set of conditions over the request • Solution – Filter the messages over the request and evaluate the conditions – If the conditions evaluate to true then clone the message – Send the request to the desired endpoint while forwarding a copy (may be after transformation) 60 through the mail transport

Use Case 1 61

Use Case 1 - configuration 62

Use Case 2 • Problem – I have a service exposed over HTTP transport and now I want the same service to be accessed through JMS • Solution – Expose a proxy service with JMS (and what ever transport) and switch the transport to HTTP (if not http) – Invoke the actual service with HTTP transport – Switch the transport back to JMS of the response message 63

Use Case 2 64

Use Case 2 - Configuration 65

Use Case 3 • Problem – I want the ESB to invoke several services of the same type for a request, evaluate all the responses and respond me with the best one • Solution – Clone the message and send the requests to different endpoints – Get the responses from all services and aggregate the responses – Select the best out of the aggregated responses and respond to the client 66

Use Case 3 67

Use Case 4 • Problem – I have a non secure service and now I want to expose this service with security • Solution – Expose a proxy service – Add security to that proxy service and specify the policy on which you want to enforce security – Invoke the actual service without security by removing security headers in the request comes to the proxy – Add security for responses from the actual service 73 to client

Use Case 4 74

Use Case 5 - FIX to HTTP transport http://wso2.org/library/3837 76

Use Case 6 - Eventing •http://wso2.org/library/articles/fusion-eventing-soa •http://wso2.org/library/articles/fusion-eventing-soa-part-2-eventing-using- synapse-wso2esb 77

Use Case 7 78

WSO2 Product Platform 79

That's lot of information... Now I would like to try these out myself. How do I get started? 80

How to get started?  Download binary distribution from http://wso2.org/projects/esb/java  Latest is v2.1.0  Unzip • Run bin/wso2server.sh (on Unix) or bin/wso2server.bat (on Windows) • Management console – https://localhost:9443/carbon – admin/admin 81

Help.. I messed it up... 82

How to get help?  Online forum  Active community of external users  Ample free documentation on wso2.org  If needed, we provided commercial support on – Getting started – Deployment – Custom development – Production support 83

I would like to have some URLs for reference. 84

Useful references  WSO2 Oxygen Tank for Web Service Developers – http://wso2.org  WSO2 ESB project page – http://wso2.org/projects/esb  Performance testing – http://wso2.org/library/3740 – http://wso2.org/library/2259 – http://wso2.org/library/1721  Apache Synapse – http://synapse.apache.org 85

Summary •Hypothetical Enterprise •Brief Introduction on WSO2 ESB •Features •Important concepts – Mediators – Sequence •Extendibility •Use cases •Getting started & Help 86

Thank you sumedha@wso2.com (on behalf of WSO2 ESB team) 87
