<Insert Picture Here>          Building Highly Reusable ADF Task FlowsSteven Davelaar                    twitter:@stevenda...
Agenda•   Reusability requirements - generic•   Addressing generic reusability requirements•   Reusability requirements – ...
Reusability Requirements - Generic•   Use with traditional menu structure•   Use with dynamic tabs•   Use with human workf...
Addressing Reusability Requirements• Use bounded taskflows with page fragments  – Reusable UI service with clearly defined...
UIShell – Tabbed Menu                        5
UIShell – Dynamic Tabs with Tree Menu                                        6
Using Dynamic ADF Regions – Additionalcomplexity• You can no longer use standard JSF navigation  – No pages to go to, only...
Addressing the complexity• Use DynamicRegionManager to provide current task  flow and params• Task flow details provided b...
UI Shell at Runtime                                   UIShell.jsf                               Dynamic Region            ...
UIShell at Runtime – Managed Beans                                     10
TaskFlowConfigBean - Jobs                            11
Navigating Using Dynamic Regions• Create custom RegionNavigationHandler  – configure in faces-config.xml  – Provides stand...
Navigating Using Dynamic Regions• Action ”uishell:Jobs”  –   navigates to UIShell.jsf page (if needed)  –   sets current t...
Reusability Requirements – Taskflow Specific• Configure to show in read-only mode• Configure to show one specific row (dee...
Reuse Case 1 – Adding Menu Entry to View Jobs                                                15
Reuse Case 1 – Adding Menu Entry to View Jobs• Enable jobs task flow to run in read-only mode  –   Add readOnly parameter ...
Reuse Case 1 – Adding Menu Entry to View Jobs                                                17
Reuse Case 2 – Add Deeplinking to Edit Job                                             18
Reuse Case 2 – Add Deeplinking to Edit JobPrepare Jobs task flow:• Add rowKeyValue parameter• Create method activity SetCu...
Reuse Case 2 – Add Deeplinking to Edit Job                                             20
Reuse Case 2 – Add Deeplinking to Edit Job                                             21
Reuse Case 2 – Add Deeplinking to Edit JobPrepare Employees task flow:• Add task flow call activity CallJob to Employees T...
Reuse Case 2 – Add Deeplinking to Edit Job                                             23
Reuse Case 3 – View Job Details in Popup                                           24
Reuse Case 3 – View Job Details in PopupTwo implementation strategies:• Jobs TF Call with Run as Dialog option  – This opt...
Reuse Case 3 – View Job Details in Popup• (Add readOnly param to Jobs TF)• Add Popup with Dialog to EditEmployee  – Set ch...
Reuse Case 3 – View Job Details in Popup                                           27
Reuse Case 4 – Employees TF as Child inDepartment Page                                          28
Reuse Case 4 – Employees TF as Child inDepartment Page• Restrict query employees based on department   – Set up view crite...
Reuse Case 4 – Employees TF as Child inDepartment Page                                          30
Reuse Case 4 – Employees TF as Child inDepartment Page                                          31
Reuse Case 5 – Deeplinking from External Source                                                  32
Reuse Case 5 – Deeplinking from External Source• DynamicRegionManager checks request params  – PostConstruct method lookin...
Data Control Scope and Transactions• Data Control Scope  – Shared: all TF’s share same app module instance  – Isolated: Ea...
Data Control Scope and Transactions• Data Control Scope and Transaction are defined at  task flow definition level  • Limi...
Testing Task Flows• ADF EMG Taskflow Tester   •   Testing of bounded task flows with pages and fragments   •   Support for...
Summary• Use bounded task flows with page fragments• Set up infrastructure to use ADF regions in UIShell• Think about poss...
Useful Resources• Blog post: UIShell with Menu Driving a Dynamic Region  • Contains links to presentation and sample appli...
39
Upcoming SlideShare
Loading in...5
×

Building Highly Reusable Taskflows

6,670

Published on

Presentation conducted at ODTUG Kaleidoscope 2011, OOW 2011 and UKOUG 2011. Sample application can be downloaded from my blog: http://blogs.oracle.com/jheadstart/entry/core_adf11_building_reusable_task

Published in: Technology, Business
1 Comment
8 Likes
Statistics
Notes
  • it's very useful
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total Views
6,670
On Slideshare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
409
Comments
1
Likes
8
Embeds 0
No embeds

No notes for slide

Transcript of "Building Highly Reusable Taskflows"

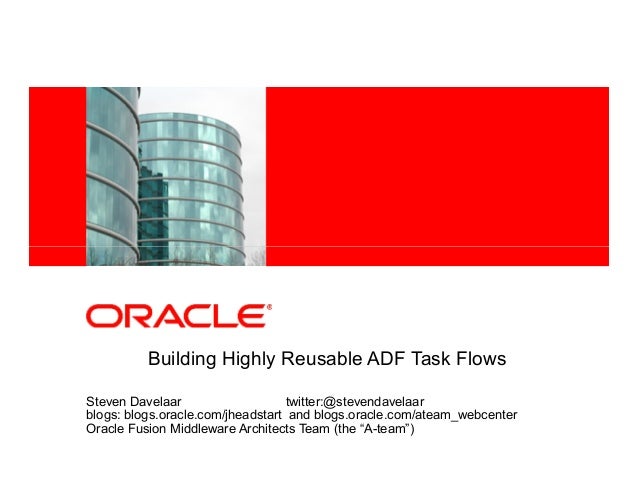

  1. 1. <Insert Picture Here> Building Highly Reusable ADF Task FlowsSteven Davelaar twitter:@stevendavelaarblogs: blogs.oracle.com/jheadstart and blogs.oracle.com/ateam_webcenterOracle Fusion Middleware Architects Team (the “A-team”)
