The Stick Cuts Costs For POS Systems

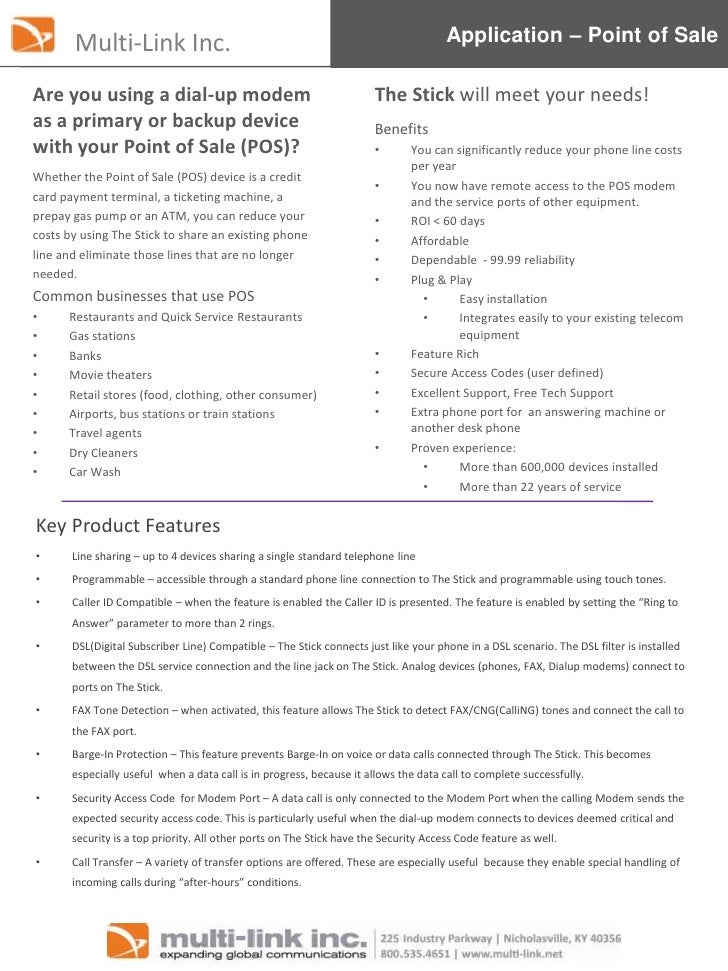

  1. 1. Application – Point of Sale<br />Multi-Link Inc.<br />Are you using a dial-up modem as a primary or backup device with your Point of Sale (POS)? <br />The Stick will meet your needs!<br />Benefits<br /><ul><li>You can significantly reduce your phone line costs per year
  2. 2. You now have remote access to the POS modem and the service ports of other equipment.
  3. 3. ROI < 60 days
  4. 4. Affordable
  5. 5. Dependable - 99.99 reliability
  6. 6. Plug & Play
  7. 7. Easy installation
  8. 8. Integrates easily to your existing telecom equipment
  9. 9. Feature Rich
  10. 10. Secure Access Codes (user defined)
  11. 11. Excellent Support, Free Tech Support
  12. 12. Extra phone port for an answering machine or another desk phone
  13. 13. Proven experience:
  14. 14. More than 600,000 devices installed
  15. 15. More than 22 years of service</li></ul>Whether the Point of Sale (POS) device is a credit<br />card payment terminal, a ticketing machine, a<br />prepay gas pump or an ATM, you can reduce your<br />costs by using The Stick to share an existing phone<br />line and eliminate those lines that are no longer<br />needed. <br />Common businesses that use POS<br /><ul><li>Restaurants and Quick Service Restaurants
  16. 16. Gas stations
  17. 17. Banks
  18. 18. Movie theaters
  19. 19. Retail stores (food, clothing, other consumer)
  20. 20. Airports, bus stations or train stations
  21. 21. Travel agents
  22. 22. Dry Cleaners
  23. 23. Car Wash</li></ul>Key Product Features<br /><ul><li>Line sharing – up to 4 devices sharing a single standard telephone line
  24. 24. Programmable – accessible through a standard phone line connection to The Stick and programmable using touch tones.
  25. 25. Caller ID Compatible – when the feature is enabled the Caller ID is presented. The feature is enabled by setting the “Ring to Answer” parameter to more than 2 rings.
  26. 26. DSL(Digital Subscriber Line) Compatible – The Stick connects just like your phone in a DSL scenario. The DSL filter is installed between the DSL service connection and the line jack on The Stick. Analog devices (phones, FAX, Dialup modems) connect to ports on The Stick.
  27. 27. FAX Tone Detection – when activated, this feature allows The Stick to detect FAX/CNG(CalliNG) tones and connect the call to the FAX port.
  28. 28. Barge-In Protection – This feature prevents Barge-In on voice or data calls connected through The Stick. This becomes especially useful when a data call is in progress, because it allows the data call to complete successfully.
  29. 29. Security Access Code for Modem Port – A data call is only connected to the Modem Port when the calling Modem sends the expected security access code. This is particularly useful when the dial-up modem connects to devices deemed critical and security is a top priority. All other ports on The Stick have the Security Access Code feature as well.
  30. 30. Call Transfer – A variety of transfer options are offered. These are especially useful because they enable special handling of incoming calls during “after-hours” conditions. </li></li></ul><li>Application – Point of Sale<br />Multi-Link Inc.<br />PSTN Network<br />BEFORE<br />POS<br />DIAL-UP <br />MODEM<br />FAX<br />(555) 555.0001<br />(555) 555.0003<br />(555) 555.0004<br />(555) 555.0002<br />The Stick – How it works<br />The Stick automatically answers inbound calls and ‘screens’ for Fax Tones (CNG) and/or Security Access Codes (DTMF). <br />While performing the screening function for both types of tones, a high quality simulated ‘ring back’ is generated to the calling party. After the screening function is performed the call is routed to the proper device, Phone, Fax, or Modem.<br />PSTN Network<br />AFTER<br />MODEM<br />VOICE 2<br />VOICE 1<br />LINE<br />FAX<br />(555) 555.0001<br />(555) 555.0002<br />FAX<br />DIAL-UP <br />MODEM<br />TIME &ATTENDANCE<br />POS<br />Lines Eliminated: 2<br />Cost per line: $600/year<br />You Save $1200/year<br />

×
