The Effects of Ocean Acidification onPacific Oyster Larval Developmentand PhysiologyEmma Timmins-SchiffmanSteven RobertsCa...
How does OA affect larvae?Effect of OA        Organism                ReferenceDecreased shell     Oyster, mussel,        ...
Which physiological mechanisms arechanging?¤ Calcification¤ Hydrogen ion balance across membranes¤ Energy metabolism¤ ...
How does ocean acidification affectdevelopment and physiology of Pacific oysterlarvae (Crassostrea gigas)
CO2-free air   CO2 (canister)Honeywell Controller                                            Treatment-                   ...
Experimental DesignEquilibrate treatment water           Fertilization 1 hpf 6 hpf   24 hpf   72 hpf 96 hpfFix samples for...
pH     8.5     8.0pH     7.5           400 !atm           700 !atm           1000 !atm     7.0                       Time
Relationship between TA and Salinity                             Total Alkalinity                                         ...
Dissolved Inorganic Carbon                2000                1900DIC (!mol/kg)                1800                1700   ...
Calcium Carbonate Saturation State        4        3Omega        2                                                        ...
Results: Larval Development, Growth,and Calcification¤ Larvae were fixed for later microscopy¤ Developmental stage was a...
Proportion Larvae at Pre-Hatching Stage at 6hpf                             1.0                                           ...
Larval Calcification: Methods¤ Double polarization of light¤ Qualify larval calcification
Larval Calcification at 24h                                                                        More larvae            ...
Larval Calcification at 72h                                                                         Fewer larvae          ...
Larval Size: Methods¤ Size measured in 2   parameters – hinge   length and shell   height¤ Measurements are   from 24 an...
Hinge Length by Treatment and Day                                                   Shell Height by Treatment and Day     ...
Growth Rate by Treatment                       15                                                           Hinge         ...
Gene Expression¤ 2 microcosms from   each treatment at   96 hpf¤ Oxidative stress   genes (SOD,Prx6)   and molecular   c...
Hsp70                       Stress ResponseSTRESS              Protein damage/                    unfolding               ...
Heat Shock Protein 70                               25Fold Over Minimum Expression                                        ...
Oxidative Stress Genes                   Stress ResponseSTRESS        •  Increase metabolism              •  Kill pathogen...
Superoxide Dismutase             0.20             0.15Expression             0.10             0.05             0.00       ...
Fold Over Minimum Expression                          0e+00   1e+22   2e+22   3e+22   4e+22   5e+22   6e+22               ...
Oxidative Stress Genes    Greater expression of SOD and Prx6 may    indicate increased oxidative stress during    exposure...
Conclusions¤  pCO2 of 700 and 1000 µatm caused decreased growth    and calcification in C .gigas larvae through 72 hpf¤ ...
Thank youEmily Carrington•Matt George•Michelle Herko•LauraNewcomb•Ken Sebens•Richard Strathmann•AdamSummers•Billie Swalla•...
References¤    1Watson et al. 2009. Early larval development of the Sydney rock oyster Saccostrea glomerata under near-fu...
Upcoming SlideShare
Loading in …5
×

Timmins Schiffman PCSGA 2011

760 views
697 views

Published on

Emma Timmins-Schiffman's Ocean Acidification talk at PCSGA 2011

Published in: Education, Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
760
On SlideShare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
9
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Timmins Schiffman PCSGA 2011

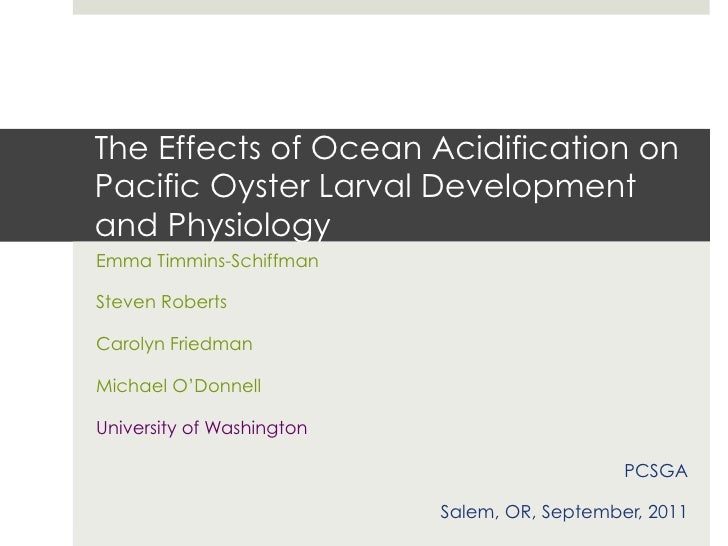

  1. 1. The Effects of Ocean Acidification onPacific Oyster Larval Developmentand PhysiologyEmma Timmins-SchiffmanSteven RobertsCarolyn FriedmanMichael O’DonnellUniversity of Washington PCSGA Salem, OR, September, 2011
