PHYSICS MODULE 2     www.part66.blogspot.com

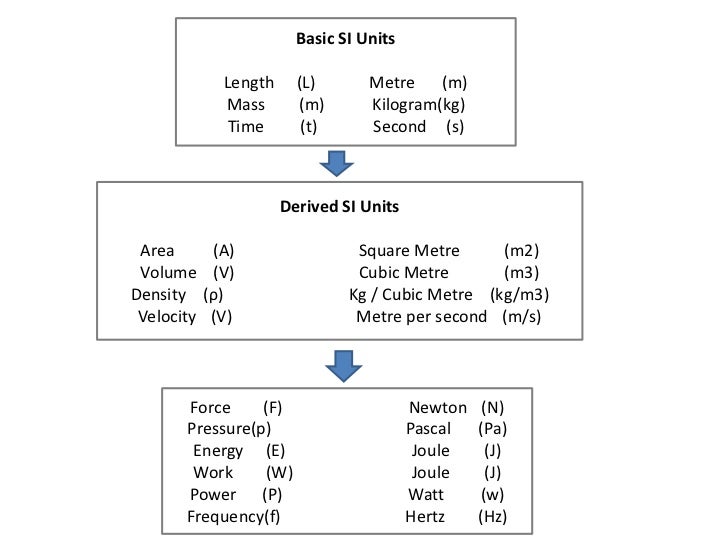

Basic SI Units              Length     (L)       Metre (m)              Mass       (m)       Kilogram(kg)              Tim...

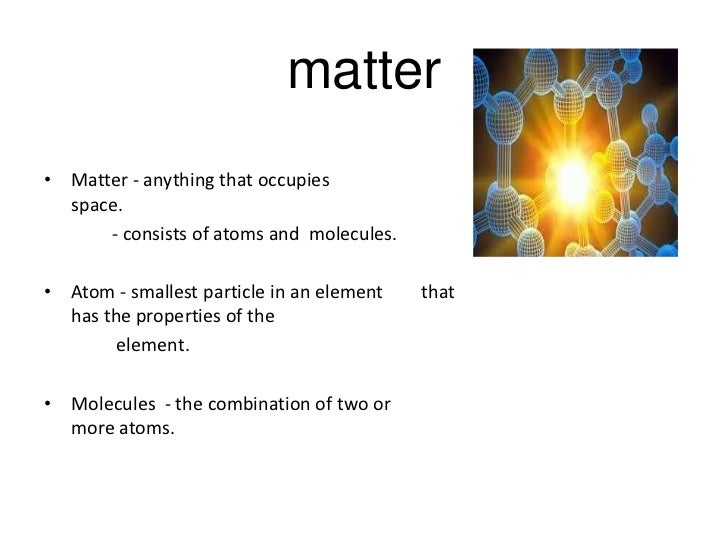

matter• Matter - anything that occupies  space.      - consists of atoms and molecules.• Atom - smallest particle in an el...

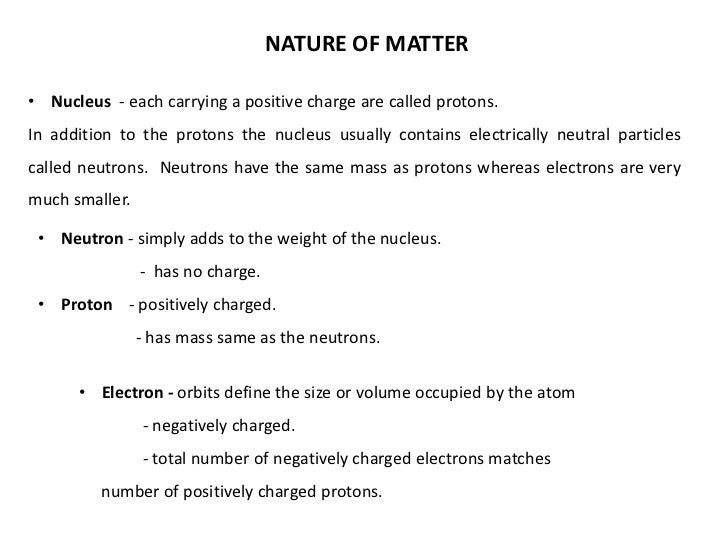

NATURE OF MATTER• Nucleus - each carrying a positive charge are called protons.In addition to the protons the nucleus usua...

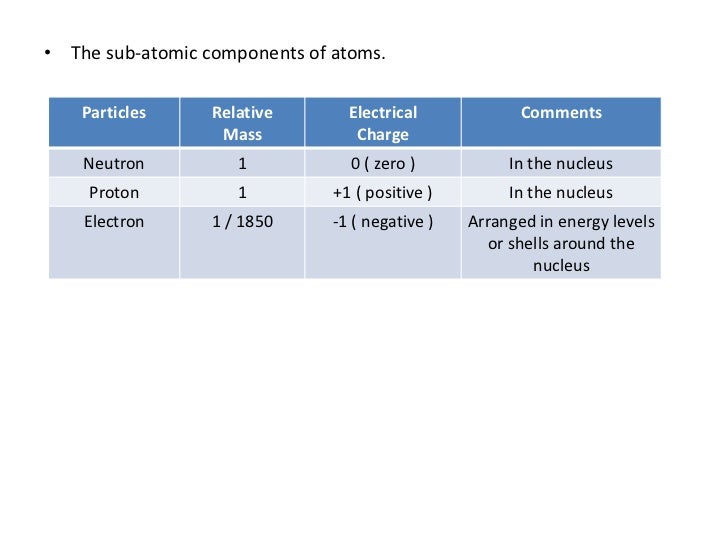

• The sub-atomic components of atoms.    Particles     Relative       Electrical             Comments                   Ma...
• Atomic Number – no. of protons in the atom’s nucleus.      eg. Hydrogen has 1 proton – atomic no. is 1.          Carbon ...

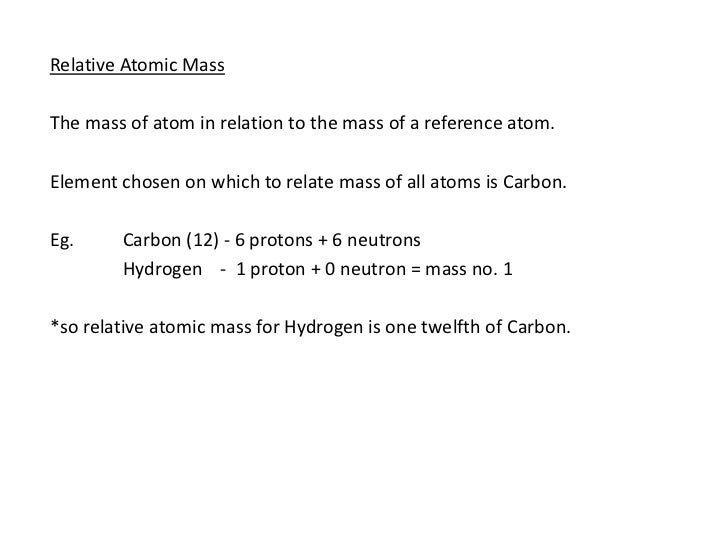

Relative Atomic MassThe mass of atom in relation to the mass of a reference atom.Element chosen on which to relate mass of...
Isotopes•   are atoms that have same atomic number but different mass numbers.•   Atom gains / loses one or more neutrons ...

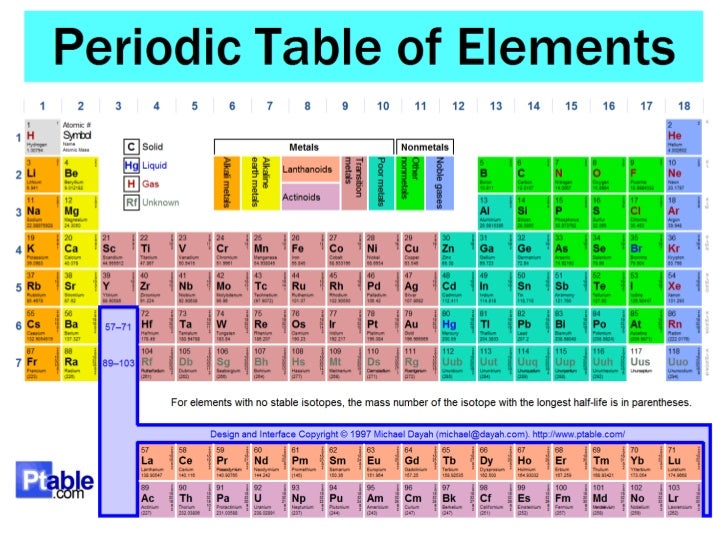

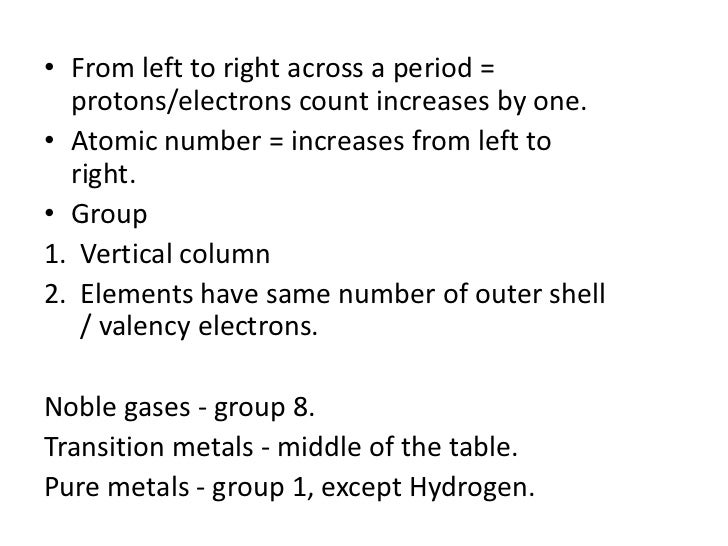

• From left to right across a period =  protons/electrons count increases by one.• Atomic number = increases from left to ...

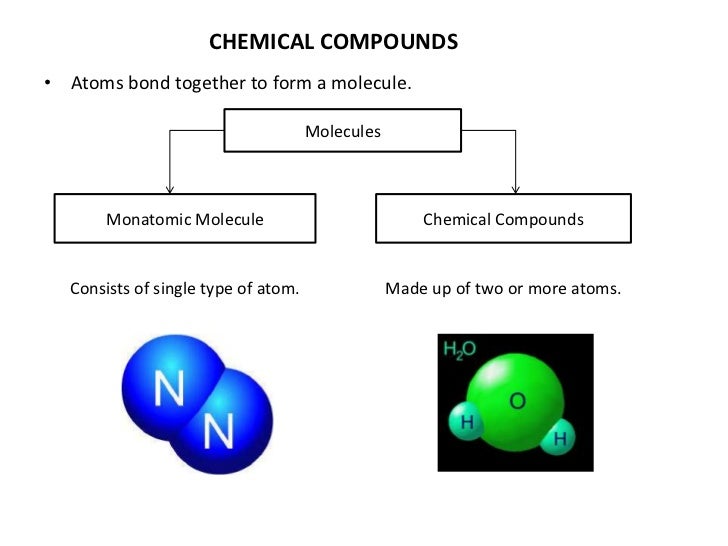

CHEMICAL COMPOUNDS• Atoms bond together to form a molecule.                                     Molecules       Monatomic ...

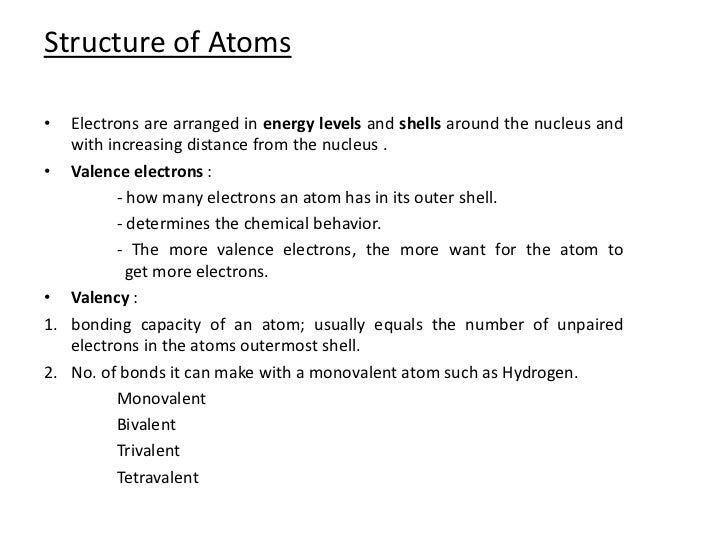

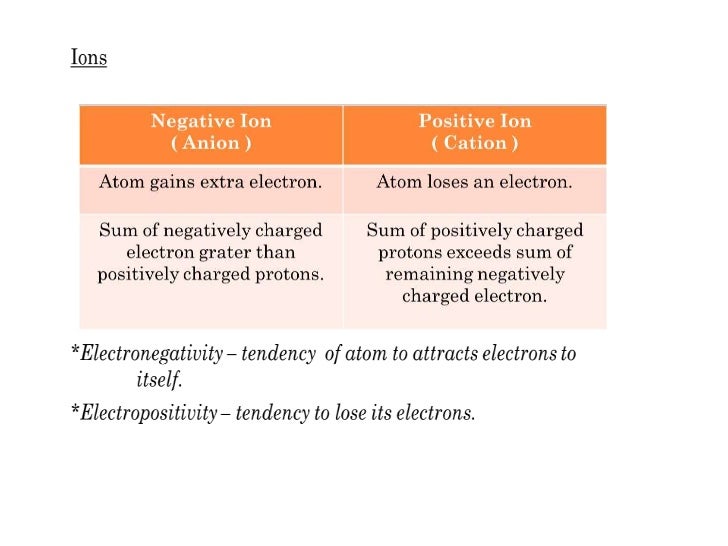

Structure of Atoms•  Electrons are arranged in energy levels and shells around the nucleus and   with increasing distance ...
The Molecule•   A group of two or more similar or dissimilar atoms bonded together .•   Metallic bonds - metal + metal (eg...
Chemical compounds• Defined as :‘ A substance made up of different elements that are chemically bonded andare so united th...

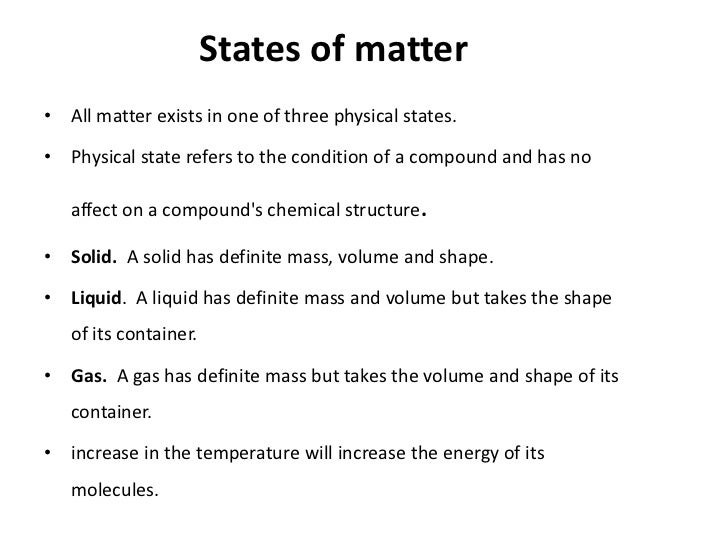

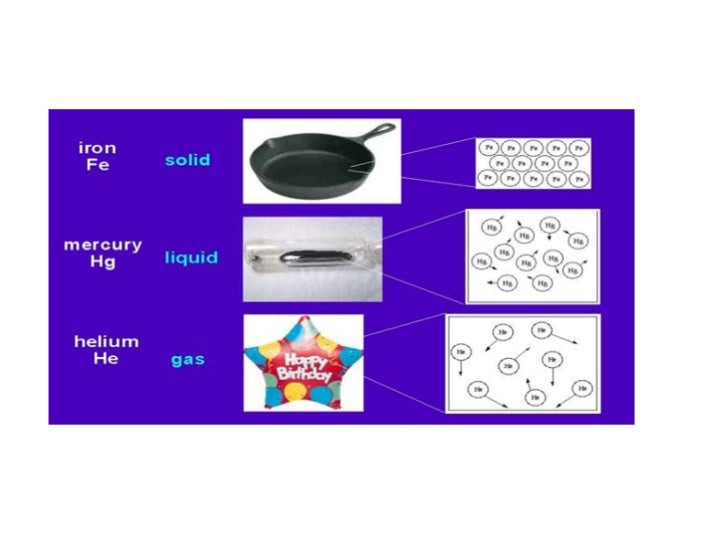

States of matter• All matter exists in one of three physical states.• Physical state refers to the condition of a compound...

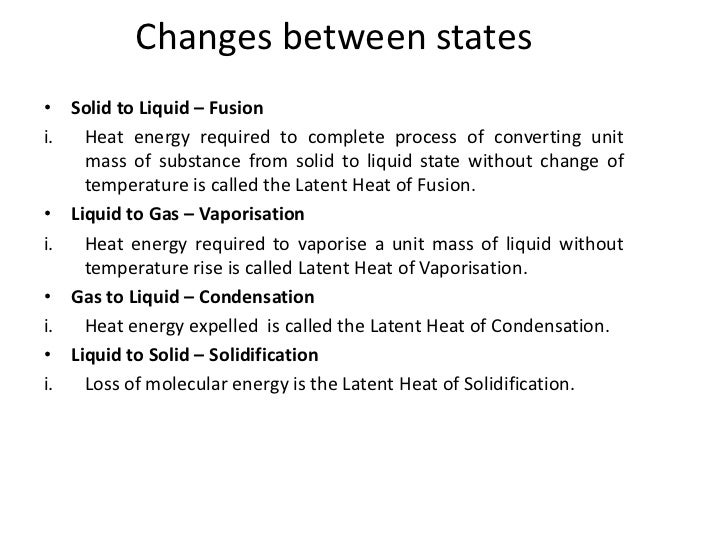

Changes between states• Solid to Liquid – Fusioni.  Heat energy required to complete process of converting unit    mass of...

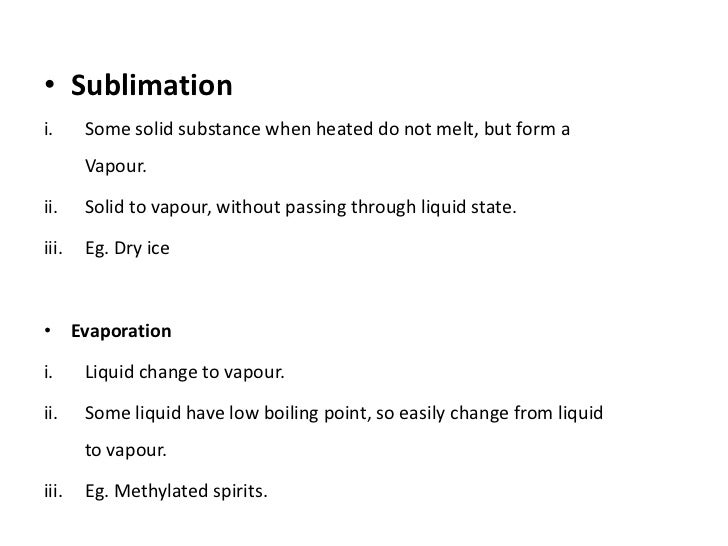

• Sublimationi.     Some solid substance when heated do not melt, but form a       Vapour.ii.    Solid to vapour, without ...

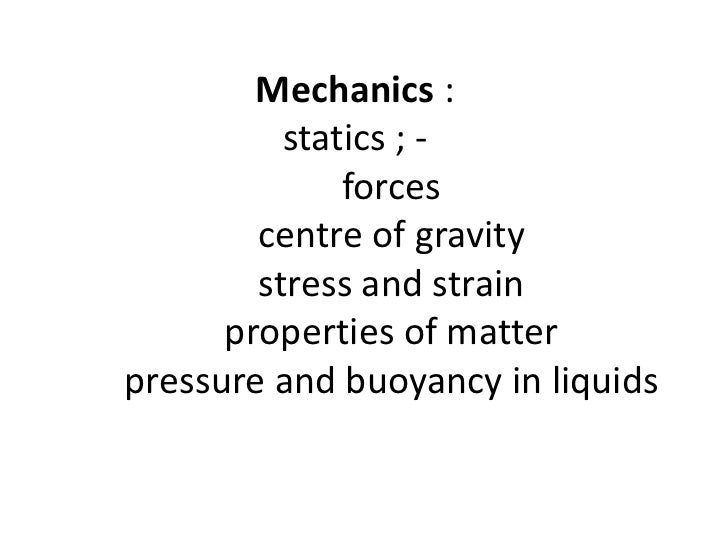

Mechanics :          statics ; -              forces        centre of gravity        stress and strain      properties of ...

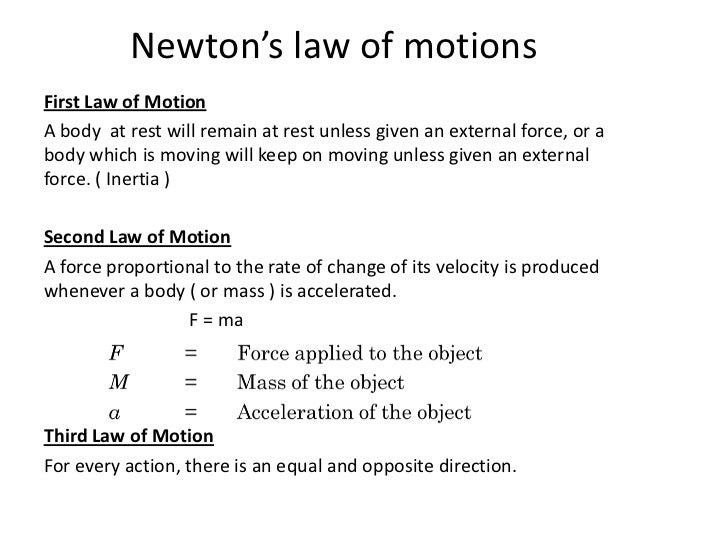

Newton’s law of motionsFirst Law of MotionA body at rest will remain at rest unless given an external force, or abody whic...

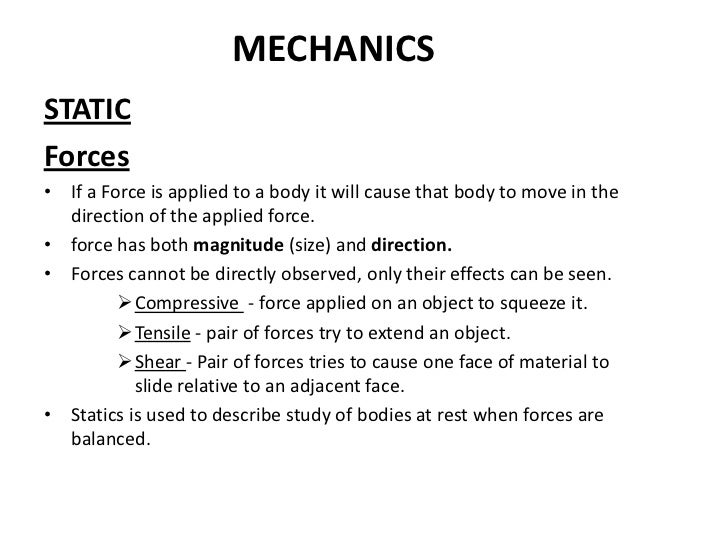

MECHANICSSTATICForces• If a Force is applied to a body it will cause that body to move in the  direction of the applied fo...

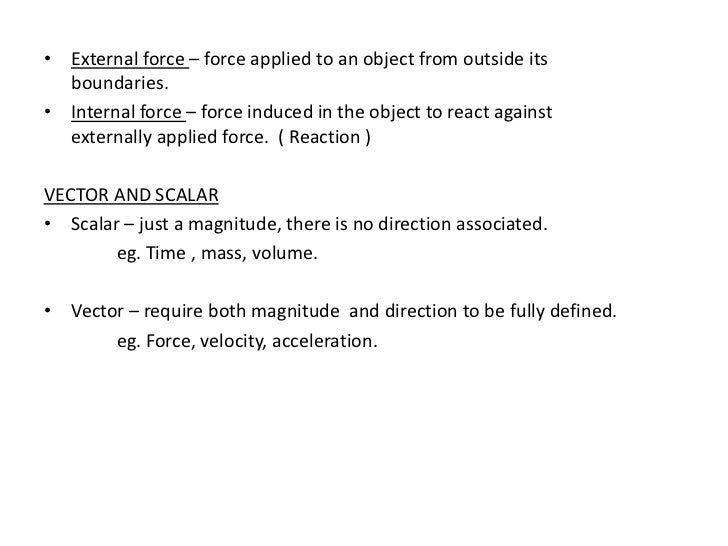

• External force – force applied to an object from outside its  boundaries.• Internal force – force induced in the object ...

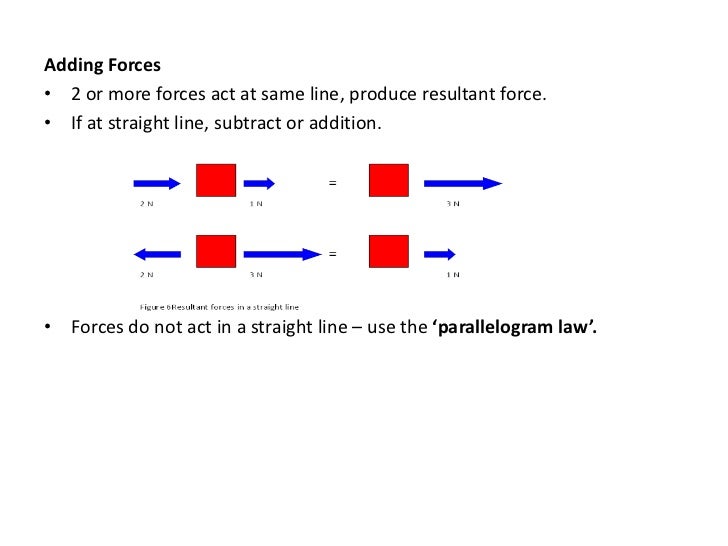

Adding Forces• 2 or more forces act at same line, produce resultant force.• If at straight line, subtract or addition.• Fo...

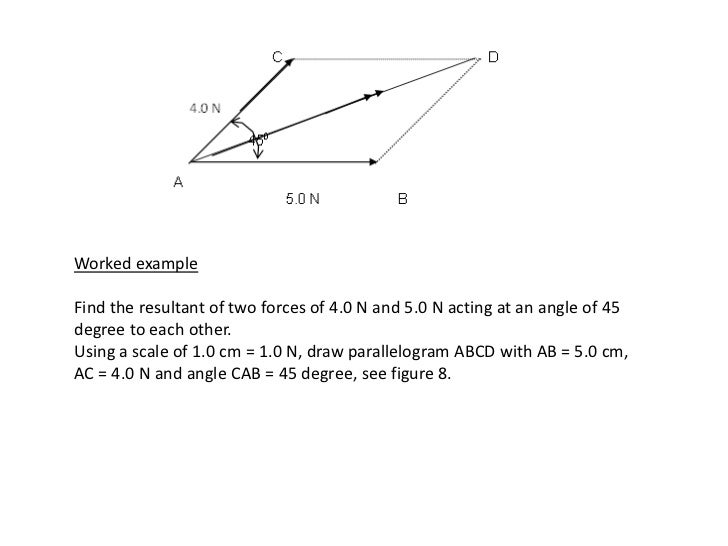

Worked exampleFind the resultant of two forces of 4.0 N and 5.0 N acting at an angle of 45degree to each other.Using a sca...

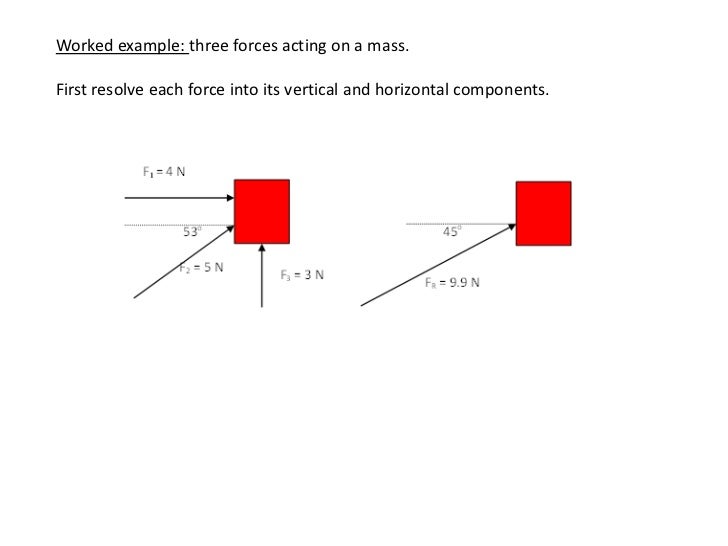

Worked example: three forces acting on a mass.First resolve each force into its vertical and horizontal components.

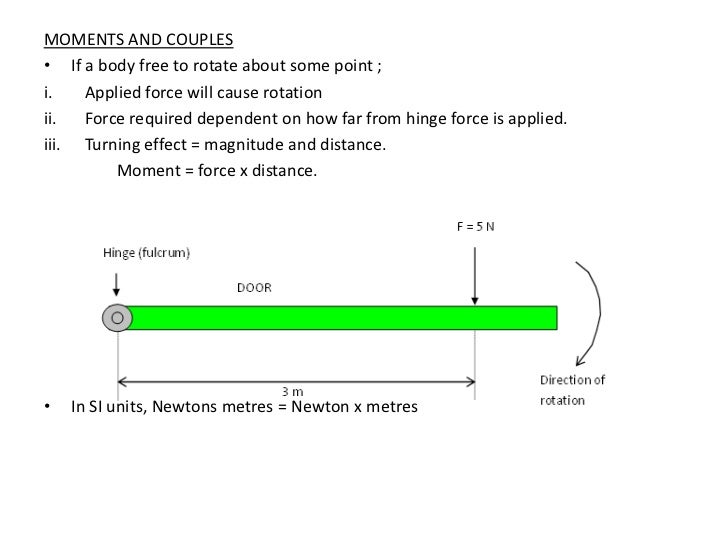

MOMENTS AND COUPLES• If a body free to rotate about some point ;i.   Applied force will cause rotationii.  Force required ...
The Principle of Moments‘If a body is at rest under the action of several forces, the sum of theclockwise moments about an...

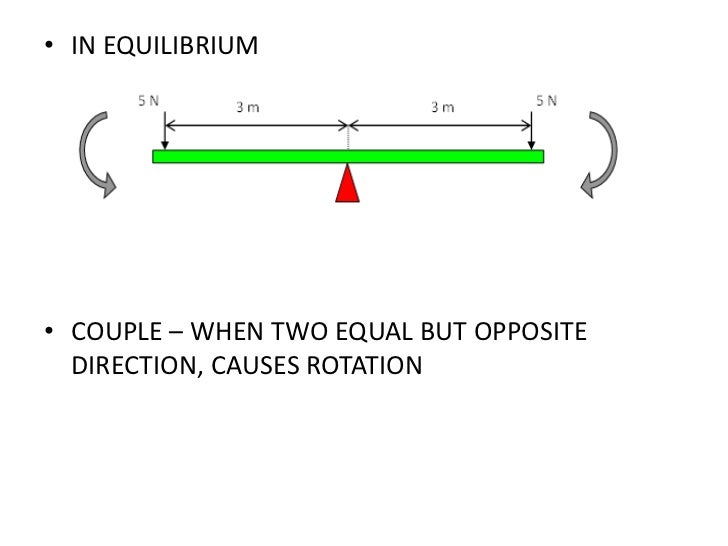

• IN EQUILIBRIUM• COUPLE – WHEN TWO EQUAL BUT OPPOSITE  DIRECTION, CAUSES ROTATION
For example, suppose it is necessary to calculate the resultant moment ofa pivot acting on a bell crank lever, refer to di...

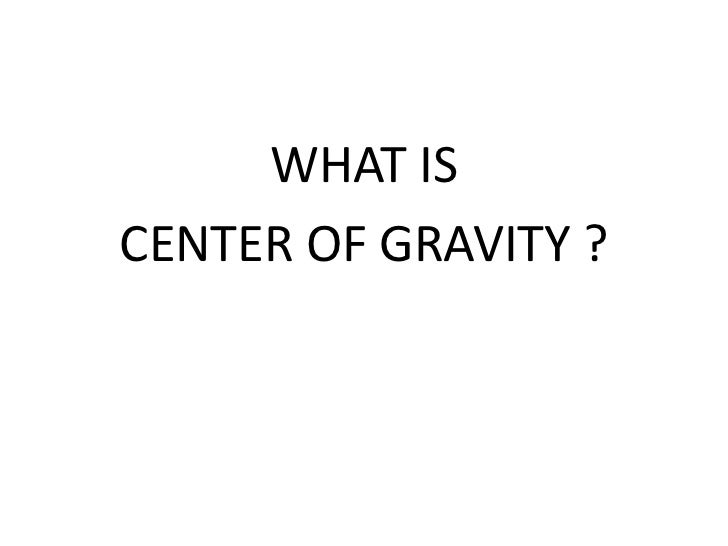

WHAT ISCENTER OF GRAVITY ?

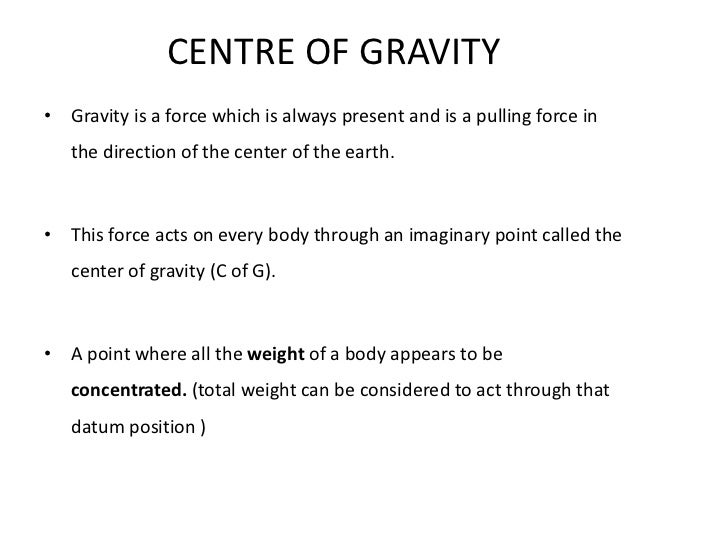

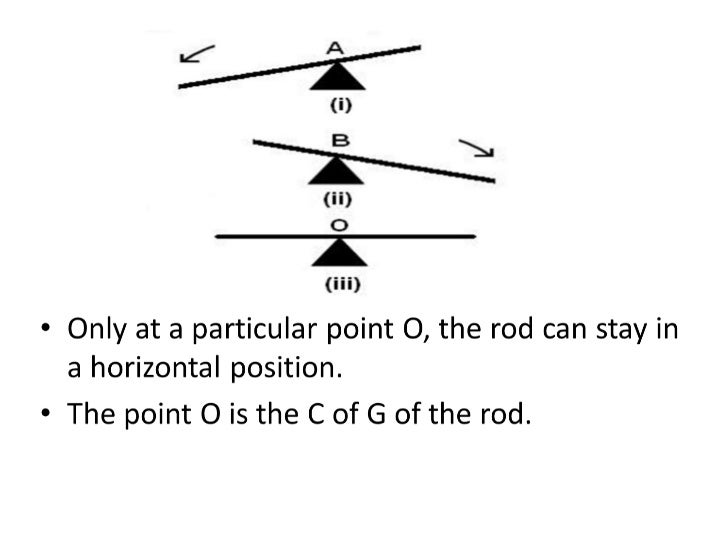

CENTRE OF GRAVITY• Gravity is a force which is always present and is a pulling force in   the direction of the center of t...

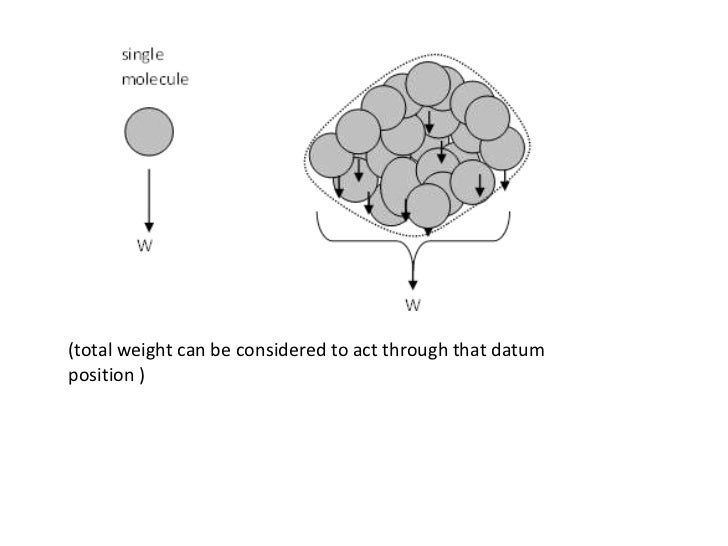

(total weight can be considered to act through that datumposition )
•   There must be a datum point, such as where when moment in clockwise    direction will be balanced by moment in anti-cl...

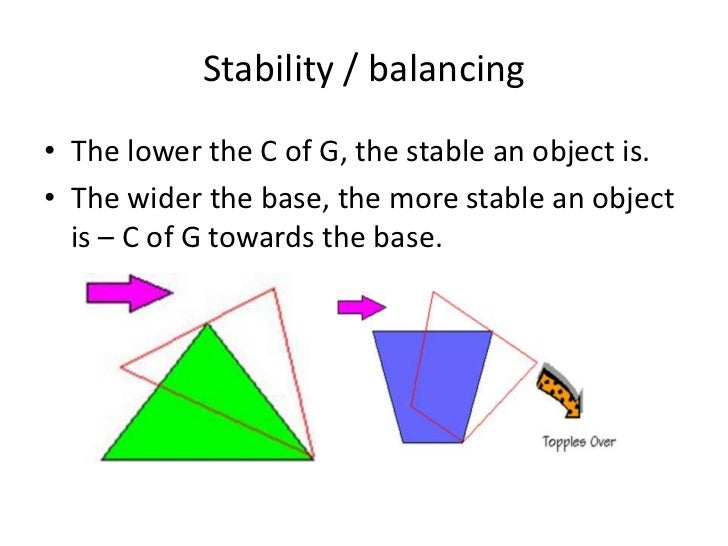

Stability / balancing• The lower the C of G, the stable an object is.• The wider the base, the more stable an object  is –...
• The location of the center of gravity in the   human body varies slightly, depending on   body shape.• a male with a mus...
• When force applied to C of G, the body will not rotate.• But if the force is applied  offset of the C of G, the body  wi...
Expressed as an algebraic formula,         W1 X1 + W2 X2 + W3 X3 = (W1 + W2 + W3) x GWhere G is the position of the centro...

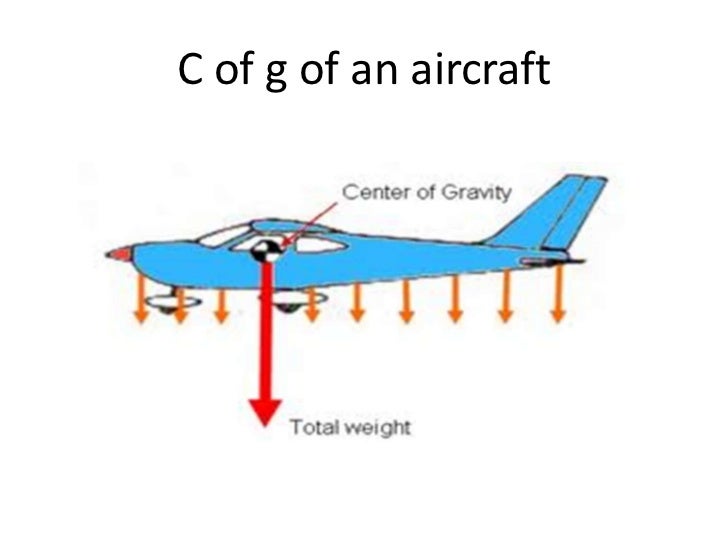

C of g of an aircraft

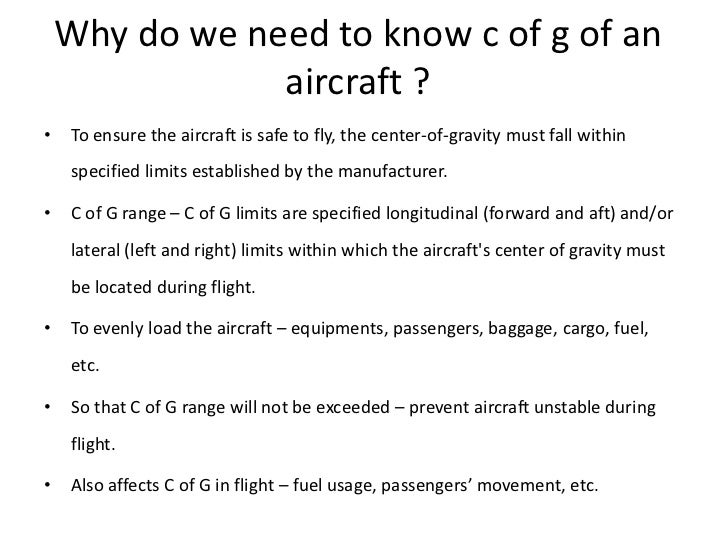

Why do we need to know c of g of an                aircraft ?•   To ensure the aircraft is safe to fly, the center-of-grav...

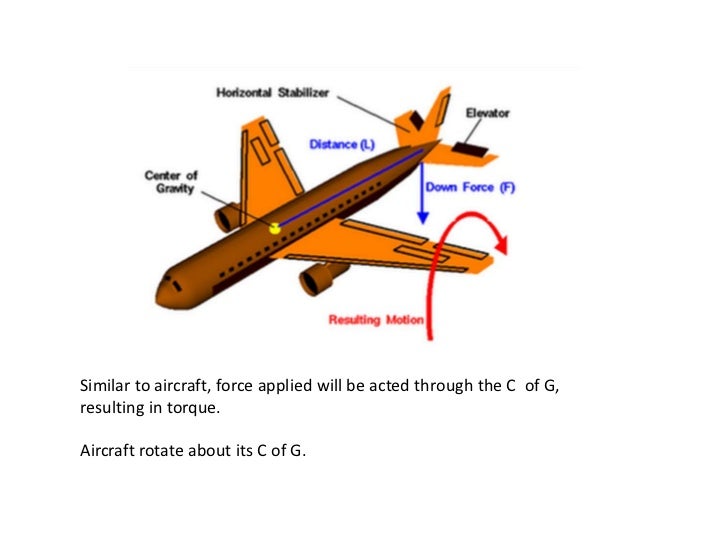

Similar to aircraft, force applied will be acted through the C of G,resulting in torque.Aircraft rotate about its C of G.
WHAT IS STRESS ?AND WHAT IS STRAIN ?

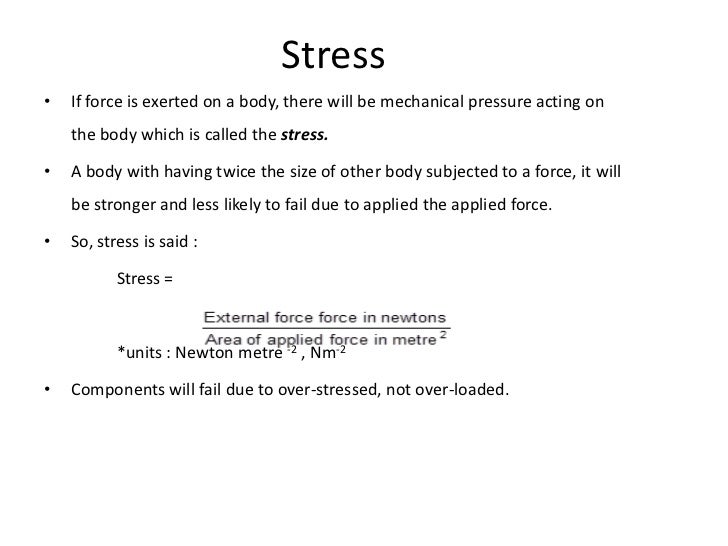

Stress•   If force is exerted on a body, there will be mechanical pressure acting on    the body which is called the stres...

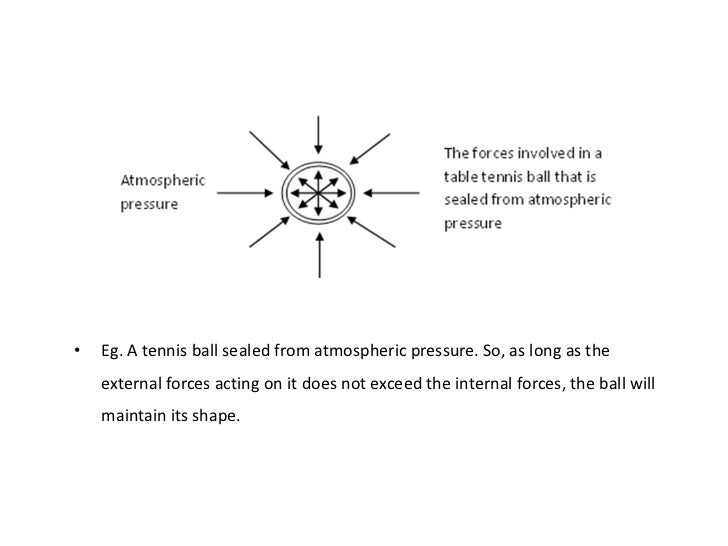

•   Eg. A tennis ball sealed from atmospheric pressure. So, as long as the    external forces acting on it does not exceed...
•   Forces applied to the body will cause distortion of the body and change to the    material’s cross-sectional area ;   ...

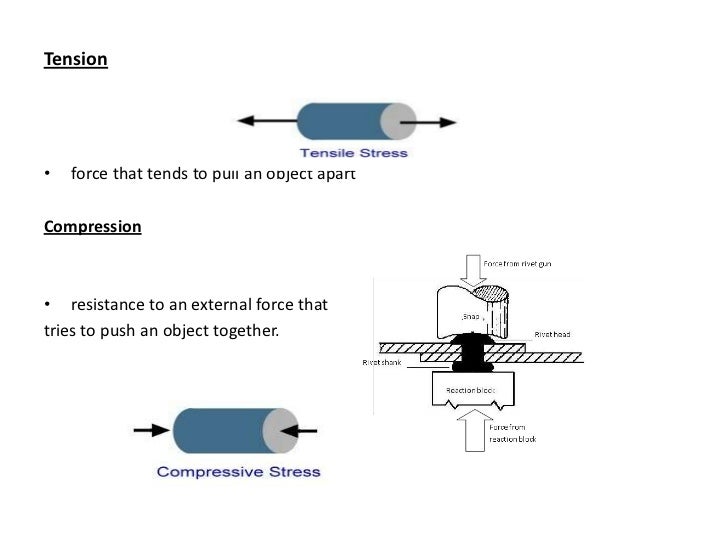

Tension•   force that tends to pull an object apartCompression• resistance to an external force thattries to push an objec...

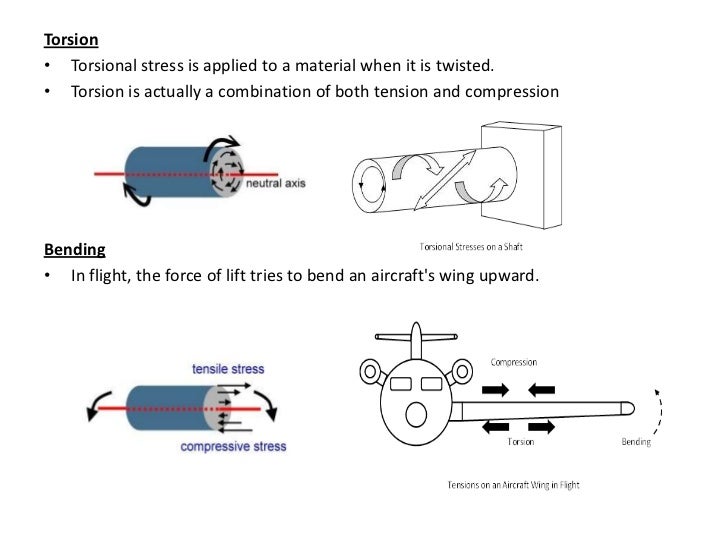

Torsion• Torsional stress is applied to a material when it is twisted.• Torsion is actually a combination of both tension ...
Shear• combines tension and compression is the shear stress, which tries to slide   an object apart.

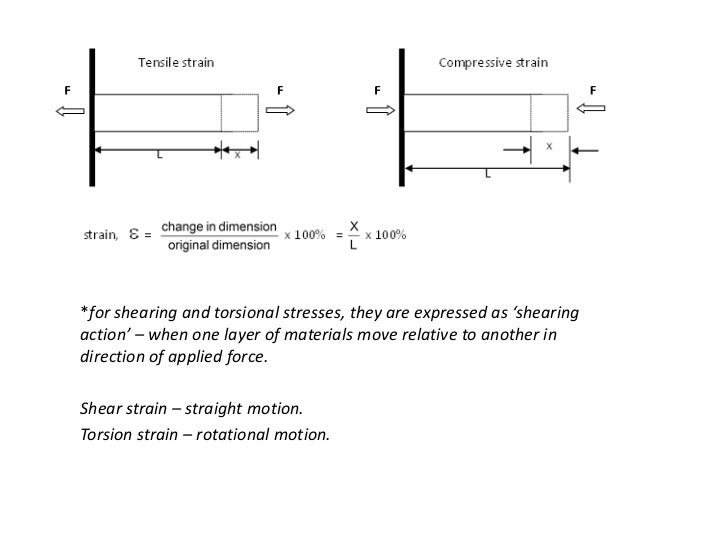

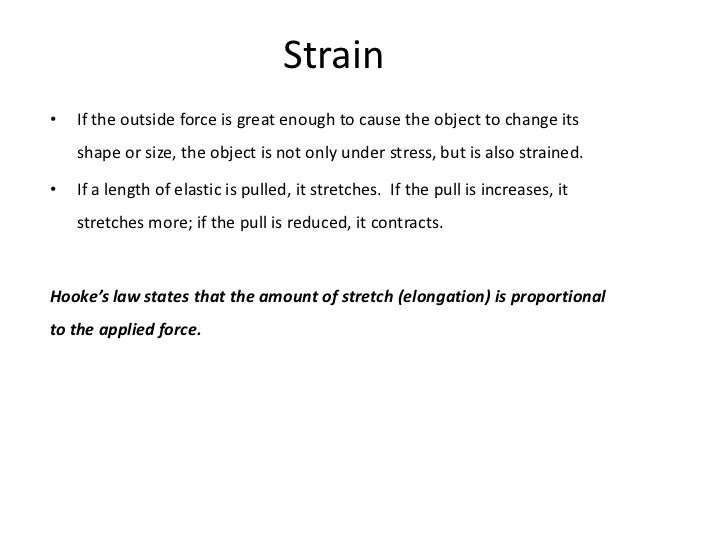

Strain•   If the outside force is great enough to cause the object to change its    shape or size, the object is not only ...

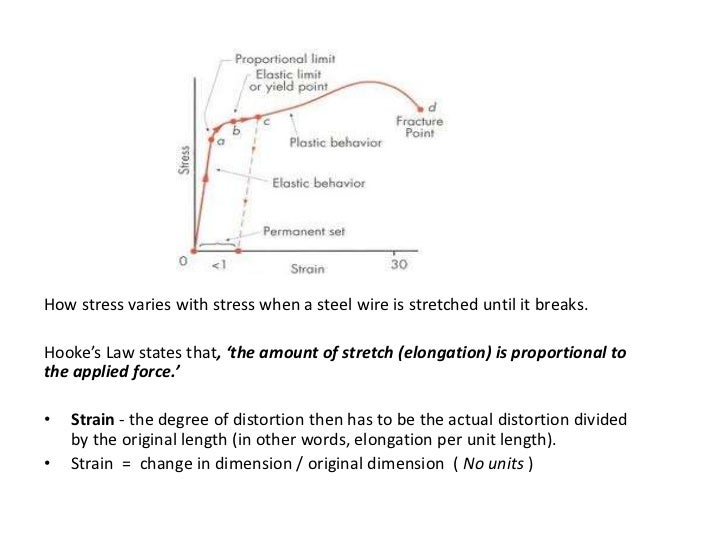

How stress varies with stress when a steel wire is stretched until it breaks.Hooke’s Law states that, ‘the amount of stret...
*for shearing and torsional stresses, they are expressed as ‘shearingaction’ – when one layer of materials move relative t...

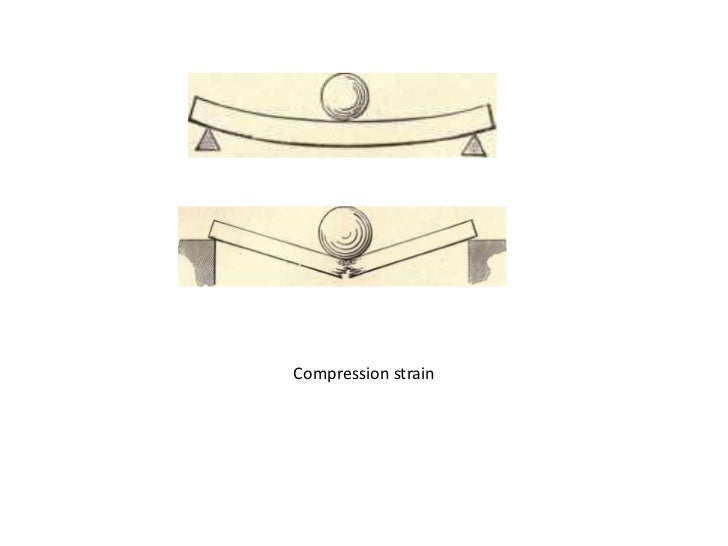

Compression strain

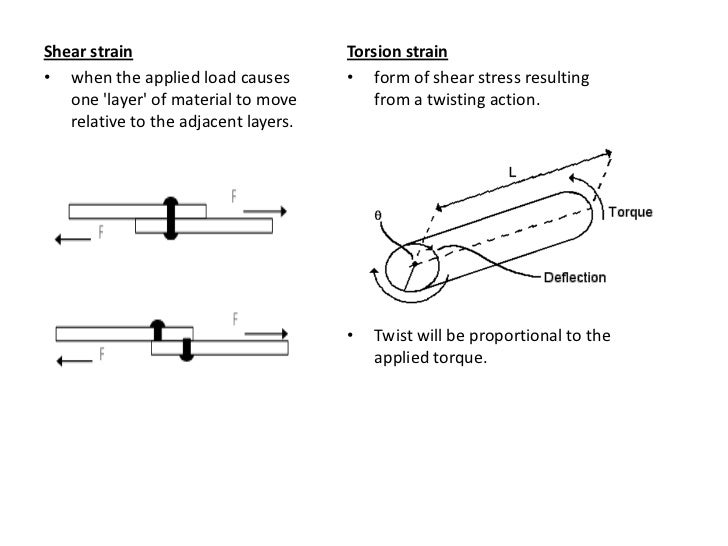

Shear strain                          Torsion strain• when the applied load causes        • form of shear stress resulting...
Shearing Strain

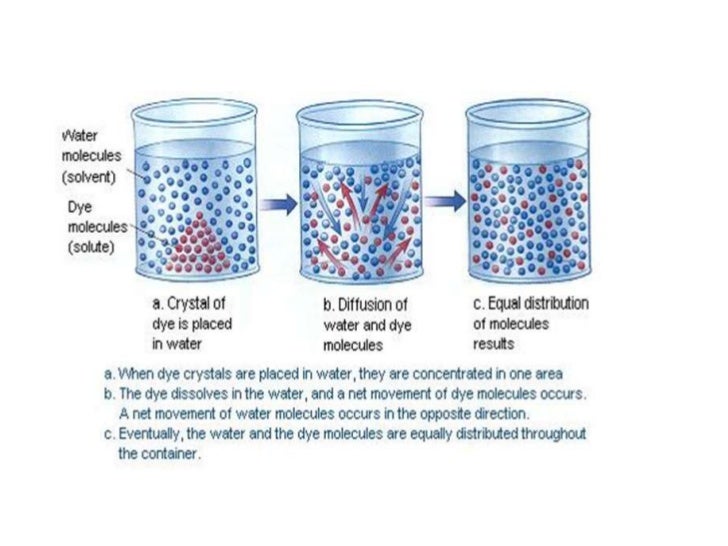

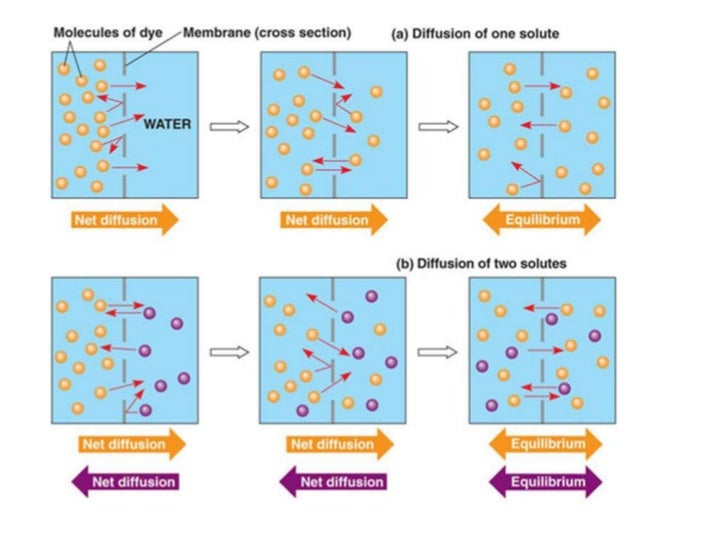

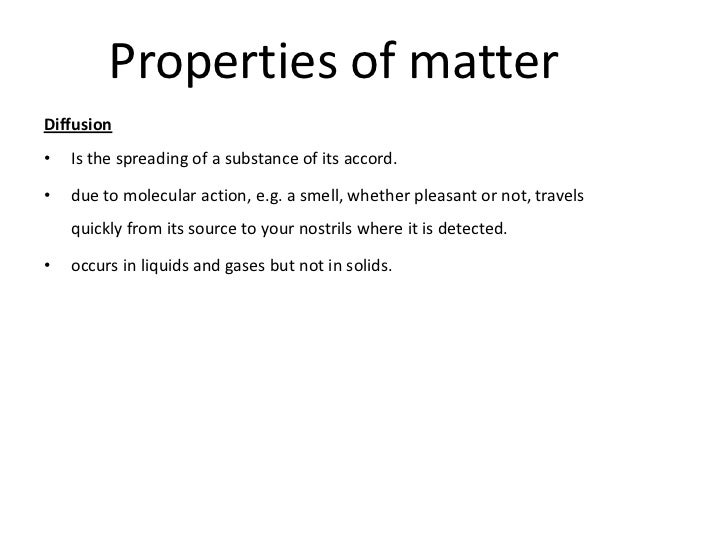

Properties of matterDiffusion•   Is the spreading of a substance of its accord.•   due to molecular action, e.g. a smell, ...

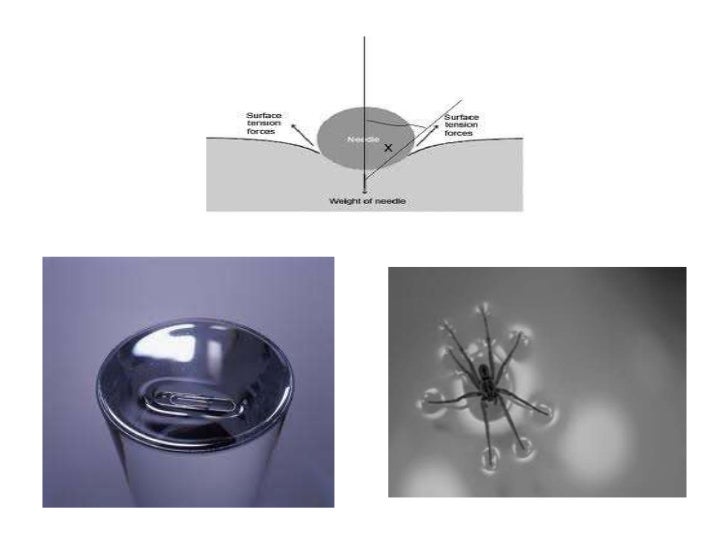

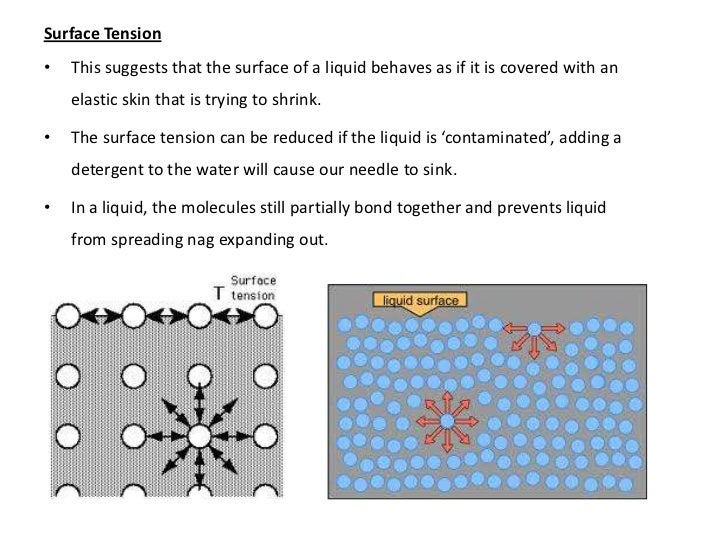

Surface Tension•   This suggests that the surface of a liquid behaves as if it is covered with an    elastic skin that is ...
AdhesionForce of attraction between molecules ofdifferent substances.CohesionForce of attraction betweenmolecules of same ...

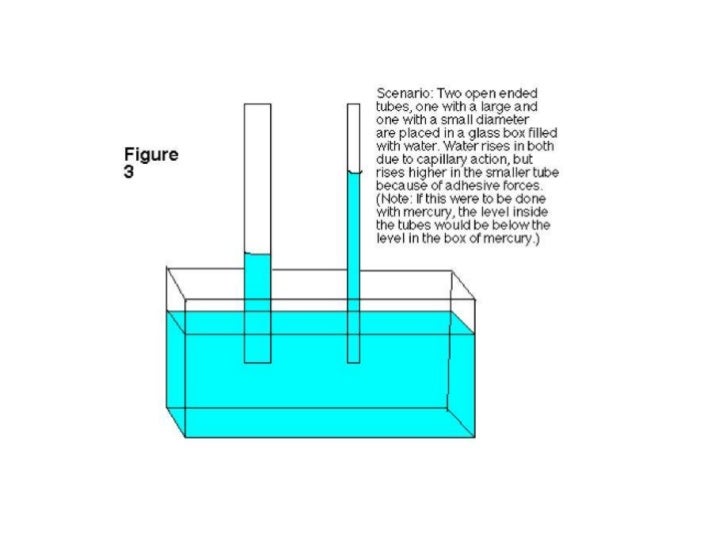

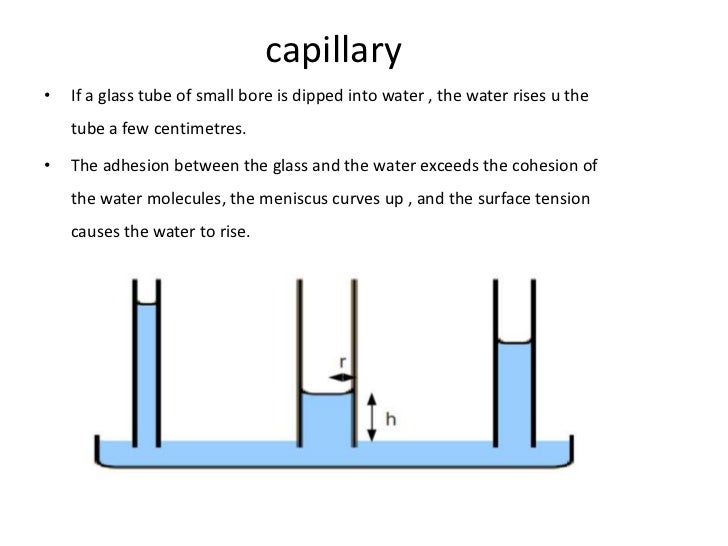

capillary•   If a glass tube of small bore is dipped into water , the water rises u the    tube a few centimetres.•   The ...

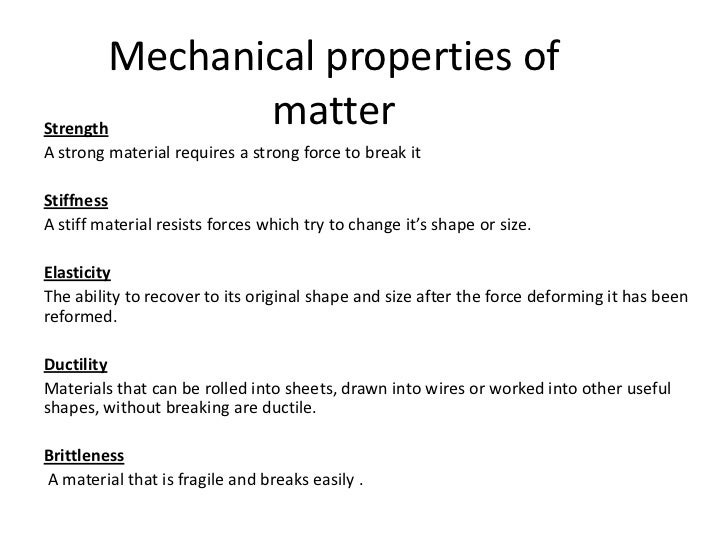

Mechanical properties ofStrength               matterA strong material requires a strong force to break itStiffnessA stiff...
Pressure and buoyancy in•               liquid    The equivalent term associated with fluids is pressure:          pressur...

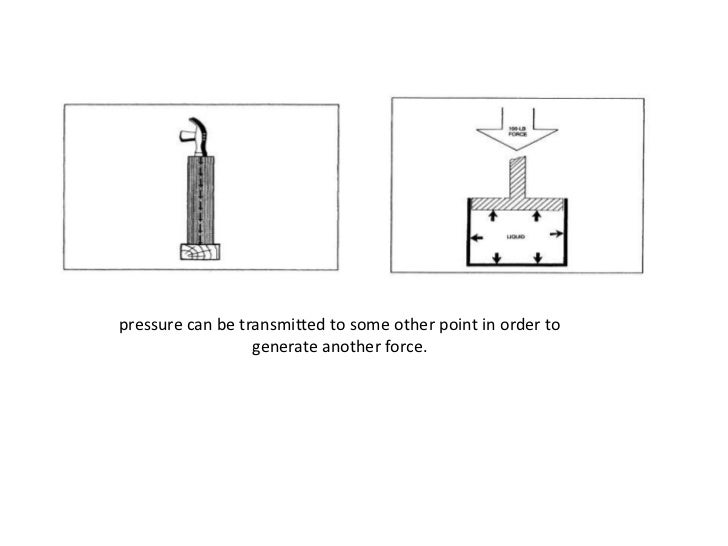

pressure can be transmitted to some other point in order to                  generate another force.

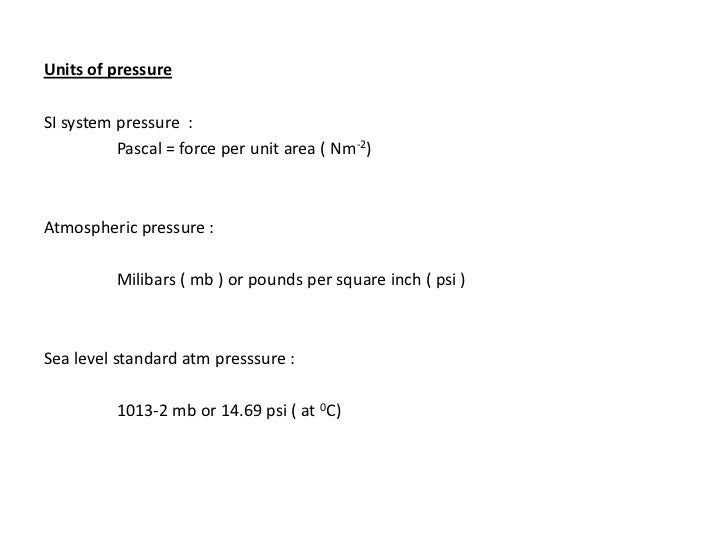

Units of pressureSI system pressure :          Pascal = force per unit area ( Nm-2)Atmospheric pressure :          Milibar...

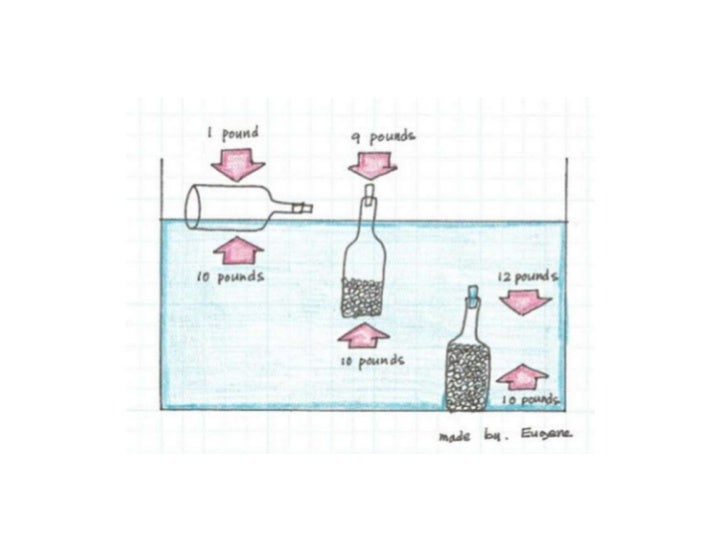

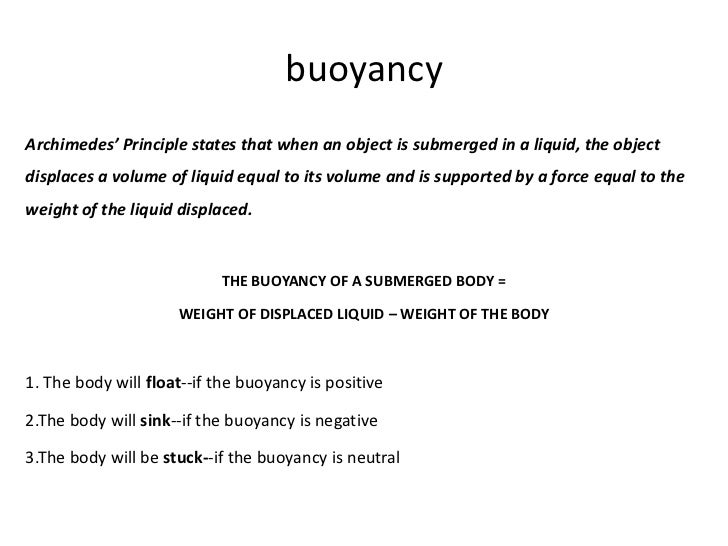

buoyancyArchimedes’ Principle states that when an object is submerged in a liquid, the objectdisplaces a volume of liquid ...
kinetics

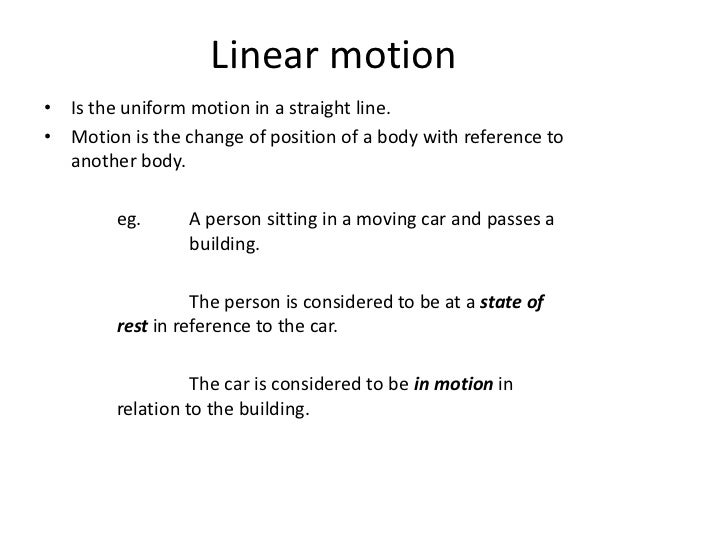

Linear motion• Is the uniform motion in a straight line.• Motion is the change of position of a body with reference to  an...

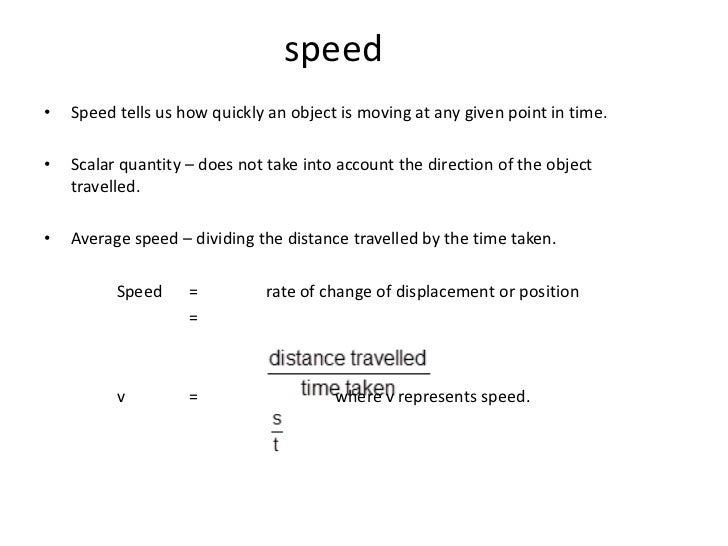

speed•   Speed tells us how quickly an object is moving at any given point in time.•   Scalar quantity – does not take int...

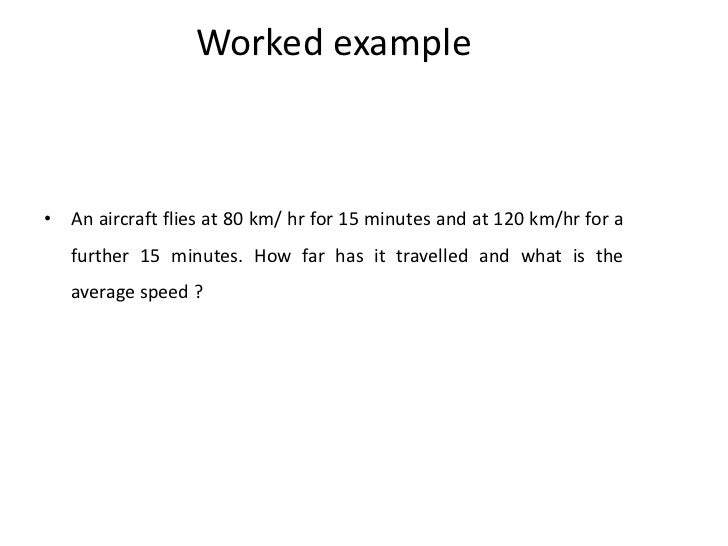

Worked example• An aircraft flies at 80 km/ hr for 15 minutes and at 120 km/hr for a   further 15 minutes. How far has it ...
velocity•   Includes direction, distance in straight line and time.•   Vector quantity – magnitude + distance.          eg...

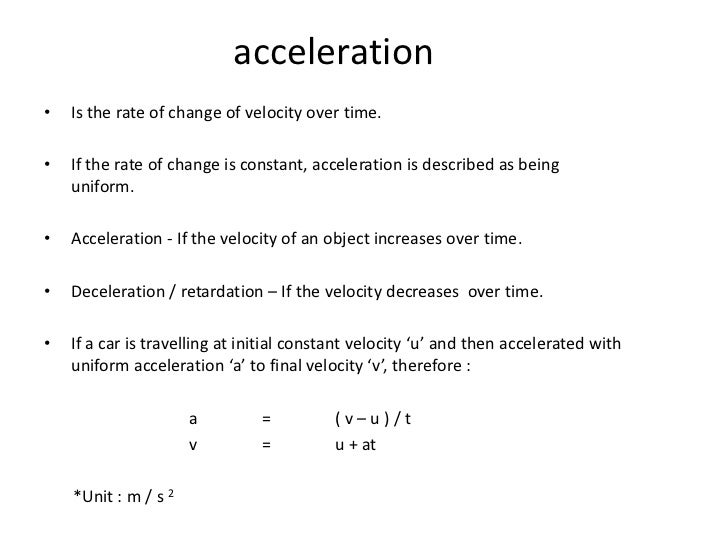

acceleration•   Is the rate of change of velocity over time.•   If the rate of change is constant, acceleration is describ...
Equation of linear motionEquations of linear motion                    V = u + at                    s=½(u+v)t            ...

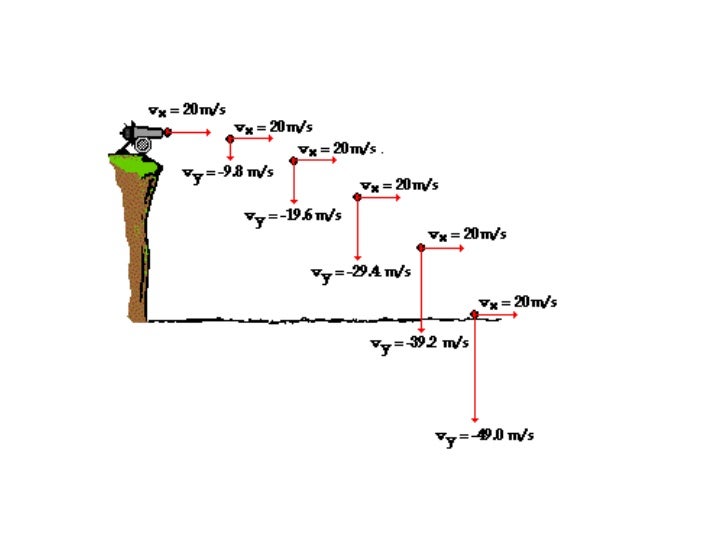

•   Initial velocity of objects freefalling from rest is zero, so the equations for free fall    are :        V           ...
ROTATIONAL MOTIONCircular Motion• Rotational motion means motion involving curved paths and therefore    change of directi...

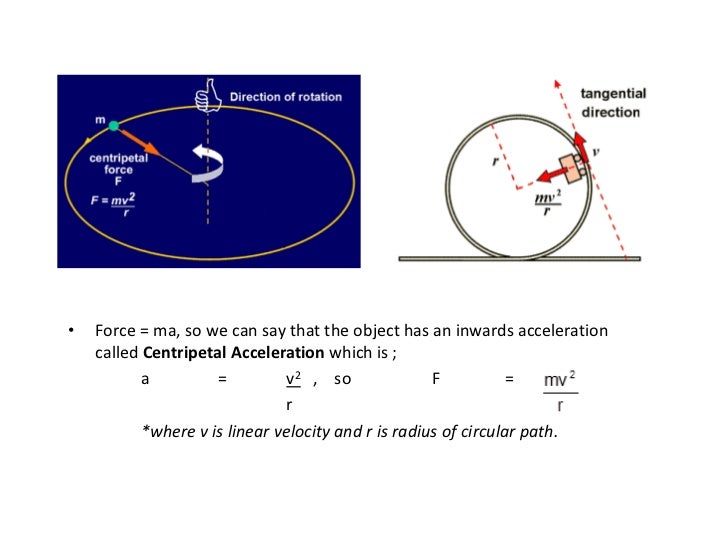

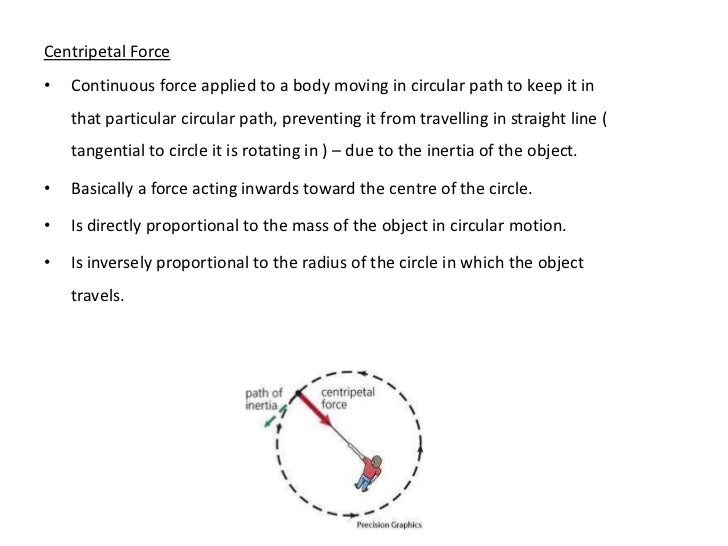

Centripetal Force•   Continuous force applied to a body moving in circular path to keep it in    that particular circular ...
•   Force = ma, so we can say that the object has an inwards acceleration    called Centripetal Acceleration which is ;   ...

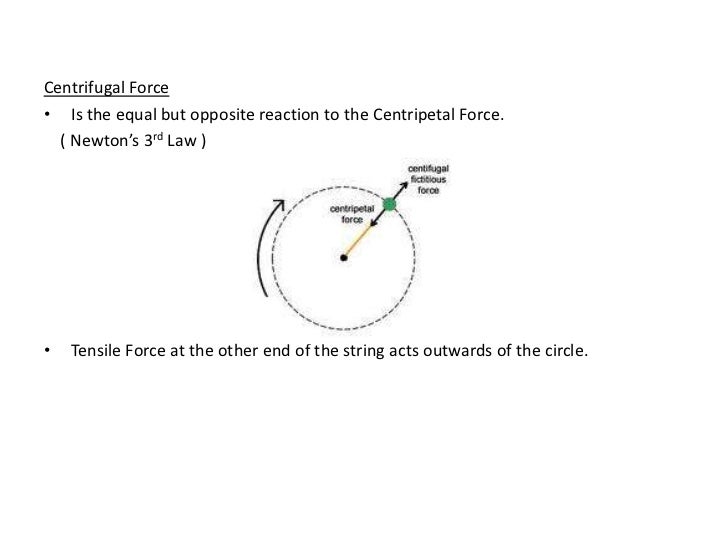

Centrifugal Force• Is the equal but opposite reaction to the Centripetal Force.  ( Newton’s 3rd Law )•   Tensile Force at ...

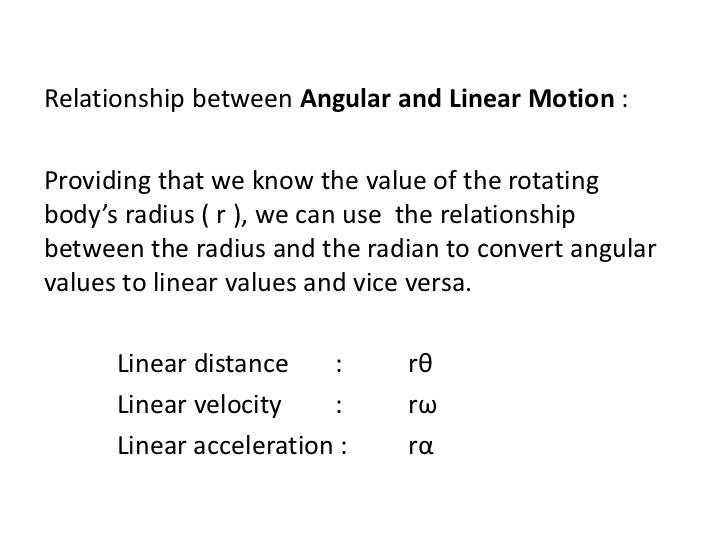

Relationship between Angular and Linear Motion :Providing that we know the value of the rotatingbody’s radius ( r ), we ca...

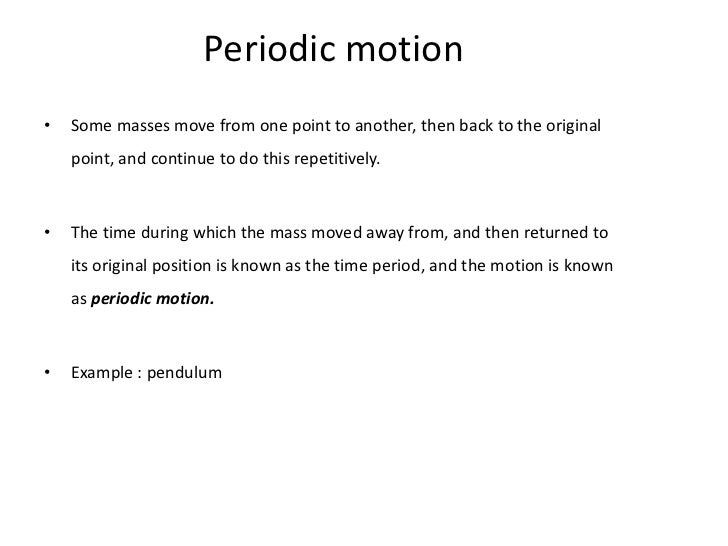

Periodic motion•   Some masses move from one point to another, then back to the original    point, and continue to do this...
Pendulum•   When the mass then displaced from its rest position, it will accelerate back towards    its rest position.•   ...

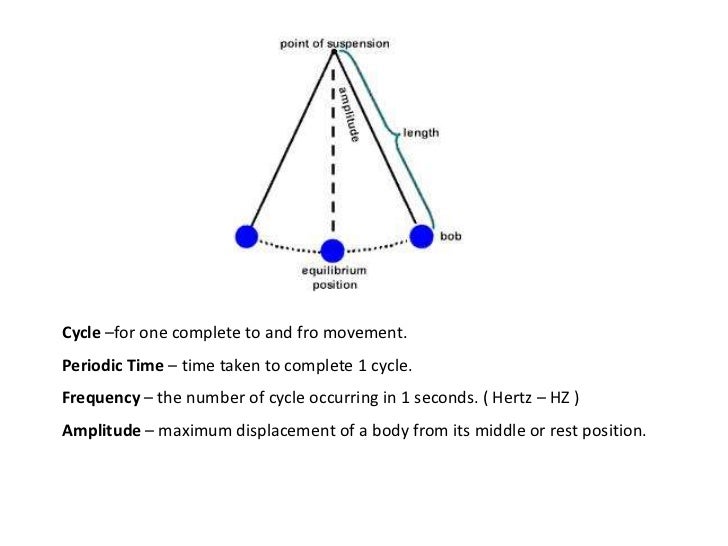

Cycle –for one complete to and fro movement.Periodic Time – time taken to complete 1 cycle.Frequency – the number of cycle...
•   Periodic time, T can be calculated by ;          T = 2 √ ( L / g )    Where ;          L – length of the pendulum    ...

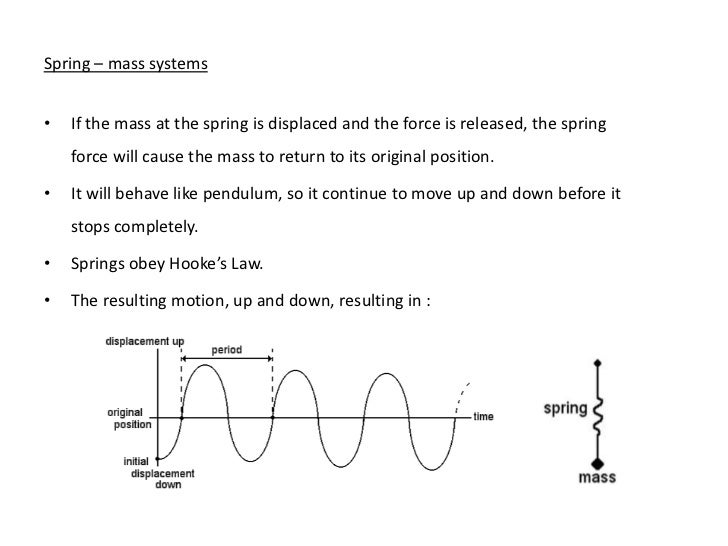

Spring – mass systems•   If the mass at the spring is displaced and the force is released, the spring    force will cause ...

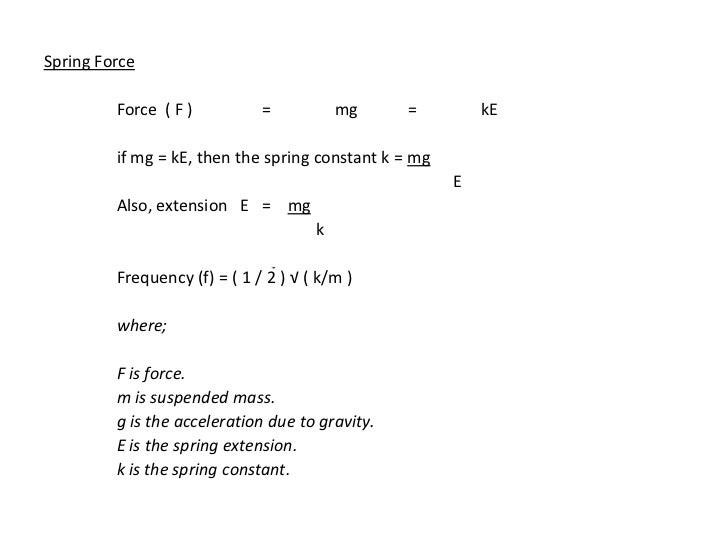

Spring Force         Force ( F )           =           mg    =         kE         if mg = kE, then the spring constant k =...

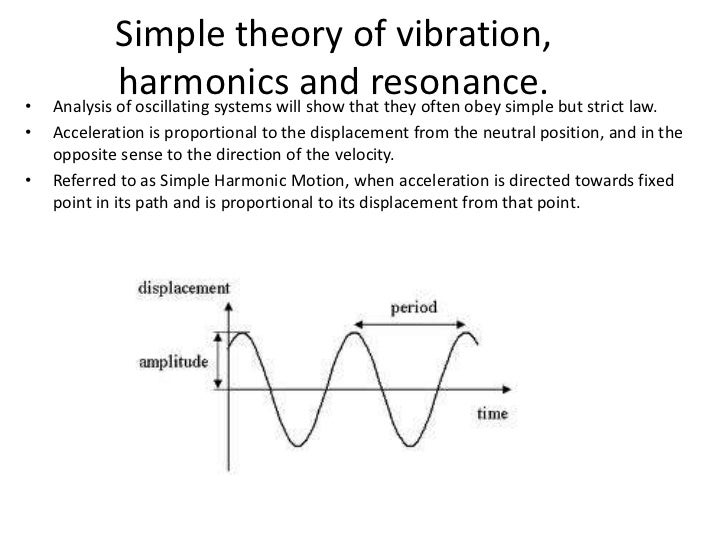

Simple theory of vibration,•             harmonics and resonance. but strict law.    Analysis of oscillating systems will ...

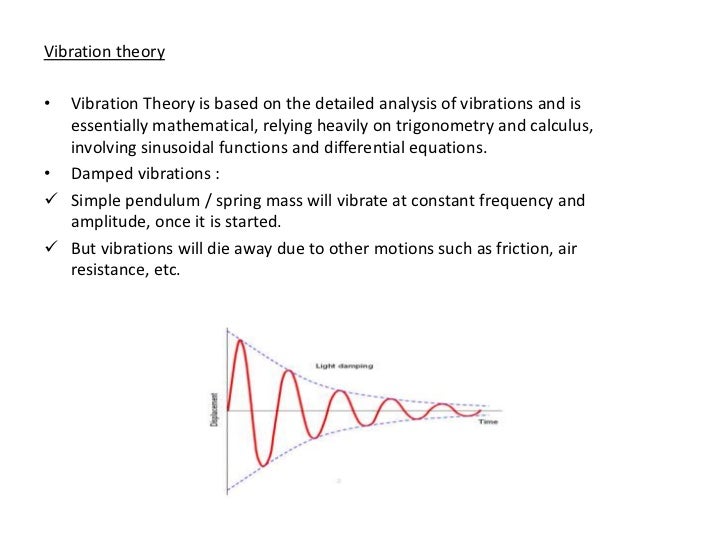

Vibration theory• Vibration Theory is based on the detailed analysis of vibrations and is  essentially mathematical, relyi...

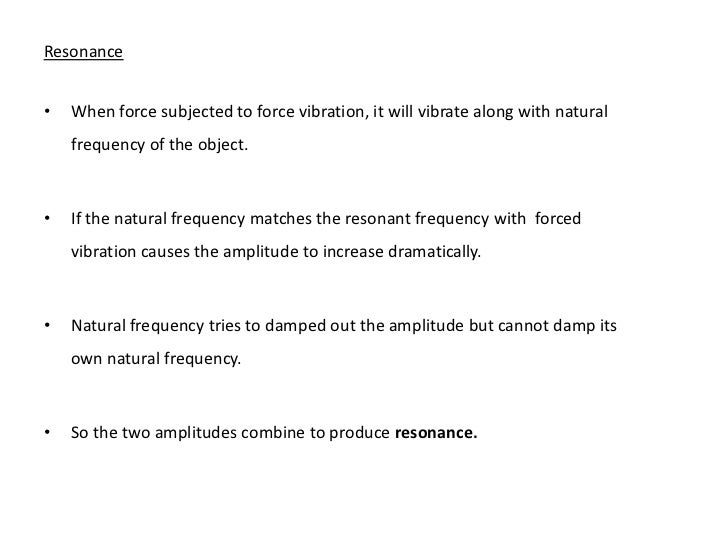

Resonance•   When force subjected to force vibration, it will vibrate along with natural    frequency of the object.•   If...
Velocity ratio, mechanical           advantage and efficiency.•   Machine – utilise some form of motion to convert an appl...
Mechanical Advantage• Describes the ratio of load moved with the effort required to move it.         Mechanical Advantage ...

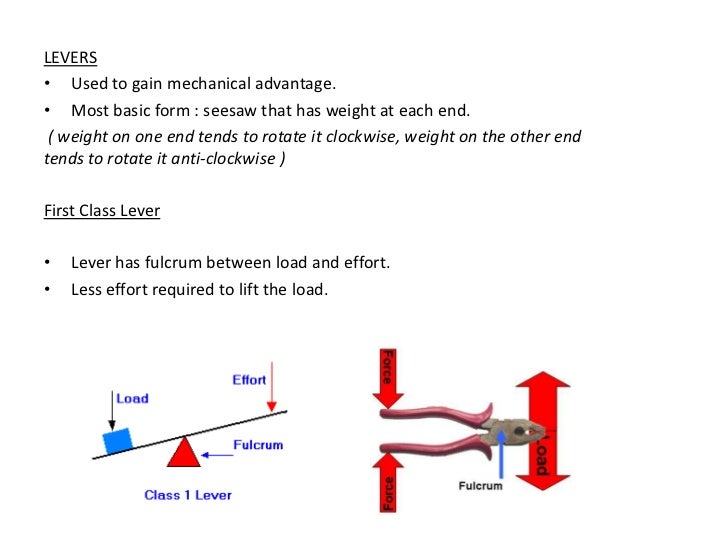

LEVERS• Used to gain mechanical advantage.• Most basic form : seesaw that has weight at each end. ( weight on one end tend...

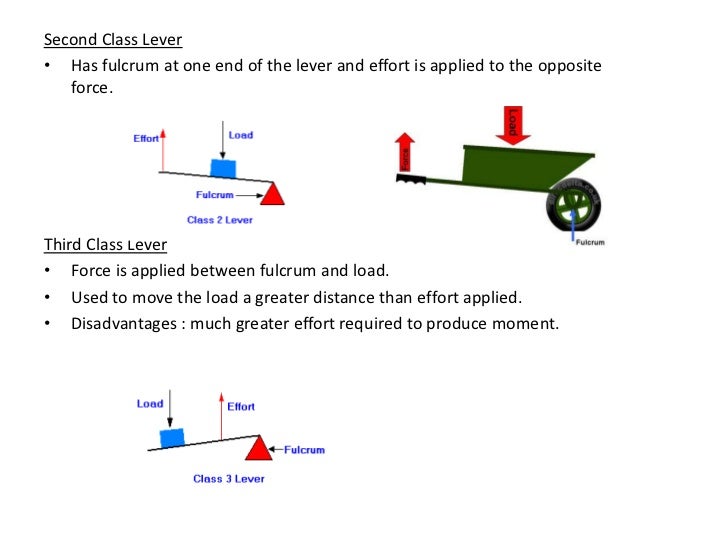

Second Class Lever• Has fulcrum at one end of the lever and effort is applied to the opposite   force.Third Class Lever• F...

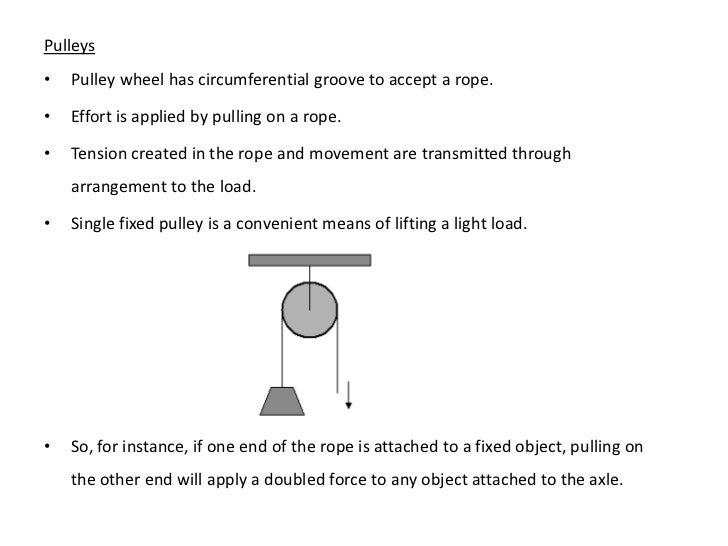

Pulleys•   Pulley wheel has circumferential groove to accept a rope.•   Effort is applied by pulling on a rope.•   Tension...
dynamics

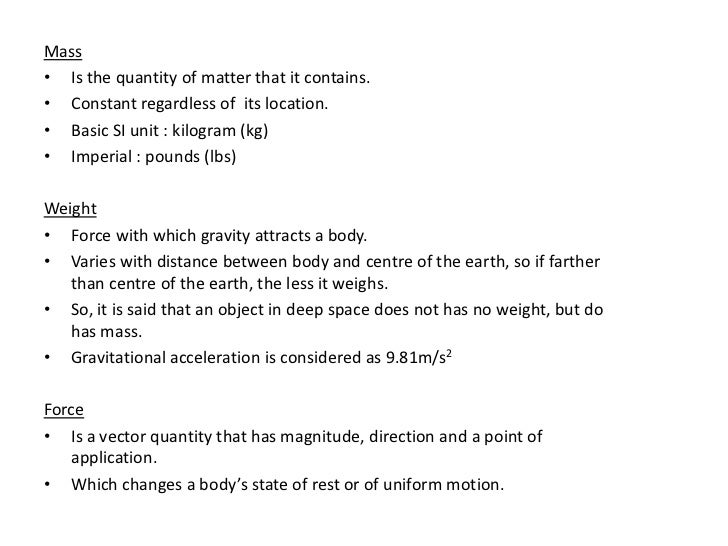

Mass• Is the quantity of matter that it contains.• Constant regardless of its location.• Basic SI unit : kilogram (kg)• Im...

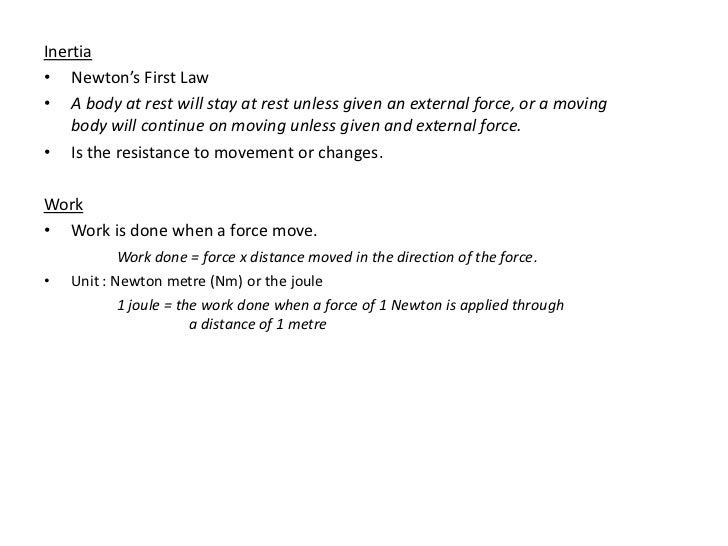

Inertia• Newton’s First Law• A body at rest will stay at rest unless given an external force, or a moving    body will con...

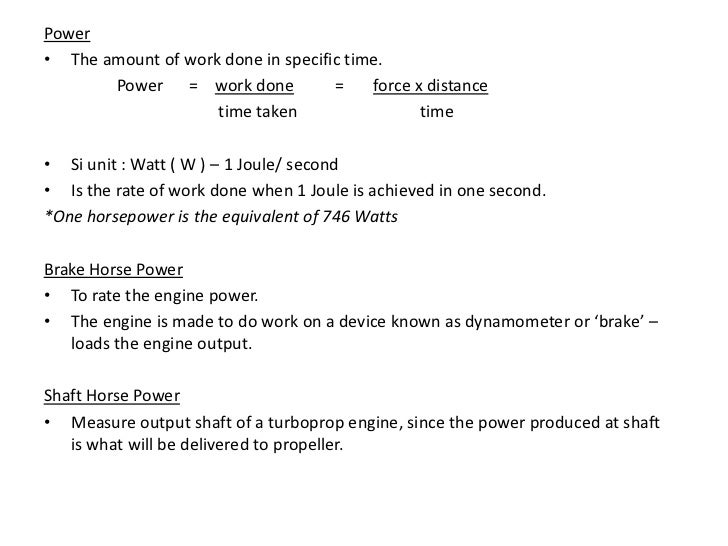

Power• The amount of work done in specific time.       Power = work done            =    force x distance                 ...
Energy•   Is the capacity to do work.•   Si unit : Joules•   Can appear as several form ; mechanical, chemical, heat, elec...
Potential Energy (PE)•   Energy is possesses by virtue of its position or state.•   Example : A mass raised to a height ab...

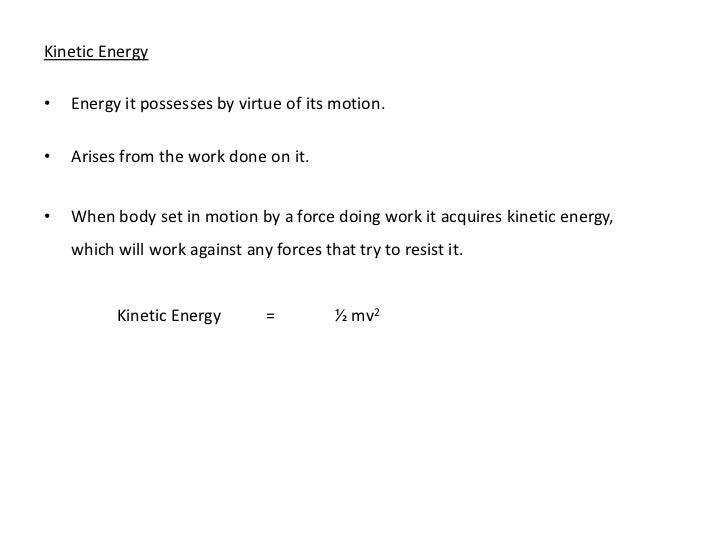

Kinetic Energy•   Energy it possesses by virtue of its motion.•   Arises from the work done on it.•   When body set in mot...

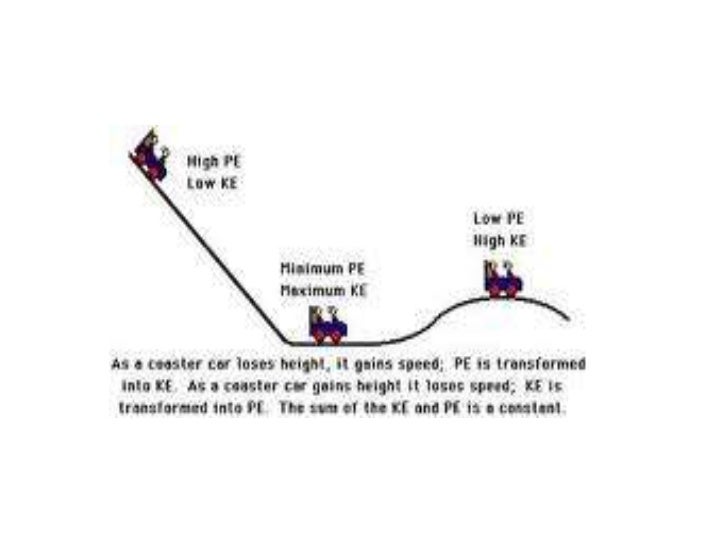

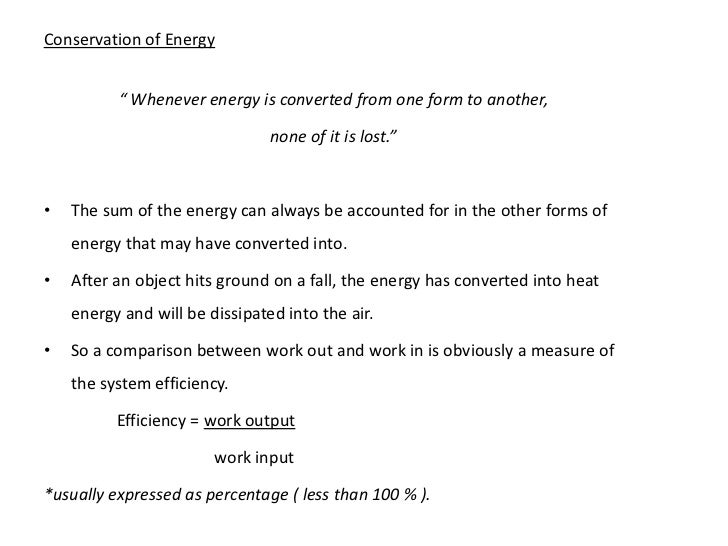

Conservation of Energy          “ Whenever energy is converted from one form to another,                                no...

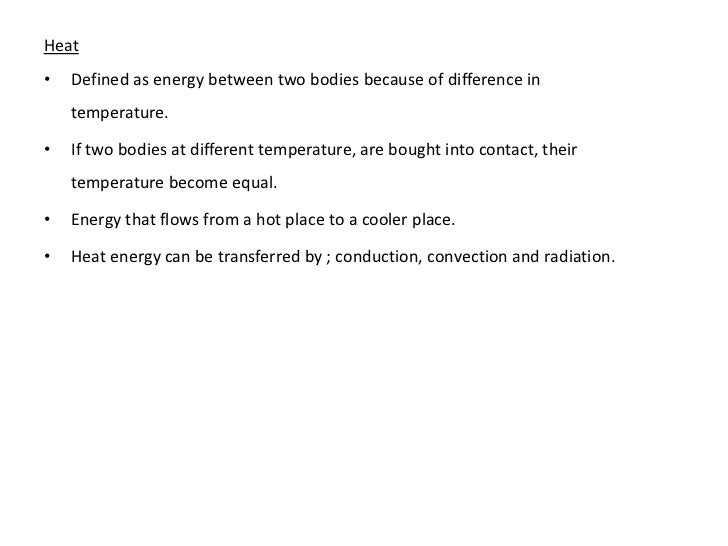

Heat•   Defined as energy between two bodies because of difference in    temperature.•   If two bodies at different temper...

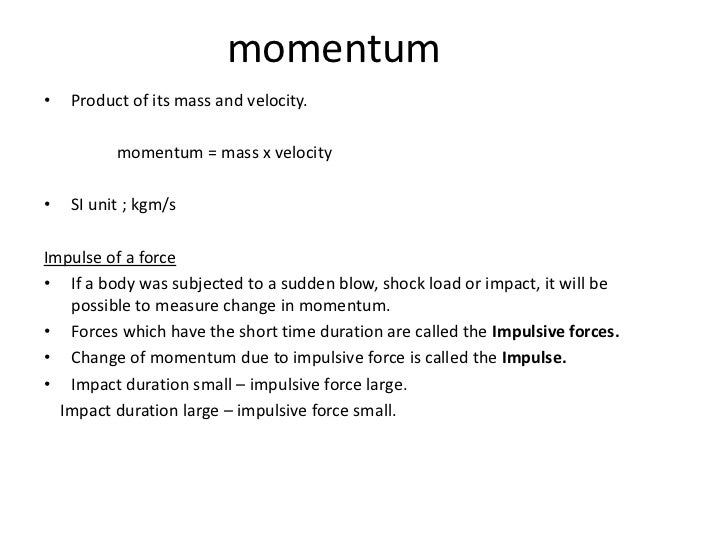

momentum•   Product of its mass and velocity.          momentum = mass x velocity•   SI unit ; kgm/sImpulse of a force• If...

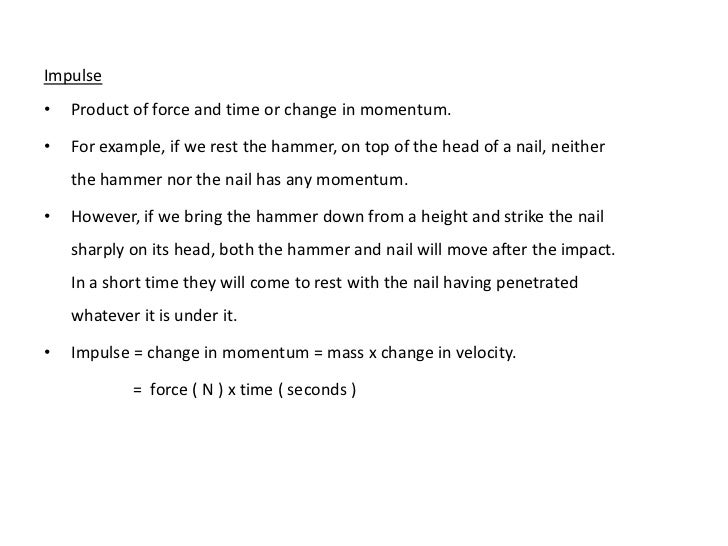

Impulse•   Product of force and time or change in momentum.•   For example, if we rest the hammer, on top of the head of a...

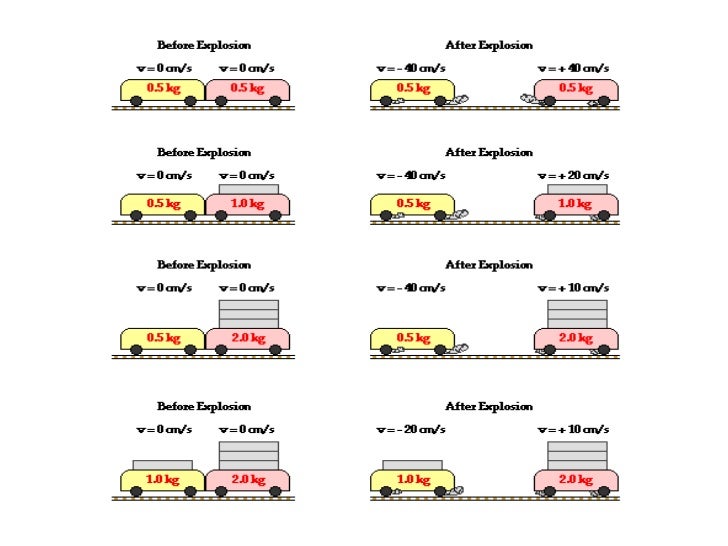

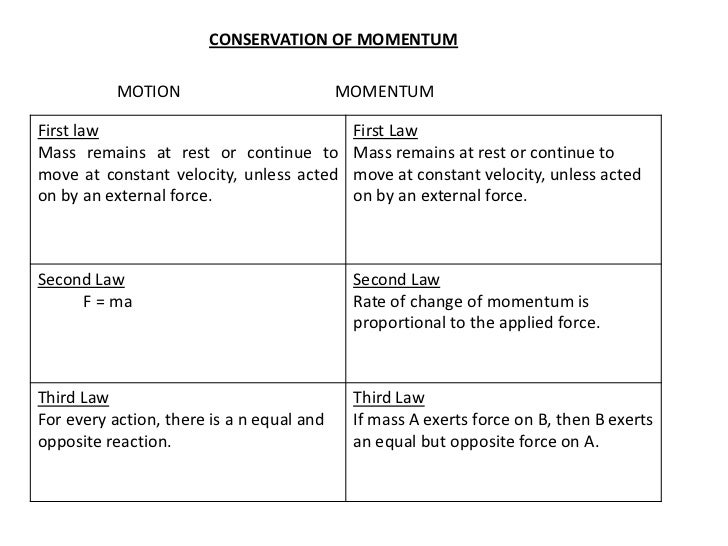

CONSERVATION OF MOMENTUM“When two or more masses act on eachother, the total momentum of the massesremains constant, provi...
CONSERVATION OF MOMENTUM          MOTION                           MOMENTUMFirst law                                   Fir...

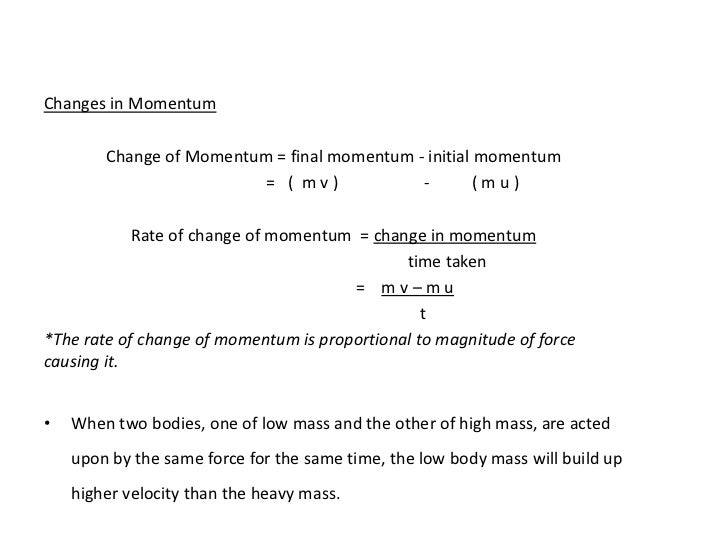

Changes in Momentum        Change of Momentum = final momentum - initial momentum                          = ( mv)        ...
For example;At (a) – mass A overtakes mass B.At (b) – mass B will be accelerated by impulsive force delivered by   mass A,...

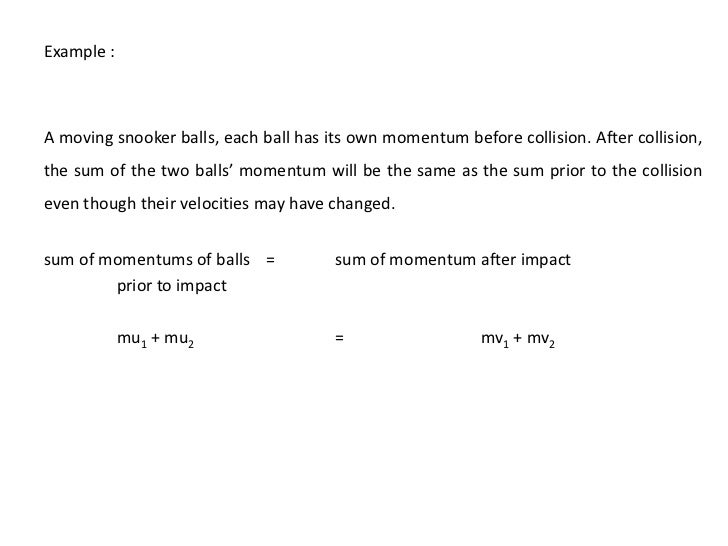

Example :A moving snooker balls, each ball has its own momentum before collision. After collision,the sum of the two balls...

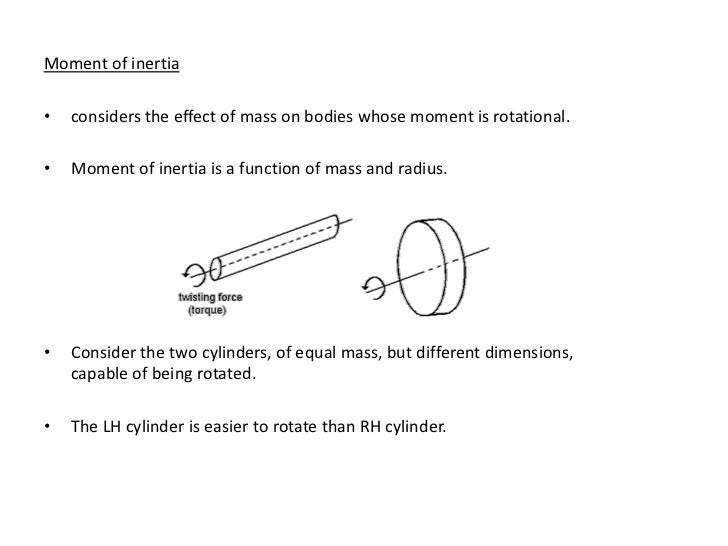

Moment of inertia•   considers the effect of mass on bodies whose moment is rotational.•   Moment of inertia is a function...

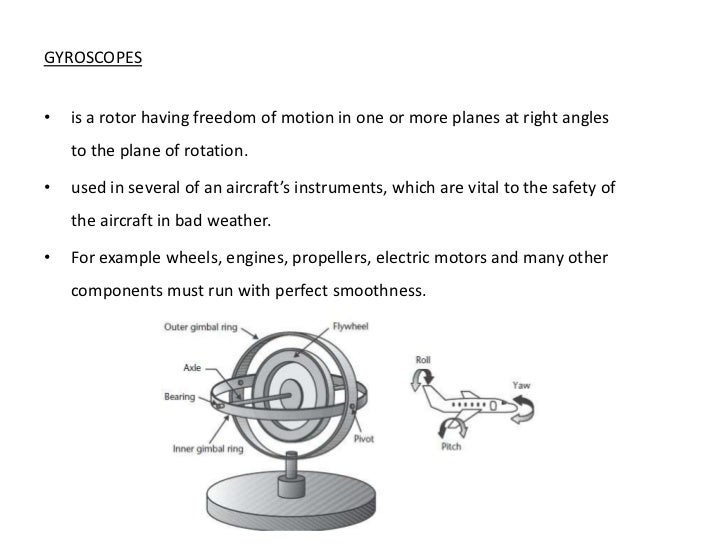

GYROSCOPES•   is a rotor having freedom of motion in one or more planes at right angles    to the plane of rotation.•   us...

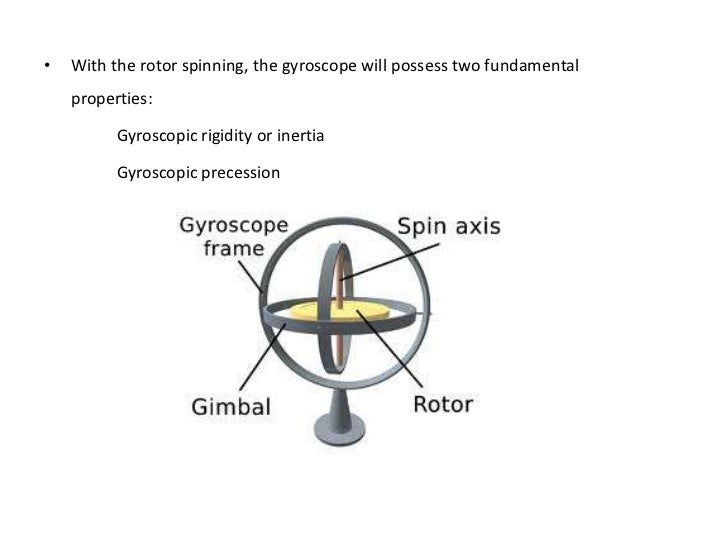

•   With the rotor spinning, the gyroscope will possess two fundamental    properties:          Gyroscopic rigidity or ine...

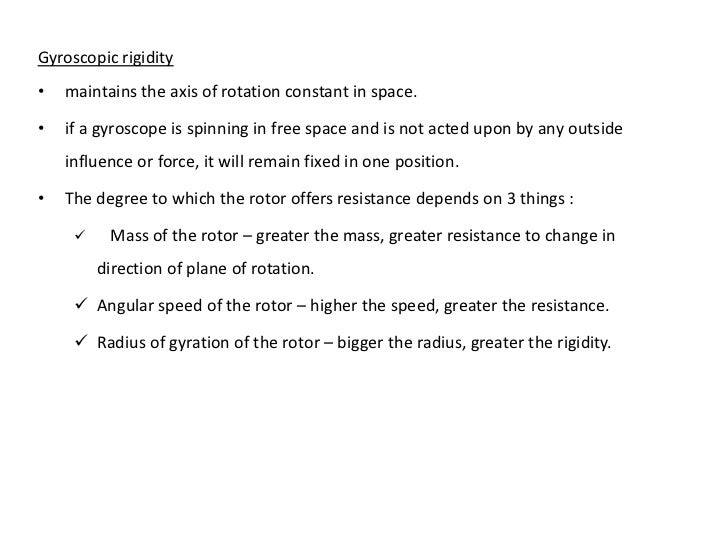

Gyroscopic rigidity•   maintains the axis of rotation constant in space.•   if a gyroscope is spinning in free space and i...

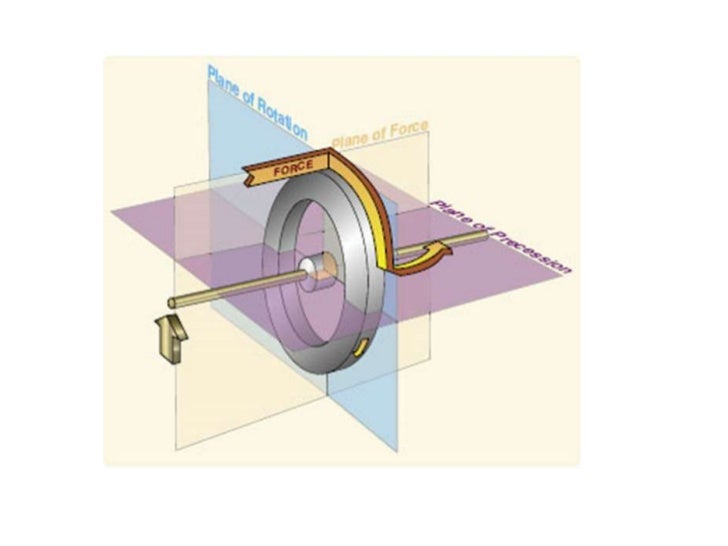

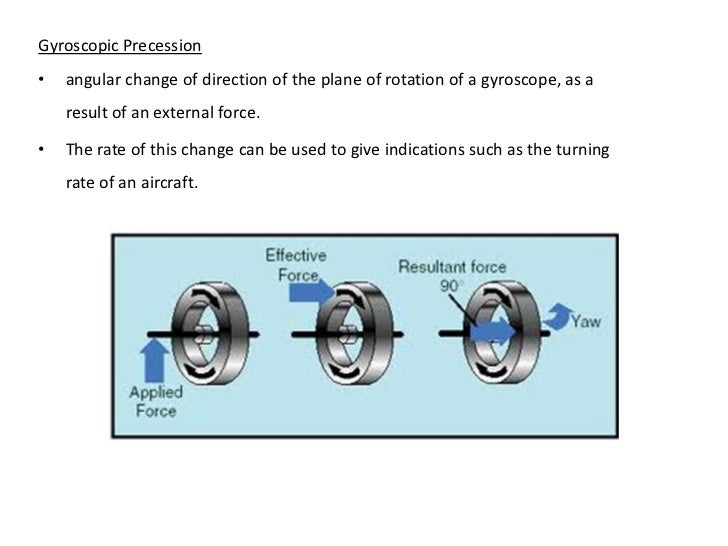

Gyroscopic Precession•   angular change of direction of the plane of rotation of a gyroscope, as a    result of an externa...
I.     The rotor will rotate about axis AA.II.    Apply a force so that it acts on the rim of the rotor at 900.III.   Move...

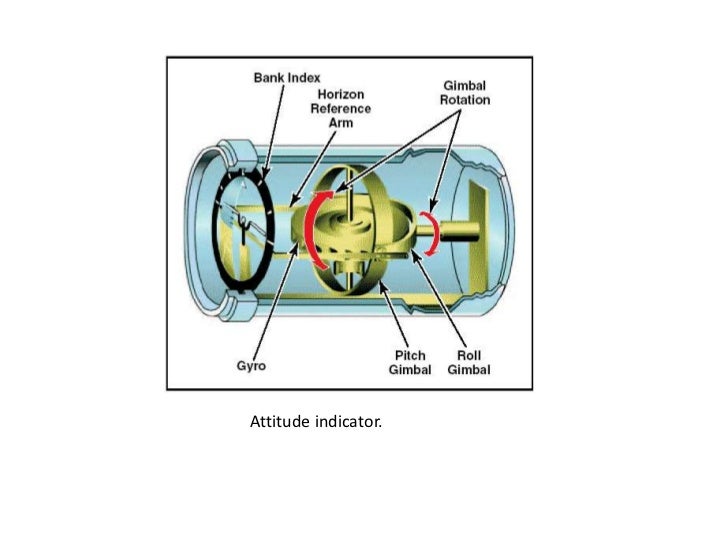

Attitude indicator.
Determining Precession Direction•   If a mass is mounted on a rotating shaft, and the centroid is offset from    the axis ...

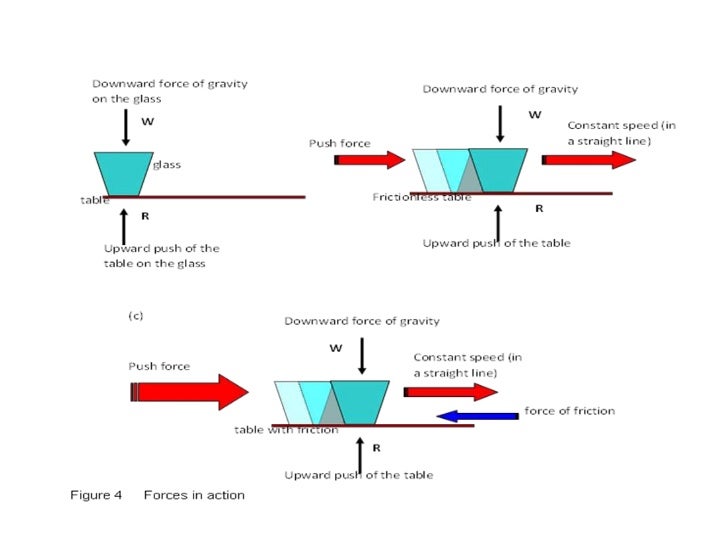

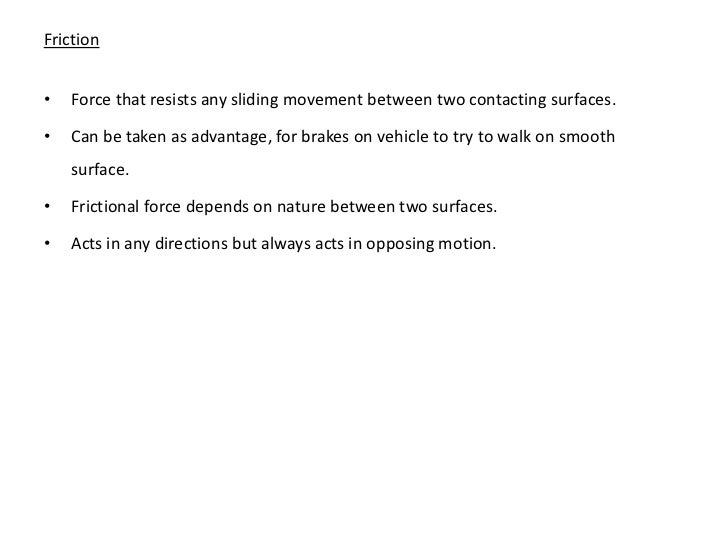

Friction•   Force that resists any sliding movement between two contacting surfaces.•   Can be taken as advantage, for bra...
•   angle of the plane (θ) is increased, the body remains stationary, until at    some particular value of θ, it begins to...
Coefficient of Static Friction•   Static friction is friction between two solid objects that are not moving    relative to...

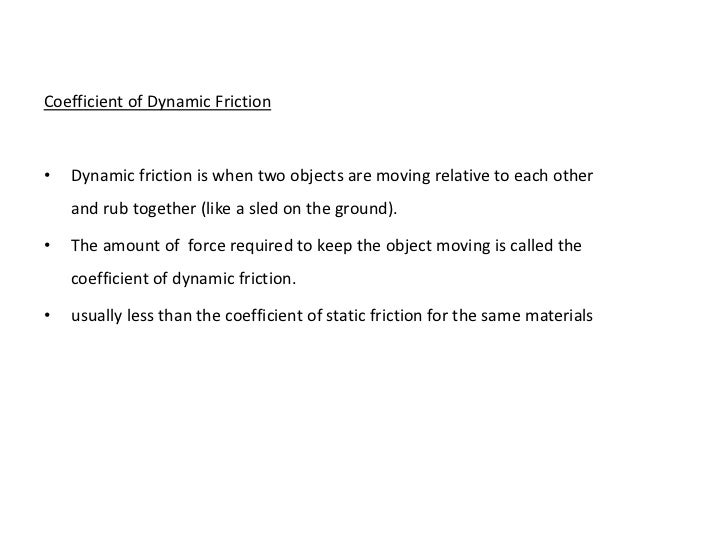

Coefficient of Dynamic Friction•   Dynamic friction is when two objects are moving relative to each other    and rub toget...

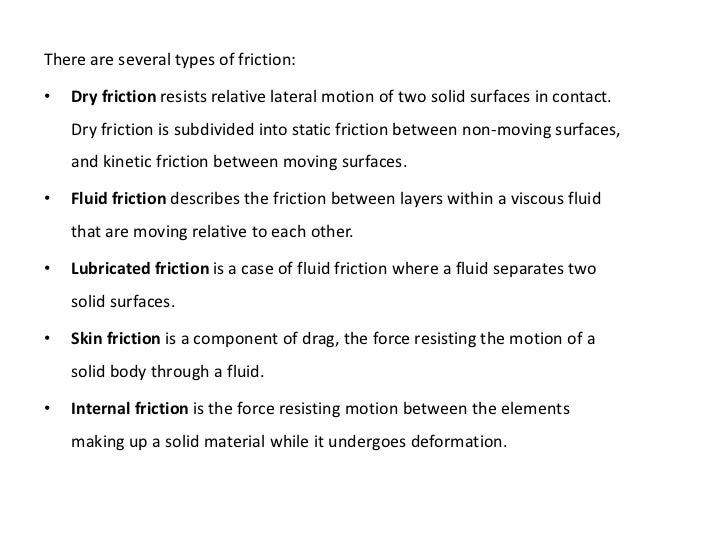

There are several types of friction:•   Dry friction resists relative lateral motion of two solid surfaces in contact.    ...

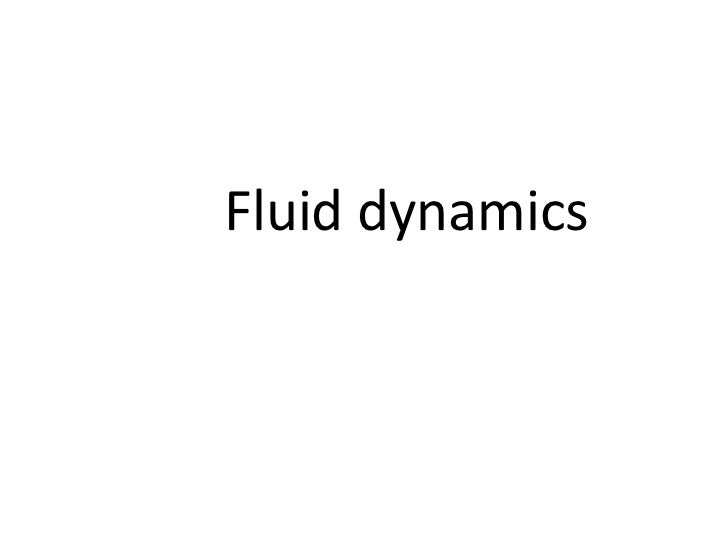

Fluid dynamics

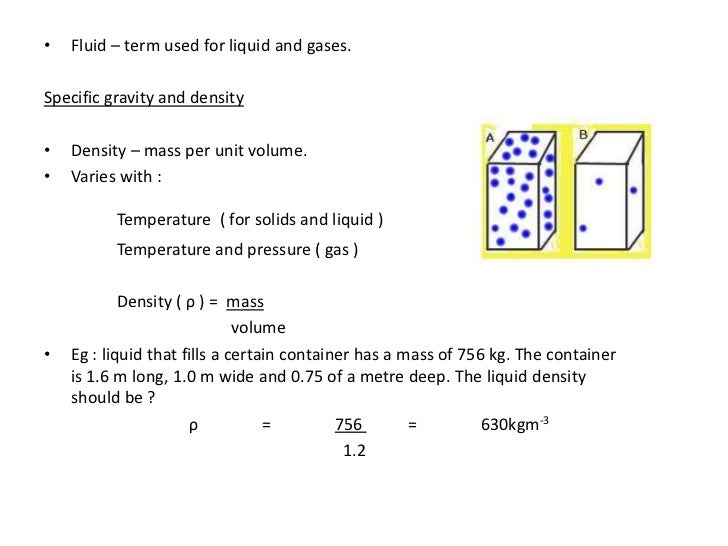

•   Fluid – term used for liquid and gases.Specific gravity and density•   Density – mass per unit volume.•   Varies with ...

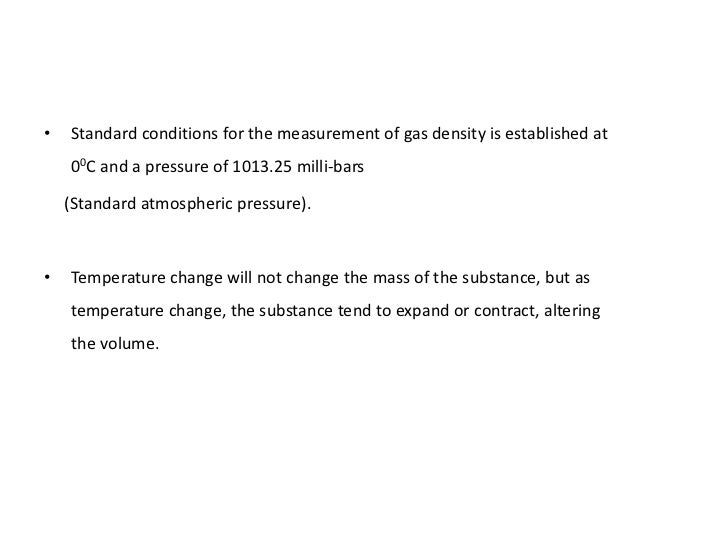

•   Standard conditions for the measurement of gas density is established at    00C and a pressure of 1013.25 milli-bars  ...

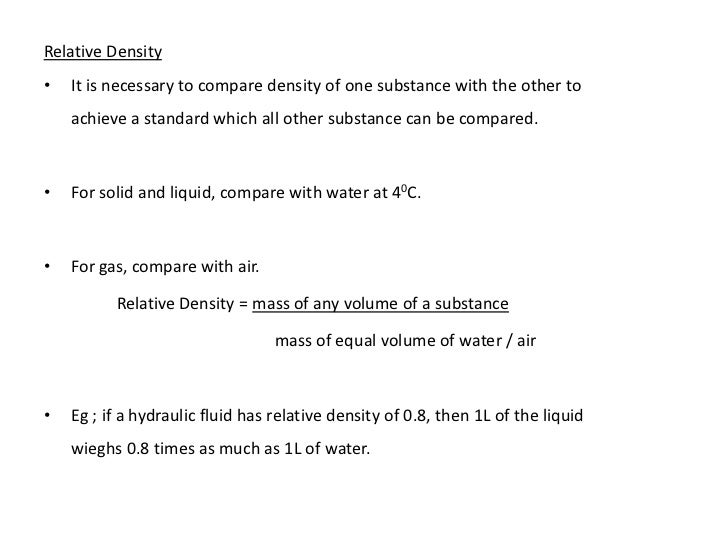

Relative Density•   It is necessary to compare density of one substance with the other to    achieve a standard which all ...

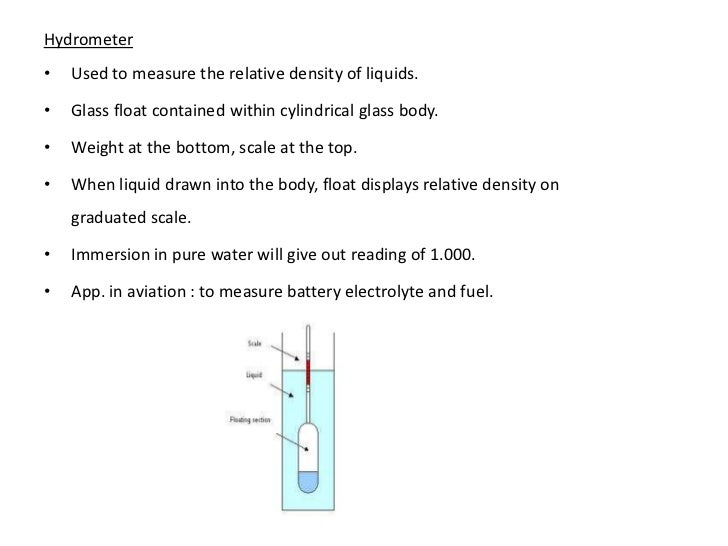

Hydrometer•   Used to measure the relative density of liquids.•   Glass float contained within cylindrical glass body.•   ...

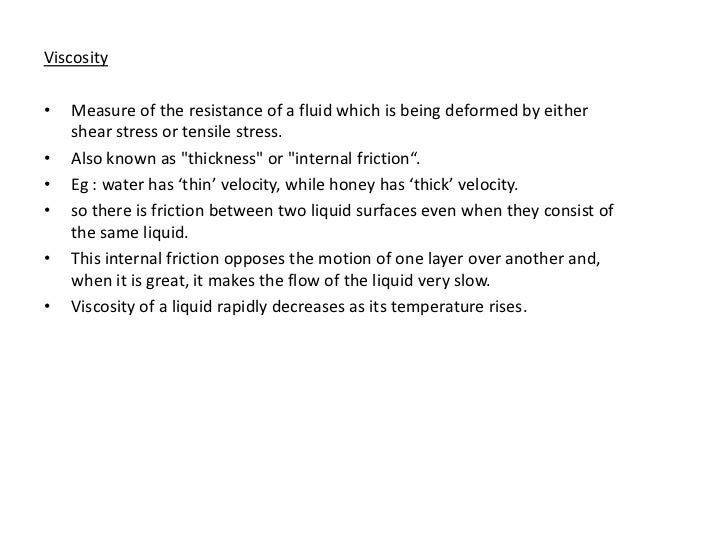

Viscosity•   Measure of the resistance of a fluid which is being deformed by either    shear stress or tensile stress.•   ...
•   Viscosity of different liquids can be compared in different ways.•   Eg ; if we allow fluids of different viscosity ru...

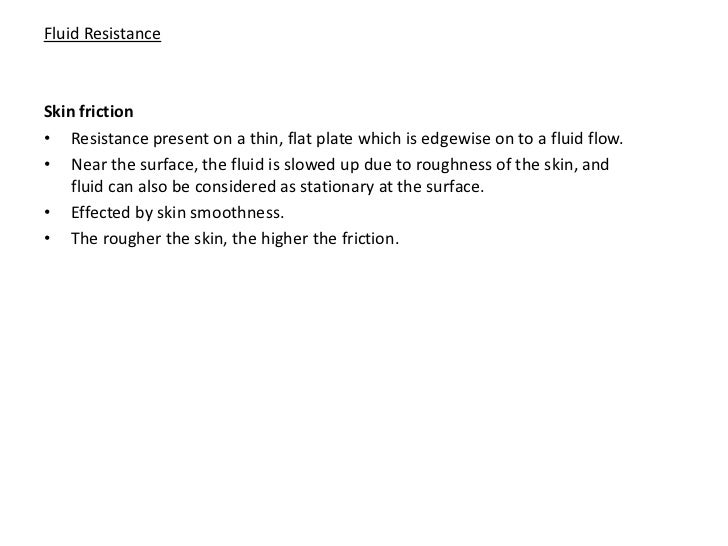

Fluid ResistanceSkin friction• Resistance present on a thin, flat plate which is edgewise on to a fluid flow.• Near the su...

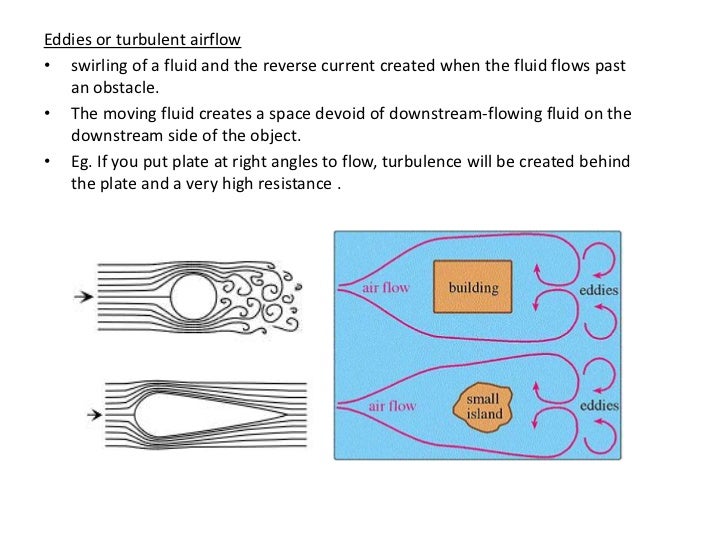

Eddies or turbulent airflow• swirling of a fluid and the reverse current created when the fluid flows past   an obstacle.•...

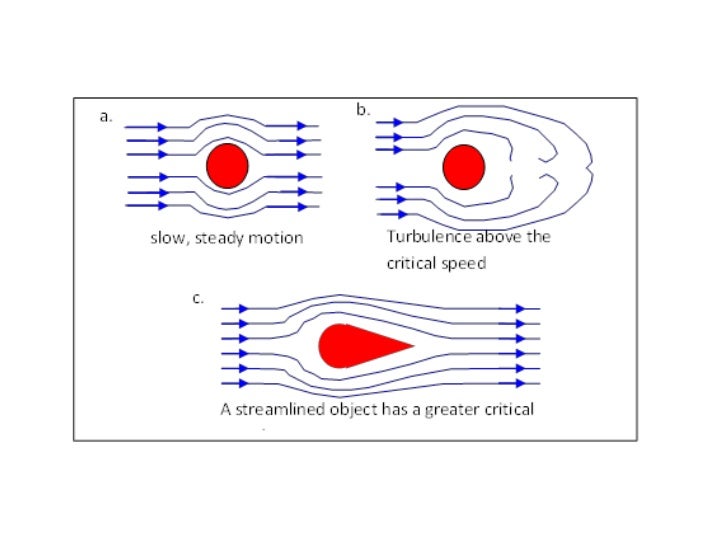

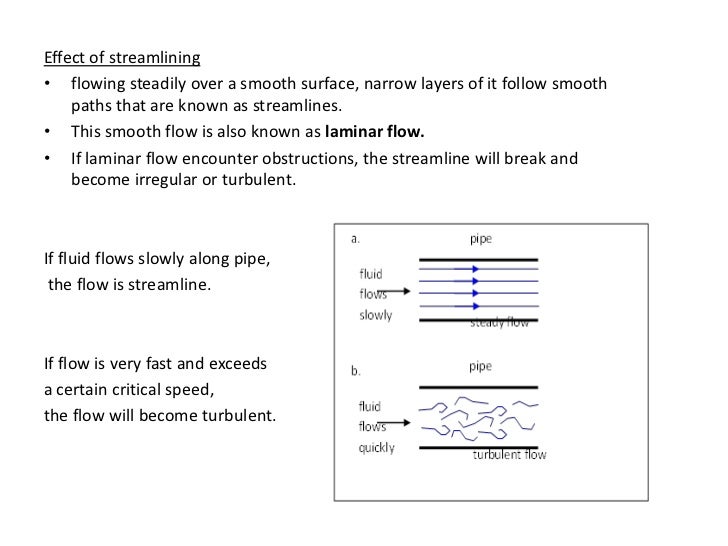

Effect of streamlining• flowing steadily over a smooth surface, narrow layers of it follow smooth    paths that are known ...
The Compressibility of Fluids•   All fluids are compressible, so that their density will change with pressure.•   Fluid ; ...

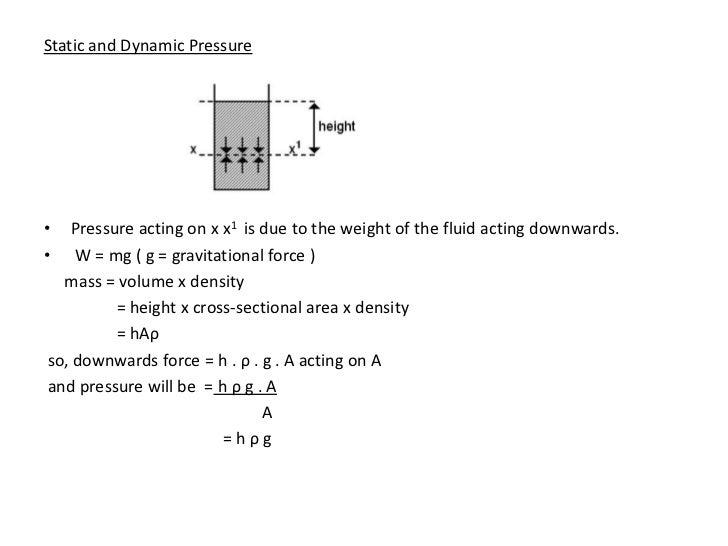

Static and Dynamic Pressure•   Pressure acting on x x1 is due to the weight of the fluid acting downwards.•   W = mg ( g =...
Static pressure•   Act depth h, within a stationary fluid of density ρ.•   Reduces density accompanied by reduced pressure...
Worked exampleWhat is the pressure at 10.5 m deep of liquid in a pool having the density of2.5kg/m3 ?What is the depth of ...

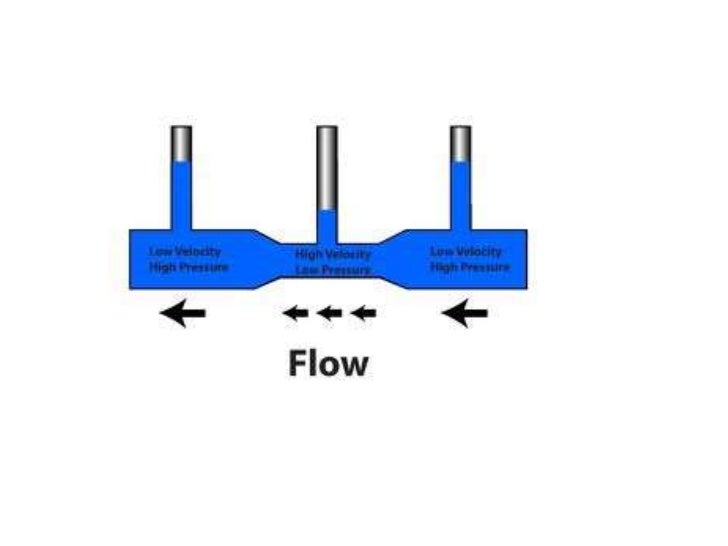

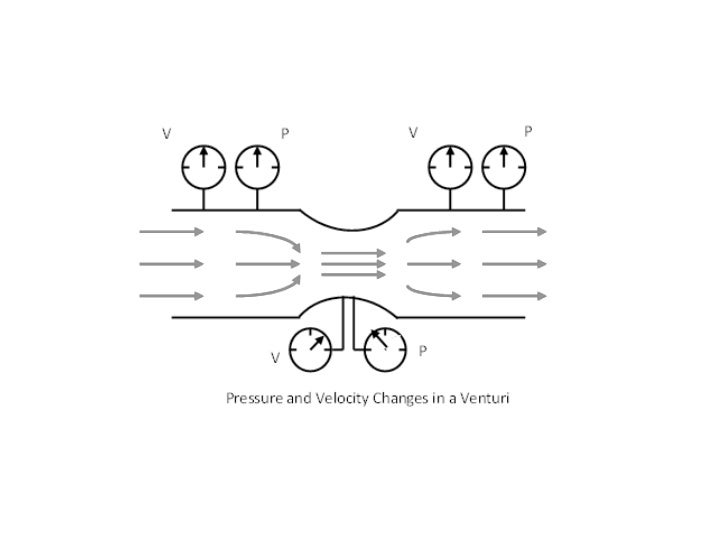

Bernoulli’s Theorem• a principle that explains the relationship between potential and kinetic   energy in a fluid.• In a f...
thermodynamics

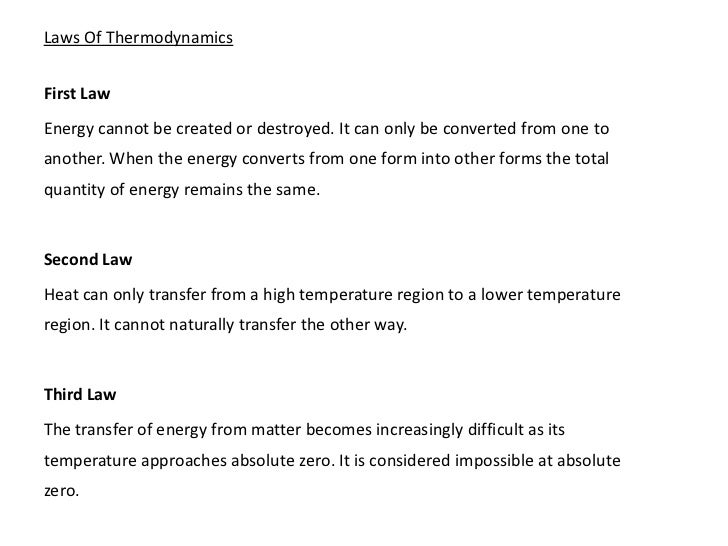

Laws Of ThermodynamicsFirst LawEnergy cannot be created or destroyed. It can only be converted from one toanother. When th...

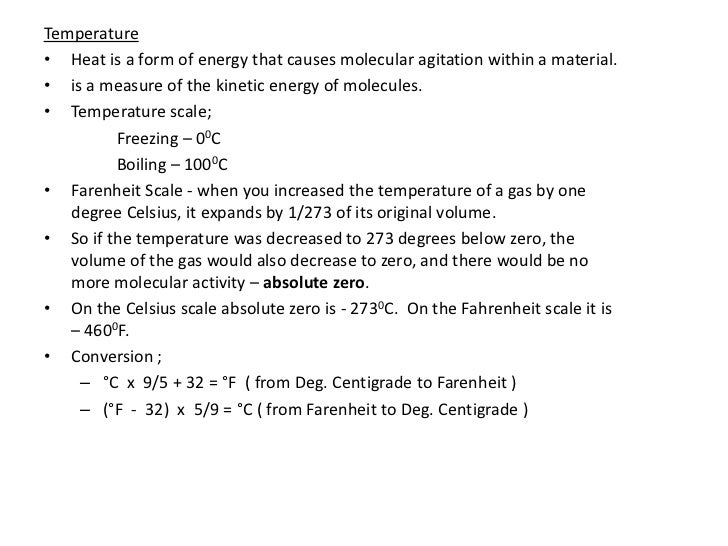

Temperature• Heat is a form of energy that causes molecular agitation within a material.• is a measure of the kinetic ener...

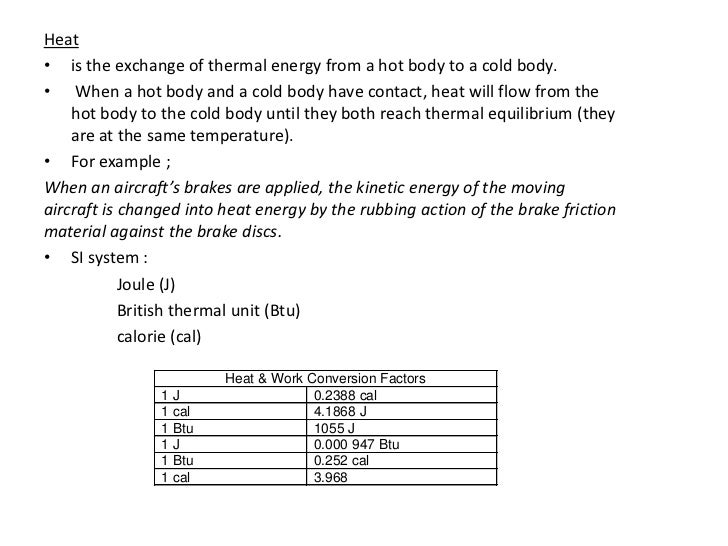

Heat• is the exchange of thermal energy from a hot body to a cold body.• When a hot body and a cold body have contact, hea...

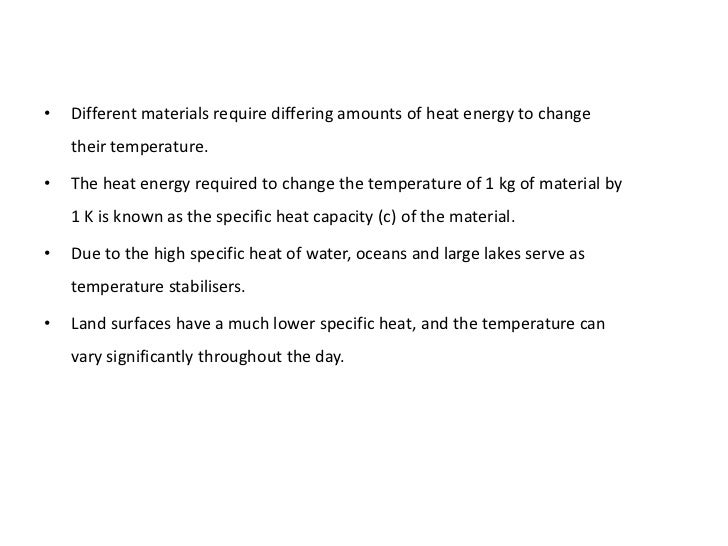

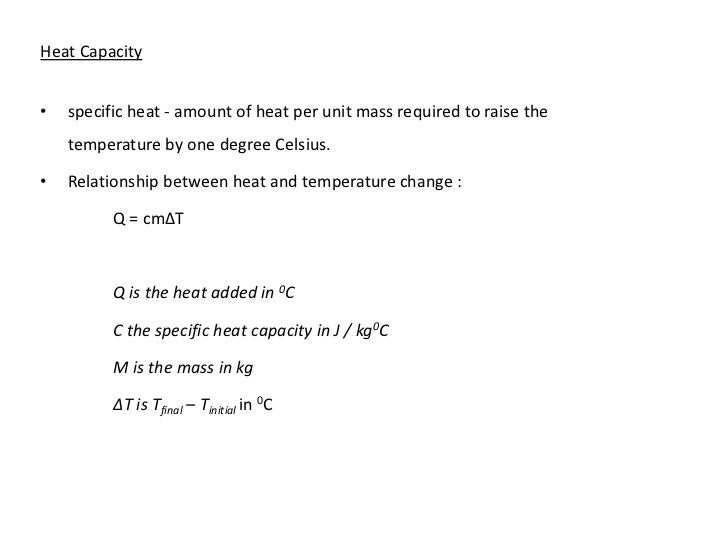

Heat Capacity•   specific heat - amount of heat per unit mass required to raise the    temperature by one degree Celsius.•...
•   Different materials require differing amounts of heat energy to change    their temperature.•   The heat energy requir...

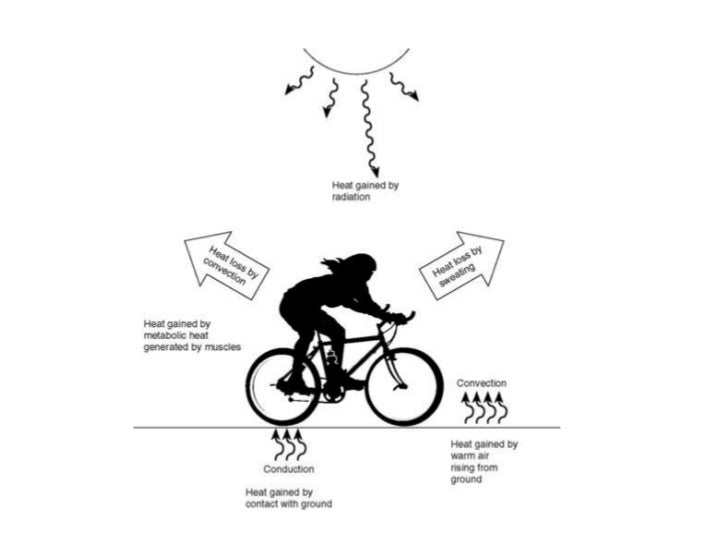

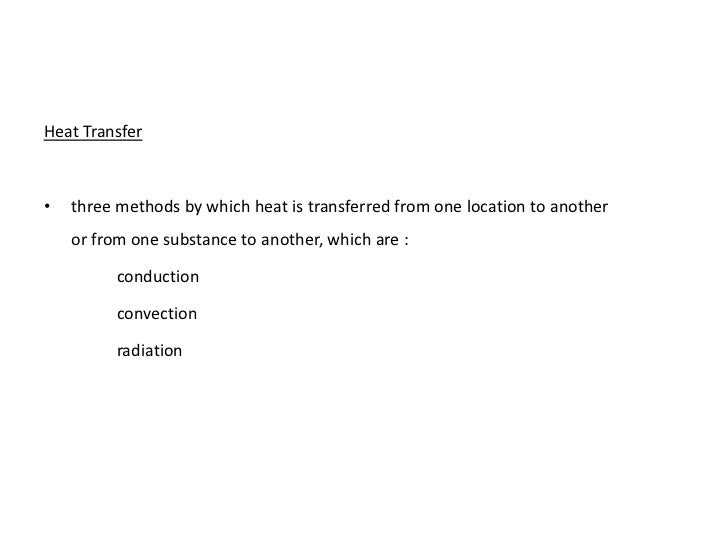

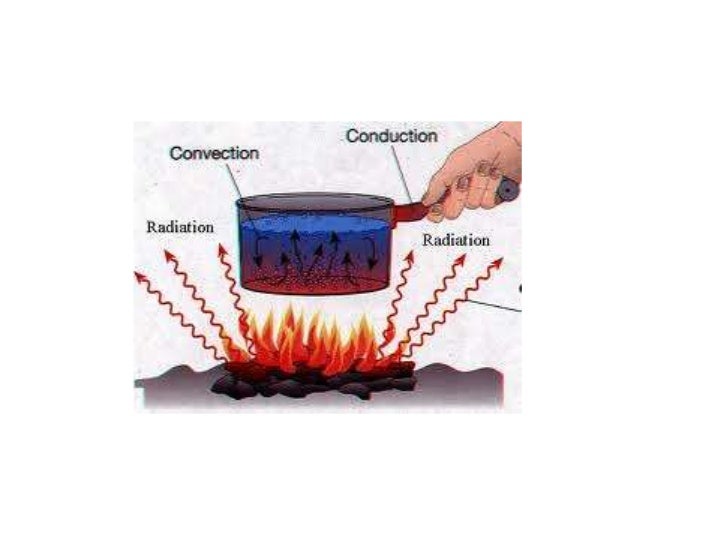

Heat Transfer•   three methods by which heat is transferred from one location to another    or from one substance to anoth...
Conduction•   When body having high heat energy in contact with body having low heat    energy.•   Eg; When hot object in ...

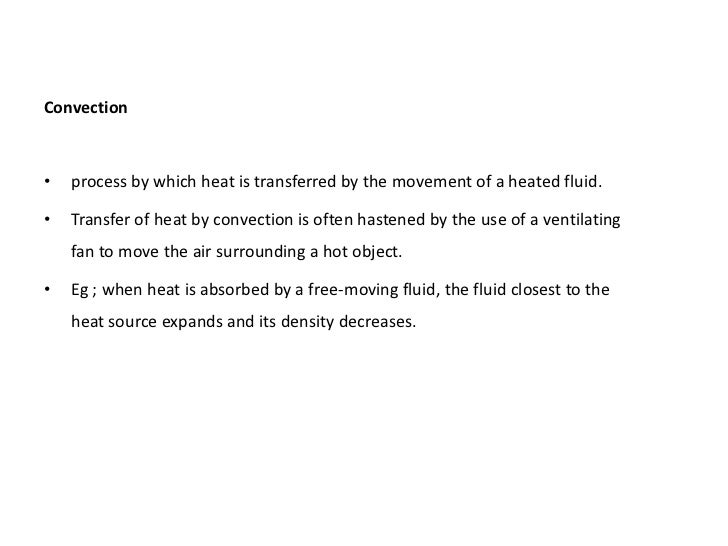

Convection•   process by which heat is transferred by the movement of a heated fluid.•   Transfer of heat by convection is...

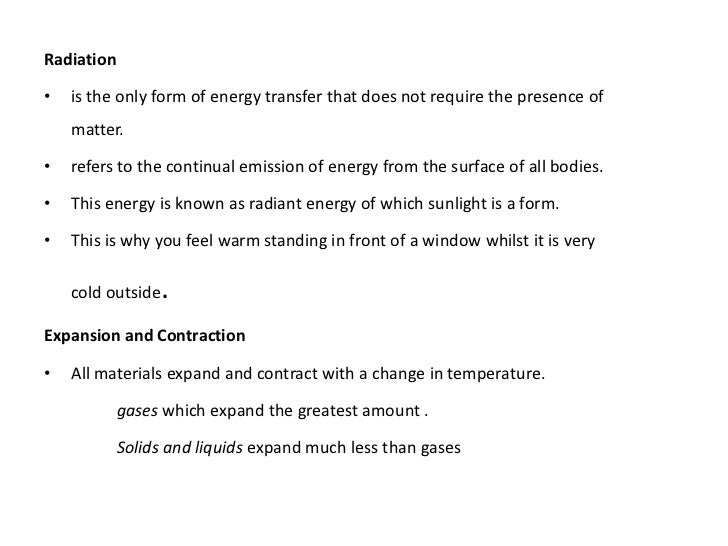

Radiation•   is the only form of energy transfer that does not require the presence of    matter.•   refers to the continu...

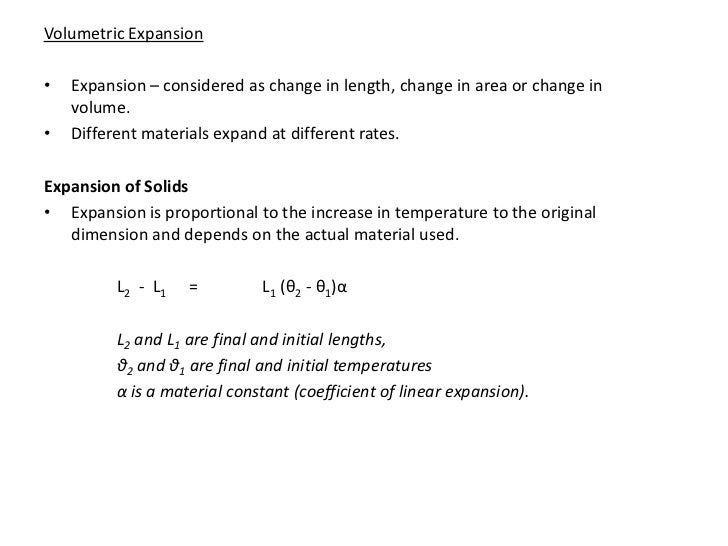

Volumetric Expansion•   Expansion – considered as change in length, change in area or change in    volume.•   Different ma...

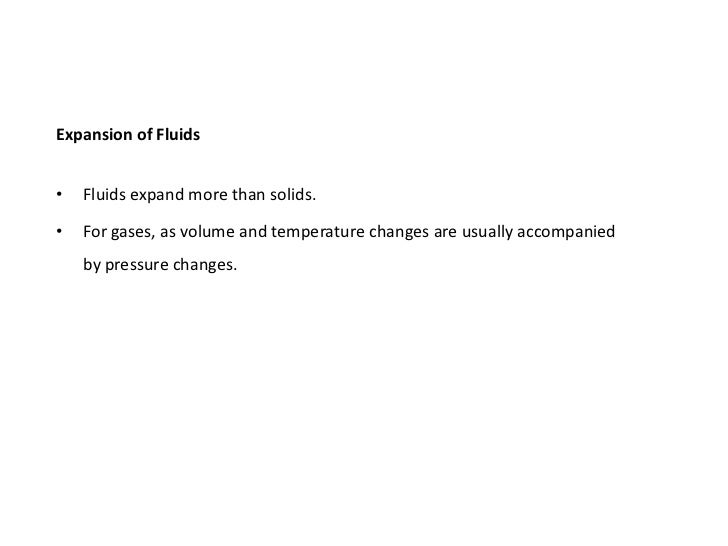

Expansion of Fluids•   Fluids expand more than solids.•   For gases, as volume and temperature changes are usually accompa...
The law of Thermodynamics•   Thermodynamics is the study of the way that one does work with heat.•   Energy conservation l...

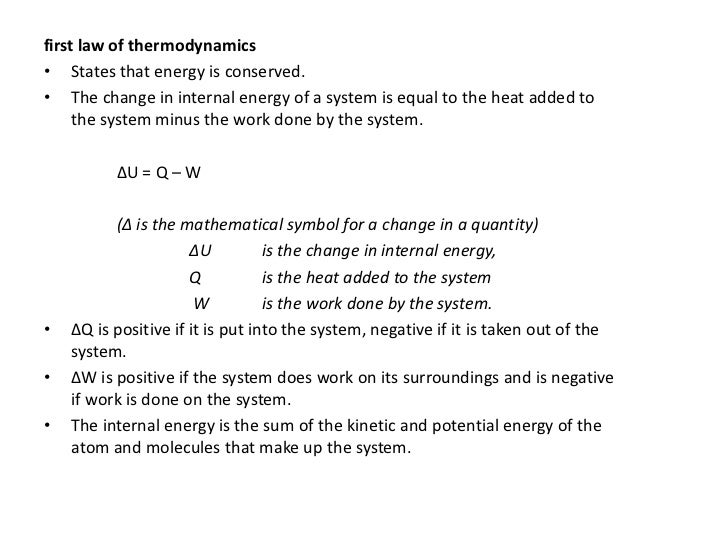

first law of thermodynamics• States that energy is conserved.• The change in internal energy of a system is equal to the h...

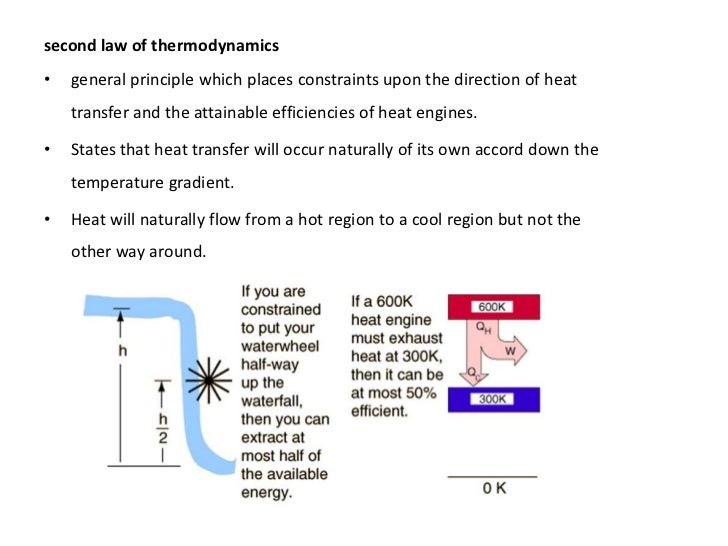

second law of thermodynamics•   general principle which places constraints upon the direction of heat    transfer and the ...

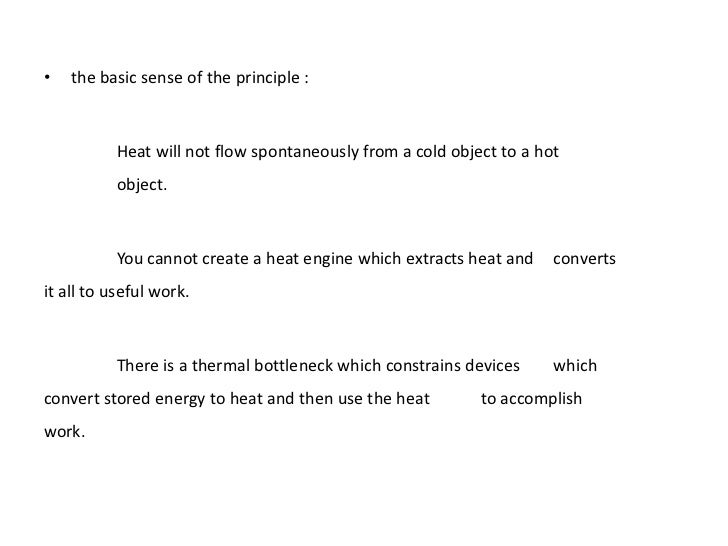

•   the basic sense of the principle :          Heat will not flow spontaneously from a cold object to a hot          obje...
gases•   Ideal gas - one in which all collisions between atoms or molecules are    perfectly elastic and in which there ar...

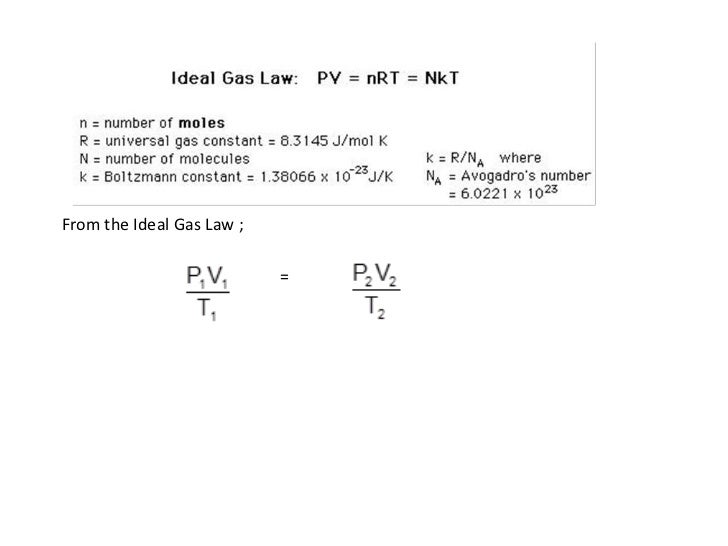

From the Ideal Gas Law ;                           =

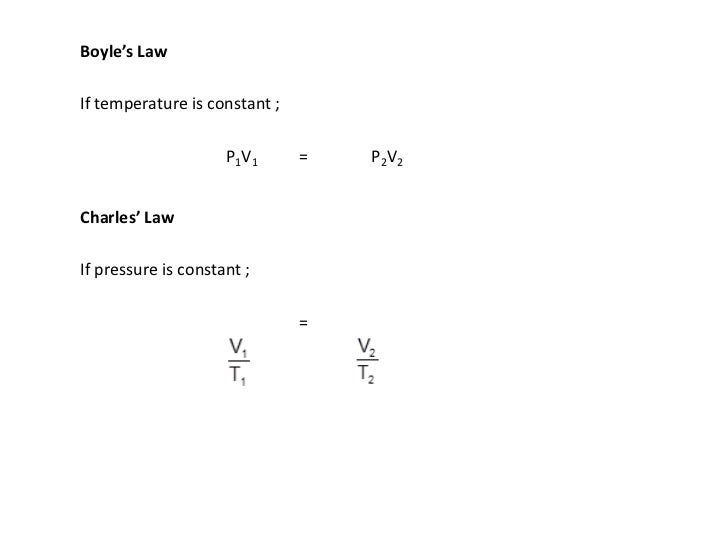

Boyle’s LawIf temperature is constant ;                     P1V1      =   P2V2Charles’ LawIf pressure is constant ;       ...

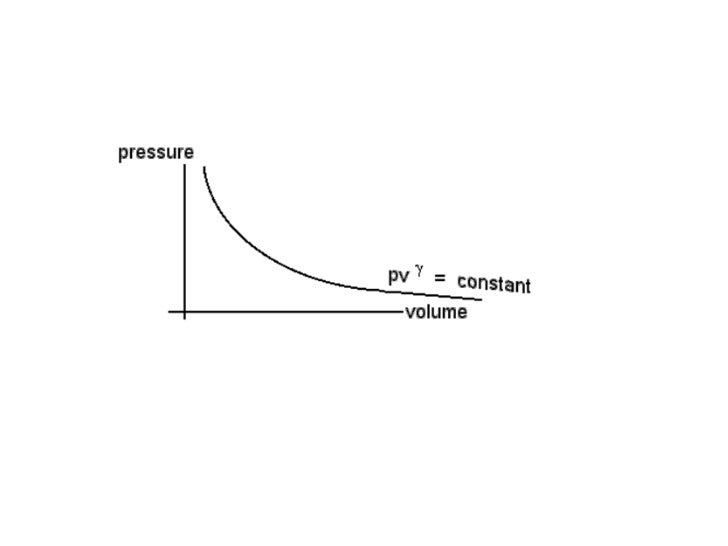

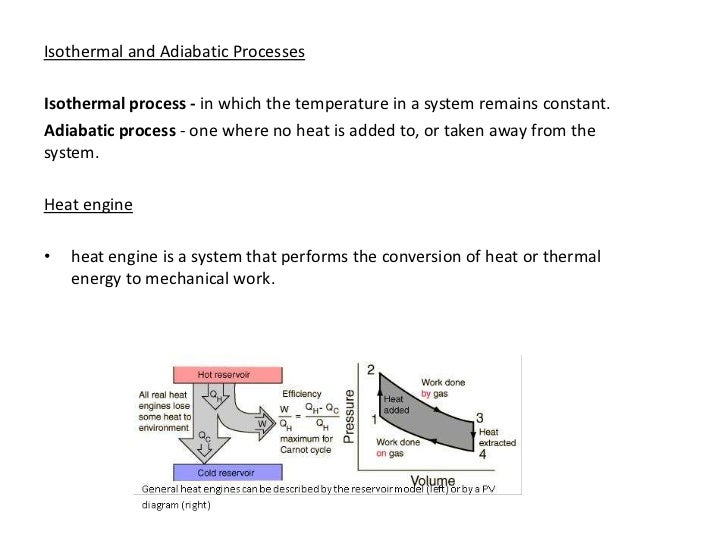

Isothermal and Adiabatic ProcessesIsothermal process - in which the temperature in a system remains constant.Adiabatic pro...
Heat Engine Processes•   a useful process is the adiabatic process where no heat enters or leaves    the system.•   The fi...

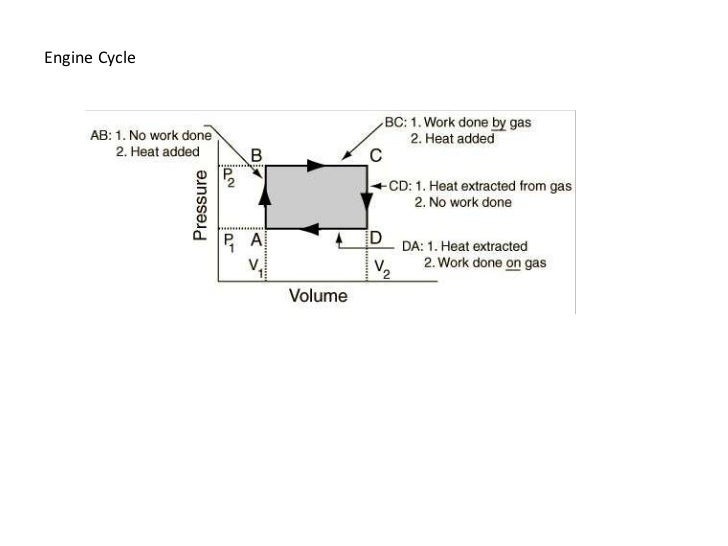

Engine Cycle
Carnot Cycle• consisting of two isothermal processes and two adiabatic processes.• can be thought of as the most efficient...

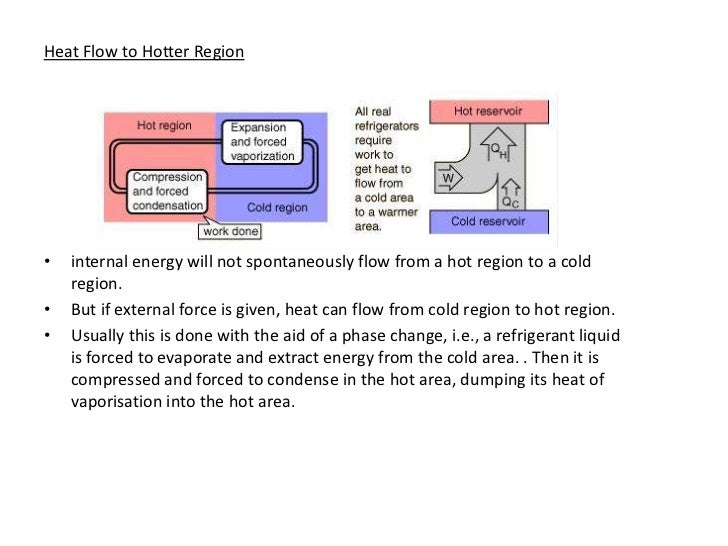

Heat Flow to Hotter Region•   internal energy will not spontaneously flow from a hot region to a cold    region.•   But if...

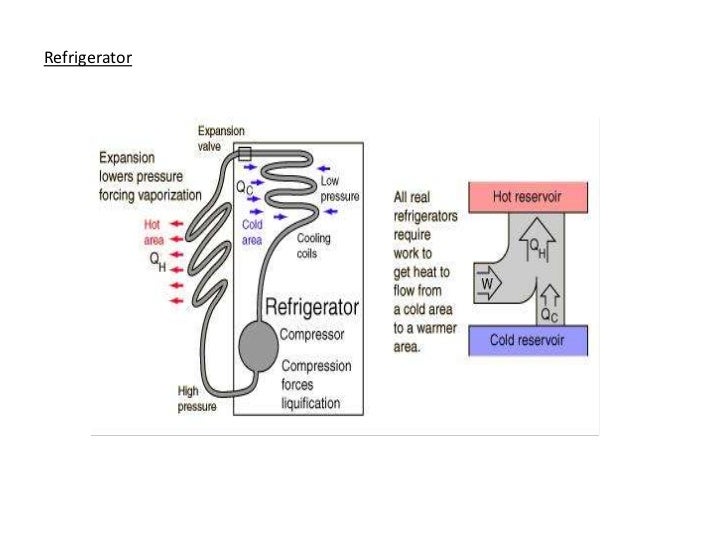

Refrigerator
Heat Pump

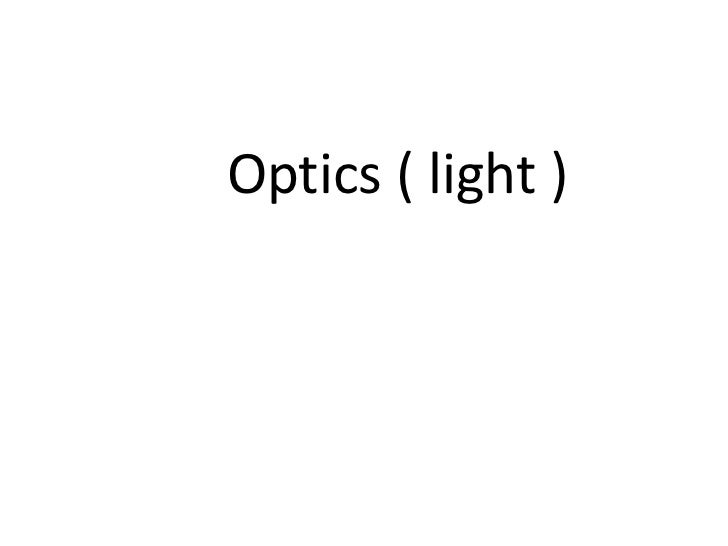

Optics ( light )

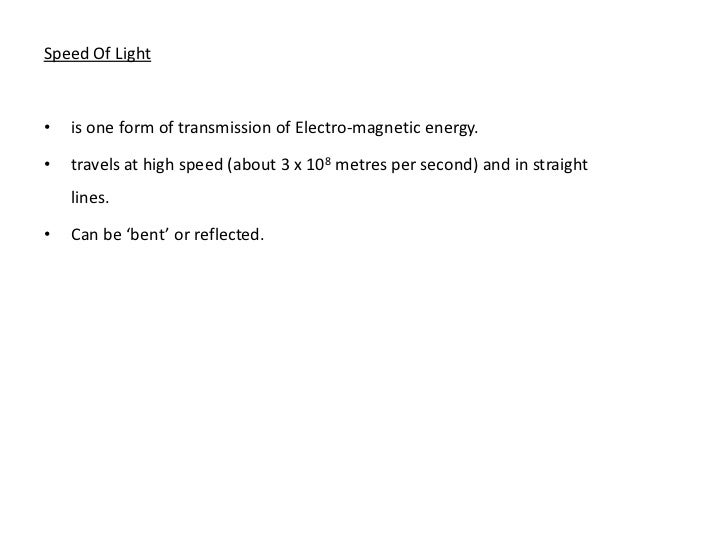

Speed Of Light•   is one form of transmission of Electro-magnetic energy.•   travels at high speed (about 3 x 108 metres p...

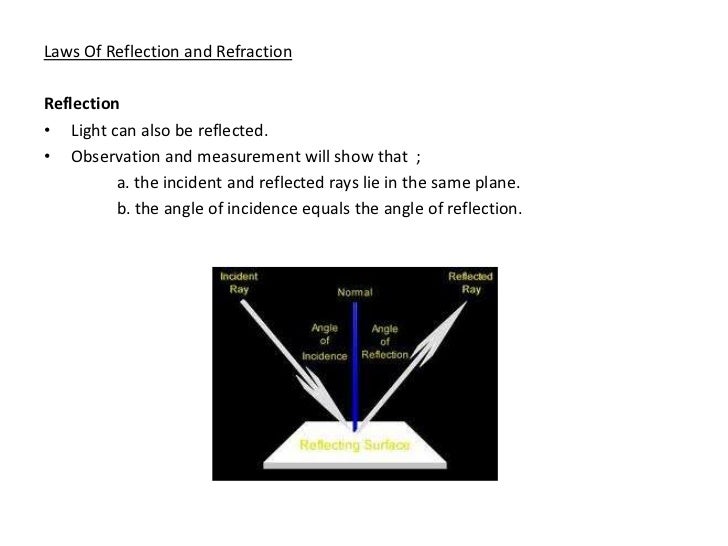

Laws Of Reflection and RefractionReflection• Light can also be reflected.• Observation and measurement will show that ;   ...
Plain and Curved Mirrors•   When you look in a mirror, you see a reflection, usually termed an image.•   For example, if a...
•   For mirror that is not plain, it may be curved, spherical and parabolic.•   Incidence equals reflection - still holds,...
•   The size of the image depends on the position of the object.•   image may be smaller or larger.•   If the object is ne...
•   Concave mirrors (e.g. shaving mirrors) give a magnified, erect (right way    up) image, if viewed from close-to.•   Co...
Refraction•   A submerged object is often seen at reduced depth.•   This is because the ray has been ‘bent’ at the water /...
Refraction Index•   Since the angle of incidence and refraction is not the same ;          sine i = μ ( a constant )      ...
Ray (1) has been refracted across theboundary, but ray (2) has been internallyreflected at the boundary.critical angle of ...
Total Internal Refraction• Refraction at a denser medium, a beam of light is bent towards the normal    and, vice versa.• ...
Convex and Concave Lenses•   The light rays then meet the surface of the lens at an angle to the normal,    and are then r...
Fibre Optics•   Depends upon the total internal reflection of light rays.•   Light can be trapped by total internal reflec...
Fibre Optic Imaging•   Principle : light striking at one end will be transmitted to the other end of    the fibre.•   If t...
Wave motion and sound
Wave motion•   For example, wave is created at a lake or pond due to disturbance, such as    a rock thrown into the water....
•   Another example, if a slinky is stretched out from end to end, a wave can    be introduced into the slinky by either v...
Categories of Waves• Waves come in many shapes and forms.• Some share basic characteristic properties and behaviours, some...
Direction Of MovementTransverse wave•   Wave moves in a direction perpendicular to the direction which the wave    moves.•...
Longitudinal Wave•   Wave in which particles of the medium move in a direction parallel to the    direction which the wave...
Ability to transmit through vacuumElectromagnetic Wave• wave which is capable of transmitting its energy through a vacuum....
Anatomy of Waves•     dashed line - equilibrium or rest position of the string.    (if there were no disturbance moving th...
•   Amplitude of a wave - maximum amount of displacement of a particle on    the medium from its rest position. ( from res...
Longitudinal wave•   is a wave in which the particles of the medium are displaced in a direction    parallel to the direct...
Frequency and Period of a Wave•   Frequency ;          a. refers to how often the particles of the medium vibrate when awa...
Interference PhenomenaWave interference• phenomenon which occurs when two waves meet while travelling along  the same medi...
Constructive Interference•   Occurs at any location along the medium where the two interfering waves    have a displacemen...
Destructive Interference•   type of interference which occurs at any location along the medium where    the two interferin...
Principle of Superposition“When two waves interfere, the resulting displacement of the medium at anylocation is the algebr...
•   Anti-nodes - point A on the medium moves from a positive to a negative    displacement over time.•   Nodes - point B o...
Standing Wave•   stationary wave - is a wave that remains in a constant position.•   often applied to a resonant mode of a...
Sound• Sound wave - pressure disturbance which travels through a medium by   means of particle interaction.• As one partic...
Speed of Sound•   Is determined to be 331 ½ m / s at 00C – 1087 ft /s , 741 mph or 644 kts.•   liquids are better transmit...
•   Primarily affected by temperature, the lower the temperature, the lower    the speed of sound.                   speed...
Intensity•   amount of energy which is transported past a given area of the medium per unit of    time.•   Often referred ...
Pitch• Best described as position on musical scale.•   The ears of humans (and other animals) are sensitive detectors capa...
Doppler Effect•   effect produced by a moving source of waves in which there is an    apparent upward shift in frequency f...
•   Doppler Effect observed because the distance between the source of sound and the    observer is changing.•   If the so...
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics
Upcoming SlideShare
Loading in...5
×

EASA PART 66 Module 2 : Physics

52,449

Published on

Slide for student who want to take EASA part66 exam
Other note you can get at
http://part66.blogspot.com

Published in: Education, Technology
1 Comment
39 Likes
Statistics
Notes
No Downloads
Views
Total Views
52,449
On Slideshare
0
From Embeds
0
Number of Embeds
64
Actions
Shares
0
Downloads
1,451
Comments
1
Likes
39
Embeds 0
No embeds

No notes for slide

EASA PART 66 Module 2 : Physics

  1. 1. PHYSICS MODULE 2 www.part66.blogspot.com
  2. 2. Basic SI Units Length (L) Metre (m) Mass (m) Kilogram(kg) Time (t) Second (s) Derived SI Units Area (A) Square Metre (m2) Volume (V) Cubic Metre (m3)Density (ρ) Kg / Cubic Metre (kg/m3) Velocity (V) Metre per second (m/s) Force (F) Newton (N) Pressure(p) Pascal (Pa) Energy (E) Joule (J) Work (W) Joule (J) Power (P) Watt (w) Frequency(f) Hertz (Hz)
  3. 3. matter• Matter - anything that occupies space. - consists of atoms and molecules.• Atom - smallest particle in an element that has the properties of the element.• Molecules - the combination of two or more atoms.
  4. 4. NATURE OF MATTER• Nucleus - each carrying a positive charge are called protons.In addition to the protons the nucleus usually contains electrically neutral particlescalled neutrons. Neutrons have the same mass as protons whereas electrons are verymuch smaller. • Neutron - simply adds to the weight of the nucleus. - has no charge. • Proton - positively charged. - has mass same as the neutrons. • Electron - orbits define the size or volume occupied by the atom - negatively charged. - total number of negatively charged electrons matches number of positively charged protons.
  5. 5. • The sub-atomic components of atoms. Particles Relative Electrical Comments Mass Charge Neutron 1 0 ( zero ) In the nucleus Proton 1 +1 ( positive ) In the nucleus Electron 1 / 1850 -1 ( negative ) Arranged in energy levels or shells around the nucleus
  6. 6. • Atomic Number – no. of protons in the atom’s nucleus. eg. Hydrogen has 1 proton – atomic no. is 1. Carbon has 6 protons – atomic no. is 6.• Mass Number – total no. of protons and neutrons in nucleus. eg. Lithium has 3 protons & 4 neutrons – mass no. 7
  7. 7. Relative Atomic MassThe mass of atom in relation to the mass of a reference atom.Element chosen on which to relate mass of all atoms is Carbon.Eg. Carbon (12) - 6 protons + 6 neutrons Hydrogen - 1 proton + 0 neutron = mass no. 1*so relative atomic mass for Hydrogen is one twelfth of Carbon.
  8. 8. Isotopes• are atoms that have same atomic number but different mass numbers.• Atom gains / loses one or more neutrons from nucleus will become ISOTOPES.• Are present in most elements and may also be man made.
  9. 9. • From left to right across a period = protons/electrons count increases by one.• Atomic number = increases from left to right.• Group1. Vertical column2. Elements have same number of outer shell / valency electrons.Noble gases - group 8.Transition metals - middle of the table.Pure metals - group 1, except Hydrogen.
  10. 10. CHEMICAL COMPOUNDS• Atoms bond together to form a molecule. Molecules Monatomic Molecule Chemical Compounds Consists of single type of atom. Made up of two or more atoms.
  11. 11. Structure of Atoms• Electrons are arranged in energy levels and shells around the nucleus and with increasing distance from the nucleus .• Valence electrons : - how many electrons an atom has in its outer shell. - determines the chemical behavior. - The more valence electrons, the more want for the atom to get more electrons.• Valency :1. bonding capacity of an atom; usually equals the number of unpaired electrons in the atoms outermost shell.2. No. of bonds it can make with a monovalent atom such as Hydrogen. Monovalent Bivalent Trivalent Tetravalent
  12. 12. The Molecule• A group of two or more similar or dissimilar atoms bonded together .• Metallic bonds - metal + metal (eg: Alloy) - do not produce molecules - weakest bonds of all• Ionic bonds - metal + non-metal (eg: sodium chloride)• Covalent bonds - non metal + non metal (eg : water) - produce molecules, strongest bond.
  13. 13. Chemical compounds• Defined as :‘ A substance made up of different elements that are chemically bonded andare so united that the whole has properties of its own, which are unlike thoseof its constituents.’• All other molecules made up of two or more atoms are known as Chemical compound.
  14. 14. States of matter• All matter exists in one of three physical states.• Physical state refers to the condition of a compound and has no affect on a compounds chemical structure.• Solid. A solid has definite mass, volume and shape.• Liquid. A liquid has definite mass and volume but takes the shape of its container.• Gas. A gas has definite mass but takes the volume and shape of its container.• increase in the temperature will increase the energy of its molecules.
  15. 15. Changes between states• Solid to Liquid – Fusioni. Heat energy required to complete process of converting unit mass of substance from solid to liquid state without change of temperature is called the Latent Heat of Fusion.• Liquid to Gas – Vaporisationi. Heat energy required to vaporise a unit mass of liquid without temperature rise is called Latent Heat of Vaporisation.• Gas to Liquid – Condensationi. Heat energy expelled is called the Latent Heat of Condensation.• Liquid to Solid – Solidificationi. Loss of molecular energy is the Latent Heat of Solidification.
  16. 16. • Sublimationi. Some solid substance when heated do not melt, but form a Vapour.ii. Solid to vapour, without passing through liquid state.iii. Eg. Dry ice• Evaporationi. Liquid change to vapour.ii. Some liquid have low boiling point, so easily change from liquid to vapour.iii. Eg. Methylated spirits.
  17. 17. Mechanics : statics ; - forces centre of gravity stress and strain properties of matterpressure and buoyancy in liquids
  18. 18. Newton’s law of motionsFirst Law of MotionA body at rest will remain at rest unless given an external force, or abody which is moving will keep on moving unless given an externalforce. ( Inertia )Second Law of MotionA force proportional to the rate of change of its velocity is producedwhenever a body ( or mass ) is accelerated. F = maThird Law of MotionFor every action, there is an equal and opposite direction.
  19. 19. MECHANICSSTATICForces• If a Force is applied to a body it will cause that body to move in the direction of the applied force.• force has both magnitude (size) and direction.• Forces cannot be directly observed, only their effects can be seen.  Compressive - force applied on an object to squeeze it.  Tensile - pair of forces try to extend an object.  Shear - Pair of forces tries to cause one face of material to slide relative to an adjacent face.• Statics is used to describe study of bodies at rest when forces are balanced.
  20. 20. • External force – force applied to an object from outside its boundaries.• Internal force – force induced in the object to react against externally applied force. ( Reaction )VECTOR AND SCALAR• Scalar – just a magnitude, there is no direction associated. eg. Time , mass, volume.• Vector – require both magnitude and direction to be fully defined. eg. Force, velocity, acceleration.
  21. 21. Adding Forces• 2 or more forces act at same line, produce resultant force.• If at straight line, subtract or addition.• Forces do not act in a straight line – use the ‘parallelogram law’.
  22. 22. Worked exampleFind the resultant of two forces of 4.0 N and 5.0 N acting at an angle of 45degree to each other.Using a scale of 1.0 cm = 1.0 N, draw parallelogram ABCD with AB = 5.0 cm,AC = 4.0 N and angle CAB = 45 degree, see figure 8.
  23. 23. Worked example: three forces acting on a mass.First resolve each force into its vertical and horizontal components.
  24. 24. MOMENTS AND COUPLES• If a body free to rotate about some point ;i. Applied force will cause rotationii. Force required dependent on how far from hinge force is applied.iii. Turning effect = magnitude and distance. Moment = force x distance.• In SI units, Newtons metres = Newton x metres
  25. 25. The Principle of Moments‘If a body is at rest under the action of several forces, the sum of theclockwise moments about any axis is equal to the sum of the anticlockwise moments about the same axis.’Type 1 – beam balances where arms are of equal length.Type 2 – lever arrangement can best be seen in design of awheelbarrow.Type 3 – large effort moves through small distance to overcome smallload, which moves through a large distance.
  26. 26. • IN EQUILIBRIUM• COUPLE – WHEN TWO EQUAL BUT OPPOSITE DIRECTION, CAUSES ROTATION
  27. 27. For example, suppose it is necessary to calculate the resultant moment ofa pivot acting on a bell crank lever, refer to diagram below. AO = 100 mm OC = 20 mm BC = 20 mm
  28. 28. WHAT ISCENTER OF GRAVITY ?
  29. 29. CENTRE OF GRAVITY• Gravity is a force which is always present and is a pulling force in the direction of the center of the earth.• This force acts on every body through an imaginary point called the center of gravity (C of G).• A point where all the weight of a body appears to be concentrated. (total weight can be considered to act through that datum position )
  30. 30. (total weight can be considered to act through that datumposition )
  31. 31. • There must be a datum point, such as where when moment in clockwise direction will be balanced by moment in anti-clockwise direction, if given the same amount of force.
  32. 32. Stability / balancing• The lower the C of G, the stable an object is.• The wider the base, the more stable an object is – C of G towards the base.
  33. 33. • The location of the center of gravity in the human body varies slightly, depending on body shape.• a male with a muscular upper body and small hips, the center of gravity is higher than in a female with narrow shoulders and wide hips• in an infant with a large head in relation to its body, it is higher than in an adult
  34. 34. • When force applied to C of G, the body will not rotate.• But if the force is applied offset of the C of G, the body will rotate, or torque will produced.
  35. 35. Expressed as an algebraic formula, W1 X1 + W2 X2 + W3 X3 = (W1 + W2 + W3) x GWhere G is the position of the centroid, with respect to the datum. G=
  36. 36. C of g of an aircraft
  37. 37. Why do we need to know c of g of an aircraft ?• To ensure the aircraft is safe to fly, the center-of-gravity must fall within specified limits established by the manufacturer.• C of G range – C of G limits are specified longitudinal (forward and aft) and/or lateral (left and right) limits within which the aircrafts center of gravity must be located during flight.• To evenly load the aircraft – equipments, passengers, baggage, cargo, fuel, etc.• So that C of G range will not be exceeded – prevent aircraft unstable during flight.• Also affects C of G in flight – fuel usage, passengers’ movement, etc.
  38. 38. Similar to aircraft, force applied will be acted through the C of G,resulting in torque.Aircraft rotate about its C of G.
  39. 39. WHAT IS STRESS ?AND WHAT IS STRAIN ?
  40. 40. Stress• If force is exerted on a body, there will be mechanical pressure acting on the body which is called the stress.• A body with having twice the size of other body subjected to a force, it will be stronger and less likely to fail due to applied the applied force.• So, stress is said : Stress = *units : Newton metre -2 , Nm-2• Components will fail due to over-stressed, not over-loaded.
  41. 41. • Eg. A tennis ball sealed from atmospheric pressure. So, as long as the external forces acting on it does not exceed the internal forces, the ball will maintain its shape.
  42. 42. • Forces applied to the body will cause distortion of the body and change to the material’s cross-sectional area ; eg. Tensile Forces will cause elongation . Compressive Force will cause reduction in dimension.• Most material have elastic properties ( it will to return to its original shape after the force is removed ) - provided forces does not exceed limit of elasticity.• There are 5 types of stress in mechanical bodies : i. Tension ii. Compression iii. Torsion iv. Bending v. Shear
  43. 43. Tension• force that tends to pull an object apartCompression• resistance to an external force thattries to push an object together.
  44. 44. Torsion• Torsional stress is applied to a material when it is twisted.• Torsion is actually a combination of both tension and compressionBending• In flight, the force of lift tries to bend an aircrafts wing upward.
  45. 45. Shear• combines tension and compression is the shear stress, which tries to slide an object apart.
  46. 46. Strain• If the outside force is great enough to cause the object to change its shape or size, the object is not only under stress, but is also strained.• If a length of elastic is pulled, it stretches. If the pull is increases, it stretches more; if the pull is reduced, it contracts.Hooke’s law states that the amount of stretch (elongation) is proportionalto the applied force.
  47. 47. How stress varies with stress when a steel wire is stretched until it breaks.Hooke’s Law states that, ‘the amount of stretch (elongation) is proportional tothe applied force.’• Strain - the degree of distortion then has to be the actual distortion divided by the original length (in other words, elongation per unit length).• Strain = change in dimension / original dimension ( No units )
  48. 48. *for shearing and torsional stresses, they are expressed as ‘shearingaction’ – when one layer of materials move relative to another indirection of applied force.Shear strain – straight motion.Torsion strain – rotational motion.
  49. 49. Compression strain
  50. 50. Shear strain Torsion strain• when the applied load causes • form of shear stress resulting one layer of material to move from a twisting action. relative to the adjacent layers. • Twist will be proportional to the applied torque.
  51. 51. Shearing Strain
  52. 52. Properties of matterDiffusion• Is the spreading of a substance of its accord.• due to molecular action, e.g. a smell, whether pleasant or not, travels quickly from its source to your nostrils where it is detected.• occurs in liquids and gases but not in solids.
  53. 53. Surface Tension• This suggests that the surface of a liquid behaves as if it is covered with an elastic skin that is trying to shrink.• The surface tension can be reduced if the liquid is ‘contaminated’, adding a detergent to the water will cause our needle to sink.• In a liquid, the molecules still partially bond together and prevents liquid from spreading nag expanding out.
  54. 54. AdhesionForce of attraction between molecules ofdifferent substances.CohesionForce of attraction betweenmolecules of same substances.
  55. 55. capillary• If a glass tube of small bore is dipped into water , the water rises u the tube a few centimetres.• The adhesion between the glass and the water exceeds the cohesion of the water molecules, the meniscus curves up , and the surface tension causes the water to rise.
  56. 56. Mechanical properties ofStrength matterA strong material requires a strong force to break itStiffnessA stiff material resists forces which try to change it’s shape or size.ElasticityThe ability to recover to its original shape and size after the force deforming it has beenreformed.DuctilityMaterials that can be rolled into sheets, drawn into wires or worked into other usefulshapes, without breaking are ductile.BrittlenessA material that is fragile and breaks easily .
  57. 57. Pressure and buoyancy in• liquid The equivalent term associated with fluids is pressure: pressure = force / area or p = F/A.• Pressure is the internal reaction or resistance to that external force.• Pascal’s Law : “pressure acts equally and in all directions throughout that fluid.”
  58. 58. pressure can be transmitted to some other point in order to generate another force.
  59. 59. Units of pressureSI system pressure : Pascal = force per unit area ( Nm-2)Atmospheric pressure : Milibars ( mb ) or pounds per square inch ( psi )Sea level standard atm presssure : 1013-2 mb or 14.69 psi ( at 0C)
  60. 60. buoyancyArchimedes’ Principle states that when an object is submerged in a liquid, the objectdisplaces a volume of liquid equal to its volume and is supported by a force equal to theweight of the liquid displaced. THE BUOYANCY OF A SUBMERGED BODY = WEIGHT OF DISPLACED LIQUID – WEIGHT OF THE BODY1. The body will float--if the buoyancy is positive2.The body will sink--if the buoyancy is negative3.The body will be stuck--if the buoyancy is neutral
  61. 61. kinetics
  62. 62. Linear motion• Is the uniform motion in a straight line.• Motion is the change of position of a body with reference to another body. eg. A person sitting in a moving car and passes a building. The person is considered to be at a state of rest in reference to the car. The car is considered to be in motion in relation to the building.
  63. 63. speed• Speed tells us how quickly an object is moving at any given point in time.• Scalar quantity – does not take into account the direction of the object travelled.• Average speed – dividing the distance travelled by the time taken. Speed = rate of change of displacement or position = v = where v represents speed.
  64. 64. Worked example• An aircraft flies at 80 km/ hr for 15 minutes and at 120 km/hr for a further 15 minutes. How far has it travelled and what is the average speed ?
  65. 65. velocity• Includes direction, distance in straight line and time.• Vector quantity – magnitude + distance. eg. An aircraft moves 200miles South West from A to B in one hour. *the velocity is 200mph South West.
  66. 66. acceleration• Is the rate of change of velocity over time.• If the rate of change is constant, acceleration is described as being uniform.• Acceleration - If the velocity of an object increases over time.• Deceleration / retardation – If the velocity decreases over time.• If a car is travelling at initial constant velocity ‘u’ and then accelerated with uniform acceleration ‘a’ to final velocity ‘v’, therefore : a = (v–u)/t v = u + at *Unit : m / s 2
  67. 67. Equation of linear motionEquations of linear motion V = u + at s=½(u+v)t s = ut + ½at2 v2 = u2 + 2asFree falling objects• if a stationary object is released and free falls under attraction of the force of gravity, it will accelerate at 9.81 m/s 2• So the ‘a’ will be 9.81 m/s 2 , but in this case it is given the symbol ‘g’.• If the object is thrown upwards, its g will be – 9.81m/s2
  68. 68. • Initial velocity of objects freefalling from rest is zero, so the equations for free fall are : V = gt S = ½ gt2 V2 = (2gs)2
  69. 69. ROTATIONAL MOTIONCircular Motion• Rotational motion means motion involving curved paths and therefore change of direction.• Only cases of constant acceleration are considered here.• They are equivalent to those linear equations of motion :
  70. 70. Centripetal Force• Continuous force applied to a body moving in circular path to keep it in that particular circular path, preventing it from travelling in straight line ( tangential to circle it is rotating in ) – due to the inertia of the object.• Basically a force acting inwards toward the centre of the circle.• Is directly proportional to the mass of the object in circular motion.• Is inversely proportional to the radius of the circle in which the object travels.
  71. 71. • Force = ma, so we can say that the object has an inwards acceleration called Centripetal Acceleration which is ; a = v2 , so F = r *where v is linear velocity and r is radius of circular path.
  72. 72. Centrifugal Force• Is the equal but opposite reaction to the Centripetal Force. ( Newton’s 3rd Law )• Tensile Force at the other end of the string acts outwards of the circle.
  73. 73. Relationship between Angular and Linear Motion :Providing that we know the value of the rotatingbody’s radius ( r ), we can use the relationshipbetween the radius and the radian to convert angularvalues to linear values and vice versa. Linear distance : rθ Linear velocity : rω Linear acceleration : rα
  74. 74. Periodic motion• Some masses move from one point to another, then back to the original point, and continue to do this repetitively.• The time during which the mass moved away from, and then returned to its original position is known as the time period, and the motion is known as periodic motion.• Example : pendulum
  75. 75. Pendulum• When the mass then displaced from its rest position, it will accelerate back towards its rest position.• On reaching it however, it will not stop, because its inertia carries it on to an equal but opposite displacement.• the time period can be measured from a any position, through to the next time that position is reached, with the motion in the original direction.
  76. 76. Cycle –for one complete to and fro movement.Periodic Time – time taken to complete 1 cycle.Frequency – the number of cycle occurring in 1 seconds. ( Hertz – HZ )Amplitude – maximum displacement of a body from its middle or rest position.
  77. 77. • Periodic time, T can be calculated by ; T = 2 √ ( L / g ) Where ; L – length of the pendulum g – magnitude of acceleration due to gravity = 9.81 m/s2 For time period ( T ) and frequency ( f ) ; T=1/f , f=1/T
  78. 78. Spring – mass systems• If the mass at the spring is displaced and the force is released, the spring force will cause the mass to return to its original position.• It will behave like pendulum, so it continue to move up and down before it stops completely.• Springs obey Hooke’s Law.• The resulting motion, up and down, resulting in :
  79. 79. Spring Force Force ( F ) = mg = kE if mg = kE, then the spring constant k = mg E Also, extension E = mg k Frequency (f) = ( 1 / 2 ) √ ( k/m ) where; F is force. m is suspended mass. g is the acceleration due to gravity. E is the spring extension. k is the spring constant.
  80. 80. Simple theory of vibration,• harmonics and resonance. but strict law. Analysis of oscillating systems will show that they often obey simple• Acceleration is proportional to the displacement from the neutral position, and in the opposite sense to the direction of the velocity.• Referred to as Simple Harmonic Motion, when acceleration is directed towards fixed point in its path and is proportional to its displacement from that point.
  81. 81. Vibration theory• Vibration Theory is based on the detailed analysis of vibrations and is essentially mathematical, relying heavily on trigonometry and calculus, involving sinusoidal functions and differential equations.• Damped vibrations : Simple pendulum / spring mass will vibrate at constant frequency and amplitude, once it is started. But vibrations will die away due to other motions such as friction, air resistance, etc.
  82. 82. Resonance• When force subjected to force vibration, it will vibrate along with natural frequency of the object.• If the natural frequency matches the resonant frequency with forced vibration causes the amplitude to increase dramatically.• Natural frequency tries to damped out the amplitude but cannot damp its own natural frequency.• So the two amplitudes combine to produce resonance.
  83. 83. Velocity ratio, mechanical advantage and efficiency.• Machine – utilise some form of motion to convert an applied force into a useful work output• The input forces is often amplified many times by the machine so that we can overcome a heavy load with little effort.• Eg ; levers, pulleys, gears, screws.Velocity ratio• Ratio of distance the effort is required to move in comparison with the distance the load moves in the same time. Velocity Ratio = Distance moved by effort Distance moved by load
  84. 84. Mechanical Advantage• Describes the ratio of load moved with the effort required to move it. Mechanical Advantage = Load Effort *A rusty car jack will have a low mechanical advantage because much ofthe effort would be used to overcome the friction of a corroded screw thread.Efficiency• Describes the ratio of the useful work done by a machine to the total work put into it. Efficiency = Work Output x 100% or Mechanical Advantage x100% Work Input Velocity Ratio• Expressed as percentage and is always less than 100%. *Friction and slippage can detract from efficiency of a machine.
  85. 85. LEVERS• Used to gain mechanical advantage.• Most basic form : seesaw that has weight at each end. ( weight on one end tends to rotate it clockwise, weight on the other endtends to rotate it anti-clockwise )First Class Lever• Lever has fulcrum between load and effort.• Less effort required to lift the load.
  86. 86. Second Class Lever• Has fulcrum at one end of the lever and effort is applied to the opposite force.Third Class Lever• Force is applied between fulcrum and load.• Used to move the load a greater distance than effort applied.• Disadvantages : much greater effort required to produce moment.
  87. 87. Pulleys• Pulley wheel has circumferential groove to accept a rope.• Effort is applied by pulling on a rope.• Tension created in the rope and movement are transmitted through arrangement to the load.• Single fixed pulley is a convenient means of lifting a light load.• So, for instance, if one end of the rope is attached to a fixed object, pulling on the other end will apply a doubled force to any object attached to the axle.
  88. 88. dynamics
  89. 89. Mass• Is the quantity of matter that it contains.• Constant regardless of its location.• Basic SI unit : kilogram (kg)• Imperial : pounds (lbs)Weight• Force with which gravity attracts a body.• Varies with distance between body and centre of the earth, so if farther than centre of the earth, the less it weighs.• So, it is said that an object in deep space does not has no weight, but do has mass.• Gravitational acceleration is considered as 9.81m/s2Force• Is a vector quantity that has magnitude, direction and a point of application.• Which changes a body’s state of rest or of uniform motion.
  90. 90. Inertia• Newton’s First Law• A body at rest will stay at rest unless given an external force, or a moving body will continue on moving unless given and external force.• Is the resistance to movement or changes.Work• Work is done when a force move. Work done = force x distance moved in the direction of the force.• Unit : Newton metre (Nm) or the joule 1 joule = the work done when a force of 1 Newton is applied through a distance of 1 metre
  91. 91. Power• The amount of work done in specific time. Power = work done = force x distance time taken time• Si unit : Watt ( W ) – 1 Joule/ second• Is the rate of work done when 1 Joule is achieved in one second.*One horsepower is the equivalent of 746 WattsBrake Horse Power• To rate the engine power.• The engine is made to do work on a device known as dynamometer or ‘brake’ – loads the engine output.Shaft Horse Power• Measure output shaft of a turboprop engine, since the power produced at shaft is what will be delivered to propeller.
  92. 92. Energy• Is the capacity to do work.• Si unit : Joules• Can appear as several form ; mechanical, chemical, heat, electrical, and radiation.• But only deal with Mechanical Energy, and appears as potential and kinetic energy.• Energy cannot be created or destroyed, it can only be changed from one form to another.• Energy will not be converted into 100% work, they will always appear in a less useful form such as wasted heat.• But it may be converted into 100% energy.
  93. 93. Potential Energy (PE)• Energy is possesses by virtue of its position or state.• Example : A mass raised to a height above the ground has potential energy since its weight is capable of doing work as it descends to the ground under the influence of gravity. Work = force x distance*since PE is for mass at elevated position,so distance is the height aboveground. Potential Energy = mass x gravity x height = mgh
  94. 94. Kinetic Energy• Energy it possesses by virtue of its motion.• Arises from the work done on it.• When body set in motion by a force doing work it acquires kinetic energy, which will work against any forces that try to resist it. Kinetic Energy = ½ mv2
  95. 95. Conservation of Energy “ Whenever energy is converted from one form to another, none of it is lost.”• The sum of the energy can always be accounted for in the other forms of energy that may have converted into.• After an object hits ground on a fall, the energy has converted into heat energy and will be dissipated into the air.• So a comparison between work out and work in is obviously a measure of the system efficiency. Efficiency = work output work input*usually expressed as percentage ( less than 100 % ).
  96. 96. Heat• Defined as energy between two bodies because of difference in temperature.• If two bodies at different temperature, are bought into contact, their temperature become equal.• Energy that flows from a hot place to a cooler place.• Heat energy can be transferred by ; conduction, convection and radiation.
  97. 97. momentum• Product of its mass and velocity. momentum = mass x velocity• SI unit ; kgm/sImpulse of a force• If a body was subjected to a sudden blow, shock load or impact, it will be possible to measure change in momentum.• Forces which have the short time duration are called the Impulsive forces.• Change of momentum due to impulsive force is called the Impulse.• Impact duration small – impulsive force large. Impact duration large – impulsive force small.
  98. 98. Impulse• Product of force and time or change in momentum.• For example, if we rest the hammer, on top of the head of a nail, neither the hammer nor the nail has any momentum.• However, if we bring the hammer down from a height and strike the nail sharply on its head, both the hammer and nail will move after the impact. In a short time they will come to rest with the nail having penetrated whatever it is under it.• Impulse = change in momentum = mass x change in velocity. = force ( N ) x time ( seconds )
  99. 99. CONSERVATION OF MOMENTUM“When two or more masses act on eachother, the total momentum of the massesremains constant, provided no externalforces, such as friction, act.”
  100. 100. CONSERVATION OF MOMENTUM MOTION MOMENTUMFirst law First LawMass remains at rest or continue to Mass remains at rest or continue tomove at constant velocity, unless acted move at constant velocity, unless actedon by an external force. on by an external force.Second Law Second Law F = ma Rate of change of momentum is proportional to the applied force.Third Law Third LawFor every action, there is a n equal and If mass A exerts force on B, then B exertsopposite reaction. an equal but opposite force on A.
  101. 101. Changes in Momentum Change of Momentum = final momentum - initial momentum = ( mv) - (mu) Rate of change of momentum = change in momentum time taken = mv–mu t*The rate of change of momentum is proportional to magnitude of forcecausing it.• When two bodies, one of low mass and the other of high mass, are acted upon by the same force for the same time, the low body mass will build up higher velocity than the heavy mass.
  102. 102. For example;At (a) – mass A overtakes mass B.At (b) – mass B will be accelerated by impulsive force delivered by mass A,and mass A will be decelerated by an impulsive force delivered by B .At (c) – after the impact, mass A and B will have new velocities Va and Vb.Momentum before impact equals to momentum after impact.
  103. 103. Example :A moving snooker balls, each ball has its own momentum before collision. After collision,the sum of the two balls’ momentum will be the same as the sum prior to the collisioneven though their velocities may have changed.sum of momentums of balls = sum of momentum after impact prior to impact mu1 + mu2 = mv1 + mv2
  104. 104. Moment of inertia• considers the effect of mass on bodies whose moment is rotational.• Moment of inertia is a function of mass and radius.• Consider the two cylinders, of equal mass, but different dimensions, capable of being rotated.• The LH cylinder is easier to rotate than RH cylinder.
  105. 105. GYROSCOPES• is a rotor having freedom of motion in one or more planes at right angles to the plane of rotation.• used in several of an aircraft’s instruments, which are vital to the safety of the aircraft in bad weather.• For example wheels, engines, propellers, electric motors and many other components must run with perfect smoothness.
  106. 106. • With the rotor spinning, the gyroscope will possess two fundamental properties: Gyroscopic rigidity or inertia Gyroscopic precession
  107. 107. Gyroscopic rigidity• maintains the axis of rotation constant in space.• if a gyroscope is spinning in free space and is not acted upon by any outside influence or force, it will remain fixed in one position.• The degree to which the rotor offers resistance depends on 3 things :  Mass of the rotor – greater the mass, greater resistance to change in direction of plane of rotation.  Angular speed of the rotor – higher the speed, greater the resistance.  Radius of gyration of the rotor – bigger the radius, greater the rigidity.
  108. 108. Gyroscopic Precession• angular change of direction of the plane of rotation of a gyroscope, as a result of an external force.• The rate of this change can be used to give indications such as the turning rate of an aircraft.
  109. 109. I. The rotor will rotate about axis AA.II. Apply a force so that it acts on the rim of the rotor at 900.III. Move this force around the rim of the rotor so that it moves through 900 and in the same direction as the rotor spins.IV. Precession will move the rotor in the direction that will result in the axes of applied force and of rotation coinciding.V. For a constant gyroscopic speed, the rate of precession is proportional to the applied force.VI. The opposite also applies, so for a given force the rate of precession is inversely proportional to rotor speed.
  110. 110. Attitude indicator.
  111. 111. Determining Precession Direction• If a mass is mounted on a rotating shaft, and the centroid is offset from the axis of rotation, mass will exert centrifugal force on the shaft.• Even if the eccentricity is small, force may be considerable at high speed.• So, it will cause the shaft to bend.• If large stresses produced, will cause damage to bearing.• Addition by vibrations from supports and surroundings will cause undesirable effect.• Some eccentricity is due to manufacturing imperfections or design, so it is unavoidable.• Balancing is needed to eliminate effect of centrifugal force.• Eg ; weights put on car wheels to balance them, make it easier to drive at high speed.
  112. 112. Friction• Force that resists any sliding movement between two contacting surfaces.• Can be taken as advantage, for brakes on vehicle to try to walk on smooth surface.• Frictional force depends on nature between two surfaces.• Acts in any directions but always acts in opposing motion.
  113. 113. • angle of the plane (θ) is increased, the body remains stationary, until at some particular value of θ, it begins to move down the plane.• At this maximum value, the force opposing motion Fmax = mg sin θ ,• and the normal reaction between the body and the plane R = mg cos θ. F/ R = mg sin θ / mg cos θ = tan θ• ratio F/R (tan θ) is termed the Coefficient of Friction ( μ ) - < 1. μ = F = tan θ R
  114. 114. Coefficient of Static Friction• Static friction is friction between two solid objects that are not moving relative to each other.• The static friction force must be overcome by an applied force before an object can move.• The maximum possible friction force between two surfaces before sliding begins is the product of the coefficient of static friction.• sometimes referred to as limiting friction.• Coefficient of Static Friction (μ) = Friction Force ( F ) Normal Reaction ( N )• Frictional Force , F = μN
  115. 115. Coefficient of Dynamic Friction• Dynamic friction is when two objects are moving relative to each other and rub together (like a sled on the ground).• The amount of force required to keep the object moving is called the coefficient of dynamic friction.• usually less than the coefficient of static friction for the same materials
  116. 116. There are several types of friction:• Dry friction resists relative lateral motion of two solid surfaces in contact. Dry friction is subdivided into static friction between non-moving surfaces, and kinetic friction between moving surfaces.• Fluid friction describes the friction between layers within a viscous fluid that are moving relative to each other.• Lubricated friction is a case of fluid friction where a fluid separates two solid surfaces.• Skin friction is a component of drag, the force resisting the motion of a solid body through a fluid.• Internal friction is the force resisting motion between the elements making up a solid material while it undergoes deformation.
  117. 117. Fluid dynamics
  118. 118. • Fluid – term used for liquid and gases.Specific gravity and density• Density – mass per unit volume.• Varies with : Temperature ( for solids and liquid ) Temperature and pressure ( gas ) Density ( ρ ) = mass volume• Eg : liquid that fills a certain container has a mass of 756 kg. The container is 1.6 m long, 1.0 m wide and 0.75 of a metre deep. The liquid density should be ? ρ = 756 = 630kgm-3 1.2
  119. 119. • Standard conditions for the measurement of gas density is established at 00C and a pressure of 1013.25 milli-bars (Standard atmospheric pressure).• Temperature change will not change the mass of the substance, but as temperature change, the substance tend to expand or contract, altering the volume.
  120. 120. Relative Density• It is necessary to compare density of one substance with the other to achieve a standard which all other substance can be compared.• For solid and liquid, compare with water at 40C.• For gas, compare with air. Relative Density = mass of any volume of a substance mass of equal volume of water / air• Eg ; if a hydraulic fluid has relative density of 0.8, then 1L of the liquid wieghs 0.8 times as much as 1L of water.
  121. 121. Hydrometer• Used to measure the relative density of liquids.• Glass float contained within cylindrical glass body.• Weight at the bottom, scale at the top.• When liquid drawn into the body, float displays relative density on graduated scale.• Immersion in pure water will give out reading of 1.000.• App. in aviation : to measure battery electrolyte and fuel.
  122. 122. Viscosity• Measure of the resistance of a fluid which is being deformed by either shear stress or tensile stress.• Also known as "thickness" or "internal friction“.• Eg : water has ‘thin’ velocity, while honey has ‘thick’ velocity.• so there is friction between two liquid surfaces even when they consist of the same liquid.• This internal friction opposes the motion of one layer over another and, when it is great, it makes the flow of the liquid very slow.• Viscosity of a liquid rapidly decreases as its temperature rises.
  123. 123. • Viscosity of different liquids can be compared in different ways.• Eg ; if we allow fluids of different viscosity run out of container, the higher the viscosity, the longer time taken to empty the container.• It is important to know about viscosity as aircraft uses fluids such as oil in the engine for lubrication.
  124. 124. Fluid ResistanceSkin friction• Resistance present on a thin, flat plate which is edgewise on to a fluid flow.• Near the surface, the fluid is slowed up due to roughness of the skin, and fluid can also be considered as stationary at the surface.• Effected by skin smoothness.• The rougher the skin, the higher the friction.
  125. 125. Eddies or turbulent airflow• swirling of a fluid and the reverse current created when the fluid flows past an obstacle.• The moving fluid creates a space devoid of downstream-flowing fluid on the downstream side of the object.• Eg. If you put plate at right angles to flow, turbulence will be created behind the plate and a very high resistance .
  126. 126. Effect of streamlining• flowing steadily over a smooth surface, narrow layers of it follow smooth paths that are known as streamlines.• This smooth flow is also known as laminar flow.• If laminar flow encounter obstructions, the streamline will break and become irregular or turbulent.If fluid flows slowly along pipe, the flow is streamline.If flow is very fast and exceedsa certain critical speed,the flow will become turbulent.
  127. 127. The Compressibility of Fluids• All fluids are compressible, so that their density will change with pressure.• Fluid ; i. assume as incompressible – provided under steady flow conditions, and changes of density small.• Gases ; i. easily compressed – except when changes of pressure and density are small.
  128. 128. Static and Dynamic Pressure• Pressure acting on x x1 is due to the weight of the fluid acting downwards.• W = mg ( g = gravitational force ) mass = volume x density = height x cross-sectional area x density = hAρso, downwards force = h . ρ . g . A acting on Aand pressure will be = h ρ g . A A =hρg
  129. 129. Static pressure• Act depth h, within a stationary fluid of density ρ.• Reduces density accompanied by reduced pressure.Dynamic pressure• Eg, moving air is essential in flight.• Dynamic presssure = ½ ρv2 where ρ = density, v = velocity.
  130. 130. Worked exampleWhat is the pressure at 10.5 m deep of liquid in a pool having the density of2.5kg/m3 ?What is the depth of an object from the surface if pressure exerted on it is100psi in a 5.3kg/m3 liquid ?

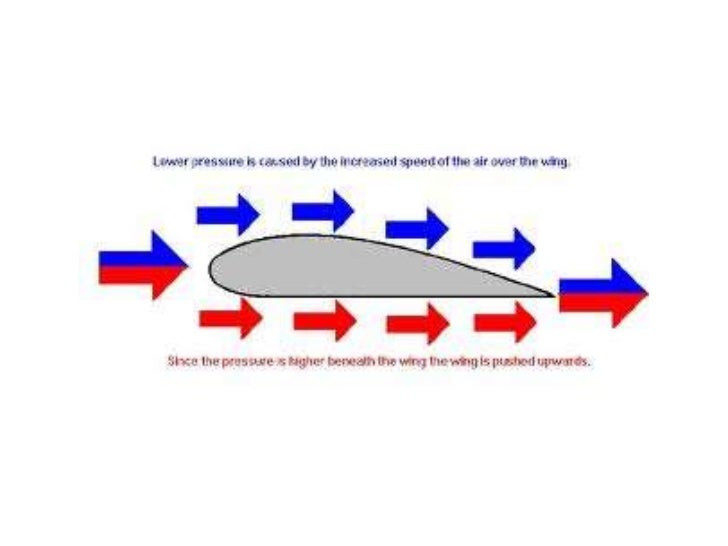

  131. 131. Bernoulli’s Theorem• a principle that explains the relationship between potential and kinetic energy in a fluid.• In a fluid the potential energy is that caused by the pressure of the fluid, while the kinetic energy is that caused by the fluid’s movement.• As a fluid enters a venturi tube, it is travelling at a known velocity and pressure.• When the fluid enters the restriction it must speed up, or increase its kinetic energy. However, when the kinetic energy increases, the potential energy decreases and therefore the pressure decreases.
  132. 132. thermodynamics
  133. 133. Laws Of ThermodynamicsFirst LawEnergy cannot be created or destroyed. It can only be converted from one toanother. When the energy converts from one form into other forms the totalquantity of energy remains the same.Second LawHeat can only transfer from a high temperature region to a lower temperatureregion. It cannot naturally transfer the other way.Third LawThe transfer of energy from matter becomes increasingly difficult as itstemperature approaches absolute zero. It is considered impossible at absolutezero.
  134. 134. Temperature• Heat is a form of energy that causes molecular agitation within a material.• is a measure of the kinetic energy of molecules.• Temperature scale; Freezing – 00C Boiling – 1000C• Farenheit Scale - when you increased the temperature of a gas by one degree Celsius, it expands by 1/273 of its original volume.• So if the temperature was decreased to 273 degrees below zero, the volume of the gas would also decrease to zero, and there would be no more molecular activity – absolute zero.• On the Celsius scale absolute zero is - 2730C. On the Fahrenheit scale it is – 4600F.• Conversion ; – °C x 9/5 + 32 = °F ( from Deg. Centigrade to Farenheit ) – (°F - 32) x 5/9 = °C ( from Farenheit to Deg. Centigrade )
  135. 135. Heat• is the exchange of thermal energy from a hot body to a cold body.• When a hot body and a cold body have contact, heat will flow from the hot body to the cold body until they both reach thermal equilibrium (they are at the same temperature).• For example ;When an aircraft’s brakes are applied, the kinetic energy of the movingaircraft is changed into heat energy by the rubbing action of the brake frictionmaterial against the brake discs.• SI system : Joule (J) British thermal unit (Btu) calorie (cal) Heat & Work Conversion Factors 1J 0.2388 cal 1 cal 4.1868 J 1 Btu 1055 J 1J 0.000 947 Btu 1 Btu 0.252 cal 1 cal 3.968
  136. 136. Heat Capacity• specific heat - amount of heat per unit mass required to raise the temperature by one degree Celsius.• Relationship between heat and temperature change : Q = cmΔT Q is the heat added in 0C C the specific heat capacity in J / kg0C M is the mass in kg ΔT is Tfinal – Tinitial in 0C
  137. 137. • Different materials require differing amounts of heat energy to change their temperature.• The heat energy required to change the temperature of 1 kg of material by 1 K is known as the specific heat capacity (c) of the material.• Due to the high specific heat of water, oceans and large lakes serve as temperature stabilisers.• Land surfaces have a much lower specific heat, and the temperature can vary significantly throughout the day.
  138. 138. Heat Transfer• three methods by which heat is transferred from one location to another or from one substance to another, which are : conduction convection radiation
  139. 139. Conduction• When body having high heat energy in contact with body having low heat energy.• Eg; When hot object in contact with cold object, energy of molecules from hot object will be transferred to molecules of cold object until they have the same amount of energy ( stabilize ).• Various metals have different rates of conduction.• Liquids are poor conductors of heat in comparison with metals.• .Gases are even worse conductors of heat than liquids.• Insulators are materials that reduce or prevent heat conduction.
  140. 140. Convection• process by which heat is transferred by the movement of a heated fluid.• Transfer of heat by convection is often hastened by the use of a ventilating fan to move the air surrounding a hot object.• Eg ; when heat is absorbed by a free-moving fluid, the fluid closest to the heat source expands and its density decreases.
  141. 141. Radiation• is the only form of energy transfer that does not require the presence of matter.• refers to the continual emission of energy from the surface of all bodies.• This energy is known as radiant energy of which sunlight is a form.• This is why you feel warm standing in front of a window whilst it is very cold outside .Expansion and Contraction• All materials expand and contract with a change in temperature. gases which expand the greatest amount . Solids and liquids expand much less than gases
  142. 142. Volumetric Expansion• Expansion – considered as change in length, change in area or change in volume.• Different materials expand at different rates.Expansion of Solids• Expansion is proportional to the increase in temperature to the original dimension and depends on the actual material used. L2 - L1 = L1 (θ2 - θ1)α L2 and L1 are final and initial lengths, θ2 and θ1 are final and initial temperatures α is a material constant (coefficient of linear expansion).
  143. 143. Expansion of Fluids• Fluids expand more than solids.• For gases, as volume and temperature changes are usually accompanied by pressure changes.
  144. 144. The law of Thermodynamics• Thermodynamics is the study of the way that one does work with heat.• Energy conservation limits the amount of work we can get out of a certain amount of heat.
  145. 145. first law of thermodynamics• States that energy is conserved.• The change in internal energy of a system is equal to the heat added to the system minus the work done by the system. ΔU = Q – W (Δ is the mathematical symbol for a change in a quantity) ΔU is the change in internal energy, Q is the heat added to the system W is the work done by the system.• ΔQ is positive if it is put into the system, negative if it is taken out of the system.• ΔW is positive if the system does work on its surroundings and is negative if work is done on the system.• The internal energy is the sum of the kinetic and potential energy of the atom and molecules that make up the system.
  146. 146. second law of thermodynamics• general principle which places constraints upon the direction of heat transfer and the attainable efficiencies of heat engines.• States that heat transfer will occur naturally of its own accord down the temperature gradient.• Heat will naturally flow from a hot region to a cool region but not the other way around.
  147. 147. • the basic sense of the principle : Heat will not flow spontaneously from a cold object to a hot object. You cannot create a heat engine which extracts heat and convertsit all to useful work. There is a thermal bottleneck which constrains devices whichconvert stored energy to heat and then use the heat to accomplishwork.
  148. 148. gases• Ideal gas - one in which all collisions between atoms or molecules are perfectly elastic and in which there are no intermolecular attractive forces.• a collection of perfectly hard spheres which collide but which otherwise do not interact with each other.• all the internal energy is in the form of kinetic energy and any change in internal energy is accompanied by a change in temperature.
  149. 149. From the Ideal Gas Law ; =
  150. 150. Boyle’s LawIf temperature is constant ; P1V1 = P2V2Charles’ LawIf pressure is constant ; =
  151. 151. Isothermal and Adiabatic ProcessesIsothermal process - in which the temperature in a system remains constant.Adiabatic process - one where no heat is added to, or taken away from thesystem.Heat engine• heat engine is a system that performs the conversion of heat or thermal energy to mechanical work.
  152. 152. Heat Engine Processes• a useful process is the adiabatic process where no heat enters or leaves the system.• The first law of thermodynamics with Q=0, i.e. heat = zero shows that all the change in internal energy is in the form of work done.• internal energy is proportional to temperature, there is no change in the internal energy of the gas during an isothermal process.• All the heat added to the system is used to do work.
  153. 153. Engine Cycle
  154. 154. Carnot Cycle• consisting of two isothermal processes and two adiabatic processes.• can be thought of as the most efficient heat engine cycle allowed by physical laws.• the Carnot efficiency sets the limiting value on the fraction of the heat which can be so used.• In order to approach the Carnot efficiency, the processes involved in the heat engine cycle must be reversible and involve no change in energy available to do work.• This means that the Carnot cycle is an idealisation, since no real engine processes are reversible and all real physical processes involve some increase in energy available to do work .
  155. 155. Heat Flow to Hotter Region• internal energy will not spontaneously flow from a hot region to a cold region.• But if external force is given, heat can flow from cold region to hot region.• Usually this is done with the aid of a phase change, i.e., a refrigerant liquid is forced to evaporate and extract energy from the cold area. . Then it is compressed and forced to condense in the hot area, dumping its heat of vaporisation into the hot area.
  156. 156. Refrigerator
  157. 157. Heat Pump
  158. 158. Optics ( light )
  159. 159. Speed Of Light• is one form of transmission of Electro-magnetic energy.• travels at high speed (about 3 x 108 metres per second) and in straight lines.• Can be ‘bent’ or reflected.
  160. 160. Laws Of Reflection and RefractionReflection• Light can also be reflected.• Observation and measurement will show that ; a. the incident and reflected rays lie in the same plane. b. the angle of incidence equals the angle of reflection.
  161. 161. Plain and Curved Mirrors• When you look in a mirror, you see a reflection, usually termed an image.• For example, if an object is viewed from two different angle, the reflected rays : – appear to come from which corresponds to the image. – lies on the same normal to the mirror as the object. – appears the same distance behind the mirror as the object is in front. – Appears as the same size.
  162. 162. • For mirror that is not plain, it may be curved, spherical and parabolic.• Incidence equals reflection - still holds, but the curved surface allows the rays to be focused or dispersed. FP is known as the focal length. Note the rays actually pass through F, and a real image can be formed. FP is still the focal length, but the image is virtual.
  163. 163. • The size of the image depends on the position of the object.• image may be smaller or larger.• If the object is near to the mirror, the image will be far and larger from the mirror but in opposite plane.• If the object is far from the mirror, the image will be nearer and small, between the position of object and mirror in opposite plane. magnification = image height object height• For spherical mirror, magnification = image distance object distance
  164. 164. • Concave mirrors (e.g. shaving mirrors) give a magnified, erect (right way up) image, if viewed from close-to.• Convex mirrors (e.g. driving mirrors) give a smaller, erect image, but with a wide field of view.• Parabolic reflectors can focus a wide parallel beam. By placing the bulb at the focus, they can produce a strong beam of light. (Conversely, they can focus microwave signals when used as an aerial).
  165. 165. Refraction• A submerged object is often seen at reduced depth.• This is because the ray has been ‘bent’ at the water / air boundary.
  166. 166. Refraction Index• Since the angle of incidence and refraction is not the same ; sine i = μ ( a constant ) sine r• depends on the 2 mediums involved. μ = speed of light in medium 1 speed of light in medium 2
  167. 167. Ray (1) has been refracted across theboundary, but ray (2) has been internallyreflected at the boundary.critical angle of incidence when the ray in thedenser medium does not emerge, but travelsalong the boundary.• sine C = 1 / μ exists• Refraction is the basic principle which explains the workings of prisms and lenses.
  168. 168. Total Internal Refraction• Refraction at a denser medium, a beam of light is bent towards the normal and, vice versa.• APB – ray reflected away.• AP’D – angle of incidence increased, angle of refraction becomes 900 .• AP”C – Angle of incidence further increased , angle of refraction is >900 , remaining in the boundary.• Total internal refraction – where none of lights passing through the boundary.
  169. 169. Convex and Concave Lenses• The light rays then meet the surface of the lens at an angle to the normal, and are then refracted.• Images can be real or virtual, erect or inverted, and larger or smaller.• The nature of the image will depend on the type of lens, and the position of the object in relation to the focal length of the lens, (the focal length is a function of the curvature of the lens surfaces).
  170. 170. Fibre Optics• Depends upon the total internal reflection of light rays.• Light can be trapped by total internal reflection inside a bent glass rod and piped along a curved path as in the diagram below. a single, very thin glass fiber behaves in the same way.• They are small and so, once light is introduced into the fiber with an angle within the confines of the numerical aperture of the fiber, it will continue to reflect almost losslessly off the walls of the fiber and thus can travel long distances in the fiber.• If a bundle of parallel fibers is used to construct an optical transmission line, images can be transferred from one point to another.
  171. 171. Fibre Optic Imaging• Principle : light striking at one end will be transmitted to the other end of the fibre.• If the arrangement of fibres in the bundle is kept constant then the transmitted light forms a mosaic image of the light which struck the end of the bundle.
  172. 172. Wave motion and sound
  173. 173. Wave motion• For example, wave is created at a lake or pond due to disturbance, such as a rock thrown into the water.• The water wave has a crest and a trough and travels from one location to another.• One crest is often followed by a second crest which is often followed by a third crest, and so on.• waves may be circular waves which originate from the point where the disturbances occur; such circular waves travel across the surface of the water in all directions.
  174. 174. • Another example, if a slinky is stretched out from end to end, a wave can be introduced into the slinky by either vibrating the first coil up and down vertically or back and forth horizontally.• As the wave moves along the slinky, each individual coil is seen to move out of place and then return to its original position.• The wave does not stop when it reaches the end of the slinky; rather it seems to bounce off the end and head back from where it started.
  175. 175. Categories of Waves• Waves come in many shapes and forms.• Some share basic characteristic properties and behaviours, some waves can be distinguished from others based on some very observable (and some non-observable) characteristics.• It is common to categorise waves based on these distinguishing characteristics. Transverse Wave Direction of movement Longitudinal wave Surface Wave To categorize wave Electromagnetic Waves Ability to be transmitted through vacuum Mechanical Waves
  176. 176. Direction Of MovementTransverse wave• Wave moves in a direction perpendicular to the direction which the wave moves.• If pulse is applied to the left end by vibrating it up and down, the energy will be transported from left to right and particle will be displaced upwards and downwards.
  177. 177. Longitudinal Wave• Wave in which particles of the medium move in a direction parallel to the direction which the wave moves.• If force is applied to the left end by vibrating it left and right, the energy will be transported from left to right and particle will be displaced rightwards and leftwards.
  178. 178. Ability to transmit through vacuumElectromagnetic Wave• wave which is capable of transmitting its energy through a vacuum.• Electromagnetic waves are produced by the vibration of electrons within atoms on the Suns surface.• These waves subsequently travel through the vacuum of outer space, subsequently reaching Earth.• Eg ; Light Wave.Mechanical Wave• Wave which is not capable of transmitting its energy through a vacuum.• Require a medium in order to transport their energy from one location to another.• Eg ; Sound Wave.
  179. 179. Anatomy of Waves• dashed line - equilibrium or rest position of the string. (if there were no disturbance moving through it )• Points A and F - crests of this wave (point on the medium which exhibits the maximum amount of positive or upwards displacement from the rest position)• Points D and I - troughs of this wave (point on the medium which exhibits the maximum amount of negative or downwards displacement from the rest position )
  180. 180. • Amplitude of a wave - maximum amount of displacement of a particle on the medium from its rest position. ( from rest to crest )• Wavelength ; a. Simply the length of one complete wave cycle. b. Wave has a repeating pattern. And the length of one such repetition (known as a wave cycle) is the wavelength. c. Can be measured as the distance from crest to crest or fromtrough to trough. ( B – G, E - J, D – I )
  181. 181. Longitudinal wave• is a wave in which the particles of the medium are displaced in a direction parallel to the direction of energy transport.• Wavelength - determined by measuring the distance between any two corresponding points on adjacent waves. ( measure distance from a compression to the next compression or from a rarefaction to the next rarefaction ; A – C , B – D )
  182. 182. Frequency and Period of a Wave• Frequency ; a. refers to how often the particles of the medium vibrate when awave passes through the medium. b. number of complete vibration cycles of a medium per a givenamount of time and it as the units of cycles per second or Hertz (Hz)where 1 Hz is equivalent to 1 cycle/second. c. . A detector could be used to detect the frequency of these pressure oscillations over a given period of time. d. unit : Hertz, Hz ( cycle / sec )• Period ; a. the time which it takes to do something. b. the time for a particle on a medium to make one complete vibration cycle. c. When an event occurs repeatedly, then we say that the event isperiodic. d. measured in units of time such as seconds, hours, days or years.
  183. 183. Interference PhenomenaWave interference• phenomenon which occurs when two waves meet while travelling along the same medium.• Causes the medium to take on a shape which results from the net effect of the two individual waves upon the particles of the medium.• Eg ; if 2 crests of wave having amplitude of +1 move into each other, the resulting sine crest +2 is created at the moment when the 2 waves overlapped.• Sometimes called Constructive Interference.
  184. 184. Constructive Interference• Occurs at any location along the medium where the two interfering waves have a displacement in the same direction.• If both waves have an upward displacement; consequently, the medium has an upward displacement which is greater than the displacement of the two interfering pulses.
  185. 185. Destructive Interference• type of interference which occurs at any location along the medium where the two interfering waves have a displacement in the opposite direction.• If a sine crest with an amplitude of +1 unit meets a sine trough with an amplitude of -1 unit, destructive interference occurs.• The two pulses cancel each other for the duration of the overlap.• Once the two pulses pass through each other, there is still a crest and a trough heading in the same direction which they were heading before interference.
  186. 186. Principle of Superposition“When two waves interfere, the resulting displacement of the medium at anylocation is the algebraic sum of the displacements of the individual waves at thatsame location.”• To determine the shape of the resultant wave caused by the interference of two separate waves.• Standing Wave pattern : An interference phenomena. When the vibration frequency of the source causes reflected waves from one end of the medium to interfere with incident waves from the source in such a manner that specific points along the medium appear to be standing still. Only created within the medium at specific frequencies of vibration; these frequencies are known as harmonic frequencies, or merely harmonics. From the presence of two waves (sometimes more) of the same frequency with different directions of travel within
  187. 187. • Anti-nodes - point A on the medium moves from a positive to a negative displacement over time.• Nodes - point B on the medium is a point which never moves.
  188. 188. Standing Wave• stationary wave - is a wave that remains in a constant position.• often applied to a resonant mode of an extended vibrating object.• created by constructive interference of two waves which travel in opposite directions in the medium, but the visual effect is that of an entire system moving in simple harmonic motion.• modes of vibration associated with resonance in extended objects like strings and air columns have characteristic patterns called standing waves.• arise from the combination of reflection and interference such that the reflected waves interfere constructively with the incident waves.• An important part of the condition for this constructive interference for stretched strings is the fact that the waves change phase upon reflection from a fixed end.
  189. 189. Sound• Sound wave - pressure disturbance which travels through a medium by means of particle interaction.• As one particle becomes disturbed, it exerts a force on the next adjacent particle, thus disturbing that particle from rest and transporting the energy through the medium.• speed of a sound wave refers to how fast the disturbance is passed from particle to particle.• frequency refers to the number of vibrations which an individual particle makes per unit of time.• speed refers to the distance which the disturbance travels per unit of time.
  190. 190. Speed of Sound• Is determined to be 331 ½ m / s at 00C – 1087 ft /s , 741 mph or 644 kts.• liquids are better transmitters of sound.• Eg. sound waves travel approx. 4 times faster in water than in air and speed of sound in solids is even greater, sound travels through steel is 15 times faster than it travels in air. speed ( sound wave ) = frequency x wavelength• Alteration in wavelength effects the frequency, but not the wave speed.• Doubling of wavelength results in halving the frequency, but wave speed doe not change.• The speed of sound wave depends on the properties of the medium through which it moves.
  191. 191. • Primarily affected by temperature, the lower the temperature, the lower the speed of sound. speed of sound = √ ( γ R T ) where γ = ratio of specific heats of the gas R = gas constant T = gas temperature ( in Kelvin )• It determines the nature and formation of shock waves. Mach No = True Airspeed of aircraft Speed Of Sound
  192. 192. Intensity• amount of energy which is transported past a given area of the medium per unit of time.• Often referred to as ‘loudness’ , the energy of the wave.• The greater the amplitude of vibrations of the particles of the medium, the greater the rate at which energy is transported through it, and the more intense that the sound wave is.• Intensity is the energy/time/area; and since the energy/time ratio is equivalent to the quantity power, intensity is simply the power/area. Intensity = Energy or Intensity = Power Time x Area Area• Eg ; if amplitude of sound wave is doubled, intensity will increase fourfold.• Unit : Watts / Meter2 . But scale to measure intensity; Desibel (dB)
  193. 193. Pitch• Best described as position on musical scale.• The ears of humans (and other animals) are sensitive detectors capable of detecting the fluctuations in air pressure which impinge upon the eardrum.• The human ear is capable of detecting sound waves with a wide range of frequencies, ranging between approximately 20 Hz to 20 000 Hz.• The sensations of these frequencies are commonly referred to as the pitch.• A high pitch sound corresponds to a high frequency and a low pitch sound corresponds to a low frequency.
  194. 194. Doppler Effect• effect produced by a moving source of waves in which there is an apparent upward shift in frequency for the observer and the source are approaching and an apparent downward shift in frequency when the observer and the source is receding.• Occur with all types of waves - most notably water waves, sound waves, and light waves.
  195. 195. • Doppler Effect observed because the distance between the source of sound and the observer is changing.• If the source and the observer are approaching, then the distance is decreasing and if the source and the observer are receding, then the distance is increasing.• If the source is moving towards the observer, the observer perceives sound waves reaching him or her at a more frequent rate (high pitch); and if the source is moving away from the observer, the observer perceives sound waves reaching him or her at a less frequent rate (low pitch).
  1. A particular slide catching your eye?

    Clipping is a handy way to collect important slides you want to go back to later.

×
