Intro to the
Semantic Web
     Peter Snyder
  snyderp@gmail.com




          1
Outline

• What Is the Semantic Web?
• What Problem is it Trying to Solve?
• How does it Solve the problem?

             ...
What is the SW?

• Effort to
  1. make data on the web machine friendly
  2. using existing open technologies
  3. in orde...
What is the SW? ....
• Made up of
 - XML
 - XML Schema
 - RDF
 - RDF Schema / OWL
 - SPARQL
                4
Outline

• What Is the Semantic Web?
• What Problem is it Trying to Solve?
• How does it Solve the problem?

             ...
What is the Problem?

• Web is human oriented
• All nonsense to machines
• Humans waste time

                    6
Example
http://www.peteresnyder.com/fake
<div>

 <h1>My Homepage</h1>

 <p>Hi, I'm Peter E. Snyder.

 <p>I live in Cambrid...
Outline

• What is the semantic web?
• What problem is it trying to solve?
• How does it solve the problem?

             ...
Solution


• Basic Track (Microformats)
• W3C Recommendation (Alphabet Soup)


                  9
Microformats
<div class="vcard">
  <p>
    <a class="url" href="http://www.peteresnyder.com">
      http://www.peteresnyde...
W3C Recommends...

• XML
• XML Schema
• RDF
• RDF Schema / OWL
• SPARQL
               11
XML
<?xml version="1.0"?>
<person>

 <name>Peter Snyder</name>

 <website>http://www.peteresnyder.com<website>

 <city>Cam...
XML Schema
                  XML Schema
<?xml version="1.0"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <x...
RDF
• Resource Description Framework
• Description of relationships (taxonomy)
• Triplets
 - subject: thing being describe...
RDF Cont.
<urn:name:peteresnyder> <name> "Peter Snyder" .
<urn:name:peteresnyder> <city> "Cambridge" .
<urn:name:peteresny...
RDF Schema / OWL
• Defines a standard way that things interact
  (ontology)
• Common Examples
  - Dublin Core: Publishing
 ...
RDFS / OWL Cont.
                                             FOAF RDF Schema

<?xml version="1.0"?>
<rdf:RDF xmlns:rdf="h...
SPARQL

• SPARQL Protocol and RDF Query
  Language
• SQL like language for getting data out of
  RDF connections / graphs
...
SPARQL Cont.
     <foaf:Person rdf:about="urn:name:markesmith">
  <foaf:Person rdf:about="urn:name:tinafey">

       ...
Conclusion
        Current Web                             Semantic Web

<div>                            <?xml version="1...
Upcoming SlideShare
Loading in...5
×

Intro to the Semantic Web (Peter Snyder - CSG339 - NorthEastern University)

763

Published on

Slides from the presentation I gave in my Information Retrieval class at NorthEastern in June 2009. The class was taught by Javed Aslam.

Published in: Technology, Education
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
763
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
7
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Intro to the Semantic Web (Peter Snyder - CSG339 - NorthEastern University)

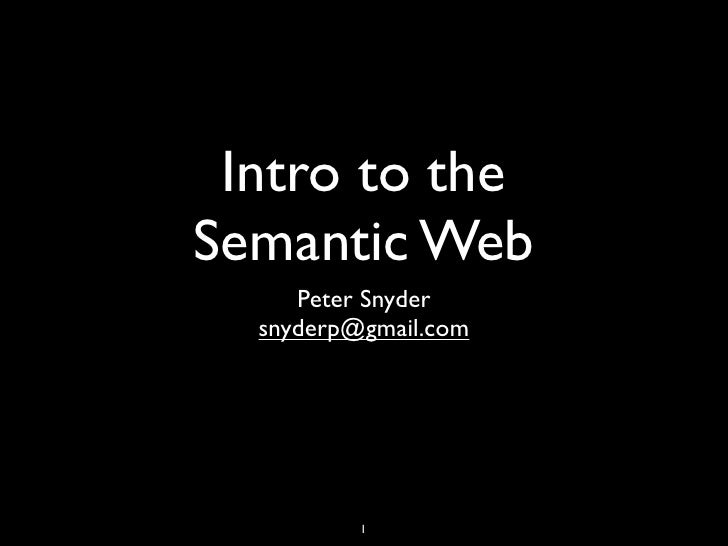

  1. 1. Intro to the Semantic Web Peter Snyder snyderp@gmail.com 1
  2. 2. Outline • What Is the Semantic Web? • What Problem is it Trying to Solve? • How does it Solve the problem? 2
  3. 3. What is the SW? • Effort to 1. make data on the web machine friendly 2. using existing open technologies 3. in order to aid information retrieval 3
  4. 4. What is the SW? .... • Made up of - XML - XML Schema - RDF - RDF Schema / OWL - SPARQL 4
  5. 5. Outline • What Is the Semantic Web? • What Problem is it Trying to Solve? • How does it Solve the problem? 5
  6. 6. What is the Problem? • Web is human oriented • All nonsense to machines • Humans waste time 6
  7. 7. Example http://www.peteresnyder.com/fake <div> <h1>My Homepage</h1> <p>Hi, I'm Peter E. Snyder. <p>I live in Cambridge. <p>I like the band The Fall! <p>I love professional wrestling! </div> 7
  8. 8. Outline • What is the semantic web? • What problem is it trying to solve? • How does it solve the problem? 8
  9. 9. Solution • Basic Track (Microformats) • W3C Recommendation (Alphabet Soup) 9
  10. 10. Microformats <div class="vcard"> <p> <a class="url" href="http://www.peteresnyder.com"> http://www.peteresnyder.com </a> </p> <p> <strong>Name:</strong> <span class="fn">Peter Snyder</span> </p> <p> <strong>City:</strong> <span class="locality">Cambridge</span> </p> </div> 10
  11. 11. W3C Recommends... • XML • XML Schema • RDF • RDF Schema / OWL • SPARQL 11
  12. 12. XML <?xml version="1.0"?> <person> <name>Peter Snyder</name> <website>http://www.peteresnyder.com<website> <city>Cambridge</city> <interests> <interest>The Fall</interest> <interest>Professional Wrestling</interest> </interests> </person> 12
  13. 13. XML Schema XML Schema <?xml version="1.0"?> <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"> <xs:element name="person"> <xs:complexType> <xs:sequence> <xs:element name="website" type="xs:string"/> <?xml version="1.0"?> <xs:element name="name"xmlns:pes=”http://www.peteresnyder.com/fake_schema”> <person type="xs:string"/> <xs:element name="city" type="xs:string"/> <pes:name>Peter Snyder</pes:name> ... <pes:website>http://www.peteresnyder.com<pes:website> <pes:city>Cambridge</pes:city> <pes:interests> <pes:interest>The Fall</pes:interest> <pes:interest>Professional Wrestling</pes:interest> </pes:interests> </pes:person> 13 XML Document
  14. 14. RDF • Resource Description Framework • Description of relationships (taxonomy) • Triplets - subject: thing being described (URI) - predicate: what the relationship is - object: the object being related to 14
  15. 15. RDF Cont. <urn:name:peteresnyder> <name> "Peter Snyder" . <urn:name:peteresnyder> <city> "Cambridge" . <urn:name:peteresnyder> <likes> "The Fall" . <?xml version="1.0"?> <rdf:RDF> <Human rdf:about="urn:name:peteresnyder"> <name>Peter E Snyder</name> <city>Cambridge</city> <likes>The Fall</likes> ... 15
  16. 16. RDF Schema / OWL • Defines a standard way that things interact (ontology) • Common Examples - Dublin Core: Publishing - Friend of a Friend (FOAF): People - OWL is RDFS+ 16
  17. 17. RDFS / OWL Cont. FOAF RDF Schema <?xml version="1.0"?> <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" xmlns:foaf="http://xmlns.com/foaf/0.1/"> <foaf:Person rdf:about="urn:name:peteresnyder"> <foaf:homepage rdf:resource="http://www.peteresnyder.com"/> <foaf:givenname>Peter</foaf:givenname> <foaf:family_name>Snyder</foaf:family_name> <foaf:interest>The Fall</foaf:interest> .... 17
  18. 18. SPARQL • SPARQL Protocol and RDF Query Language • SQL like language for getting data out of RDF connections / graphs 18
  19. 19. SPARQL Cont. <foaf:Person rdf:about="urn:name:markesmith"> <foaf:Person rdf:about="urn:name:tinafey"> <foaf:homepage rdf:resource="http://www.peteresnyder.com"/> <foaf:Person rdf:about="urn:name:peteresnyder"> <foaf:homepage rdf:resource="http://www.peteresnyder.com"/> <foaf:givenname>Peter</foaf:givenname> <foaf:homepage rdf:resource="http://www.peteresnyder.com"/> <foaf:givenname>Peter</foaf:givenname> <foaf:family_name>Snyder</foaf:family_name> <foaf:givenname>Peter</foaf:givenname> <foaf:family_name>Snyder</foaf:family_name> <foaf:interest>The Fall</foaf:interest> <foaf:family_name>Snyder</foaf:family_name> <foaf:interest>The Fall</foaf:interest> ... <foaf:interest>The Fall</foaf:interest> ... ... + PREFIX foaf: <http://xmlns.com/foaf/0.1/> SELECT ?givenname ?family_name WHERE { ?x foaf:interest "The Fall"} = ?givenname ?family_name “Peter” “Snyder” “Mark” “Smith” 19
  20. 20. Conclusion Current Web Semantic Web <div> <?xml version="1.0"?> <h1>My Homepage</h1> <rdf:RDF xmlns:foaf="http://xmlns.com/foaf/0.1/"> <p>Hi, I'm Peter E. Snyder. <foaf:Person rdf:about="urn:name:peteresnyder"> <foaf:homepage rdf:resource="http:// <p>I live in Cambridge. www.peteresnyder.com"/> <p>I like the band The Fall! <foaf:givenname>Peter</foaf:givenname> <p>I love professional <foaf:family_name>Snyder</foaf:family_name> wrestling! <foaf:interest>The Fall</foaf:interest> </div> ... 20
