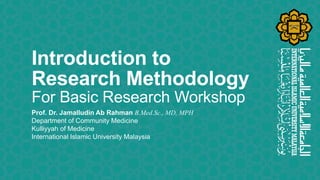

Introduction to
Research Methodology
For Basic Research Workshop
Prof. Dr. Jamalludin Ab Rahman B.Med.Sc., MD, MPH
Departm...

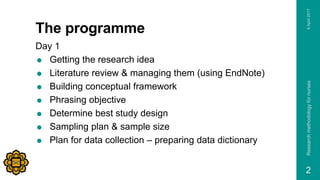

The programme
Day 1
 Getting the research idea
 Literature review & managing them (using EndNote)
 Building conceptual ...

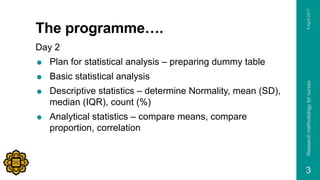

The programme….
Day 2
 Plan for statistical analysis – preparing dummy table
 Basic statistical analysis
 Descriptive s...

Contents
 Why we do research?
 How we do research?
 Effective literature search & management
 Choosing best study desi...

Why we do research?
 Answers our curiosity?
 Forced by our superior
 For promotion
9April2017Researchmethodologyfornurs...

Researchmethodologyfornurses
6
Start with end in mind
(Bijaksana)
9April2017

Researchmethodologyfornurses
7
Idea
Justify Explore Strategize
Collect
Analyse Report Publish
Initiation
Planning &
strate...

The 4 Critical Strategies
1. Clear conceptual framework
2. SMART objectives
3. Detail data dictionary
4. Expected dummy ta...

Organise your research idea
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
9

Identify variables involved
 Main outcomes (dependant)
 Explanatory (exposures, factors)
variables (independent)
 Confo...

9April2017Researchmethodologyfornurses
11
Exposure Outcome
Confounder

9April2017Researchmethodologyfornurses
12

9April2017Researchmethodologyfornurses
13
Alcohol-
based
mouth wash
Oral Cancer
Smoking

9April2017Researchmethodologyfornurses
14

9April2017Researchmethodologyfornurses
15
Varkevisser, C. M.,
Pathmanathan, I.,
& Brownlee, A. T.
(2003). Designing
and co...

Figure 3 Structural Equation Model Showing the Relationship Between
Family Processes, Child Characteristics, and Achieveme...

Thornley S (2012)
Causation and
Statistical Prediction:
Perfect Strangers or
Bedfellows?
J Biom Biostat 3:e115.
doi:10.417...

Literature Review and
Bibliographic Management
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
18

9April2017Researchmethodologyfornurses
19
Research add
more information
to the circle of
knowledge

9April2017Researchmethodologyfornurses
20
Research
Information
New
knowledge
Literature

9April2017Researchmethodologyfornurses
21

Literature review is not
 A chronological catalogue of all
material,
 A collection of quotes or
paraphrases, or
 A sale...

Literature review is
 Organised
 Structured
 Evaluated (critically appraised)
research materials
9April2017Researchmeth...

The steps – 5S
1. Strategise (plan) Most important step
 Get your topic, problem statement & conceptual framework
ready ...

9April2017Researchmethodologyfornurses
25
Strategise
Search
Sort
Summarise
• Based on problem
statement &
conceptual
frame...

9April2017Researchmethodologyfornurses
26
Strategise
Search
Sort
Summarise
• What is OSA?
Diagnosis
• Prevalence of OSA
• ...

9April2017Researchmethodologyfornurses
27
The number of articles found
Alternative spelling
How they were sorted
Time peri...

9April2017Researchmethodologyfornurses
30
Domains of interest. Can assign
many domains for one article
Customise the heade...

Phrasing objectives
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
32

SMART
 Specific – What you really want to do
 Measurable – Must be able to be measured
 Attainable – Achievable
 Relev...

e.g.
 To determine the prevalence of breastfeeding among
mothers
Can rephrase to:
 To measure the prevalence of exclusiv...

Choosing Best
Research Designs
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
35

Research design
Design
Observational
Cross
sectional
Case-control
Cohort
Experimental
Animal Trial
Clinical Trial
Communit...

9April2017Researchmethodologyfornurses
37
Cause & Effect
EffectCause
Cause precedes effect
Time
Exposure Outcome
Smoking L...

9April2017Researchmethodologyfornurses
38
Cross sectional study
EffectCause
Exposure Outcome
Smoking Lung cancer
High fat ...

9April2017Researchmethodologyfornurses
39
Case-Control study
EffectCause
Exposure Outcome
Smoking Lung cancer
High fat die...

9April2017Researchmethodologyfornurses
40
Cohort study
EffectCause
Exposure Outcome
Smoking Lung cancer
High fat diet Obes...

9April2017Researchmethodologyfornurses
41
Experimental study
Effect
Cause
(New
drug)
Effect
Other
cause
(Control)

9April2017Researchmethodologyfornurses
42
Experimental study
Effect
New
drug
Effect
Control
No effect
No effect
Randomisat...

Hierarchy of
Evidence
Randomised
controlled trial
Cohort
Case control
Case report
Expert opinion
9April2017Researchmethodo...

Cross sectional study
 Population based – represent population
 Measure exposure & outcomes at the same point in time –
...

Cross sectional study
Advantages
 Measure prevalence of a
population
 Measure multiple exposures &
outcomes
 Relatively...

Cross sectional study - Example
 NHMS ~ Household study, all Malaysian (N=47,610 for
2006)
 NOHSA ~ Adult (>15) (N=14,44...

Case control study
 Fix the outcomes, measure the exposures
 Longitudinal
 Retrospective
 Case = outcome of interest
...

Case control study
9April2017
Research methodology for nurses 48
Case
Control
No exposure
Exposure
No exposure
Exposure
Hi...

Lung Cancer
No Lung
Cancer
Smoking 20 (18.2%) 90 (81.8%)
Not Smoking 5 (4.5%) 105 (95.5%)
2 (df=1)= 10.150, p =0.001, OR ...

Cases
 Well defined
 Source – institution
vs. population
Control
 Matched vs. Unmatched
 Matching ~ controls
resemble ...

Case control study
Advantages
 Good for rare conditions or
diseases
 Less time needed to conduct the
study because the c...

Example
 Tobacco use and risk of
myocardial infarction in
52 countries in the
INTERHEART study: a
case-control study. (Te...

Cohort study
 Measure outcomes
 Compare incidence of a disease (or condition) among
exposed and unexposed individuals ov...

Cohort study
9April2017Researchmethodologyfornurses
54
Disease
No disease
No exposure
Exposure
Now Future
Lung cancer
No l...

Define cohort
 Both exposed & not exposed groups have equal chance
to:
 Develop disease
 Be followed-up
 Types:
 Repr...

Measurements
 Exposure
 Carefully defined in advance
 Standard measurement for both E+ & E- groups
 Outcome
 Primary ...

Follow-up
 Keep participation at > 90%
 Equal likelihood to detect disease in all subjects
 Active vs. Passive follow-u...

Example Obesity as an Independent Risk Factor for
Cardiovascular Disease: A 26-year Follow-up of
Participants in the Frami...

Cohort study
Advantages
 Infer causality
 Measure multiple outcomes
 Study rare exposure
 Measure incidence
Disadvanta...

9April2017Researchmethodologyfornurses
60

9April2017Researchmethodologyfornurses
61

Sampling Plan
(Sampling technique & sample size)
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
62

Before we sample
Determine study place, duration & subjects
 Describe study place
- especially if plan to represent a pop...

Subjects
 Target population
 Study population
 Sampling frame
 Sampling unit
 Observation unit
9April2017Researchmeth...

Example – NHMS III 2006
 Target population
 Study population
 Sampling frame
 Sampling unit
 Observation unit
9April2...

9April2017Researchmethodologyfornurses
66
Random Non-Random
Represent a population
Must have sampling frame
• Simple
• Sys...

Simple
9April2017Researchmethodologyfornurses
67

Systematic
9April2017Researchmethodologyfornurses
68
1 2 43
A
B
C
D
E

Cluster
9April2017Researchmethodologyfornurses
69

Stratified
9April2017Researchmethodologyfornurses
70

Random sampling
Random
Simple
Systematic
Stratified
Cluster
Multistage
9April2017Researchmethodologyfornurses
71
The ideal...

Non random sampling
Non random
Convenience
Purposive
Quota
Snowball
9April2017Researchmethodologyfornurses
72
Haphazard. G...

Example – NHMS III 2006
Two stage stratified random sampling
 Target population
 Study population
 Strata
 Clusters
 ...

Example – A clinical trial
 Target population All diabetic patients
 Study population Diabetic for at least 1 year on
in...

Why we calculate sample size?
 Estimate sample required for external validity (inference)
& logistic preparation
 Justif...

Sample size is an estimate
 Best sample size for specific purpose (for the main
objective)
 Never an exact value, always...

Plan with the end in mind
 No one formula fits all
 Depending on objective:
1. Represent population
2. Hypothesis testin...

Pre-requisites
 Objective determined
 Sampling method known
 Estimate the outcome
 Precision required
 Statistical te...

Represent population
 Represent population e.g. state, district, village,
institution etc
 Usually for prevalence study ...

Single proportion
 𝑛 =
𝑧 𝛼/2
2 𝑝(1−𝑝)
𝑑2
 Where z = value from standard normal distribution
corresponding to desired con...

9April2017Researchmethodologyfornurses
81
95% CI is a = 0.05
a/2 = 0.025
𝑧 𝛼/2 =1.96
Power 80% or 0.8
1-b = 1-0.8 = 0.2
b ...

Example
 Study to measure prevalence of hypertension in a village
of 1000 people
 Expected prevalence = 40%, Precision =...

Single mean
 Study to measure one sample mean
 𝑛 = (
𝑧 𝛼/2∗𝑠
𝑑
)2, where s = expected standard deviation
(SD)
 We use s...

Example
 Study to measure average DMF among adults in a
village of 2000 people
 Estimated DMF = 11 (SD 10) with the prec...

Hypothesis testing
 How one variable is different from the other
 E.g. different % of hypertension between male & female...

Compare two proportions
 𝑛 =
(𝑧 𝛼
2
+𝑧 𝛽)2∗(𝑝1 1−𝑝1 +𝑝2 1−𝑝2 )
(𝑝1−𝑝2)2
 Total sample size = 2*n
 Where p1 and p2 are t...

Example
 A study to compare prevalence of diabetes mellitus
between male and female. Expected prevalence are
30% vs. 40% ...

Compare two means
 𝑛 =
2∗ 𝑧 𝛼
2
+𝑧 𝛽
2∗𝑠2
𝑑2
 Where d=smallest means difference and s = standard
deviation
 Total sampl...

Example
 A study to compare means of HbA1c between diabetic
treated with new drug versus the standard drug (control).
Exp...

Using applications
 Software or online calculators
 Make sure the formula is valid
 Suggestion:
 PS: Power and Sample ...

Epi Info – Population survey
9April2017Researchmethodologyfornurses
91

Epi Info – Cohort & Cross-sectional
9April2017Researchmethodologyfornurses
92

Open Epi –
Compare two
means
9April2017Researchmethodologyfornurses
93

PS - Dichotomous
9April2017Researchmethodologyfornurses
94

PS – Compare
two means
9April2017Researchmethodologyfornurses
95

Planning for Data Collection
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
96

You wanna collect now?
1. Objectives are clear
2. Variables identified & defined
3. Samples identified
4. Instrument valid...

9April2017Researchmethodologyfornurses
98

9April2017Researchmethodologyfornurses
99
Variables identified & defined
Conceptual
framework
Identify variables
Define va...

How to define variable?
 Definition
 Working/operational definition
 How it will be measured
 Precision of measurement...

Furnish the info for each variable
e.g. Obesity
 Definition
9April2017Researchmethodologyfornurses
101
Overweight and obe...

Furnish the info for each variable
e.g. Obesity
 Definition
 Working definition
9April2017Researchmethodologyfornurses
1...

Furnish the info for each variable
e.g. Obesity
 Definition
 Working definition
 How it will be measured
 Precision of...

9April2017Researchmethodologyfornurses
104
Make sure the instrument are valid & reliable

9April2017Researchmethodologyfornurses
105

9April2017Researchmethodologyfornurses
106
NATIONAL HEALTH AND
NUTRITION EXAMINATION
SURVEY III. Body
Measurements
(Anthro...

Furnish the info for each variable
e.g. Obesity
 Definition
 Working definition
 How it will be measured
 Precision of...

9April2017Researchmethodologyfornurses
108

9April2017Researchmethodologyfornurses
109

9April2017Researchmethodologyfornurses
110

9April2017Researchmethodologyfornurses
111

9April2017Researchmethodologyfornurses
112
Then only you start to design
the data collection form

Tools to create form
 Usual word processing (e.g. Word), spreadsheet (e.g.
Excel)
 Better with Database (Microsoft Acces...

9April2017Researchmethodologyfornurses
114

9April2017Researchmethodologyfornurses
115

9April2017Researchmethodologyfornurses
116

9April2017Researchmethodologyfornurses
117
• Test the form
• Do complete testing
• Revise the form
• Run some analyses

Plan for Statistical Analysis
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
118

9April2017Researchmethodologyfornurses
119
Research idea
General objectives
Specific Objective Specific Objective Specific...

9April2017Researchmethodologyfornurses
120
Type of statistical analysis
AnalyticalDescriptive
e.g. Describe socio-
demogra...

Steps for the plan
1. Focus on each specific objective
2. Decide whether it will be descriptive or analytical
3. For descr...

Dummy table - example
9April2017Researchmethodologyfornurses
122

Data quality
 Valid value
e.g. age > 200 years, weight > 500 kg, pregnant male
etc
 No missing value
 Relevant skip res...

How to report the results
 Start with descriptive statistics – usually for baseline
findings e.g. description of study po...

9April2017Researchmethodologyfornurses
125

9April2017Researchmethodologyfornurses
126

9April2017Researchmethodologyfornurses
127
Type of data
(Level of measurement)
Categorical
Nominal Ordinal
Numerical
Discr...

Data
Categorical
Frequency
(count) &
Percentage
Numerical
Normal Mean (SD)
Not Normal
Median
(Range/IQR)
How to describe a...

Bivariable analysis
 Compare numericals – compare means, compare ranks,
correlation
 Compare proportions – chi-square
9A...

Bivariable analysis
Dependent variable
(outcome)
Numerical Categorical
Independent
variable
(factor)
Numerical Correlation...

Bivariable analysis - detail
9April2017Researchmethodologyfornurses
131
Variable 1 Variable 2 Test
Categorical Categorical...

Multivariate test
Dependant Independent variables Test
Numerical All numerical Linear regression
Numerical Numerical & cat...

Specific test
 Survival analysis – time to event analysis
 Time series – observe trend over time & forecasting
 Factor ...

How to publish your research
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
134

Howtowritea
researchpaper
Researchmethodologyfornurses
135
Title
Method
Discussion
& conclusion
State
objectives
Results
I...

Before you write
 Decide the target audience
 Scientific publication or report
 Choose journal
 Study the format & req...

The structure
Publication
 Title
 Abstract
 Keywords
 Introduction
 Method
 Results
 Discussion
 References
Report...

The suggested sequence
1. Based on specific objective, analyse the data & produce
planned tables
2. Interpret & describe t...

Writing result
 Describe your result (no discussion)
 No reference (usually)
 Text vs. table vs. graphic (no redundancy...

Writing discussion
 Should answer the research questions mentioned in
Introduction
 Discuss the result
 Do not repeat t...

Research Management
Jamalludin Ab Rahman MD MPH
9April2017Researchmethodologyfornurses
141

Other things to plan
1. Ethical consideration – consent form, advisory
committee
2. Budget
3. Approval
9April2017Researchm...

In summary, what are the critical
information
1. Specific objectives
2. Conceptual framework
3. Data dictionary
4. Dummy t...

Share Slideshare

LinkedIn
Facebook
Twitter

Embed

Size (px)

Show related Slideshows at end

WordPress Shortcode

Link

Share
Email

Introduction to Multivariate analysis by International Isl... 4183 views

View on Slideshare

1 of 140 Ad

View on Slideshare

1 of 140 Ad
