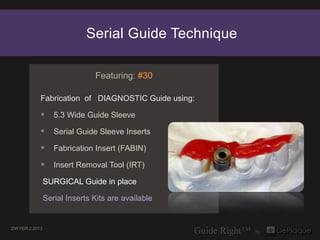

Serial Guide Technique

Featuring: #30

Fabrication of DIAGNOSTIC Guide using:

...

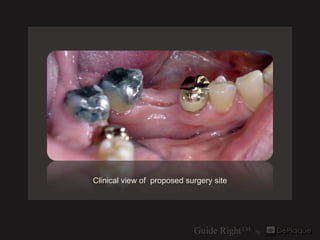

Clinical view of proposed surgery site

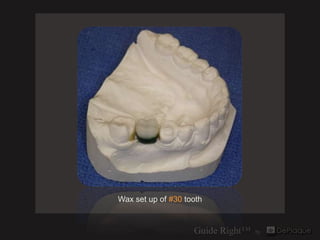

Wax set up of #30 tooth

Hole drilled with 3/32” drill through wax up

3/32” drill in cast indicates the planned prosthetic axis.

The drill is replaced with a 3 mm guide post.

Undercuts blocked out.

Lubricating cast with petroleum jelly prior to adding Triad® Gel

5.3 Fabrication Insert (FABIN) used to center the 5.3 guide sleeve
on the guide post and to prevent Triad® Gel from enteri...

Lingual view of FABIN in 5.3 mm guide sleeve with
guide sleeve cleats positioned toward the lingual surface.

Appropriate lubrication of lingual and occlusal
surfaces is required before applying Triad® Gel.

Cure each layer of Triad® Gel

2nd layer of gel extended over several of the adjacent teeth

Buccal view
illustrating gel added to just cover occlusal & lingual surface of teeth.

Fabrication insert removed leaving 5.3 mm guide sleeve

Buccal view
5.3 mm wide guide sleeve

Axial view
5.3 guide sleeve is centered over the 3/32” hole

2.25 mm insert is used for initial 2 mm drill

IRT (insert removal tool) used to remove insert from guide sleeve.

 SURGICAL guide with 5.3 guide sleeve is placed over IRT
 Set on a firm surface and tapped with downward pressure
to r...

5.3 wide guide sleeve is used with appropriate inserts for drill sizes.
Shown here with 4 mm insert

SURGICAL guide in place

Appropriate inserts are used for each drill size
2.0 mm insert, for 1.8 mm drill ■ ...

Peri-apical X-ray of SURGICAL guide alignment.

Final X-ray

Guide Right™
Products shown in this case

 3/32” drill
 5.3 Wide Guide Sleeve
 Series of Inserts for 5.3 Guide Sl...

Serial INSERTS for 5.3 Guide Sleeves

Guide Right™

...

Serial INSERTS for 4.5 Guide Sleeves
Guide Right™
...

DéPlaque

Guide Right™ Surgical Guide System
fabricate ▪ evaluate ▪ correct ▪ verify ▪ place

Start With Precision. P...
