1.0 Introduction.

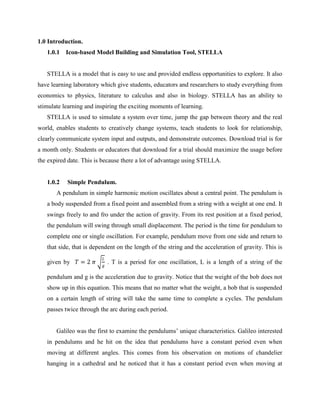

1.0.1 Icon-based Model Building and Simulation Tool, STELLA

STELLA is a model that is easy to us...

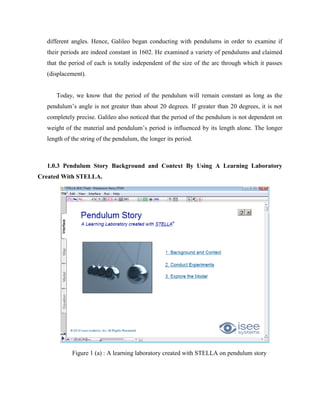

different angles. Hence, Galileo began conducting with pendulums in order to examine if
their periods are indeed constan...

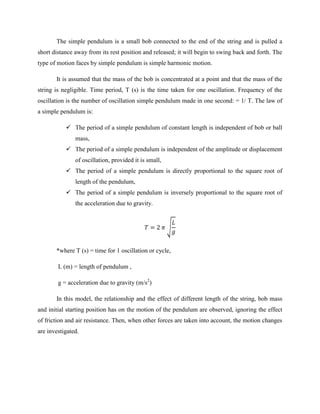

The simple pendulum is a small bob connected to the end of the string and is pulled a
short distance away from its rest po...

1.1 To Study The Relationship of Initial Starting Position of The Pendulum With The
Period (T).

In this experiment...

Advertisement

Figure 2 (b): Initial displacement of 0.10m

Before started, the string length and mass of ball were set at 1.0 ...

Figure 2 (c): Initial displacement of 0.00m

Figure 2 (d): Initial displacement of 0.10m

Figure 2 (e): Initial displacement of 0.20m

However, when initial displacement is 0.00m as in Figure 2 (c), the gr...

1.2 To Study the Relationship of Mass of Ball’s Pendulum with Number of Oscillation
Within 2 Seconds.

By using Ste...

From the figure 3 (a), the number of oscillations in 2 seconds is three oscillations with the
constant or fixed displaceme...

Advertisement

By using 0.50kg of ball, the graph is still same with the previous graph. We can see that
in 2 seconds, the number of osci...

1.3 To Study The Relationship Between String Length With Period , T (s).

After studied the relationship of initial...

Figure 4 (b) : 0.5 m string length

From the above, these two graphs show different number of oscillations within 4 sec...

𝑇 = 0.63𝑠

This mean that the pendulum with string length of 0.1m have one complete oscillation at 0.63
seconds. The perio...

Figure 4 (d) : 1.5m string length

Figure 4 (e) : 2.0m string length

Advertisement

In Figure 4 (c), the pendulum have one complete oscillation in 2 seconds and two
complete oscillation in 4 seconds. Then, ...

Figure 4 (f) : Combined string length

The pendulum will take more or less time to oscillate, depending on ...

1.4 Conclusion
Again, there is no relationship between mass and period, while for small amplitude or
displacement, ...

Reference (s)

Anonymous (2012). The Pendulum. Retrieved on November 17, 2012 from
http...

Share Slideshare

LinkedIn
Facebook
Twitter

Embed

Size (px)

Show related Slideshows at end

WordPress Shortcode

Link

Share
Email

Chemical lab report:Analysis of ani... by Awad Albalwi 9497 views

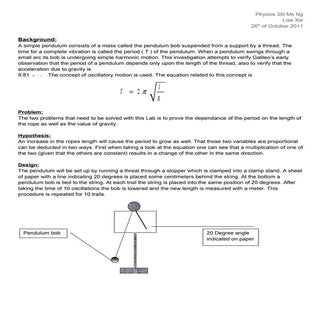

IB Phyiscs SL - Pendulum Lab by Lorrchan 42399 views
