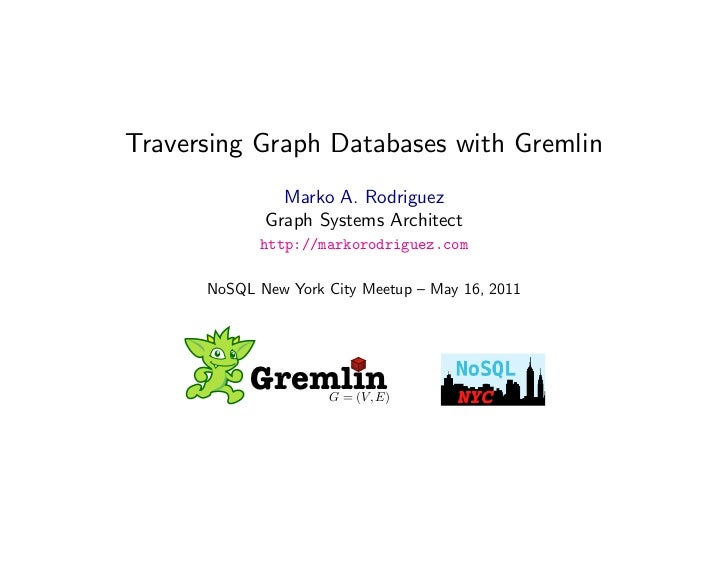

Traversing Graph Databases with Gremlin               Marko A. Rodriguez             Graph Systems Architect            ht...
Thank You SponsorsShort Slideshow + Live Demo = This Presentation
TinkerPop Productions1    1    TinkerPop (http://tinkerpop.com), Marko A. Rodriguez (http://markorodriguez.com), PeterNeub...
TinkerPop Graph Stack                            http://host:8182/graph/vertices/1  RESTful ServerTraversal Language Trave...
TinkerPop Graph Stack – Focus                     http://host:8182/graph/vertices/1Traversal Language Traversal Engine Gen...
Blueprints –> Pipes –> Groovy –> GremlinTo understand Gremlin, its important to understand Groovy,Blueprints, and Pipes.  ...
Gremlin is a Domain Specific Language• Gremlin 0.7+ uses Groovy as its host language.2• Gremlin 0.7+ takes advantage of Gro...
Gremlin is for Property Graphs                                                            name = "lop"                    ...
Gremlin is for Blueprints-enabled Graph Databases•   Blueprints can be seen as the JDBC for property graph databases.3•   ...
A Blueprints Detour - Implementations  TinkerGraph
A Blueprints Detour - Ouplementations     JUNG     Java Universal Network/Graph Framework
Gremlin Compiles Down to Pipes• Pipes is a data flow framework for evaluating lazy graph traversals.4• A Pipe extends Itera...
A Pipes Detour - Chained Iterators• This Pipeline takes objects of type A and turns them into objects of  type D.         ...
A Pipes Detour - Simple Example“What are the names of the people that marko knows?”                                     B ...
A Pipes Detour - Simple ExamplePipe<Vertex,Edge> pipe1 = new OutEdgesPipe("knows");Pipe<Edge,Vertex> pipe2 = new InVertexP...
A Pipes Detour - Pipes Library                       [ GRAPHS ]           [ SIDEEFFECTS ][ FILTERS ]            OutEdgesPi...
A Pipes Detour - Creating Pipespublic class NumCharsPipe extends AbstractPipe<String,Integer> {  public Integer processNex...
Now onto Gremlin proper...
The Gremlin Architecture   Neo4j   OrientDB   DEX
The Many Ways of Using Gremlin• Gremlin has a REPL to be run from the shell.• Gremlin can be natively integrated into any ...
Pipe = Step: 3 Generic StepsIn general a Pipe is a “step” in Gremlin. Gremlin is founded on a collectionof atomic steps. T...
Abstract/Derived/Inferred Adjacency                              outE                                         in          ...
Developers FOAF Import               Graph                                     Friend-Of-A-Friend                         ...
Integrating the JDK (Java API)• Groovy is the host language for Gremlin. Thus, the JDK is natively  available in a path ex...
Time for a demomarko$ gremlin         ,,,/         (o o)-----oOOo-(_)-oOOo-----gremlin>                             Gremli...
Graph Bootcamp      http://markorodriguez.com/services/workshops/graph-bootcamp/• June 23-24th in Chicago, Illinois.• Augu...
