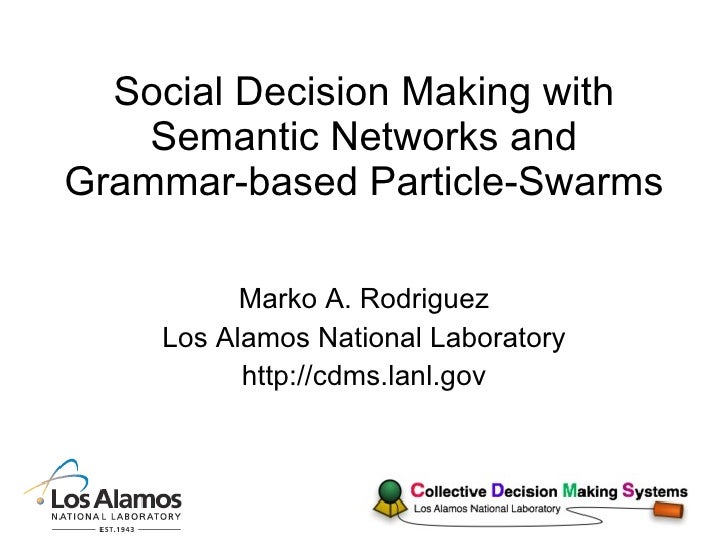

  1. 1. Social Decision Making with Semantic Networks and Grammar-based Particle-Swarms Marko A. Rodriguez Los Alamos National Laboratory http://cdms.lanl.gov
  2. 2. http://www.tagcrowd.com
  3. 3. Outline <ul><li>General Vote System Model </li></ul><ul><li>Proposed Semantic Network Ontology </li></ul><ul><ul><li>Tagging of individuals according to domains of trust and problems (issues) according domains </li></ul></ul><ul><li>Grammar-based Particle Swarms </li></ul><ul><ul><li>Rank solutions (options) by traversing the semantic network in a constrained manner. </li></ul></ul><ul><li>Dynamically Distributed Democracy </li></ul><ul><li>Complete System Model </li></ul>
  4. 4. General Vote System Model Direct Democracy Majority Wins
  5. 5. General Vote System Model Social networks to support fluctuating levels of participation
  6. 6. Semantic Network Defined <ul><li>Heterogeneous set of artifacts (nodes) and a heterogeneous set of relationships (edges). </li></ul><ul><li>An ontology abstractly defines the types of artifacts and set of possible relationships. </li></ul><ul><li>Requires “semantically-aware” graph algorithms for analysis. </li></ul>
  7. 7. Network Description <ul><li>Social Network - Individuals connected to one another by domains of trust. </li></ul><ul><li>Decision Network - Individuals connected to the problems (issues) they raise/categorize and solutions (options) they propose. </li></ul>Humans Decisions
  8. 8. Social Network Description <ul><li>Humans are related according to the domains in which they trust one another. </li></ul><ul><li>These domains can be top-down prescribed (taxonomy) or bottom-up defined (folksonomy). </li></ul><ul><li>Domains are related to one another by their subjective similarity or can be automatically related by various text analysis algorithms. </li></ul>
  9. 9. Social Network Ontology h_0 believes that h_2 will make a “good” decision. NOT USED - “warm up example”
  10. 10. Social Network Ontology h_0 believes that h_2 will make a “good” decision in the domain of economics , but not in the domain of politics . NOT USED - “warm up example” d_1 = economics d_0 = politics
  11. 11. Social Network Ontology h_0 believes that h_2 will make a “good” decision in the domain of d_1 ( economics ), but not in the domain of d_0 ( politics ). NOT USED - “warm up example”
  12. 12. Social Network Ontology h_0 believes that h_2 will make a “good” decision in the domain d_1 ( economics ) and furthermore, that d_0 ( politics ) is similar to d_1.
  13. 13. Decision Network Description <ul><li>Humans raise problems (issues). </li></ul><ul><li>Humans categorize problems in particular domains. </li></ul><ul><li>Humans propose solutions to problems (options). </li></ul><ul><li>Humans vote on solutions. </li></ul>
  14. 14. Decision Network Ontology h_1 created problem p_0. h_0 proposed s_0 as a potential solution to p_0. h_2 categorized p_0 as in the domain d_0 and has voted on proposed solution s_2.
  15. 15. Grammar-Based Particles <ul><li>The purpose of the particle swarm is to calculate a stationary probability distribution in a subset of the full decision making network. </li></ul><ul><ul><li>eigenvector centrality, ?PageRank?, discrete form of constrained spreading activation. </li></ul></ul><ul><li>The propagation of the particle is constrained by its grammar. </li></ul>
  16. 16. Grammar-Based Particles <ul><li>Each particle has an abstract model of its allowed node and edge traversals (e.g. only take votedOn edges, or only go to Human nodes). </li></ul><ul><li>This can be represented as a finite state machine internal to the particle (aka. a grammar) </li></ul><ul><li>Each collective decision making algorithm is represented by a different grammar. </li></ul><ul><ul><li>Direct Democracy and Dynamically Distributed Democracy (DDD). </li></ul></ul><ul><ul><ul><li>(Representative Democracy, Dictatorship, Proxy Vote) </li></ul></ul></ul>
  17. 17. Grammar-Based Particles Particle Direct Democracy
  18. 18. Grammar-Based Particles Particle Dynamically Distributed Democracy
  19. 19. Grammar-Based Particles Dynamically Distributed Democracy Rodriguez, M.A., Steinbock, D.J., “Societal-Scale Decision Making with Social Networks”, NACSOS, 2004.
  20. 20. Complete System Model
  21. 21. Conclusion http://cdms.lanl.gov/ http://www.soe.ucsc.edu/~okram/ http://en.wikipedia.org/wiki/Dynamically_Distributed_Democracy
