GSA Secretariat    Email: info@gsacom.com                          GSM/3G and LTE Market Update                           ...
Recent press releases from GSA  Press releases:  www.gsacom.com/news/index.php4     February 9, 2011: GSA Confirms 63 LTE ...
LTE: the fastest developing mobile system  technology ever !                                                              ...
GSA surveys referenced in this report   Status of the LTE ecosystem report                       February 9, 2011   Mobile...
Mobile broadband success stories globally    Traffic, revenue, profit growth across the world                             ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
GSM/WCDMA-HSPA success in all regions                                               Mobile subscriptions growth charts and...
3G growth    In Europe                          2012: 3G subscriptions will outnumber GSM               2014: around 70%...
WCDMA subscriptions growth worldwide   regional breakdown: Q2 2010                    Q4 2010 (provisional): 632 million ...
3GPP radio access evolution                                                                                               ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
WCDMA is the leading 3G system globally                Over 99% of WCDMA operators have             commercially launched ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
www.gsacom.com           Global mobile Suppliers Association © 2011                                                       ...
HSPA mobile broadband eco-system - mainstream                                                     59% of devices support p...
www.gsacom.com           Global mobile Suppliers Association © 2011    GSM/3G Market Update – August 9, 2010GSM/3G and LTE...
GAMBoD: GSA’s analysis tool for HSPA devices  A GSA Member Benefit                         www.gsacom.com/gambod   Compreh...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
EDGE contributes to mobile broadband success   Most HSPA networks combine with EDGE    The majority of WCDMA-HSPA networ...
GSM/EDGE: a global, mature technology   Over 80% of commercial GPRS networks have committed to EDGE                      ...
EDGE Evolution   Evolved GERAN: drivers and goals    Operators stress service continuity as being very important    WCDMA...
Dual Carrier   The first step in evolving EDGE   Dual Carrier is the first step in evolving EDGE,   bringing the prospect...
UMTS900: HSPA deployed in the 900 MHz band Cost reduction in rural/suburban areas Improved in-building penetrationUMTS90...
Improved user experience of mobile broadband  and voice with UMTS900   UMTS900 operator case study                      “S...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
UMTS900 operator insights – Elisa FI     Recommended download – www.gsacom.com     UMTS900 Update: New Operator Insights  ...
HSPA850 networks in commercial service   Launched in Australia, The Philippines, Latin America                           ...
The roadmap for LTE         Excellent Mobile Broadband Today                     Enhanced User Experience         Voice an...
The industry direction is to LTE  - LTE is needed to accommodate huge traffic growth                                      ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
www.gsacom.com           Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011           ...
The LTE ecosystem is building                                               Source : GSA Report: Status of the LTE Ecosyst...
Spectrum for LTE deployments           An operator may introduce LTE in ‘new’ bands where it is easier to deploy 10 MHz o...
Other spectrum candidates for LTE                                LTE FDD     LTE FDD will most likely in future be deploye...
2.6 GHz: key LTE band for APAC, Europe, MEA, LatAm                           Telenor and Netcom acquired 2.6 GHz spectrum...
LTE1800: a promising option                                                                                               ...
LTE1800: a promising option   There is growing interest and momentum towards deploying LTE in re-farmed 1800 spectrum   Re...
Digital Dividend spectrum   Digital Dividend refers to the spectrum that becomes freed up as a result of the switchover fr...
Digital Dividend bands  New UHF Digital Dividend spectrum is becoming available in all regions            Region 1 (Europ...
Digital Dividend Update report from GSA   Regulatory plans, auctions, deployments globally   See GSA’s Digital Dividend ...
LTE system design  Downlink based on OFDMA: Orthogonal Frequency Division Multiple Access, for  improved spectral efficie...
3GPP LTE standard      LTE Release 8 Major Parameters      Access Scheme            UL        DFTS-OFDM                   ...
Evolution of the 3GPP core network     The 3GPP core network has also undergone System     Architecture Evolution (SAE) in...
Voice over LTE            Industry update:            Verizon Wireless announced the company is likely to add VoLTE functi...
LTE TDD           The LTE market will include LTE TDD as well as FDD systems        The China Mobile TD-SCDMA system cover...
LTE TDD is maturing towards commercialization   LTE TDD was showcased by China Mobile and leading industry partners at the...
LTE TDD trials in 2011     Clearwire (USA) has requested 3GPP to standardize LTE TDD for operation in 2496 – 2690 MHz and...
LTE: the main direction for the industry    LTE is the next generation network beyond 3G for mobile broadband, standardiz...
LTE: the single global standard      LTE is on track, attracting global industry support.          The first LTE systems...
LTE-Advanced     3GPP made a formal submission to the ITU in October 2009,     proposing that LTE Release 10 & beyond (LTE...
Data traffic growth exceeded all expectations  ….. and will grow a lot, lot more! Mobile operators moving to usage-based p...
Flat rate pricing    Operators have slashed prices by up to 90% within the space of 2 to 3 years    Depending on the cou...
Business model innovation: some possibilities   Bandwidth based tiers e.g. watch HD Video, user initiated, upsell and pro...
Summary and outlook    The new Internet is mobile; wireless connectivity is extending into new applications and environme...
Mobile HD Voice gaining momentum                                                                      15 operators commerc...
GSA’s Mobile HD Voice resources: www.gsacom.com                                                GSA report: Mobile HD Voic...
Key events supported by GSA                                               Stockholm, 12-13 April, 2011                    ...
Events supported by GSA                                        Discounts available to GSA members at most events          ...
GSA members white papers   Thought-leading   Produced in association with GSA   Free downloads via links on the home pa...
Follow GSA on Facebook, LinkedIN, Twitter    News, technology and market updates                                          ...
Visit the website to download key GSA reports –  free of charge  EDGE, HSPA, HSPA+, LTE: networks, devices  Spectrum inclu...
Upcoming SlideShare
Loading in...5
×

GSMA HSPA and LTE market update - March 2011

4,146

Published on

Published in: Business, Technology
0 Comments
4 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
4,146
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
305
Comments
0
Likes
4
Embeds 0
No embeds

No notes for slide

GSMA HSPA and LTE market update - March 2011

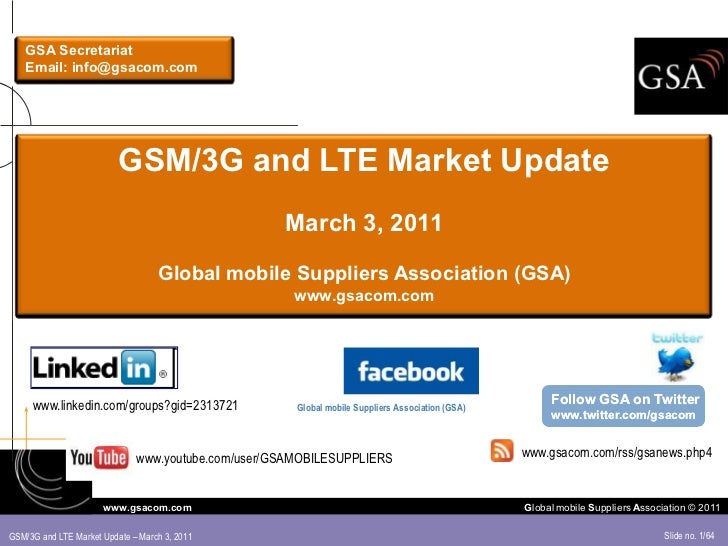

  1. 1. GSA Secretariat Email: info@gsacom.com GSM/3G and LTE Market Update March 3, 2011 Global mobile Suppliers Association (GSA) www.gsacom.com www.linkedin.com/groups?gid=2313721 Follow GSA on Twitter Global mobile Suppliers Association (GSA) www.twitter.com/gsacom www.youtube.com/user/GSAMOBILESUPPLIERS www.gsacom.com/rss/gsanews.php4 www.gsacom.com Global mobile Suppliers Association © 2011GSM/3G and LTE Market Update – March 3, 2011 Slide no. 1/64
